IBM CD-RW/DVD-ROM Combo Drive User Manual
IBM USB 2.0 CD-RW/DVD-ROM
Combo Drive
User’ s Guid e
IBM USB 2.0 CD-RW/DVD-ROM
Combo Drive
User’ s Guid e
©
US
Note
Before using this information and the product it supports, read Appendix B, “Service and Support,” Appendix C, “IBM
Statement of Limited Warranty - Z125-4753-07 - 11/2002,” and Appendix D, “Notices.”
First Edition (March 2004)
Copyright International Business Machines Corporation 2004. All rights reserved.
Government Users Restricted Rights – Use, duplication or disclosure restricted by GSA ADP Schedule Contract
with IBM Corp.
CD
©
Contents
Safety . . . . . . . . . . . . . . .v
General safety guidelines . . . . . . . vii
Service . . . . . . . . . . . . . . . . vii
Power cords and power adapters . . . . . . . vii
Extension cords and related devices . . . . . . viii
Plugs and outlets . . . . . . . . . . . . viii
Batteries . . . . . . . . . . . . . . . viii
Heat and product ventilation . . . . . . . .ix
and DVD drive safety . . . . . . . . . .ix
About this book . . . . . . . . . . .xi
Registering your option . . . . . . . . . .xi
Chapter 1. Combo Drive quick install 1-1
Product description . . . . . . . . . . . 1-1
Hardware and software requirements . . . . . 1-2
Power mode configurations . . . . . . . . . 1-2
Configuration 1: self power (AC adapter)
configuration . . . . . . . . . . . . 1-3
Configuration 2: auxiliary USB power
configuration . . . . . . . . . . . . 1-4
Configuration 3: standard USB bus power
configuration . . . . . . . . . . . . . 1-5
Requirements . . . . . . . . . . . . 1-5
Specifications . . . . . . . . . . . . 1-5
Playing back the audio CD . . . . . . . . . 5-3
Windows 2000 . . . . . . . . . . . . 5-3
Windows XP . . . . . . . . . . . . . 5-5
Chapter 6. Application software . . . . 6-1
Chapter 7. Using the Combo Drive . . 7-1
Before you begin . . . . . . . . . . . . 7-1
Handling and caring for a disc . . . . . . . . 7-1
Caring for the Combo Drive . . . . . . . . 7-2
Cleaning the drive . . . . . . . . . . . . 7-2
Using the drive . . . . . . . . . . . . . 7-2
Using single and double-sided DVD-RAM
media . . . . . . . . . . . . . . . 7-2
Precautions for handling . . . . . . . . . 7-2
Using the drive with CDs and DVDs . . . . . 7-3
Using the DVD player software . . . . . . . 7-3
Using the DVD function . . . . . . . . . . 7-3
Enabling driver letter access (DLA) . . . . . . 7-3
Installing WinDVD and viewing a DVD movie . . 7-4
DVD region codes . . . . . . . . . . . 7-4
Starting WinDVD . . . . . . . . . . . . 7-5
Using the CD-R and CD-RW function . . . . . 7-5
Using the DVD+R, DVD+RW, DVD-R, DVD-RW,
and DVD-RAM function (read only) . . . . . . 7-5
Backing up a CD . . . . . . . . . . . . 7-6
Problem solving . . . . . . . . . . . . 7-6
Chapter 2. Cabling the Combo Drive to
the ThinkPad computer . . . . . . . 2-1
Chapter 3. Features . . . . . . . . . 3-1
Chapter 4. Preparing to use the
Combo Drive . . . . . . . . . . . . 4-1
Chapter 5. Combo Drive hardware
installation and removal in Windows
2000 and Windows XP . . . . . . . . 5-1

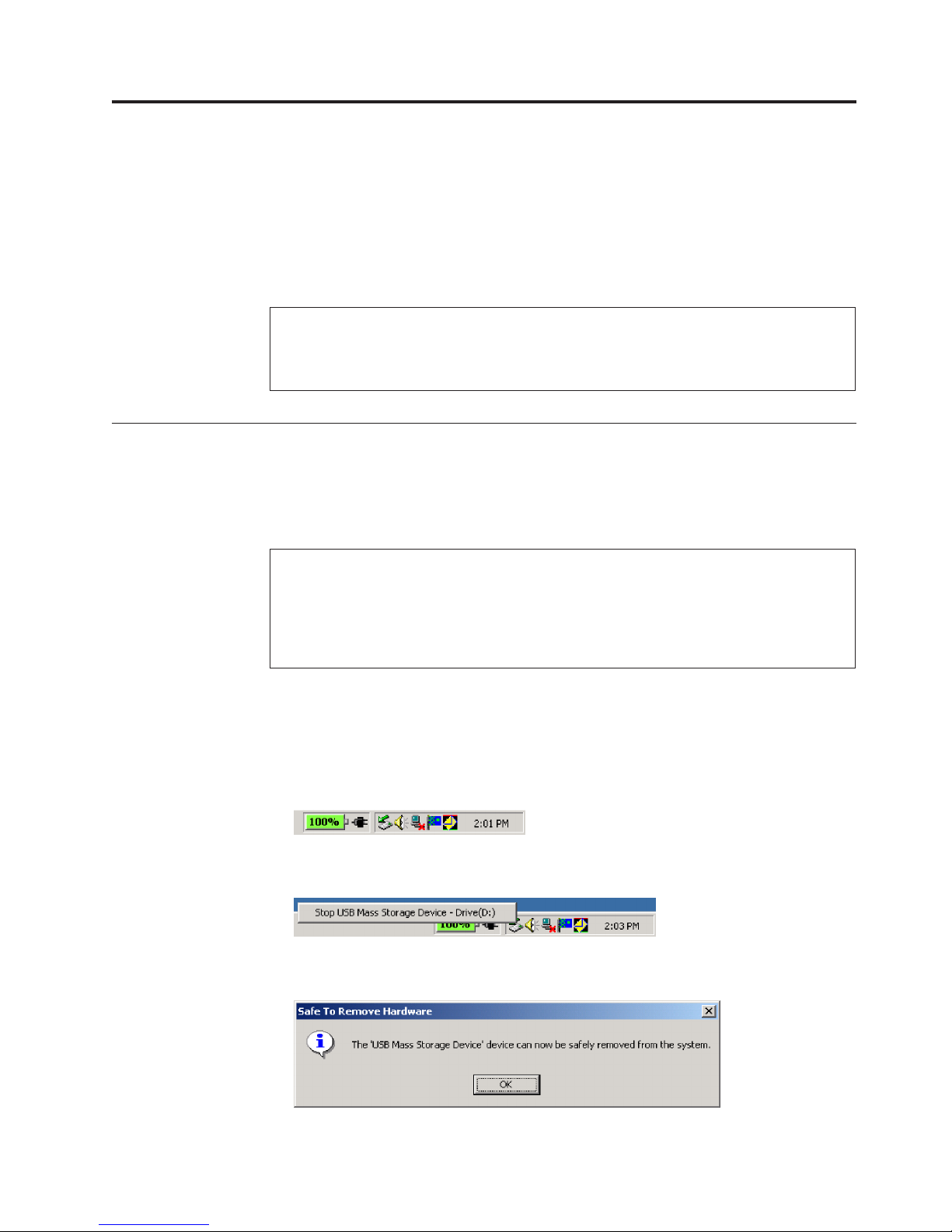

Removing the Combo Drive hardware . . . . . 5-1
Windows 2000 . . . . . . . . . . . . 5-1
Windows XP . . . . . . . . . . . . . 5-2
Setting the media . . . . . . . . . . . . 5-2
Ejecting the media . . . . . . . . . . . . 5-2
Appendix A. Product specifications
A-1
Appendix B. Service and Support . . . B-1
Online technical support . . . . . . . . . . B-1
Telephone technical support . . . . . . . . B-1
Appendix C. IBM Statement of Limited
Warranty - Z125-4753-07 - 11/2002 . . C-1
Part 2 - Country-unique Terms . . . . . . . C-4
Part 3 - Warranty Information . . . . . . . C-15
Appendix D. Notices . . . . . . . . D-1
Trademarks . . . . . . . . . . . . . . D-2
Electronic emission notices . . . . . . . . . D-2
Federal Communications Commission (FCC)
statement . . . . . . . . . . . . . D-2
Copyright IBM Corp. 2004
iii
iv
IBM USB 2.0 CD-RW/DVD-ROM Combo Drive: User’s Guide
©
Safety
Before installing this product, read the Safety Information.
Antes de instalar este produto, leia as Informações de Segurança.
Pred instalací tohoto produktu si prectete prírucku bezpecnostních instrukcí.
Læs sikkerhedsforskrifterne, før du installerer dette produkt.
Ennen kuin asennat tämän tuotteen, lue turvaohjeet kohdasta Safety Information.
Avant d’installer ce produit, lisez les consignes de sécurité.
Vor der Installation dieses Produkts die Sicherheitshinweise lesen.
Prima di installare questo prodotto, leggere le Informazioni sulla Sicurezza.
Lees voordat u dit product installeert eerst de veiligheidsvoorschriften.
Les sikkerhetsinformasjonen (Safety Information) før du installerer dette produktet.
Antes de instalar este produto, leia as Informações sobre Segurança.
Antes de instalar este producto lea la información de seguridad.
Copyright IBM Corp. 2004
v
vi
Läs säkerhetsinformationen innan du installerar den här produkten.
IBM USB 2.0 CD-RW/DVD-ROM Combo Drive: User’s Guide
Do
as
Do
on
Do
of
©
General safety guidelines
Always observe the following precautions to reduce the risk of injury and property
damage.
Service
not attempt to service a product yourself unless instructed to do so by the IBM
Support Center. Use only an IBM authorized service provider who is approved to
repair your particular product.
Note: Some parts can be upgraded or replaced by the customer. These parts are
referred to as Customer Replaceable Units, or CRUs. IBM expressly identifies CRUs
such, and provides documentation with instructions when it is appropriate for
customers to replace those parts. You must closely follow all instructions when
performing such replacements. Always make sure that the power is turned off and
that the product is unplugged from any power source before you attempt the
replacement. If you have any questions or concerns, contact the IBM Support
Center.
Power cords and power adapters
Use only the power cords and power adapters supplied by the product
manufacturer.
Never wrap a power cord around the power adapter or other object. Doing so can
stress the cord in ways that can cause the cord to fray, crack or crimp. This can
present a safety hazard.
Always route power cords so that they will not be walked on, tripped over, or
pinched by objects.
Protect the cord and power adapters from liquids. For instance, do not leave your
cord or power adapter near sinks, tubs, toilets, or on floors that are cleaned with
liquid cleansers. Liquids can cause a short circuit, particularly if the cord or power
adapter has been stressed by misuse. Liquids can also cause gradual corrosion of
the power cord terminals and/or the connector terminals on the adapter which can
eventually result in overheating.
Always connect power cords and signal cables in the correct order and ensure that
all power cord connectors are securely and completely plugged into receptacles.
not use any power adapter that shows corrosion at the ac input pins and/or
shows signs of overheating (such as deformed plastic) at the ac input or anywhere
the power adapter.
not use any power cords where the electrical contacts on either end show signs
corrosion or overheating or where the power cord appears to have been
damaged in any way.
Copyright IBM Corp. 2004
vii
If a
Do
to
by
Be
in a
Extension cords and related devices
Ensure that extension cords, surge protectors, uninterruptible power supplies, and
power strips that you use are rated to handle the electrical requirements of the
product. Never overload these devices. If power strips are used, the load should
not exceed the power strip input rating. Consult an electrician for more
information if you have questions about power loads, power requirements, and
input ratings.
Plugs and outlets
receptacle (power outlet) that you intend to use with your computer
equipment appears to be damaged or corroded, do not use the outlet until it is
replaced by a qualified electrician.
not bend or modify the plug. If the plug is damaged, contact the manufacturer
obtain a replacement.
Batteries
Some products are equipped with a three-pronged plug. This plug fits only into a
grounded electrical outlet. This is a safety feature. Do not defeat this safety feature
trying to insert it into a non-grounded outlet. If you cannot insert the plug into
the outlet, contact an electrician for an approved outlet adapter or to replace the
outlet with one that enables this safety feature. Never overload an electrical outlet.
The overall system load should not exceed 80 percent of the branch circuit rating.
Consult an electrician for more information if you have questions about power
loads and branch circuit ratings.
sure that the power outlet you are using is properly wired, easily accessible,
and located close to the equipment. Do not fully extend power cords in a way that
will stress the cords.
Connect and disconnect the equipment from the electrical outlet carefully
All IBM personal computers contain a non-rechargeable coin cell battery to provide
power to the system clock. In addition many mobile products such as Thinkpad
notebook PCs utilize a rechargeable battery pack to provide system power when in
portable mode. Batteries supplied by IBM for use with your product have been
tested for compatibility and should only be replaced with IBM approved parts.
Never attempt to open or service any battery. Do not crush, puncture, or incinerate
batteries or short circuit the metal contacts. Do not expose the battery to water or
other liquids. Only recharge the battery pack strictly according to instructions
included in the product documentation.
Battery abuse or mishandling can cause the battery to overheat, which can cause
gasses or flame to “vent” from the battery pack or coin cell. If your battery is
damaged, or if you notice any discharge from your battery or the buildup of
foreign materials on the battery leads, stop using the battery and obtain a
replacement from the battery manufacturer.
Batteries can degrade when they are left unused for long periods of time. For some
rechargeable batteries (particularly Lithium Ion batteries), leaving a battery unused
discharged state could increase the risk of a battery short circuit, which could
viii
IBM USB 2.0 CD-RW/DVD-ROM Combo Drive: User’s Guide
v Do
a
v Do
in
v
CD
v
v
v
v Do
v
shorten the life of the battery and can also pose a safety hazard. Do not let
rechargeable Lithium-Ion batteries completely discharge or store these batteries in a
discharged state.
Heat and product ventilation
Computers generate heat when turned on and when batteries are charging.
Notebook PCs can generate a significant amount of heat due to their compact size.
Always follow these basic precautions:
not leave the base of your computer in contact with your lap or any part of
your body for an extended period when the computer is functioning or when
the battery is charging. Your computer produces some heat during normal
operation. Extended contact with the body could cause discomfort or, potentially,
skin burn.
not operate your computer or charge the battery near flammable materials or
explosive environments.
Ventilation slots, fans and/or heat sinks are provided with the product for safety,
comfort, and reliable operation. These features might inadvertently become
blocked by placing the product on a bed, sofa, carpet, or other flexible surface.
Never block, cover or disable these features.
CD and DVD drive safety
and DVD drives spin discs at a high speed. If a CD or DVD is cracked or
otherwise physically damaged, it is possible for the disc to break apart or even
shatter when the CD drive is in use. To protect against possible injury due to this
situation, and to reduce the risk of damage to your machine, do the following:
Always store CD/DVD discs in their original packaging
Always store CD/DVD discs out of direct sunlight and away from direct heat
sources
Remove CD/DVD discs from the computer when not in use
not bend or flex CD/DVD discs, or force them into the computer or their
packaging
Check CD/DVD discs for cracks before each use. Do not use cracked or
damaged discs
General safety guidelines
ix
x
IBM USB 2.0 CD-RW/DVD-ROM Combo Drive: User’s Guide
v
v
v
v
v
v
v
v
v
v
v
v
©
About this book
This manual contains instructions for installing the IBM
CD-RW/DVD-ROM Combo Drive hardware for the three power mode
configurations that the Combo Drive supports.
This manual provides installation instructions in the following languages:
Brazilian Portuguese
Czech
English
French
German
Italian
Japanese
Simplified Chinese
Slovak
Spanish
Traditional Chinese
Turkish
Registering your option
Thank you for purchasing this IBM product. Please take a few moments to register
your product and provide us with information that will help IBM to better serve
you in the future. Your feedback is valuable to us in developing products and
services that are important to you, as well as in developing better ways to
communicate with you. Register your option on the IBM Web site at:
®
USB 2.0
Copyright IBM Corp. 2004
http://www.ibm.com/pc/register/
IBM will send you information and updates on your registered product unless you
indicate on the Web site questionnaire that you do not want to receive further
information.
xi
xii
IBM USB 2.0 CD-RW/DVD-ROM Combo Drive: User’s Guide
CD
In
v
v
v
v
v
v
©
Chapter 1. Combo Drive quick install
This chapter contains instructions for installing the IBM USB 2.0
CD-RW/DVD-ROM Combo Drive.

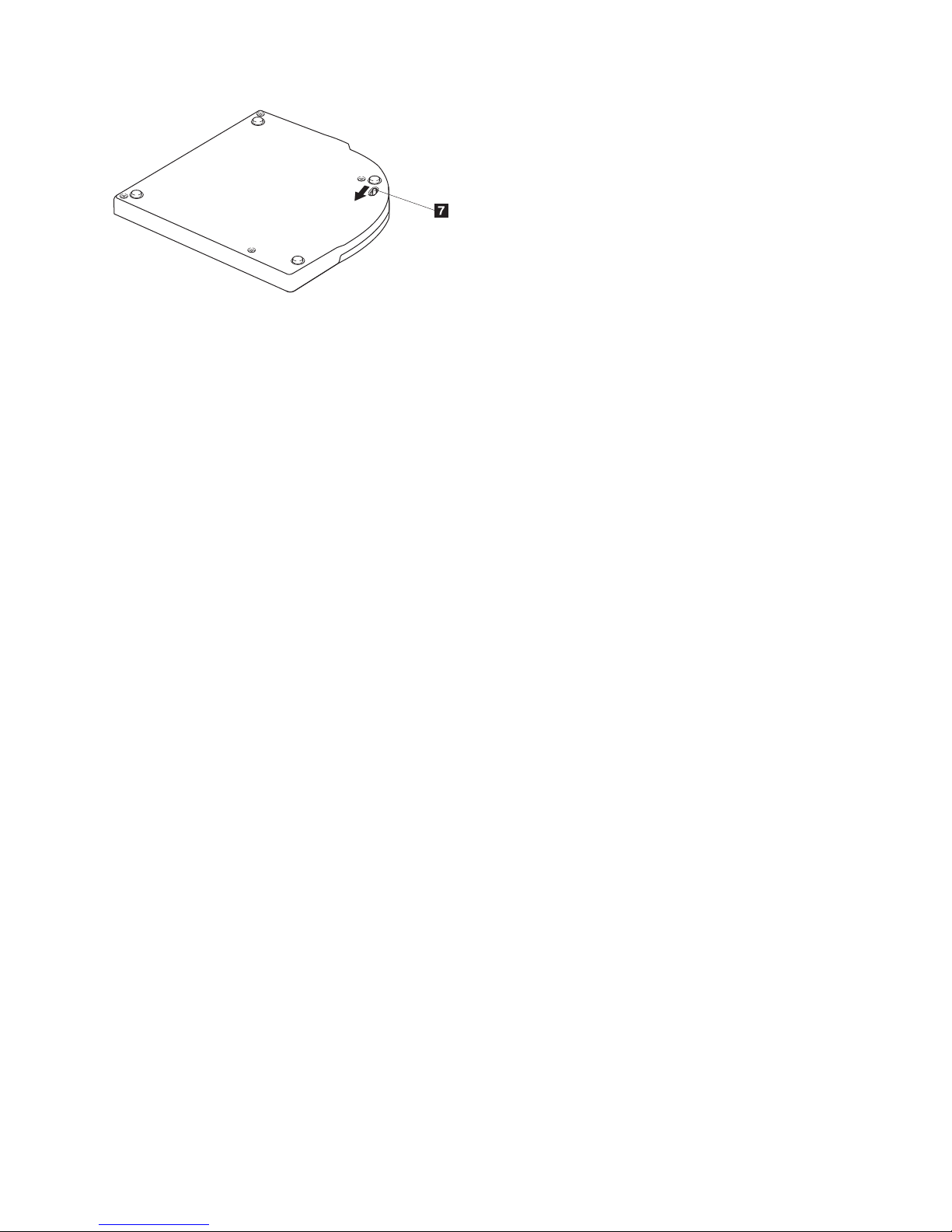

Product description
The IBM USB 2.0 CD-RW/DVD-ROM Combo Drive is a slimline DVD-ROM and
recordable drive that attaches quickly and conveniently to your IBM
ThinkPad
and requires connection to a USB 2.0 port. A maximum write speed of 24x
(CD-R/CD-RW media) can be obtained. Maximum read speeds of 8x (DVD media)
and 24x (CD media) can be obtained.
IBM USB 2.0 CD-RW/DVD-ROM Combo Drive
®
computer through a simple connection. The drive is a USB 2.0 device
addition to this manual, the option package includes:
Standard USB cable and power cable assembly (used for configuration 1 on page
1-3 and configuration 3 on page 1-5); IBM Part Number 22P9216
IBM powered USB 2.0 cable assembly (used for configuration 2 on page 1-4);
IBM Part Number 22P9217
Power adapter
IBM USB 2.0 CD-RW/DVD-ROM Combo Drive Software and Guide Super CD
Safety information manuals (two)
Copyright IBM Corp. 2004
1-1
v An
v
XP v
v
v
v
v
Carrying case
Contact your place of purchase if an item is missing or damaged. Be sure to retain
your proof of purchase and packing material. They might be required to receive
warranty service.
Hardware and software requirements
You must have the following hardware installed on your ThinkPad computer in
order to use this option:
available USB 2.0 port
Note: An additional USB 2.0 port may be necessary for configuration 3 on page
1-5.
computer must have one of the following operating systems installed to use
Your
this option:
Microsoft
®
Windows
Microsoft Windows 2000 Professional (Service Pack 4 or later)
Note: The drive will not operate correctly unless Service Pack 4 or later is
installed.
Power mode configurations
This section provides installation instructions for the following configurations:
Configuration 1: self power (AC adapter)
Configuration 2: auxiliary USB power
Configuration 3: USB standard bus power
®
1-2
IBM USB 2.0 CD-RW/DVD-ROM Combo Drive: User’s Guide
v
v AC
To
1.
2.
3.
4.
Configuration 1: self power (AC adapter) configuration
The Combo Drive is usually used with the self power (AC adapter) configuration.
Requirements
Standard USB cable and power cable assembly (shipped with this option); IBM
Part Number 22P9216
adapter (shipped with this option)
Specifications
Read and write CD media and DVD read only media are supported.
Connecting the Combo Drive using configuration 1
connect the Combo Drive to your system, complete the following procedure.
Refer to Figure 1-1 during installation.
A
B
Figure 1-1. Configuration 1: self power (AC adapter) configuration
Turn on your computer.
Using the USB cable A, insert the cable plug 1 into the USB connector of
the drive.
Plug the standard USB connector 2 into the USB port of your computer.
Connect the AC adapter to the DC IN connector3 on the Combo Drive.
Note: USB cable B is not required for this configuration.
Chapter 1. Combo Drive quick install
1-3
v
v
To
1.
2.
3.
4.
Configuration 2: auxiliary USB power configuration
The auxiliary USB bus power configuration can be used on select IBM ThinkPad
computers equipped with the IBM powered USB 2.0 port.
Requirements
IBM powered USB 2.0 cable assembly (shipped with this option); IBM Part
Number 22P9217
IBM powered USB 2.0 port
Specifications
Read/write CD media and read only DVD media are supported.
Connecting the Combo Drive using configuration 2
connect the Combo Drive to your system, complete the following procedure.
Refer to Figure 1-2 during installation.
A
B
Figure 1-2. Configuration 2: auxiliary USB power configuration
Turn on your computer.
Using the USB cable A, insert the cable plug 1 into the USB connector of
the drive.
Slide the two connectors 2 together and insert the stacked USB and auxiliary
power connector into the powered USB 2.0 port on your computer (found on
select IBM ThinkPad systems).
Connect the other end of the cable B to the drive by inserting the plug3
into the DC IN connector on the Combo Drive.
1-4
IBM USB 2.0 CD-RW/DVD-ROM Combo Drive: User’s Guide
1) or
v
v
To
1.
2.
3.
4.
5.
Configuration 3: standard USB bus power configuration
The Combo Drive provides optimum performance under self power (configuration
auxiliary power (configuration 2), however the drive will support all
functions under standard USB bus power mode (read/write of CD-R/CD-RW
media and read only of DVD media).
Note: The read/write function under this configuration is not within the USB
standard regarding power specifications.
Requirements
Standard USB cable and power cable assembly (shipped with this option); IBM
Part Number 22P9216
Two free USB ports available on your system
Specifications
Read/write CD and read only DVD media are supported.
Connecting the Combo Drive using configuration 3
connect the Combo Drive to your system, complete the following procedure.
Refer to Figure 1-3 during installation.
A
B
Figure 1-3. Configuration 3: USB standard bus power configuration
Turn on your computer.
Using the USB cable A, insert the cable plug 1 into the USB connector of
the drive.
Plug the standard USB connector 2 into the USB port of your computer.
Using the USB cable B, insert the cable plug 3 into the DC IN connector of
the drive.
Plug the standard USB connector 4 into the USB port of your computer.
Chapter 1. Combo Drive quick install
1-5
1-6
IBM USB 2.0 CD-RW/DVD-ROM Combo Drive: User’s Guide
©
Chapter 2. Cabling the Combo Drive to the ThinkPad
computer
The following diagrams may be helpful when cabling the Combo Drive to your
ThinkPad computer. Please note that these diagrams might differ slightly from
your hardware.
1 USB cable and power cable assembly
2 Combo Drive
3 ThinkPad computer
4 Power adapter
Figure 2-1. Select IBM systems with AC power
Copyright IBM Corp. 2004
2-1
1 Combo Drive
2 IBM powered USB 2.0 cable assembly
3 ThinkPad computer
Figure 2-2. Select IBM systems with auxiliary USB powered port
1 USB cable and power cable assembly
2 Combo Drive
3 ThinkPad computer
Figure 2-3. Standard USB cable assembly (left side)
2-2
IBM USB 2.0 CD-RW/DVD-ROM Combo Drive: User’s Guide
1 USB cable and power cable assembly
2 ThinkPad computer
3 Combo Drive
Figure 2-4. Standard USB cable assembly (right side)
Chapter 2. Cabling the Combo Drive to the ThinkPad computer
2-3
