IBM BNT RackSwitch G8000 User Manual

򔻐򗗠򙳰 ®
BNT 1Gb/10Gb G8000 RackSwitch for IBM System x
IBM System x at-a-glance guide
BLADE Network Technologies’ (BNT) 1Gb/10Gb G8000 RackSwitch for IBM® System x® (Figure 1) is a Top of the Rack (TOR) switch that delivers unmatched line-rate Layer 2/3 performance at a very attractive price. It has 44x 1GbE RJ45 ports, four 1G SFP ports, and standard redundant power supplies along with up to four optional 10GbE SFP+ or CX4 ports. Unlike most rack equipment that cools from side to side, the RackSwitch G8000 has rear-to-front airflow that matches server airflow.
Figure 1. BNT 1Gb/10Gb G8000 RackSwitch for IBM System x
Did you know?
Did you know that:
z
BNT’s G8000 comes standard with redundant power supplies and rail kits.
z
BNT’s G8000 is designed specifically for the data center environment: airflow, high-availability hardware and software features, rich layer 2/3 functionality, and ease of management.
z
VMready is switch-resident software that reduces the complexity of configuring and managing virtual machines throughout the network.
z
BLADEOS software features deliver seamless, standards-based integration into existing upstream switches.
z
The G8000 supports stacking for up to six switches using a single switch image and configuration file that shares one IP address and one management interface.
BNT 1Gb/10Gb G8000 RackSwitch for IBM System x 1
Part number information
Table 1 lists the part numbers for ordering switches and additional options.
Table 1. IBM part numbers and feature codes for ordering
Description IBM part number
BNT 1Gb/10Gb G8000 RackSwitch for IBM System x 0446013
10G options
BNT RackSwitch G8000 Dual-port SFP+ XGE uplink module 46C3417
BNT RackSwitch G8000 Dual-port CX4 XGE uplink module 46C3421
SFP+ 10G Short Range Transceiver 46C3447
Molex Direct Attach Copper SFP+ Cable 0.5 m 59Y1932
Molex Direct Attach Copper SFP+ Cable 1 m 59Y1936
Molex Direct Attach Copper SFP+ Cable 3 m 59Y1940
Molex Direct Attach Copper SFP+ Cable 5 m 59Y1944
3 m Optical Cable 46D0153 10 m Optical Cable 46D0156 30 m Optical Cable 46D0159
1G options
SFP 100Base-T Copper Transceiver 81Y1618
SFP 100Base-SX Optical Transceiver 81Y1622
0.6 m Blue Cat5e Cable 40K5679
1.5 m Blue Cat5e Cable 40K8785
3 m Blue Cat5e Cable 40K5581
10 m Blue Cat5e Cable 40K8927
25 m Blue Cat5e Cable 40K8930
Note: Small form-factor pluggable plus (SFP+) and SFP transceivers are not included.
BNT 1Gb/10Gb G8000 RackSwitch for IBM System x 2
The module part numbers include (Table 2):
z
One BNT 1Gb/10Gb G8000 RackSwitch for IBM System x
z
Generic Rail Mount Kit (2-post)
z
BNT Horizontal Rack Mount Kit
z
BNT Mini-USB to DB9 serial cable (3 m)
z
Publication Group
z
Two power cords depending on the country of purchase (Make sure that you include in your configuration.)
Table 2. Module part numbers
39Y7917 Power Cord Europe AC plug 10A/250V; OPT
39Y7918 Power Cord Europe (Denmark) AC plug 10A/250V; OPT
39Y7919 Power Cord Europe (Switzerland) AC plug 10A/250V; OPT
39Y7920 Power Cord Europe (Israel) AC plug 10A/250V; OPT
39Y7922 Power Cord Europe (South Africa) AC plug 10A/250V; OPT
39Y7923 Power Cord UK AC plug 13A/250V; OPT
39Y7924 Power Cord Australia AC plug 10A/250V; OPT
39Y7925 Power Cord Korea AC plug 10A/250V; OPT
39Y7926 Power Cord Japan AC plug 10A/250V; OPT
39Y7927 Power Cord India AC plug 10A/250V; OPT
39Y7928 Power Cord China AC plug 16A/250V; OPT
39Y7929 Power Cord Brazil AC plug 16A/250V; OPT
39Y7930 Power Cord Uruguay/Argentina AC plug 16A/250V; OPT
39Y7931 Power Cord US/Canada AC plug 10A/250V; OPT
Table 3 shows additional transceivers and direct-attach cable options that are available directly through BNT and its distribution channel. These transceivers are in addition to the 10GBase-SR SFP+ and SFP transceivers available from IBM listed in Table 1.
Table 3. BNT part numbers for ordering SFP-based transceivers and cables
Description BNT part number
BLADE 1000Base-LX SFP Transceiver BN-CKM-S-LX
SFP+ 10G Long Range Transceiver BN-CKM-SP-LR
SFP+ Copper Direct Attach Cable (8.5 meters) BN-SP-CBL-8M5
If you would like to order any of these transceivers or cables, see the following webistes:
Transceivers: http://www.bladenetwork.net/Ethernet-Transceivers.htmlz
z
Cables: http://bladenetwork.net/SFP=Cable.html
BNT 1Gb/10Gb G8000 RackSwitch for IBM System x 3
Summary: BNT 1Gb/10Gb G8000 RackSwitch for IBM System x
The BNT 1Gb/10Gb G8000 RackSwitch offers the following benefits:
z
High performance: The G8000 provides up to 176 Gbps throughput and supports up to four 10G uplink ports for a very low oversubscription ratio.
z
Lower power and better cooling: The BNT G8000RackSwitch uses less power than two 60 W light bulbs -- a fraction of the power consumption of most competitive offerings. Unlike side-cooled switches, which can cause heat recirculation and reliability concerns, the G8000 RackSwitch rear-to-front cooling design reduces data center air conditioning costs by matching airflow to the server’s configuration in the rack. Variable speed fans assist in automatically reducing power consumption.
z
VM-aware network virtualization: BLADE VMready software on the switch reduces configuration complexity while significantly improving security levels in virtualized environments. VMready automatically detects virtual machine movement from one physical server to another, and instantly reconfigures each VM’s network policies across VLANs to keep the network up and running without interrupting traffic or impacting performance. VMready works with all leading hypervisors, such as VMware, Citrix Xen, and Microsoft.
z
Layer 3 functionality: The BNT switch includes Layer 3 functionality, which provides security and performance benefits, as inter-VLAN traffic stays within the chassis. This switch also provides the full range of Layer 3 static and dynamic routing protocols including Open Shortest Path First (OSPF) and Border Gateway Protocol (BGP) for enterprise customers.
z
Active MultiPath (AMP™): This effectively doubles bandwidth by allowing all uplink ports to be active/active, eliminating cross-stack traffic and providing up to 900Gbps aggregate bandwidth between servers. Built-in fault tolerance constant health checking ensures maximum availability.
z
Fault tolerance: These BNT switches learn alternate routes automatically and perform faster convergence in the unlikely case of a link, switch, or power failure. The switch uses proven technologies such as L2 trunk failover, advanced VLAN-based failover, VRRP, HotLink™, Uplink Failure Detection (UFD)™, IGMP V3 snooping, and OSPF.
z
Seamless interoperability: BNT switches interoperate seamlessly with other vendors' upstream switches. See the Tolly Functionality and Certification: RackSwitch G8000, G8100, and G8124 and Cisco Catalyst Interoperability Evaluation at
http://www.bladenetwork.net/userfiles/file/PDFs/Tolly209116BladeRackSwitchInteroperability.pdf.
z
Stacking: Cluster virtualization, single IP, and stacking of up to six virtual switches allow configuration of multiple switches as one, saving valuable time, IP addresses, and resources.
The BNT switch comes with an IBM limited three-year hardware warranty.
Features and specifications
In this section we list the features and specifications.
Performance
The performance features are:
z
Full Line rate performance
z
176 Gbps (full duplex) switching architecture
BNT 1Gb/10Gb G8000 RackSwitch for IBM System x 4
Hardware features
Figure 2 shows the front of the switch and Figure 3 shows the rear of the switch. The hardware features are:
z
Interface options: Fourty-four 10/100/1000 + 4 1G SFP ports
Two port expansion slots for uplink modulesz
Dual-port 10GbE SFP+ module z
z
Dual-port 10GbE CX-4 module
One fixed mini USB console portz
·
Figure 2. Front of switch
Figure 3. Rear of switch
Dimensions: 17.3” wide, 15” deep, 1 RU high
z
Weight: 5.45 kg (11.99 lb)z
Airflowz
z
Rear-to-front cooling
z
Redundant variable speed fans to reduce power draw
Power z
z
The AC-Powered BNT 1Gb/10Gb G8000 RackSwitch has dual load-sharing internal power modules, operating at 120 W, 50 – 60 Hz, 100 - 240 VAC auto switching per module.
z
The nominal power for the BNT switch is approximately 120 W.
BNT 1Gb/10Gb G8000 RackSwitch for IBM System x 5
Rack installation kitz
z
Two-port rail kits
z
Rail kit designed specific for IBM Intelligent Cluster
LEDsz
z
System LEDs to indicate status
z
Stacking LEDs to indicate master/member
Environmental specifications
The environmental specifications are:
z
Temperature: ambient operating: 0ºC to +40ºC
z
Relative humidity: non-condensing, operating 10 to 90%
z
Altitude: operating 3,050 m (10,000 feet)
z
Acoustic noise: less than 65 dB
z
Heat dissipation: 520 BTU/hour
z
Cable management
z
Intuitive LEDs for port identification and cable management
z
Server-like port orientations enable short and simple cabling
z
Mean time between failure (MTBF): 195,000 hrs with ambient operating temperature of 40ºC MTBF is calculated using the Telcordia Technologies Reliability Prediction Procedure for Electronic Equipment (SR-332 issue 2), Parts Count (method 1 case 1) failure rate data.
Software features
The software features are:
z
Security
z
802.1x with VLAN assignment
z
Private VLAN edge
z
RADIUS
z
TACACS+
z
Wire Speed Filtering
z
Flexible ACL combinations - L2-L4 criteria: Source and Destination MAC, IP, TCP/UDP Ports
z
SSH v1, v2
z
HTTPS Secure BBI
z
MAC address move notification
z
SCP
z
Shift B Boot menu (Password Recovery/ Factory Default)
VLANsz
z
Port-based VLAN
z
4096 VLAN IDs supported
z
1024 Active VLANs (802.1Q)
z
802.1x with Dynamic VLAN assignment
z
Private VLAN Edge
BNT 1Gb/10Gb G8000 RackSwitch for IBM System x 6
Trunkingz
z
LACP
z
Static Trunks (EtherChannel)
z
Configurable Trunk Hash algorithm
z
Cross Stack Trunks
z
Trunk Hashing support (RTAG 7)
Spanning Treez
z
Multiple Spanning Tree (802.1s)
z
Rapid Spanning Tree (802.1w)
z
Fast Uplink Convergence
z
PVRST+
Quality of service (QoS)z
z
QoS 802.1p
z
DSCP
z
Weighted round-robin
z
Metering
z
4 MB buffers for queuing
Routing protocolsz
z
128 static routes
z
Layer 2/3 static routes
z
RIP v1/v2
z
OSPF v3
z
BGP
z
IPv6
High availabilityz
z
Uplink failure detection
z
Hot links
z
Virtual Router Redundancy support (VRRP)
z
Active Multipath™
z
Layer 2 failover
Multicast: IGMP v1, v2, v3 Snooping with 2 K IGMP groupsz
Monitoringz
z
Port mirroring
z
ACL-based mirroring
Version 5z
Virtualizationz
VMready VI API supportz
z
Virtual switch stacking with up to six switches
BNT 1Gb/10Gb G8000 RackSwitch for IBM System x 7
Management features
Clients:
z
BLADEHarmony Manager (optional)
z
isCLI (Cisco-like)
z
Browser-based client, SSH, or Telnet
Standard protocols
The standard protocols are:
z
SNMP v1, v2c, v3
z
RMON
z
Secondary NTP support
z
Accept DHCP
z
LLDP
z
16 K MAC table
z
9 K jumbo frames
z
802.3X flow control
Upgrades
The upgrades are:
z
Upgrade firmware via serial or TFTP
z
Dual software images
Popular configurations
Popular configurations are:
z
Rack-optimized server aggregation 1 GbE attached rack servers (Figure 4)
z
High-concentration of rack-optimized servers, for example:
z
System x 1U or 2U servers with a 1G adapter installed
z
System x 4U servers with multiple 1G connections per server
z
IBM BladeCenter® using any of the following modules in the chassis:
z
BNT Layer 2/3 Copper and Fiber Gigabit Ethernet Switch Modules for IBM BladeCenter
z
BNT Layer 2 - 7 Gigabit Ethernet Switch Module for IBM BladeCenter
z
BNT 1/10Gb Uplink Ethernet Switch Module for IBM BladeCenter
z
Intelligent Copper Pass-Thru Module for IBM BladeCenter
z
Server Connectivity Module for IBM BladeCenter
z
Low-profile, high-performance, 48-port GbE switch needed to perform aggregation function per rack
BNT 1Gb/10Gb G8000 RackSwitch for IBM System x 8

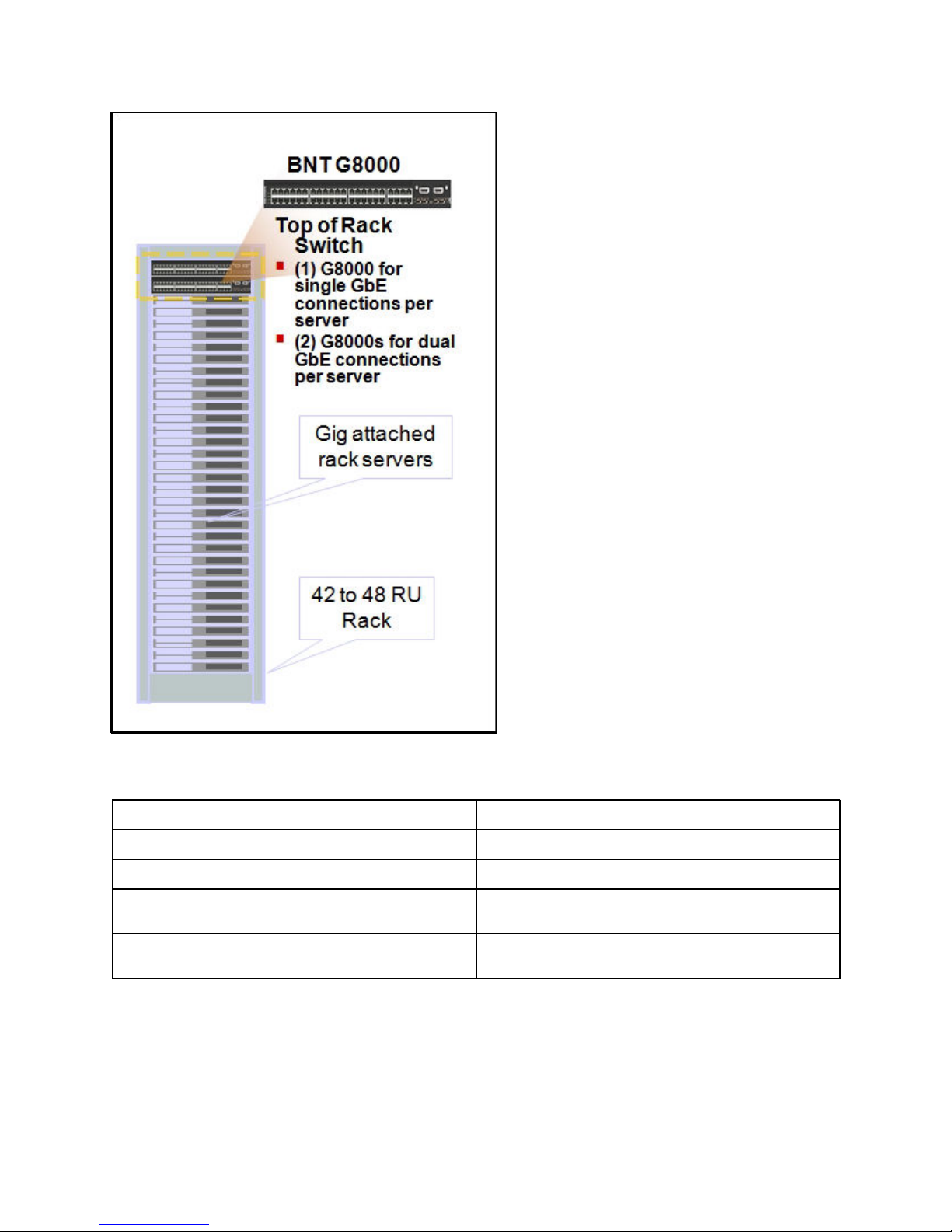

Figure 4. Rack optimized server aggregation 1GbE attached rack servers
Table 4. Features and benefits
Features Benefits
Line-rate, non-blocking, all 48 ports
Less than 4 micro-seconds latency Faster application response times.
Four 10GbE uplink ports (40 Gb bandwidth to the core or upstream switch)
Standards-based Layer 2/3 protocols, industry standard CLI
BNT 1Gb/10Gb G8000 RackSwitch for IBM System x 9
Supports massive compute and virtualization workloads
Minimal oversubscription: 1:08 (~1 to 1).
Interoperates with existing network. No learning curve.
.
z
Rack-optimized server aggregation logical design (Figure 5): The design goal is to interoperate with an existing Layer 2/3 switch and deploy BLADE G8000s at the Data Center Edge:
z
Logical configuration: Configure G8000s for Layer 2. Apply VLAN domains (1 and 2) at Core switches.
z
Full Layer 2/3 feature set: STP, MSTP, RSTP, PVRST+; RIP v1/2, static routes, and OSPF.
z
Security: 802.1X; RADIUS/TACACS+; Wire Speed ACLs, SSH v1, v2; HTTPS Secure BBI.
z
QoS: Up to eight queues/port, IEEE 802.1p and DiffServ prioritization.
Figure 5. Rack optimized server aggregation logical design
BNT 1Gb/10Gb G8000 RackSwitch for IBM System x 10
Related publications
_AG_
For more information see the following BNT 1Gb/10Gb G8000 RackSwitch for IBM System x product publications, available from:
http://www-947.ibm.com/systems/support/supportsite.wss/docdisplay?lndocid=MIGR-5084429&brandind =5000008
z
Application Guide: http://www.bladenetwork.net/userfiles/file/G8000
z
Command Reference: http://www.bladenetwork.net/userfiles/file/G8000_CR_6-3.pdf
z
isCLI Reference: http://www.bladenetwork.net/userfiles/file/G8000_IS_6-3.pdf
z
BBI (Browser-based Interface) Quick Guide:
http://www.bladenetwork.net/userfiles/file/G8000_BBI_6-3.pdf
z
Release Notes: http://downloads.bladenetwork.net/request?file=fe7gg9
z
End User License Agreement
z
Additional Product information: http://www.bladenetwork.net/IBMG8000.html
z
IBM US Announcement Letter:
http://www-01.ibm.com/common/ssi/cgi-bin/ssialias?infotype=AN&subtype=CA&htmlfid=897/ENUS11 0-136&appname=USN
6-3.pdf
BNT 1Gb/10Gb G8000 RackSwitch for IBM System x 11
Notices
/
©
This information was developed for products and services offered in the U.S.A.
IBM may not offer the products, services, or features discussed in this document in other countries. Consult your local IBM representative for information on the products and services currently available in your area. Any reference to an IBM product, program, or service is not intended to state or imply that only that IBM product, program, or service may be used. Any functionally equivalent product, program, or service that does not infringe any IBM intellectual property right may be used instead. However, it is the user's responsibility to evaluate and verify the operation of any non-IBM product, program, or service. IBM may have patents or pending patent applications covering subject matter described in this document. The furnishing of this document does not give you any license to these patents. You can send license inquiries, in writing, to:
IBM Director of Licensing, IBM Corporation, North Castle Drive, Armonk, NY 10504-1785 U.S.A.
The following paragraph does not apply to the United Kingdom or any other country where such provisions are inconsistent with local law: INTERNATIONAL BUSINESS MACHINES CORPORATION PROVIDES THIS
PUBLICATION "AS IS" WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF NON-INFRINGEMENT, MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. Some states do not allow disclaimer of express or implied warranties in certain transactions, therefore, this statement may not apply to you. This information could include technical inaccuracies or typographical errors. Changes are periodically made to the information herein; these changes will be incorporated in new editions of the publication. IBM may make improvements and described in this publication at any time without notice.
Any references in this information to non-IBM Web sites are provided for convenience only and do not in any manner serve as an endorsement of those Web sites. The materials at those Web sites are not part of the materials for this IBM product and use of those Web sites is at your own risk.IBM may use or distribute any of the information you supply in any way it believes appropriate without incurring any obligation to you. Information concerning non-IBM products was obtained from the suppliers of those products, their published announcements or other publicly available sources. IBM has not tested those products and cannot confirm the accuracy of performance, compatibility or any other claims related to non-IBM products. Questions on the capabilities of non-IBM products should be addressed to the suppliers of those products. This information contains examples of data and reports used in daily business operations. To illustrate them as completely as possible, the examples include the names of individuals, companies, brands, and products. All of these names are fictitious and any similarity to the names and addresses used by an actual business enterprise is entirely coincidental.
Any performance data contained herein was determined in a controlled environment. Therefore, the results obtained in other operating environments may vary significantly. Some measurements may have been made on development-level systems and there is no guarantee that these measurements will be the same on generally available systems. Furthermore, some measurement may have been estimated through extrapolation. Actual results may vary. Users of this document should verify the applicable data for their specific environment.
COPYRIGHT LICENSE:
This information contains sample application programs in source language, which illustrate programming techniques on various operating platforms. You may copy, modify, and distribute these sample programs in any form without payment to IBM, for the purposes of developing, using, marketing or distributing application programs conforming to the application programming interface for the operating platform for which the sample programs are written. These examples have not been thoroughly tested under all conditions. IBM, therefore, cannot guarantee or imply reliability, serviceability, or function of these programs.
or changes in the product(s) and/or the program(s)
Copyright International Business Machines Corporation 2010. All rights reserved.
Note to U.S. Government Users Restricted Rights -- Use, duplication or disclosure restricted by GSA ADP Schedule Contract with IBM Corp.
BNT 1Gb/10Gb G8000 RackSwitch for IBM System x 12
This document was created or updated on September 20, 2010.
Send us your comments in one of the following ways:
Use the online Contact us review form found at:
z
ibm.com/redbooks
Send your comments in an e-mail to:
z
redbook@us.ibm.com
Mail your comments to:
z
IBM Corporation, International Technical Support Organization Dept. HYTD Mail Station P099 2455 South Road Poughkeepsie, NY 12601-5400 U.S.A.
This document is available online at http://www.ibm.com/redbooks/abstracts/tips0786.html .
Trademarks
IBM, the IBM logo, and ibm.com are trademarks or registered trademarks of International Business Machines Corporation in the United States, other countries, or both. These and other IBM trademarked terms are marked on their first occurrence in this information with the appropriate symbol (® or ™), indicating US registered or common law trademarks owned by IBM at the time this information was published. Such trademarks may also be registered or common law trademarks in other countries. A current list of IBM trademarks is available on the Web at http://www.ibm.com/legal/copytrade.shtml
The following terms are trademarks of the International Business Machines Corporation in the United States, other countries, or both:
1350™ BladeCenter® IBM® Redpaper™ Redbooks (logo)® System x®
The following terms are trademarks of other companies:
Microsoft, and the Windows logo are trademarks of Microsoft Corporation in the United States, other countries, or both. Other company, product, or service names may be trademarks or service marks of others.
BNT 1Gb/10Gb G8000 RackSwitch for IBM System x 13
Loading...
