IBM 73P3309 User Manual
IBM Multi-Burner Plu s
User’ s Gui d e
IBM Multi-Burner Plu s
User’ s Gui d e
©
US
Note: Before using this information and the product it supports, be sure to read the information under
Appendix D, “Service and Support,” Appendix E, “IBM Statement of Limited Warranty - Z125-4753-07 - 11/2002,”
and Appendix F, “Notices.”
First Edition (May 2004)
Copyright International Business Machines Corporation 2004. All rights reserved.
Government Users Restricted Rights – Use, duplication or disclosure restricted by GSA ADP Schedule Contract
with IBM Corp.
CD
©
Contents
Safety: Read first . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .v
General safety guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . vii
Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . vii
Power cords and power adapters . . . . . . . . . . . . . . . . . . . . . . . . . . . . vii
Extension cords and related devices . . . . . . . . . . . . . . . . . . . . . . . . . . . vii
Plugs and outlets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . vii
Batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . viii
Heat and product ventilation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . viii
and DVD drive safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .ix
About this book . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .xi
Registering your product . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .xi
Chapter 1. Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1
Product description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1
Software description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1
Installation requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2
Before you begin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2
Handling precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2
Drive controls and connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
Chapter 2. Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1
Installing the drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1
Step 1. Opening the computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1
Step 2. Unpacking the drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1
Step 3. Setting the configuration jumpers . . . . . . . . . . . . . . . . . . . . . . . . 2-1
Step 4. Mounting the drive in the bay . . . . . . . . . . . . . . . . . . . . . . . . . 2-2
Step 5. Attaching the cables to the drive . . . . . . . . . . . . . . . . . . . . . . . . 2-2
Step 6. Completing the hardware installation . . . . . . . . . . . . . . . . . . . . . . . 2-3
Step 7. Installing the software . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3
Step 8. Setting up the system for CD playback . . . . . . . . . . . . . . . . . . . . . . 2-3
Using the drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3
Using recordable media . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3
Using single and double-sided DVD-RAM media . . . . . . . . . . . . . . . . . . . . . 2-4
Removing the disc from the cartridge . . . . . . . . . . . . . . . . . . . . . . . . . 2-4
Using CD-R and CD-RW discs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-5
Using the drive with CDs and DVDs . . . . . . . . . . . . . . . . . . . . . . . . . . 2-6
Securing a disc in a vertically mounted drive . . . . . . . . . . . . . . . . . . . . . . . 2-6
Manually ejecting a disc . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-7
Using the DVD Player software . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-7
Before using the software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-7
Using the DVD Player . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-7
Changing the DVD region code . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-7
Using drive letter access (DLA) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-8
Using the RecordNow software . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-8
RecordNow projects . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-9
Making a bootable CD or DVD . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-9
About CD and DVD images . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-9
Using Intervideo WinDVD Creator Plus . . . . . . . . . . . . . . . . . . . . . . . . . . 2-9
Maintaining the drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-10
Handling and caring for a disc . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-10
Caring for the drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-10
Copyright IBM Corp. 2004
iii
iv
Appendix A. Product specifications . . . . . . . . . . . . . . . . . . . . . . . A-1
Appendix B. Problem solving . . . . . . . . . . . . . . . . . . . . . . . . . B-1
Appendix C. Customizing the device driver configuration settings . . . . . . . . . C-1
Enabling DMA for Windows Me . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-1

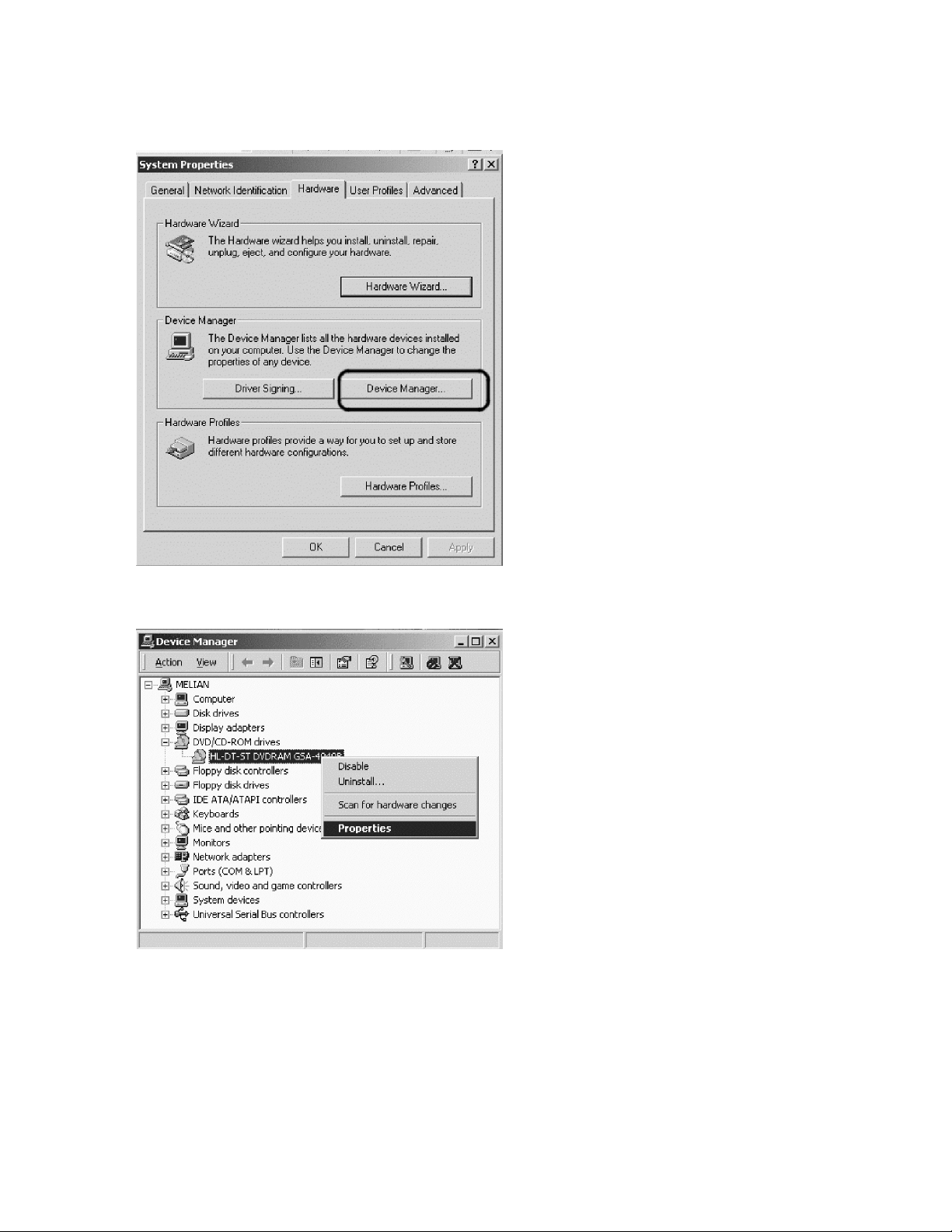

Enabling DMA for Windows 2000 Professional . . . . . . . . . . . . . . . . . . . . . . . C-1
Enabling DMA for Windows XP . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-2
Enabling digital audio extraction . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-2
Appendix D. Service and Support . . . . . . . . . . . . . . . . . . . . . . . . D-1
Online technical support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . D-1
Telephone technical support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . D-1
Appendix E. IBM Statement of Limited Warranty - Z125-4753-07 - 11/2002 . . . . . . E-1
Part 2 - Country-unique Terms . . . . . . . . . . . . . . . . . . . . . . . . . . . . E-4
Part 3 - Warranty Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . E-13
Appendix F. Notices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . F-1
Trademarks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . F-1
Electronic emissions notices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . F-2
Federal Communications Commission (FCC) statement . . . . . . . . . . . . . . . . . . . F-2
IBM Multi-Burner Plus User’s Guide
©
Safety: Read first
Before installing this product, read the Safety Information.
Antes de instalar este produto, leia as Informações de Segurança.
Pred instalací tohoto produktu si prectete prírucku bezpecnostních instrukcí.
Læs sikkerhedsforskrifterne, før du installerer dette produkt.
Ennen kuin asennat tämän tuotteen, lue turvaohjeet kohdasta Safety Information.
Avant d’installer ce produit, lisez les consignes de sécurité.
Vor der Installation dieses Produkts die Sicherheitshinweise lesen.
Prima di installare questo prodotto, leggere le Informazioni sulla Sicurezza.
Lees voordat u dit product installeert eerst de veiligheidsvoorschriften.
Les sikkerhetsinformasjonen (Safety Information) før du installerer dette produktet.
Antes de instalar este produto, leia as Informações sobre Segurança.
Antes de instalar este producto lea la información de seguridad.
Copyright IBM Corp. 2004
v
vi
Läs säkerhetsinformationen innan du installerar den här produkten.
IBM Multi-Burner Plus User’s Guide
Do
an
Do
Do
If a
©
General safety guidelines
Always observe the following precautions to reduce the risk of injury and property damage.
Service
not attempt to service a product yourself unless instructed to do so by the IBM HelpCenter. Use only
IBM authorized service provider who is approved to repair your particular product.
Note: Some parts can be upgraded or replaced by the customer. These parts are referred to as Customer
Replaceable Units, or CRUs. IBM expressly identifies CRUs as such, and provides documentation with
instructions when it is appropriate for customers to replace those parts. You must closely follow all
instructions when performing such replacements. Always make sure that the power is turned off and that
the product is unplugged from any power source before you attempt the replacement. If you have any
questions or concerns, contact the IBM HelpCenter.
Power cords and power adapters
Use only the power cords and power adapters supplied by the product manufacturer.
Never wrap a power cord around the power adapter or other object. Doing so can stress the cord in ways
that can cause the cord to fray, crack or crimp. This can present a safety hazard.
Always route power cords so that they will not be walked on, tripped over, or pinched by objects.
Protect the cord and power adapters from liquids. For instance, do not leave your cord or power adapter
near sinks, tubs, toilets, or on floors that are cleaned with liquid cleansers. Liquids can cause a short
circuit, particularly if the cord or power adapter has been stressed by misuse. Liquids can also cause
gradual corrosion of the power cord terminals and/or the connector terminals on the adapter which can
eventually result in overheating.
Always connect power cords and signal cables in the correct order and ensure that all power cord
connectors are securely and completely plugged into receptacles.
not use any power adapter that shows corrosion at the ac input pins and/or shows signs of
overheating (such as deformed plastic) at the ac input or anywhere on the power adapter.
not use any power cords where the electrical contacts on either end show signs of corrosion or
overheating or where the power cord appears to have been damaged in any way.
Extension cords and related devices
Ensure that extension cords, surge protectors, uninterruptible power supplies, and power strips that you
use are rated to handle the electrical requirements of the product. Never overload these devices. If power
strips are used, the load should not exceed the power strip input rating. Consult an electrician for more
information if you have questions about power loads, power requirements, and input ratings.
Plugs and outlets
receptacle (power outlet) that you intend to use with your computer equipment appears to be
damaged or corroded, do not use the outlet until it is replaced by a qualified electrician.
Copyright IBM Corp. 2004
vii
or to
Be
of a
v Do
v Do
v
Do not bend or modify the plug. If the plug is damaged, contact the manufacturer to obtain a
replacement.
Some products are equipped with a three-pronged plug. This plug fits only into a grounded electrical
outlet. This is a safety feature. Do not defeat this safety feature by trying to insert it into a non-grounded
outlet. If you cannot insert the plug into the outlet, contact an electrician for an approved outlet adapter
replace the outlet with one that enables this safety feature. Never overload an electrical outlet. The
overall system load should not exceed 80 percent of the branch circuit rating. Consult an electrician for
more information if you have questions about power loads and branch circuit ratings.
sure that the power outlet you are using is properly wired, easily accessible, and located close to the
equipment. Do not fully extend power cords in a way that will stress the cords.
Connect and disconnect the equipment from the electrical outlet carefully
Batteries
All IBM personal computers contain a non-rechargeable coin cell battery to provide power to the system
clock. In addition many mobile products such as Thinkpad notebook PCs utilize a rechargeable battery
pack to provide system power when in portable mode. Batteries supplied by IBM for use with your
product have been tested for compatibility and should only be replaced with IBM approved parts.
Never attempt to open or service any battery. Do not crush, puncture, or incinerate batteries or short
circuit the metal contacts. Do not expose the battery to water or other liquids. Only recharge the battery
pack strictly according to instructions included in the product documentation.
Battery abuse or mishandling can cause the battery to overheat, which can cause gasses or flame to
“vent” from the battery pack or coin cell. If your battery is damaged, or if you notice any discharge from
your battery or the buildup of foreign materials on the battery leads, stop using the battery and obtain a
replacement from the battery manufacturer.
Batteries can degrade when they are left unused for long periods of time. For some rechargeable batteries
(particularly Lithium Ion batteries), leaving a battery unused in a discharged state could increase the risk
battery short circuit, which could shorten the life of the battery and can also pose a safety hazard. Do
not let rechargeable Lithium-Ion batteries completely discharge or store these batteries in a discharged
state.
Heat and product ventilation
Computers generate heat when turned on and when batteries are charging. Notebook PCs can generate a
significant amount of heat due to their compact size. Always follow these basic precautions:
not leave the base of your computer in contact with your lap or any part of your body for an
extended period when the computer is functioning or when the battery is charging. Your computer
produces some heat during normal operation. Extended contact with the body could cause discomfort
or, potentially, a skin burn.
not operate your computer or charge the battery near flammable materials or in explosive
environments.
Ventilation slots, fans and/or heat sinks are provided with the product for safety, comfort, and reliable
operation. These features might inadvertently become blocked by placing the product on a bed, sofa,
carpet, or other flexible surface. Never block, cover or disable these features.
viii
IBM Multi-Burner Plus User’s Guide
CD
v
v
v
v Do
v
CD and DVD drive safety
and DVD drives spin discs at a high speed. If a CD or DVD is cracked or otherwise physically
damaged, it is possible for the disc to break apart or even shatter when the CD drive is in use. To protect
against possible injury due to this situation, and to reduce the risk of damage to your machine, do the
following:
Always store CD/DVD discs in their original packaging
Always store CD/DVD discs out of direct sunlight and away from direct heat sources
Remove CD/DVD discs from the computer when not in use
not bend or flex CD/DVD discs, or force them into the computer or their packaging
Check CD/DVD discs for cracks before each use. Do not use cracked or damaged discs
General safety guidelines
ix
x
IBM Multi-Burner Plus User’s Guide
v
v
v
v
v
v
v
v
v
v
v
v
v
v
v
v
v
©
About this book
This guide contains information on the IBM
®
Multi-Burner Plus, and is available in the following
languages:
Brazilian Portuguese
Czech
English
French
German
Italian
Japanese
Simplified Chinese
Slovak
Spanish
Traditional Chinese
Turkish
guide is divided into the following parts:
The
Chapter 1, ″Introduction″
This chapter contains product and software descriptions and installation requirements for the IBM
Multi-Burner Plus.
Chapter 2, ″Installation″
This chapter contains hardware and software installation instructions and operating information for the
IBM Multi-Burner Plus.
Appendixes
The appendixes contain information on
Product specifications
Problem solving
Customizing the device driver configuration settings
Help and service
Warranty and notices
sure to retain your proof of purchase. It might be required for warranty service.
Be
Registering your product
Thank you for purchasing this IBM product. Please take a few moments to register your product and
provide us with information that will help IBM to better serve you in the future. Your feedback is
valuable to us in developing products and services that are important to you, as well as in developing
better ways to communicate with you. Register your product on the IBM Web site at
http://www.ibm.com/pc/register
IBM will send you information and updates on your registered product unless you indicate on the Web
site questionnaire that you do not want to receive further information.
Copyright IBM Corp. 2004
xi
xii
IBM Multi-Burner Plus User’s Guide
v
v
v
v
v
v
v
v
v
v
If
v
if
©
Chapter 1. Introduction
This chapter contains product and software descriptions and installation requirements for the IBM
Multi-Burner Plus.
Product description
This option package is intended for multimedia applications. The drive comes with a CD containing
software for the following operating systems:
Microsoft
Microsoft Windows Millennium Edition (Me)
Microsoft Windows XP
Your
User’s Guide and Software CD (contains Multi-Burner Plus User’s Guide and Software Applications)
IBM Multi-Burner Plus Drive
Four mounting screws (M3 x 5-mm, slotted)
IDE cable
IBM Multi-Burner Plus Quick Start Guide
Laser Safety Guide
®
Windows
®
2000 Professional
option package contains the following:
Contact your place of purchase if an item is missing or damaged. Be sure to retain your proof of
purchase; it might be required to receive warranty service. See Appendix D, “Service and Support,” on
page D-1 for technical support information.
Your Multi-Burner Plus is compatible with the DVD Forum DVD-Multi Recorder specification, and can
record as well as read DVD-RAM, DVD-RW, and DVD-R (for General, 650 nm) media. Your drive can
also record and read the DVD+RW Alliance DVD+RW and DVD+R formats. In addition, your drive can
record CD-R, CD-RW, (Standard, High-Speed, Ultra-Speed, and Ultra-Speed+) media, and uses buffer
underrun prevention technology for reliable CD and DVD burning. Your Multi-Burner Plus can read
many other formats including DVD Video, Video CD, audio CD, multiple-session, extended architecture
(XA) CDs, and Kodak Photo CDs. The Multi-Burner Plus is designed for installation in a computer that
uses integrated drive electronics (IDE) or enhanced IDE (EIDE) architecture.
Software description
Your IBM Multi-Burner Plus User’s Guide and Software CD contains the following software:
Intervideo WinDVD Creator Plus
This software enables you to record video files to DVD-RW, DVD-R, DVD+RW, and DVD+R media
that can be played in most stand-alone DVD players. You can also use this software to edit and modify
your own video assets prior to recording. DVD-RAM recording is also supported.
you have an analog or IEEE 1394 capture device installed in your computer, you can use this
software to record video from a camera.
IBM Drive Letter Access (DLA)
This software enables you to write directly to CD and DVD media using the drive letter as you would
you were writing to a diskette. You can also format DVD-RAM, DVD-RW, DVD-R, DVD+RW, and
DVD+R media. With DLA, you can drag-and-drop files, create new directories, or save files from
almost any application directly to your Multi-Burner Plus.
Copyright IBM Corp. 2004
1-1
v
v
v
Be
v
or
v
v
v An
v An
v 70 MB
v
v
v
v
v
v Do
v
UDF reader
This software enables you to install software for reading DVD-RAM, DVD-RW, DVD+RW, and CD-RW
media on other computers with DVD drives.
IBM Record Now
This software enables you to copy CDs, create audio CDs, create MP3 CDs, and author data CDs. You
can also use RecordNow to write data to DVD-RAM, DVD-RW, DVD-R, DVD+RW, and DVD+R discs
for use in other computers or compatible consumer electronics products. You can also create bootable
CDs and save CD images for later recording.
IBM Simple Backup
This software enables you to create full or incremental backups of your system files on DVD-RAM,
DVD-RW, DVD-R, DVD+RW, DVD+R, CD-R, or CD-RW media, and allows you to restore your
computer if it crashes.
Intervideo WinDVD
This software enables you to play back DVD videos on your computer or to play video files from your
hard disk drive.
Note: Some graphics adapters such as the FIREGL, Intergraph, and 3dLabs, do not support DVD video
playback.
Installation requirements
sure that your computer meets the following system requirements before installing the drive:
Minimum microprocessor: Intel
®
Pentium
®
equivalent
For DVD authoring and playback, you must have an Intel Pentium II 266MHz microprocessor or
higher and AGP 2X Video.
Minimum RAM: 32 MB (Systems with UMA: 64 MB)
Windows 2000 Professional, Windows Me, or Windows XP
available 5.25-in. drive bay
available parallel IDE connection
available hard disk space for installation, 620 MB available hard disk space for every hour of
VCD-quality MPEG-1 video, and 2 GB available hard disk space for every hour of DVD-quality
MPEG-2 video
Screen resolution of at least 1024 x 768 pixels required for DVD authoring functions
Audio adapter supporting 44.1 or 48 kHz sampling rate
Optional stereo speakers
Before you begin
Before you install the Multi-Burner Plus, read the information in the following sections.
Handling precautions
Use the following handling precautions to protect your drive:
Keep the Multi-Burner Plus in the antistatic bag until you are ready to install the drive. Limit your
movement when installing; movement can cause static electricity to build.
Handle the drive with care. Dropping or jarring the drive can damage the components inside the drive.
not force insertion of the IDE or power cables. Doing so might damage the connector or the drive.
1-2
IBM Multi-Burner Plus User’s Guide
Drive controls and connectors
The following diagrams show the location and functions of the drive controls and connectors.
Front view of the drive
MULTIM U LTI
RECORDER
1Disc drawer
This drawer is where you load and unload a disc.
2Busy indicator
This light comes on when the drive reads from, writes to, or plays a disc.
3Emergency eject hole
This hole provides access to the eject mechanism to remove a disc from the drive.
4Open/Close button
This button opens and closes the disc drawer when you push it.
Rear view of the drive
Pin 1
1Reserved
2Audio-out connector
This connector transmits the analog audio signals to an audio adapter.
3Configuration pins
These pins are used to set the drive configuration.
4IDE port
This connects the drive to the IDE cable.
5Power connector
This connects the drive to the power cable.
Chapter 1. Introduction
1-3
1-4
IBM Multi-Burner Plus User’s Guide
1.
2.
3.
1.
2.
If
on
v
v
on
v
©
Chapter 2. Installation
This chapter contains hardware and software installation instructions and operating information for the
IBM Multi-Burner Plus.
Installing the drive
Complete the following steps to install the drive:
Step 1. Opening the computer
Turn off the computer and all attached devices.
Unplug all power cords from the computer and all attached devices.
Remove the cover from the computer. Refer to your computer documentation for instructions on
removing the computer cover.
Step 2. Unpacking the drive
Before opening the antistatic bag that the drive is packed in, touch the bag to an unpainted metal
surface for at least two seconds. This drains the static electricity from the package and your body.
Remove the drive from the bag.
you must put the drive down, place the antistatic bag on a flat, padded surface, and place the drive
the antistatic bag.
Step 3. Setting the configuration jumpers
You can configure your drive as master 1, slave 2, or cable-select 3, by placing the jumper over the
configuration pins as shown.
Use the following guidelines to determine the correct configuration for your drive.
Configure the drive as a master if it will be the only device that is connected to the IDE cable. This is
the preset configuration.
Configure the drive as a slave if it will be the second device on an IDE cable. Be sure to configure the
other device as a master. In some cases, a hard disk drive might require a “master with slave present”
jumper setting when another device on the same cable is configured as a slave. For more information
setting configuration jumpers on other devices, refer to the documentation that comes with your
computer.
Some computers use special ATA cables with two wires reversed in the device connectors so that the
drives can be configured by the cable instead of by jumper position. Use the cable-select position only
for computers that are equipped with these special cables. See the documentation that comes with your
computer to determine if your ATA adapter requires that you place the jumpers in the cable-select
position.
Copyright IBM Corp. 2004
2-1
Be
1.
2.
3.
1.
If
2.
Be
If you place the jumper in the cable-select position, the IDE cable automatically assigns the master and
slave settings based on the position of the drive on the cable. You must use the cable-select setting for
this cabling system whether the drive is the only device or the second device connected to the cable.
The drive closest to the IDE controller is automatically the master drive. Any other devices on the IDE
cable must also be set to cable-select.
Step 4. Mounting the drive in the bay
Attention
sure to use the M3 x 5-mm mounting screws in the option package when securing screws
directly into the drive. Using screws that are too long might damage the drive.
You can mount the drive horizontally or vertically in the computer. If you mount the drive vertically, you
must secure any discs that you place into the drive before the drive tray is closed, or the drive will not be
able to read the disc properly.
Slide the drive into the bay. Your computer might have required procedures for installing storage
devices. For more information on storage devices, refer to the documentation that comes with your
computer.
Align the drive-bay screw holes with the threaded holes in the drive housing or mounting bracket.
Thread the screws in loosely to check their position. Two screws are usually used on each side. Verify
that the alignment is correct; then tighten the screws to secure the drive. Do not overtighten.
Step 5. Attaching the cables to the drive
The following diagram shows where to connect the cables to the drive.
Attach a 40-pin IDE-cable connector 1to the IDE connector on the drive. Align the cable so that the
color-coded edge is closest to the power cable connector 2. Use the 80-conductor high speed IDE
cable that is provided with this option if there is no cable attached to the IDE port, if there is only one
device connector on the computer IDE cable, or if the existing cable in your computer is a low-speed
40-conductor type. The IDE cable can have up to three connectors. For the best signal quality when
you are connecting only one device to the IDE cable, connect one end of the cable to the IDE port,
and connect the other end of the cable to the device. Do not use the middle connector.
you are connecting two devices to the IDE cable, connect one end of the cable to the IDE port, and
connect the master and slave devices to the remaining connectors on the other end. Many computers
have two cables for attaching up to four ATA devices. For best performance, attach fast devices (hard
disk drives) to the cable that is connected to the primary IDE port, and connect the drive or other
slower devices (CD-ROM drives, tape drives, diskette drives) to the cable that is connected to the
secondary IDE port.
Attach a four-pin power cable 2to the power connector on the drive.
sure that the cables will not be pinched or crowded by the computer cover and that all other cable
and power connections are secure.
2-2
IBM Multi-Burner Plus User’s Guide
Loading...
