IBM 6623 User Manual

IntelliStation Z Pro

Type 6223

Installation Guide

Welcome. . .

Thank you for buying an IBM IntelliStation Z Pro computer.

This contains information for setting up, installing options, and configuring your computer. This book also contains information for every day use, and solving problems.

You can find the most current information about your computer on the IBM Web site at: http://www.ibm.com/pc/support/

Installation Guide

Set up the computer

Start the computer

Did the computer

start correctly?

Ye s

Do you plan

to use Windows XP or

Red Hat Linux ?

Ye s

Go to the Computer Support

flow chart

Install another

operating system

Complete the setup

program

System is ready to use.

• Register your computer: Go to http://www.ibm.com/pc/register/

• Install options and applications

Computer Support

Computer working

properly?

Ye s

Check all cables for loose connections and verify that all optional devices you installed are on the compatibility matrix. You can view the atcompatibility matrix

http://www.pc.ibm.com/us/compat/ intellistation/

Problem

solved?

Ye s

http://www.ibm.com/pc/register/

View information about IBM Support Line at

http://www.ibm.com/services/sl/products/

or view support telephone numbers at

http://www.ibm.com/planetwide/

View support telephone numbers at

http://www.ibm.com/planetwide/

Use the troubleshooting information provided with your computer to determine the cause of the problem and the action to take.

Problem

solved?

Ye s

Flash the latest levels of BIOS, and download the latest level of diagnostics. You can download this code at

http://www.ibm.com/pc/support/

Ye s

Problem

solved?

Hardware

Software

Hardware

or Software

problem?

IntelliStation Z Pro Ty pe 6223

Installation Guide



Note:

Before using this information and the product it supports, read the general information in Appendix B, “IBM Statement of Limited Warranty Z125-4753-07 11/2002,” on page 69 and Appendix C, “Notices,” on page 85.

First Edition (September 2004)

Government Users Restricted Rights – Use, duplication or disclosure restricted by GSA ADP Schedule Contract

with IBM Corp.

Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . .v

Chapter 1. Introduction . . . . . . . . . . . . . . . . . . . . . .1

The IBM IntelliStation Documentation CD . . . . . . . . . . . . . . .3

Hardware and software requirements . . . . . . . . . . . . . . . .3

Using the Documentation Browser . . . . . . . . . . . . . . . . .3

Related documentation . . . . . . . . . . . . . . . . . . . . . .4

Notices and statements used in this document . . . . . . . . . . . . . .5

Inventory checklist . . . . . . . . . . . . . . . . . . . . . . . .5

Features and specifications . . . . . . . . . . . . . . . . . . . . .6

Controls, LEDs, and connectors . . . . . . . . . . . . . . . . . . .7

Chapter 2. Installing the hardware . . . . . . . . . . . . . . . . .9

Selecting a location for your computer . . . . . . . . . . . . . . . . .9

Arranging your workspace . . . . . . . . . . . . . . . . . . . . .9

Comfort . . . . . . . . . . . . . . . . . . . . . . . . . . .9

Glare and lighting . . . . . . . . . . . . . . . . . . . . . . .9

Air circulation . . . . . . . . . . . . . . . . . . . . . . . .10

Electrical outlets and cable lengths . . . . . . . . . . . . . . . .10

Installing options . . . . . . . . . . . . . . . . . . . . . . . .10

Installation guidelines . . . . . . . . . . . . . . . . . . . . .10

Major components of your computer . . . . . . . . . . . . . . . .12

System-board option connectors . . . . . . . . . . . . . . . . .13

System-board internal connectors . . . . . . . . . . . . . . . . .14

System-board external connectors . . . . . . . . . . . . . . . . .15

Removing the side cover . . . . . . . . . . . . . . . . . . . .16

Removing the bezel . . . . . . . . . . . . . . . . . . . . . .17

Installing an adapter . . . . . . . . . . . . . . . . . . . . . .18

Cabling an optional SCSI adapter . . . . . . . . . . . . . . . . .21

Installing a drive . . . . . . . . . . . . . . . . . . . . . . .22

Installing memory modules . . . . . . . . . . . . . . . . . . .32

Installing a second microprocessor . . . . . . . . . . . . . . . .35

Installing a security rope clip . . . . . . . . . . . . . . . . . . .39

Replacing the bezel . . . . . . . . . . . . . . . . . . . . . .40

Replacing the side cover . . . . . . . . . . . . . . . . . . . .41

Completing the installation . . . . . . . . . . . . . . . . . . . . .41

Cabling the computer . . . . . . . . . . . . . . . . . . . . .41

Turning on the computer . . . . . . . . . . . . . . . . . . . .42

Running the operating-system setup program . . . . . . . . . . . .43

Turning off the computer . . . . . . . . . . . . . . . . . . . . .44

Chapter 3. Installing software . . . . . . . . . . . . . . . . . . .47

Viewing the license agreement . . . . . . . . . . . . . . . . . . .47

Using the built-in configuration programs . . . . . . . . . . . . . . .47

Starting the Configuration/Setup Utility program . . . . . . . . . . . .48

Starting the Boot Menu program . . . . . . . . . . . . . . . . .48

Enabling the Broadcom NetXtreme Gigabit Ethernet Boot Agent . . . . . .49

Using the Adaptec HostRAID configuration programs . . . . . . . . . .49

Using ServeRAID Manager . . . . . . . . . . . . . . . . . . . .52

Configuring the controller . . . . . . . . . . . . . . . . . . . .52

Viewing the configuration . . . . . . . . . . . . . . . . . . . .53

Configuring the Gigabit Ethernet controller . . . . . . . . . . . . . . .54

Starting the SCSISelect utility program (some models) . . . . . . . . . .54

iii

Chapter 4. Completing the installation . . . . . . . . . . . . . . .55

Recording important numbers . . . . . . . . . . . . . . . . . . .55

Registering your computer . . . . . . . . . . . . . . . . . . . . .55

Creating an emergency recovery-repair diskette in Windows . . . . . . . .55

Creating an IBM Enhanced Diagnostics Diskette in Windows . . . . . . . .56

Chapter 5. Solving problems . . . . . . . . . . . . . . . . . . .59

Diagnostic tools overview . . . . . . . . . . . . . . . . . . . . .59

Power-on self-test (POST) . . . . . . . . . . . . . . . . . . . . .60

POST beep codes . . . . . . . . . . . . . . . . . . . . . .60

POST error messages . . . . . . . . . . . . . . . . . . . . .60

Troubleshooting charts . . . . . . . . . . . . . . . . . . . . . .61

CD-ROM drive problems . . . . . . . . . . . . . . . . . . . .61

Diskette drive problems . . . . . . . . . . . . . . . . . . . . .62

Hard disk drive problems . . . . . . . . . . . . . . . . . . . .62

Keyboard, mouse, or pointing-device problems . . . . . . . . . . . .62

Memory problems . . . . . . . . . . . . . . . . . . . . . . .63

Microprocessor problems . . . . . . . . . . . . . . . . . . . .63

Monitor problems . . . . . . . . . . . . . . . . . . . . . . .63

Power problems . . . . . . . . . . . . . . . . . . . . . . .64

System-board error LEDs . . . . . . . . . . . . . . . . . . . . .65

Product Recovery program . . . . . . . . . . . . . . . . . . . .65

Appendix A. Getting help and technical assistance . . . . . . . . . .67

Before you call . . . . . . . . . . . . . . . . . . . . . . . . .67

Using the documentation . . . . . . . . . . . . . . . . . . . . .67

Getting help and information from the World Wide Web . . . . . . . . . .68

Software service and support . . . . . . . . . . . . . . . . . . .68

Hardware service and support . . . . . . . . . . . . . . . . . . .68

Appendix B. IBM Statement of Limited Warranty Z125-4753-07 11/2002 . .69

Part 1 - General Terms . . . . . . . . . . . . . . . . . . . . . .69

Part 2 - Country-unique Terms . . . . . . . . . . . . . . . . . . .72

Part 3 - Warranty Information . . . . . . . . . . . . . . . . . . .83

Appendix C. Notices . . . . . . . . . . . . . . . . . . . . . .85

Edition notice . . . . . . . . . . . . . . . . . . . . . . . . .85

Trademarks . . . . . . . . . . . . . . . . . . . . . . . . . .86

Important notes . . . . . . . . . . . . . . . . . . . . . . . . .87

Product recycling and disposal . . . . . . . . . . . . . . . . . . .88

Battery return program . . . . . . . . . . . . . . . . . . . . . .88

Electronic emission notices . . . . . . . . . . . . . . . . . . . .88

Federal Communications Commission (FCC) statement . . . . . . . . .88

Industry Canada Class A emission compliance statement . . . . . . . .89

Australia and New Zealand Class A statement . . . . . . . . . . . .89

United Kingdom telecommunications safety requirement . . . . . . . . .89

European Union EMC Directive conformance statement . . . . . . . . .89

Taiwanese Class A warning statement . . . . . . . . . . . . . . .90

Chinese Class A warning statement . . . . . . . . . . . . . . . .90

Japanese Voluntary Control Council for Interference (VCCI) statement . . .90

Power cords . . . . . . . . . . . . . . . . . . . . . . . . . .90

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . .93

IntelliStation Z Pro Type 6223: Installation Guide

Safety

Before installing this product, read the Safety Information.

Antes de instalar este produto, leia as Informações de Segurança.

Pred instalací tohoto produktu si prectete prírucku bezpecnostních instrukcí.

Læs sikkerhedsforskrifterne, før du installerer dette produkt.

Lees voordat u dit product installeert eerst de veiligheidsvoorschriften.

Ennen kuin asennat tämän tuotteen, lue turvaohjeet kohdasta Safety Information.

Avant d’installer ce produit, lisez les consignes de sécurité.

Vor der Installation dieses Produkts die Sicherheitshinweise lesen.

Prima di installare questo prodotto, leggere le Informazioni sulla Sicurezza.

Les sikkerhetsinformasjonen (Safety Information) før du installerer dette produktet.

Antes de instalar este produto, leia as Informações sobre Segurança.

v Do

Antes de instalar este producto, lea la información de seguridad.

Läs säkerhetsinformationen innan du installerar den här produkten.

Statement 1:

DANGER

Electrical

current from power, telephone, and communication cables is

hazardous.

avoid a shock hazard:

not connect or disconnect any cables or perform installation, maintenance, or reconfiguration of this product during an electrical storm.

Connect all power cords to a properly wired and grounded electrical outlet.

Connect to properly wired outlets any equipment that will be attached to this product.

When possible, use one hand only to connect or disconnect signal cables.

Never turn on any equipment when there is evidence of fire, water, or structural damage.

Disconnect the attached power cords, telecommunications systems, networks, and modems before you open the device covers, unless instructed otherwise in the installation and configuration procedures.

Connect and disconnect cables as described in the following table when installing, moving, or opening covers on this product or attached devices.

Connect:

Turn everything OFF.

First, attach all cables to devices.

Attach signal cables to connectors.

Attach power cords to outlet.

Turn device ON.

IntelliStation Z Pro Type 6223: Installation Guide

Disconnect:

Turn everything OFF.

First, remove power cords from outlet.

Remove signal cables from connectors.

Remove all cables from devices.

v Do

Statement 2:

CAUTION: When replacing the lithium battery, use only IBM Part Number 33F8354 or an equivalent type battery recommended by the manufacturer. If your system has

module containing a lithium battery, replace it only with the same module type made by the same manufacturer. The battery contains lithium and can explode if not properly used, handled, or disposed of.

not:

Throw or immerse into water Heat to more than 100°C (212°F) Repair or disassemble

Dispose

the battery as required by local ordinances or regulations.

Statement 3:

CAUTION: When laser products (such as CD-ROMs, DVD drives, fiber optic devices, or transmitters) are installed, note the following:

not remove the covers. Removing the cover of the laser product could result in exposure to hazardous laser radiation. There are no serviceable parts inside the device.

Use of controls or adjustments or performance of procedures other than those specified herein might result in hazardous radiation exposure.

DANGER

Some

laser products contain an embedded Class 3A or Class 3B laser

diode. Note the following.

Laser radiation when open. Do not stare into the beam, do not view directly with optical instruments, and avoid direct exposure to the beam.

Safety

vii

≥ 18 kg

≥ 32 kg

≥ 55 kg

Statement 4:

(39.7 lb)

(70.5 lb)

(121.2 lb)

CAUTION: Use safe practices when lifting.

Statement 5:

CAUTION: The power control button on the device and the power switch on the power supply do not turn off the electrical current supplied to the device. The device also might have more than one power cord. To remove all electrical current from the device, ensure that all power cords are disconnected from the power source.

viii

IntelliStation Z Pro Type 6223: Installation Guide

Statement 8:

CAUTION: Never remove the cover on a power supply or any part that has the following label attached.

Hazardous voltage, current, and energy levels are present inside any component that has this label attached. There are no serviceable parts inside these components. If you suspect a problem with one of these parts, contact

service technician.

Statement 23

CAUTION:

not place any object weighing more than 50 kg (110 lb) on top of rack-mounted

devices.

>50 kg (110 lb)

WARNING: Handling the cord on this product or cords associated with accessories

sold with this product, will expose you to lead, a chemical known to the State of California to cause cancer, and birth defects or other reproductive harm. Wash

hands after handling.

ADVERTENCIA: El contacto con el cable de este producto o con cables de

accesorios que se venden junto con este producto, pueden exponerle al plomo, un elemento químico que en el estado de California de los Estados Unidos está considerado como un causante de cancer y de defectos congénitos, además de otros riesgos reproductivos. Lávese las manos después de usar el producto.

Important:

All caution and danger statements in this documentation begin with a number. This number is used to cross reference an English caution or danger statement with translated versions of the caution or danger statement in the IBM Safety Information document.

Safety

1. Be

For example, if a caution statement begins with a number 1, translations for that caution statement appear in the IBM Safety Information document under statement

sure to read all caution and danger statements in this documentation before performing the instructions. Read any additional safety information that comes with your computer or optional device before you install the device.

IntelliStation Z Pro Type 6223: Installation Guide

Chapter 1. Introduction

This Installation Guide contains instructions for setting up your IBM

IntelliStation

Pro Type 6223 computer and basic instructions for installing some options. More

detailed instructions for installing options are in the User’s Guide on the IBM

IntelliStation Documentation CD, which comes with your computer. This document

contains information about:

Setting up and cabling your computer

Starting and configuring your computer

Setting up your operating system

can obtain up-to-date information about your computer and other IBM computer

You products at http://www.ibm.com/pc/intellistation/.

Packaged with this Installation Guide is the Device Drivers CD, which contains device drivers and hardware-specific support software.

The IBM IntelliStation Documentation CD is also included. This CD provides detailed information about your computer (see “The IBM IntelliStation Documentation CD” on page 3 for more detailed information).

The computer model and serial numbers are on the label on the lower-right front of the bezel, as shown in the following illustration. You will need these numbers to register your computer with IBM. The illustrations in this document might differ slightly from your hardware.

Model number and serial number

Note: Your computer keys cannot be duplicated by locksmiths. If you lose them,

order replacement keys from the key manufacturer. The key serial number and the telephone number of the manufacturer are on a tag attached to the keys.

you plan to install your Z Pro Type 6223 computer in a rack, you must purchase a

Tower-to-Rack Conversion Kit. For a list of supported options for your computer, go

http://www.ibm.com/pc/; then, select your country and navigate to the list of

options for your computer.

Your computer comes with Microsoft Windows

®1

Professional or Red Hat Enterprise Linux WS (Workstation) preinstalled (depending on your model). To install another operating system, follow the instructions in the documentation that comes with the operating system and any updates. Then, follow the instructions in the readme file on the Device Drivers CD to install the support software.

Note: If you install another operating system, you might need additional software or

device drivers. Some preinstalled device drivers are available on the Device Drivers CD. If you experience problems with the device drivers installed from this CD, you can obtain the latest device drivers from http://www.ibm.com/pc/support/.

Before installing any operating system, make sure that you obtain the latest updates for that operating system. Contact the operating system manufacturer or, if applicable, check the manufacturer’s Web site to obtain the updates.

1. The Microsoft

Certificate of Authenticity is your assurance that the Windows software in your computer is legally licensed from

Microsoft Corporation.

IntelliStation Z Pro Type 6223: Installation Guide

v 32 MB of

v If

– If

Additional information about operating systems is posted periodically at http://www.ibm.com/pc/support/.

The IBM IntelliStation Documentation CD

The IBM IntelliStation Documentation CD contains documentation for your computer

Portable Document Format (PDF) and includes the IBM Documentation Browser help you find information quickly.

Hardware and software requirements

The IBM IntelliStation Documentation CD requires the following minimum hardware and software:

Microsoft Windows NT 4.0 (with Service Pack 3 or later), Windows 98, Windows 2000, or Red Hat Linux.

100 MHz microprocessor.

RAM.

Adobe Acrobat Reader 3.0 (or later) or xpdf, which comes with Linux operating systems. Acrobat Reader software is included on the CD, and you can install it when you run the Documentation Browser.

Using the Documentation Browser

Use the Documentation Browser to browse the contents of the CD, read brief descriptions of the documents, and view documents using Adobe Acrobat Reader or xpdf. The Documentation Browser automatically detects the regional settings in use

your system and displays the documents in the language for that region (if available). If a document is not available in the language for that region, the English version is displayed.

Use one of the following procedures to start the Documentation Browser:

Autostart is enabled, insert the CD into your CD-ROM drive. The

Documentation Browser starts automatically.

Autostart is disabled or is not enabled for all users, use one of the following

procedures:

you are using a Windows operating system, insert the CD into your

CD-ROM drive and click Start --> Run. In the Open field, type

e:\win32.bat

where e is the drive letter of the CD-ROM drive, and click OK.

you are using Red Hat Linux, insert the CD into your CD-ROM drive; then,

type the following command from the /mnt/cdrom directory:

runlinux.sh

Select your computer from the Product menu. The Available Topics list displays all the documents for your computer. Some documents might be in folders. A plus sign (+) indicates each folder or document that has additional documents under it. Click the plus sign to display the additional documents.

When you select a document, a description of the document appears under Topic Description. To select more than one document, press and hold the Ctrl key while you select the documents. Click View Book to view the selected document or documents in Acrobat Reader or xpdf. If you selected more than one document, all the selected documents are opened in Acrobat Reader or xpdf.

Chapter 1. Introduction

1. Go to

2. In

3. On

4. In

To search all the documents, type a word or word string in the Search field and click Search. The documents in which the word or word string appears are listed in order of the most occurrences. Click a document to view it, and press Crtl+F to use the Acrobat search function or Alt+F to use the xpdf search function within the document.

Click Help for detailed information about using the Documentation Browser.

Notices and statements used in this document

The caution and danger statements used in this document also appear in the multilingual Safety Information document, which is on the IBM IntelliStation

Documentation CD. Each statement is numbered for reference to the corresponding

statement in the Safety Information document.

The following notices and statements are used in this document:

Notes: These notices provide important tips, guidance, or advice.

Important: These notices provide information that might help you avoid

inconvenient or problem situations.

Attention: These notices indicate possible damage to programs, devices, or

data. An attention notice is placed just before the instruction or situation in which

damage could occur.

Caution: These statements indicate situations that can be potentially hazardous

you. A caution statement is placed just before the description of a potentially

hazardous procedure step or situation.

Danger: These statements indicate situations that can be potentially lethal or

extremely hazardous to you. A danger statement is placed just before the

description of a potentially lethal or extremely hazardous procedure step or

situation.

Inventory checklist

Take an inventory of items as you unpack them to make sure that you have all of the components. If any items are missing or damaged, contact your place of purchase. The following items come with your IBM IntelliStation Z Pro Type 6223 computer:

One keyboard

One mouse

One power cord (9-ft line cord)

One or two digital-to-analog video converters (some models)

One Device Drivers CD

One IBM IntelliStation Documentation CD

This Installation Guide

you are missing an item, contact your place of purchase.

Chapter 1. Introduction

v 1 MB

–

Features and specifications

The following table provides a summary of the features and specifications of your IntelliStation Z Pro Type 6223 computer. Depending on your model, some features might not be available, or some specifications might not apply.

Table 1. Features and specifications

Microprocessor:

Supports up to two Intel

Xeon

microprocessors

Level-2 cache

800 MHz front-side bus (FSB)

Memory:

Minimum: 512 MB Maximum: 8 GB (depending on your configuration) Type: PC2-3200 double-data-rate 2 (DDR2) registered Connectors: six dual inline memory module (DIMM) connectors

Internal

Drives:

Hard disk drive: SCSI or Serial ATA (S ATA) One of the following optical drives:

CD-ROM: IDE DVD/CD-RW combo: IDE CD-RW: IDE

Expansion

bays:

Three slim-high 3.5-inch drive bays (one hard disk drive installed in some models) Two half-high 5.25-inch bays (optical drive installed in one bay) One slim-high 3.5-inch removable-media or hard disk drive bay

expansion slots:

PCI

Two 33 MHz/32-bit PCI, 5.0 V signaling Two 100 MHz/64-bit PCI-X slots, 3.3

signaling One 133 MHz/64-bit PCI-X slot, 3.3 V signaling One PCI Express x16 slot

supply:

Power

One 530 watts (115-230 V ac)

Cooling:

Four speed-controlled fans

Integrated functions:

Broadcom 5721 10/100/1000 Ethernet controller with RJ-45 Ethernet connector Integrated RAID capability Integrated SCSI controller with two Ultra320 SCSI ports (one internal, one optional external) Two serial ports One parallel port Dual port Serial ATA controller Two IEEE 1394A (FireWire) ports (four-pin on front, six-pin on rear) Six Universal Serial Bus (USB) 2.0 ports (two on front and four on rear) Keyboard port Mouse port Audio ports

Line out (front and rear) Mic (front and rear) Line in (rear only)

ATA-100 single-channel IDE controller

adapter: (depending on your

Video

model)

NVIDIA Quadro NVS 280 (DMS-59), PCI Express x16, with 64 MB DDR synchronous dynamic random access memory (SDRAM) video memory and dual analog connectors (or dual digital monitor capability with the purchase of

additional pigtail cable) NVIDIA Quadro FX 1300 (DVI-I), PCI Express x16, with 128 MB DDR SDRAM video memory with dual DVI-I connectors NVIDIA Quadro FX 3400 (DVI-I), PCI Express x16, with 256 MB GDDR3 SDRAM video memory with dual DVI-I connectors

Electrical

Sine-wave input (50 or 60 Hz) required Input voltage and frequency ranges automatically selected Input voltage low range:

Minimum: 90 V ac

Maximum: 137 V ac

Input voltage high range:

Minimum: 180 V ac

Maximum: 265 V ac Input kilovolt-amperes (kVA)

approximately:

Minimum: 0.24 kVA

Maximum: 0.86 kVA

input:

Heat output:

Approximate heat output in British thermal units (Btu) per hour:

Minimum configuration: 787 Btu (230 watts) Maximum configuration: 2780 Btu (815 watts)

Environment:

Air temperature:

Computer on: 10° to 35°C (50° to 95°F). Altitude: 0 to 2134 m (7000 ft) Computer off: -40° to +60°C (-40° to 140°F). Maximum altitude: 2133 m (7000 ft)

Humidity (operating and storage): 8% to 80%

Acoustical

noise emissions:

Sound power, idle: 5.0 bel Sound power, operating: 5.3 bel

Size:

Height: 469.9 mm (18.5 in.) Depth: 495.3 mm (19.5 in.) Width: 215.9 mm (8.5 in.) Weight: 16.2 kg (36 lb) to 22.6 kg (50 lb) depending upon configuration

Notes:

Power consumption and heat output vary depending on the number and type of optional features installed and the power-management optional features in use.

These levels were measured in controlled acoustical environments according to the procedures specified by the American National Standards Institute (ANSI) S12.10 and ISO 7779 and are reported in accordance with ISO 9296. Actual sound-pressure levels in a given location might exceed the average values stated because of room reflections and other nearby noise sources. The declared sound-power levels indicate an upper limit, below which a large number of computers will operate.

IntelliStation Z Pro Type 6223: Installation Guide

Controls, LEDs, and connectors

This section identifies the controls, LEDs, and front connectors on the IntelliStation

Pro Type 6223 computer. See “Cabling the computer” on page 41 for an

illustration of the connectors on the rear of the computer.

Power on LED

Power control button

Hard disk drive activity LED

Ethernet transmit/receive activity LED

System error LED

CD-ROM drive activity LED

CD-eject button

Line-out connector

Microphone connector

USB connectors

Power-on LED

When this LED is lit and not flashing, it indicates that the computer is turned on. When this LED is flashing, it indicates that the computer is off and still connected to an ac power source (standby mode).

Power-control button

Press this button to turn the computer on or off.

IEEE 1394A (FireWire) connector

1394

Diskette eject button

Diskette drive activity LED

Hard disk drive activity LED

When this LED is lit, it indicates that the hard disk drive is in use.

Ethernet transmit/receive activity LED

When this LED is flickering, it indicates that there is activity between the computer and the network. There are two of these LEDs, one on the front and one on the rear of the computer.

Ethernet link status LED

When this LED is lit, it indicates that there is an active connection on the Ethernet port. This LED is located on the rear of the computer.

Chapter 1. Introduction

System-error LED

When this amber LED is lit, it indicates that a system error has occurred.

LED on the system board is also lit to help isolate the error.

CD-ROM drive activity LED

When this LED is lit, it indicates that the CD-ROM drive is in use.

CD-eject button

Press this button to insert a CD into or remove a CD from the CD-ROM drive.

Line out connector (green)

Use this connector to send audio signals from the computer to external devices, such as speakers with built-in amplifiers, headphones, multimedia keyboards, or the audio line-in jack on a stereo system.

Mic connector (pink)

Use this connector to connect a microphone to your computer when you want to record voices or other sounds on the hard disk. You can also use this connector (and a microphone) with speech recognition software.

USB connectors

Use these connectors to connect USB devices to your computer, using redundant Plug and Play technology.

IEEE 1394A (FireWire) connectors

Use these connectors (four-pin on the front and six-pin on the rear) to connect FireWire devices, such as digital video cameras and external hard disk drives.

Diskette-eject button

Press this button to release a diskette from the diskette drive.

Diskette drive activity LED

When this LED is lit, it indicates that the diskette drive is in use.

IntelliStation Z Pro Type 6223: Installation Guide

in a

Chapter 2. Installing the hardware

This chapter provides instructions for installing or replacing options in your computer. For a list of supported options for your computer, go to http://www.ibm.com/pc/; then, select your country and navigate to the list of options for your computer. For more detailed installation information, see the User’s Guide

the IBM IntelliStation Documentation CD.

Selecting a location for your computer

Make sure that you have an adequate number of properly grounded electrical outlets for the computer, monitor, and any other devices. Select a location for the computer where it will remain dry. Leave approximately 50 mm (2 in.) of space around the computer for proper air circulation. For information about arranging your computer and ease of use, see the following sections.

Arranging your workspace

work area to suit your needs and the kind of work you do. Your comfort is of foremost importance, but light sources, air circulation, and the location of electrical outlets can also affect the way you arrange your workspace.

Comfort

The following guidelines will help you decide what working position suits you best.

Choose a comfortable chair to reduce fatigue from sitting in the same position for long periods. The backrest and seat should adjust independently and provide good support. The seat should have a curved front to relieve pressure on the thighs. Adjust the seat so that your thighs are parallel to the floor and your feet are either flat on the floor, or on a footrest.

When using the keyboard, keep your forearms parallel to the floor and your wrists

your hands and fingers relaxed. Change the angle of the keyboard for maximum comfort by adjusting the position of the keyboard feet.

Adjust the monitor so that the top of the screen is at, or slightly below, eye level. Place the monitor at a comfortable viewing distance, usually 51 to 61 cm (20 to 24 in.), and position it so that you can view it without having to twist your body.

Glare and lighting

Position the monitor to minimize glare and reflections from overhead lights, windows, and other light sources. Place the monitor at right angles to light sources whenever possible. Reduce overhead lighting, if necessary, by turning off lights or using lower wattage bulbs. If you install the monitor near a window, use curtains or blinds to block the sunlight. You might have to adjust the Brightness and Contrast controls on the monitor as the lighting changes throughout the day.

get the most from your computer, arrange both the equipment you use and your

neutral, comfortable position. Try to keep a light touch on the keyboard, and

Where it is impossible to avoid reflections or to adjust the lighting, place an antiglare filter over the screen. However, these filters might affect the clarity of the screen image; try them only after you have exhausted other methods of reducing glare.

Dust compounds problems associated with glare. Clean your monitor screen periodically using a soft cloth moistened with a nonabrasive, liquid glass cleaner.

Air circulation

Your computer and monitor produce heat. The computer fan pulls in fresh air and forces out hot air. The monitor lets hot air escape through vents. Blocking the air vents can cause overheating, possibly resulting in malfunction or damage. Place the computer and monitor so that nothing blocks the air vents; usually 50 mm (2 in.) of air space is sufficient. Also, make sure the vented air is not blowing on someone else.

Electrical outlets and cable lengths

The location of electrical outlets and the length of device power cords and cables might determine the final placement of your computer.

When arranging your work space:

Avoid the use of extension cords. Whenever possible, plug the computer power cord directly into an electrical outlet.

Keep power cords and cables neatly routed away from walkways and other areas where they might be accidentally dislodged.

For more information about power cords, see “Power cords” on page 90.

Installing options

This section provides instructions for installing and replacing hardware options in your computer. These instructions are intended for users who are experienced with setting up IBM computer hardware. If you need more detailed instructions, see the

User’s Guide on the IBM IntelliStation Documentation CD. For a list of supported

options for your computer, go to http://www.ibm.com/pc/; then, select your country and navigate to the list of options for your computer.

you have no options to install, continue with “Cabling the computer” on page 41.

Installation guidelines

Before you begin installing options in your computer, read the following information:

Read the safety information beginning on page v and the guidelines in “Handling static-sensitive devices” on page 11. This information will help you work safely with your computer and options.

Make sure that you have an adequate number of properly grounded electrical outlets for your computer, monitor, and other devices that you will connect to the computer.

Back up all important data before you make changes to disk drives.

Have a small flat-blade screwdriver available.

When you need to access the inside of the computer to install options, you might find it easier to lay the computer on its side.

Blue on a component indicates touch points, where you can grip the component

remove it from or install it in the computer, open or close a latch, and so on.

System reliability considerations

help ensure proper system cooling and system reliability, make sure that:

IntelliStation Z Pro Type 6223: Installation Guide

v Do

Each of the drive bays has a drive or a filler panel and electromagnetic compatibility (EMC) shield installed.

There is adequate space around the computer to allow the computer cooling system to work properly. Leave approximately 50 mm (2 in.) of open space around the front and rear of the computer. Do not place objects in front of the fans. For proper cooling and airflow, replace the computer cover before turning

the computer. Operating the computer for extended periods of time (over 30

minutes) with the computer cover removed might damage computer components.

You have followed the cabling instructions that come with optional adapters.

You have replaced a failed fan as soon as possible.

Handling static-sensitive devices

Attention:

avoid damage, keep static-sensitive devices in their static-protective packages until you are ready to install them.

reduce the possibility of damage from electrostatic discharge, observe the

following precautions:

Limit your movement. Movement can cause static electricity to build up around you.

Handle the device carefully, holding it by its edges or its frame.

not touch solder joints, pins, or exposed printed circuitry.

not leave the device where others can handle and damage it.

While the device is still in its static-protective package, touch it to an unpainted metal part of the system unit for at least 2 seconds. This drains static electricity from the package and from your body.

Remove the device from its package and install it directly into the computer without setting down the device. If it is necessary to set down the device, put it back into its static-protective package. Do not place the device on your computer cover or on a metal surface.

Take additional care when handling devices during cold weather. Heating reduces indoor humidity and increases static electricity.

Static electricity can damage electronic devices and your computer. To

Chapter 2. Installing the hardware

Major components of your computer

The following illustration shows the major components in the Z Pro Type 6223 computer.

PCI card

Adapter retaining bracket

DIMMs

System board

EMC shields

CD-ROM drive

Microprocessor

Heat-sink

Drive cage

Fan assembly

Hard disk drive

Bezel

Microprocessor baffle assembly

Microprocessor air baffle

IntelliStation Z Pro Type 6223: Installation Guide

System-board option connectors

The following illustration shows the system-board connectors for user-installable options.

Slot 4, PCI-X

Slot 5, PCI-X

Slot 6, PCI-X

Slot 2, PCI

Slot 3, PCI

Slot 1, PCI Express x16

DIMM 5

DIMM 6

DIMM 4

DIMM 3

DIMM 2

DIMM 1

Battery

Microprocessor 2

Microprocessor 1

Chapter 2. Installing the hardware

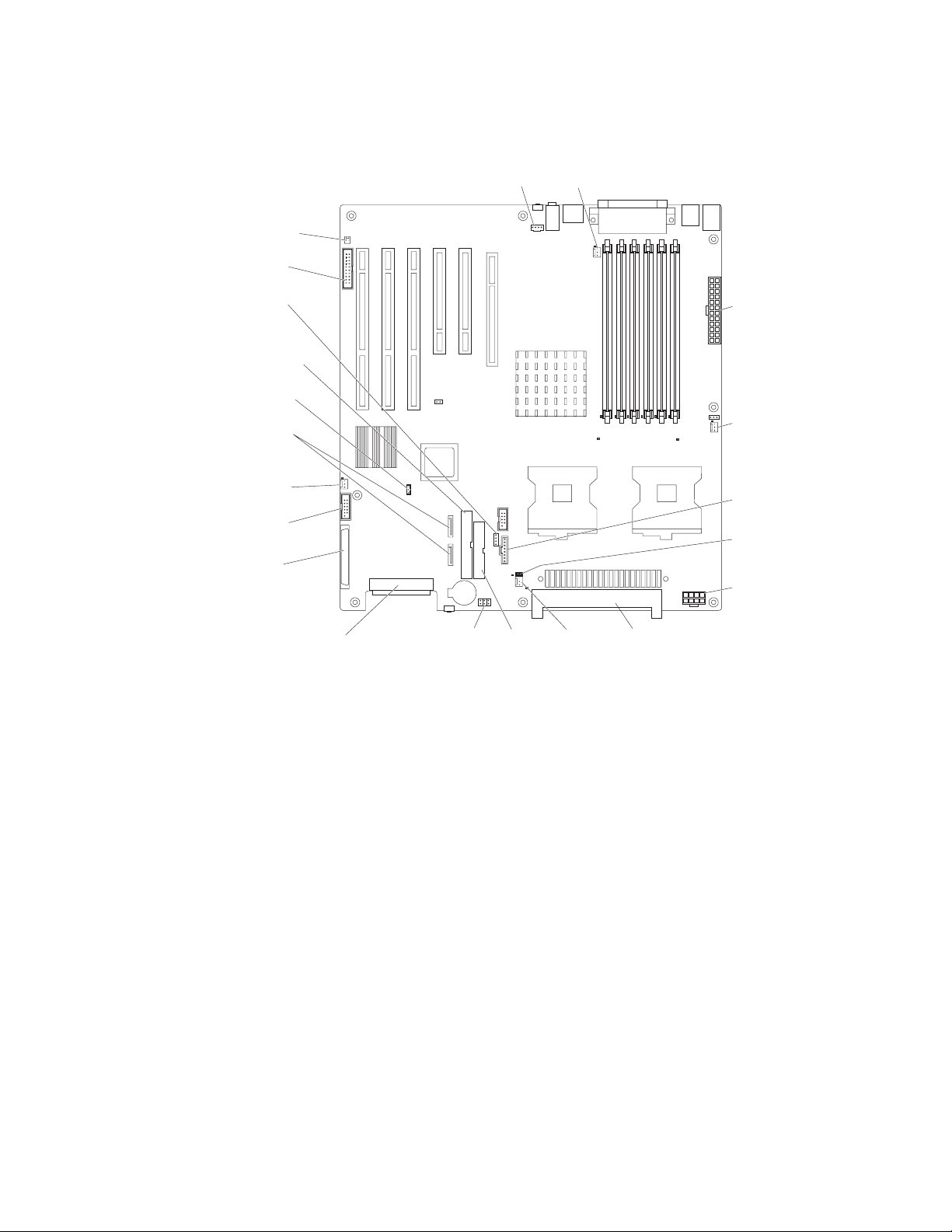

System-board internal connectors

The following illustration shows the internal connectors on the system board.

Internal speaker

Front audio

SCSI LED

Primary IDE

Wake on LAN

Serial ATA connectors

Fan 4 (optional)

Front USB

SCSI channel A (external SCSI)

CD audio

Fan 1

Main power

Fan 2

Front panel switch/LEDs

Intrusion switch

Powe r

SCSI channel B

Clear CMOS jumper

Diskette drive

Fan 3

VRM 1 connector

IntelliStation Z Pro Type 6223: Installation Guide

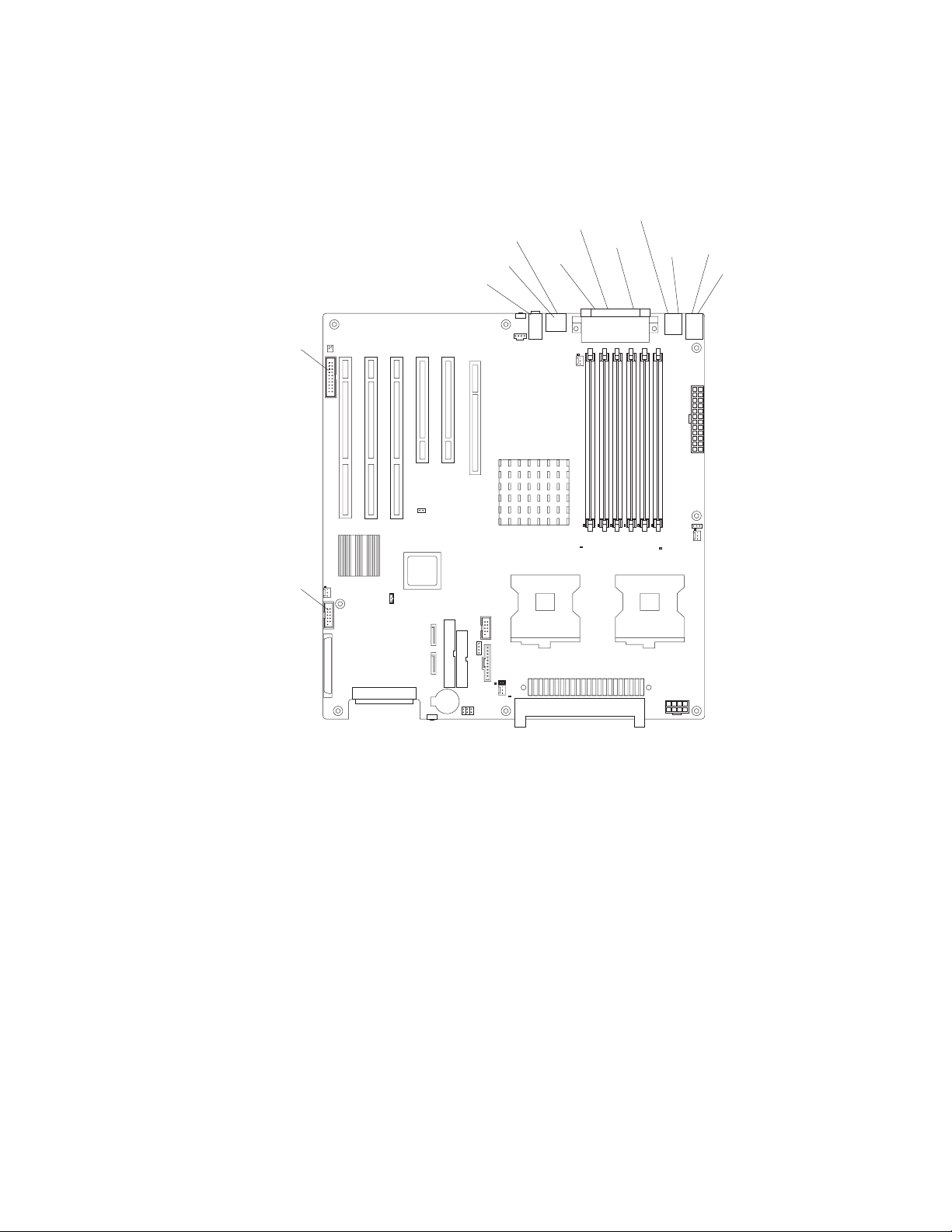

System-board external connectors

The following illustration shows the external input/output connectors on the system board.

Audio

Front audio

USBs 3 and 4

Ethernet

Parallel port

Serial 2

USBs 1 and 2

Serial 1

IEEE 1394A

Keyboard

Mouse

Front USBs

Chapter 2. Installing the hardware

Removing the side cover

remove the cover, you might find it easier to lay the computer on its side.

Complete the following steps to remove the side cover of the computer:

Review the “Installation guidelines” on page 10.

Turn off the computer and all attached devices (see “Turning off the computer”

page 44); then, disconnect all power cords and external cables.

Pull down on the cover-release handle; then, pull the cover straight up and lift the side cover off the computer and set it aside.

Cove-release handle

replace the side cover, see “Replacing the side cover” on page 41.

Attention: For proper cooling and airflow, replace the side cover before turning on

the computer. Operating the computer with the cover removed might damage computer components.

IntelliStation Z Pro Type 6223: Installation Guide

Removing the bezel

When working with some devices, such as additional optical drives, you must first remove the bezel to access the device. To install or remove options, you might find

easier to lay the computer on its side.

Complete the following steps to remove the bezel:

Unlock the side-cover lock.

Remove the side cover (see “Removing the side cover” on page 16).

Locate the two bezel clips that are securing the bezel to the computer chassis. Gently lift and hold the bezel clips up and at the same time, rotate the bezel outward to disengage it from the side tabs; then, set the bezel aside.

Bezel clips

For instructions for replacing the bezel, see “Replacing the bezel” on page 40.

Chapter 2. Installing the hardware

v If

5. v If

Installing an adapter

The following notes describe the types of adapters that your computer supports and other information that you must consider when installing an adapter. See “System-board option connectors” on page 13 for an illustration of the adapter slot locations.

Read the documentation that comes with your operating system.

Locate the documentation that comes with the adapter and follow those instructions in addition to the instructions in this chapter. If you need to change the switch or jumper settings on your adapter, follow the instructions that come with the adapter.

Your computer comes with adapter connectors or slots. The video adapter is installed in the PCI Express x16 slot (slot 1). You can install up to five additional adapters in your computer in PCI slots 2 and 3, and PCI-X slots 4, 5, and 6.

You can install full-length adapters in PCI slot 3, and PCI-X slots 4, 5, and 6. However, a full-length adapter will not fit in PCI slot 2 and is not supported. None

the expansion slots are hot-plug slots.

Your computer supports 5.0 V signaling and universal PCI 32-bit/33 MHz adapters in PCI slots 2 and 3.

Your computer supports 3.3 V signaling and universal PCI-X 64-bit/133 MHz adapters in PCI-X slot 4.

Your computer supports 3.3 V signaling and universal PCI-X 64-bit/100 MHz adapters in PCI-X slot 5 and 6.

Your computer uses a rotational interrupt technique to configure PCI adapters, which means that you can install a variety of PCI adapters that currently do not support sharing of PCI interrupts.

you install an optional ServeRAID 6i+ adapter, it must be installed in PCI-X slot

you install an optional RAID adapter in your computer, you must reinstall the

operating system and applications that came preinstalled on your computer.

The system scans the PCI Express x16 slot (slot 1), PCI expansion slots 2 and

and PCI-X expansion slots 4 through 6 to assign system resources. Then, it starts the PCI devices in the following order, if you have not changed the default startup sequence: PCI Express x16 slot (slot 1), system-board integrated drive electronics (IDE), Serial ATA (SATA), or small computer system interface (SCSI) devices (including optional ServeRAID-6i+ controller), and then PCI-X slots 4 through 6.

For a list of supported options for your computer, go to http://www.ibm.com/pc/; then, select your country and navigate to the list of options for your computer.

Complete the following steps to install an adapter in your computer:

Read the safety information beginning on page v and the guidelines in “Handling static-sensitive devices” on page 11.

Turn off the computer and all attached devices (see “Turning off the computer”

page 44); then, disconnect all external cables and power cords.

Remove the side cover (see “Removing the side cover” on page 16).

Determine the slot in which you want to install the adapter. Review the instructions that come with the adapter for any requirements, restrictions, or cabling instructions. It might be easier to route any cables before you install the adapter.

IntelliStation Z Pro Type 6223: Installation Guide

8. If

For full-length adapters, rotate the rear adapter-retention bracket to the open (unlocked) position (you might have to first remove any adapters that might be

the way). Press down on the bottom tab of the front adapter-retention bracket to release it (the tab is inside the fan compartment that is next to the front adapter-retention bracket). If you are installing a smaller adapter, rotate only the rear adapter-retention bracket.

Remove the expansion-slot cover. From the rear of the computer, press on the slot cover. Grasp it and pull it out of the expansion slot. Store it in a safe place for future use.

Attention: Expansion-slot covers must be installed on all empty slots. This

maintains the electronic emissions standards of the computer and ensures proper ventilation of computer components.

Follow the instructions that come with the adapter to set jumpers or switches, if any.

Attention: Avoid touching the components and gold-edge connectors on the

adapter.

you are installing a full-length adapter, remove the blue adapter guide (if any)

from the end of the adapter.

Adapter guide

Attention: Be certain that the adapter is correctly seated in the expansion

slot before you turn on the computer. Incomplete installation of an adapter might damage the system board or the adapter.

Chapter 2. Installing the hardware

Carefully grasp the adapter by the top edge or upper corners and move the adapter directly from the static-protective package to adapter slot (avoid touching the components and gold-edge connectors on the adapter). Align the adapter with the expansion slot guides; then, press the adapter firmly into the expansion slot.

Attention: Make sure that the adapter is correctly seated in the expansion

slot before you turn on the computer. Incomplete installation of an adapter might damage the system board or the adapter.

Rear adapter retention bracket

Expansionslot cover

Adapter

Front adapter retention bracket

10.

Connect required cables to the adapter. Route cables so that they do not block the flow of air from the fans. If you are installing an optional SCSI adapter, see “Cabling an optional SCSI adapter” on page 21 for additional information.

11.

12.

you have another adapter to install, repeat steps 4 through 10.

you have installed a full-length adapter, press down on the top tab of the front adapter-retention bracket to lock it in place (the tab is inside the fan compartment that is next to the front adapter-retention bracket).

Note: If any adapter in your computer is large or has heavy cables attached to

it, you can secure the adapter with a screw. Insert one backup expansion-slot screw (the screws are stored directly above the front adapter-retention bracket) through the top of each adapter bracket into the screw hole and secure the adapter before proceeding to the next step.

13.

you have other options to install, do so now; otherwise, replace the side cover (see “Replacing the side cover” on page 41), reconnect the external cables and power cords, and turn on the computer. Then, go to “Completing the installation” on page 41.

IntelliStation Z Pro Type 6223: Installation Guide

2. If

Cabling an optional SCSI adapter

You can install an optional SCSI adapter in your computer to control the internal hard disk drives and provide additional RAID capabilities. With a SCSI adapter installed, you can configure the internal hard disk drives into disk arrays. You can also cable a SCSI adapter to external hard disk drives. See your SCSI adapter option documentation for complete instructions for installing a SCSI adapter in your computer and for additional information about SCSI adapters.

Notes:

The SCSI cables that are used by the integrated SCSI controller cannot be used with an optional SCSI adapter.

you install a ServeRAID 6i+ adapter, it must be installed in slot 5; no cabling

required for this adapter.

Complete the following steps to cable an optional SCSI adapter:

Install the SCSI adapter (see “Installing an adapter” on page 18).

Connect the SCSI-signal cable to the adapter and one or more of the signal cable connectors to the rear of the SCSI devices.

Connect the SCSI-activity-indicator cable to the adapter and to the SCSI-LED connector on the system board. See “System-board internal connectors” on page 14 for the location of the SCSI-LED connector.

Rear adapter retention bracket

SCSI signal cable

SCSI signal cable connector

SCSI adapter

Complete the installation of the optional SCSI adapter.

Front adapter retention bracket

Chapter 2. Installing the hardware

Installing a drive

Depending on your computer model, one or more of the following drives might be installed in your computer:

Your Z Pro Type 6223 computer comes with an IDE CD-ROM drive in bay 1 and a hard disk drive in bay 6.

Bay 1

Bay 2

Diskette drive (optional) Hard disk drive CD-ROM, CD-RW, or DVD/CD-RW combo drive

Bay 3

Bay 4

Bay 5

Bay 6

The following notes describe the types of drives that your computer supports and other information that you must consider when installing drives:

Make sure that you have all the cables and other equipment specified in the documentation that comes with the drive.

Select the bay in which you want to install the drive.

Check the instructions that come with the drive to see whether you need to set any switches or jumpers on the drive. If you are installing a SCSI device, be sure

set the SCSI ID for that device.

You can install removable-media drives in bays 1, 2, and 3 only. Tape drives, diskette drives, CD-ROM, DVD/CD-RW, and DVD-ROM drives are examples of removable-media drives.

You can install a 3.5-in. slim-high or 5.25-in. half-high removable-media drive, such as a tape backup drive, in bay 2.

IntelliStation Z Pro Type 6223: Installation Guide

v To

v If

–

– If

You can install a diskette drive or a 3.5-in slim-high hard disk drive in bay 3.

install a 3.5-in. drive in a 5.25-in. bay, you must use the 5.25-in. conversion

kit.

Your computer supports only one diskette drive: either a diskette drive in bay 3 or

USB drive connected to the USB connector on the front of the computer.

Two Serial ATA hard disk drive connectors are on the system board.

you install SCSI hard disk drives and SATA hard disk drives in the same

computer, note the following HostRAID considerations for hard disk drives:

You can enable HostRAID on only one subsystem (SCSI or SATA).

HostRAID is enabled on a subsystem, you can install boot hard disk drives

that subsystem only.

you fail to observe these restrictions, the computer will usually disable the

BIOS for the last subsystem that was loaded, which typically is SCSI.

For more information about HostRAID, see “Using the Adaptec HostRAID configuration programs” on page 49.

The electromagnetic interference (EMI) integrity and cooling of the computer are protected by having all bays, PCI, and PCI-X slots covered or occupied. When you install a drive, PCI adapter, or PCI-X adapter, save the EMC shield and filler panel from the bay or the adapter slot cover in the event you later remove the drive or adapter.

For a complete list of supported options for your computer, go to http://www.ibm.com/pc/; then, select your country and navigate to the list of options for your computer.

Installing a drive in bay 2 or 3

Complete the following steps to install a drive in bay 2 or 3:

Read the safety information beginning on page v and “Installation guidelines”

page 10.

Turn off the computer and peripheral devices, and disconnect the power cords and all external cables.

Remove the side cover (see “Removing the side cover” on page 16).

Remove the bezel (see “Removing the bezel” on page 17).

Chapter 2. Installing the hardware

Use a screwdriver to pry the filler panel and EMC shield away from the computer.

EMC shield

Filler panel

Note: If you are installing a drive that contains a laser, observe the following

safety precaution.

IntelliStation Z Pro Type 6223: Installation Guide

v Do

on a

Statement 3

CAUTION: When laser products (such as CD-ROMs, DVD drives, fiber optic devices, or transmitters) are installed, note the following:

not remove the covers. Removing the covers of the laser product could result in exposure to hazardous laser radiation. There are no serviceable parts inside the device.

Use of controls or adjustments or performance of procedures other than those specified herein might result in hazardous radiation exposure.

Danger

Some laser products contain an embedded Class 3A or Class 3B laser diode. Note the following. Laser radiation when open. Do not stare into the beam, do not view directly with optical instruments, and avoid direct exposure to the beam.

Class 1 Laser Product Laser Klasse 1 Laser Klass 1 Luokan 1 Laserlaite Appareil A Laser de Classe 1

Touch the static-protective package containing the drive to any unpainted metal surface on the computer; then, remove the drive from the package and place it

static-protective surface.

Set any jumpers or switches on the drive according to the documentation that comes with the drive.

Note: You might find it easier to install the new drive from the front and then

attach the cables.

Chapter 2. Installing the hardware

b. If

9. To

v If

install a drive in bay 2, complete the following steps:

Remove the large drive clip attached to the side of bay 2 of the drive cage for bays 1, 2, and 3 (see the figure below). Slide the drive clip to the left to disengage it from the drive cage; then, snap the drive clip into the screw holes on the side of the drive.

Drive release tabs

Drive clip

you are installing a 5.25-in. drive in bay 2, slide the drive into the drive bay until it snaps in place. If you are installing a 3.5-in. drive in bay 2, you must attach the 5.25-in. conversion kit, which you can order from IBM, to the 3.5-in. drive.

Continue with step 10.

install a drive in bay 3, use one of the following procedures:

Note: Only a 3.5-in. device can be installed in bay 3.

you are installing an external media device in bay 3, complete the

following steps:

Remove the small drive clip that is attached to the side of bay 3 of the drive cage for bays 1, 2, and 3 (see the figure above). Slide the drive clip to the left to disengage it from the drive cage; then, snap the drive clip into the screw holes on the side of the drive.

Slide the drive into the drive bay until it snaps in place.

Continue with step 10.

you are installing a hard disk drive in bay 3, complete the following steps:

Push the drive into the drive bay from the rear of the drive cage; then, use the two screws to attach the drive to the drive cage.

Continue with step 10.

IntelliStation Z Pro Type 6223: Installation Guide

10.

Determine whether the drive is an IDE or SCSI device; then, connect one end

the applicable signal cable into the back of the drive and make sure that the

other end of this cable is connected into the applicable IDE or SCSI connector

the system board.

11.

Route the signal cable so that it does not block the airflow to the rear of the drives or over the microprocessor and memory.

12.

13.

you have another drive to install or remove, do so now.

Connect the power cable to the back of the drive. The connectors are keyed and can be inserted only one way.

14.

you have other options to install or remove, do so now; otherwise, replace the bezel (see “Replacing the bezel” on page 40), and then go to “Completing the installation” on page 41.

Installing a SCSI or SATA drive in bay 4, 5, or 6

Some models come with non-hot-swap SCSI hard disk drives or Serial ATA (SATA ) hard disk drives. Before you install a hard disk drive in bays 4, 5, and 6, read the following information:

Read the documentation that comes with the drive for cabling instructions.

Route the cable before you install the drive. Do not block the airflow from the fans.

You can install up to four SCSI hard disk drives in your computer (SCSI models only).

Your computer supports up to two Serial ATA hard disk drives.

Note: Your computer can support a third and fourth SATA drive if you install an

optional ServeRAID-7t S-ATA controller. In addition, if you install the optional ServeRAID-7t S-ATA controller to add a third and fourth drive, all four SATA drives must then be connected to the ServeRAID-7t S-ATA controller instead of the system board. See the optional ServeRAID-7t S-ATA controller documentation for cabling instructions.

you purchase a new SATA hard drive, you will also need to purchase a signal

cable for it. IBM SATA hard drive option comes with a signal cable.

Install hard disk drives in this sequence: bay 4, bay 5, bay 6, and then bay 3. See “Installing a drive in bay 2 or 3” on page 23 for information about how to install a hard disk drive in bay 3.

Chapter 2. Installing the hardware

Complete the following steps to install a SCSI or Serial ATA (SATA ) hard disk drive:

Read the safety information beginning on page v and the “Installation guidelines” on page 10.

Turn off the computer and peripheral devices and disconnect all external cables and power cords.

Unlock the side cover.

Remove the side cover (see “Removing the side cover” on page 16).

Disconnect the fan connector for the fan that is attached to the back of the drive cage from the system board.

Press in on the drive-cage release lever and rotate the drive cage all the way out of the computer until it locks into place over the drive-cage retention tab. The open ends of the drive slots and installed drives will face you.

Fan assembly

Drive-cage

Drive-cage release lever

IntelliStation Z Pro Type 6223: Installation Guide

8. If

on a

Grasp the fan latch on the fan assembly that is over the drive cage and pull it outward to disengage it from the drive cage and rotate it to the side.

Drive-cage retention tab

Fan assembly

Fan latch

your computer has preinstalled hard disk drives in the drive cage, disconnect the power and signal cables from the rear of the drives.

Remove the empty drive tray from the drive bay in which you want to install the drive.

10.

Touch the static-protective package containing the drive to any unpainted metal surface on the computer; then, remove the drive from the package and place it

static-protective surface.

11.

Set any jumpers or switches on the drive according to the documentation that comes with the drive.

Chapter 2. Installing the hardware

12.

Attach the new drive to the drive tray. Place the drive on the drive tray and align the holes on the drive with the mounting pins on the drive tray. Gently pull both sides of the drive tray outward and insert the mounting pins into the holes on the drive.

13.

Align the drive assembly with the guide rails in the bay (make sure that the connector end of the drive is facing you).

14.

Gently slide the drive assembly into the drive bay until the drive snaps into place.

15.

Determine whether the new drive is a Serial ATA or SCSI device; then, connect one end of the applicable signal cable into the back of the drive and the other end of this cable into the applicable Serial ATA or SCSI connector on the system board. See “Power and signal cables for internal drives” for additional information about cabling drives and “System-board internal connectors” on page 14 for the location of the Serial ATA and SCSI connectors on the system board. If there are open connectors on the cables connecting existing Serial ATA or SCSI drives, you can use these cables to connect the new drive.

16.

Route the signal cable so that it does not block the airflow to the rear of the drives or over any microprocessor.

17.

Connect the power cables to the back of the drives. The connectors are keyed and can be inserted only one way.

18.

Push the drive cage outward, and press in on the drive-cage release tab; then, rotate the drive cage back into the computer.

19.

Reconnect the connector for the fan that is attached to the back of the drive cage to the system board.

20.

you have other options to install or remove, do so now. Otherwise, see

“Completing the installation” on page 41..

Power and signal cables for internal drives

Your computer uses cables to connect IDE, Serial ATA, and SCSI devices to the power supply and to the system board. (See “System-board internal connectors” on page 14 for the location of system-board connectors.) Review the following information before connecting power and signal cables to internal drives:

IntelliStation Z Pro Type 6223: Installation Guide

v If

–

- An

- A

The drives that are preinstalled in your computer come with power and signal cables attached. If you replace any drives, remember which cable is attached to which drive, or label the cables.

When you install a drive, make sure that one of the signal-cable connectors is connected to the drive and that the connector at the other end of the signal cable

connected to the system board.

The computer has one IDE bus, which is primary.

you have only one IDE device on a cable, it must be set as a master device.

The following cables are provided:

Power cables: Four-wire power cables connect the drives to the power supply.

the end of these cables are plastic connectors that attach to different drives; these connectors vary in size. With Serial ATA drives, you can use either a four-wire power cable or a five-wire Serial ATA power cable, but do not use both

the same time (use one or the other).

Signal cables: Signal cables typically are flat cables, also called ribbon cables,

that connect IDE, Serial ATA, SCSI, and diskette drives to the system board. Two

three types of signal cables come with your computer:

IDE: The wider IDE signal cable has three connectors. One of these

connectors is attached to the drive, one is a spare, and the third is attached to the primary or secondary IDE connector on the system board. The spare connector can be used to connect additional IDE drives to your computer.

Note: The optical drive is attached to an ATA 100 signal cable. ATA 100

signal cables are color-coded. The blue connector is connected to the system board. The black connector is connected to the master IDE device. The gray middle connector is connected to the subordinate IDE device.

Serial ATA: The narrower, black signal cable has two connectors. One is

connected to the SATA drive, and the other is connected to the connector on the system board. Each SATA drive comes with a cable. If you install an additional SATA drive, you will need an additional cable.

SCSI: The following cables can be used to attach SCSI devices to the

integrated SCSI controller on the system board:

Ultra320 twisted ribbon cable connects the internal Ultra320 SCSI hard disk drive to the SCSI connector on the system board. This cable has four additional connectors for attaching more internal SCSI devices.

round SCSI cable connects external SCSI devices to the integrated SCSI controller on the system board. For more information about connecting SCSI devices, see the SCSI documentation.

Chapter 2. Installing the hardware

1. Do

go in

4. If

1, 2 2 GB

3, 4 1 GB

5, 6 1 GB

Installing memory modules

The following notes describe the types of dual inline memory modules (DIMMs) that the computer supports and other information that you must consider when installing DIMMs:

The computer comes with either two 256 MB or two 512 MB memory DIMMs installed in DIMM 1 and DIMM 2 memory connectors. The second pair of DIMMs must be installed in DIMM 3 and DIMM 4 memory connectors and the third pair

DIMM 5 and DIMM 6 memory connectors.

DIMMs must be installed in matched pairs. The DIMMs in each pair must be the same size, speed, type, and technology as each other but do not have to match the other pairs. You can mix compatible DIMMs from various manufacturers.

Install only 1.8 V, 184-pin, double-data-rate 2 (DDR2), PC2-3200, registered, synchronous dynamic random-access memory (SDRAM) with error correcting code (ECC), dual inline memory modules (DIMMs). These DIMMs must be compatible with the latest PC2-3200 SDRAM buffered DIMM specification. For a list of supported options for your computer, go to http://www.ibm.com/pc/; then, select your country and navigate to the list of options for your computer.

The DIMM-installation sequence is based on single-rank, double-rank, and mixing single-rank and double-rank memory DIMMs. Single-rank DIMMs are 256 MB, 512 MB, and 1 GB memory modules. Double-rank DIMMs are 2 GB memory modules. The following table lists the DIMM-installation sequence for the computer maximum memory capacity using mixed single-rank and double-rank DIMMs.

Notes:

not install four, 2 GB double-rank DIMMs for the computer maximum

capacity (8 GB) configuration, the computer does not support it.

You can install pairs of 256 MB, 512 MB, 1 GB, and 2 GB DIMMs in the computer, but for the computer maximum capacity, you must use the DIMM-sequence in the table below.

You can install any combination of DIMM pairs in the computer, however, you can install only two, 2 GB double-rank DIMMs in the computer and they must

DIMM connectors 1 and 2. Do not install 2 GB double-rank DIMMs in

any connectors other than DIMM connectors 1 and 2.

you order memory DIMMs from IBM, the variable 2R in the description

indicates that the DIMM is a double-rank 2 GB DIMM.

Table 2. Maximum memory capacity (8 GB) and installation sequence mixing single-rank and double-rank DIMMs

DIMM pair

First pair

Second pair

Third pair

DIMM connectors DIMM size

Rank

Double-rank

Single-rank

The system board contains six DIMM connectors and supports two-way memory interleaving when the DIMMs are installed in pairs and functioning properly. If one DIMM in the pair fails, the computer runs in single-channel mode (non-interleaving). A failed DIMM must be replaced as soon as possible; otherwise, the computer will not start (boot).

The DIMM options that are available for the computer are 256 MB, 512 MB, 1 GB, and 2 GB memory modules. The computer supports a minimum of 512 MB and a maximum of 8 MB (when using 2 GB double-rank DIMMs) of system memory.

IntelliStation Z Pro Type 6223: Installation Guide

1, 2

3, 4

5, 6 5.

Important: Although the computer supports a maximum of 8 GB of system

memory, the Microsoft Windows operating systems recognize and support a maximum of 4 GB of system memory.

The memory controller in the computer provides Chipkill

™

memory protection if the DIMMs are 1 GB or larger, or if the computer is populated with 512 MB x4 DIMMs. Chipkill memory protection is a technology that protects the computer from a single chip failure on a DIMM.

The amount of usable memory is reduced depending on the system configuration. A certain amount of memory must be reserved for system resources. The BIOS displays the total amount of installed memory and the amount of configured memory.

Complete the following steps to install DIMMs:

Read the safety information beginning on page v, and “Handling static-sensitive devices” on page 11.

Turn off the computer and all attached devices (see “Turning off the computer”

page 44); then, disconnect all power cords and external cables.

Remove the side cover (see “Removing the side cover” on page 16).

Locate the DIMM connectors on the system board. Determine the connectors into which you will install the DIMMs. See Table 2 on page 32 for additional information on DIMM-installation sequences.

Table 3. DIMM installation sequence

DIMM pair

DIMM connectors

First pair

Second pair

Third pair

Gently open the retaining clip, if necessary, remove any existing DIMM.

Touch the static-protective package containing the DIMM to any unpainted metal surface on the computer. Then, remove the new DIMM from the package.

Gently open the retaining clip on each end of the DIMM slot. Turn the DIMM so that the pins align correctly with the connector.

Chapter 2. Installing the hardware

9. If

Insert the DIMM into the connector. Firmly press the DIMM straight down into the connector by applying pressure on both ends of the DIMM simultaneously. The retaining clips snap into the locked position when the DIMM is firmly seated

the connector. If there is a gap between the DIMM and the retaining clips, the DIMM has not been correctly installed. Open the retaining clips, remove the DIMM, and then reinsert it.

DIMM 4 DIMM 3

DIMM 5

DIMM 2

DIMM 1DIMM 6

you have other options to install or remove, do so now. Otherwise, go to

“Completing the installation” on page 41.

IntelliStation Z Pro Type 6223: Installation Guide

v To

v If

v To

Installing a second microprocessor

Your computer comes with one microprocessor installed on the system board. Your computer supports up to two microprocessors. With two microprocessors, your computer can operate as a symmetric multiprocessing (SMP) computer. With SMP, certain operating systems and application programs can distribute the processing load among the microprocessors.

Note: When installing microprocessor options, lay the computer on its side.

The following notes describe information that you must consider when installing an additional microprocessor in your computer:

Read the documentation that comes with the microprocessor to determine whether you need to update the computer basic input/output system (BIOS) code. The most current level of BIOS code for the computer is available from http://www.ibm.com/pc/support/.

(Optional) Obtain an SMP-capable operating system. For a list of supported operating systems, go to http://www.ibm.com/pc/us/compat/.

ensure proper computer operation, use microprocessors that have the same cache size and type, and the same clock speed. Microprocessor internal and external clock frequencies must be identical. You can use the Configuration/Setup Utility program in your computer to determine the specific type of microprocessor on your system board.

Important: The first microprocessor must always be installed in the

Microprocessor 1 socket.

The microprocessor speeds are automatically set for this computer; therefore, you do not need to set any microprocessor frequency-selection jumpers or switches.

Terminator cards are not required for empty microprocessor sockets. However, for airflow, an empty microprocessor socket must contain a microprocessor baffle.

you need to replace a microprocessor, call for service.

For additional illustrations of the system-board components, see “System-board option connectors” on page 13.

order additional microprocessor options, contact your IBM marketing representative or authorized reseller.

For a list of supported microprocessor options for your computer, go to http://www.ibm.com/pc/; then, select your country and navigate to the list of options for your computer

Microsoft Windows XP operating system that comes preinstalled on your

The computer automatically configures itself when an additional microprocessor is installed. Other operating systems might have to be manually configured to support

additional microprocessor. See the User’s Guide on the IBM IntelliStation

Documentation CD for instructions.

Complete the following steps to install an additional microprocessor:

Read the safety information beginning on page v and the guidelines in “Handling static-sensitive devices” on page 11.

Turn off the computer and all attached devices. (See “Turning off the computer” on page 44.)

Chapter 2. Installing the hardware

Disconnect all external cables and power cords; then, remove the side cover (see “Removing the side cover” on page 16).

Remove the side cover (see “Removing the side cover” on page 16).

Disconnect the fan connector for the fan that is attached to the back of the drive cage from the system board.

Fan assembly

Drive-cage

Drive-cage release lever

Move or disconnect any cables that might be in the way so you can remove the microprocessors’ air baffle.

IntelliStation Z Pro Type 6223: Installation Guide

Remove the air baffle for the microprocessors by pulling it outward and lifting it out of the computer.

DIMMs

VRM for second microprocessor

Heat sink release lever

Microprocessor 2

Heat sink 2

Microprocessor baffle assembly

Microprocessor air baffle

Locate the second microprocessor socket (Microprocessor 2) on the system board.

10.

Remove the microprocessor baffle assembly from the second microprocessor socket.

Press down on the blue touch point of the heat-sink release lever and rotate the lever all the way out until it stops.

Grasp the front of the microprocessor baffle assembly and tilt it up while pulling the rear flange out of the heat-sink retention module; then, lift it out

the computer and stoe it in a safe place.

11.

the second microprocessor socket is covered with protective film or a label,

peel and remove the film or label.

12.

Install the microprocessor:

Touch the static-protective package containing the new microprocessor to any unpainted metal surface on the computer; then, remove the microprocessor from the package.

Rotate the locking lever on the microprocessor socket from its closed and locked position until it stops or clicks in the fully open position (approximately 135°).

Attention: You must ensure that the locking lever on the microprocessor

socket is in the fully open position before you insert the microprocessor in the socket. Failure to do so might result in permanent damage to the microprocessor, microprocessor socket, and system board.

Position the microprocessor over the microprocessor socket. Align the triangle on the corner of the microprocessor with the triangle on the corner

the socket and carefully press the microprocessor into the socket.

Chapter 2. Installing the hardware

1) Do

Attention:

not use excessive force when pressing the microprocessor into the

socket.

Make sure that the microprocessor is oriented and aligned correctly with pin number 1 in the socket before you try to close the lever. The following illustration shows the alignment marks for both microprocessors and sockets.

Microprocessor 1

Microprocessor 2

Microprocessor socket 1

Retention bracket springs

Microprocessor socket 2

Alignment marks

Heat-sink release levers

Carefully close the lever to secure the microprocessor in the socket.

Install the heat sink on the microprocessor.

13.

Thermal grease

Remove the plastic cover from the bottom of the heat sink.

Attention: Do not set the heat sink down after you remove the plastic

cover, and do not touch the thermal grease on the bottom of the heat sink. Touching the thermal grease will contaminate it. If the thermal grease on the microprocessor or heat sink becomes contaminated, contact your service technician.

Align the heat sink (grease side down) over the microprocessor and retention bracket.

Slide the rear flange of the heat sink rearward into the opening beneath the

retention-bracket spring.

Press down firmly on the front of the heat sink until it is seated correctly.

Secure the heat sink to the microprocessor by rotating the heat-sink release lever to the closed position and hooking it underneath the tab on the microprocessor socket.

Insert the voltage regulator module (VRM) into the VRM connector.

Microprocessorrelease levers

Heat sink

IntelliStation Z Pro Type 6223: Installation Guide

v A

v An

v A

14.

Replace the air baffle for the microprocessors. Slant the front of the air baffle for the microprocessors downward at an angle while moving it forward; then, rotate the rear of the air baffle down until it snaps into place (it will become stationary).

15.

Rotate the drive cage back into the computer and reconnect the fan connector

the fan assembly on the drive cage to the system board.

16.

you have other options to install or remove, do so now. Otherwise, then, go

“Completing the installation” on page 41.

Installing a security rope clip

help prevent hardware theft, you can add a security rope clip and cable to your computer. After you add the security cable, make sure that it does not interfere with other cables that are connected to the computer.

Before you begin, obtain the following items:

flat-blade screwdriver

adjustable wrench

19-mm (0.75-in.) rope clip or wire rope (similar to National Manufacturing

number 3230, stock number 176-735)

Threaded nuts that fit the rope clip

security cable

lock, such as a combination lock or padlock

Complete

the following steps to install a rope clip:

Turn off the computer and all attached devices.

Disconnect all external cables and power cords; then, remove the side cover (see “Removing the side cover” on page 16).

Use a screwdriver to remove the two metal knockouts.

Insert the rope clip through the rear panel; then, attach and tighten the nuts.

Chapter 2. Installing the hardware

6. If

Thread the cable through the rope clip and around an object that is not part of

permanently secured to the building structure or foundation, and from which the cable cannot be removed. Fasten the cable ends together with a lock. After you add the security cable, be certain it does not interfere with other cables that are connected to the computer.

Rope clip

“Completing the installation” on page 41.

Replacing the bezel

Complete the following steps to replace the bezel:

Insert the tabs on the side of the bezel into the matching holes on the computer chassis.

Push the bezel toward the computer until the tabs and bezel clips snap into place.

you have other options to install or remove, do so now; otherwise, go to

IntelliStation Z Pro Type 6223: Installation Guide

Replacing the side cover

Complete the following steps to replace the side cover.

Before installing the cover, check that all cables, adapters, and other components are installed and seated correctly and that you have cleared all work tools from inside the computer.

Install the side cover by placing it into position on the computer. Make sure that the lip on the bottom of the cover rests inside the ledge on the bottom of the chassis before rotating the cover toward the computer. Press down on the cover until it snaps in place.

Reconnect the external cables and power cords to the computer.

Turn on the attached devices; then, turn on the computer.

Completing the installation

complete your installation, reinstall the bezel if you removed it, connect all the cables and, for certain options, run the Configuration/Setup Utility program. Follow the instructions in this section.

Cabling the computer

your computer cables and connector panel have color-coded connections, match the color of each cable end with the color of the connector. For example, match a blue cable end with a blue panel connector, a red cable end with a red connector, and so on.

Attention: To prevent damage to equipment, connect the power cord last.

Chapter 2. Installing the hardware

The following illustration shows the input/output (I/O) connectors on the rear of the computer.

IEEE 1394A

Mouse

Keyboard

USB 1 and 2

Serial 1

Parallel Serial 2

USB 3 and 4

Line out (green)

Line in (blue)

Microphone (pink)

(FireWire)

Optional serial or video port knockout

Ethernet link status LED

Ethernet

Ethernet transmit/ receive activity LED

SCSI knockout

Video

Depending on the video adapter that is installed in your computer and the monitor that you want to use, you might have to use special video cables that convert signals or provide an additional connection point for dual-monitor capability. See the

User’s Guide on the IBM IntelliStation Documentation CD and the documentation

that comes with your monitor for additional information.

Turning on the computer

Note: When you connect the power cord to the computer and an ac power source,

the power-supply fan will run and continue to run when the computer is in standby mode to provide cooling to the power supply.

When the computer is connected to an ac power source but is not turned on, the operating system does not run, and all core logic is shut down; however, the computer can respond to requests to turn on the computer. The power-on LED flashes to indicate that the computer is connected to an ac power source but is not turned on.

Notes:

Turn on all external devices, such as the monitor, before turning on the computer.

The power-on LED on the front of the computer is lit when the computer is on and while it is being turned on.

IntelliStation Z Pro Type 6223: Installation Guide

v If a

Approximately 20 seconds after the computer is connected to ac power, the power-control button becomes active, and you can turn on the computer and start the operating system by pressing the power-control button. The computer can also

turned on any of the following ways:

power failure occurs while the computer is turned on, the computer will

restart automatically when power is restored.

When you connect the computer to power for the first time, the Wake on LAN feature can turn on the computer. If the computer was previously turned on, it must be turned off correctly for the Wake on LAN feature to turn on the computer.

Running the operating-system setup program

you are starting your computer for the first time, the setup program runs automatically when you start the computer. The program will prompt you to make choices or type information. If you need more information than is provided in this Installation Guide, see your operating-system manual.

Important:

After turning on your computer for the first time, you must complete the operating system setup procedure before turning off your computer; otherwise, unexpected results might occur.

The setup program might be slightly different from the one described in your operating-system manual. Some choices do not appear because they are preset.

During the setup procedure, you must indicate that you accept the license agreement.

For Windows operating systems, the registration information will already be displayed in the registration field. If the Product ID number is not already displayed, you must type it. The Product ID number is on a label attached to the computer.

You will need the following information to complete the setup program in Windows operating systems:

The documentation that comes with your computer.

Network information from your network administrator, if your computer is being connected to a network.

The printer model and port, if a printer is attached directly to your computer.

After the setup procedure is completed and the computer restarts, the desktop opens, and the computer is ready for use.

Chapter 2. Installing the hardware

Turning off the computer

Note: When you connect the power cord to the computer and an ac power source,

the power-supply fan will run and continue to run when the computer is in standby mode to provide cooling to the power supply.

When you turn off the computer and leave it connected to ac power, the computer can respond to requests, such as a remote request to turn on the computer. To remove all power from the computer, you must disconnect it from the power source.

Some operating systems require an orderly shutdown before you turn off the computer. See your operating-system documentation for information about shutting down the operating system.

IntelliStation Z Pro Type 6223: Installation Guide

Statement 5:

The computer can be turned off in any of the following ways:

You can turn off the computer through the operating system. If this feature is supported by your operating system, it will turn off the computer after performing

orderly shutdown of the operating system.

you are using the preinstalled Microsoft Windows XP operating system,

complete the following steps to shut down the operating system and computer:

Save and close all files that you are working with.

Close all open applications.

Click Start.

Click Turn Off Computer; then, click Turn Off to confirm.

you are using the preinstalled Red Hat Linux operating system, complete the

following steps to shut down the operating system and computer:

Save and close all files with which you are working.

Close all open applications.

Click Red Hat Linux Main Menu Button → Logout → Shutdown.

Click OK to confirm.

You can press the power-control button on the front of the computer. It will turn off the computer after performing an orderly shutdown of the operating system, if this feature is supported by your operating system.

Note: After turning off the computer, wait at least 5 seconds before you press

the power-control button to turn on the computer again.

You can press and hold the power-control button for more than 4 seconds to cause an immediate shutdown of the computer. You can use this feature to turn off the computer if the operating system stops functioning.

Chapter 2. Installing the hardware

IntelliStation Z Pro Type 6223: Installation Guide

–

Chapter 3. Installing software

This chapter describes how to install and configure software for your IBM IntelliStation Z Pro Type 6223 computer.

Viewing the license agreement

The IBM International License Agreement for Non-Warranted Programs is viewable from the Access IBM folder. Use of your computer signifies acceptance of this agreement.

Complete the following steps to view the license agreement in Windows XP:

From the Windows XP desktop, click Start → All Programs → Access IBM.

Select IBM License Agreement.

For Red Hat Linux, when you start the computer, the License Agreement window opens. To accept the terms of the agreement, click I Agree. You can also view the license agreement by clicking the IBM License Agreement icon on your desktop.

Using the built-in configuration programs

The following configuration programs are available to configure your computer:

Configuration/Setup Utility program

The Configuration/Setup Utility program is part of the basic input/output system (BIOS) code in your computer. You can use this program to configure serial- and parallel-connector assignments, change interrupt request (IRQ) settings, change the drive startup sequence, set the date and time, and set passwords, and set the chassis-intrusion detector. For more information on how to start this utility, see “Starting the Configuration/Setup Utility program” on page 48. For detailed information, see the User’s Guide.

Boot Menu program

The Boot Menu program is part of the BIOS code in your computer. Use it to temporarily assign a device to be first in the startup sequence, overriding the startup sequence that is set in the Configuration/Setup Utility program. For information on how to start the Boot Menu, see “Starting the Boot Menu program”

page 48.

Broadcom NetXtreme Gigabit Ethernet Boot Agent

The Broadcom NetXtreme Gigabit Ethernet Boot Agent is part of the BIOS code

your computer. You can use it to configure the network as a startable device, and you can customize where the network startup option appears in your startup sequence. You enable and disable the Broadcom NetXtreme Gigabit Ethernet Boot Agent from the Configuration/Setup Utility program. For information, see “Enabling the Broadcom NetXtreme Gigabit Ethernet Boot Agent” on page 49.

Adaptec

HostRAID

Adaptec RAID Configuration Utility programs (for Serial ATA RAID)

Use the Array Configuration Utility within the Adaptec RAID Configuration Utility programs to configure the integrated Serial ATA (SATA ) controller with integrated RAID and the devices that are attached to it. For more information about using these utility programs, see “Using the Adaptec RAID Configuration Utility programs (for Serial ATA RAID)” on page 50.

SCSISelect Utility program (for SCSI RAID)

™

configuration programs

Use the SCSI HostRAID feature of the SCSISelect Utility program to configure the integrated SCSI controller with integrated RAID and the devices that are attached to it. For more information about using this utility program, see “Using the SCSISelect Utility program (for SCSI RAID)” on page 51.

ServeRAID Manager

ServeRAID

™

Manager is available as a stand-alone program and as an IBM Director extension. If a ServeRAID controller is installed in your computer, use ServeRAID Manager to define and configure your disk-array subsystem before you install your operating system. For information about using this program, see “Using ServeRAID Manager” on page 52.

Ethernet controller configuration

configure the integrated Gigabit Ethernet controller, see “Configuring the

Gigabit Ethernet controller” on page 54.

SCSISelect Utility program (some models)

your computer has a SCSI adapter installed, you can configure the devices that are connected to the optional SCSI adapter. Use this program to change default values, resolve configuration conflicts, and perform a low-level format on a SCSI hard disk drive. For information about how to start this utility, see “Starting the SCSISelect utility program (some models)” on page 54.

Note:

See the User’s Guide on the IBM IntelliStation Documentation CD for

detailed instructions for using the configuration programs.

The following sections provide the instructions for starting the utility programs.

Starting the Configuration/Setup Utility program

Complete the following steps to start the Configuration/Setup Utility program:

Note: When you use your computer for the first time, you might want to use the

Configuration/Setup Utility menu choice Load Default Settings to reset the Configuration/Setup Utility menu choices to the factory default settings, in case they were changed before you received the computer. Otherwise, some choices might not appear in the list of menu choices.

Turn on the computer and watch the monitor screen. If the computer is already

when you start this procedure, you must shut down the operating system, turn off the computer, wait a few seconds until all in-use LEDs are turned off, and restart the computer.

When the message Press F1 for Configuration/Setup appears on the screen during startup, press F1. (This prompt appears on the screen for only a few seconds. You must press F1 quickly.) If you have set both a user password and

administrator password, you must type the administrator password to access the full Configuration/Setup Utility menu.

Follow the instructions on the screen.

Starting the Boot Menu program

The Boot Menu program is a built-in, menu-driven configuration utility program that you can use to temporarily redefine the first startup device without changing settings in the Configuration/Setup Utility program.

Complete the following steps to start the Boot Menu program:

Turn off the computer.

Restart the computer.

IntelliStation Z Pro Type 6223: Installation Guide

v To

v If

Press F12.

Select the startup device.

The next time the computer is started, it returns to the startup sequence that is set

the Configuration/Setup Utility program.

Enabling the Broadcom NetXtreme Gigabit Ethernet Boot Agent

The Broadcom NetXtreme Gigabit Ethernet Boot Agent is part of the BIOS code in your computer. You can use it to configure the network as a startable device, and you can customize where the network startup option appears in your startup sequence. You enable and disable the Broadcom NetXtreme Gigabit Ethernet Boot Agent from the Configuration/Setup Utility program.

Complete the following steps to enable the Broadcom NetXtreme Gigabit Ethernet boot agent:

From the Configuration/Setup Utility main menu, select Devices and I/O Ports and press Enter.

Select System Board Ethernet PXE/DHCP and use the Right Arrow (→) key to set it to Enabled.

Select Save Settings and press Enter.

Using the Adaptec HostRAID configuration programs

Use the Adaptec RAID Configuration Utility programs and SCSISelect Utility (also referred to as IBM ServeRAID-7e) to add RAID level-0 and level-1 functionality to the integrated Serial ATA controller and the integrated SCSI controller. RAID level-0

striping where the drives are seen as a single volume and increases performance and RAID level-1 is mirroring where the contents of one drive are copied to the other drive to increase hard drive availability. Be sure to use these programs as described in this document. Use these programs to:

Configure a redundant array of independent disks (RAID) array

View or change your RAID configuration and associated devices

Consider Utility programs and SCSISelect Utility program to configure and manage arrays:

The integrated SCSI controller with integrated SCSI RAID (in SCSI models) and the integrated Serial ATA controller (in SATA models) with integrated SATA RAID supports RAID levels 0 and 1 with the option of having a hot-spare drive. Installing an optional ServeRAID controller provides additional RAID levels.

Hard disk drive capacities affect how you create arrays. Drives in an array can have different capacities, but the RAID controller treats them as if they all have the capacity of the smallest hard disk drive.

rates.

must use the IBM ServeRAID Support CD that comes with the ServeRAID option.

configuration method described in the instructions that come with that adapter to view or change SCSI settings for attached devices.

the following information when using the Adaptec RAID Configuration

help ensure signal quality, do not mix drives with different speeds and data

update the firmware and BIOS code for an optional ServeRAID controller, you

you install a different type of RAID adapter in the computer, use the

Chapter 3. Installing software

Using the Adaptec RAID Configuration Utility programs (for Serial ATA RAID)

Use the Array Configuration Utility within the Adaptec RAID Configuration Utility programs to add RAID level-0 and level-1 functionality to the integrated Serial ATA (SATA ) controller. This utility is part of the BIOS code in your computer. For additional information about using the Adaptec RAID Configuration Utility programs, see the documentation on the IBM ServeRAID-7e (Adaptec HostRAID) Support CD.

this CD did not come with your computer, you can download it from

http://www.ibm.com/pc/support/.

The integrated Serial ATA RAID feature (SATA HostRAID) comes disabled by default. You must enable it and install the device drivers before you can use it. The SATA RAID feature configuration utilities, device drivers, and information are available on the IBM ServeRAID-7e (Adaptec HostRAID) Support CD.

Enabling the Serial ATA HostRAID feature:

Complete the following steps to

enable the SATA RAID feature:

Turn on the computer.

When the prompt Press F1 for Configuration/Setup appears, press F1. If you have set a supervisor password, you are prompted to type the password.

Select Devices and I/O Ports.

Scroll down and select SATA RAID Enable.

Select Enabled.

Press Esc; then, select Yes to save the changes.

Using

the Serial ATA HostRAID feature:

The instructions in this section are for using the Array Configuration Utility program to access and perform an initial RAID level-1 configuration. If you install a different type of RAID adapter in the computer, use the configuration method described in the instructions that come with that adapter to view or change settings for the attached devices.

See the documentation on the IBM ServeRAID-7e (Adaptec HostRAID) Support CD for additional information about using the Array Configuration Utility program to create, configure, and manage arrays.

Configuring the controller:

Complete the following steps to use the Array

Configuration Utility program to configure a RAID level-1 array on your computer.

Turn on the computer.

When the prompt Press <CTRL><A> for Adaptec RAID Configuration Utility appears, press Ctrl+A.

Select Array Configuration Utility (ACU).

Select Create Array.

From the list of ready drives, select the two drives that you want to group into the array.

When asked to select the RAID level, select RAID-1.

(Optional) Type an identifier for the array.

When asked for the array build method, select Quick Int.

Follow the instructions on the screen to complete the configuration, and select

Done to exit.

10.

Restart the computer.

IntelliStation Z Pro Type 6223: Installation Guide

Viewing the configuration:

Complete the following steps to view information about

the Serial ATA controller:

Start the Array Configuration Utility.

From the Array Configuration Utility screen, select Manage Arrays.

Select an array and press Enter.

Press Esc to exit the program.

Using the SCSISelect Utility program (for SCSI RAID)

Use the SCSISelect Utility program to add RAID level-0 and level-1 functionality to the integrated SCSI controller. This utility is part of the BIOS code in your computer.

The integrated SCSI RAID feature (SCSI HostRAID) comes disabled by default. You must enable it and install the device drivers before you can use it. The SCSI RAID configuration utilities, device drivers, and information are available on the IBM

ServeRAID-7e (Adaptec HostRAID) Support CD. If this CD did not come with your

computer, you can download it from http://www.ibm.com/pc/support/.

Enabling the SCSI HostRAID feature:

SCSI RAID feature:

Turn on the computer.

When the prompt Press <CTRL><A> for SCSISelect Utility appears, press Ctrl+A. If you have set a supervisor password, you are prompted to type the password.

Use the arrow keys to select the channel for which you want to change settings, and press Enter.

Select Configure/View SCSI Controller Setting; then, select HostRAID.

Select Enabled.

Press Esc; then, select Yes to save the changes.

Complete the following steps to enable the

Using

the SCSI HostRAID feature:

The instructions in this section describe how

access the SCSI RAID feature from the SCSISelect Utility program and perform

initial RAID level-1 configuration. If you install a different type of RAID adapter in the computer, use the configuration method described in the instructions that come with that adapter to view or change SCSI settings for attached devices.

See the documentation on the IBM ServeRAID-7e (Adaptec HostRAID) Support CD for additional information about how to use the SCSI HostRAID feature.

Configuring the controller:

Complete the following steps to use the SCSI HostRAID

feature to configure a RAID level-1 array:

From the SCSISelect main menu, select Configure/View HostRAID Settings.

From the list of ready drives, type C to create an array.

When asked to select the RAID type, select RAID-1.

From the list of ready drives, select the two drives that you want to group into the array.

Select Create new RAID-1.

Type an identifier for the array.

Select Yes to create the array.

Press Esc to exit the utility.

Restart the computer.

Chapter 3. Installing software

1. In

Viewing the configuration:

information about the SCSI controller. From the list of available arrays, select an array and press Enter. Press Esc to exit the utility.

Using ServeRAID Manager

Use the ServeRAID Manager program to:

Configure arrays

View your RAID configuration and associated devices

Monitor operation of your RAID controllers

perform some tasks, you can run ServeRAID Manager as an installed program.

To However, to configure the SCSI controller and perform an initial RAID configuration

your computer, you must run ServeRAID Manager in a Startable-CD mode, as described in the instructions in this section. If you install a RAID adapter in your computer, use the configuration method described in the instructions that come with the adapter to view or change SCSI settings for attached devices.

See the ServeRAID documentation on the IBM ServeRAID Support CD or additional information about RAID technology and instructions for using ServeRAID Manager to configure your SCSI controller. Additional information about ServeRAID Manager is also available from the Help menu. For information about a specific object in the ServeRAID Manager tree, select the object and click Actions → Hints

and tips.

You can use the SCSISelect Utility program to view

Configuring the controller

running ServeRAID Manager in Startable CD mode, you can configure the controller before you install your operating system. The information in this section assumes that you are running ServeRAID Manager in Startable CD mode.

run the ServeRAID Manager program in startable-CD mode, turn on the computer; then, insert the IBM ServeRAID Support CD into the CD-ROM drive. If the ServeRAID Manager program detects an unconfigured controller and ready drives, the program automatically starts the Configuration wizard.

the Configuration wizard, you can select express configuration or custom configuration. Express configuration automatically configures the controller by grouping the first two physical drives in the ServeRAID Manager tree into an array and creating a RAID level-1 logical drive. If you select custom configuration, you can select the two physical drives that you want to group into an array and create a hot-spare drive.

Using express configuration

Complete the following steps to use express configuration:

the ServeRAID Manager tree, click the controller that you want to configure.

From the toolbar, click Create.

Click Express configuration.

Click Next. The “Configuration summary” window opens.

Review the information that is displayed in the “Configuration summary” window.

change the configuration, click Modify arrays or Modify logical drives.

IntelliStation Z Pro Type 6223: Installation Guide

1. In

Note: Some operating systems have size limitations for logical drives. Before

you save the configuration, verify that the size of the logical drive is appropriate for your operating system.

Click Apply; then, click Yes when asked if you want to apply the new configuration. The configuration is saved in the controller and in the physical drives.

Exit from the ServeRAID Manager program and remove the CD from the CD-ROM drive.

Restart the computer.

Using custom configuration

Complete the following steps to use custom configuration:

the ServeRAID Manager tree, click the controller that you want to configure.

From the toolbar, click Create.

Click Custom configuration.

Click Next. The “Create arrays” window opens.

Click the applicable tab in the right pane; then, from the list of ready drives, select the two drives you want to move to the array.

Click the icon to add the drives to the array.

Complete the following steps if you want to configure a hot-spare drive:

Click the Spares tab.

Select the physical drive you want to designate as the hot-spare drive; then, click the icon to add the drive.

Click Next. The “Configuration summary” window opens.

Review the information that is displayed in the “Configuration summary” window. To change the configuration, click Back.

10.

Click Apply; then, click Yes when asked if you want to apply the new configuration. The configuration is saved in the controller and in the physical drives.

11.

Exit from the ServeRAID Manager program, and remove the CD from the CD-ROM drive.

12.

Restart the computer.

Viewing the configuration

You can use ServeRAID Manager to view information about RAID controllers and

the RAID subsystem (such as arrays, logical drives, hot-spare drives, and physical

drives). When you click an object in the ServeRAID Manager tree, information about

that object appears in the right pane. To display a list of available actions for an

object, click the object and click Actions.

display available actions for an item, click the item in the ServeRAID Manager

tree and click Actions.

Chapter 3. Installing software

Configuring the Gigabit Ethernet controller

The Ethernet controller is integrated on the system board. It provides an interface for connecting to a 10-Mbps, 100-Mbps, or 1-Gbps network and provides full duplex (FDX) capability, which enables simultaneous transmission and reception of data on the network. If the Ethernet port in the computer supports auto-negotiation, the controller detects the data-transfer rate (10BASE-T, 100BASE-TX, or 1000BASE-T) and duplex mode (full-duplex or half-duplex) of the network and automatically operates at that rate and mode.

You do not have to set any jumpers or configure the controller. However, you must install a device driver when you install different operating system to enable the operating system to address the controller. For device drivers and information about configuring the Gigabit Ethernet controller, go to http://www.ibm.com/pc/support/.

Starting the SCSISelect utility program (some models)

Complete the following steps to start the SCSISelect utility program:

Turn on the computer.

When the <<< Press <CTRL><A> for SCSISelect Utility! >>> prompt appears, press Ctrl+A. If you have set an administrator password, you are prompted to type the password.

Use the arrow keys to make your selection.

When the prompt Would you like to configure the SCSI controller or run

the SCSI disk utility? appears, make your selection and press Enter.

Use the arrow keys to make your selection.

Follow the instructions on the screen to change the settings of the selected items; then, press Enter.

IntelliStation Z Pro Type 6223: Installation Guide

Chapter 4. Completing the installation

This chapter provides information to help you register your computer, record

important information, and back up your application programs.

Recording important numbers

Record information about your computer in the following table. You will need this

information when you register your computer with IBM.

Product name Machine type Model number Serial number Key serial number Key manufacturer Key phone number

Registering your computer

Registering your computer helps IBM provide better service to you. When IBM

receives your registration information, the information is placed into a central

technical support database. If you need technical assistance, the technical-support

representative will have information about your computer. In addition, comments

about your computer are reviewed by a team dedicated to customer satisfaction

and are taken into consideration in making improvements to IBM computers.

Use one of the following methods to register your computer in Windows:

From the Windows XP desktop, click Start → All Programs → IBM Registration and then follow the instructions. If you do not have access to the Internet, you can use the registration program that starts from the IBM Registration folder to print your registration information and provide your mailing address to IBM for future assistance.

IBM IntelliStation Z Pro 6223 _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________

For Red Hat Linux, click the Register PC icon on the desktop to register your

computer on the World Wide Web.

Creating an emergency recovery-repair diskette in Windows

Note: To create and use a diskette, you must add a diskette drive to your

computer. To enable a USB diskette drive, follow these steps:

Enable the Legacy USB Support option under the Startup Option menu choice in the Configuration/Setup Utility program.

Set your removable media device as the first startup device.

Select the removable media device you want to boot from and move it to the top of the Removable Devices list.

your earliest opportunity, create a recovery-repair diskette and an IBM Enhanced

Diagnostics diskette, and store them in a safe place. In the unlikely event that the

computer becomes unusable, you can use the recovery-repair diskette to access

v If a

v If an

the Product Recovery program. For more information about using this diskette, see the User’s Guide on the IBM IntelliStation Documentation CD.

You can use one of the following methods to create a recovery-repair diskette In Windows:

Create a diskette from the c:\ibmtools directory

Create a diskette from the Product Recovery program partition

Complete

the following steps to create a recovery-repair diskette from the

c:\ibmtools directory:

Start the computer and operating system.

Use Windows Explorer to display the directory structure of the hard disk.

Open the c:\ibmtools folder.

Double-click rrdisk.bat and follow the instructions on the screen.

Complete the following steps to create a recovery-repair diskette from the Product Recovery program on the hard drive partition:

Shut down the operating system and turn off the computer.

Wait for at least 5 seconds; then, press and hold the F11 key while you restart the computer. When a menu appears, release the F11 key.

Use one of the following procedures:

menu is displayed in which you can select an operating system, use the arrow keys to select the operating system that is currently installed, press Enter, and then continue with the next step.

operating system menu is not displayed, continue with the next step.

From the Product Recovery Main menu, use the arrow keys to select System

utilities, and then press Enter.

Use the arrow keys to select Create a Recovery Repair diskette, and then press Enter.

Follow the instructions on the screen.

“Creating an IBM Enhanced Diagnostics Diskette in Windows” for information

See about how to create an IBM Enhanced Diagnostics diskette.

Creating an IBM Enhanced Diagnostics Diskette in Windows

Note: To create and use a diskette, you must add a diskette drive to your

computer. To enable a USB diskette drive, follow these steps:

Enable the Legacy USB Support option under the Startup Option menu choice in the Configuration/Setup Utility program.

Set your removable media device as the first startup device.

Select the removable media device you want to boot from and move it to the top of the Removable Devices list.

IBM Enhanced Diagnostics diskette is a self-starting diagnostics diskette that

The you can use to test hardware components in your computer. Use one of the following methods to create a startable IBM Enhanced Diagnostics diskette.

Complete the following steps to create an IBM Enhanced Diagnostics diskette from the Product Recovery program on the hard drive partition:

Restart the computer and watch the monitor.

IntelliStation Z Pro Type 6223: Installation Guide

1. Go to

4. In

6. On

7. At a

When the message To start the Product Recovery Program, Press F11 appears, quickly Press F11.

Select System utilities.

Select Create IBM Enhanced Diagnostics Diskette.

Follow the instructions on the screen.

Complete the following steps to create an IBM Enhanced Diagnostics diskette from the World Wide Web:

http://www.ibm.com.

Click Support & downloads.

Click Search technical support.

the Enter keyword(s) field, type diagnostics 6223, and click Submit.

From the “Search results” page, click the Enhanced Diagnostics item for your computer.

the next page, click the executable file for the Enhanced Diagnostics code to download it (be sure to download the file to a hard disk directory and not to a diskette). You can click the text file to display the readme file.

command prompt, change to the directory where the file was downloaded.

Insert a blank, high-density diskette into the diskette drive.

Type filename a: where filename is the name of the file you downloaded and a

the drive letter of the diskette drive; then, press Enter.

downloaded file is self-extracting and is copied to the diskette. When the copy

The

completed, store the diskette in a safe place.

For more information about using the IBM Enhanced Diagnostics program, see the

User’s Guide on the IBM IntelliStation Documentation CD.

Chapter 4. Completing the installation

IntelliStation Z Pro Type 6223: Installation Guide

Chapter 5. Solving problems

This section provides basic troubleshooting information to help you diagnose and solve some problems that might occur with your computer.

you cannot diagnose and correct the problem using the information in this section, see Appendix A, “Getting help and technical assistance,” on page 67 and “Solving problems” in the User’s Guide on the IBM IntelliStation Documentation CD.

Diagnostic tools overview

The following tools are available to help you diagnose and solve hardware-related problems:

POST beep codes and error messages

The power-on self-test (POST) indicates the detection of a problem. See “Power-on self-test (POST)” on page 60 and “POST error messages” on page 60 for information. For detailed information, see POST Error Log in Advanced Setup

“Configuration/Setup Utility menu choices” in the User’s Guide.

Diagnostic programs and error messages

The diagnostic programs are provided on a hidden partition on the hard disk. These programs test the major components of your computer.

Note: See “Solving problems” in the User’s Guide on the IBM IntelliStation

Documentation CD for information about the diagnostic programs.

Troubleshooting charts

These charts list problem symptoms and steps to correct the problems. See the “Troubleshooting charts” on page 61 for information.

System-board error LEDs

LED on the system board might also be lit to help isolate an error indicated

the system error LED on the front of the computer. See the “System-board

error LEDs” on page 65 for more information.

1. If

2. A

If no

Power-on self-test (POST)

When you turn on the computer, the power-on self-test (POST) performs a series of tests to check the operation of system components and some of the installed options.

POST finishes without detecting any problems, the first window of your operating

system or application program opens.

POST detects a problem, more than one beep sounds and an error message

appears on the screen.

Notes:

you have set a user password, you must type the password and press Enter,

when prompted, before the operating system will start.

single problem might cause several error messages. When this occurs, work

correct the cause of the first error message. After you correct the cause of the first error message, the other error messages usually will be resolved the next time you run the test.

POST beep codes

Use the following beep code descriptions to help diagnose and solve problems that are detected during startup:

beeps

Continuous beep

The startup (boot) microprocessor has failed, or the system board or speaker subsystem might contain a failing component. If the computer continues through POST with no errors, call for service. If no video appears, the startup processor has failed.

Beep codes for specific failures

Beep codes indicating specific system problems are listed in the User’s

Guide on the IBM IntelliStation Documentation CD.

POST error messages

The following table provides an abbreviated list of the POST error messages that might appear during startup.

Note: See the User’s Guide on the IBM IntelliStation Documentation CD for more

information about the POST error messages.

POST message

162

163

164

201

beep occurs after the computer completes POST, call for service.

Failing device or problem found

Change in device configuration

Time of day has not been set

Change in memory configuration

Suggested action

Make sure that the optional devices are turned on and installed correctly.

Set the date and time.

Make sure that the memory is installed correctly; then, restart the computer and run the Configuration/Setup Utility program.

Make sure that your memory is fully seated and installed correctly.

IntelliStation Z Pro Type 6223: Installation Guide

2. If

A CD is

2. If

POST message

289

301 303

1162

2462

Troubleshooting charts

Notes:

See “Solving problems” in the User’s Guide on the IBM IntelliStation

Documentation CD for more troubleshooting charts.

you cannot find the problem in the troubleshooting chart, run the diagnostic programs. If you have run the diagnostic test programs, or if running the tests does not detect the problem, call for service.

CD-ROM drive problems

Failing device or problem found

Failing DIMM was disabled

Keyboard and keyboard controller

Serial port configuration error

Video adapter and memory

Suggested action

Make sure that the memory is correct for your computer and that it is installed correctly.

Make sure that the keyboard cable is connected and nothing is resting on the keyboard keys.

Start the Configuration/Setup Utility program and make sure that the IRQ and I/O port assignments that are needed by the serial port are available.

Call for service.

Symptom

CD-ROM drive is not recognized.

not working correctly. Clean the CD.

The CD-ROM drive tray is not working.

Suggested action

Make sure that:

The IDE channel to which the CD-ROM drive is attached (primary or secondary)

enabled in the Configuration/Setup Utility program.

All cables and jumpers are installed correctly.

The correct device driver is installed for the CD-ROM drive.

the problem remains, call for service.

Make sure that the computer is turned on.

the CD-ROM tray still does not work, insert the end of a straightened paper

clip into the manual tray-release opening.

the problem remains, call for service.

Chapter 5. Solving problems

v If

–

2. If

Diskette drive problems

Symptom

The diskette drive activity LED stays lit, or the computer

Suggested action

there is a diskette in the drive, make sure that:

bypasses the diskette drive.

the monitor and the diskette drive is at least 76 mm (3 in.).

the problem remains, call for service.

Hard disk drive problems

Symptom

Not all drives are recognized by the hard disk drive diagnostic test (the Fixed Disk test).

The computer stops responding during the hard disk drive diagnostic test.

Suggested action

Remove the first drive that is not recognized and try the hard disk drive diagnostic test again.

the problem remains, call for service.

Remove the hard disk drive that was being tested when the computer stopped responding and try the diagnostic test again.

you removed with a new one.

The diskette drive is enabled in the Configuration/Setup Utility program. The diskette is good and not damaged. (Try another diskette if you have one.) The diskette is inserted correctly in the drive. The diskette contains the necessary files to start the computer. The software program is working correctly. The cable is installed correctly (in the correct orientation).

prevent diskette drive read/write errors, make sure that the distance between

the remaining drives are recognized, replace the drive that you removed with new one.

the hard disk drive diagnostic test runs successfully, replace the drive that

the problem remains, call for service.

Keyboard, mouse, or pointing-device problems

Symptom

All or some keys on the keyboard do not work.

The mouse or pointing device does not work.

Suggested action

Make sure that the keyboard cable is securely connected to the system and that the keyboard and mouse cables are not reversed. Make sure that the computer and the monitor are turned on. Try using another keyboard.

If the problem remains, call for service.

Make sure that the mouse or pointing-device cable is securely connected and that the keyboard and mouse cables are not reversed.

Make sure that the mouse device drivers are installed correctly.

Make sure that the computer and the monitor are turned on.

Try using another mouse or pointing device.

the problem remains, call for service.

IntelliStation Z Pro Type 6223: Installation Guide

–

– If

–

– If

Memory problems

Symptom

The amount of system memory displayed is less than the amount of physical memory installed.

Suggested action

Make sure that:

The DIMMs are seated correctly. You have installed the correct type of memory.

Configuration/Setup Utility program. All banks of memory are enabled. The computer might have automatically disabled a memory bank when it detected a problem, or a memory bank could have been manually disabled.

Check POST error log for error message 289:

the DIMM.

Configuration/Setup Utility program and enable the DIMM.

the problem remains, call for service.

Microprocessor problems

Symptom

The computer emits a continuous tone during POST.

Suggested action

The startup (boot) microprocessor is not working correctly. Call for service.

you changed the memory, you updated the memory configuration with the

the DIMM was disabled by a system-management interrupt (SMI), replace

the DIMM was disabled by the user or by POST, run the

Monitor problems

Symptom

The screen is blank.

Only the cursor appears.

The monitor works when you turn on the computer, but the screen goes blank when you start some application programs.

Suggested action

Make sure that:

The computer power cord is connected to the computer and a working electrical outlet. The monitor cables are connected correctly. The monitor is turned on and the brightness and contrast controls are adjusted correctly.

the problem remains, call for service.

Call for service.

Make sure that:

The application program is not setting a display mode higher than the capability

the monitor.

The primary monitor cable is connected to the video connector.

You have installed the necessary device drivers for the application programs.

the problem remains, call for service.

Chapter 5. Solving problems

1. If

3. An

v If

3. If

Symptom

The monitor has screen jitter, or the screen image is wavy, unreadable, rolling, or distorted.

Wrong characters appear on the screen.

Suggested action

the monitor self-tests show that the monitor is working correctly, consider the location of the monitor. Magnetic fields around other devices (such as transformers, appliances, fluorescent lights, and other monitors) can cause screen jitter or wavy, unreadable, rolling, or distorted screen images. If this happens, complete the following steps:

Turn off the monitor.

Attention: Moving a color monitor while it is turned on might cause screen

discoloration.

Move the device and the monitor at least 300 mm (12 in.) apart, and turn on the monitor.

Notes:

you have attached a diskette drive to the computer, make sure that the distance between the monitor and diskette drive is at least 75 mm (3 in.) to prevent diskette drive read/write errors.

Non-IBM monitor cables might cause unpredictable problems.

enhanced monitor cable with additional shielding is available for the 9521 and 9527 monitors. For information about the enhanced monitor cable, contact your IBM marketing representative or authorized reseller.

the problem remains, call for service.

the wrong language is displayed, update the BIOS code with the correct

language.

the problem remains, call for service.

Power problems

Symptom

The power-control button does not work, and the reset button,

supported, does work.

The computer does not turn on. v

The computer does not turn off. Determine whether you are using an ACPI or non-ACPI operating system. If you

Suggested action

Call for service.

Make sure that the power cords are correctly connected to the computer. Make sure that the electrical outlet functions correctly. Make sure that the type of memory installed is correct.

you just installed an option, remove it, and restart the computer. If the computer now turns on, you might have installed more options than the power supply supports.

the problem remains, call for service.

are using a non-ACPI operating system, complete the following steps:

Press Ctrl+Alt+Delete.

Turn off the computer by holding the power-control button for 4 seconds.

the computer fails during POST and the power-control button does not work,

remove the ac power cord.

the problem remains or if you are using an ACPI operating system, call for

service.

IntelliStation Z Pro Type 6223: Installation Guide

System-board error LEDs

The following illustration shows the location of the LEDs on the system board. You might need to refer to this illustration when solving problems with the computer.

Each error LED is lit to indicate a problem with a specific component. After a problem is corrected, its LED will not be lit the next time the computer is restarted;

the problem remains, the LED will be lit again. See “Solving problems” in the

User’s Guide on the IBM IntelliStation Documentation CD for additional information.

Fan 1 error LED

DIMM 6 error LED

DIMM 5 error LED

DIMM 4 error LED

DIMM 3 error LED

DIMM 2 error LED

DIMM 1 error LED

Fan 2 error LED

Fan 4 error LED

Product Recovery program

The Product Recovery program is on a hidden partition of the hard disk. The Product Recovery program runs independently of the operating system and reinstalls your operating system and preinstalled software.

your hard disk drive, including the partition that contains the Product Recovery program, becomes damaged or if you replace the hard disk drive, contact IBM to order the IBM Product Recovery CD to recover your preinstalled operating system, application programs, and device drivers.See Appendix A, “Getting help and technical assistance,” on page 67 for details.

Fan 3 error LED

Microprocessor 2 error LED

Microprocessor 1 error LED

Chapter 5. Solving problems

IntelliStation Z Pro Type 6223: Installation Guide

v Go to

Appendix A. Getting help and technical assistance

you need help, service, or technical assistance or just want more information about IBM products, you will find a wide variety of sources available from IBM to assist you. This appendix contains information about where to go for additional information about IBM and IBM products, what to do if you experience a problem with your xSeries or IntelliStation system, and whom to call for service, if it is necessary.

Before you call

Before you call, make sure that you have taken these steps to try to solve the problem yourself:

Check all cables to make sure that they are connected.

Check the power switches to make sure that the system is turned on.

Use the troubleshooting information in your system documentation, and use the diagnostic tools that come with your system. Information about diagnostic tools is

the Hardware Maintenance Manual and Troubleshooting Guide on the IBM

xSeries Documentation CD or in the IntelliStation Hardware Maintenance Manual

the IBM Support Web site.

the IBM Support Web site at http://www.ibm.com/pc/support/ to check for technical information, hints, tips, and new device drivers or to submit a request for information.

can solve many problems without outside assistance by following the

You troubleshooting procedures that IBM provides in the online help or in the publications that are provided with your system and software. The information that comes with your system also describes the diagnostic tests that you can perform. Most xSeries and IntelliStation systems, operating systems, and programs come with information that contains troubleshooting procedures and explanations of error messages and error codes. If you suspect a software problem, see the information for the operating system or program.

Using the documentation
