CAR MULTIMEDIA SYSTEM

USER'S MANUAL

5HDGWKHIROORZLQJVDIHW\SUHFDXWLRQV IRU\RXUVDIHW\

1RWDWLRQVXVHGZLWKLQWKLV8VHUV0DQXDO

Before using the product, read the contents of this user's manual carefully and use this product safely.

The design and speciﬁcations of this product may change without prior

notiﬁcation for product and service improvement. The actual features in the vehicle may differ from the illustrations. For more accurate information about the vehicle, please refer to the catalogue.

This Audio system contains open source software, including without

limitation, software distributed and/or modiﬁed under the GNU General Public license, Version 2, June 1991, and the GNU lesser General Public License, Version 2.1, February 1999. For additional information and to obtain related materials including without limitation, the previous referred to licenses and software, please contact us at MOBIS_OSSrequest@mobis.co.kr

WARNING

• Failure to observe the instructions within this category could result in death

or serious injury or damage to the vehicle.

CAUTION

• Information on matters that could potentially lead to injury or vehicle

damage/malfunction Information that could lead to higher user safety

Information

• Information and tips that provide additional user convenience in using the

product

NOTICE

• Information on specific features that facilitate proper product use and

functional understanding

• Information on terminology used within this manual

iPod

iPod® is a registered trademark of Apple Inc.

Bluetooth®

A compatible required to use

Bluetooth

The

Wireless Technology

Bluetooth®

word mark and logos are registered trademarks owned by

Wireless Technology-enabled cell phone is

Wireless Technology.

Bluetooth SIG, Inc. and any use of such marks by Kia is under license. Other trademarks and trade names are those of their respective owners. A Bluetooth

enabled cell phone is required to use

Bluetooth®

Wireless

Technology.

HD Radio™ Technology

HD Radio™ Technology manufactured under license from iBiquity Digital Corporation. U.S. and Foreign Patents. For patents see http://patents.dts.com/. HD Radio™ and the HD, HD Radio™, and "ARC" logos are registered trademarks or trademarks of iBiquity Digital Corporation in the United States and/or other countries.

Wi-Fi

The Wi-Fi CERTIFIED™ Logo is a certiﬁ cation mark of Wi-Fi Alliance.

Bluetooth

Wireless Technology phone compatibility can be checked by

visiting http://www.kia.com.

SDUW

Component Names and Functions

Starting the System for the First Time

%DVLF

Warnings and Cautions

Key Product Features

%DVLF

6DIHW\:DUQLQJV

• Even when receiving route guidance from the Navigation system, please abide by actual traffic and road regulations. Following only the Navigation route guidance may lead to violations of actual traffic and road regulations and lead to traffic accidents.

• Do not stare at the screen while driving. Staring at the screen for prolonged periods of time could lead to traffic accidents.

• Do not operate the Navigation system while driving, such as entering POIs or conducting route searches. Such acts could lead to accidents, fire, or electric shock. Park the vehicle before operating the device.

• Do not disassemble, assemble, or modify the Multimedia system. Such acts could result in accidents, fire, or electric shock.

• Heed caution not to spill water or introduce foreign objects into the device. Such acts could lead to smoke, fire, or product malfunction.

• If you use phone related functions while driving, you will find it difficult to concentrate on operating the vehicle and the current traffic conditions, so the possibility of an accident may increase. Please use phone related functions only when parked.

• Please refrain from use if the screen is blank or no sound can be heard as these signs may indicate product malfunction. Continued use in such conditions could lead to accidents (fires, electric shock) or product malfunctions.

• Do not touch the antenna during thunder or lightening as such acts may lead to lightning induced electric shock.

• Do not stop or park in parking-restricted areas to operate the product. Such acts could lead to traffic accidents.

• For most Audio and multimedia modes, the display will not operate when the vehicle is in motion. For your safety, first park the vehicle to watch or view the screen.(The screen will only operate when the parking brake is ON for manual transmission vehicles and when the parking brake is ON or the gearshift is in the P (PARK) position for automatic.)

• Some functions other than the one mentioned above cannot be used while driving. These functions operate only when the vehicle is parked.

1-2 I Basic

6DIHW\&DXWLRQV

Pay attention to traffic conditions while driving.

• In some instances, the navigation may provide guidance through restricted areas.

• Operating the device while driving could lead to accidents due to a lack of attention to external surroundings. First park the vehicle before operating the device. In addition, the touch screen may not work for some functions when the vehicle is in motion. The touch screen feature will be supported once the vehicle has stopped.

• Adjust the volume to levels that allow the driver to hear sounds from outside of the vehicle. Driving in a state where external sounds cannot be heard may lead to accidents.

• Pay attention to the volume setting when turning the device on. A sudden output of extreme volume upon turning the device on could lead to hearing impairment. (Adjust the volume to a suitable levels before turning off the device.)

• Turn on the car ignition before using this device. Do not operate the Multimedia system for long periods of time with the ignition turned off as such operations may lead to battery discharge.

• Upon using the Multimedia system for more than 10 minutes with the car engine turned off, the following warning will be displayed. After 10 minutes, the warning will be displayed for 5 seconds every 1 minute.

• Do not subject the device to severe shock or impact. Direct pressure onto the front side of the monitor may cause damage to the LCD or touch screen.

• When cleaning the device, make sure to turn off the device and use a dry and smooth cloth. Never use tough materials, chemical cloths, or solvents(alcohol, benzene, thinners, etc.) as such materials may damage the device panel or cause color/quality deterioration. When experiencing product concerns, inquire with your place of purchase or service maintenance center.

• Prevent caustic solutions such as perfume and cosmetic oil from contacting the dashboard because they may cause damage or discoloration.



Warnings and Cautions I 1-3

.H\3URGXFW)HDWXUHV

This device is a Multimedia system equipped with a multifunctional player that supports Radio (FM, AM), HD Radio™, SiriusXM™, USB, iPod, AUX and Bluetooth Audio features. The WIDE VGA LCD provides a high quality resolution while the powerful and rich sound system adds to the driving enjoyment.

Wide TFT-LCD Display

Display

Radio

Multimedia

Player

• Provides high quality video through a Wide TFT-LCD Display using an LED Back Light.

• Touch screen for maximum user convenience.

Digital Tuner Feature

• Digital Tuner using PLL method that supports memory of 40 broadcast stations.

Radio broadcast station name

• Displays broadcast station names.

Support for various Media Formats

• Support for various media formats, including Radio, USB, iPod, AUX and Bluetooth

Audio

Streaming modes

Navigation

Miscellaneous

Voice Guidance

• Voice route guidance to safely and conveniently reach set destinations.

• Various map scales that enable drivers to accurately view map and surrounding areas.

Automatic Correction for Current Location

• Automatically corrects current position using map matching and GPS information.

Bluetooth

• Convenient use of Bluetooth

Wireless Technology

Handsfree by

using buttons within the steering wheel control

Digital Screen Control Features

• Easy control of features through touch screen options

Steering Wheel Control

• Control over audio features, voice recognition and Bluetooth

through the steering wheel

control for maximum convenience

1-4 I Basic

&RPSRQHQW1DPHVDQG)XQFWLRQV

Head Unit

Name Description

• When power is off, press to turn power on.

32:(5

92/

5$',2

• When power is on, press and hold (more than

0.8 seconds) to turn the power off.

• When power is on, press quickly (less than 0.8 seconds) to turn Audio off.

• Turn left/right to adjust the volume.

Selects FM/AM/SiriusXM™ mode

• Each time this is pressed, the mode is changed in the following order: FM я AM я SiriusXM™

FM.

Name Description

0(',$

Selects MEDIA mode.

• If the media is not connected MEDIA mode will not be activated.

Moves to the function set by the user.



Component Names and Functions I 1-5

Name Description

When pressed quickly (less than 0.8 seconds),

• FM/AM mode: Plays the previous/next frequency.

• SiriusXM™ mode: Changes the channel.

• MEDIA mode: Changes the track, file or title

6((.

75$&.

(except for AUX).

When pressed and held down (more than 0.8 seconds),

• FM/AM mode: Moves quickly through all of the frequencies. The moment that you release the button, the system seeks the next available frequency.

• MEDIA mode: Rewinds or fast forwards the track or file (except for AUX, Bluetooth Audio).

Name Description

0$3

1$9

6(783

Displays the map for the current position.

Takes you to the menu screen where you can find your destination and set the route.

Moves to the Setup screen.

• FM/AM mode: Changes the frequency.

781(

• SiriusXM™ mode: Changes the channel.

• MEDIA mode: Changes the track, file or title (except for AUX, Bluetooth Audio).

SD Card insert slot.

5(6(7

The actual image in the vehicle may differ from the illustration.

Resets the system settings. (Preset radio channels and other data will not be deleted)

1-6 I Basic

Steering Wheel Controls

Name Description

When pressed quickly (less than 0.8 seconds),

• Activates voice recognition. When pressed and held (more than 0.8 seconds),

• Ends voice recognition.

• If iOS device is connected through Bluetooth, activates or ends Siri Eyes Free.

Name Description

• Each time this is pressed, the mode is changed in the following order: FM я AM я SiriusXM™ USB or iPod я AUX я Bluetooth Audio я FM

You can select which mode to use in

Advanced settings.

02'(

• If the media is not connected, the corresponding modes will be disabled

• Press and hold (more than 0.8 seconds) to turn the Audio system on/off

• When power is off, press button to turn power back on

,

Controls the volume

When pressed quickly (less than 0.8 seconds),

• FM/AM mode: searches broadcast frequencies saved to Presets

• SiriusXM™ mode: searches broadcast channels saved to Presets

• MEDIA mode: changes the track, file or title (except for AUX)

When pressed and held (more than 0.8 seconds),

• FM/AM mode: automatically searches broadcast frequencies

• SiriusXM™ mode: automatically searches broadcast channels

• MEDIA mode: quickly looks up songs (except for AUX, Bluetooth Audio)



Component Names and Functions I 1-7

Name Description

When pressed quickly (less than 0.8 seconds),

• When pressed in the dial screen, makes a call

• When pressed in the incoming call screen, answers the call

• When pressed during call waiting, switches to waiting call (Call Waiting)

When pressed and held (more than 0.8 seconds),

• When pressed in Bluetooth the last dialed call

• When pressed during a Bluetooth

Hands-free, redials

Hands-free

call, switches call back to mobile phone (Private)

• When pressed while calling on the mobile phone, switches call back to Bluetooth (operates only when Bluetooth

Hands-free

Hands-free is

connected)

• When pressed during a call, ends the phone call

• When pressed in the incoming call screen, rejects the call

The actual image in the vehicle may differ from the illustration.

1-8 I Basic

6WDUWLQJWKH6\VWHPIRU WKH)LUVW7LPH

Turning the System On/Off

Press the engine start button or set the ignition key to On or ACC. Each time you turn on the system, a boot logo and safety warning will appear.

Pressing the power key on the head unit will display the safety guide. To change the system language between English, French, Spanish and Korean, select the

/DQJXDJH

button.

NOTICE

• You cannot operate the system while it is

booting up. It may take some time for all of features of the system, particularly the voice recognition system, to be ready for use.

Pressing and holding the power key on the head unit will turn off the system.

Information

• If you turn off the system during a phone call

using the Hands-free feature, then the call will automatically switch to your mobile phone.

NOTICE

• Check the volume when turning on the

system. Before turning on the system, adjust the volume to a reasonable level.

System Reset

The System Reset function restores the system when it is not operating correctly. Press and hold the ond or longer. (It is recommended that you press the a pin or a clip.)

5(6(7

key for a sec-

key using a tool, such as



Starting the System for the First Time I 1-9

Battery Warning Message

Always use the system while the car engine is running. If you turn on the system while the engine is off, a battery warning message will appear. When the engine starts, the message will disappear.

NOTICE

• If you use the system for a long time with

the engine off, the battery may become completely discharged.

Restrictions on Features for Safety Measures

Several features are limited while driving. The restriction screen will disappear when shifting gears into P or putting the parking brake on.

WARNING

- Blank Screen

• Refrain from use if the screen is blank or

no sound can be heard as these signs may indicate product malfunction. Continued use in such conditions could lead to accidents (ﬁres, electric shock).

WARNING

- Touching the Antenna During A Thunder Storm

• Do not touch the antenna during thunder or

lightning as such acts may lead to lightning induced electric shock.

1-10 I Basic

Home Screen

Controls Menu Conﬁguration for the Home Screen

Tap the icon on any screen to display the Home Screen below.

Features Description

• Provides a brief view of the navigation map

Navigation

Widget

AV Widget

All Menus Phone

My Menu

and the route screen.

• Touch any area on the screen to move to the navigation screen.

• Shows brief information on the radio or media that is now playing.

• Tap the area to move to the mode that you are listening to.

Shows all of the items in the system menu.

Displays user to phone screen.

Add your favorite menus to have quick and easy access to them.

Information Display on the Status Bar

Displays the date and time, along with the system status shown by the various icons to the right of the clock. The icons in the following table indicate the various types of system status details and events.

Icon Description

Displayed when the audio is muted.

Displayed when the navigation sound is muted.

Displays the remaining battery of the Bluetooth phone.

Displayed when connected to Bluetooth for handsfree.

Displayed when connected to Bluetooth for streaming audio.

Displayed when connected to Bluetooth for streaming audio and handsfree.

Displayed when downloading contacts or recent calls from the Bluetooth phone.

Displayed while on a call with the Bluetooth phone.

Displayed when the microphone of the Bluetooth or UVO phone is muted.

Displays the signal strength of the Bluetooth phone.

Displays the signal strength of the UVO.

Displayed when connected to Wi-Fi.

Displayed when 911 connect is available.



Starting the System for the First Time I 1-11

Adding a Feature to My Menu

Select add the most frequently used menus, change the menu order, or delete menus.

0\0HQX

on the Home Screen to

Information

• Up to 24 menus can be added to My Menu.

On-Screen Touch Controls

Learn how to touch the screen to operate the system.

Select

Tap lightly on a menu or an item to select it.

NOTICE

• The system will not recognize your touch if

you wear a glove or other non-conductive material. Touch the screen using your ﬁnger, an electrostatic touch-screen glove, or a stylus pen.

Drag & Drop

Select a menu or item you want, then drag and drop it to where you want to place it.

Drag or touch the slider along the play bar in the music screens to jump to the point that you want to play from.

1-12 I Basic

Flick (Quick Scrolling)

Quickly moves up and down in the list.

NOTICE

• Moving the list when there are many items will

display a handler on the right of the display. You can easily move many items at a time with the handler.

Press and Hold

Pressing the and buttons in the music player will fast forward/rewind the music.



Starting the System for the First Time I 1-13

0(02

SDUW

5DGLR0HGLD

FM/AM

HD Radio™ Technology

SiriusXM™

USB

iPod

AUX

Bluetooth

Audio

5DGLR0HGLD

)0$0

You can access the radio player either by pressing the key or by selecting the Radio menu from All Menus on the Home screen.

Information

• If you press the

and a radio broadcast will be tuned from the current mode.

5$',2

key when power is off, the power will turn on

5$',2

Features Description

• The stored preset frequencies are displayed

Preset

Frequencies

Frequency Presets

Band

HD Radio

Scan

for user selection.

• After selecting frequency, press and hold the preset button for more than 0.8 seconds. A beep sound will be heard and the frequency is to be stored in the selected preset button.

• Flick the preset frequencies up/down to scroll quickly through presets.

Displays the current frequency. Shows the stored presets for user selection.

• List: Moves to the frequency list.

• Info: Turns the Radio text information transmitted from the broadcasting station on and off.

• Sound Settings: Moves to the Sound Settings.

Changes to the desired band from among FM, AM, and SiriusXM™.

Used to set whether to turn HD Radio™ reception On or Off.

Shortly plays the broadcasts for the frequencies with superior reception for 10 seconds per item.

2-2 I Radio/Media

Features Description

• When pressed quickly (less than 0.8 seconds): Seeks the previous/next frequency.

SEEK/TRACK

TUNE

• When pressed and held (more than 0.8 seconds): Moves quickly through all of the frequencies. The moment that you release the button, the system seeks the next available frequency.

Turn the able frequencies.

• FM: Increment/decrement by 200 kHz

• AM: Increment/decrement by 10 kHz

781(

knob to manually seek avail-

FM/AM I 2-3



+'5DGLRа7HFKQRORJ\

Program Service Data: Presents song name, artist, station IDs, and other relevant data streams.

FM stations can provide additional digital-only audio programming on HD2/HD3 Channels.

Digital, CD-quality sound. HD Radio™ Technology enables local radio stations to broadcast a clean digital signal. AM sounds like today’s FM and FM sounds like a CD.

Real-Time Traffic reports, alerts, and flow data displayed on screen via interactive traffic maps and/or data.

If an HD Radio™ broadcast is received, the radio mode will switch from analog broadcast to HD Radio™ broadcast.

Information

• The

HD Radio™

when a HD Radio™ broadcast is being received.

screen is displayed only

2-4 I Radio/Media

HD Radio™

Features Description

Displays main HD Radio™ channels and

HD Radio™

Reception & Channel buttons

HD Channel

Number

HD Radio™

Broadcast Info

HD Radio

used to directly select the current available channels.

The HD Radio™ related icon display

becomes active within regions where an HD Radio™ signal can be received.

Analog station and corresponding HD Radio™ channel number saved in the preset list.

Displays detailed information about the current broadcast (the details of the information shown are different depending on whether the Info button is selected)

When the HD Radio™ soft button is ON (the red indicator on the HD Radio™ button is illuminated), HD Radio™ signals will be received.

HD Radio™ Technology I 2-5



6LULXV;0а

You can access the radio player either by pressing the key or by selecting the Radio menu option from All Menus on the Home screen. Select the SiriusXM™ band from the radio player.

Information

• If you press the

on and a radio broadcast will be tuned from the current mode.

• If you are in the SiriusXM™ mode, select the SiriusXM™ radio widget

from the Home screen to access the radio player.

• When the power is off, pressing the

and play a SiriusXM™ Radio broadcast.

5$',2

key when the power is off, the power will turn

5$',2

key will turn the power on

5$',2

Features Description

• Shows the stored presets for user selection.

Preset Frequencies

Channel Logo

Channel Info

Content Info

Category Info

Band

Direct Tune

Scan

Play Live

Skip Backward

Play/Pause

Skip Forward

• After selecting frequency, press and hold the preset button for more than 0.8 seconds. A beep sound will be heard and the frequency is to be stored in the selected preset button.

Displays the current channel logo. Displays the current channel number and

name. Displays the artist, title and other information

about the current playing song. Displays the category of the currently playing

song. Changes to the desired band from among FM,

AM, and SiriusXM™. Used to search for the desired channel by

entering the channel number. Plays all receivable channels for 10 seconds

per item. Switches to the live broadcast mode. Repeats the previously broadcasted program.

• Holding for less than 0.8 seconds: Moves to the previous segment.

• Holding for more than 0.8 seconds: Moves to the previous 5 seconds.

Pauses/plays the current broadcasting program.

Moves to the next segment.

2-6 I Radio/Media

Features Description Weak Signal Presets List

SEEK/TRACK

TUNE

Displays the weak radio reception. Shows the stored presets for user selection. Moves to the channel list.

• What is on My Presets? The program schedule saved in my preset. (For more details, see Section 3.10. Viewing Menu.)

• Featured Favorites: Theme channels recommended by SiriusXM™. (For more details, see Section 3.10. Viewing Menu.)

• Sound Settings: Moves to the Sound Settings.

• When pressed quickly (less than 0.8 seconds): Plays the previous/next channel.

• When pressed and held (more than 0.8 seconds): Continuously changes the channel until the key is released and plays the channel.

Changes the channel.

current

SiriusXM™ I 2-7



Selecting through Channel/Category List

Select the egory and channel.

Select the desired category and the channel. Once selected, the previous screen will be restored and the selected channel will begin playing.

/LVW

ԡ Select the desired cat-

If you select the scan channels using the key or the

6NLS

button, you can

6((.

781(

knob by skipping the

75$&.

channels that you chose to skip.

Direct Tune

Enter the number of the channel you want to receive.

Viewing Menu

Using the can view the program schedule and information about the Featured Favorites provided by SiriusXM™.

0HQX

button on the right, you

2-8 I Radio/Media

What is on My Presets? (Program Schedule)

Name Description

By selecting this option, you can select a broadcasting date. Broadcast information will be provided for one week from the current date.

Change

Broadcast Date

You can select Menu to see program information and the schedules of broadcast channels listed in the presets.

Preset

Program

Information

Shows saved presets for user selection

A total of 40 frequencies for SiriusXM™ modes

can be displayed.

Shows you the program titles to be broadcasted at the time that you have chosen. Select a program to see more details.

If there is more information on the program you

selected, an arrow button will be displayed on the right of the list. You can see more program information by selecting the arrow button.



SiriusXM™ I 2-9

Featured Favorites

Featured Favorites feature allows SiriusXM™ to broadcast additional presets.

• Example 1: “Martha’s Favorites” may represent Martha Stuart’s favorites presets on her radio.

• Example 2: During holidays, “Holiday Music” may represent all the Sir channels that are playing the holiday music for easy access by users.

Multiple sets Featured Favorites data can be broadcast by SiriusXM™ and can change from time to time.

iusXM™

2-10 I Radio/Media

86%

Before Playing a USB MP3

Connect the USB device after turning on the engine. The USB device may become damaged if it is already connected when the ignition is turned on.

• Files that are not standard format music/image files will not be played.

• For MP3/WMA/OGG files, only music files with compression rates between 8Kbps ~ 320Kbps can be played.

• Heed caution to static electricity when connecting/disconnecting external USB devices.

• Encoded MP3 Players will not be recognized when connected as an external device.

• When connecting an external USB device, the device may not properly recognize the USB is in some states.

• Only products formatted with byte/sectors under 64Kbyte will be recognized.

• USB devices, formatted to the FAT12, FAT16, or FAT32 file system, are recommended. File systems other than FAT12, FA FAT32, exFAT, and NTFS are not supported.

• Some USB devices may not be supported due to compatibility issues.

T16,

• Take caution so that the USB connector does not come in contact with body parts or objects.

• Repeated connecting/disconnecting of USB devices within short periods of time may result in product malfunction.

• Make sure to connect/disconnect external USB devices with the audio power turned off.

• The amount of time required to recognize the external USB device may differ depending on the type, size, or file formats stored on the USB.

• The use of USB devices for purposes other than playing music and image files is prohibited.

• Do not use the USB I/F to charge batteries or USB accessories that generate heat. Such acts may lead to worsened performance or damage to the device.

• The device may not recognize the USB device if separately purchased USB hubs and extension cables are being used. Connect the USB directly with the multimedia terminal of the vehicle.

• When using mass storage USB devices with separate logical drives, only files saved to the root drive can be played.

• When application programs are installed to specific USBs, files may not properly play.

USB I 2-11



• The device may not operate normally if MP3 Players, cellular phones, digital cameras, or other electronic devices (USB devices not recognized as portable disk drives) are connected with the device.

• Charging through the USB may not work for some mobile devices.

• The device may not support normal operation when using a USB memory type besides Metal Cover Type USB Memory.

• The device may not support normal operation when using formats such as HDD Type, CF, or SD Memory.

• When playing iPods, please use a dedicated iPod car cable.

• Normal operation cannot be guaranteed when other cables are being used.

• The device will not support files locked by DRM (Digital Rights Management).

• USB memory sticks used by connecting an Adaptor (SD Type or CF Type) may not be properly recognized.

• Only use Plug type connector products, as shown in the figure below.

• To play USB MP3, the USB device must be connected to the USB port in the front multibox. The USB port in the center console storage (if equipped) is for charging only.

Plug Type Connector

Product Name Manufacturer XTICK LG BMK BMK Technology SKY-DRV Sky Digital TRANSCEND JetFlash Transcend Sandisk Cruzer SanDisk Micro ZyRUS ZyRUS NEXTIK Digiworks

Information

• Problems that occur through use of USB devices not listed within the

above table are not covered by the product warranty.

2-12 I Radio/Media

Supported USB MP3 music speciﬁcations

Name Description

MP3 File Specification

Recommended Bit Rates and Sampling Frequency

ID3 Tag

Detailed Specifications

Information

• The sound quality of MP3 files that use bitrates exceeding

192 Kbps cannot be guaranteed. When using ﬁles without ﬁxed bit rates, some features (FF/REW features) may not properly operate.

Specification: MPEG1 AUDIO LAYER 3

Acceptable sampling frequency: 32, 44.1, 48 (kHz) Acceptable bit rate: 32, 40, 48, 56, 64, 80, 96, 112,

128, 160, 192, 224, 256, 320 (Kbps) 96, 128, 192 Kbps fixed bit rate/44.1kHz Supports ID3v1.0 and ID3v1.1, ID3v2.2, ID3v2.3,

ID3v2.4 ID3 tags Maximum directory layers: 20 layers

Maximum length of folder name/file name: 255Bytes Supported characters for folder name/file name: Alphanumeric characters, Korean standard character set 2,350 characters, Simplified Chinese 4888 characters Maximum number of folders which can be stored onto one USB: 2000 folders (including ROOT) Maximum number of files which can be stored onto one USB: 8000



USB I 2-13

USB Music

Features Description Mode File Index

Repeat/Shuffle

Play Time Song Info List Back Button

Displays the current operating mode Shows the current file/total files within the USB From Repeat/Shuffle, displays the current oper-

ating function Displays the current play time/total play time Displays the artist/title/album info Moves to the list screen Converts to basic mode screen

Features Description

• If button is pressed (less than 0.8 seconds): Moves to the previous file or play the current file from the beginning (Depends on the play time)

Previous File

- If play time is less than 3 seconds, moves to previous file

- If play time is more than 3 seconds, play the current file from the beginning

• If button is pressed (over than 0.8 seconds) it rewinds the track

Play/Pause

Plays/pauses the current file

• If button is pressed (less than 0.8 seconds):

Next File

Moves to the next file.

• If button is pressed (over than 0.8 seconds): It fast-forwards the track.

Repeats the current file

• If select the song in the file tab on the list screen: Select the

5HSHDW

between repeating one song, repeating folder,

Repeat

and turning repeat off

• If select the song in the other tabs on the list screen: Select the

5HSHDW

between repeating one song and turning repeat off

button to switch

2-14 I Radio/Media

Features Description

Plays files in random order

• If select the song in the file tab on the list

6KXIIOH

Shuffle

screen: Select the between Shuffle Folder, Shuffle All, and turning shuffle off

• If select the song in the other tabs on the list screen: Select the

6KXIIOH

between Shuffle Category and turning shuffle off

• Hide Current File: a selected file can be deleted. Deleted file can be found in the

“Hidden_” folder. This function is only supported when USB for-

mat is compatible with FAT16 or FAT32.

• Sound Settings: Moves to the Sound Settings.

Turn the

781(

knob to search a desired

track. If the desired track is displayed, select the

781(

knob to play the track.

TUNE

If you do not anything with the

for 5 seconds of searching tracks, the track info for the current track is restored.

button to switch

781(

knob

USB I 2-15



Features Description

Folder/ Category Name

Current Song Back Button Upper Folder/

Category

Displays folder/category name in the list

Displays the current playing file name Converts to basic mode screen

Moves to Upper Folder/Category

Now Playing: When moving to a different list

screen, moves to the list page where the current file is located (Becomes disabled when the current list includes the current file)

Search Menu

Search songs by the list type.

• If button is pressed (less than 0.8 seconds): Plays previous/next track

SEEK/TRACK

• If button is pressed (over than 0.8 seconds): Moves to play screen, and then it will rewind or fast-forward the track.

781(

knob to move the focus to the

781(

TUNE

Turn the previous/next list. If the desired track is dis-

played, press

knob to play the track.

2-16 I Radio/Media

L3RG

Using iPod Devices

• iPod is a registered trademark of Apple Inc.

• iPod mode will not operate if the connected iPod cannot be recognized due to operation of unsupported versions that do not support related protocols, iPod abnormalities, or iPod device defects. Some iPods with unsupported communication protocols may not properly operate with the Multimedia system.

• For fifth generation iPod Nano devices, the iPod may not be recognized when the battery level is low. Please charge the iPod for use.

• Search/play orders shown within the iPod device may differ with the orders shown within the Multimedia system.

• If the iPod malfunctions due to an iPod device defect, reset the iPod and try again. (To learn more, refer to your iP manual)

• If repeatedly connect and disconnect iPod/iPhone to the Multimedia system with USB cable in a short time, it may cause abnormal operation.

• The time for recognition of iPod/iPhone may vary depending on device type, firmware version and iOS version.

• For some iPod Touch and iPhone devices, connecting Bluetooth

while the iPod is operating may result in discontinued iPod sound. When such devices with Bluetooth

support are connected, this problem occurs as the sound source is changed from the Dock Connector (USB connector cable) to Bluetooth.

• To prevent this symptom, Bluetooth Audio function in the Multimedia

system is limited if iPod/iPhone is connected to the system through both cable and Bluetooth. To listen to the iPod sound, use either iPod menu with USB connection or Bluetooth Audio with Bluetooth connection.



iPod I 2-17

• To listen to the iPod sound, reconnect the USB cable or change the audio output settings in iPod/iPhone to Dock.

• In order to use the iPod while operating the keys, you must use a dedicated iPod cable. (the cable that is supplied when purchasing iPod/ iPhone products)

Ф

During ACC ON state, connecting the iPod through the iPod cable (The cable that is supplied when purchasing iPod/ iPhone product.) will charge the iPod through the head unit.

Ф

The use of genuine iPod cables supplied by Apple is recommended. (The use of other products may result in noise or abnormal operation.)

Ф

To play iPod music through cable connection, the iPod/USB cable must be connected to the USB port in the front multibox. The USB port in the center console storage (if equipped) is for charging only.

• When connecting with the iPod cable, make sure to fully insert the jack to prevent communication interference. If the iPod is connected to the vehicle while

it is playing, a high pitch tone may sound for about 1~2 seconds immediately after connection. If possible, connect the iPod to the vehicle with the iPod stopped/paused.

• Within iPhones, streaming audio and iPod control may occasionally conflict. If problems persist, remove the iPhone and connect again.

• When connecting to iPod Nano/Classic, the Kia Motor logo appears on the Apple device. For the iPod Nano 6 generation, however, the logo image does not appear since it is not supported. Also, all iPhone and iPod Touch products do

not

support this function.

• In Apple’s iOS 6.0 version or later, Podcast and Audiobook media files are designed to be played with the Podcasts and iBooks applications specifically designed for Apple products. If the Apple device does not provide the Podcast and Audiobook lists, the pla

ylist may not be displayed and played in the iPod mode.

• If the Apple Podcasts and iBooks apps are not installed on the Apple device, but the Apple device provides the Podcast and Audiobook lists, you can play files in other categories in iPod mode.

• The screen of multimedia system can be different when you run other music players (e.g. iHeartRadio) on your connected device.

2-18 I Radio/Media

&DXWLRQ

• While using a connected iPhone/iPod Touch device, it may not operate normally if the user changed some functions in the device.

• When calling with an iPhone connection, song may stop playing due to an Apple device feature. If sound does not resume after the call is terminated, check the device status.

• If lots of songs have the same information, skipping may occur when previous/ next song is executed due to an Apple device feature. Also problems may occur depending on device type or version.

• If lots of songs have the same information, the song that plays may be different between the system and the Apple device. Reset the device or delete the same songs in the Apple device using iTunes.

iOS

• If you control pause, repeat, shuffle, or seek songs when the play time is less than 3s before the song is finished playing, it may occur difference of playing song between the Multimedia system and Apple device. Access to iPod m from another mode or pause a song and then play a song again in Apple device.

• If the iPhone/iPod Touch supports Bluetooth, the Apple device will not be able to use the Bluetooth function if device is connected through both the USB port and via Bluetooth. the USB connection then use Bluetooth Audio.

• If iPod/iPhone connected to the Multimedia system through both USB and AUX. iPod/iPhone keeps output sound via AUX, thus it may occur will not output in iPod mode.

usic

the

Disconnect

sound

• If AUX cable connected to iPod/iPhone but not connect to the Multimedia system, it may occur sound will not output in iPod mode due to iPod/iPhone’s feature. Especially, if you use AUX cable like pictures, this problem may occur.

• Disconnect AUX cable from iPod/iPhone first, then connect to the Multimedia system via USB. Or change settings to “Dock” in iPod/iPhone.

• If connect to the Multimedia system while podcast or iTunes music downloading to iPod/iPhone, it may occur some problems when you select song in the list. Reconnect iPod/iPhone to Multimedia system when downloading is finished or the file deleted.

• If connect to the Multimedia system while sync, it may occur some problems. Try to use iPod/iPhone connection sync complete. (To learn more, refer to your iPod manual)

the

after



iPod I 2-19

&DXWLRQ

• We recommend that your Apple device uses the latest firmware since some

• iPhone and iPod Touch devices are guaranteed to work normally on iOS

9.3.2 or below. However, they may not

problems may occur due to an

outdated firmware or other software related issues.

work normally on future iOS versions as their operations have not yet been tested.

Type 1G 2G 3G 4G 5G 6G 6.5G 7G

iPod Mini

iPod Shuffle

iPod Nano

Ԫ ԪԪԪԪԪ

Not Supported

Not released

iPod Touch

Type 1G 2G 3G 4G 5G 6G 6.5G 7G iPad

iPad Mini

iPod Classic Not Supported

Type 3G 3GS 4 4S 5 5C 5S 6 6+ 6S 6S+ SE 7 7+

iPhone

2-20 I Radio/Media

(iOS 1.1 not supported)

Not verified,

Normal operation

not guaranteed

ԪԪԪԪԪԪԪԪԪԪԪԪԪ

ԪԪԪԪԪ

(Unable to charge, Not verified, Normal operation not guaranteed)

(iPod with Video)Ԫ(iPod Classic)Ԫ(iPod Classic)

Not released

iPod

Features Description Mode Song Index

Repeat/Shuffle

Play Time Song Info List

Displays the current operating mode Shows the current song/total songs From Repeat/Shuffle, displays the current oper-

ating function Displays the current play time/total play time Displays the artist/title/album info Moves to the list screen

Features Description

• If button is pressed (less than 0.8 seconds): Moves to the previous file or play the current file from the beginning (Depends on the play time)

Previous File

- If play time is less than 3 seconds, moves to previous file

- If play time is more than 3 seconds, play the current file from the beginning

• If button is pressed (over than 0.8 seconds) it rewinds the track

Play/Pause

Plays/pauses the current file

• If button is pressed (less than 0.8 seconds):

Next File

Moves to the next file.

• If button is pressed (over than 0.8 seconds): It fast-forwards the track.

Repeats the current file

Repeat

Select the

5HSHDW

button to switch between

repeating 1 track, and turning repeat off Plays files in random order

6KXIIOH

Shuffle

When selecting the shuffle category я deactivate shuffle then repeat

• Shuffle Category: Shuffle song in the current category

Back Button Menu

Move to home/previous mode screen Sound Settings: Moves to the Sound Settings.

button, it changes to



iPod I 2-21

Features Description

Turn the

781(

knob to search a desired

track. If the desired track is displayed, press

TUNE

the

If you do not anything with the

knob to play the track.

781(

for 5 seconds of searching tracks, the track info for the current track is restored.

781(

knob

2-22 I Radio/Media

Features Description

Category Name

Category List

Back Button Upper Category Search Menu

SEEK/TRACK

TUNE

Displays the category name Displays the contents of selected category

If there are many items in the list, items are added in order and the scroll bar on the right

is adjusted accordingly. Converts to basic mode screen Moves to Upper Category Search songs by the list type.

• If button is pressed (less than 0.8 seconds):

Plays previous/next track

• If button is pressed (over than 0.8 seconds):

Moves to play screen, and then it will re

or fast-forward the track.

781(

knob to search a desired

Turn the track. If the desired track is displayed, press the If you do not anything with the knob for 5 seconds, the terminated.

781(

knob to play the track.

781(

wind

knob search will be

iPod I 2-23



$8;

Connecting an External Device

If an external device connector is connected with the AUX terminal, then AUX mode will automatically operate. Once the connector is disconnected, the previous mode will be restored.

• AUX mode can be used only when an external audio player has been connected.

• The AUX volume can also be controlled separately through the connected device.

NOTICE

• If only a cable is connected to the AUX

without an external device, the mode will be changed to AUX, but noise may occur. When an external device is not being used, remove the connector jack.

• When the external device power is

connected to the power jack, playing the external device may output noise. In such cases, disconnect the power connection before use.

The actual image in the vehicle may

differ from the illustration.

2-24 I Radio/Media

%OXHWRRWKq$XGLR

Features Description Mode Phone Name Artist Info

Displays the current operating mode Displays name of connected phone Name of current artist

Features Description

Title

Previous File

Play/Pause Next File

Repeat

Shuffle

SEEK/TRACK TUNE

Information

• Artist info and Title may not be supported by mobile phone.

• While in use of other functions after connecting your mobile phone

through a USB cable, the Bluetooth audio is disabled.

Name of current song

• If play time is less than 3 seconds, moves to the previous file

• If play time is more than 3 seconds, plays the current file from the beginning

This function may differ depending on the

model of mobile phone. Plays/Pauses Bluetooth Audio Moves to the next file Repeats the current file.

This function may differ depending on the

model of mobile phone. Plays files in random order.

This function may differ depending on the

model of mobile phone.

• Connections: Moves to the Bluetooth Settings

screen. You can pair a new device or change/ delete paired device(s).

• Sound Settings: Moves to the Sound Settings. Plays the previous/next file

781(

is not supported



Bluetooth® Audio I 2-25

Bluetooth Connection Settings

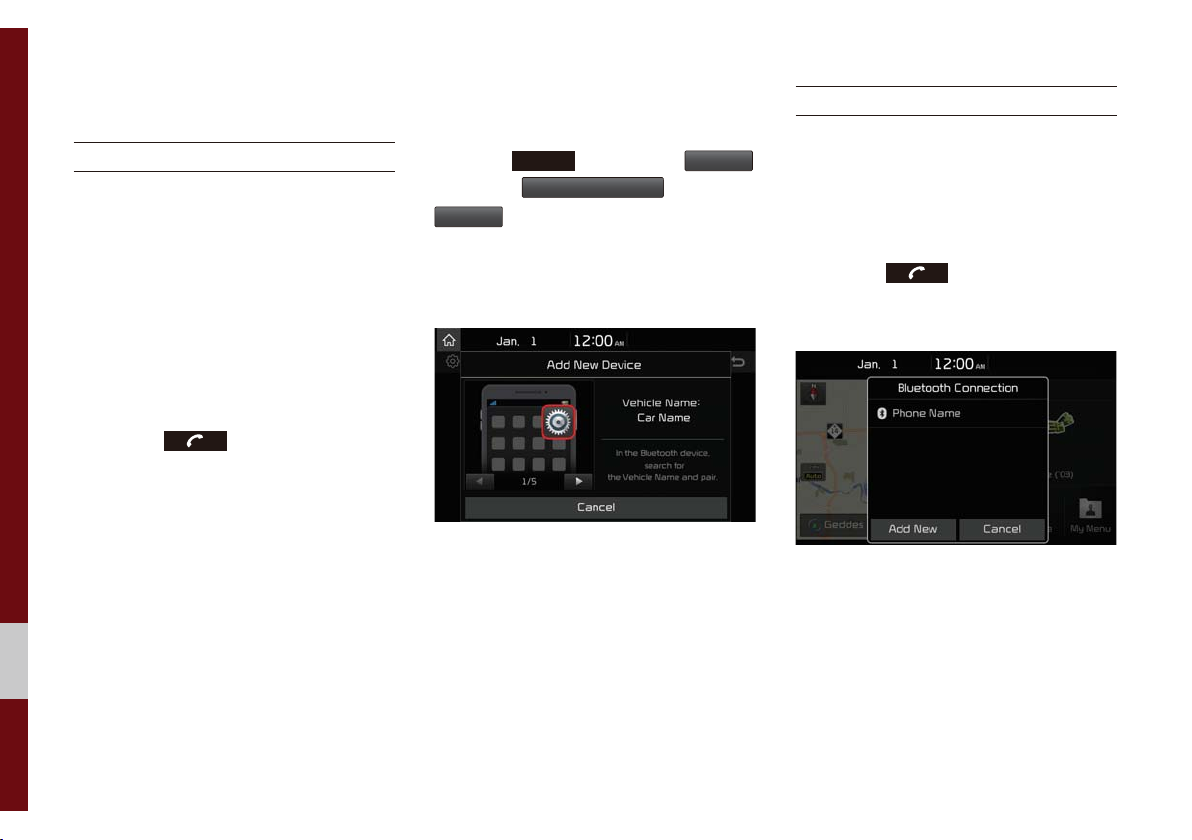

Settings for pairing, connection and disconnection of a Bluetooth device.

• In Bluetooth Audio play screen, select

0HQX

and then

&RQQHFWLRQV

Information

• If the music in the mobile phone is not

played after changing to audio streaming mode, press the play button. Thus check the music is playing in the Bluetooth device after changing to audio streaming mode. Audio streaming may not be supported for some mobile phones.

• Please check the Bluetooth compatibility

in below website: KIA Motors Corporation http://www.kia.com

2-26 I Radio/Media

SDUW

%OXHWRRWK

Before Using the Bluetooth® Handsfree

Bluetooth Connection

Bluetooth Phone

%OXHWRRWK

%HIRUH8VLQJWKH %OXHWRRWK

What is Wireless Technology?

• Bluetooth® Wireless Technology refers to a short-distance wireless networking technology which uses a 2.45GHz frequency to connect various devices within a certain distance.

• Supported within PCs, external devices, Bluetooth tronic devices, and automotive environments, to be transmitted at high speeds having to use a connector cable.

• Bluetooth which allows the user to conveniently make phone calls with Bluetooth mobile phones through the Multimedia system.

+DQGVIUHH

Bluetooth®

phones, PDAs, various elec-

Bluetooth

Wireless Technology

Handsfree refers to a device

without

• The Bluetooth® Handsfree feature may not be supported in some mobile phones. For more information on mobile phone compatibility, visit the KIA Motor website

- KIA Motors Corporation: http://www.kia.com

WARNING

- Distracted Driving

• Focus on the road while driving. The driver's

primary responsibility is in the safe and legal operation of the vehicle. Drivers should not use any hand held devices or other equipment or vehicle systems that distract the driver during vehicle operation.

• Do not stare at the multimedia screen for long

periods of time while driving. Staring at the screen for prolonged periods of time can lead to trafﬁc accidents and can result in personal injuries.

Precautions for Safe Driving

• Bluetooth® is a feature that enables drivers to make handsfree calls. the head unit with a Bluetooth allows the user to conveniently make calls, receive calls, and manage the phonebook. Before using Wireless Technology, carefully read the contents of this user’s manual.

• Excessive use or operations while driving may lead to negligent driving practices and be the cause of accidents. not operate the device excessively while driving.

• Viewing the screen for prolonged periods of time is dangerous and may to accidents. When driving, view the screen only for short periods of time.

Connecting

phone

Bluetooth

lead

3-2 I Bluetooth

CAUTIONS upon Connecting

Bluetooth

• Before connecting the head unit with the mobile phone, check to see that the mobile phone supports Bluetooth

• Even if the phone supports Wireless Technology, the phone will not be found during device searches if the phone has been set to hidden or the Bluetooth Disable the hidden state or turn on the Bluetooth connecting with the head unit.

• If Auto Connection is used, the Bluetooth nected when the ignition is turned on, making it unnecessary to have to connect the phone with the head unit ever time.

Phone

features.

Bluetooth

power is turned off.

power prior to searching/

phone is automatically con-

state

• If you do not want automatic connection with your Bluetooth Bluetooth

feature off of the Bluetooth

device, turn the

device.

• Park the vehicle when connecting the head unit with the mobile phone.

• Bluetooth

connection may become intermittently disconnected in some mobile phones. Follow these steps to tr again.

1. Turn the Bluetooth

function within the

mobile phone OFF/ON and try again.

2. Turn the mobile phone power OFF/

ON and try again.

3. Completely remove the mobile phone

battery, reboot, and then again.

4. Reboot the Multimedia System and

try again.

5. Delete all paired devices from both of

Phone and Head Unit sides and then try again.

• The Handsfree call volume and quality may differ depending on the mobile phone.

• Pairing Bluetooth other Bluetooth

devices and use of

features are not supported when the vehicle is in motion. For safety, please first park your vehicle.

• If you continue having issue downloading your contacts to your vehicle, contact your mobile phone provider.



Before Using the Bluetooth® Handsfree I 3-3

%OXHWRRWK&RQQHFWLRQ

Pairing a New Device

Before you can use the Bluetooth feature, you must first pair/connect your mobile phone to your car. Up to 5 Bluetooth devices can be paired. Only one Bluetooth device can be connected at a time.

Pairing a New Device by Selecting Phone/Call

Press the key in the steering wheel control. ԡ Pair your car after your mobile phone detects the Bluetooth device. ԡ Enter the passkey or accept the authorization popup. ԡ Connect Bluetooth.

Pairing a New Device Through the Phone Settings

Press the

Select

$GG1HZ

6(783

key. ԡ Select

%OXHWRRWK&RQQHFWLRQ

. ԡ Pair your car after your mobile phone detects the Bluetooth device. ԡ Enter the passkey or accept the authorization popup. ԡ Connect Bluetooth.

The default passkey is 0000. The vehicle name above is an example. Check the actual information on the product.

%OXHWRRWK

. ԡ Select

Connecting Bluetooth Devices

Connects the Bluetooth devices that you

add.

Connecting Devices by Selecting Phone/Call

Press the key in the steering wheel control. ԡ Select the name of the device to connect. ԡ Connect Bluetooth.

3-4 I Bluetooth

Connecting Devices Through the Phone Settings

Press the

Select

6(783

key. ԡ Select

%OXHWRRWK&RQQHFWLRQ

name of the device to connect. ԡ Connect Bluetooth.

%OXHWRRWK

. ԡ Select the

Disconnecting Bluetooth Devices

Disconnects Bluetooth devices that are connected.

Press the

Select

name of the device to disconnect.

6(783

key. ԡ Select

%OXHWRRWK&RQQHFWLRQ

. ԡ Select the

%OXHWRRWK

Deleting Bluetooth Devices

Deletes the Bluetooth devices that you added. Note that deleting a Bluetooth device will delete all Call History and Contact Info downloaded along with it.

Press the Select

'HOHWH'HYLFHV

to delete. ԡ Select

6(783

key. ԡSelect

%OXHWRRWK&RQQHFWLRQ

. ԡSelect

. ԡ Select the device name

'HOHWH

%OXHWRRWK

. ԡ



Bluetooth Connection I 3-5

%OXHWRRWK3KRQH

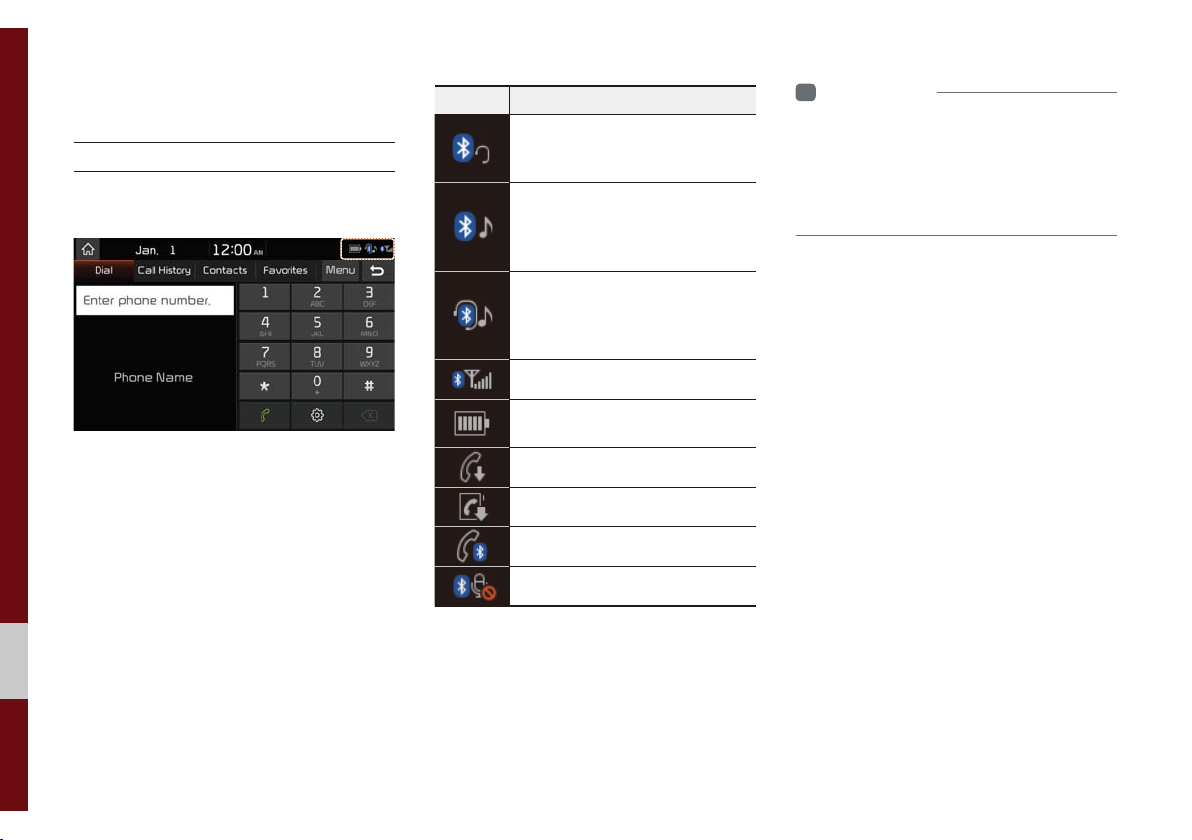

Phone Status Icons

Shows the current phone status in the right top of the display.

Icons Description

You can use Bluetooth phones when a Bluetooth Hands-free connection is established.

You can use Bluetooth audio features when a Bluetooth audio connection is established.

You can use Bluetooth phones and audio features when both Bluetooth Hands-free and audio connections are established.

Call signal strength indicator

Battery level of the Bluetooth devices connected

Downloading Call History list

Downloading Contacts

In a Bluetooth phone call

Microphone muted

Information

• The battery level icon and the call signal

strength indicator may not be supported in some Bluetooth devices.

• The battery level may differ from the actual

level remaining.

3-6 I Bluetooth

Dial

Dials a call after the Bluetooth devices are connected.

You can also select

'LDO

$OO0HQXV

3KRQH

ԡ

Name Description

Use the keypad to enter the phone number that you

Keypad

Call

Settings

Delete

Information

• Some types of mobile phones may not

support the Speed Dial function.

want to call. Press and hold the last number of a speed dial to dial a number that you added to the Speed Dial list in the phone

Makes a call after you dial a number and select CALL. If the number is listed in Dialed Calls, you can select the number and press CALL to automatically dial that number again.

Moves to a screen of Bluetooth Connection.

Deletes the numbers that you entered.

Accept/Reject Call

If there is an incoming call after you made a Bluetooth connection, a popup message will appear.

Name Description Accept Reject

Information

• In some mobile phones, the caller's number

may not be displayed, and the Reject feature may not be supported.

Answers the call. Ignores the call.



Bluetooth Phone I 3-7

Using the Menu During a Phone Call

When making a call, you can use the following menu items.

Name Description

Use Private

End Contacts

Outgoing Volume

Keypad

Switch

Switches a voice call from the car Hands-free to the mobile phone.

Ends a call. Displays the Contacts list. Displays the Mic Volume

settings. You can adjust the in-call volume that the other party hears (level 1 - 5).

Moves to a screen for entering ARS numbers.

Switches to a call on hold, if any. You can also switch calls by selecting the number in the Information Display. The Switch function switches the current call to a waiting call in order to answer a new incoming call.

Information

• If the caller's number is listed in Contacts, the

caller's name will be displayed. Otherwise, only the number will be displayed. In some mobile phones, the phone number may not be displayed.

• In some Bluetooth devices, the Use Private

feature may not be supported.

• In some Bluetooth devices, the Switch feature

may not be supported.

• During a phone call on a Bluetooth Hands-

free, you cannot access other modes, such as Radio and Settings.

• Depending on handset types, the in-call

volume the other party hears may differ. If the other party hears your voice too low or too loud, adjust the mic volume.

3-8 I Bluetooth

Call History

$OO0HQXV

Select

3KRQH

ԡ

&DOO+LVWRU\

Name Description

All

Dialed

Received

Missed

Call History

Download

Bluetooth

Settings

Lists the all call history.

Lists the calls that you made.

Lists the calls that you have received.

Lists the calls you missed.

Displays all of your call history. Select from the list to dial the number.

Downloads the call history information from your mobile phone.

Provides the Bluetooth Connection/Auto Connection Priority/ Bluetooth System Information.

Information

• In some mobile phones, call records may not

be added to your Call History.

• Calls from restricted ID's are not added to

your Call History Information.

• Up to 50 calls can be added in each Dialed

Calls/Received Calls/Missed Calls list.

• The durations of each dialed/received call are

not displayed in your car's Call History list.

• While the call history download is in progress,

the status bar displays an icon ( ).

• If the call history download is turned off on the

Bluetooth device, the call history download will fail.

• Some devices require a device authentication

for downloading your call history. If download fails, check if the Bluetooth Settings or display status are normal.

• Some devices do not support call history

download. Check if your Bluetooth device supports download feature. For details regarding Bluetooth-supported devices and their functional compatibility, visit http://www. kia.com

Bluetooth Phone I 3-9



Contacts

$OO0HQXV

Select

Name Description

Contacts List

Download

Bluetooth

Settings

3KRQH

The list of Contacts. Select from the list to dial the number.

Downloads contacts from your mobile phone.

Searches Contacts. Provides the Bluetooth

Connection/Auto Connection Priority/ Bluetooth System Information.

ԡ

&RQWDFWV

Information

• Up to 5000 phone numbers can be

downloaded from a single, paired Bluetooth device.

• You cannot edit or delete downloaded phone

numbers from your car.

• Contacts can be viewed only when the

Bluetooth device is connected.

• Even if the Bluetooth device is disconnected,

the downloaded data will remain. (Note that deleting a paired phone will also delete all downloaded Contacts and Call History data)

• Downloaded phone numbers may be lost

depending on the condition of the head unit. Keep your important data in a safe place.

• Contacts from both the SIM card and your

mobile phone are downloaded at the same time by default.

• The status bar displays a ( ) while

downloading contacts.

• The download will not be available if the

contacts download function is turned off on your Bluetooth device.

• Some devices require a device authentication

for downloading your contacts. If download fails, check your phone screen and confirm the download if necessary.

• Some devices do not support contacts

download feature. Check if your Bluetooth device supports contacts download. For Bluetooth supporting devices details and compatibility, visit http://www.kia.com

3-10 I Bluetooth

Favorites

$OO0HQXV

Select

Name Description

Favorites

Add New

Delete

Bluetooth

Settings

3KRQH

Lists the phone numbers saved as Favorites. Select from the list to dial the number.

Adds a new number to Favorites.

Deletes numbers that you select from Favorites.

Provides the Bluetooth Connection/Auto Connection Priority/ Bluetooth System Information.

ԡ

)DYRULWHV



Bluetooth Phone I 3-11

0(02

SDUW

The 911 Connect feature may not operate in the following situations

892H6HUYLFHV

About UVO eServices

Before using UVO eServices

Connecting Bluetooth

Pair a device from Bluetooth-enabled phone

Connecting to smartphone via USB

911 Connect

Roadside Assist

Vehicle Diagnostics

My Car Zone

Parking Minder

eServices Guide

My POIs

892H6HUYLFHV

7KH&RQQHFWIHDWXUHPD\QRW RSHUDWHLQWKHIROORZLQJVLWXDWLRQV

When the vehicle ignition is not turned on.

When the phone Bluetooth® feature is set to off.

When the phone Bluetooth® cannot be connected or becomes

disconnected.

When there are no phones paired with the vehicle.

When cellular service is unavailable.

When the power turns off due to phone power (battery) issues.

When a Bluetooth® device without phone feature support has

been connected, such as an MP3 device.

When the system is booting.

When the system power supply is unstable.

When the attempted call is blocked due to user operations.

When the 9-1-1 call is unstable due to phone or other commu-

nication network issues.

When the call feature is not operating due to phone settings set

by the user.

When the phone cannot be controlled via Bluetooth® due to

phone specifications or characteristics.

4-2 I UVO eServices



8VLQJ892H6HUYLFHVDQG3UHFDXWLRQV

Download the UVO eServices App and install it on your smartphone.

The app can be downloaded from your smartphone’s app store.

For using UVO eServices call features such as 911 Connect,

Roadside Assist and eServices Guide, a smartphone must be connected with the vehicle via Bluetooth. Pair and connect your smartphone with the vehicle. For information on connecting your Bluetooth device, refer to the smartphone user’s manual and instructions on the Phone Help screen on your radio. Up to five Bluetooth devices can be paired to the vehicle and only one device can be connected at a time.

For using data communication of Vehicle Diagnostics, Parking

Minder, and My Car Zone, smartphone must be connected with the vehicle via USB cable.

Ф

The use of genuine cable is recommended. (The use of

other products may result in abnormal or non-proper operation.)

UVO eServices may not operate properly with incompatible

smartphones. To view the list of compatible smartphones, please visit MyUVO.com

Communication between the vehicle and smartphone app may

temporarily disconnect depending on the phone state.

If the feature is not operating properly, you may need to reset

the UVO eServices App or the smartphone and try again according to the following steps.

1. Try feature again in the Head Unit

2. Restart smartphone app

3. Re-connect Bluetooth and USB cable

4. Reset smartphone

5. Delete Device and pair again

Some services use the customer’s mobile phone data plan for

data communication. Therefore, the features will function in accordance with the cellular plan.

Some UVO eServices features will only be available when your

smartphone is connected with the vehicle via USB and the UVO eServices App is running.

Use of the most up-to-date app version is recommended.

For smartphone related inquiries, please visit MyUVO.com.

Using UVO eServices and Precautions I 4-3



$ERXW892H6HUYLFHV

UVO eServices provides the following features through Bluetooth and/or USB connection to your smartphone.

Name Connection Description

911

Connect

Roadside

Assist

Vehicle

Diagnostics

My Car

Zone

Parking

Minder

BT & USB

USB

If an airbag deploys, your vehicle automatically initiates a call to 9-1-1 and sends your vehicle’s location information to the 9-1-1 operator.

If a diagnostic issue exists, you can connect with a Roadside Assist.

Informs you if there is a diagnostic issue found in your vehicle. If an issue is found, you can contact a call center through Roadside Assist or reserve an appointment with your preferred Kia dealer through Schedule Service.

Keeps track of predefined triggered alerts such as Speed Alert and Curfew Limit Alert from the My Car Zone feature.

Saves the location of your parked vehicle on your UVO eServices smartphone app. You can check where your vehicle is parked through the UVO eServices App on your smartphone.

Name Connection Description

My POIs

eServices Guide

Information

• 24-hour Roadside Assistance is a

America, Inc. Certain limitations apply. Coverage details are available in the Kia Warranty and Consumer Information Manual. For access to Enhanced Roadside Assistance, a conn Bluetooth within the cellular service coverage area is required.

USB

BT & USB

Downloads Points of Interest to your multimedia system from Google Maps and MyUVO.com

Receive guidance on how to use UVO eServices.

service plan provided by Kia Motors

ected mobile phone via

To use UVO eServices, the following conditions must be met.

1. The UVO eServices smartphone app must be installed and you must log in using your MyUVO account credentials.

2. The smartphone must be connected via Bluetooth and USB cable to the vehicle.

3. Once this is complete, eServices must be activated.

4-4 I UVO eServices

%HIRUHXVLQJ892 H6HUYLFHV

Installing the UVO eServices App on your smartphone

1. Download and install the UVO eServices App on your smartphone. The app can be downloaded from the Apple App Store or Google Play.

2. Register your vehicle and account at MyUVO.com Note: MyUVO.com is accessible from your phone’s browser.

3. Start the UVO eServices App on your smartphone and log in.

&RQQHFWLQJ%OXHWRRWK

Press the key on the steering

3KRQH

wheel or select the Home screen. Press

%OXHWRRWK

%OXHWRRWK&RQQHFWLRQ



icon on the

6(783

keyԡ

3DLUDGHYLFHIURP %OXHWRRWKHQDEOHGSKRQH

1. Turn on the Bluetooth feature on your smartphone’s Bluetooth Settings screen.

2. Search Bluetooth devices on your

smartphone.

3. Select the Vehicle Name on the phone

that matches the name shown on the screen.

4. Verify the passkey shown on the touch-

screen. If the phone supports SSP, check the passkey on your Bluetooth confirm the authentication.

device and

Pair a device from Bluetooth-enabled phone I 4-5



&RQQHFWLQJWR VPDUWSKRQHYLD86%

1. Connect your smartphone with the vehicle via USB cable.

NOTICE

• For smartphone related inquiries, please visit

MyUVO.com.

Activating UVO eServices

Select the Menus on the Home screen.

892H6HUYLFHV

icon from All

Press the eServices activation process will begin.

NOTICE

• Before activating UVO eServices, ensure

your phone is connected to the vehicle via USB cable.

<HV

button, then the UVO

4-6 I UVO eServices

&RQQHFW

911 Connect

If an airbag deploys, your vehicle automatically initiates a call to 9-1-1 and sends your vehicle’s location information to the 9-1-1 operator.

The 911 Connect feature is available only when the mobile phone is connected via Bluetooth. By default, this feature is turned off. To turn it on, you must turn it on in the eServices Settings menu. By enabling this feature, you are agreeing to the 911 Connect terms of use.

) icon is displayed at the top of the

A ( touch screen as shown below when phone is connected to UVO eServices system via Bluetooth and the 911 connect feature is turned on.

Initiating a 911 Call

If an airbag deploys, the following screen is displayed and a call is automatically placed to 9-1-1 after 10 seconds.

Once a call is connected with a 9-1-1 operator, it is possible to request emergency services to be dispatched to your location.



911 Connect I 4-7

The 9-1-1 operator may request information on the current location of your vehicle. When the 9-1-1 operator requests your vehicle location, “Sending Location” is displayed on the screen and the vehicle location is automatically sent to the 9-1-1 operator.

When the 9-1-1 operator attempts to talk to the driver again, the call time is displayed and allows the driver to speak with the 9-1-1 operator.

5RDGVLGH$VVLVW

Roadside Assist

If there is any issues in the vehicle, you can connect with a Roadside Assist agent. The Roadside Assist feature can be used only when your phone is connected via Bluetooth.

4-8 I UVO eServices

Select the

892H6HUYLFHV

on the Home screen ԡ

icon from All Menus

5RDGVLGH$VVLVW

9HKLFOH'LDJQRVWLFV

Conducting Vehicle Diagnostics

Vehicle Diagnostics is available only when the ignition is turned on and the vehicle is parked. It also requires that UVO eServices is activated, and the Phone is connected via USB cable before starting Vehicle Diagnostics.

Select the

892H6HUYLFHV

on the Home screen

icon from All Menus

9HKLFOH'LDJQRVWLFV

ԡ

The Vehicle Diagnostics process will begin. When a diagnostics check is in progress, keep the vehicle in park with the ignition on. To cancel diagnostics, press the

&DQFHO

button on the touch screen or

any hardkey.

If diagnostic issues are found, press the

6HQG5HSRUW

account or press the

button to send to your MyUVO

6FKHGXOH6HUYLFH

button to schedule an appointment with your preferred or nearby Kia dealer.

Vehicle Diagnostics I 4-9



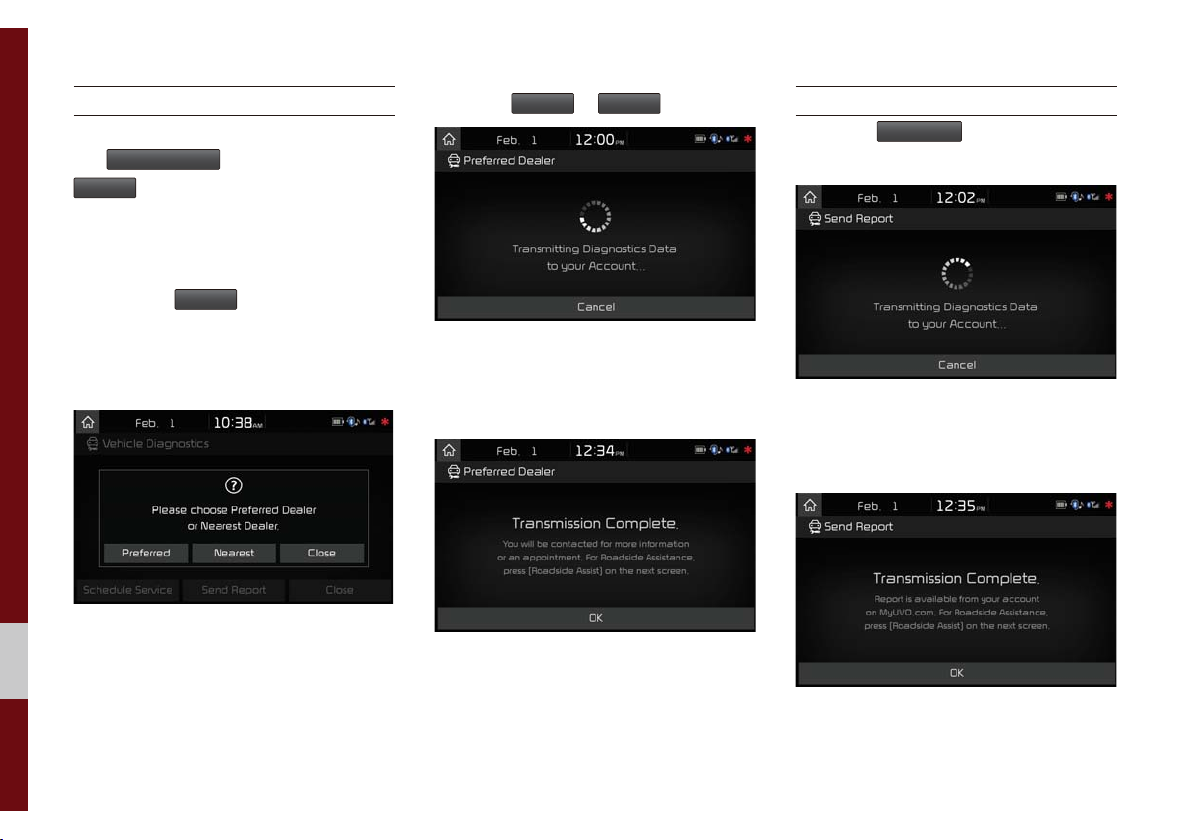

Schedule Service

When scheduling an appointment using

6FKHGXOH6HUYLFH

the

3UHIHUUHG

button will allow you to request an appointment with your preferred Kia dealer and send your vehicle’s diagnostics information.

Pressing the to request an appointment with the nearest Kia dealer and send your vehicle’s diagnostics information.

button, pressing the

1HDUHVW

button will allow you

Press the

3UHIHUUHG

1HDUHVW

button.

Request an appointment with Preferred or Nearest Kia Dealer and send your vehicle’s diagnostics data.

Send Report

Press the nostics result screen.

Vehicle Diagnostics Data is transmitted to your account and you can see the report on MyUVO.com

6HQG5HSRUW

in the vehicle diag-

4-10 I UVO eServices

Even if diagnostic issues are not found after Vehicle Diagnostics, it is recommended that you send the diagnostic results to your MyUVO account. Press the

6HQG5HSRUW

button to send the diagnostics results to your MyUVO account.

Scheduled Diagnostics

If you have set up Scheduled Diagnostics on your UVO eServices App, a vehicle diagnostics check will automatically start on the day you selected. On the date of the Scheduled Diagnostics, the following window will be displayed.

Press the

6HQG5HSRUW

button to see the

Vehicle Health Report on MyUVO.com.

Press the

<HV

button on the touch screen

to proceed with diagnostics.



Vehicle Diagnostics I 4-11

Automatic Diagnostics

If a critical diagnostics issue with your vehicle’s powertrain is detected, Automatic Diagnostics will be notified.

NOTICE

• The screen messages differ based on the

vehicle diagnostics severity. Ensure your phone is connected to the system via USB cable before using

6HQG5HSRUW

6FKHGXOH6HUYLFH

and

0\&DU=RQH

My Car Zone is a feature that provides alerts and driving history for Curfew Limit Alerts, Speed Alerts, and Geo Fence Alerts set by the user.

Name Description

Curfew Limit Alerts are

Curfew Limit Alert

Speed Alert

Geo Fence Alert

My Car Zone features are supported only when UVO eServices has been activated.

alerts that are triggered when a driver is driving within a predefined time range.

Speed Alerts are alerts that are triggered when a driver exceeds the predefined maximum speed.

Geo Fence Alerts are alerts that are triggered when a driver enters into a predefined geographical location.

Select the

892H6HUYLFHV

on the Home screen ԡ

icon from All Menus

0\&DU=RQH

Curfew Limit Alerts History

Speed Alerts History

4-12 I UVO eServices

Geo Fence Alerts History

Speed Alert

Curfew Limit Alert

You can check the Curfew Limit Alert history for a list of past triggered curfew alerts.

When a driver does not keep the pre-defined driving conditions, popup is displayed with voice guidance and save alerts in the My Car Zone history.

Curfew Limit Alert

Geo Fence Alert

Name Description

Phone

Alert Time

Duration

Driving Time

Name of phone connected upon triggered curfew limit

Initial alert time Total duration of driving

while curfew limit was triggered

Total driving time from turning ignition on until turning ignition off

My Car Zone I 4-13



Speed Alert

You can check the Speed Alert history for triggered speed limit alerts of the vehicle.

Geo Fence Alert

You can check the Geo Fence Alert history for triggered Geo Fence alerts of the vehicle.

Name Description

Phone

Max. Speed

Alert Time

Duration

4-14 I UVO eServices

Name of phone connected upon triggered speed limit alert

Maximum vehicle speed upon triggered speed limit alert

Time from first triggered alert until last triggered alert

Total triggered alert time from turning ignition on to turning ignition off

Name Description

Phone

Alert Time

Center

Location

Radius

Name of phone connected upon triggered geo fence alert

Initial alert time

Radius from set center location address

Radius from set geo fence address

To check My Car Zone alert history from your smartphone, you must first send the alert history to your MyUVO account.

From the Menu tab, Press the button on the touch screen.

6HQG'DWD

NOTICE

• Before using

is connected to the UVO eSevices system via USB cable.

6HQG'DWD

, ensure your phone

3DUNLQJ0LQGHU

Sending Parking Location

The location where your vehicle is currently parked can be sent to your smartphone.

Ensure that your smartphone is connected via USB and the UVO eServices App is running before using this feature.

After parking the vehicle, select the

892H6HUYLFHV

Home screen ԡ the vehicle’s location to your smartphone.

icon from All Menus on the

3DUNLQJ0LQGHU

to send

Once the parking location has been sent, you can view your vehicle’s location from the UVO eServices App on your smartphone.

NOTICE

• When the parking location is being sent, do

not drive the vehicle. Ensure that you have logged into the UVO eServices App, and your phone is connected to the multimedia system via USB cable.

• When ignition is turned off while the phone is

connected via USB, Parking Minder can be transferred automatically if the option is set up in UVO eService Settings

0\32,V

Sending Points of Interest to Your Navigation System

Select the

892H6HUYLFHV

on the Home screen ೛

8SGDWH

Press

button on the touch screen.

icon from All Menus

0\32,V



My POIs I 4-15

UVO eServices system will attempt to download the POIs from MyUVO via your smartphone.

H6HUYLFHV*XLGH

eServices Guide

eServices Guide provides guidance on how to use UVO eServices.

This feature is only available when the mobile phone is connected via Bluetooth.

UVO eServices Settings

Refer to

6(783

key ԡ

892H6HUYLFHV

NOTICE

• Ensure that you have logged in to the UVO

eServices App, and your phone is connected to the UVO eServices system via USB cable.

Once the POIs have been downloaded, select a POI from the list to see more details.

4-16 I UVO eServices

Select the

892H6HUYLFHV

on the Home screen ԡ

icon from All Menus

H6HUYLFHV*XLGH

SDUW

1DYLJDWLRQ

Basic Features

Quick Menu

Destination Search

Route Search

Navigation Settings

Troubleshooting

1DYLJDWLRQ

6WDUW

*XLG

$GG

:D\SRLQW

6DYH

32,

%DVLF)HDWXUHV

Operating Navigation Screen

Basic features on the map screen.

Name Description

Move to Places Menu.

Go to the Home screen.

Change the map view mode.

Adjusts the volume.

Zoom in the map. Set the zoom level automatically according

to the guidance. Zoom out the map.

Quick Menu for destination selection and options.

Touch to scroll the map.

DQFH

5RXWH

Start the preferred navigation route to selected location.

Choose the preferred navigation route to selected location.

Set a waypoint to the current route. Save frequently used address to address

book. Find a POI(Point Of Interest) around the

current position. View the vehicle’s current position on the

map screen.

5-2 I Navigation

Places

Changing Map View

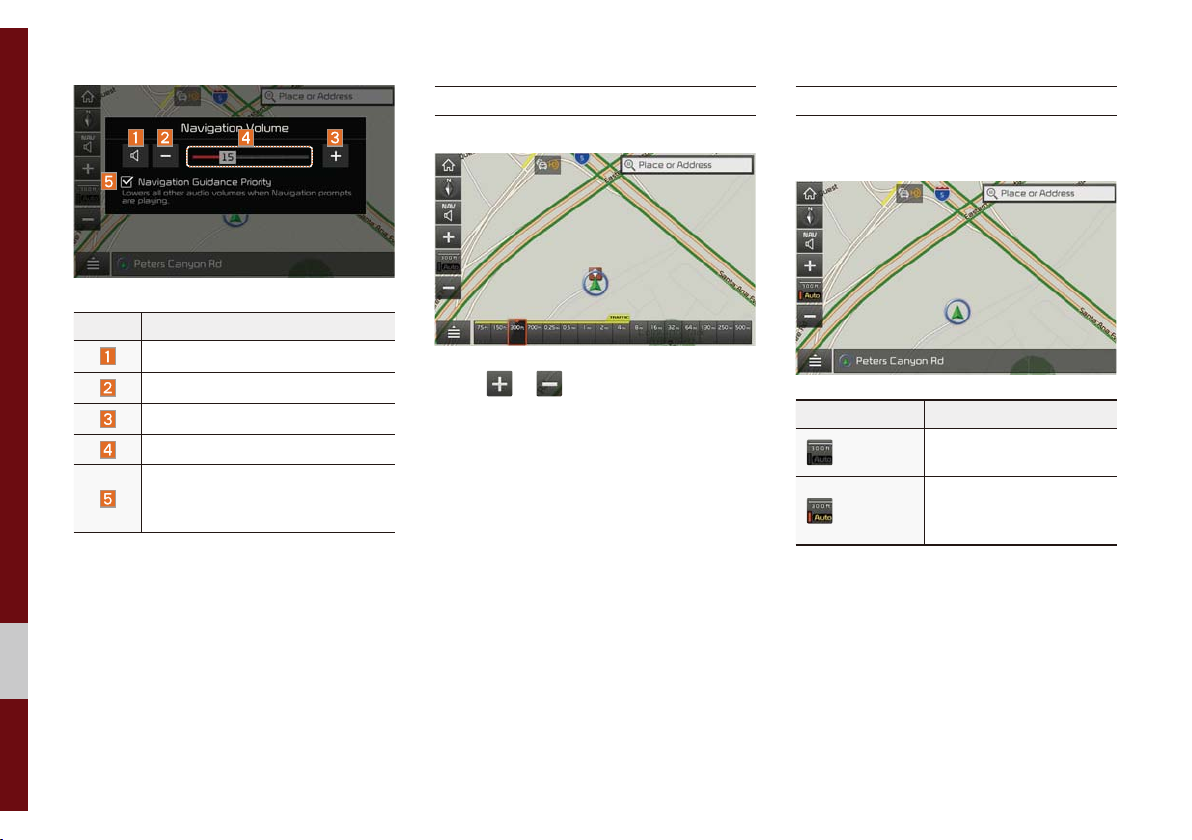

Navigation Volume

You can use this menu when the vehicle shift lever is in P (Park) and there is no destination set. Press the Search Icon(Place or Address) to move to “Places”.

Please refer to “Places” in “Destination Search” for more details.

Touch the compass arrow icon to toggle between a map oriented to the North, oriented parallel to the vehicle’s heading and 3D View.

Select the tion volume.

button to adjust the naviga-

Basic Features I 5-3



Name Description

Set the volume to mute.

Turn the volume down.

Turn the volume up.

Slide to set the volume. Lowers all other audio volumes

when Navigation prompts are playing.

Zoom In/Zoom Out

Zoom the map view screen in and out.

Select

or to set the zoom level.

Map Scale

Sets the zoom level automatically according to the type of road.

Name Description

Scale Fix

Auto Scale

Manually adjust the map scale.

Change the map scale automatically depending on the type of road.

5-4 I Navigation

4XLFN0HQX

5RXWH

RXU

'HWRXU

Route

Select screen ԡPress

button on the bottom left of the

button.

Route Options

Detour

Select the

'HW

(GLW5RXW

button to set

5RXWH2SWLRQ

Select your preferred route and avoid options. Then select the

HFDOFXOD

to save your selection. These options will become default for future routes.

button

The

button is active only when

there is an active route.

Selected distance is detoured from the current location.

Quick Menu I 5-5



Edit Route

(GLW5RXW

32,

Map Display

Displays the direction of the map. Press

or .

POI

Select the button on the bottom left of the screen ԡ Select the

View Nearby POIs

button.

Select the

button to change the route. Refer to the Route > Editing Route section in the manual for more information(page 5-26).

5-6 I Navigation

Name Description

North

Up (2D)

Heading

Up (2D)

3D Buildings

Displays always has north at the top of screen.

Displays always shows the vehicle’s direction as proceeding towards the top of the screen.

Shows the map in 3 dimentions.

Shows or hides buildings on the map.

Select check button to set whether to show nearby POIs or not. When categories are selected, they will appear on the map. (ex. Gas Stations)

The lists of nearby gas stations are dis-

6WDUW

5RXW

$GG

played.

The list can be sorted to display in order of distance or name.

Name Description

Call to the selected location (Phone needs to be connected via Bluetooth).

Start the preferred navi-

*XLGDQF

gation route to selected location.

Choose the preferred

navigation route to selected location.

D\SRLQ

6DY

Set the location as a waypoint.

Save the location.

Search nearby POIs.

Edit

Change the shortcut POIs to display. (ex. Gas Stations)

Select the desired category to change. (ex Restaurants)



Quick Menu I 5-7

POI Categories

Select new category to display. (ex. American)

Select the desired POI to check the location and for detailed information.

Select the item to search.

Name Description

HDUFK

Press the POI category by name.

DV6WDWLRQ

5-8 I Navigation

is changed to

PHULFD

button to search the

Search POI around the current position.

Search POI around the destination.

Active only when a route’s

planned.

Search POI along route.

Active only when a route’s

planned.

Search POI around the current cursor when the map scrolled.

Active only when the cursor

position is different from the vehicle position.

Search POI around the city selected.

Traf ﬁc

7UDIILF

&DW

Select the button on the bottom left of the screen ԡ Select the

Trafﬁc List

button.

Name Description

Direction from the current location. Distance from the current loca-

tion (mi or km). Displays traffic info symbol based

on the type of event. Description of traffic event.

Additional traffic information may be dis-

HJRU\

played upon clicking on the

button.

Name Description

Display ‘Road Construction’ information.

Display ‘Accident’ information.

Display ‘Slow Traffic’ information.

Display ‘Incident’ information. Display ‘Hazardous Road

Conditions’ information. Display ‘Travel Information’.

2Q5RXWH

When

is activated, only traffic

information on your route is displayed.

On the traffic list, the current traffic/road event information is displayed in order of distance.



Quick Menu I 5-9

On the traffic list, the current basic traffic/ road event information is displayed in order of distance. Select the combo box to change the arrangement in order of Category/ Distance.

Name Description

Select the combo box to arrange. Arrangement by distance: Display

the traffic information in order of distance closer to the current location.

Arrangement by category: Display traffic information arranged in order of traffic information event type.

Trafﬁc detail

Select the button on the bottom left of

7UDIILF

the screen ԡ Select the

Select the traffic information on the traffic list to display the detailed screen as shown in the screen. Display the symbol of traffic event and arrow which indicates the road from start to end of the traffic event. Detailed information is available on the right screen.

button.

Name Description

Symbol of traffic event.

Event name of traffic information. Road name/road number includ-

ing direction. Direction and distance from the

current location. Intersection where traffic event

starts. Intersection where traffic event

ends. Total distance of traffic event. Check the previous traffic infor-

mation (Enabled only when there are two or more events on the On Route)

Check the next traffic information (Enabled only when there are two or more events on the On Route)

Detour the route based on the traffic information.

5-10 I Navigation

Trafﬁc detour

7UD

'HW

'HWRXU

*XLGDQFH

Select the button on the bottom left of

IIL

the screen ԡ Select the

If there is traffic information on the route, it is possible to detour the route using traffic information and search other routes.

RXU

When the

button is enabled in the View Traffic Detail, press the to detour.

Select the desired section.

button.

RXU

button

Check the information and press the

button.

6WDU

Select the

button to apply the

detoured sections and search other routes.



Quick Menu I 5-11

Save

,FRQ

1RQH

'HVWLQDWL

Select the button on the bottom left of

6DYH

the screen ԡ Select the

'HVWLQDWLRQ6HDUFK

Places

You can enter POI Name, Address or Coordinates that you wish to search by.

To store the location on the current map to the address book.

5-12 I Navigation

Name Description

Change the name.

Enter the phone number. Press

screen. Designate to the Favorite item.

When the favorite is designated, press the button on the bottom of the Destination menu and request the route guide immediately.

Save the setting.

,FRQ1DP

to display on the map

Press the the

1$9

head unit key. ԡ Select

tab. ԡ Select the

Search Bar.

Enter the POI Name, Address and

)LOW

&LW\

)LOW

Coordinates of the location you want in the input window above, and press the button.

If you press the

HUE\

button on the search result screen, it will bring you to the City search screen where you can filter the search results by city names.

Once the destination has been identified either by POI name, address, or coordinates, the map screen will be displayed. From this screen you can set the destination or add a waypoint, or add the displayed destination to your address book.

If you select a location from the search result list, it will bring you to the point.

If you press the

HUE\&DWHJRU

button from the search result screen, it will bring you to the POI Categories screen where you can filter the search results by POI Categories.



Destination Search I 5-13

Address

'HVWLQDWLR

&LW\



6NLS

6WDUW

*XLG

5RX

$GG

Set destination by address search.

1$9

Press the the icon.

head unit key. ԡ Select

tab. ԡ Select the

$GGUHV

How to Search Address

Search criteria can be entered in any

6WDW

+RXVH1R

then

order. Example:

6WUHHW

then

Name Description

then

Select state to search. Select a city before entering

the street name. Addresses are searched only from the selected city.

Enter house number. If you don’t know the house number, press

button.

Enter a street name. If same street names exist in other cities, the list of cities will be displayed.

Enter the address to check the location information on the map.

Name Description

DQF

WHV

D\SRLQW

DYH

Start the preferred navigation route to selected location.

Choose the preferred navigation route to selected location.

Set the location as a waypoint.

Save the location.

Search nearby POIs.

5-14 I Navigation

Previous Destinations

'HVWLQDWL

$OO

'HOHWH

8QPD

'HOHWH

Select from previously inputted addresses and POIs.

Press the the

UHYLRXV'HVWLQDWLRQ

1$9

head unit key. ԡ Select

tab. ԡ Select the

icon.

Arrange by all, latest destinations, latest searched places and latest departing places. Arrange in order of date and time.

Name Description

HVWLQDWLRQV

6WDUW3RLQW

6HDUFKHV

Display all destinations, departing places, and searched places.

Display previous destination places for route guidance.

Display previous departing places for route guidance.

Display previously searched places for route guidance.

But, not displayed

when the searched places are set as destination.

Press the

button to delete the

information.

Name Description

DUN$O

UN$OO

Select all.

Deselect all. Delete the selected

item(s).



Destination Search I 5-15

Local Search

6WDUW

Press the

'HVWLQDWL

the icon.

1$9

tab. ԡ Select the

head unit key. ԡ Select

/RFDO6HDUFK

Runs Google Local Search.

Enter the desired keywords and press the

button.

5-16 I Navigation

Searching is in progress.

If one or more results are found, the search results are displayed. Select one of the search result.

Press the

XLGDQF

button to start guidance. If search or guidance fails, the connection error message is displayed as above. Please try again.

POI Categories

'HVWLQDWLR

Press the the

32,&DWHJRULH

Select the desired item.

1$9

HVWLQDWLRQ

head unit key. ԡ Select

tab. ԡ Select the

icon.

Select the desired item in the sub-categories.

Name Description

Select the desired destination among the searched items and add it as a way point.

Arrange in order of Distance and Name.

Arrange in order of Near Current Position, Near Destination, Along Route, Near Scroll Mark and Near City Center.

Gas Stations

Search for gas stations.

Press the the

DV6WDWLRQV

Select the desired destinations among the search items.

1$9

head unit key. ԡ Select

tab. ԡ Select the

icon.



Destination Search I 5-17

Restaurants

'HVWLQDWLR

5HVW

'HVWLQDWLRQ

(

Search restaurants.

Emergency

Search emergency facilities.

1$9

Press the the

DXUDQWV

head unit key. ԡ Select

tab. ԡ Select the

icon.

Select the desired destination among the searched items.

1$9

Press the the

PHUJHQF\

head unit key. ԡ Select

tab. ԡ Select the

icon.

Check the current location information and select the desired item in the sub menu. (ex. Police Stations)

Select the desired destination among the searched items.

5-18 I Navigation

Address Book

'HVWLQDWLRQ

&RRUGLQDWHV

Search the destination with the address book.

Press the the icon.

Select the desired group.

1$9

head unit key. ԡ Select

tab. ԡ Select the

GGUHVV%RRN

If you save address in the Favorites tab, you can set destinations easily by pressing the icons such as

*R+RPH

and

IILFH

bottom of the Destination menu.

Name Description

Select the desired destination from the searched items.

Edit the item.

Delete the desired item.

at the

Coordinates

HVWLQDWLRQ

1$9

head unit key. ԡ Select

tab. ԡ Select the

button

Press the the to search by coordinates.

There are two ways to search by coordinates (D.M.S or Decimal Degrees). After typing coordinates, press the to search.



Destination Search I 5-19

6WDUW

Favorite Places

'HVWLQDWLR

*R+

<HV

Set the route using your favorite places.

1$9

Press the the places.

head unit key. ԡ Select

tab. ԡ Select from favorite

Press the

*XLGDQFH

ance.

5-20 I Navigation

button to start guid-

On the button where locations are not registered, the location is registered, the

icon is displayed. When a

button disappears and the buttons 1 to 3 are displayed as your favorite places.

Press the

RPH

button then press the

button to set the Favorite ‘Go Home’.

Office, Special 1, Special 2, and Special 3 can also be set as a Favorite using the same steps.

Pressing any of the Favorite Place buttons

*XLGD

$GG

6WD

will start the route guidance to the saved Favorite address.

Route Setting

The route can be set after searching for a destination.

While the destination is set, the buttons

6WDU

QFH

appear. Press the desired button to change a destination or add a waypoint.

5RXWH

, and

D\SRLQ

Destination Setting

After searching the destination, press the

*XLGDQFH

destination.

button to set the location as a



Destination Search I 5-21

All Routes

6WD



(GLW5RXW

$GG

Name Description

Display total distance, travel time. Select the desired route.

Adding Waypoint

Three routing options are displayed based on real time traffic information and traffic pattern information and shorter distance.

• Route 1: Select the best route based on combine real-time traffic information and traffic pattern data on the map.

• Route 2: Select the best route based on real-time traffic information.

• Shorter Distance: Select short distance, regardless of how fast or slow progress will be calculated.

UW*XLGDQF

RXWH2SWLRQ

5RXWH,QIR

Total

Freeway

Toll Road

Ferry

Start the guidance with the route.

Change the route option.

You can check route information.

Edit the route. Display total distance

of the route. Display length of free-

way on the route. Display length of toll

road on the route. Display length of Ferry

route on the route.

Press the

:D\SRLQ

button to set the position as a waypoint and search the route.

5-22 I Navigation

Name Description

'RQH

Display the selected point on the map screen.

$GG:D\SRLQ

Move the selected item up.

Move the selected item down.

Delete the selected item.

Press the button to finish editing.

Press the button to add waypoint.

Registering Location

Press register the location.

Enter the detailed information of the location to save.

DYH

at the desired location to

Route Guidance

Show route guidance detailed information.

Route Guidance Screen



Destination Search I 5-23

Name Description

5RX

Displays the distance and direction to the first turn point.

Displays the distance and direction to the second turn point.

Displays the lane information at the current location. Display the recommended direction in white, travelable direction in white, and the non-travelable direction in grey.

Displays the distance to the destination and the estimated time of arrival. Press the button to check the detailed information. If no waypoint is set, you will see the remaining distance or estimated time of arrival in turn each time you click the button.

QFHO

Cancel the route. Displays the Turn List.

Closes the Turn List.

Split Screen during Route Guidance

Approaching the turning point, the detailed road and travel information is automatically displayed on the right side of the screen.

Name Description

• Turn Point: Displays direction and shape to turn shortly.

• Distance to turn: Displays distance to next turn point.

Road name to maneuver: Info of the road.

Detail Distance Bar: Displays distance to next turn point.

additional info can be displayed

on Freeway.

Additional info of Freeway exit or Rest area can be displayed by pressing the button

5-24 I Navigation

Detailed information for POIs around free-

5RXWH

5RXW

<HV

way exit is listed by pressing POI symbols.

5RXWH6HDUFK

Canceling Route

Cancel the route.

Press the the

Press the

1$9

head unit key. ԡ Select

icon.

&DQFHO5RXWH

tab. ԡ Select

QFHO

Press the

button to cancel the route.



Route Search I 5-25

Route Options

5RXWH

(GLW5RXWH

5RXWH

1$9

head unit key. ԡ Select

tab. ԡ Select

RXWH2SWLRQV

icon.

Press the the

Press the

Determine the route options to guide the route.

Editing Route

Edit the current route.

Press the the

Press the

1$9

head unit key. ԡ Select

tab. ԡ Select

(GLW5RXW

icon.

Name Description

Display the selected point on the map screen.

Move the selected item up.

Move the selected item down.

Delete the selected item.

RQH

GG:D\SRLQW

Press the button to finish editing.

Press the button to add waypoint.

5-26 I Navigation

Display Route Information

5RXWH



Press the the

1$9

head unit key. ԡ Select

tab. ԡ Select

RXWH,QIR

Add the waypoint through various searching methods.

Press the

RXWH,QIR

icon.

Check the information on the map. Select the desired item to see the map information.

Avoiding a road

Click the street or road.

Check the desired item and press the

'RQH

YRLG6WUHH

button to finish.

button to avoid the

Route Search I 5-27



Route Overview

5RXW

5RXWH,QI

5RXWH

Check the information on route including the distance, estimated time, toll fees, etc.

Avoid Street

Search new route by avoiding the selected street(s).

Press the the

Press the

1$9

tab. ԡ Select

RXWH2YHUYLH

head unit key. ԡ Select

RXWH2YHUYLH

icon.

Name Description

RXWH2SWLRQ

LW5RXWH

Change the search option.

You can check route

R

information. Edit the current route.

Press the the

Press the

1$9

head unit key. ԡ Select

tab. ԡ Select

RLG6WUHHW

$YRLG6WUHHW

icon.

5-28 I Navigation

Press the

'RQH

to plan new route after

selecting the street(s) that you want to avoid.

1DYLJDWLRQ6HWWLQJV

Display

Change general settings.

Name Description

Change the unit of Press the button to change

the previous destination view setting when starting the navigation.

When button selected, navigation will automatically return to current vehicle position after scrolling through map display.

Change the route guidance line colors.

Select the button to display traffic information on the map.

Check the GPS information.

PLO

, NP.



Navigation Settings I 5-29

HYUNDAI MOBIS AVC11A8MG User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
