CAR MULTIMEDIA SYSTEM

USER'S MANUAL

Read the following safety precautions for your safety

Notations used within this User's Manual

Before using the product, read the contents of this user's manual

carefully and use this product safely.

※

The design and speciﬁ cations of this product may change without prior

notiﬁ cation for product and service improvement.

The actual features in the vehicle may differ from the illustrations.

For more accurate information about the vehicle, please refer to the

catalogue.

※

This Audio system contains open source software, including without

limitation, software distributed and/or modiﬁ ed under the GNU General

Public license, Version 2, June 1991, and the GNU lesser General

Public License, Version 2.1, February 1999.

For additional information and to obtain related materials including

without limitation, the previous referred to licenses and software, please

WARNING

• Failure to observe the instructions within this category could result in death

or serious injury or damage to the vehicle.

CAUTION

• Information on matters that could potentially lead to injury or vehicle

damage/malfunction Information that could lead to higher user safety

Information

• Information and tips that provide additional user convenience in using the

product

NOTICE

• Information on specific features that facilitate proper product use and

functional understanding

• Information on terminology used within this manual

iPod

iPod® is a registered trademark of Apple Inc.

Bluetooth®

Wireless Technology

The Bluetooth® word mark and logos are registered trademarks owned by

Bluetooth SIG, Inc. and any use of such marks by Kia is under license.

Other trademarks and trade names are those of their respective owners.

A Bluetooth

Bluetooth

Wireless Technology enabled cell phone is required to use

Wireless Technology.

part.1

Component Names and Functions

Starting the System for the First Time

Basic

Warnings and Cautions

Key Product Features

Basic

Safety Warnings

• Do not stare at the screen while driving.

Staring at the screen for prolonged peri-

ods of time could lead to traffic accidents.

• Do not disassemble, assemble, or modify

the Multimedia system. Such acts could

result in accidents, fire, or electric shock.

• Heed caution not to spill water or intro-

duce foreign objects into the device.

Such acts could lead to smoke, fire, or

product malfunction.

• If you use phone related functions while

driving, you will find it difficult to concen-

trate on operating the vehicle and the

current traffic conditions, so the possibility

of an accident may increase. Please

use phone related functions only when

parked.

• Please refrain from use if the screen

is blank or no sound can be heard as

these signs may indicate product mal-

function. Continued use in such con-

ditions could lead to accidents (fires,

electric shock) or product malfunctions.

• Do not touch the antenna during thun-

der or lightening as such acts may lead

to lightning induced electric shock.

• Do not stop or park in parking-restricted

areas to operate the product. Such acts

could lead to traffic accidents.

• For most Audio and multimedia modes,

the display will not operate when the

vehicle is in motion. For your safety, first

park the vehicle to watch or view the

screen. (The screen will only operate

when the parking brake is ON for man-

ual transmission vehicles and when the

parking brake is ON or the gearshift is in

the P (PARK) position for automatic.)

• Some functions other than the one

mentioned above cannot be used while

driving. These functions operate only

when the vehicle is parked.

1-2 I Basic

Safety Cautions

Pay attention to traffic conditions while

driving.

• Operating the device while driving could

lead to accidents due to a lack of atten-

tion to external surroundings. First park

the vehicle before operating the device.

In addition, the touch screen may not

work for some functions when the vehi-

cle is in motion. The touch screen fea-

ture will be supported once the vehicle

has stopped.

• Adjust the volume to levels that allow

the driver to hear sounds from outside

of the vehicle. Driving in a state where

external sounds cannot be heard may

lead to accidents.

• Pay attention to the volume setting when

turning the device on. A sudden output

of extreme volume upon turning the

device on could lead to hearing impair-

ment. (Adjust the volume to a suitable

levels before turning off the device.)

• If you want to change the position of

device installation, please inquire with

your place of purchase or service main-

tenance center. Technical expertise is

required to install or disassemble the

device.

• Turn on the car ignition before using this

device. Do not operate the Multimedia

system for long periods of time with the

ignition turned off as such operations

may lead to battery discharge.

• Upon using the Multimedia system

for more than 10 minutes with the car

engine turned off, the following warning

will be displayed. After 10 minutes, the

warning will be displayed for 5 seconds

every 1 minute.

• Do not subject the device to severe

shock or impact. Direct pressure onto

the front side of the monitor may cause

damage to the LCD or touch screen.

• When cleaning the device, make sure

to turn off the device and use a dry and

smooth cloth. Never use tough materi-

als, chemical cloths, or solvents(alcohol,

benzene, thinners, etc.) as such mate-

rials may damage the device panel or

cause color/quality deterioration. When

experiencing product concerns, inquire

with your place of purchase or service

maintenance center.

• Prevent caustic solutions such as per-

fume and cosmetic oil from contacting

the dashboard because they may cause

damage or discoloration.

Warnings and Cautions I 1-3

Key Product Features

This device is a Multimedia system equipped with a multifunc-

tional player that supports Radio (FM, AM), USB, iPod, AUX and

Bluetooth Audio features. The WIDE VGA LCD provides a high

quality resolution while the powerful and rich sound system adds

to the driving enjoyment.

Wide TFT-LCD Display

Display

Radio

Multimedia

Player

• Provides high quality video through a Wide TFTLCD Display using an LED Back Light.

• Touch screen for maximum user convenience.

Digital Tuner Feature

• Digital Tuner using PLL method that supports memory of 40 broadcast stations.

Radio broadcast station name

• Displays broadcast station names.

Support for various Media Formats

• Support for various media formats, including Radio, USB, iPod, AUX and Bluetooth

Audio

Streaming modes.

Miscellaneous

Bluetooth

• Convenient use of Bluetooth

Wireless Technology

Handsfree by

using buttons within the steering wheel control

Digital Screen Control Features

• Easy control of features through touch screen options

Steering Wheel Control

• Control over audio features, Bluetooth

through the steering wheel control for maximum convenience.

1-4 I Basic

Component Names and Functions

Head Unit

Name Description

Converts to FM/AM mode

RADIO

MEDIA

SEEK

TRACK

POWER/

VOL

• Each time the key is pressed, the mode is changed in the following order: FM1 → FM2 AM → FM1.

Moves to MEDIA mode.

• If the media is not connected MEDIA mode will not be activated.

When the key is pressed shortly (for less than 0.8 seconds),

• FM/AM mode: Plays the previous/next frequency.

• MEDIA (USB/iPod) mode: Changes the track, file or title (except for AUX).

When the key is pressed and held down (for over

0.8 seconds),

• FM/AM mode: Continuously changes the frequency until the key is released.

• MEDIA (USB/iPod) mode: Rewinds or fast forwards the track or file (except for Bluetooth Audio, and AUX).

• When power is off, press to turn power on.

• When power is on, press and hold for over 0.8 seconds to turn the power off.

• When power is on, press shortly for less than 0.8 seconds to turn Audio off.

• Turn left/right to adjust the volume.

Name Description

HOME

PHONE

Displays the HOME screen.

Displays the Bluetooth phone mode.

Displays the function set by the user.

SETUP

→

TUNE

Moves to the Setup screen.

• FM/AM mode: Changes the frequency.

• MEDIA (USB/iPod) mode: Changes the track, file or title (except for Bluetooth Audio, and AUX).

RESET

※

The actual feature in the vehicle may differ from the illustration.

Resets the system settings. (Preset radio channels and other data will not be deleted)

Component Names and Functions I 1-5

Steering Wheel Control

Name Description

For more details, refer to Phone Projection guide.

• Each time this key is pressed, mode is changed in the following order: FM1 → FM2 → AM → USB or iPod → AUX → Bluetooth Audio → FM1

MODE

VOL +

VOL -

• If the media is not connected, the corresponding modes will be disabled

• Press and hold the key (more than 0.8 seconds) to turn the Audio system on/off

• When power is off, press the key to turn power back on

Controls the volume

When keys are pressed quickly. (less than 0.8 seconds)

• FM/AM mode: searches broadcast frequencies saved to Presets

• Media (USB/iPod) mode: changes the track, file or title (except for AUX)

When keys are pressed and held. (more than 0.8 seconds)

• FM/AM mode: automatically searches broadcast frequencies

• Media (USB/iPod) mode: quickly looks up songs (excluding AUX and Bluetooth audio files)

Name Description

When pressed quickly. (less than 0.8 seconds)

• When pressed in the dial screen, makes a call

• When pressed in the incoming call screen, answers the call

• When pressed during call waiting, switches to waiting call (Call Waiting)

When pressed and held. (more than 0.8 seconds)

• When pressed in Bluetooth the last dialed call

• When pressed during a Bluetooth

Hands-free, redials

Hands-free

call, switches call back to mobile phone (Private)

• When pressed while calling on the mobile phone, switches call back to Bluetooth (operates only when Bluetooth

Hands-free

Hands-free is

connected)

• When pressed during a call, ends the phone call

• When pressed in the incoming call screen, rejects the call

※

The actual feature in the vehicle may differ from the illustration.

Component Names and Functions I 1-7

Starting the System for the First Time

Turning the System On/Off

Press the engine start button or set the

ignition key to On or ACC. Each time you

turn on the system, a boot logo and safety

warning will appear.

NOTICE

• Cannot operate the system while it is

booting up. It may take some time f f

eatures of the system.

or all of

Pressing and holding the power key on the

head unit will turn off the system.

You can change Screen Saver Settings

in Setup to display a clock on the Screen

Saver.

Information

• If you turn off the system during a phone

call using the Hands-free feature call will automatically s

phone

witch to y

, then the

our mobile

System Reset

The System Reset function restores the

system when it is not operating correctly.

Press and hold the

ond or longer. (It is recommended that you

press the

RESET

a pin or a clip.)

RESET

key for a sec-

key using a tool, such as

Pressing the power key on the head unit

will display the safety guide. To change the system language select the

Language

button.

NOTICE

• Check the volume when turning on the

system. Before tur the v

olume to a reasonable level.

ning on the system, adjust

Starting the System for the First Time I 1-9

Battery Warning Message

Always use the system while the car

engine is running. If you turn on the sys-

tem while the engine is off, a battery warn-

ing message will appear. When the engine

starts, the message will disappear.

NOTICE

• If you use the system for a long time with

the engine off, the battery may become completely discharged.

Restrictions on Features for Safety Measures

Several features are limited while driving.

The restriction screen will disappear when

shifting gears into P or putting the parking

brake on.

1-10 I Basic

Home Screen

Controls Menu Conﬁ guration for the Home Screen

Tap the icon on any screen to display the Home Screen below.

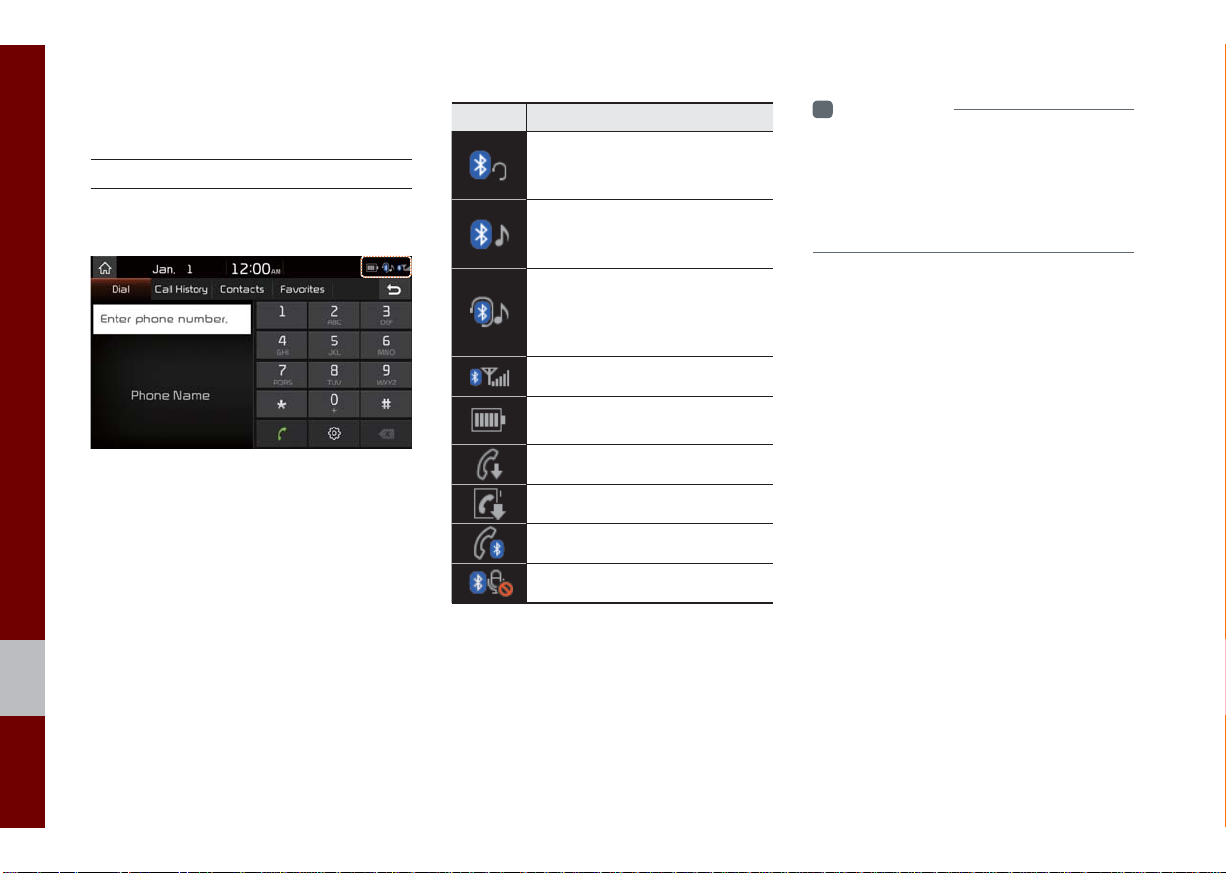

Information Display on the Status Bar

Displays the date and time, along with the system status shown by

the various icons to the right of the clock.

The icons in the following table indicate the various types of sys-

tem status details and events.

Icon Description

Displayed when the audio is muted.

Displays the remaining battery of the Bluetooth phone.

Displayed when connected to Bluetooth for handsfree.

Displayed when connected to Bluetooth for streaming audio.

Displayed when connected to Bluetooth for streaming audio and handsfree.

Features Description

• Shows brief information on the radio or media that is now playing.

Radio/

Media Widget

• Tap the area to move to the mode that you are listening to.

• Shows call-related information during a phone call.

Connectivity

Widget

All Menus

My Menu

Apps/Info

Setup

Shows any connected devices such as iPod and Bluetooth.

Shows all of the items in the system menu.

Add your favorite menus to have quick and easy access to them.

Moves to the Apps/Info screen.

Moves to the Setup screen.

Displayed when downloading contacts or recent calls from the Bluetooth phone.

Displayed while on a call with the Bluetooth phone.

Displayed when the microphone of the Bluetooth phone is muted.

Displays the signal strength of the Bluetooth phone.

Starting the System for the First Time I 1-11

Adding a Feature to My Menu

Select

add the most frequently used menus,

change the menu order, or delete menus.

My Menu

on the Home Screen to

Information

• Up to 24 menus can be added to My Menu.

On-Screen Touch Controls

Learn how to touch the screen to operate

the system.

Select

Tap lightly on a menu or an item to select it.

NOTICE

• The system will not recognize your touch if

you wear a glove or other non-conductive material. Touch the screen using your ﬁ nger, an electrostatic touch-screen glove, or a stylus pen.

Drag & Drop

Select a menu or item you want, then drag

and drop it to where you want to place it.

Drag or touch the slider along the play bar

in the music screens to jump to the point

that you want to play from.

1-12 I Basic

Flick (Quick Scrolling)

Quickly moves up and down in the list.

NOTICE

• Moving the list when there are many items

will display a handler on the right of the display. You can easily move many items at a time with the handler.

Press and Hold

Pressing the and buttons

in the music player will fast forward/rewind

the music.

Starting the System for the First Time I 1-13

MEMO

part.2

Radio/Media

FM/AM

USB

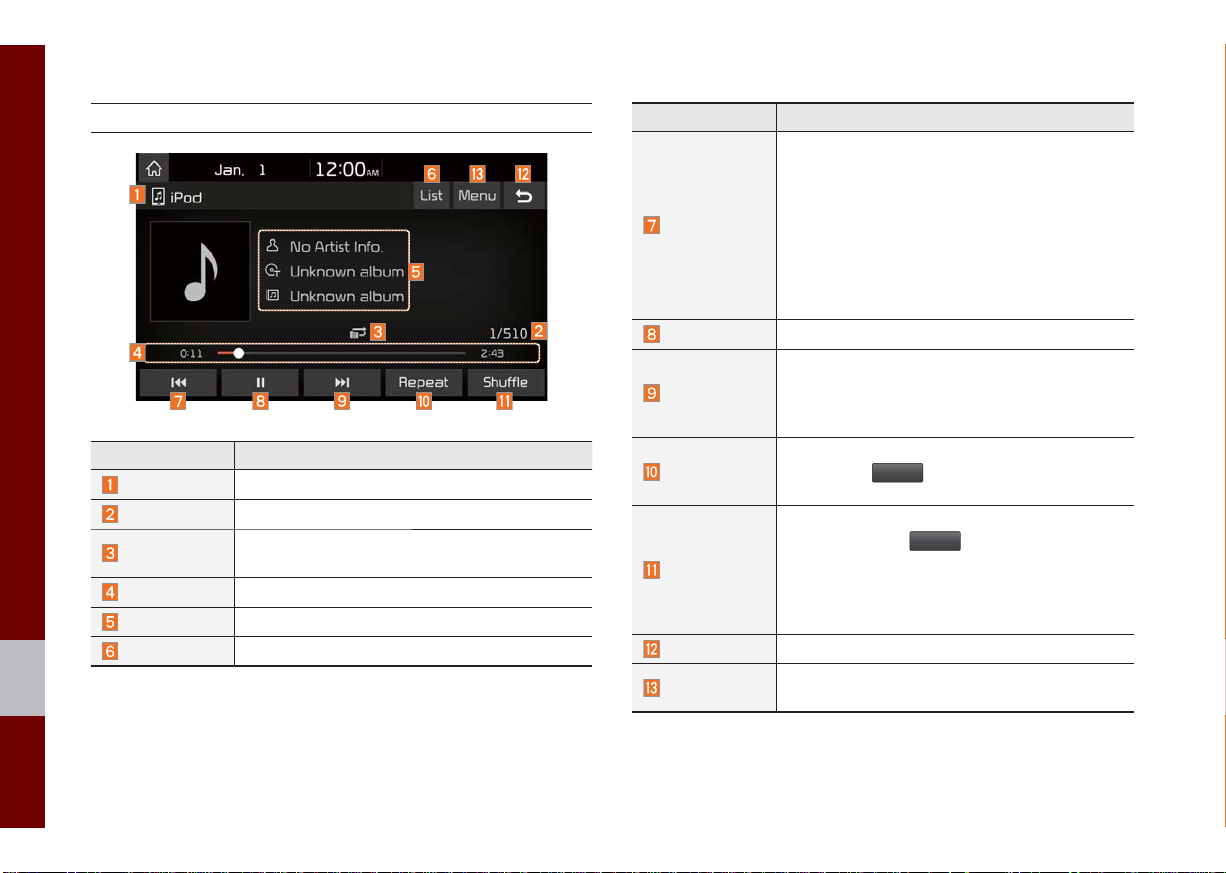

iPod

AUX

Bluetooth

Audio

Radio/Media

FM/AM

You can access the radio player either by pressing the

key or by selecting the Radio menu from All Menus on the Home

screen.

FM/AM Mode Display Controls

Information

• If you press the

on and a radio broadcast will be tuned from the current mode.

RADIO

key when the power is off, the power will turn

RADIO

Features Description

Mode Display

Preset

Frequencies

Frequency

Back Button

Scan/

Preset Scan

Scan

Autostore

Displays the current operating mode.

• The stored preset frequencies are displayed for user selection.

• After selecting frequency, press and hold the preset button for over 0.8 seconds. A beep sound will be heard and the frequency is to be stored in the selected preset button.

• Flick the preset frequencies up/down to scroll quickly through presets.

Displays the current frequency.

• Sound Settings Moves to the Sound Settings.

Converts to basic mode screen.

Displays an active mode from Scan and Preset Scan modes.

Shortly plays the broadcasts for the frequencies with superior reception for 5 seconds per item.

Saves frequencies with good reception to Preset buttons.

While Autostore is operating, pressing the

Autostore button again will cancel the function and play the previous frequency.

2-2 I Radio/Media

Features Description

• Pressing this button briefly (less than 0.8 seconds): Seeks the previous/next frequency.

SEEK/TRACK

TUNE

• Pressing and holding this button (for more than 0.8 seconds): Moves quickly through all of the frequencies. The moment that you release the button, the system seeks the ne

vailable frequency.

Turn the able frequencies.

•

FM: Increment/decrement by 200 kHz AM: Increment/decrement by 10 kHz

•

TUNE

knob to manually seek avail-

FM/AM I 2-3

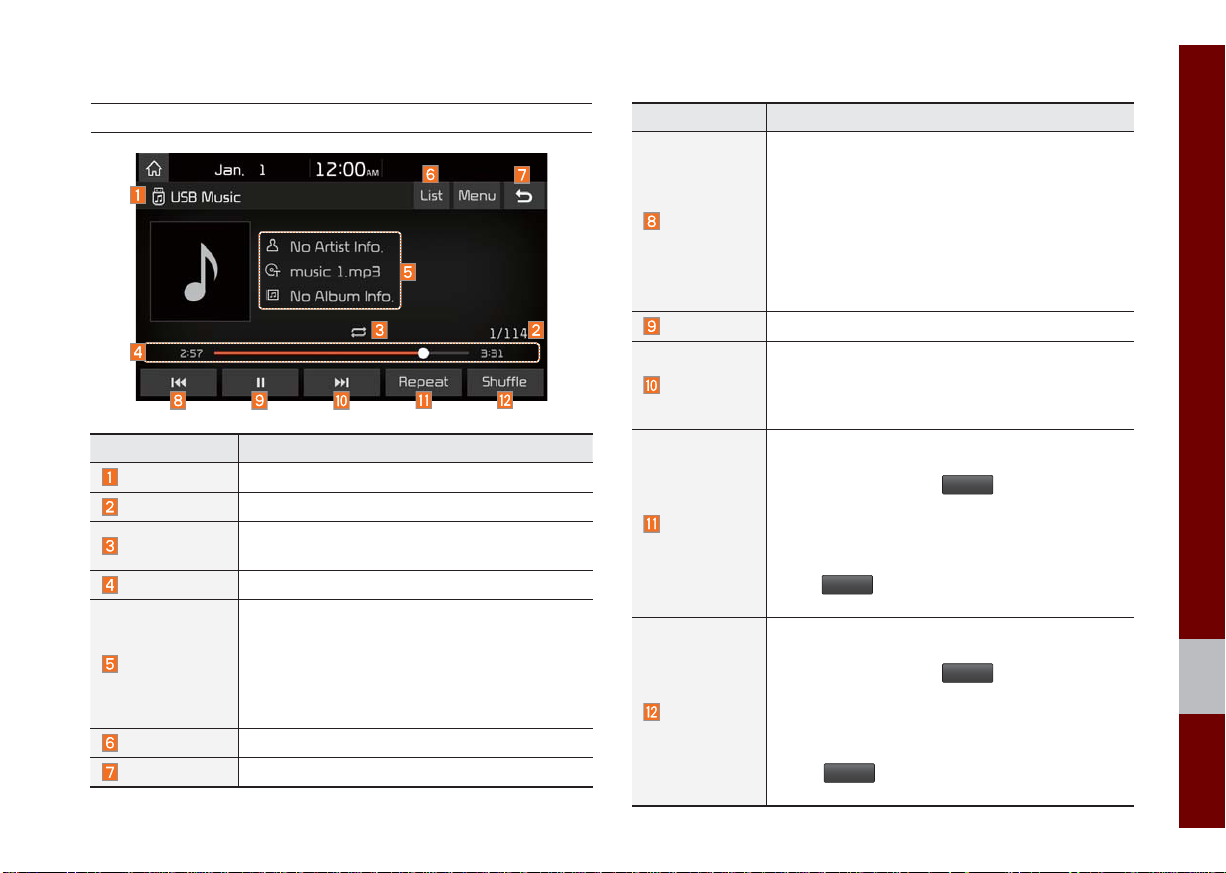

USB

Before Playing a USB MP3

Connect the USB device after turning on the engine. The USB

device may become damaged if it is already connected when the

ignition is turned on.

• Files that are not standard format music/image files will not be

played.

• For MP3/WMA/OGG files, only music files with compression

rates between 8Kbps ~ 320Kbps can be played.

• Heed caution to static electricity when connecting/disconnecting

external USB devices.

• Encoded MP3 Players will not be recognized when connected

as an external device.

• When connecting an external USB device, the device may not

properly recognize the USB is in some states.

• Only products formatted with byte/sectors under 64Kbyte will be

recognized.

• USB devices, formatted to the FAT12, FAT16, or FAT32 file sys-

tem, are recommended. File systems other than FAT12, FAT16,

FAT32, exFAT, and NTFS are not supported.

• Some USB devices may not be supported due to compatibility

issues.

• Take caution so that the USB connector does not come in con-

tact with body parts or objects.

• Repeated connecting/disconnecting of USB devices within short

periods of time may result in product malfunction.

• Make sure to connect/disconnect external USB devices with the

audio power turned off.

• The amount of time required to recognize the external USB

device may differ depending on the type, size, or file formats

stored on the USB.

• The use of USB devices for purposes other than playing music

and image files is prohibited.

• Do not use the USB I/F to charge batteries or USB accessories

that generate heat. Such acts may lead to worsened perfor-

mance or damage to the device.

• The device may not recognize the USB device if separately

purchased USB hubs and extension cables are being used.

Connect the USB directly with the multimedia terminal of the

vehicle.

• When using mass storage USB devices with separate logical

drives, only files saved to the root drive can be played.

• When application programs are installed to specific USBs, files

may not properly play.

2-4 I Radio/Media

• The device may not operate normally if MP3 Players, cellu-

lar phones, digital cameras, or other electronic devices (USB

devices not recognized as portable disk drives) are connected

with the device.

• Charging through the USB may not work for some mobile

devices.

• The device may not support normal operation when using a

USB memory type besides Metal Cover Type USB Memory.

• The device may not support normal operation when using for-

mats such as HDD Type, CF, or SD Memory.

• Upon playing iPods, please use a dedicated iPod car cable.

• Normal operations cannot be guaranteed when other cables are

being used.

• The device will not support files locked by DRM. (Digital Rights

Management)

• USB memory sticks used by connecting an Adaptor (SD Type or

CF Type) may not be properly recognized.

• Only use Plug type connector products, as shown in the figure

below.

• To play USB MP3, the USB device must be connected to the

USB port in the front multibox. The USB port in the center con-

sole storage (if equipped) is for charging only.

Product Name Manufacturer

XTICK LG

BMK BMK Technology

SKY-DRV Sky Digital

TRANSCEND JetFlash Transcend

Sandisk Cruzer SanDisk

Micro ZyRUS ZyRUS

NEXTIK Digiworks

Information

• Problems that occur through use of USB devices not listed within the

above table are not covered by the product warranty.

Plug Type Connector

USB I 2-5

Supported USB MP3 music speciﬁ cations

Name Description

MP3 File Specification

Recommended Bit Rates and Sampling Frequency

ID3 Tag

Detailed Specifications

Information

• The sound quality of MP3 files that use bitrates exceeding 192 Kbps

cannot be guaranteed. When using files without fixed bit rates, some features (FF/REW features) may not properly operate.

Specification: MPEG1 AUDIO LAYER 3

Acceptable sampling frequency: 32, 44.1, 48 (kHz)

Acceptable bit rate: 32, 40, 48, 56, 64, 80, 96, 112, 128, 160, 192, 224, 256, 320 (Kbps)

96, 128, 192 Kbps fixed bit rate/44.1kHz

Supports ID3v1.0 and ID3v1.1, ID3v2.2, ID3v2.3, ID3v2.4 ID3 tags

Maximum directory layers: 20 layers Maximum length of folder name/file name: 255Bytes Supported characters for folder name/file name: Alphanumeric characters, Korean standard character set 2,350 characters, Simplified Chinese 4888 characters Maximum number of folders which can be stored onto one USB: 2000 folders (including ROOT) Maximum number of files which can be stored onto one USB: 8000

2-6 I Radio/Media

+ 47 hidden pages
