DIGITAL CAR AVN SYSTEM Model: AVB32E4AN

USER'S MANUAL

Thank you for purchasing this multimedia system.

This user’s manual explains how to use the Kia multimedia system.

Before using the product, read the contents of this user’s manual carefully and use this product safely.

•

The screens shown in this manual may differ with the actual screens of the product.

•

The design and specification of this product may change without prior notification for product improvement.

•

When transferring the vehicle to another individual, include this user’s manual so that the next driver can continue its use.

All Map Database cannot be copied without permission. Important Notice: This is protected by U.S. copyright laws. All rights not expressly granted are reserved. You may not otherwise reproduce, modify, and distribute the content without HYUNDAI MnSoft, Inc’s prior written consent.

Precaution for safe usage

•

Driving while distracted can result in a loss of vehicle control, that may lead to an accident, severe personal injury, and death. The driver’s primary responsibility is in the safe and legal operation of a vehicle, and use of any handheld devices, other equipment, or vehicle systems which take the driver’s eyes, attention and focus away from the safe operation of a vehicle or which are not permissible by law should never be used during operation of the vehicle.

•

Do not operate the while driving.

•

Do not disassemble, assemble, or modify the

multimedia system

•

Do not watch the screen for prolonged periods of time while driving.

•

Set the volume to a level which allows the driver to be aware of external conditions.

multimedia system

•

Do not operate the

multimedia system

prolonged periods of time with the vehicle ignition in ACC. Such operations may lead to battery discharge.

•

Be cautious not to spill water or introduce foreign objects into the device.

•

Do not cause severe shock to the device. Direct pressure onto the front side of the monitor may cause damage to the LCD or touch panel.

•

In case of product malfunction, please contact your place of purchase or service center.

•

When cleaning the touch screen, make sure to turn off the device and use a dry and smooth cloth. Never use tough materials, chemical cloths, or solvents (alcohol, ammonia, benzene, thinners, etc.) as such materials may damage the device panel or cause color and quality deterioration.

for

•

SiriusXM service requires a subscription, sold separately, after 3-month trial included with vehicle purchase. If you decide to continue your SiriusXM service at the end of your trial subscription, the plan you choose will automatically renew and bill at then-current rates until you call Sirius XM at 1-866-635-2349 to cancel. See our Customer Agreement for complete terms at www.siriusxm. com. Programming subject to change. Sirius satellite service is available only to those at least 18 and older in the 48 contiguous USA, D.C., and PR (with coverage limitations). Traffic information not available in all markets. See siriusxm.com/traffic for details. Sirius, XM and all related marks and logos are trademarks of Sirius XM Radio Inc.

WARNING

• Driving while distracted can result in a loss

of vehicle control that may lead to an acci-

dent, severe personal injury, and death. The

driver’s primary responsibility is in the safe

and legal operation of a vehicle, and use of

any handheld devices, other equipment,

or vehicle systems which take the driver’s

eyes, attention and focus away from the

safe operation of a vehicle or which are not

permissible by law should never be used

during operation of the vehicle.

•

At launch, the Apple iPhone® will be the only UVO compatible device. iPhone

is a

registered trademark of Apple Inc.

•

App Store is a service mark of Apple Inc. No charge for the UVO app. App runs on your smartphone cellular data service. Normal data rates will apply.

•

HD Radio™ and the HD Radio™ logo are proprietary trademarks of iBiquity Digital Corporation.

•

24-hour Roadside Assistance is a service plan provided by KIA Motors America, Inc. Certain limitations apply. Coverage details are available in the KIA Warranty and Consumer Information Manual. access to Enhanced Roadside

Assistance, a connected mobile phone via Bluetooth within the cellular service coverage area is required.

•

Vehicle Diagnostics do not take the place of regularly scheduled maintenance. Feature checks powertrain, chassis, and airbag systems only. For factory-recommended maintenance schedule, see the Maintenance Feature of UVO or the Owner’s Manual.

•

911 Connect activates after an airbag deployment. Feature requires a mobile phone via Bluetooth.

connected

Dependant on

cellular service coverage.

•

The Rear-Camera display is not a substitute for proper and safe backing-up procedures. The Rear-Camera display may not display every object behind the vehicle. Always drive safely and use caution when backing up.

For

Read the following safety precautions for your safety

Notations used within this User's Manual

Before using the product, read the contents of this user's manual carefully and use this product safely.

※

The design and speciﬁcations of this product may change without prior

notiﬁcation for product and service improvement. The actual images in the vehicle may differ from the illustrations. For more accurate information about the vehicle, please refer to the catalogue.

※

This Multimedia system contains open source software, including without

limitation, software distributed and/or modiﬁed under the GNU General Public license, Version 2, June 1991, and the GNU lesser General Public License, Version 2.1, February 1999. For additional information and to obtain related materials including without limitation, the previous referred to licenses and software, please contact us at MOBIS_OSSrequest@mobis.co.kr

WARNING

• A WARNING indicates a situation in which harm, serious bodily injury or

death could result if the warning is ignored.

CAUTION

• A CAUTION indicates a situation in which damage to your vehicle could

result if the caution is ignored.

Information

• Information and tips that provide additional user convenience in using the

product.

NOTICE

• Information on specific features that facilitate proper product use and

functional understanding.

• Information on terminology used within this manual.

Table of Contents

1. Basic

Warnings and Cautions .............. 1-2

Component Names and Functions 1-4

Head Unit ………………………… 1-4 Steering Wheel Control Steering Wheel Control

Starting the System for the First Time 1-8

Turning the System On/Off ……… 1-8 System Reset Battery Warning Message Restrictions on Features for

Safety Measures Home Screen On-Screen Touch Controls

……………………… 1-8

………………………1-10

…………… 1-6 …………… 1-7

……… 1-9

………………… 1-9

………1-12

2. Electric Vehicle

Getting Started with Electric Vehicle Mode

Electric Vehicle Mode Menu Screen

Range

Charging Stations

Energy Information

ECO Driving.................................... 2-4

Set Charging Times

Set Climate Times

EV Settings

................................ 2-2

............................................ 2-2

..................................... 2-8

................. 2-2

........................ 2-3

...................... 2-3

..................... 2-5

......................... 2-7

3. Radio/Media

FM/AM ............................................ 3-2

HD Radio™ Technology

HD Radio™ ………………………… 3-5

SiriusXM™ ....................................... 3-6

Selecting through Channel/Category List …………… 3-8

Direct Tune Viewing Menu

USB ................................................ 3-11

Before Playing a USB MP3 ………3-11 Supported USB music

specifications USB Music

iPod .............................................. 3-17

Using iPod Devices ………………3-17 iPod

AUX ............................................... 3-24

Connecting an External Device …3-24

………………………… 3-8

……………………… 3-8

………………………3-13

………………………… 3-14

………………………………… 3-21

............. 3-4

2 I Table of Contents

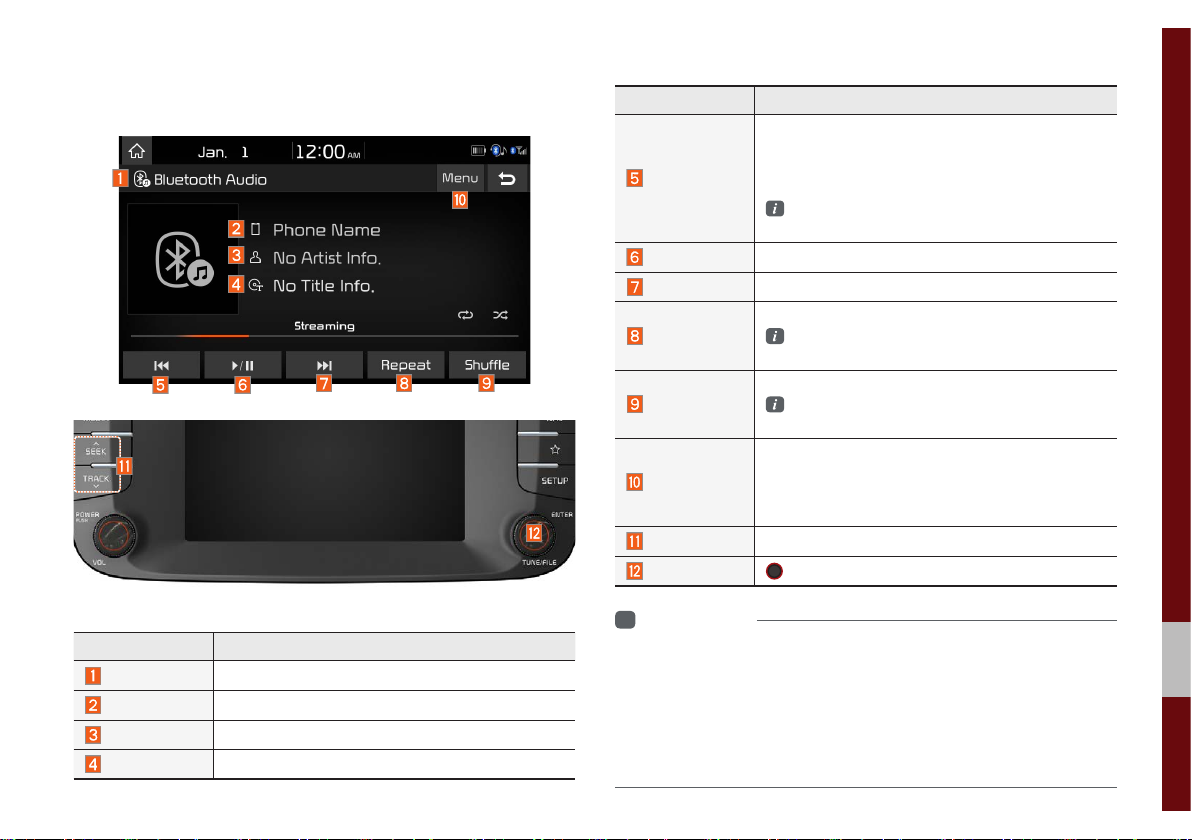

Bluetooth® Audio ........................ 3-25

Bluetooth Connection ……………3-26

4. Bluetooth

5. UVO

Before Using the Bluetooth® Handsfree

What is Technology? ……………………… 4-2

Precautions for Safe Driving CAUTIONS upon Connecting

Bluetooth

Bluetooth Connection ................. 4-4

Pairing a New Device …………… 4-4 Connecting Bluetooth Devices…… 4-4 Disconnecting Bluetooth Devices Deleting Bluetooth Devices

...................................... 4-2

Bluetooth®

Phone ………………… 4-3

Wireless

…… 4-2

4-5

……… 4-5

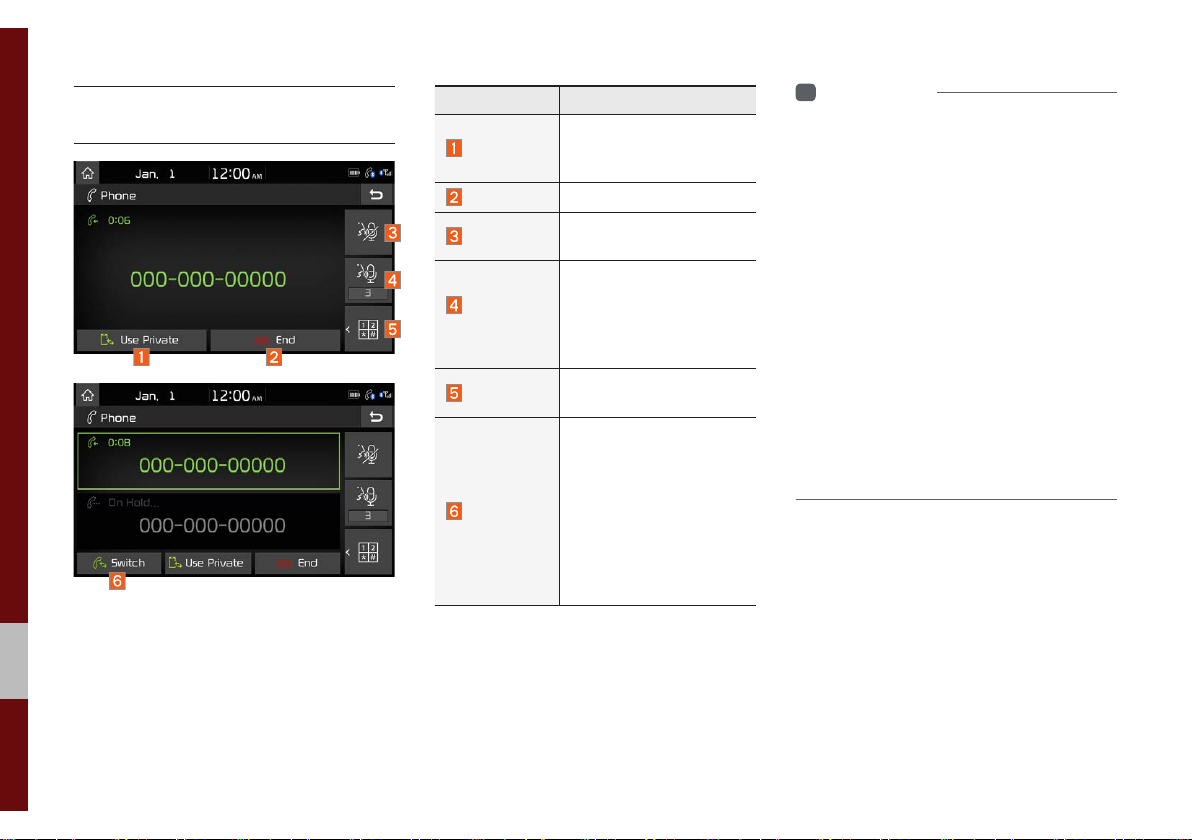

Bluetooth Phone .......................... 4-6

Phone Status Icons ……………… 4-6 Dial

………………………………… 4-7 Accept/Reject Call Using the Menu During a

Phone Call Call History Contacts Favorites Viewing a new message Viewing messages from the

messages list

…………………………… 4-10

…………………………… 4-11

………………… 4-7

………………………… 4-8

………………………… 4-9

………… 4-11

……………………… 4-12

Rear view mirror key function .... 5-2

UVO Voice Local Search

What is UVO Voice Local Search? UVO Voice Local Search

Before using UVO ......................... 5-4

What is UVO? ……………………… 5-4 What is Telematics? Regarding the TX and RX of radio

Getting Started with UVO ............ 5-5

Driving Info ………………………… 5-5 Roadside Assist Vehicle Diagnostics Vehicle Diagnostics My POIs Virtual Assistant UVO Settings

…………………… 5-6

…………………………… 5-8

…………………… 5-9

……………………… 5-9

............ 5-3

… 5-3

………… 5-3

……………… 5-4

… 5-4

……………… 5-6 ……………… 5-7

Table of Contents I 3

6. Navigation

Basic Features .............................. 6-2

Operating Navigation Screen …… 6-2 Places

……………………………… 6-3 Changing Map View Navigation Volume Zoom In/Zoom Out Map Scale

Quick Menu................................... 6-5

Route ……………………………… 6-5 Map Display POI Traffic Save Settings

………………………… 6-4

………………………………… 6-6

……………………………… 6-9

…………………………………6-12

…………………………… 6-13

……………… 6-3

……………… 6-4

……………………… 6-6

Destination Search .................... 6-13

Places ………………………………6-13 Address Previous Destinations Online Search POI Categories Charging Stations Restaurants Emergency Address Book Coordinates Favorite Places Route Setting Route Guidance

…………………………… 6-14

…………… 6-15

………………………6-16

……………………6-17

………………… 6-18

……………………… 6-19

………………………… 6-19

………………………6-20

……………………… 6-20

……………………6-21

……………………… 6-22

……………………6-24

Route Search .............................. 6-26

Canceling Route ………………… 6-26 Route Options Editing Route Display Route Information Route Overview Avoid Street

Navigation Settings .................... 6-30

Display ……………………………… 6-30 Guidance Import/Export Default

Troubleshooting ......................... 6-33

…………………… 6-27

………………………6-27

……… 6-28

……………………6-29

……………………… 6-29

…………………………… 6-31

………………………6-32

………………………………6-32

4 I Table of Contents

7. Voice Recognition

What is Voice Recognition? ....... 7-2

Precautions Required for Successful Voice Recognition

Starting/Ending and Setting Voice Recognition

Starting Voice Recognition ……… 7-3 Ending Voice Recognition Combining Voice Recognition with

On-Screen Commands Extending the Listening Time Skipping Prompt Messages Adjusting Voice Recognition

Volume

……………………………… 7-5

Voice Recognition Screen Overview

Start Screen ……………………… 7-6 Help Display Instructions for Using

Voice Recognition

....................................... 7-6

……………………… 7-6

…………… 7-3

………………… 7-7

... 7-2

.......... 7-3

………… 7-3

…… 7-4

……… 7-5

Voice Commands ........................ 7-8

Types of Commands ……………… 7-8 Call Commands Navigation Commands Radio Commands UVO Commands List Other Commands List

(Commads used in List/Help) “Find <POI>” List

Siri Eyes Free ................................ 7-20

How to start Siri …………………… 7-20 How to use Siri

…………………… 7-8

…………… 7-9

…………………7-12

………………7-12

…… 7-13

…………………7-14

……………………7-20

8. Data Services

HD Radio™ Data ........................... 8-2

About HD Radio™ Data Services Accessing HD Radio™ Data HD Radio™ Weather

Information Mode HD Radio™ Doppler Radar

………………… 8-2

… 8-2

…… 8-2

……… 8-3

SiriusXM™ Data ............................. 8-3

About SiriusXM™ Data Service … 8-3 Accessing SiriusXM™ Data SiriusXM™ Weather

Announcement SiriusXM™ Fuel Price Information SiriusXM™ Stock Information SiriusXM™ Sports Information SiriusXM™ Movie Information

…………………… 8-3

……… 8-3

… 8-4

…… 8-5

… 8-6

…… 8-8

9. Other Features

Climate ........................................... 9-2

Basic Mode Screen ……………… 9-2

Camera.......................................... 9-3

About Rear Detection Camera …9-4

Using Voice Memo ...................... 9-5

Table of Contents I 5

10. Setup

11. Appendix

Navigation Settings .................... 10-2

Sound Settings

Display Settings

Bluetooth Settings

Bluetooth Connection ……………10-4 Auto Connection Priority Message Settings Bluetooth Voice Prompts Bluetooth System Info

UVO Settings ................................ 10-6

Service Activation (when the service is not activated) …………10-6

Service Activation (when the service is expired)

911 Connect Modem Information

............................ 10-2

.......................... 10-3

...................... 10-3

………… 10-5

………………… 10-5

………… 10-5

…………… 10-6

………………… 10-7

……………………… 10-8

……………… 10-9

Phone Projection Settings ...... 10-10

Custom Button Settings

Voice Recognition Settings

Date/Time Settings

Language Settings

Keyboard Settings

Screen Saver Settings

Advanced Settings

System Info

System Update ………………… 10-13

................................ 10-13

........... 10-10

.... 10-10

.................. 10-11

................... 10-12

.............. 10-12

.................. 10-12

Product Specification................ 11-2

Troubleshooting

............................................... 11-7

FAQ

About Pairing Mobile Phones …… 11-7 About Making/

Answering Phone Calls About

Bluetooth

Technology/Multimedia System Use Environment ………………… 11-8

......................... 11-4

…………… 11-8

Wireless

6 I Table of Contents

Using SD Cards

Ejecting and Inserting SD Cards

•

• Ejecting and inserting SD cards while the multimedia system is operating may result in SD Card or System errors. To eject or insert the SD card, ﬁrst turn off the multimedia system and the vehicle ignition.

• Eject/insert SD cards only to update the multimedia system with a new version.

Usage of SD Cards

•

• The SD Card is formatted to include only Map and new system update ﬁles.

• The SD Card cannot be used to save and play Music.

• Do not add, delete, or format ﬁles within the SD Card.

iPod

iPod® is a registered trademark of Apple Inc.

Bluetooth®

A compatible required to use The Bluetooth

Wireless Technology

Bluetooth®

word mark and logos are registered trademarks owned by

Wireless Technology-enabled cell phone is

Wireless Technology.

Bluetooth SIG, Inc. and any use of such marks by Kia is under license. Other trademarks and trade names are those of their respective owners. A Bluetooth

enabled cell phone is required to use

Bluetooth®

Wireless

Technology.

HD Radio™ Technology

HD Radio™ Technology manufactured under license from iBiquity Digital Corporation. U.S. and Foreign Patents. For patents see http://patents.dts.com/. HD Radio™ and the HD, HD Radio™, and "ARC" logos are registered trademarks or trademarks of iBiquity Digital Corporation in the United States and/or other countries.

Bluetooth

Wireless Technology phone compatibility can be checked by

visiting http://www.kia.com.

part.1

Component Names and Functions

Starting the System for the First Time

Basic

Warnings and Cautions

Basic

Warnings

Do not operate the Multimedia system while driving, such as entering POIs or conducting route searches. Such acts could lead to accidents. Park the vehicle before operating the device.

• Even when receiving route guidance from the Multimedia system, please abide by actual traffic and road regulations. Following only the Navigation route guidance may lead to violations of actual traffic and road regulations and lead to traffic accidents.

• Do not disassemble, assemble, or modify the Multimedia system. Such acts could result in accidents, fire, or electric shock.

• Heed caution not to spill water or introduce foreign objects into the device. Such acts could lead to smoke, fire, or product malfunction.

• If you use phone related functions while driving, you will find it difficult to concentrate on operating the vehicle and the current traffic conditions, so the possibility of an accident may increase. Please use phone related functions only when parked.

• Do not stop or park in parking-restricted areas to operate the product. Such acts could lead to traffic accidents.

• For most multimedia modes, the display will not operate when the vehicle is in motion. For your safety, first park the vehicle to watch or view the screen.(The screen will only operate when the parking brake is ON for manual transmission vehicles and when the parking brake is ON or the gearshift is in the P (PARK) position for automatic.)

• Some functions other than the one mentioned above cannot be used while driving. These functions operate only when the vehicle is parked.

1-2 I Basic

Cautions

Turn on the car ignition before using this device. Do not operate the Multimedia system for long periods of time with the ignition turned off as such operations may lead to battery discharge.

Pay attention to traffic conditions while driving.

• In some instances, the navigation may provide guidance through restricted areas.

• Upon using the Multimedia system for more than 10 minutes with the car engine turned off, the following warning will be displayed. After 10 minutes, the warning will be displayed for 5 seconds every 1 minute.

• Do not subject the device to severe shock or impact. Direct pressure onto the front side of the monitor may cause damage to the LCD or touch screen.

• When cleaning the device, make sure to turn off the device and use a dry and smooth cloth. Never use tough materials, chemical cloths, or solvents(alcohol, benzene, thinners, etc.) as such materials may damage the device panel or cause color/quality deterioration. When experiencing product concerns, inquire with your place of purchase or service maintenance center.

• Prevent caustic solutions such as perfume and cosmetic oil from contacting the dashboard because they may cause damage or discoloration.

Warnings and Cautions I 1-3

Component Names and Functions

Head Unit

Name Description

Selects FM/AM/SiriusXM™ mode.

RADIO

• Each time this is pressed, the mode is changed in the following order: FM → AM → SiriusXM™

→

FM.

Selects MEDIA mode.

MEDIA

• If the media is not connected MEDIA mode will not be activated.

When pressed quickly (less than 0.8 seconds),

• FM/AM mode: Plays the previous/next frequency.

• SiriusXM™ mode: Changes the channel.

• MEDIA mode: Changes the track, file or title (except for AUX).

SEEK

TRACK

When pressed and held down (more than 0.8 seconds),

• FM/AM mode: Moves quickly through all of the frequencies. The moment that you release the button, the system seeks the next available frequency.

• MEDIA mode: Rewinds or fast forwards the track or file (except for AUX, Bluetooth Audio).

• When power is off, press to turn power on.

• When power is on, press and hold (more than

POWER/

VOL

0.8 seconds) to turn the power off.

• When power is on, press quickly (less than 0.8 seconds) to turn Audio off.

• Turn left/right to adjust the volume.

1-4 I Basic

Name Description

SD Card insert slot.

RESET

MAP

NAV

Resets the system settings. (Preset radio channels and other data will not be deleted)

Displays the map for the current position.

Takes you to the menu screen where you can find your destination and set the route.

Moves to the function set by the user.

SETUP

Moves to the Setup screen.

• FM/AM mode: Changes the frequency.

TUNE

• SiriusXM™ mode: Changes the channel.

• MEDIA mode: Changes the track, file or title (except for AUX, Bluetooth Audio).

※

The actual image in the vehicle may differ from the illustration.

Component Names and Functions I 1-5

Steering Wheel Control

Name Description

VOL

MODE

Use to adjust the volume of audio or call.

• Each time this key is pressed, mode is changed in order FM → AM → SiriusXM™ → USB Music or iPod → AUX → Bluetooth Audio → My Music.

You can select which mode to use in Advanced

Settings.

• If the media is not connected, the corresponding modes will be disabled.

• Press and hold the key (over 0.8 seconds) to turn the Audio system on/off.

• When power is off, press the key to turn power back on.

Name Description

When pressed quickly (less than 0.8 seconds),

• FM/AM/SiriusXM™ mode: searches broadcast frequencies or channels saved to Presets.

• MEDIA(USB/iPod/My Music) mode: changes the file or chapter (except for USB Image, AUX).

When pressed and held (more than 0.8 seconds),

• FM/AM Mode: automatically searches broadcast frequencies.

• SiriusXM™ mode: automatically searches broadcast channels.

• MEDIA(USB/iPod/My Music) mode: quickly looks up songs (except for USB images, AUX, and Bluetooth audio files).

When pressed quickly. (less than 0.8 seconds)

• Activates voice recognition.

When pressed and held. (more than 0.8 seconds)

• Ends voice recognition.

• If iOS device is connected through Bluetooth, activates or ends Siri Eyes Free.

1-6 I Basic

Steering Wheel Control

Name Description

When pressed quickly. (less than 1.2 seconds)

• When pressed in the dial screen, makes a call.

• When pressed in the incoming call screen, answers the call.

• When pressed during call waiting, switches to waiting call (Call Waiting).

When pressed and held. (more than 1.2 seconds)

• When pressed in the Bluetooth® Handsfree, redials the last call.

• When pressed during a Bluetooth® Handsfree call, switches call back to mobile phone (Private).

• When pressed while calling on the mobile phone, switches call back to Bluetooth (Operates only when Bluetooth

Handsfree

Handsfree is

connected).

• When pressed during a call, ends the phone call.

• When pressed in the incoming call screen, rejects the call.

※

The actual feature in the vehicle may differ from the illustration.

Component Names and Functions I 1-7

Starting the System for the First Time

Turning the System On/Off

Press the engine start button or set the ignition key to On or ACC. Each time you turn on the system, a boot logo and safety warning will appear.

Pressing the power key on the head unit will display the safety guide.

NOTICE

• You cannot operate the system while it is

booting up. It may take some time for all of features of the system, particularly the voice recognition system, to be ready for use.

Pressing and holding the power key on the head unit will turn off the system.

Information

• If you turn off the system during a phone call

using the Hands-free feature, then the call will automatically switch to your mobile phone.

NOTICE

• Check the volume when turning on the

system. Before turning on the system, adjust the volume to a reasonable level.

System Reset

The System Reset function restores the system when it is not operating correctly. Press and hold the ond or longer. (It is recommended that you press the a pin or a clip.)

RESET

key for a sec-

key using a tool, such as

1-8 I Basic

Battery Warning Message

Always use the system while the car engine is running. If you turn on the system while the engine is off, a battery warning message will appear. When the engine starts, the message will disappear.

NOTICE

• If you use the system for a long time with

the engine off, the battery may become completely discharged.

Restrictions on Features for Safety Measures

Several features are limited while driving. The restriction screen will disappear when shifting gears into P or putting the parking brake on.

WARNING

- Blank Screen

• Refrain from use if the screen is blank or

no sound can be heard as these signs may indicate product malfunction. Continued use in such conditions could lead to accidents (ﬁres, electric shock).

WARNING

- T ouching the Antenna During A Thunder Storm

• Do not touch the antenna during thunder or

lightning as such acts may lead to lightning induced electric shock.

Starting the System for the First Time I 1-9

Home Screen

Controls Menu Conﬁguration for the Home Screen

Tap the icon on any screen to display the Home Screen below.

Features Description

• Provides a brief view of the navigation map

Navigation

Widget

AV Widget

PHEV

All Menus

My Menu

and the route screen.

• Touch any area on the screen to move to the navigation screen.

• Shows brief information on the radio or media that is now playing.

• Tap the area to move to the mode that you are listening to.

Getting Started with PHEV (Plug-in Hybrid Electric Vehicle) Mode.

Shows all of the items in the system menu. Add your favorite menus to have quick and easy

access to them.

1-10 I Basic

Information Display on the Status Bar

Displays the date and time, along with the system status shown by the various icons to the right of the clock. The icons in the following table indicate the various types of system status details and events.

Icon Description

Displayed when the audio is muted.

Displayed when the navigation sound is muted.

Displays the remaining battery of the Bluetooth phone.

Displayed when connected to Bluetooth for handsfree.

Displayed when connected to Bluetooth for streaming audio. Displayed when connected to Bluetooth for streaming

audio and handsfree. Displayed when downloading contacts or recent calls from

the Bluetooth phone. Displayed while on a call with the Bluetooth phone. Displayed when the microphone of the Bluetooth phone is

muted. Displays the signal strength of the Bluetooth phone.

Displays the signal strength of the UVO.

Displayed when the microphone of the UVO phone is muted.

Displayed when 911 connect is available. Displays when using LTE data. Voice memo recording.

Information

• Received signal strength indicator of UVO and LTE information are

displayed only in the devices that support the telematics system.

Starting the System for the First Time I 1-11

Adding a Feature to My Menu

Select add the most frequently used menus, change the menu order, or delete menus.

My Menu

on the Home Screen to

Information

• Up to 24 menus can be added to My Menu.

On-Screen Touch Controls

Learn how to touch the screen to operate the system.

Select

Tap lightly on a menu or an item to select it.

NOTICE

• The system will not recognize your touch if

you wear a glove or other non-conductive material. Touch the screen using your ﬁnger, an electrostatic touch-screen glove, or a stylus pen.

Drag & Drop

Select a menu or item you want, then drag and drop it to where you want to place it.

Drag or touch the slider along the play bar in the music screens to jump to the point that you want to play from.

1-12 I Basic

Flick (Quick Scrolling)

Quickly moves up and down in the list.

NOTICE

• Moving the list when there are many items will

display a handler on the right of the display. You can easily move many items at a time with the handler.

Select and Hold

Selecting and holding the or

buttons in the music player will

rewind or fast forward the music.

Starting the System for the First Time I 1-13

MEMO

part.2

Electric Vehicle

Getting Started with Electric Vehicle Mode

Electric Vehicle Mode Menu Screen

Range

Charging Stations

Energy Information

ECO Driving

Set Charging Times

Set Climate Times

EV Settings

Electric Vehicle

Getting Started with Electric Vehicle Mode

Select the screen or press the left of the

CLIMATE

menu from the Home

key on the

key.

Electric Vehicle Mode Menu Screen

The EV mode has a total of 6 menus including Range, Nearby Stations, Energy Information, ECO Driving, Set Charging Times/Set Climate Times and EV settings.

Range

Name Description

Green circle

Red circle

Shaded area Unreachable area

Reachable area Risky area (depending

on circumstances)

2-2 I Electric Vehicle

Charging Stations

Searches for every electric charging station of current location and displays the stations as Reachable, Risky and Unreachable according to the symbol colors.

EV Route Bar

Displays reachable range during guided driving after navigating a route.

Energy Information

Displays battery information and electricity use.

Battery Information

Depending on current capacity of the battery, the following information is displayed: reachable range, total battery power remaining, and expected charging times by charging type.

Information

• When a charging cable is connected, the

remaining charging time for the cable type will be displayed.

• If the Climate function is turned on while

battery is being charged, charging completion will be delayed. When pressing the key, the following message will be displayed.

CLIMATE

Energy Information I 2-3

Electricity Use

Current electricity use for drivetrain, climate and electronics parts are displayed. The current reachable range when Range and Climate are turned off is displayed.

Information

• If the battery is low, the "EV Battery Warning"

message is displayed according to warning levels selected in the Battery Warning menu of EV Settings.

ECO Driving

ECO Level information and ECO Driving History are displayed.

ECO Level

A total of 8 ECO levels and average fuel economy are displayed depending on driving status.

2-4 I Electric Vehicle

The ECO levels of ECO driving mode

increase by economic, enviroment-friendly driving.

History

Driving dates, distance and fuel economy for the past 30 drives in the History are displayed. A star icon is displayed on the date of the highest average fuel economy.

Information

• Press the

History.

button at the top to delete

Set Charging Times

This function enables charging to start automatically at the scheduled time on the day that you select. Two different schedules can be set.

Selecting the Press to Set Charging Times button will show a Set Charging Times Settings pop-up dialog. The button is initially displayed only once.

Name Description

Set the Start time for

Set Start

Time + 100% Charge

Set Start Time

+ Set End Time

charging for each day of the week. Charges the battery until the battery is fully charged.

Set the Start and End time for charging for each day of the week. Charges until the End time.

Set Charging Times I 2-5

The scheduling settings screen will be displayed based on the selected charging mode.

Set Start Time + 100% Charge

Set Start Time + Set End Time

Name Description

Start Time

End Time

Repeat

Set the time for when the battery starts charging.

Set the time for when the battery stops charging.

Automatically schedule according to the current settings. Select the day of the week you want to charge the battery.

Information

• The charging start time is set according to the

current time displayed in the head unit.

• The battery charging function operates only

when charging cable has been connected.

• When a charging cable is connected, the

remaining charging time for the cable type will be displayed.

The settings are displayed on the screen once saved.

Description

Reselecting a list changes the settings.

Set a list to Off to disable its schedule settings.

2-6 I Electric Vehicle

Set Climate Times

This function adjusts internal temperature by automatically turning on the climate control inside the vehicle at the scheduled time on the day that you select. Two different schedules can be set.

Selecting the Press to Set Climate Times button will show a Set Climate Times Settings pop-up dialog. The button is initially displayed only once.

Name Description

• Enter when to start

Set Time/

Temperature

Repeat

Information

• Start Driving time is set according to the

current time displayed in the head unit.

• The Set Climate Times function operates only

when the charging cable has been connected.

driving.

• Enter the desired temperature.

Select the day to start automatic climate control with set values.

Description

Reselecting a list changes the settings.

Set a list to Off to disable its schedule settings.

Information

• The new climate time and the existing

one must be more than 30 minutes apart. Select a different day or time.

Set Climate Times I 2-7

EV Settings

The settings for EV warnings and routes can be changed.

Warning Settings

EV Battery Warning: Select more than one total battery power remaining to receive warning messages.

Frequency: Select the repeated interval to display the EV Battery Warning.

Dest. Unreachable: A warning message is displayed to inform that the destination is unreachable with the remaining battery.

EV Route Settings

Displays the EV route on the map. Non-drivable and drivable sections across start point, current position, waypoint and destination are separately marked.

2-8 I Electric Vehicle

part.3

Radio/Media

FM/AM

HD Radio™ Technology

SiriusXM™

USB

iPod

AUX

Bluetooth

Audio

Radio/Media

FM/AM

You can access the radio player either by pressing the key or by selecting the Radio menu from

screen.

Information

• If you press the

on and a radio broadcast will be tuned from the current mode.

RADIO

key when the power is off, the power will turn

All Menus

on the Home

RADIO

Features Description

• The stored preset frequencies are displayed

Preset

Frequencies

Frequency

Band

HD Radio

Scan

for user selection.

• After selecting frequency, press and hold the preset button for more than 0.8 seconds. A beep sound will be heard and the frequency is to be stored in the selected preset button.

• Flick the preset frequencies up/down to scroll quickly through presets.

Displays the current frequency.

• Station List: Moves to the station list.

• Info: Turns the Radio text information transmitted from the broadcasting station on and off.

• Sound Settings: Moves to the Sound Settings.

Changes to the desired band from among FM, AM, and SiriusXM™.

Used to set whether to turn HD Radio™ reception On or Off.

Shortly plays the broadcasts for the frequencies with superior reception for 5 seconds per item.

3-2 I Radio/Media

Features Description

• When the key is pressed quickly (less than 0.8 seconds): Seeks the previous/next frequency.

SEEK/TRACK

TUNE

• When the key is pressed and held (over 0.8 seconds): Moves quickly through all of the frequencies. The moment that you release the button, the system seeks the next available frequency.

Turn the able frequencies.

TUNE

knob to manually seek avail-

FM/AM I 3-3

HD Radio™ Technology

Program Info: Presents song name, artist, station IDs, and other relevant data streams.

Digital, CD-quality sound. HD Radio™ enables local radio stations to broadcast a clean digital signal. AM sounds like today’s FM and FM sounds like a CD.

FM stations can provide additional digital-only audio programming on HD2/HD3 Channels.

Real-Time Traffic reports, alerts, and flow data displayed on screen via interactive traffic maps and/or data.

Technology

If an HD Radio™ broadcast is received, the radio mode will switch from analog broadcast to HD Radio™ broadcast.

Information

• The

HD Radio™

when a HD Radio™ broadcast is being received.

• HD Radio is only available in Metro areas.

screen is displayed only

3-4 I Radio/Media

HD Radio™

Features Description

Displays main HD Radio™ channels and

HD Radio™

Reception & Channel buttons

HD Channel

Number

HD Radio

Broadcast Info

HD Radio

used to directly select the current available channels.

The HD Radio™ related icon display

becomes active within regions where an HD Radio™ signal can be received.

Analog station and corresponding HD Radio™ channel number saved in the preset list.

Displays detailed information about the current broadcast (the details of the information shown are different depending on whether the Info button is selected)

When the HD Radio soft button is ON (the red indicator on the HD Radio button is illuminated), HD Radio signals will be received.

HD Radio™ Technology I 3-5

SiriusXM™

You can access the radio player either by pressing the key or by selecting the Radio menu option from

All Menus

Home screen. Select the SiriusXM™ band from the radio player.

Information

• If you are in the SiriusXM™ mode, select the SiriusXM™ radio widget

from the Home screen to access the radio player.

• When the power is off, pressing the

and play a SiriusXM™ Radio broadcast.

RADIO

key will turn the power on

RADIO

on the

Features Description

• Shows the stored presets for user selection.

Preset

Frequencies

Channel Logo

Channel Info

Content Info

Category Info

Band

Direct Tune

Scan

Play Live

Skip Backward

Play/Pause

Skip Forward

• After selecting frequency, press and hold the preset button for more than 0.8 seconds. A beep sound will be heard and the frequency is to be stored in the selected preset button.

Displays the current channel logo. Displays the current channel number and

name. Displays the artist, title and other information

about the current playing song. Displays the category of the currently playing

song. Changes to the desired band from among FM,

AM, and SiriusXM™. Used to search for the desired channel by

entering the channel number. Plays all receivable channels for 5 seconds

per item. Switches to the live broadcast mode. Repeats the previously broadcasted program.

• Holding for less than 0.8 seconds: Moves to the previous segment.

• Holding for more than 0.8 seconds: Moves to the previous 5 seconds.

Pauses/plays the current broadcasting program.

Moves to the next segment.

3-6 I Radio/Media

Features Description Weak Signal Channel List

SEEK/TRACK

TUNE

Information

• REC icon is shown next to the ﬁrst 10 SXM presets saved.

• With presets saved, each time the vehicle is started that preset station

will be automatically buffered for your convenience.

Displays the weak radio reception. Moves to the channel list.

• What is on My Presets? The program schedule saved in my preset. (For more details, see Section 3.9. Viewing Menu.)

• Featured Favorites Theme channels recommended by SiriusXM™. (For more details, see Section

3.10. Viewing Menu.)

• Sound Settings Moves to the Sound Settings.

• When the key is pressed quickly (less than 0.8 seconds): Plays the previous/next channel.

• When the key is pressed and held (over 0.8 seconds): Continuously changes the channel until the key is released and plays the current channel.

Changes the channel.

SiriusXM™ I 3-7

Selecting through Channel/Category List

Select the

Channel List

desired category and channel.

Select the desired category and the channel. Once selected, the previous screen will be restored and the selected channel will begin playing.

▶

Select the

If you select the scan channels using the key or the

Skip

button, you can

SEEK

TUNE

knob by skipping the

TRACK

channels that you chose to skip.

Direct Tune

Enter the number of the channel you want to receive.

Viewing Menu

Using the can view the program schedule and information about the Featured Favorites provided by SiriusXM™.

button on the right, you

3-8 I Radio/Media

What is on My Presets? (Program Schedule)

Name Description

By selecting this option, you can select a broadcasting date. Broadcast information will be provided for one week from the current date.

Change

Broadcast Date

You can select Menu to see program information and the schedules of broadcast channels listed in the presets.

Preset

Broadcasting

Time

Program

Information

Shows saved presets for user selection.

A total of 40 frequencies for SiriusXM™ modes

can be displayed.

You can select the time that you want.

Shows you the program titles to be broadcasted at the time that you have chosen. Select a program to see more details.

If there is more information on the program you

selected, an arrow button will be displayed on the right of the list. You can see more program information by selecting the arrow button.

SiriusXM™ I 3-9

Featured Favorites

Featured Favorites feature allows SiriusXM™ to broadcast additional presets.

• Example 1: “Martha’s Favorites” may represent Martha Stuart’s favorites presets on her radio.

• Example 2: During holidays, “Holiday Music” may represent all the SiriusXM™ channels that are playing the holiday music for easy access by users.

Multiple sets Featured Favorites data can be broadcast by SiriusXM™ and can change from time to time.

3-10 I Radio/Media

USB

Before Playing a USB MP3

Connect the USB device after turning on the engine. The USB device may become damaged if it is already connected when the ignition is turned on.

• Files that are not standard format music files will not be played.

• For MP3/WMA/OGG files, only music files with compression rates between 8Kbps to 320Kbps can be played.

• Heed caution to static electricity when connecting/disconnecting external USB devices.

• Encoded MP3 Players will not be recognized when connected as an external device.

• When connecting an external USB device, the device may not properly recognize the USB is in some states.

• Only products formatted with byte/sectors under 64Kbyte will be recognized.

• USB devices, formatted to the FAT12, FAT16, or FAT32 file system, are recommended. File systems other than FAT12, FAT16, FAT32, exFAT, and NTFS are not supported.

• Some USB devices may not be supported due to compatibility issues.

• Take caution so that the USB connector does not come in contact with body parts or objects.

• Repeated connecting/disconnecting of USB devices within short periods of time may result in product malfunction.

• Make sure to connect/disconnect external USB devices with the audio power turned off.

• The amount of time required to recognize the external USB device may differ depending on the type, size, or file formats stored on the USB.

• The use of USB devices for purposes other than playing music files is prohibited.

• Do not use the USB I/F to charge batteries or USB accessories that generate heat. Such acts may lead to worsened performance or damage to the device.

• The device may not recognize the USB device if separately purchased USB hubs and extension cables are being used. Connect the USB directly with the multimedia terminal of the vehicle.

• When using mass storage USB devices with separate logical drives, only files saved to the root drive can be played.

• When application programs are installed to specific USBs, files may not properly play.

USB I 3-11

• The device may not operate normally if MP3 Players, cellular phones, digital cameras, or other electronic devices (USB devices not recognized as portable disk drives) are connected with the device.

• Charging through the USB may not work for some mobile devices.

• The device may not support normal operation when using a USB memory type besides Metal Cover Type USB Memory.

• The device may not support normal operation when using formats such as HDD Type, CF, or SD Memory.

• When playing iPods, please use a dedicated iPod car cable.

• Normal operation cannot be guaranteed when other cables are being used.

• The device will not support files locked by DRM (Digital Rights Management).

• USB memory sticks used by connecting an Adaptor (SD Type or CF Type) may not be properly recognized.

• Only use Plug type connector products, as shown in the figure below.

• To play USB MP3, the USB device must be connected to the USB port in the front multibox. The USB port in the center console storage (if equipped) is for charging only.

Plug Type Connector

Product Name Manufacturer XTICK LG BMK BMK Technology SKY-DRV Sky Digital TRANSCEND JetFlash Transcend Sandisk Cruzer SanDisk Micro ZyRUS ZyRUS NEXTIK Digiworks

Information

• Problems that occur through use of USB devices not listed within the

above table are not covered by the product warranty.

3-12 I Radio/Media

Supported USB music speciﬁcations

Name Description

Audio File Specification

Recommended Bit Rates and Sampling Frequency

Detailed Specifications

MPEG-1/2 layer3, OGG (Vorbis), FLAC, WAV, WMA (Standard/Professional)

MPEG-1/2 layer3

• 8 kbps to 320 kbps (CBR or VBR), to 48 kHz

• ID3 Tag: Suppor ts ID3v1.0 and ID3v1.1, ID3v2.3, ID3v2.4 ID3 tags

OGG (Vorbis): From Q1 to Q10, to 48 kHz

FLAC: 8/16/24 bit, to 48 kHz WAV: 8/16 bit, to 48 kHz

WMA

• Standard (0x161): to support L3 Profile: to 385 kbps, to 48 kHz

• Professional (0x162): to support M0b: to 192 kbps, to 48 kHz

Maximum directory layers: 20 layers Maximum length of folder name/file name: 255 bytes Supported characters for folder name/file name: Alphanumeric characters, Korean standard character set 2,350 characters, Simplified Chinese 4888 characters Maximum number of folders which can be stored onto one USB: 2000 folders (including ROOT) Maximum number of files which can be stored onto one USB: 8000

Information

• The sound quality of audio files that use bitrates exceeding 192 kbps

cannot be guaranteed. When using files without fixed bit rates, some features (FF/REW features) may not operate properly.

USB I 3-13

USB Music

Features Description Mode File Index

Repeat/Shuffle

Play Time Song Info List Back Button

Displays the current operating mode. Shows the current file/total files within the USB. From Repeat/Shuffle, displays the current oper-

ating function. Displays the current play time/total play time. Displays the artist/title/album info. Moves to the list screen. Move to the previous screen.

Features Description

• If the button is selected (less than 0.8 seconds): Moves to the previous file or play the current file from the beginning (depends on the play time).

Previous File

Play/Pause

Next File

Repeat

- If play time is less than 3 seconds, moves to previous file.

- If play time is over 3 seconds, play the current file from the beginning.

• If the button is selected (over 0.8 seconds) it rewinds the track.

Plays/pauses the current file.

• If the button is selected (less than 0.8 seconds): Moves to the next file.

• If the button is selected (over 0.8 seconds): It fast-forwards the track.

Repeats the current file.

• If select the file in the file tab on the list screen : select this button to switch between repeating the current file, repeating folder, and repeating all files.

• If select the song in the other tabs on the list screen: select this button to switch between repeating the current song and repeating all songs.

3-14 I Radio/Media

Features Description

Shuffle

TUNE

Plays files in random order.

• Select this button to switch between shuffle and turning shuffle off.

• Hide Current File: a selected file can be deleted. Deleted file can be found in the “Hidden_” folder. This function is only supported when USB for-

mat is compatible with FAT16 or FAT32.

• Sound Settings: Moves to the Sound Settings.

Turn the track. If the desired track is displayed, select the

TUNE

If you do not anything with the

for 5 seconds of searching tracks, the track info for the current track is restored.

TUNE

knob to search a desired

knob to play the track.

TUNE

knob

USB I 3-15

Features Description

Folder/

Category Name Current Song Back Button Upper Folder/

Category

Displays the folder/category name in the list.

Displays the current playing file name. Move to the previous screen.

Moves to Upper Folder/Category.

Now Playing: When moving to a different list

screen, moves to the list page where the current file is located. (becomes disabled when the current list includes the current file)

Search Menu

Search songs by the list type.

• When the key is pressed quickly (less than

0.8 seconds): Plays previous/next track

SEEK/TRACK

• When the key is pressed and held (over 0.8 seconds): Moves to play screen, and then it will rewind or fast-forward the track.

TUNE

knob to move the focus to the

TUNE

Turn the previous/next list. If the desired track is dis-

played, press

knob to play the track.

3-16 I Radio/Media

iPod

Using iPod Devices

• iPod is a registered trademark of Apple Inc.

• iPod mode will not operate if the connected iPod cannot be recognized due to operation of unsupported versions that do not support related protocols, iPod abnormalities, or iPod device defects. Some iPods with unsupported communication protocols may not properly operate with the Multimedia system.

• For fifth generation iPod Nano devices, the iPod may not be recognized when the battery level is low. Please charge the iPod for use.

• Search/play orders shown within the iPod device may differ with the orders shown within the Multimedia system.

• If the iPod malfunctions due to an iPod device defect, reset the iPod and try again. (To learn more, refer to your iPod manual)

• If repeatedly connect and disconnect iPod/iPhone to the Multimedia system with USB cable in a short time, it may cause abnormal operation.

• The time for recognition of iPod/iPhone may vary depending on device type, firmware version and iOS version.

• For some iPod Touch and iPhone devices, connecting Bluetooth

while the iPod is operating may result in discontinued iPod sound. When such devices with Bluetooth

support are connected, this problem occurs as the sound source is changed from the Dock Connector (USB connector cable) to Bluetooth.

• To prevent this symptom, Bluetooth Audio function in the Multimedia system is limited if iPod/iPhone is connected to the system through both cable and Bluetooth. To listen to the iPod sound, use either iPod menu with USB connection or Bluetooth Audio with Bluetooth connection.

• To listen to the iPod sound, reconnect the USB cable or change the audio output settings in iPod/iPhone to Dock.

• In order to use the iPod while operating the keys, you must use a dedicated iPod cable. (the cable that is supplied when purchasing iPod/ iPhone products)

iPod I 3-17

※

During ACC ON state, connecting the iPod through the iPod cable (The cable that is supplied when purchasing iPod/ iPhone product.) will charge the iPod through the head unit.

※

The use of genuine iPod cables supplied by Apple is recommended. (The use of other products may result in noise or abnormal operation.)

※

To play iPod music through cable con-

nection, the iPod/USB cable must be connected to the USB port in the front multibox. The USB port in the center console storage (if equipped) is for charging only.

• When connecting with the iPod cable, make sure to fully insert the jack to prevent communication interference. If the iPod is connected to the vehicle while it is playing, a high pitch tone may sound for about 1 to 2 seconds immediately after connection. If possible, connect the iPod to the vehicle with the iPod stopped/paused.

• Within iPhones, streaming audio and iPod control may occasionally conflict. If problems persist, remove the iPhone and connect again.

• When connecting to iPod Nano/Classic, the Kia logo appears on the Apple device. For the iPod Nano 6 generation, however, the logo image does not appear since it is not supported. Also, all iPhone and iPod Touch products do not support this function.

• In Apple’s iOS 6.0 version or later, Podcast and Audiobook media files are designed to be played with the Podcasts and iBooks applications specifically designed for Apple products. If the Apple device does not provide the Podcast and Audiobook lists, the playlist may not be displayed and played in the iPod mode.

• If the Apple Podcasts and iBooks apps are not installed on the Apple device, but the Apple device provides the Podcast and Audiobook lists, you can play files in other categories in iPod mode.

• The screen of multimedia system can be different when you run other music players (e.g. iHeartRadio) on your connected device.

3-18 I Radio/Media

• While using a connected iPhone/iPod Touch device, it may not operate normally if the user changed some functions in the device.

• When calling with an iPhone connection, song may stop playing due to an Apple device feature. If sound does not resume after the call is terminated, check the device status.

• If lots of songs have the same information, skipping may occur when previous/ next song is executed due to an Apple device feature. Also problems may occur depending on device type or iOS version.

• If lots of songs have the same information, it may occur difference of playing songs between the Multimedia system and Apple device. Reset the device or delete the same songs in the Apple device using iTunes.

• If you control pause, repeat, shuffle, or seek songs when the play time is less than 3s before the song is finished playing, it may occur difference of playing song between the Multimedia system and Apple device. Access to iPod music from another mode or pause a song and then play a song again in Apple device.

• If the iPhone/iPod Touch supports Bluetooth, the Apple device will not be able to use the Bluetooth function if the device is connected through both the USB port and via Bluetooth. Disconnect the USB connection then use Bluetooth Audio.

• If iPod/iPhone connected to the Multimedia system through both USB and AUX. iPod/iPhone keeps output sound via AUX, thus it may occur sound will not output in iPod mode.

• If AUX cable connected to iPod/iPhone but not connect to the Multimedia system, it may occur sound will not output in iPod mode due to iPod/iPhone’s feature.

• Disconnect AUX cable from iPod/iPhone first, then connect to the Multimedia system via USB. Or change settings to “Dock” in iPod/iPhone.

• If connect to the Multimedia system while podcast or iTunes music downloading to iPod/iPhone, it may occur some problems when you select song in the list. Reconnect iPod/iPhone to the Multimedia system when downloading is finished or the file deleted.

• If connect to the Multimedia system while sync, it may occur some problems. Try to use iPod/iPhone connection after sync complete. (To learn more, refer to your iPod manual)

iPod I 3-19

• iPhone and iPod Touch devices are guaranteed to work normally on iOS

9.3.2 or below. However, they may not work normally on future iOS versions as their operations have not yet been

• We recommend that your Apple device uses the latest firmware since some problems may occur due to an outdated firmware or other software related issues.

tested.

Type 1G 2G 3G 4G 5G 6G 6.5G 7G

iPod Mini

iPod Shuffle

iPod Nano

○ ○ ○ ○ ○ ○

Not Supported

Not released

○

iPod Touch

Type 1G 2G 3G 4G 5G 6G 6.5G 7G iPad

iPad Mini

iPod Classic Not Supported

Type 3G 3GS 4 4S 5 5C 5S 6 6+ 6S 6S+ SE 7 7+

iPhone

3-20 I Radio/Media

(iOS 1.1 not supported)

Not verified,

Normal operation

not guaranteed

○

○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○

○ ○ ○ ○ ○

(Unable to charge, Not verified, Normal operation not guaranteed)

○

(iPod with Video)○(iPod Classic)○(iPod Classic)

Not released

iPod

Features Description Mode Song Index

Repeat/Shuffle

Play Time Song Info List

Displays the current operating mode. Shows the current song/total songs. From Repeat/Shuffle, displays the current oper-

ating function. Displays the current play time/total play time. Displays the artist/title/album info. Moves to the list screen.

Features Description

• If the button is selected (less than 0.8 seconds): Moves to the previous file or play the current file from the beginning (depends on the play time).

Previous File

Play/Pause

Next File

Repeat

Shuffle

Back Button Menu

- If play time is less than 3 seconds, moves to previous file.

- If play time is over 3 seconds, play the current file from the beginning.

• If the button is selected (over 0.8 seconds) it rewinds the track.

Plays/pauses the current file.

• If the button is selected (less than 0.8 seconds): Moves to the next file.

• If the button is selected (over 0.8 seconds): It fast-forwards the track.

Repeats the current song.

• Select this button to switch between repeating the current song and repeating category all songs. (It all depends on the specification of your Apple device.)

Plays songs in random order.

• Select this button to switch between shuffle category and turning shuffle off. (It all depends on the specification of your Apple device.)

Move to the previous screen. Sound Settings: Moves to the Sound Settings.

iPod I 3-21

Features Description

Turn the

TUNE

knob to search a desired

track. If the desired track is displayed, press

TUNE

the

If you do not anything with the

knob to play the track.

TUNE

for 5 seconds of searching tracks, the track info for the current track is restored.

TUNE

knob

3-22 I Radio/Media

Features Description

Category Name

Category List

Back Button Upper Category Search Menu

SEEK/TRACK

TUNE

Displays the category name. Displays the contents of selected category.

If there are many items in the list, items are added in order and the scroll bar on the right

is adjusted accordingly. Move to the previous screen. Moves to Upper Category. Search songs by the list type.

• When the key is pressed quickly (less than

0.8 seconds): Plays previous/next track.

• When the key is pressed and held (over 0.8

seconds): Moves to play screen, and then it

will rewind or fast-forward the track.

TUNE

knob to search a desired

Turn the track. If the desired track is displayed, press the

If you do not anything with the knob for

5 seconds, the

terminated.

TUNE

knob to play the track.

TUNE

knob search will be

iPod I 3-23

AUX

Connecting an External Device

If an external device connector is connected with the AUX terminal, then AUX mode will automatically operate. Once the connector is disconnected, the previous mode will be restored.

• AUX mode can be used only when an external audio player has been connected.

• The AUX volume can also be controlled separately through the connected device.

NOTICE

• If only a cable is connected to the AUX

without an external device, the mode will be changed to AUX, but noise may occur. When an external device is not being used, remove the connector jack.

• When the external device power is

connected to the power jack, playing the external device may output noise. In such cases, disconnect the power connection before use.

※

The actual image in the vehicle may

differ from the illustration.

3-24 I Radio/Media

Bluetooth® Audio

Features Description Mode Phone Name Artist Info Title

Displays the current operating mode. Displays name of connected phone. Name of current artist. Name of current song.

Features Description

• If play time is less than 3 seconds, moves to the previous file.

Previous File

Play/Pause Next File

Repeat

Shuffle

SEEK/TRACK TUNE

Information

• Artist info and Title may not be supported by mobile phone.

• While in use of other functions after connecting your mobile phone

through a USB cable, the Bluetooth audio is disabled.

• Depending on the connected Bluetooth device, mobile phone, or the

music player you are using, playback controls may differ.

• Depending on the music player you are using, streaming may not be supported.

• If play time is over than 3 seconds, plays the current file from the beginning. This function may differ depending on the

model of mobile phone. Plays/Pauses Bluetooth Audio. Moves to the next file. Repeats the current file.

This function may differ depending on the

model of mobile phone. Plays files in random order.

This function may differ depending on the

model of mobile phone.

• Connections: Moves to the Bluetooth

Connection. You can pair a new device or change/delete paired device(s).

• Sound Settings: Moves to the Sound Settings. Plays the previous/next file.

TUNE

is not supported.

Bluetooth® Audio I 3-25

Bluetooth Connection

Settings for pairing, connection and disconnection of a Bluetooth device.

• In Bluetooth Audio play screen, select

and then

Connections

Information

• If the music in the mobile phone is not

played after changing to audio streaming mode, press the play button. Thus check if the music is playing in the Bluetooth device after changing to audio streaming mode. Audio streaming may not be supported for some mobile phones.

• Please check the Bluetooth compatibility

in below website: KIA Motors Corporation http://www.kia.com

3-26 I Radio/Media

part.4

Bluetooth

Before Using the Bluetooth® Handsfree

Bluetooth Connection

Bluetooth Phone

Bluetooth

Before Using the Bluetooth

What is Wireless Technology?

•

Bluetooth

to a short-distance wireless networking technology which uses a 2.45GHz frequency to connect various devices within a certain distance.

• Supported within PCs, external devices, Bluetooth tronic devices, and automotive environments, to be transmitted at high speeds without having to use a connector cable.

• Bluetooth® Handsfree refers to a device which allows the user to conveniently make phone calls with Bluetooth mobile phones through the Multimedia system.

Handsfree

Bluetooth®

Wireless Technology refers

phones, PDAs, various elec-

Bluetooth

Wireless Technology

• The Bluetooth® Handsfree feature may not be supported in some mobile phones. For more information on mobile phone compatibility, visit the KIA Motor website

- KIA Motors Corporation: http://www.kia.com

WARNING

- Distracted Driving

• Focus on the road while driving. The driver's

primary responsibility is in the safe and legal operation of the vehicle. Drivers should not use any hand held devices or other equipment or vehicle systems that distract the driver during vehicle operation.

• Do not stare at the multimedia screen for long

periods of time while driving. Staring at the screen for prolonged periods of time can lead to trafﬁc accidents and can result in personal injuries.

Precautions for Safe Driving

• Bluetooth® is a feature that enables drivers to make handsfree calls. Connecting the head unit with a Bluetooth allows the user to conveniently make calls, receive calls, and manage the phonebook. Before using Wireless Technology, carefully read the contents of this user’s manual.

• Excessive use or operations while driving may lead to negligent driving practices and be the cause of accidents. Do not operate the device excessively while driving.

• Viewing the screen for prolonged periods of time is dangerous and may lead to accidents. When driving, view the screen only for short periods of time.

phone

Bluetooth

4-2 I Bluetooth

CAUTIONS upon Connecting

Bluetooth

• Before connecting the head unit with the mobile phone, check to see that the mobile phone supports Bluetooth

• Even if the phone supports Wireless Technology, the phone will not be found during device searches if the phone has been set to hidden state or the Bluetooth Disable the hidden state or turn on the Bluetooth connecting with the head unit.

• If Auto Connection is used, the Bluetooth nected when the ignition is turned on, making it unnecessary to have to connect the phone with the head unit every time.

Phone

features.

Bluetooth

power is turned off.

power prior to searching/

phone is automatically con-

• If you do not want automatic connection with your Bluetooth Bluetooth

feature off of the Bluetooth®

device, turn the

device.

• Park the vehicle when connecting the

head unit with the mobile phone.

• Bluetooth® connection may become intermittently disconnected in some mobile phones. Follow these steps to try again.

1. Turn the Bluetooth® function within the

mobile phone OFF/ON and try again.

2. Turn the mobile phone power OFF/

ON and try again.

3. Completely remove the mobile phone

battery, reboot, and then again.

4. Reboot the Multimedia System and

try again.

5. Delete all paired devices from both of

Phone and Head Unit sides and then try again.

• The Handsfree call volume and quality may differ depending on the mobile phone.

• Pairing Bluetooth® devices and use of other Bluetooth

features are not supported when the vehicle is in motion. For safety, please first park your vehicle.

• If you continue having issue downloading your contacts to your vehicle, contact your mobile phone provider.

Before Using the Bluetooth® Handsfree I 4-3

Bluetooth Connection

Pairing a New Device

Before you can use the Bluetooth feature, you must first pair/connect your mobile phone to your car. Up to 5 Bluetooth devices can be paired. Only one Bluetooth device can be connected at a time.

Pairing a New Device by Selecting Phone/Call

Press the key on the steering wheel control. ▶ Pair your car after your mobile phone detects the Bluetooth device. ▶ Enter the passkey or accept the authorization popup. ▶ Connect Bluetooth.

Pairing a New Device Through the Phone Settings

Press the

▶

Select

Add New

SETUP

key. ▶ Select

Bluetooth Connection

▶

Pair your car after your mobile phone detects the Bluetooth device. ▶ Enter the passkey or accept the authorization popup. ▶ Connect Bluetooth.

The default passkey is 0000. The vehicle name above is an example. Check the actual information on the product.

▶

Bluetooth

Select

Connecting Bluetooth Devices

Connects the Bluetooth devices that you

add.

Connecting Devices by Selecting Phone/Call

Press the key on the steering wheel control. ▶ Select the name of the device to connect. ▶ Connect Bluetooth.

4-4 I Bluetooth

Connecting Devices Through the Phone Settings

Press the

▶

Select

SETUP

key. ▶ Select

Bluetooth Connection

name of the device to connect. ▶ Connect Bluetooth.

Bluetooth

▶

Select the

Disconnecting Bluetooth Devices

Disconnects Bluetooth devices that are connected.

Press the

▶

Select

name of the device to disconnect.

SETUP

key. ▶ Select

Bluetooth Connection

▶

Bluetooth

Select the

Deleting Bluetooth Devices

Deletes the Bluetooth devices that you added. Note that deleting a Bluetooth device will delete all Call History and Contact Info downloaded along with it.

Press the Select

Delete Devices

to delete. ▶ Select

SETUP

key. ▶ Select

Bluetooth Connection

▶

. ▶ Select the device name

Delete

Select

Bluetooth

▶

Bluetooth Connection I 4-5

Bluetooth Phone

Phone Status Icons

Shows the current phone status in the right top of the display.

Icons Description

You can use Bluetooth phones when a Bluetooth Hands-free connection is established.

You can use Bluetooth audio features when a Bluetooth audio connection is established.

You can use Bluetooth phones and audio features when both Bluetooth Hands-free and audio connections are established.

Call signal strength indicator.

Battery level of the Bluetooth devices connected.

Downloading Call History list.

Downloading Contacts.

In a Bluetooth phone call.

Microphone muted.

Information

• The battery level icon and the call signal

strength indicator may not be supported in some Bluetooth devices.

• The battery level may differ from the actual

level remaining.

4-6 I Bluetooth

Dial

Select

All Menus

Name Description

Phone

▶

Keypad

Call

Settings

Delete

Bluetooth

Settings

Information

• Some types of mobile phones may not

support the Speed Dial function.

Use the keypad to enter the phone number that you want to call. Select and hold the last number of a speed dial to dial a number that you added to the Speed Dial list in the phone

Makes a call after you dial a number and select If the number is listed in Dialled Calls, you can select the number and select ically dial that number again.

Moves to a screen of Bluetooth Connection.

Deletes the numbers that you entered.

Moves to a screen of Bluetooth Settings.

to automat-

Accept/Reject Call

If there is an incoming call after you made a Bluetooth connection, a popup message will appear.

Name Description Accept Reject

Message

Information

• In some mobile phones, the caller's number

may not be displayed, and the Reject feature may not be supported.

Answers the call. Ignores the call. Reject the call with a

text message.

Bluetooth Phone I 4-7

Using the Menu During a Phone Call

When making a call, you can use the following menu items.

Name Description

Use Private

End

Mute

Outgoing

Volume

Keypad

Switch

Switches a voice call from the car Hands-free to the mobile phone.

Ends a call. Mutes the microphone

during a call. Displays the Mic Volume

settings. You can adjust the in-call volume that the other party hears (level 1 to 5).

Moves to a screen for entering ARS numbers.

Switches to a call on hold, if any. You can also switch calls by selecting the number in the Information Display. The Switch function switches the current call to a waiting call in order to answer a new incoming call.

Information

• If the caller's number is listed in Contacts, the

caller's name will be displayed. Otherwise, only the number will be displayed. In some mobile phones, the phone number may not be displayed.

• In some Bluetooth devices, the Use Private

feature may not be supported.

• In some Bluetooth devices, the Switch feature

may not be supported.

• During a phone call on a Bluetooth Hands-

free, you cannot access other modes, such as Radio and Settings.

• Depending on handset types, the in-call

volume the other party hears may differ. If the other party hears your voice too low or too loud, adjust the mic volume.

4-8 I Bluetooth

Call History

All Menus

Select

Name Description

Phone

▶

All

Dialed

Received

Missed

Call History

Download

Bluetooth

Settings

Lists the all call history.

Lists the calls that you made.

Lists the calls that you have received.

Lists the calls you missed.

Displays all of your call history. Select from the list to dial the number.

Downloads the call history information from your mobile phone.

Moves to a screen of Bluetooth Settings.

Information

• In some mobile phones, call records may not

be added to your Call History.

• Calls from restricted ID's are not added to

your Call History Information.

• Up to 50 calls can be added in each Dialed

Calls/Received Calls/Missed Calls list.

• The durations of each dialed/received call are

not displayed in your car's Call History list.

• While the call history download is in progress,

the status bar displays an icon (

• If the call history download is turned off on the

Bluetooth device, the call history download will fail.

• Some devices require a device authentication

for downloading your call history. If download fails, check if the Bluetooth Settings or display status are normal.

• Some devices do not support call history

download. Check if your Bluetooth device supports download feature. For details regarding Bluetooth-supported devices and their functional compatibility, visit http://www. kia.com

Bluetooth Phone I 4-9

Contacts

All Menus

Select

Name Description

Contacts List

Download

Search Bluetooth

Settings

Phone

▶

The list of Contacts. Select from the list to dial the number.

Downloads contacts from your mobile phone.

Searches Contacts. Moves to a screen of

Bluetooth Settings.

▶

Information

• Up to 5000 phone numbers can be

downloaded from a single, paired Bluetooth device.

• You cannot edit or delete downloaded phone

numbers from your car.

• Contacts can be viewed only when the

Bluetooth device is connected.

• Even if the Bluetooth device is disconnected,

the downloaded data will remain. (Note that deleting a paired phone will also delete all downloaded Contacts and Call History data)

• Downloaded phone numbers may be lost

depending on the condition of the Multimedia system. Keep your important data in a safe place.

• Contacts from both the SIM card and your

mobile phone are downloaded at the same time by default.

• Only supported contacts format can be

downloaded and displayed from the Bluetooth device, contacts from some applications will not be included.

• The status bar displays a ( ) while

downloading contacts.

• The download will not be available if the

contacts download function is turned off on your Bluetooth device.

• Some devices require a device authentication

for downloading your contacts. If download fails, check your phone screen and confirm the download if necessary.

• Some devices do not support contacts

download feature. Check if your Bluetooth device supports contacts download. For Bluetooth supporting devices details and compatibility, visit http://www.kia.com

4-10 I Bluetooth

Favorites

All Menus

Select

Name Description

Favorites

Edit

Delete

Bluetooth

Settings

Phone

▶

Lists the phone numbers saved as Favorites. Select from the list to dial the number.

Add or delete numbers from favorites.

Deletes numbers that you select from Favorites.

Moves to a screen of Bluetooth Settings.

▶

Viewing a new message

When you receive a message, a new message notification appears.

Name Description

View

Read

Message

Settings

Bluetooth

Settings

View the message details. Convert the message

to voice and listen to it through the vehicle’s speakers.

Close the notification pop-up window.

Customize the settings for receiving messages.

Customize the settings for Bluetooth connections.

Bluetooth Phone I 4-11

Viewing messages from the messages list

All Menus

Select Select a message from the list.

Name Description

▲ /

▼

Call

Read

Phone

▶

Move to the previous or next message.

Call the sender back. Convert the message

to voice and listen to it through the vehicle’s speakers.

Send a simple reply using one of the message templates.

▶

Information

• To receive notiﬁcations every time you

▶

receive a message, access the message list, touch Menu touch Message Notiﬁcation to select it.

• To edit the reply message templates, access

the messages list, touch Menu ▶ Message Settings ▶ Predeﬁned Messages and select the template you want to edit.

• To edit or delete templates, park your

vehicle in a safe location ﬁrst and use your mobile phone’s messaging function. You cannot edit or delete your messages on your system.

• When you connect an iPhone, you may

have some restrictions on receiving messages.

- If the caller information is saved in your

contacts list, only the caller’s name will be displayed.

- If the caller information is not saved in

your contacts list, only the caller’s phone number will be displayed.

- Replying to received messages is not

available.

▶

Message Settings and

- If the message notification setting is

disabled or the option for viewing content on the lock screen is disabled, message will not be received by your system.

4-12 I Bluetooth

part.5

Rear view mirror key function

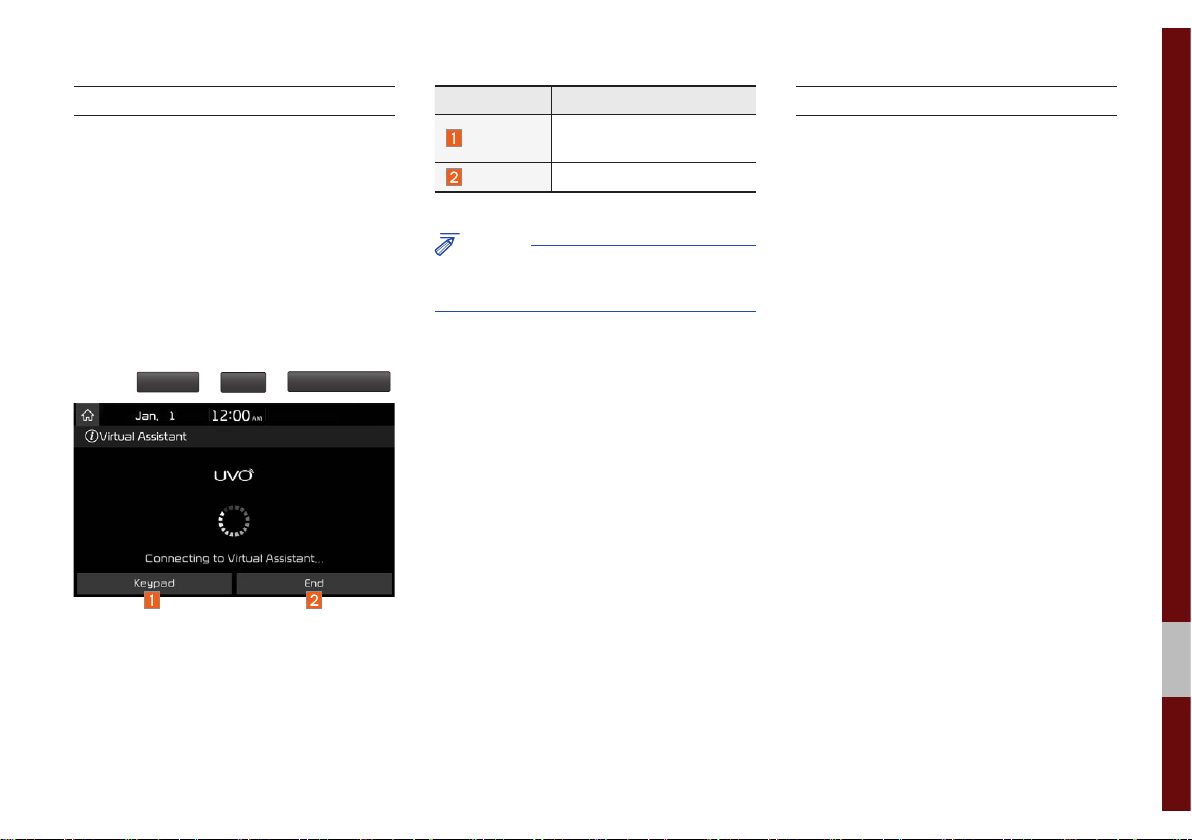

UVO

UVO Voice Local Search

Before Using UVO

Getting Started with UVO

UVO

Rear view mirror key function

※

The actual image in the vehicle may dif-

fer from the illustration.

Location Description

Virtual Assistant

• Connects to the UVO

※

Refer to UVO service manual for more

center and provides information about the UVO features. (For more information, see the Virtual Assistant section.)

UVO Voice Local Search

• UVO Voice Local Search (For more information, see the UVO Voice Local Search section.)

Roadside Assist

• Connects to the center and provides vehicle towing services in case of a vehicle anomaly. (For more information, see the Roadside Assist section.)

UVO features.

5-2 I UVO

UVO Voice Local Search

What is UVO Voice Local Search?

With UVO network service, you can search for a place names with your voice. This feature operates separately from the voice recognition feature that activates from the button on the steering wheel. UVO Voice Local Search is activated by pressing the view mirror. The search is done through network services; it is only available when connected to a communication network. You must have a UVO Services subscription to activate this feature.

button on the rear

UVO Voice Local Search

Press

(less than 0.8 seconds) to start UVO Voice Local Search.

Name Description

Example

command

Manual

search switch button

End

button

key in the rear-view mirror

Shows an example to ask for a place search.

Switches the UVO Voice Local Search screen to manual search.

Ends UVO Voice Local Search. (With UVO Voice Local Search, press

key in the rear-view mirror again to end the service.)

NOTICE

• If you change the language set for the system

to French, Spanish or Korean, this function will not be supported. Change the system language to other language.

UVO Voice Local Search I 5-3

The UVO function is supported for vehicles purchased in USA.

Before using UVO

What is UVO?

This is a Kia telematics service based on our cutting-edge IT system that makes your driving experience more convenient and fun and features safety, security, vehicle diagnostics, remote control and even smartphone synchronization functions.Enjoy a smarter driving style with UVO.

What is Telematics?

The word “Telematics” stems from the combination of telecommunications and informatics, and refers to an information system that provides a variety of driving information through the built-in terminal by analyzing each symptom and driving state.

Regarding the TX and RX of radio

Connection to the UVO Center or wireless data transmission may be disrupted in the following places. For radio wave transmission/reception status, refer to the status displayed on the UVO screen. Places where UVO may be disrupted depending on the transmission/reception status:

• Inside tunnels

• Mountainous areas or dense forest

• Roads close to cliff edges

• Densely built-up areas

• On highways or roads underneath higher interchange roads

• Inside buildings

5-4 I UVO

Getting Started with UVO

You can use UVO features including Roadside Assist, Vehicle Diagnostics, My POIs, Virtual Assistant, UVO Settings.

1. Select

All Menus

2. Select the desired item.

UVO

▶

Name Description

Displays information such as Driving Time/

Driving Info

Roadside

Assist

Vehicle

Diagnostics

My POIs

Virtual

Assistant

UVO

Settings

Idle Time, Deceleration/ Acceleration Distribution, Driving Speed and Driving Distance.

Provides services including emergency assistance and vehicle towing in case of a vehicle anomaly or emergency through a connection to the UVO center.

Diagnoses anomalies in the vehicle and checks diagnostic results.

Displays the POI information transmitted via webpages, the user’s smartphone, etc.

Connects to the UVO center and provides information about the UVO features.

Displays Service Activation, 911 Connect, and Modem Information.

Driving Info

All Menus

Select

▶

Select

Select the date driving information.

from Home Screen display.

UVO

Update

Driving Info

▶

button to receive up-to-

icon.

Getting Started with UVO I 5-5

Roadside Assist

Roadside Assist provides services including emergency assistance and vehicle towing in case of a vehicle anomaly or emergency through a connection to the UVO center. You can still use the Roadside Assist feature without activating in UVO. However, the Roadside Assist feature is not available if your UVO period is expired. When your service period is expired, please reactivate your service to use the Roadside Assist feature.

1. Select

All Menus

UVO

▶

Roadside Assist

▶

(Or, press the key on your rearview mirror.)

NOTICE

• You can still use the Roadside Assist feature

without registering for UVO.

• If you have no network coverage, please

move to a new location and try again.

Vehicle Diagnostics

Manual Diagnostics

Vehicle Diagnostics diagnoses anomalies in the vehicle and provides diagnostic results. UVO Activation(Enrollment) is needed to use Vehicle Diagnostics. This feature is only available when the vehicle is stationary because there are controls that are undiagnosable when the vehicle is in motion. If you switch to another screen during Vehicle Diagnostics, Vehicle Diagnostics will be cancelled.

1. Select

Vehicle Diagnostics

All Menus

UVO

▶

5-6 I UVO

2. Select the desired item.

3. If you select

your desired option.

Schedule Service

, choose

Vehicle Diagnostics

Auto Diagnostics

The Vehicle Diagnostics (Auto Diagnostics) feature automatically performs diagnostics on your car when a warning light comes on the cluster panel and displays the details of the vehicle malfunction on the screen for the driver.

Name Description

Schedule

Service

Roadside

Assist

Requests a service from your preferred dealership or a nearby dealership.

Connects to the center for Roadside Assist. (For more information, see the Roadside Assist section.)

Name Description

Sends vehicle diagnostics

Preferred

Nearby

results to the registered dealer on MYUVO.com to request a phone appointment.

Receives a list of nearby dealers, and after you have selected a dealer, sends vehicle diagnostics results to the dealer to request a phone appointment.

NOTICE

• To send a Schedule Service request to a

preferred dealer, please register the dealer on MyUVO.com ﬁrst.

NOTICE

• If Vehicle Diagnostics (Auto Diagnostics) was

unsuccessful, the diagnostics is automatically performed again when you turn on your vehicle.

Getting Started with UVO I 5-7

My POIs

My POIs allows you to check a list of POIs that were transmitted via a webpages or your smartphone, etc. You need to sign up for UVO to use My POIs. When a list of POIs is downloaded, a notification pop-up appears on the screen. (Not applicable to the Rear View Camera screen and the Agree screen.) Up to 200 POIs can be stored. If the available storage space is exceeded, the oldest POI is automatically deleted.

1. Select

All Menus

Select the desired POI to view detailed information about it.

UVO

▶

My POIs

▶

Name Description

Phone

Number

Address

If you select Phone Number, a call is made to the phone number.

If you select Address, the address is plotted on the on-screen map.

NOTICE

• If the address of the desired POI is located

outside the U.S., the map screen is not displayed.

Deleting My POIs

1. Select

All Menus

▶

Delete

UVO

2. Select a POI you wish to delete and select

Delete

Name Description

Mark All

Unmark All

Delete

Selects all POIs. Deselects all the selected

POIs. Deletes the selected

POIs.

My POIs

▶

5-8 I UVO

Virtual Assistant

Virtual Assistant connects to the UVO center and provides information about the UVO features. The Virtual Assistant feature is not available if your UVO period is expired. When your service period is expired, please reactivate your service to use the Virtual Assistant feature.

Name Description

Keypad

End

Displays the numeric keypad.

Ends Call.

NOTICE

• The Virtual Assistant is not available during a

Bluetooth call.

UVO Settings

For more details, refer to part 10. Setup ▶ UVO Settings.

1. Select

All Menus

UVO

▶

Virtual Assistant

▶

Getting Started with UVO I 5-9

MEMO

part.6

Navigation

Basic Features

Quick Menu

Destination Search

Route Search

Navigation Settings

Troubleshooting

Navigation

Start

Guidance

Routes

Add

Waypoint

Save

POI

Basic Features

Operating Navigation Screen

Basic features on the map screen.

Name Description

Move to Places Menu.

Go to the Home screen.

Change the map view mode.

Adjusts the volume.

Zoom in the map. Set the zoom level automatically according

to the guidance. Zoom out the map.

Quick Menu for destination selection and options.

Touch to scroll the map.

Start the preferred navigation route to selected location.

Choose the preferred navigation route to selected location.

Set a waypoint to the current route. Save frequently used address to address

book. Find a POI(Point Of Interest) around the

current position. View the vehicle’s current position on the

map screen.

6-2 I Navigation

Places

Changing Map View

Navigation Volume

You can use this menu when the vehicle shift lever is in P (Park) and there is no destination set. Press the to move to “Places”.

Please refer to “Places” in “Destination Search” for more details.

Touch the compass arrow icon to toggle between a map oriented to the North, oriented parallel to the vehicle’s heading and 3D View.

Select the button to adjust the navigation volume.

Basic Features I 6-3

Name Description

Set the volume to mute.

Turn the volume down.

Turn the volume up.

Slide to set the volume. Lowers all other audio volumes

when Navigation prompts are playing.

Zoom In/Zoom Out

Zoom the map view screen in and out.

Select or to set the zoom level.

Map Scale

Sets the zoom level automatically according to the type of road.

Name Description

Scale Fix

Auto Scale

Manually adjust the map scale.

Change the map scale automatically depending on the type of road.

Information

• If the HD Radio or SiriusXM service

is available for traffic information, the corresponding icon will appear at the top of the navigation screen. HD Radio is only available in metropolitan areas.

• HD Radio ( ) : Vehicle uses HD data

services if the vehicle is a Metropolitan area with strong signal strength.

• SiriusXM ( ) : Vehicle uses SXM data

services if subscribed when HD broadcast is not available.

6-4 I Navigation

Quick Menu

Route

Route Options

Detour

Edit Route

Recalculate

Detour

Route

Select the screen ▶ Press

button on the bottom left of

button.

Route Options

Detour

Select the

Select your preferred route and avoid options. Then select the

button

The there is an active route.

button is active only when

to save your selection. These options will become default for future routes.

button to set

Selected distance is detoured from the current location.

Quick Menu I 6-5

Edit Route

POI

Map Display

Displays the direction of the map. Press

or .

POI

Select the of the screen ▶ Select the

View Nearby POIs

button on the bottom left

button.

Select the

button to change the route. Refer to the Route > Editing Route section in the manual for more information(page 5-26).

6-6 I Navigation

Name Description

North Up (2D)

Heading Up (2D)

3D Buildings

Displays always has north at the top of screen.

Displays always shows the vehicle’s direction as proceeding towards the top of the screen.

Shows the map in 3 dimentions.

Shows or hides buildings on the map.

Select check button to set whether to show nearby POIs or not. When categories are selected, they will appear on the map. (ex. Electric Charging Stations)

The lists of nearby Charging stations are

Start

Guidance

Routes

Add

Waypoint

Save

POI

displayed.

The list can be sorted to display in order of distance or name.

Name Description

Call to the selected location (Phone needs to be connected via Bluetooth).

Start the preferred navigation route to selected location.

Choose the preferred navigation route to selected location.

Set the location as a waypoint.

Save the location.

Search nearby POIs.

Edit

Change the shortcut POIs to display. (ex. Electric Charging Stations)

Select the desired category to change. (ex Restaurants)

Quick Menu I 6-7

Select new category to display.

Gas Stations

American

History

(ex. American)

POI Categories

Select the item to search.

Press the

button to search the

POI category by name.

6-8 I Navigation

is changed to

Press the

button to check the

previous search result.

Trafﬁc

Traffic
