HYUNDAI MOBIS ATB30SNAN User Manual

J3EUJ03 (영어 | 미국) 표준5

Car Multimedia System | User's Manual

J3MS7-BD000

[ The functions and services described in this guide are subject to change without prior notice for performance improvement. If the

system software is updated, the screenshots in this guide may appear different than the actual images on the system.

[ The functions and services described in this guide may differ from those provided in your vehicle. For precise information related to

your vehicle, refer to the owner's manual or catalog of your vehicle.

[ The design and specification of the system may change without prior notice for performance improvement.

[ This multimedia system contains open source software, including without limitation, software distributed and/or modified under the

GNU General Public license, Version 2, June 1991, and the GNU lesser General Public License, Version 2.1, February 1999.

For additional information and to obtain related materials including without limitation, the previous referred to licenses and software, please contact us at MOBIS_OSSrequest@mobis.co.kr

All Map Database cannot be copied without permission. Important Notice: This is protected by U.S. copyright laws. All rights not expressly granted are reserved. You may not otherwise reproduce, modify and distribute the content without HYUNDAI MnSoft, Inc’s prior written consent.

Available information for users

Car Multimedia System User's Manual

Car Multimedia System Quick Reference Guide

Quick Guide This guide is the help built into the system. You can access basic information on

This guide introduces your system's functions and explains how to use them. To use your system correctly and safely, read this guide before using the system.

This guide combines key information into a quick reference. Use this guide to refer to descriptions and instructions more quickly and easily.

how to control the system and a brief description of major functions directly on the system screen.

• How to access the guide: On the Home screen, touch All Menus > Quick

Guide.

For safety, this quick guide will not be displayed while the vehicle is moving. Park your vehicle in a safe location before accessing the quick guide.

Symbols used in this guide

Indicates important information related to user safety. Failure to follow warnings may

Warning

Caution

Note

result in death or serious personal injury.

Indicates important information related to user safety. Failure to follow cautions may result in personal injury, or damage or malfunction your vehicle.

Indicates helpful information for convenient use.

*if equipped

Indicates descriptions for optional features.

This guide covers all specifications, including all trim models and optional specifications. It may include descriptions for features that are not equipped in your vehicle.

Safety warnings

For safety, follow the instructions below. Failure to do so may increase the risk of a traffic accident, which may result in death or personal injury.

Ü About driving

Do not operate the system while driving.

• Driving while distracted may result in a loss of vehicle control, potentially

leading to an accident, severe personal injury, or death. The driver’s primary responsibility is the safe and legal operation of a vehicle, and any handheld devices, equipment, or vehicle systems which divert the driver’s attention from this responsibility should never be used during operation of the vehicle.

Follow traffic regulations while driving.

• Driving only with the guidance of the navigation system may cause

violation of traffic regulations, which may lead to a traffic accident.

Depend on your vehicle's speedometer when checking your driving speed.

• The speed displayed in the navigation screen may differ from your actual

speed.

Avoid watching the screen while driving.

• Driving while distracted may lead to a traffic accident.

• Stop your vehicle in a safe location before using functions that require

multiple operations.

Stop your vehicle first before using your mobile phone.

• Using a mobile phone while driving may lead to a traffic accident.

• If necessary, use the Bluetooth Handsfree feature to make calls and keep

the call as short as possible.

Keep the volume low enough to hear external sounds.

• Driving without the ability to hear external sounds may lead to a traffic

accident.

• Listening to a loud volume for a long time may cause hearing damage.

When looking for emergency services, such as hospitals or fire stations, do not depend solely on the navigation system.

• Some emergency services may not be included in the navigation map.

Locate nearby emergency services in advance so you can take the proper action quickly in an emergency situation.

Ü About handling the system

Û Note

Do not disassemble or modify the system.

• Doing so may result in an accident, fire, or electric shock.

Do not allow liquids or foreign substances to enter the system.

• Liquids or foreign substances may cause noxious fumes, a fire, or a

system malfunction.

Stop using the system if it malfunctions, such as no audio output or display.

• If you continue using the system when it is malfunctioning, it may lead to

a fire, electric shock, or system failure.

If you experience any problems with the system, contact your place of purchase or dealer.

Safety cautions

For safety, follow the instructions below. Failure to do so may result in personal injury or damage to the system.

Ý About operating the system

Use the system with the engine running.

• Using the system for a long time when the engine is stopped may

discharge the battery.

Do not install unapproved products.

• Using unapproved products may cause an error while using the system.

• System errors caused by installing unapproved products are not covered

under the warranty.

Ý About handling the system

Do not apply excessive force to the system.

• Excessive pressure on the screen may damage the LCD panel or the

touch panel.

When cleaning the screen or button panel, make sure to stop the engine and use a soft, dry cloth.

• Wiping the screen or buttons with a rough cloth or using solvents

(alcohol, benzene, paint thinner, etc.) may scratch or chemically damage the surface.

If you attach a liquid-type air freshener to the fan louver, the surface of the louver may become deformed due to the flowing air.

Û Note

If you experience any problems with the system, contact your place of purchase or dealer.

Cautions when using an SD card

Ý Caution

The SD card installed in the system contains map data and software necessary for navigation. Be careful not to damage the SD card.

• Remove the SD card only when you update the system.

• Stop the engine before removing or re-inserting the SD card. Removing or re-inserting the SD card while the

system is operating may cause an error or damage the SD card or the system.

• The SD card is intended for storing map data and update files only. Do not add or delete files on the SD card.

• Do not format the SD card arbitrarily.

HYUNDAI VEHICLE OWNER PRIVACY POLICY

Your Hyundai vehicle may be equipped with technologies and services that use information collected, generated, recorded or stored by the vehicle. Hyundai has created a Vehicle Owner Privacy Policy to explain how these technologies and services collect use and share this information.

You may read our Vehicle Owner Privacy Policy on the Hyundaiusa.com website at: https://www.hyundaiusa.com/owner-privacy-policy.aspx

If you would like to receive a hard copy of our Vehicle Owner Privacy Policy, please contact our Customer Connect Center at:

Hyundai Customer Care P.O. Box 20850 Fountain Valley, CA 92728 800-633-5151 consumeraffairs@hmausa.com

Hyundai’s Customer Connect Center representatives are available Monday through Friday, between the hours of 5:00 AM and 7:00 PM PST and Saturday and Sunday between 6:30 AM and 3:00 PM PST (English).

For Customer Connect Center assistance in Spanish or Korean, representatives are available Monday through Friday between 6:30 AM and 3:00 PM PST.

Contents

Component names and functions 1-2 Turning the system on or off 1-5 Controlling the touch screen 1-7 Getting to know the Home screen 1-8 Getting to know the rear view screen 1-9 Using the climate control system (*if equipped) 1-10

Setting up My Menu 2-2

Editing My Menu 2-2

Using Voice Memo 2-2 Using phone projection 2-3

Connecting your iPhone via Apple CarPlay 2-4 Connecting your Android smartphone via Android Auto 2-6

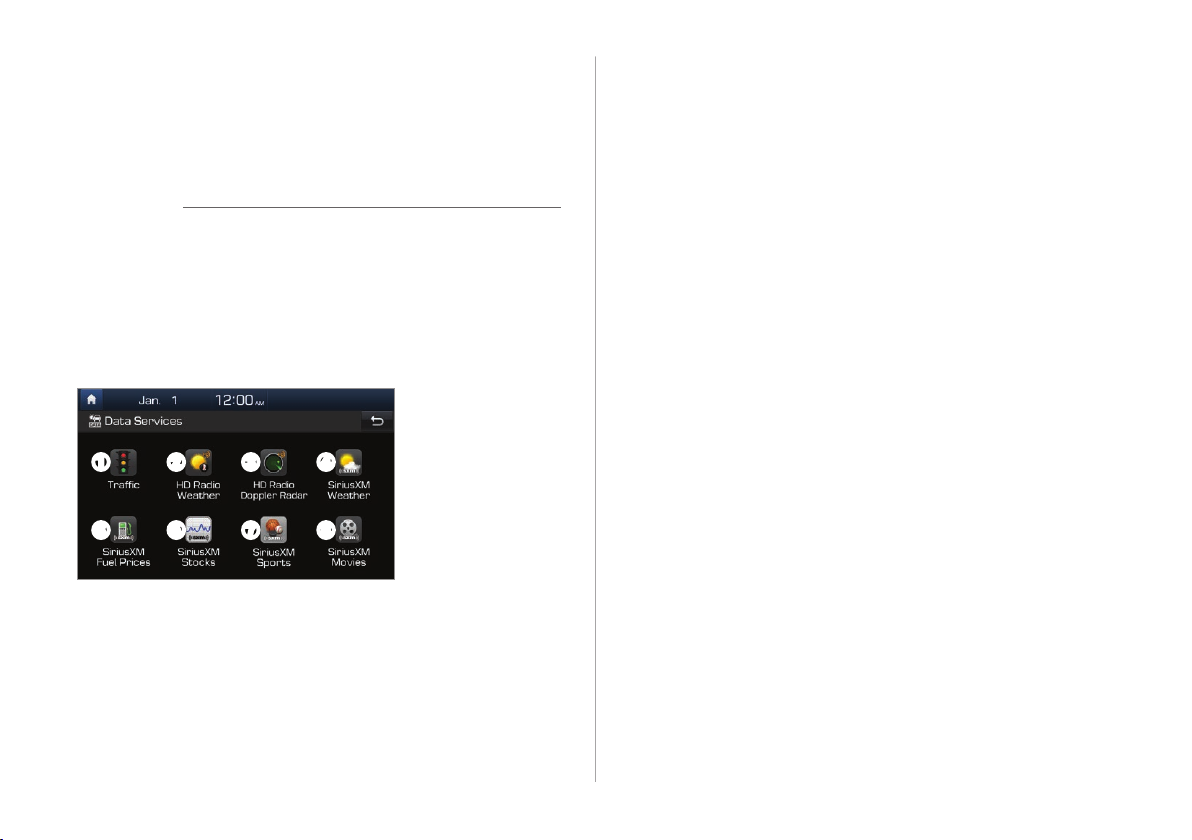

Using data services 2-9

Viewing traffic information 2-9 Viewing weather information via HD Radio 2-10

System overview

Useful features

Viewing weather information in HD Radio Doppler Radar 2-11 Viewing weather information via SiriusXM 2-11 Viewing fuel price information via SiriusXM 2-12 Viewing stock information via SiriusXM 2-13 Viewing sports information via SiriusXM 2-14 Viewing the latest movie information via SiriusXM 2-15

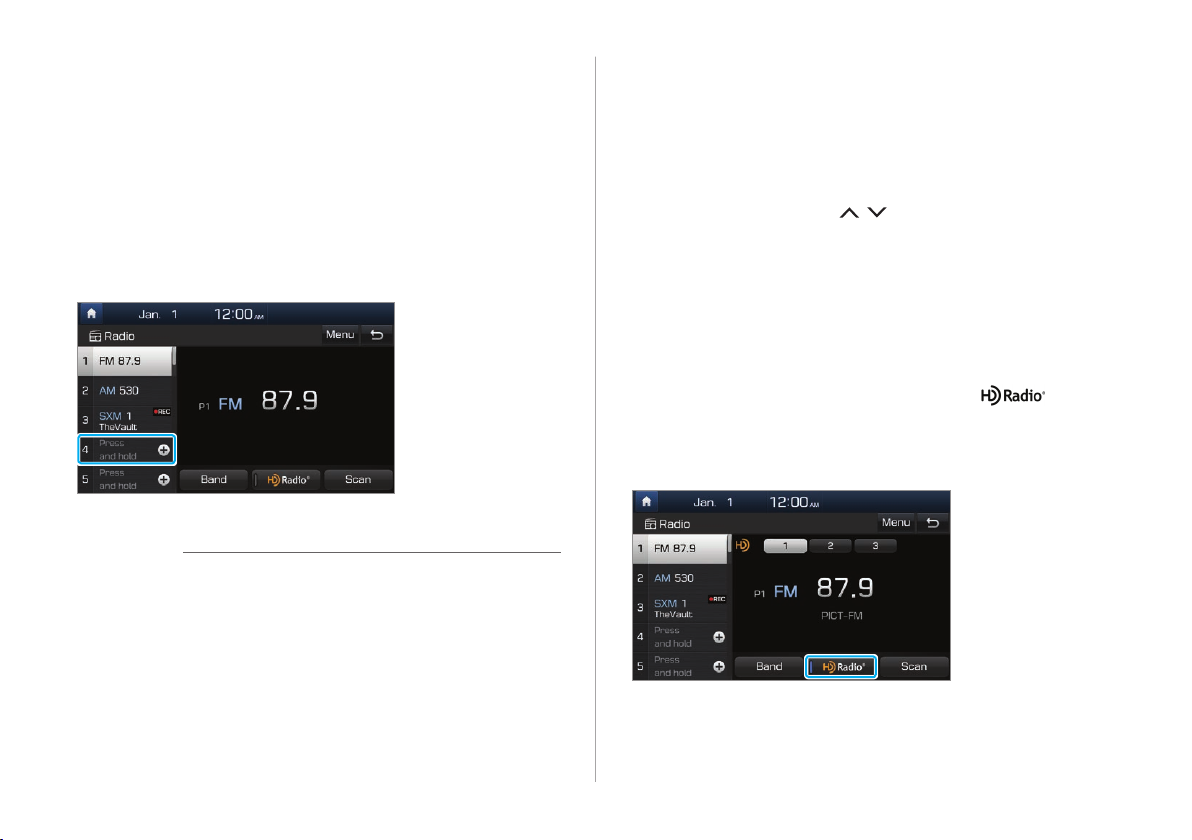

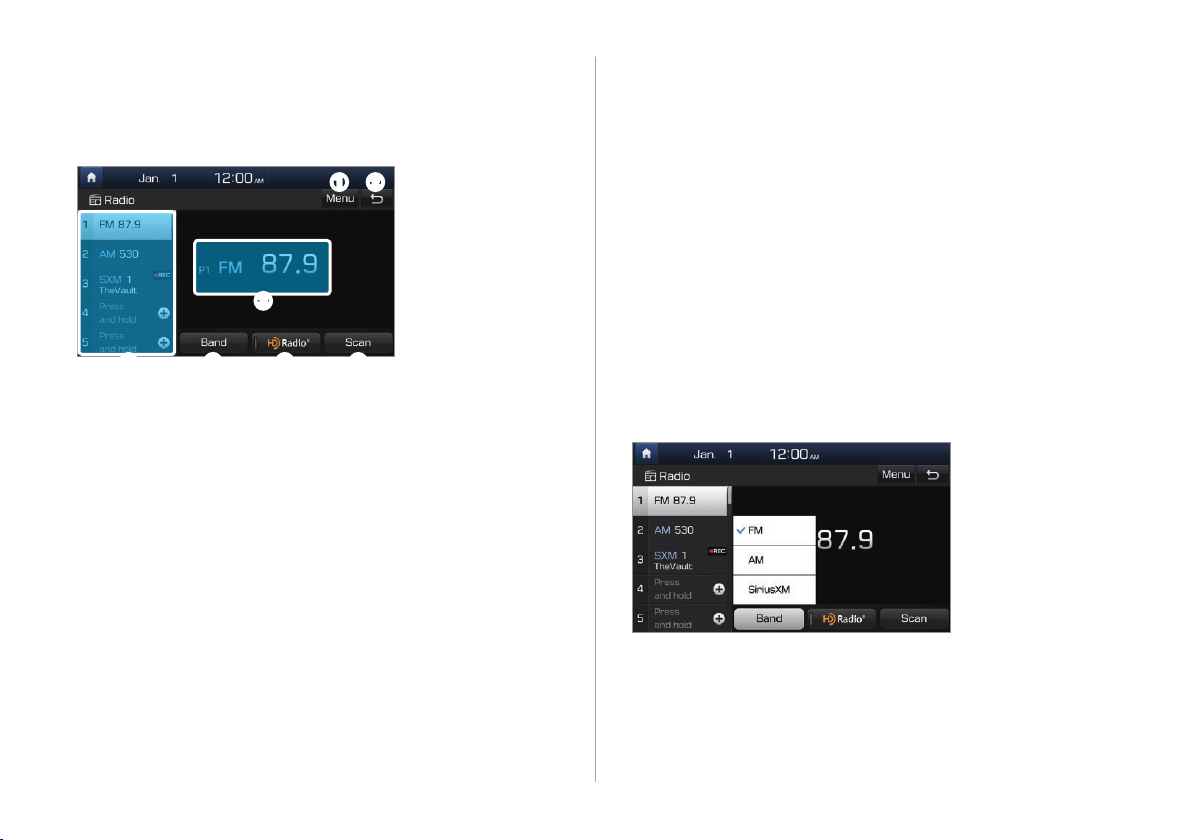

Turning on the radio 3-2 Changing the radio mode 3-2 Scanning for available radio stations 3-3 Searching for radio stations 3-3 Saving radio stations 3-4 Listening to saved radio stations 3-4 Listening to HD Radio™ 3-4 Listening to SiriusXM™ radio 3-6

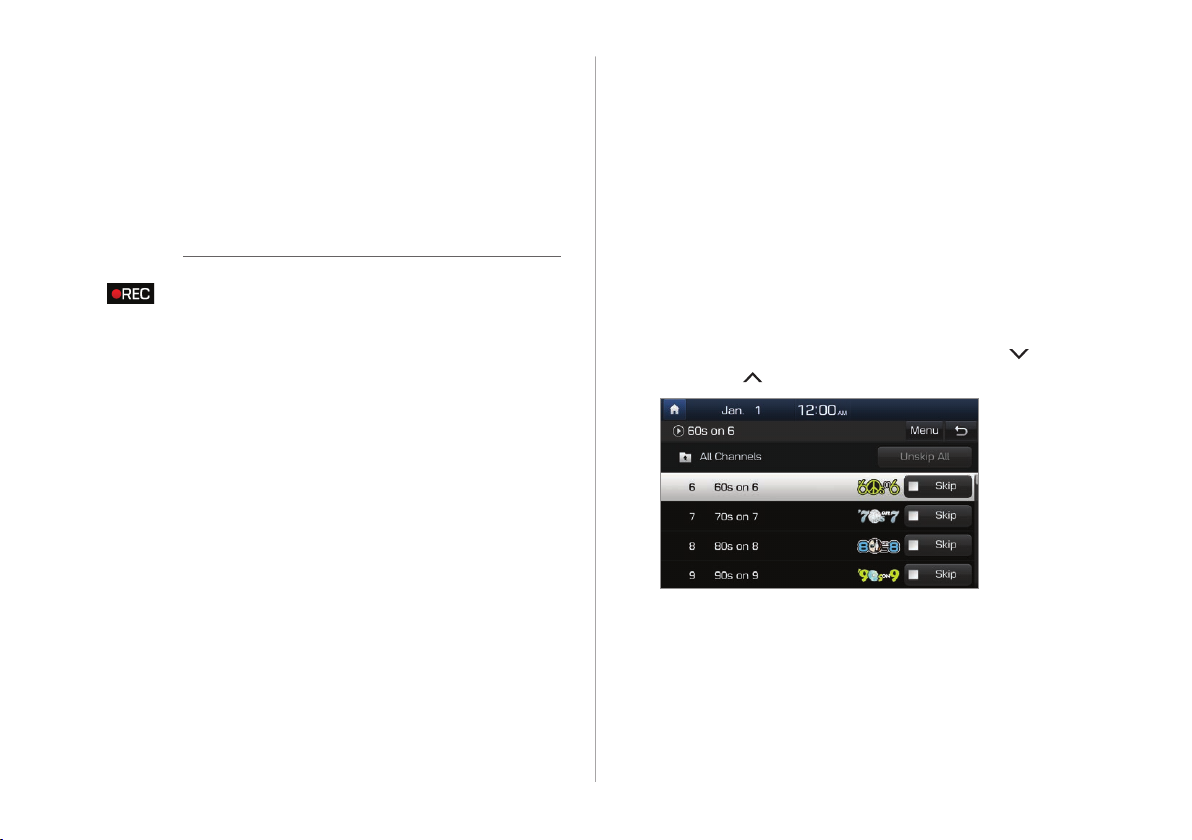

Searching for SiriusXM radio channels 3-7 Selecting channels by using channel numbers 3-8 Viewing the program schedule 3-8 Listening to Featured Favorites channels 3-9

Radio

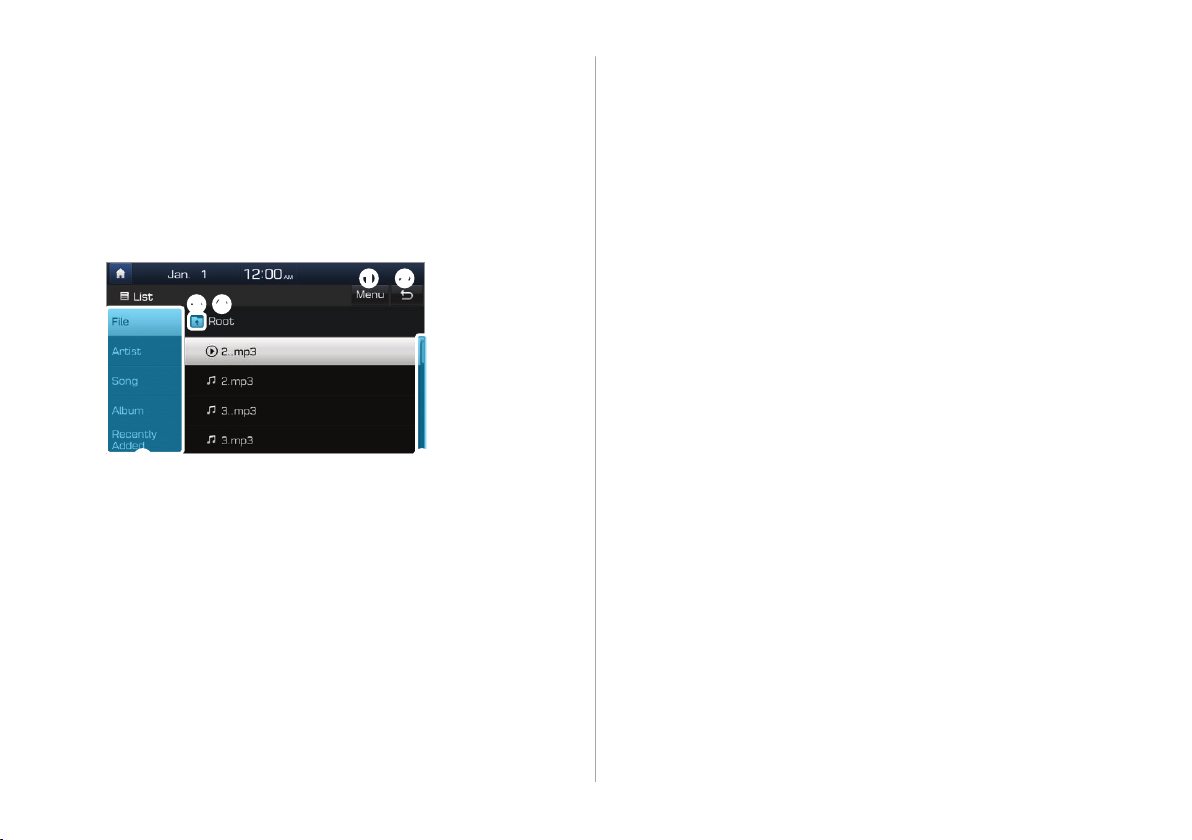

Using the media player 4-2

Using the USB mode 4-5

Using the iPod mode 4-7 Using the AUX mode 4-10

Finding a route quickly 5-2

Finding a route with various search methods 5-8

Media player

Controlling the media player 4-3

Listening to music 4-5

Navigation

Getting to know the navigation screen 5-5 Adjusting the navigation sound volume 5-7 Canceling the navigation 5-8

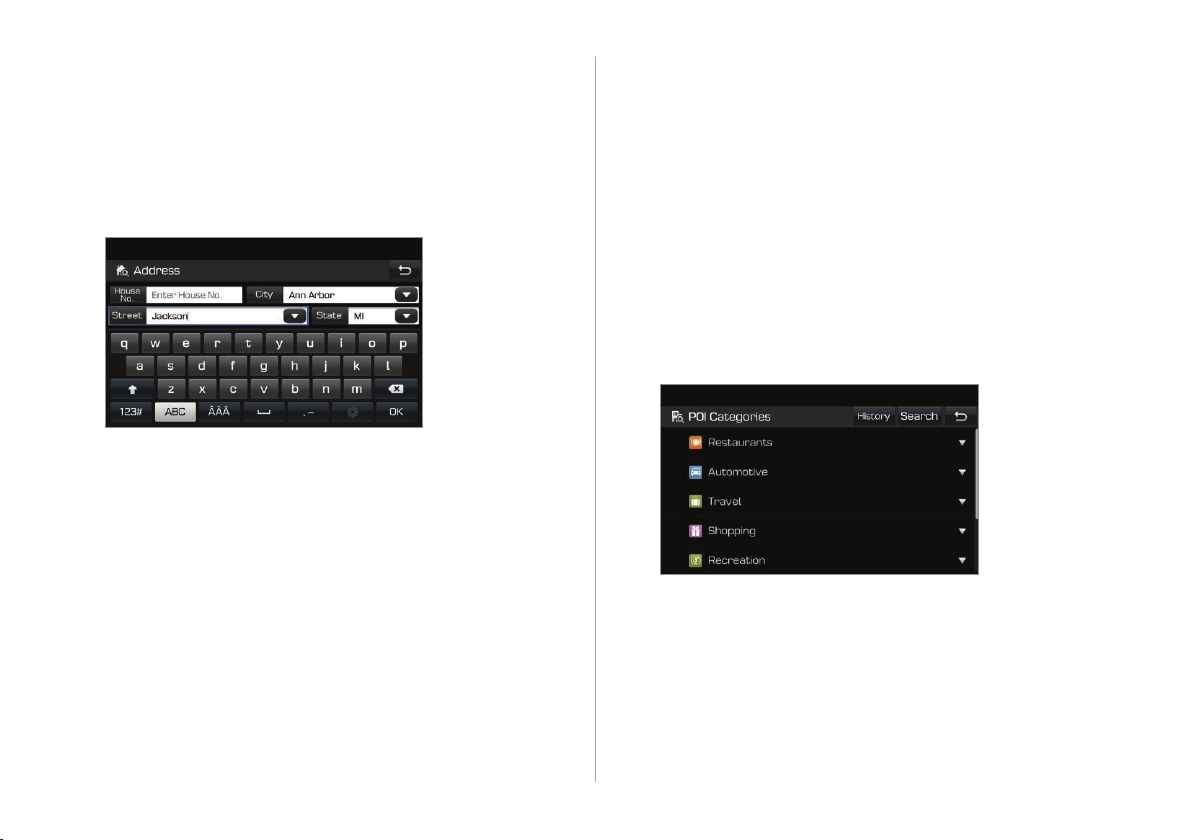

Searching for locations by keyword 5-9 Searching for locations by address 5-11 Searching for locations by POI category 5-11 Searching for gas stations 5-13 Searching for restaurants 5-14 Searching for emergency services 5-14 Searching for locations by coordinates 5-15 Selecting a location from previous destinations 5-16 Searching for locations via the online server 5-16

Using helpful navigation options 5-17

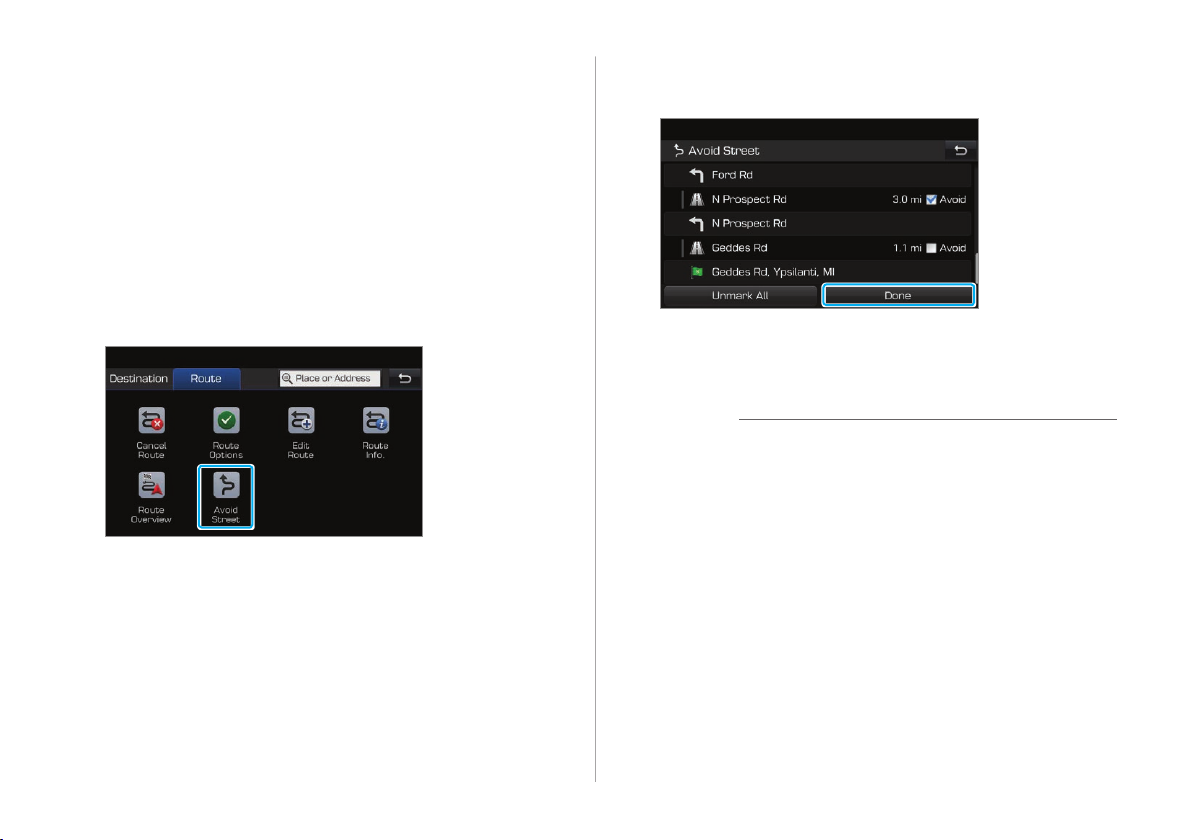

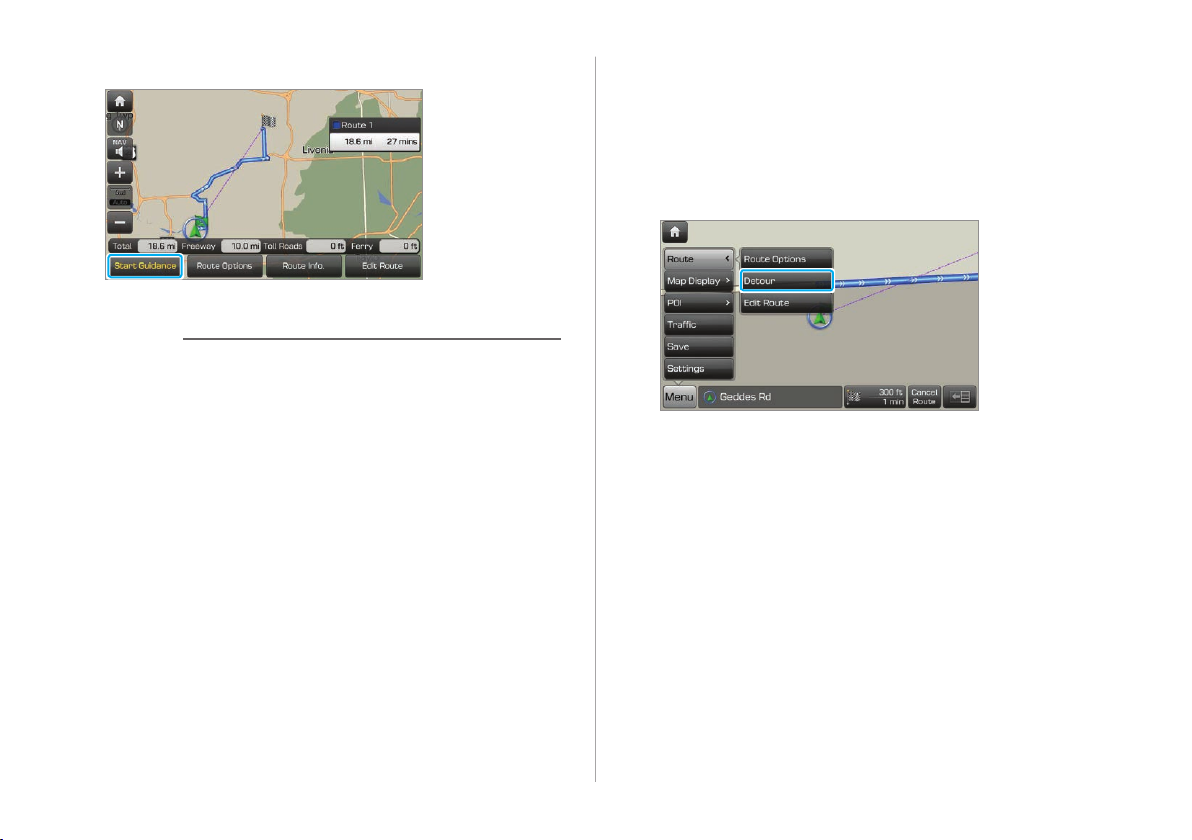

Finding another route 5-17 Making a detour 5-18 Avoiding specific roads 5-19 Adding waypoints 5-20 Viewing information 5-22

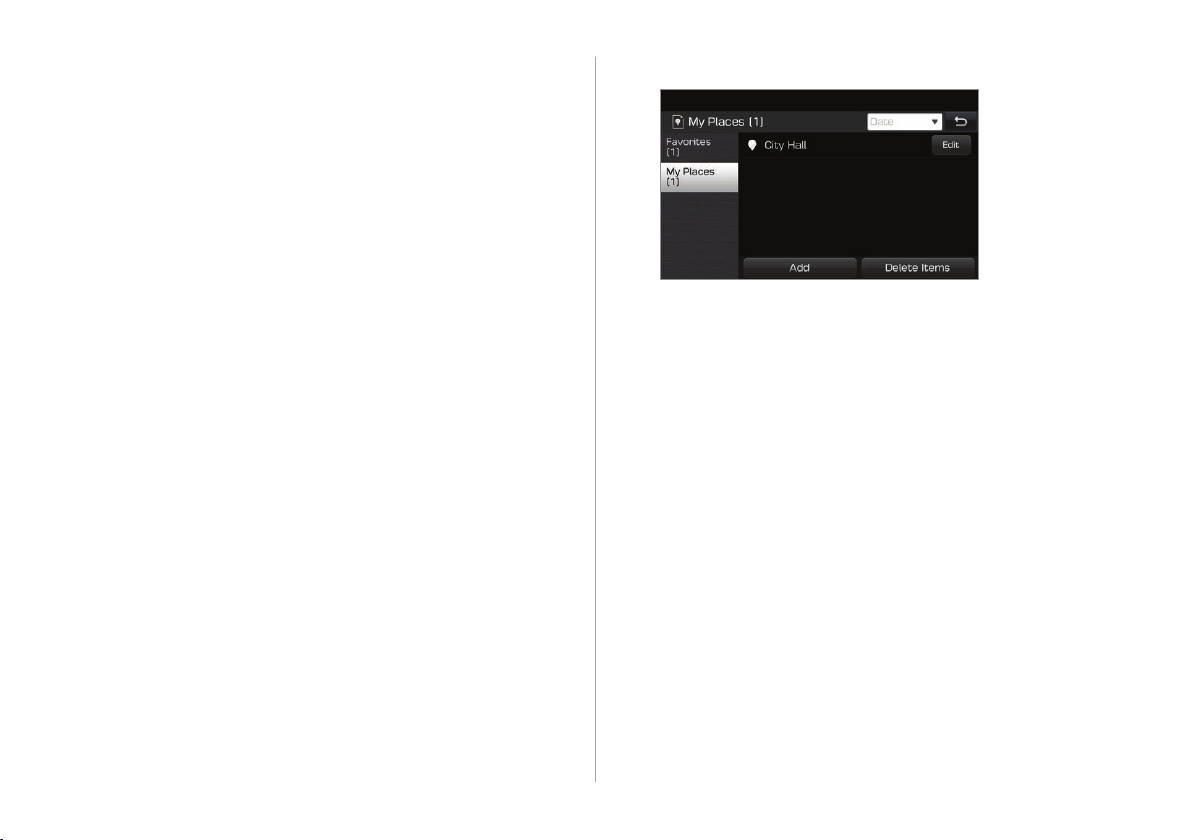

Registering locations 5-23

Saving your current location 5-23 Searching for and saving locations 5-24 Saving your favorite locations 5-25 Using the saved locations 5-26 Using your favorite locations 5-26 Editing saved locations 5-27 Deleting saved locations 5-28

Updating the map 5-28 Changing navigation settings 5-29

Connecting Bluetooth devices 6-2

Using a Bluetooth audio device 6-6

Bluetooth

Pairing devices with your system 6-2 Connecting a paired device 6-4 Disconnecting a device 6-5 Deleting paired devices 6-5

Using a Bluetooth phone 6-7

Making a call 6-8 Answering calls 6-11 Using options during a call 6-12 Setting up your favorites list 6-14 Viewing text messages 6-14

Starting voice recognition 7-2

Viewing the voice recognition help 7-5 Available voice commands 7-7

Using Siri Eyes Free 7-16

Blue Link services 8-2 Activating the service 8-2

Voice recognition

Adjusting the voice guidance volume 7-5

Call commands 7-7 Navigation commands 7-8 Radio commands 7-11 Other commands 7-11 POI names 7-12

Blue Link

Service limitations 8-3

Locating the Blue Link buttons 8-3 Using the Blue Link menu 8-4

Viewing driving information 8-4 Using the received location information 8-5 Diagnosing your vehicle 8-6

Using Voice Local Search 8-6 Using safety and security services 8-7

Auto Crash Notification 8-7 SOS 8-8 Stolen Vehicle Recovery 8-9

Contacting the Blue Link Center 8-9

Setting the vehicle environment (*if equipped) 9-2 Setting sounds 9-2

Setting the system screen 9-4 Setting the screen saver 9-5

Setting voice recognition 9-5 Setting Bluetooth 9-5 Setting the system environments 9-6

Settings

Setting the system sound 9-2 Turning the touch sound on or off 9-4

Setting the display language 9-6 Setting the time and date 9-7 Setting the keyboard 9-7

Setting the custom button 9-7 Setting advanced options 9-8 Viewing system information 9-8

Updating system software and map data 9-9

Solutions 10-2

Sound and display 10-2 USB playback 10-4 iPod/iPhone playback 10-5 AUX mode 10-6 Bluetooth connection 10-7 Phone projection 10-8 System operation 10-9 Navigation system operation 10-10

System status icons 11-2 FAQ 11-4 System specifications 11-8 Important information 11-13 Index 11-16

Troubleshooting

Appendix

System overview

Component names and functions

Turning the system on or off

Controlling the touch screen

Getting to know the Home screen

Getting to know the rear view screen

Using the climate control system (*if equipped)

Turning the system on or off

To turn on the system, start the engine.

When the safety warning appears, read it and

touch Confirm.

• To change the display language, touch Language.

• If you do not want to use the system while driving, you

can turn off the screen and the sound by pressing and holding the [POWER] button on the control panel. To use the system again, press the [POWER] button.

1-5

The system turns off when you stop the engine (ACC Off).

• When you turn back on the system, the previous mode and

settings will remain intact.

Ü Warning

• Some functions may be disabled for safety reasons while

the vehicle is moving. They work only when the vehicle stops. Park your vehicle in a safe location before using any of them.

• Stop using the system if it malfunctions, such as no audio

output or display. If you continue using the system when it is malfunctioning, it may lead to a fire, electric shock, or system failure.

• If you turn on your system without starting the engine, a

battery warning will appear. Once the engine starts, the battery warning will disappear.

Û Note

Ý Caution

• You can turn on the system when the key ignition switch is

placed in the "ACC" or "ON" position. Using the system for an extended period without the engine running drains the battery. If you plan on using the system for a long time, start the engine.

1-6

To avoid having audio play at an excessive volume when you start the engine, adjust the volume level before stopping the engine. You can also set the system to decrease the volume level automatically. On the Home screen, touch All Menus >

Setup > Sound > Priority and activate the Start-up Volume Limit option.

Controlling the touch screen

Your system is equipped with a touch screen. You can perform various functions via touch inputs.

Ý Caution

• Do not apply excessive pressure to the touch screen or

touch it with a pointed object. Doing so may damage the touch screen.

• Do not let any electrically conductive material contact the

touch screen. A shock from static electricity may cause the system or the touch screen to malfunction.

Û Note

If you wear regular gloves, you will not be able to control the touch screen. Remove your gloves or wear gloves designed for use with a touch screen.

Touch

Touch an object lightly and lift your finger. You can perform a function or select an option.

Touch and hold

Touch an object and hold it for at least one second without lifting your finger. You can rewind or fast forward media by touching and holding an appropriate button.

1-7

Drag

Touch and hold an object, drag it, and then drop it on a new location. You can move the selected object to another location or skip ahead or replay part of a song.

Getting to know the Home screen

From the Home screen, you can access various functions.

Swipe

Swipe the screen lightly in an appropriate direction. This is an easy way to scroll through a menu or list quickly.

d e f g

a Current time and date b System status icons >See p.11-2 "System status icons." c AV information. Touch to activate the corresponding AV

mode in full screen.

d Map. Touch to view in full screen. e Access the All Menus screen. f Access the Bluetooth phone screen. >See p.6-8 "Making a

call."

g Access the My Menu screen. >See p.2-2 "Setting up My

Menu."

1-8

Û Note

• To move to the Home screen from another screen, touch

• If an SD card is not inserted into your system, the map will

not be displayed on the Home screen.

Getting to know the rear view screen

When you put the transmission shift lever in the "R" (Reverse) position while the engine is running, the system screen will automatically display what is behind you.

The rear view and the parking guides provide a safer experience when you park your vehicle.

• Driving direction lines (yellow) ab

These lines show the directions of the vehicle according to the steering angle.

• Neutral direction lines (blue) c

These lines indicate your vehicle's expected path with the steering wheel in the neutral position. It can help you determine whether the vehicle is in the correct position in a parking space and prevent you from parking too close to the next vehicle.

• Crash warning lines (red) d

These lines are to prevent a collision.

Ü Warning

When backing up, make sure to follow the guidelines below:

• Before entering your vehicle, always check the area behind

your vehicle.

• Do not solely rely on the rear view camera when backing

up. Always ensure that it is safe to back up by checking behind you and looking in the rearview mirrors.

• Always back up slowly and stop immediately if you suspect

that a person, especially a child, might be behind you.

1-9

Ý Caution

The distance shown in the rear view screen may differ from the actual distance. For safety, be sure to visually check the rear, left, and right sides of your vehicle.

Û Note

• The rear view screen remains active while you are backing

up. When you move the transmission shift lever to any position other than the "R" (Reverse) position after backing up, the rear view screen will be deactivated and the system will display the previous screen automatically.

• As you steer your vehicle, the parking guides change

accordingly to indicate your vehicle's path.

Using the climate control system

You can check the current status of the climate control system via the system screen.

On your vehicle, press the [CLIMATE] button.

• For more information on how to use the climate control

system, refer to the owner's manual of your vehicle.

(*if equipped)

• Depending on vehicle models, the steering-interactive

parking guides may not be supported.

• If an object comes too close to your vehicle as you are

backing up, a warning beep will sound. To prevent an accident that might result if you do not hear the beep, you can set the system to decrease the volume level of any media playing automatically when the vehicle is in reverse. On the Home screen, touch All Menus > Setup > Sound > Priority > Back-up Warning Priority.

1-10

a Exterior temperature b Interior temperature c Air direction d Air volume e AUTO mode activated f Air conditioner turned on

If you operate the climate control system while using your system, the climate control settings are displayed at the top of the screen.

b e c f d

Û Note

• The interior temperature is displayed in units of 1 °F.

• The AUTO mode will be deactivated automatically in the

following situations:

- When you adjust the air volume or direction

- When you turn on or off the air conditioner

- When you activate the front windshield defroster

• Depending on vehicle models or specifications, some

functions may not be supported.

1-11

Useful features

Setting up My Menu

Using Voice Memo

Using phone projection

Using data services

Setting up My Menu

Add your frequently used functions or favorites to My Menu to access them quickly from the Home screen. You can add up to 24 items to My Menu.

On the Home screen, touch My Menu > Add to

My Menu.

• If you have already added items, on the My Menu screen, touch Menu > Add.

You can delete the items added to My Menu.

On the Home screen, touch My Menu > Menu

> Delete.

Select items to delete and touch Delete > Yes.

Using Voice Memo

Select items to add and touch Add > Yes.

Editing My Menu

You can rearrange the items added to My Menu.

On the Home screen, touch My Menu > Menu

> Rearrange.

Drag an item to a desired location.

2-2

You can record voice memos using the microphone installed in your vehicle and play voice memos on your system.

On the Home screen, touch All Menus > Voice Memo.

b c d

a Display the options list.

• Delete: Delete voice memos.

• Save to USB Device: Save voice memos to a USB storage

device. This option is available only for USB storage devices formatted in FAT16/32 formats.

• Storage Info: View information on the storage space used for your voice memos.

b List of your voice memos. Touch a voice memo to play it. c Record/Pause button

• Touch to start recording.

• Touch to pause recording.

d Stop button

• Touch to stop recording. The recorded memo is

added to the voice memos list on the left of the screen.

• You can also press the [ ] button on the steering wheel.

Û Note

• Voice memo recording mutes the function in operation or

pauses media playback.

• If you make or answer a call while recording a voice memo,

the recording pauses. If an emergency call or Auto Crash Notification (ACN) call is connected, the recording will stop and the recorded voice memo will be saved automatically.

Using phone projection

Phone projection enables you to connect your Android smartphone or iPhone to your system and use their functions via the system. You can perform and control your smartphone applications by using the larger screen and enhance your use of the system.

Ý Caution

• Use only applications that are compatible with phone

projection. Using incompatible applications may cause problems for your system or smartphone.

• Only compatible applications will be displayed on the

phone projection screen. You can also check compatible applications by visiting the following websites:

- Apple CarPlay: https://www.apple.com/ios/carplay

- Android Auto: https://www.android.com/auto

2-3

Connecting your iPhone via Apple CarPlay

Before using Apple CarPlay, be sure to check the following:

Apple CarPlay support on your iPhone

Visit the Apple homepage (https://www.apple.com/ios/ carplay) and check the iPhone models that support Apple CarPlay.

Apple CarPlay activated or updated on your iPhone

On your iPhone, ensure that Apple CarPlay is activated. If your iPhone does not have the function, update the iPhone's operating system to the latest version.

Start Apple CarPlay by following the steps below:

On the Home screen, touch All Menus > Setup

> Phone Projection > Apple CarPlay > Enable Apple CarPlay.

Connect your iPhone to the USB port in your

vehicle via the cable supplied with the iPhone.

• If you are connecting the device for phone projection for

the first time, read the message on the notification popup window and touch OK.

Ý Caution

Do not connect and disconnect a USB connector repeatedly in a short time. Doing so may cause an error in the device or a system malfunction.

2-4

If your iPhone is locked, unlock it and agree to

use phone projection.

• When the iPhone is recognized successfully, Apple CarPlay appears on the Home screen.

On the Home screen, touch Apple CarPlay.

Use your iPhone's functions, such as calling and

messaging, on your system.

• Touch an icon on the screen to run an application or perform a function.

- Touch the Apple home icon ( ) to move to the main

screen of Apple CarPlay.

- Touch the HYUNDAI icon ( ) to move to the Home

screen of your system.

• Press the [ ] button on the steering wheel to start Siri.

• Press the [MODE] button on the steering wheel to select

and start a media player installed on your smartphone, in addition to the system's AV modes.

• Press the [ ] button on the steering wheel to answer

an incoming call.

To end Apple CarPlay, remove the USB cable

from your system.

Û Note

• When a USB cable is connected to your system, you cannot

change the phone projection settings.

• Depending on Apple's policies, applications or functions

that are compatible with Apple CarPlay, such as navigation apps or media players, may change. To check compatible applications, visit the Apple homepage (https://www.apple. com/ios/carplay).

• To use phone projection in optimized environments, update

your smartphone's operating system to the latest version.

• Depending on the connected device's hardware, firmware,

and operating system versions, the recognition time may vary.

2-5

• Using phone projection may result in mobile

communication charges.

• Depending on the network signal status, some functions

may not work correctly.

• Avoid controlling your smartphone while phone projection

is in use.

• While you are using Apple CarPlay, the following functions

are unavailable:

- Bluetooth

- Blue Link calls

- System's voice recognition (iPhone's voice recognition is

available.)

- USB and iPod modes

- Volume control (depending on the connected device)

- Searches using the [TUNE/FILE] knob

- Android Auto

Connecting your Android smartphone via Android Auto

Before using Android Auto, be sure to check the following:

Android Auto support on your smartphone

Visit the Google homepage (https://www.android.com/ auto) and check the regions, device types, and models that support Android Auto.

Android Auto installed on your smartphone

Download and install the Android Auto application from Google Play. If you are in a region where Android Auto is not supported, you cannot install the application.

2-6

Start Android Auto by following the steps below:

On the Home screen, touch All Menus > Setup

> Phone Projection > Android Auto > Enable Android Auto.

Connect your smartphone to the USB port in

your vehicle via the cable supplied with the smartphone.

• If you are connecting the device for phone projection for the first time, read the message on the notification popup window and touch OK.

Ý Caution

If your smartphone is locked, unlock it and

agree to use phone projection.

• When the smartphone is recognized successfully,

Android Auto appears on the Home screen.

On the Home screen, touch Android Auto.

Use your smartphone's functions, such as

calling and messaging, on your system.

• Touch an icon on the screen to run an application or

perform a function.

• Press the [ ] button on the steering wheel to start

Google voice recognition.

• Press the [MODE] button on the steering wheel to select

and start a media player installed on your smartphone, in addition to the system's AV modes.

• Press the [ ] button on the steering wheel to start

using Bluetooth call functions.

Do not connect and disconnect a USB connector repeatedly in a short time. Doing so may cause an error in the device or a system malfunction.

2-7

+ 155 hidden pages
