SYSTEM CONTROLLERS AND FUNCTIONS

Audio Head Unit

1. (EJECT)

• Ejects the disc.

• Convert

s to Radio mode.

• Each time the key is pressed, the mode is changed in order of FM1, FM2, AM, SAT1, SAT2, SAT3.

• Convert

s to Media mode.

• Each time the key is pressed, the mode is changed in order of CD, USB(iPod®), AUX, My Music, BT Audio.

• Converts to Phone mode

❈ When a phone is not connected,

the connection screen is displayed.

5. POWER/VOL knob

• Power : Press to turn power on/

off.

• Volume : Turn left/right to control

volume.

• When pressed shortly(under 0.8 seconds)

- Radio mode : plays previous/next

frequency.

- Media (CD /USB /iPod

/My Music)

modes : changes the track, Song(file)

• When pressed and held (Over 0.8

seconds)

- Radio mode : continuously changes

the frequency. Upon release, plays the current frequency.

- Media(CD /USB /iPod

/My Music) modes : rewinds or fast forwards the track or file

- During a Handsfree call, controls the call volume.

• SIRIUS

RADIO : Category Search

• MP3 CD/USB mode : Search Folder

CAT

FOLDER

SEEK

TRACK

PHONE

MEDIA

RADIO

K_YD_B3.0_AUDIO_A7MS7H3E00_V7:NC 3/9/2015 11:38 AM Page 2

4 3

Features of your vehicle

• Turns the monitor display on/off.

• The sound stops playing. Press again to unmute.

10.

• Radio mode : previews all receivable broadcasts for 5 seconds each

• Media (CD/USB/My Music) modes : previews each song (file) for 10 seconds each.

11.

• Converts to Setup mode.

12. TUNE knob

• Radio mode : turn to change broadcast frequencies.

• Media (CD/USB/iPod

/My Music)

modes : turn to search Tracks/channels/files.

13. RESET

• Forced system termination and system restart.

MUTE

SETUP

SCAN

DISP

K_YD_B3.0_AUDIO_A7MS7H3E00_V7:NC 3/9/2015 11:38 AM Page 3

Features of your vehicle

Steering remote controller

1. MUTE

• Mutes the microphone during a call.

2. MODE

• Each time this key is pressed, the mode is changed in order of FM1 ➟ FM2 ➟ AM ➟ SA

T1 ➟ SAT2 ➟ SAT3 ➟ CD ➟ USB(iPod®) ➟ AUX ➟ My Music ➟ BT Audio

• If the media is not connected or a disc is not inserted, corresponding modes will be disabled.

3. VOLUME

• Used to control volume.

4. SEEK

• When pressed shortly (under 0.8 seconds)

Radio mode : searches broadcast frequencies saved to presets.

- Media(CD/ USB/ iPod

/ My Music/ BT Audio) modes : changes the track, file or chapter.

• When pressed and held (over 0.8 seconds)

- Radio mode, automatically search-

es broadcast frequencies and channels

- Media(CD/USB/iPod

/My Music)

modes, rewinds or fast forwards the track or song(file)

- BT Audio mode may not be sup-

ported in some mobile phones.

K_YD_B3.0_AUDIO_A7MS7H3E00_V7:NC 3/9/2015 11:59 AM Page 4

4 5

Features of your vehicle

• When pressed shortly

- Starts voice recognition

- When selecting during a voice prompt, stops the prompt and converts to voice command waiting state

• When pressed and held (over 0.8 seconds)

- Ends voice recognition

• When pressed shortly

- When pressed in the phone screen, displays call history screen

- When pressed in the dial screen, makes a call

- When pressed in the incoming call screen, answers the call

- When pressed during call waiting, switches to waiting call (Call Waiting)

• When pressed and held (over 0.8 seconds)

- When pressed in the

Bluetooth

Wireless Technology Handsfree wait mode, redials the last call

- When pressed during a

Bluetooth

Wireless Technology Handsfree call, switches call back to mobile phone (Private)

- When pressed while calling on the

mobile phone, switches call back to

Bluetooth

Wireless Technology

Handsfree (Operates only when

Bluetooth

Wireless Technology

Handsfree is connected)

• Ends phone call

K_YD_B3.0_AUDIO_A7MS7H3E00_V7:NC 3/9/2015 11:59 AM Page 5

Features of your vehicle

RADIO MODE

Basic Mode Screen

1. Mode Display

Displays currently operating mode.

2. Frequency

Displays the current frequency.

3. Preset

Displays current preset number ~.

4. Preset Display

Displays preset buttons.

5. A.Store

Automatically saves frequencies with superior reception to Preset buttons.

Switching to Radio Mode

Pressing the key will change the operating mode in order of FM1

➟

FM2 ➟ AM ➟ SAT1 ➟ SAT2 ➟ SAT3

If is turned on within

, then pressing the

key will dis

play the Radio

op-up Mode screen.

Turn the TUNE knob to move the focus. Press the knob to select.

RADIO

Display

SETUP

Mode Pop up

RADIO

K_YD_B3.0_AUDIO_A7MS7H3E00_V7:NC 3/9/2015 11:38 AM Page 6

4 7

Features of your vehicle

Searching Radio Frequencies

Using Seek

Press the key to play the previous/next frequency.

Using TUNE

Turn the TUNE knob to select the desired frequency.

Using Radio Mode

Selecting Presets/Saving Presets

Press the button to display the broadcast information for the frequency saved to each button.

Press the ~ buttons to play the desired preset.

✽ NOTICE

While listening to a frequency you want to save as a preset, press and hold one of the ~ preset buttons (over 0.8 seconds) to save the current frequency to the selected preset.

Auto Store

Press the button to automatically save receivable frequencies to Preset buttons.

Scan

Press the key to preview frequencies with superior reception for 5 seconds each.

Press and hold the key (over

0.8 seconds) to preview presets for 5 seconds each.

Once scan is complete, the previous frequency will be restored. While Scan is operating, pressing the

key will cancel the scan

operation.

SCAN

A.Store

Preset

SEEK

TRACK

K_YD_B3.0_AUDIO_A7MS7H3E00_V7:NC 3/9/2015 11:38 AM Page 7

Features of your vehicle

SIRIUS®Satellite Radio information

Satellite Radio channels:

SIRIUS

Satellite Radio has over 130 channels, including 69 channels of 100% commercial-free music, plus sports, news, talk and entertainment available nationwide in your vehicle. For more information and a complete list of SIRIUS®Satellite Radio channels, visit sirius.com in the United States, sirius-canada.ca in Canada, or call SIRIUS®at 1-888-539-7474.

Satellite Radio reception factors:

To receive the satellite signal, your vehicle has been equipped with a satellite radio antenna located on the roof of your vehicle. The vehicle roof provides the best location for an unobstructed, open view of the sky, a requirement of a satellite radio system. Like AM/FM, there are several factors that can affect satellite radio reception performance:

• Antenna obstructions: For optimal

reception performance, keep the antenna clear of snow and ice build-up and keep luggage and other material as far away from the antenna as possible.

• Terrain: Hills, mountains, tall buildings, bridges, tunnels, freeway overpasses, parking garages, dense tree foliage and thunderstorms can interfere with your reception.

SIRIUS

Satellite Radio service:

SIRIUS

Satellite Radio is a subscription-based satellite radio service that broadcasts music, sports, news and entertainment programming to radio receivers, which are available for installation in motor vehicles or factory installed, as well as for the home, portable and wireless devices, and through an Internet connection on personal computer.

Vehicles that are equipped with a factory installed SIRIUS

Satellite

Radio system include:

• Hardware and an introductory trial

subscription term, which begins on the date of sale or lease of the vehicle.

• For a small upgrade fee, access to

SIRIUS

music channels, and other select channels over the Internet using any computer connected to the Internet (U.S. customers only). For information on extended subscription terms, contact SIRIUS®at 1-888-539-7474.tact SIRIUS®at 1888-539-7474.

NOTE: SiriusXM service requires a sub-

scription, sold separately, after 3month trial included with vehicle purchase. If you decide to continue your SiriusXM service at the end of your trial subscription, the plan you choose will automatically renew and bill at then-current rates until you call Sirius XM at 1866-635-2349 to cancel. See our Customer Agreement for complete terms at www.siriusxm.com. Programming subject to change. Sirius satellite service is available only to those at least 18 and older in the 48 contiguous USA, D.C., and PR (with coverage limitations). Traffic information not available in all markets. See siriusxm.com/traffic for details. Sirius, XM and all related marks and logos are trademarks of Sirius XM Radio Inc

K_YD_B3.0_AUDIO_A7MS7H3E00_V7:NC 3/9/2015 11:38 AM Page 8

4 9

Features of your vehicle

SIRIUS® RADIO MODE

Basic Mode Screen

1. Mode Display Displays currently operating mode.

2. Channel Information Displays the category, channel num-

ber, channel name, artist and title information.

3. Preset Displays current playing preset

number ~ .

4. Preset Display Displays saved presets.

5. Info Displays detailed information about

the current broadcast.

Using SIRIUS®Satellite Radio

Your Kia vehicle is equipped with a 3 month complimentary period of SIRIUS®Satellite Radio so you have access to over 130 channels of music, information, and entertainment programming.

Activation

In order to extend or reactivate your subscription to SIRIUS®Satellite Radio, you will need to contact SIRIUS®Customer Care at 800-643-

2112. Have your 12 digit SID (Sirius Identification Number) / ESN (Electronic Serial Number) ready. To retrieve the SID / ESN, turn on the radio, press the key, and tune to channel zero.

Please note that the vehicle will need to be turned on, in Sirius mode, and have an unobstructed view of the sky in order for the radio to receive the activation signal.

RADIO

K_YD_B3.0_AUDIO_A7MS7H3E00_V7:NC 3/9/2015 11:38 AM Page 9

Features of your vehicle

104

Using SEEK

Press the key to play the previous/next channel.

❈ If the “Category” icon is displayed,

channels are changed within the current category.

Using Tune

Turn the TUNE knob to select the desired channel.

SCAN

Press the key to scan all channels with superior reception for 5 seconds each. Once scan is complete, the previously played channel will be restored.

During Scan, pressing the key again will cancel the scan operation and restore the previously played channel.

If the “Category” icon is displayed, channels are changed within the current category.

Searching Categories

Select the category by using the

key and press the TUNE

knob to select.

Channels for the selected category are played.

✽ TROUBLESHOOTING

1. Antenna Error

If this message is displayed, the antenna or antenna cable is broken or unplugged. Please consult with your Kia dealership.

2. No Signal

If this message is displayed, it means that the antenna is covered and that the SIRIUS

Satellite Radio signal is not available. Ensure the antenna is uncovered and ha s a clear view of the sky.

SEEK

TRACK

CAT

FOLDER

SCAN

K_YD_B3.0_AUDIO_A7MS7H3E00_V7:NC 3/9/2015 11:38 AM Page 10

4 11

Features of your vehicle

Selecting Presets/Saving Presets

Press the button to display the broadcast information for the channel saved to each button.

Press the ~ buttons to play the desired preset.

✽ NOTICE

While listening to a channel you want to save as a preset, press and hold one of the

preset buttons (over

0.8 seconds) to save the current channel to the selected preset.

✽ NOTICE - USING CDs

• This device has been manufactured to be compatible with software bearing the following logo marks.

• Do not clean discs with chemical solutions, such as record sprays, antistatic sprays, antistatic liquids, benzene, or thinners.

• After using a disc, put the disc back in its original case to prevent disc scratches.

• Hold discs by their edges or within the center hole to prevent damages to disc surfaces.

• Do not introduce foreign substances into the disc insert/eject slot. Introducing foreign substances could damage the device interior.

• Do not insert two discs simultaneously.

• When using CD-R/CD-RW discs, differences in disc reading and playing times may occur depending on the disc manufacturer, production method and the recording method as used by the user.

(Continued)

• Clean fingerprints and dust off the disc surface (coated side) with a soft cloth.

• The use of CD-R/CD-RW discs attached with labels may result in disc slot jams or difficulties in disc removal. Such discs may also result in noise while playing.

• Some CD-R/CD-RW discs may not properly operate depending on the disc manufacturer, production method and the record method as used by the user. If problems persist, trying using a different CD as continued use may result in malfunctions.

• The performance of this product may differ depending on the CD-RW Drive Software.

• Copy-protected CDs such as S-type CDs may not function in the device. DATA discs cannot be played. (However, such discs may still operate but will do so abnormally.)

(Continued)

Preset

K_YD_B3.0_AUDIO_A7MS7H3E00_V7:NC 3/9/2015 11:38 AM Page 11

Features of your vehicle

124

(Continued)

• Do not use abnormally shaped discs (8cm, heart-shaped, octagon-shaped) as such discs could lead to malfunctions.

• If the disc is straddled on the disc slot without removal for 10 seconds, the disc will automatically be reinserted into the disc player.

• Only genuine audio CDs are supported. Other discs may result in recognition failure. (e.g. copy CD-R, CDs with labels)

MEDIA MODE

Pressing the key will change the operating mode in order of CD

➟

USB(iPod®) ➟ AUX ➟ My Music

➟

BT Audio.

If is turned on within

, then pressing the

key will display the Media

Mode Pop up screen. Turn the TUNE knob to move the

focus. Press the knob to select.

✽ NOTICE

• The media Mode Pop up screen can be displayed only when there are two or more media modes turned on.

Title Icon

When a

Bluetooth

Wireless Technology, iPod®, USB, or AUX device is connected or a CD is inserted, the corresponding mode icon will be displayed.

Icon Title

Bluetooth

Wireless Technology CD iPod

USB AUX

Display

Mode Pop up

SETUP

MEDIA

K_YD_B3.0_AUDIO_A7MS7H3E00_V7:NC 3/9/2015 11:38 AM Page 12

4 13

Features of your vehicle

AUDIO CD MODE

Basic Mode Screen

1. Mode Displays currently operating mode.

2. Operation State From Repeat/Shuffle/Scan, displays the

currently operating function.

3. Track Info Displays information about the cur-

rent track.

4. Play/Pause Changes the play/pause state.

5. Play Time Displays the current play time.

6. Info Shows detailed information about

the current track.

7. Shuffle Turns the Shuffle feature on/off.

8. Repeat Turns the Repeat feature on/off.

9. List Moves to the list screen.

K_YD_B3.0_AUDIO_A7MS7H3E00_V7:NC 3/9/2015 11:38 AM Page 13

Features of your vehicle

144

Using Audio CD Mode

Playing/Pausing CD Tracks

Once an audio CD is inserted, the mode will automatically start and begin playing.

While playing, press the button to pause and press button to play.

✽ NOTICE

• Only genuine audio CDs are supported. Other discs may result in recognition failure (e.g. copy CD-R, CDs with labels)

• The artist and title information are displayed on the screen if track information is included within the audio CD.

Changing Tracks

Press the key to move to the previous or next track.

✽ NOTICE

• Pressing the key after the track has been playing for 2 seconds will start the current track from the beginning.

• Pressing the key before the track has been playing for 1 second will start the previous track.

Selecting from the List

Turn the TUNE knob left/right to search for the desired track.

Once you find the desired track, press the TUNE knob to start playing.

Rewinding / Fast-forwarding Tracks

While playing, press and hold the

key (over 0.8 seconds) to rewind or fast-forward the current track.

Scan

Press the key to play the first 10 seconds of each file.

SCAN

SEEK

TRACK

SEEK

TRACK

SEEK

TRACK

SEEK

TRACK

K_YD_B3.0_AUDIO_A7MS7H3E00_V7:NC 3/9/2015 11:38 AM Page 14

4 15

Features of your vehicle

Audio CD Mode Menu

Within this mode, you will have access to the Info, Shuffle, Repeat and List features.

Info

Press the button to display details about the current disc.

Shuffle

Press the button to play tracks in shuffle order.

Press the button again to turn the Shuffle feature off.

• Shuffle : Plays all tracks in shuffle order.

Repeat

Press the button to repeat the current track. Press the button again to turn the repeat feature off.

• Repeat : Repeats the current track.

List

Press the button to display the track list screen.

Turn the TUNE knob left/right to search for tracks. Once the desired track is displayed, press the knob to select and play.

Shuffle

List

Repeat

Shuffle

Info

K_YD_B3.0_AUDIO_A7MS7H3E00_V7:NC 3/9/2015 11:38 AM Page 15

Features of your vehicle

164

MP3 CD MODE

Basic Mode Screen

1. Mode

Displays currently operating mode.

2. Operation State

From Repeat /Shuffle /Scan, displays the currently operating function.

3. File Index

Displays the current file number.

4. File Info Displays information about the cur-

rent file.

5. Play/Pause Changes the play/pause state.

6. Play Time Displays the current play time.

7. Info Shows detailed information about

the current file.

8. Shuffle Turns the Shuffle feature on/off.

9. Repeat Turns the Repeat feature on/off.

10. Copy Copies the current file into My Music

11. List Moves to the list screen.

K_YD_B3.0_AUDIO_A7MS7H3E00_V7:NC 3/9/2015 11:39 AM Page 16

4 17

Features of your vehicle

Using MP3 CD Mode

Playing/Pausing MP3 Files

Once an MP3 disc is inserted the mode will automatically start and being playing.

While playing, press the button to pause and press button to play.

✽ NOTICE

If there are numerous files and folders within the disc, reading time could take more than 10 seconds and the list may not be displayed or song searches may not operate. Once loading is complete, try again.

Changing Files

Press the key to move to the previous or next file.

✽ NOTICE

• Pressing the key after the file has been playing for 2 seconds will start the current file from the beginning.

• Pressing the key before the file has been playing for 1 second will start the previous file.

Selecting from the List

Turn the TUNE knob left/right to search for the desired file.

Once you find the desired file, press the TUNE knob to start playing.

Rewinding / Fast-forwarding Files

While playing, press and hold the

key (over 0.8 seconds) to

rewind or fast-forward the current file.

Scan

Press the key to play the first 10 seconds of each file.

Searching Folders

Press the key to select and search fo lders.

Once the desired folder is displayed, press the TUNE knob to select.

The first file within the selected folder will begin playing.

CAT

FOLDER

SCAN

SEEK

TRACK

SEEK

TRACK

SEEK

TRACK

SEEK

TRACK

K_YD_B3.0_AUDIO_A7MS7H3E00_V7:NC 3/9/2015 11:39 AM Page 17

Features of your vehicle

184

MP3 CD Mode Menu

Within this mode, you will have access to the Info, Shuffle, Repeat, Copy and List features.

Info

Press the button to display details about the current file.

✽ NOTICE

• When the ‘Folder File’ option is set as the default display within Display setup, the album/artist/file information are displayed as detailed file information.

• When the ‘Album Artist Song’ option is set as the default display,

the folder name/file name are dis-

played as detailed file information.

• The title, artist and album info are

displayed only when such information are recorded within the MP3 file ID3 tag.

Shuffle

Press the button to play files in shuffle order.

Each time the button is pressed, the feature changes in order of Shuffle Folder

➟ Shuffle All ➟ Off.

• Shuffle Folder : Plays all files within

the current folder in shuffle order.

• Shuffle All : Plays all files in shuffle order.

Repeat

Press the button to repeat the current file or folder.

Each time the button is pressed, the feature changes in order of Repeat

➟

Repeat Folder ➟ Off.

• Repeat: Repeats the current file.

• Repeat Folder: Repeats all files within the current Folder.

Copying Files

Press the button to copy the current file into My Music.

✽ NOTICE

Selecting another feature during copying will display a pop-up asking whether you wish to cancel copying. To cancel, select “Yes”.

Copy

Repeat

Shuffle

Info

K_YD_B3.0_AUDIO_A7MS7H3E00_V7:NC 3/9/2015 11:39 AM Page 18

4 19

Features of your vehicle

List

Press the button to display the file list screen.

Turn the TUNE knob left/right to search for files. Once the desired file is displayed, press the knob to select and play.

✽ NOTICE - USING THE USB

DEVICE

• Connect the USB device after turning on the engine. The USB device may become damaged if it is already connected when the ignition is turned on.The USB device may not operate properly if the car ignition is turned on or off with the USB device connected.

• Heed caution to static electricity when connecting/disconnecting USB devices.

• Encoded MP3 Players will not be recognized when connected as an external device.

• When connecting an external USB device, the device may not properly recognize the USB is in some states.

• Only products formatted with byte/sectors under 64Kbyte will be recognized.

• This device recognizes USB devices formatted in FAT 12/16/32 file formats. This device does not recognize files in NTFS file format.

(Continued)

• Some USB devices may not be supported due to compatibility issues.

• Avoid contact between the USB connector with bodily parts or foreign objects.

• Repeated connecting/disconnecting of USB devices within short periods of time may result in product malfunction.

• A strange noise may occur when disconnecting the USB.

• Make sure to connect/disconnect external USB devices with the audio power turned off.

• The amount of time required to recognize the USB device may differ depending on the type, size or file formats stored in the USB. Such differences in time are not indications of malfunctions.

• The device only supports USB devices used to play music files.

• USB images and videos are not supported.

(Continued)

List

K_YD_B3.0_AUDIO_A7MS7H3E00_V7:NC 3/9/2015 11:39 AM Page 19

Features of your vehicle

204

(Continued)

• Do not use the USB I/F to charge batteries or USB accessories that generate heat. Such acts may lead to worsened performance or damage to the device.

• The device may not recognize the USB device if separately purchased USB hubs and extension cables are being used. Connect the USB directly with the multimedia terminal of the vehicle.

• When using mass storage USB devices with separate logical drives, only files saved to the root drive can be played.

• Files may not properly operate if application programs are installed to the USBs.

• The device may not operate normally if MP3 Players, cellular phones, digital cameras, or other electronic devices (USB devices not recognized as portable disk drives) are connected with the device.

(Continued)

• Charging through the USB may not work for some mobile devices.

• The device may not support normal operation when using a USB memory type besides (Metal Cover Type) USB Memory.

• The device may not support normal operation when using formats such as HDD Type, CF, or SD Memory.

• The device will not support files locked by DRM (Digital Rights Management.)

• USB memory sticks used by connecting an Adaptor (SD Type or CF Type) may not be properly recognized.

• The device may not operate properly when using USB HDDs or USBs subject to connection failures caused by vehicle vibrations. (e.g. i-stick type)

(Continued)

• Avoid use of USB memory products that can also be used as key chains or mobile phone accessories. Use of such products may cause damage to the USB jack.

• Connecting an MP3 device or phone through various channels, such as AUX/BT or Audio/ USB mode may result in pop noises or abnormal operation.

K_YD_B3.0_AUDIO_A7MS7H3E00_V7:NC 3/9/2015 11:39 AM Page 20

4 21

Features of your vehicle

USB MODE

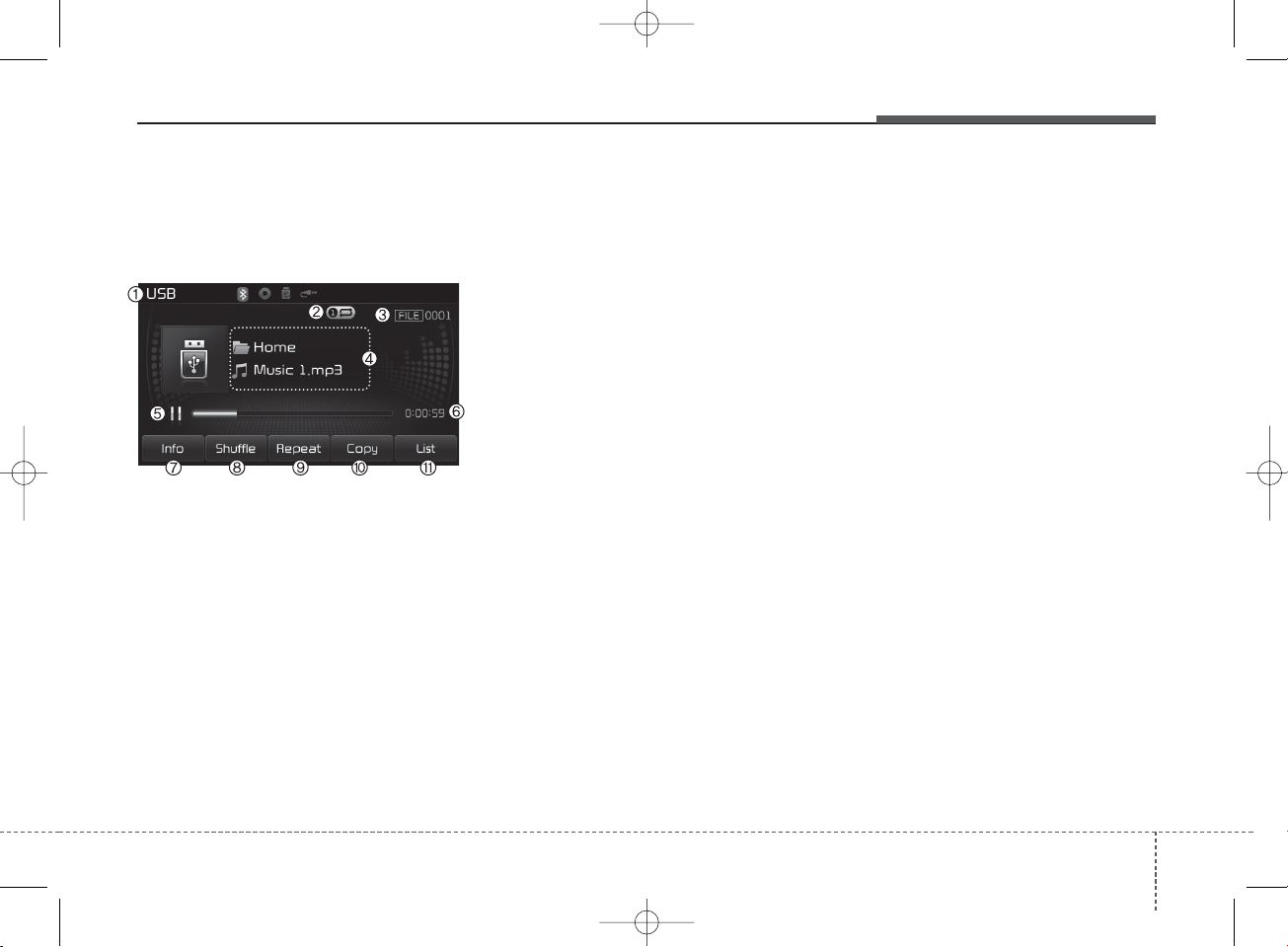

Basic Mode Screen

1. Mode Displays currently operating mode.

2. Operation State From Repeat/Shuffle/Scan, displays the

currently operating function.

3. File Index Displays the current file number.

4. File Info Displays information about the cur-

rent file.

5. Play/Pause Changes the play/pause state.

6. Play Time Displays the current play time.

7. Info Displays detailed information for the

current file.

8. Shuffle Turns the Shuffle feature on/off.

9. Repeat Turns the Repeat feature on/off.

10. Copy Copies the current file into My Music.

11. List Moves to the list screen.

K_YD_B3.0_AUDIO_A7MS7H3E00_V7:NC 3/9/2015 11:39 AM Page 21

Features of your vehicle

224

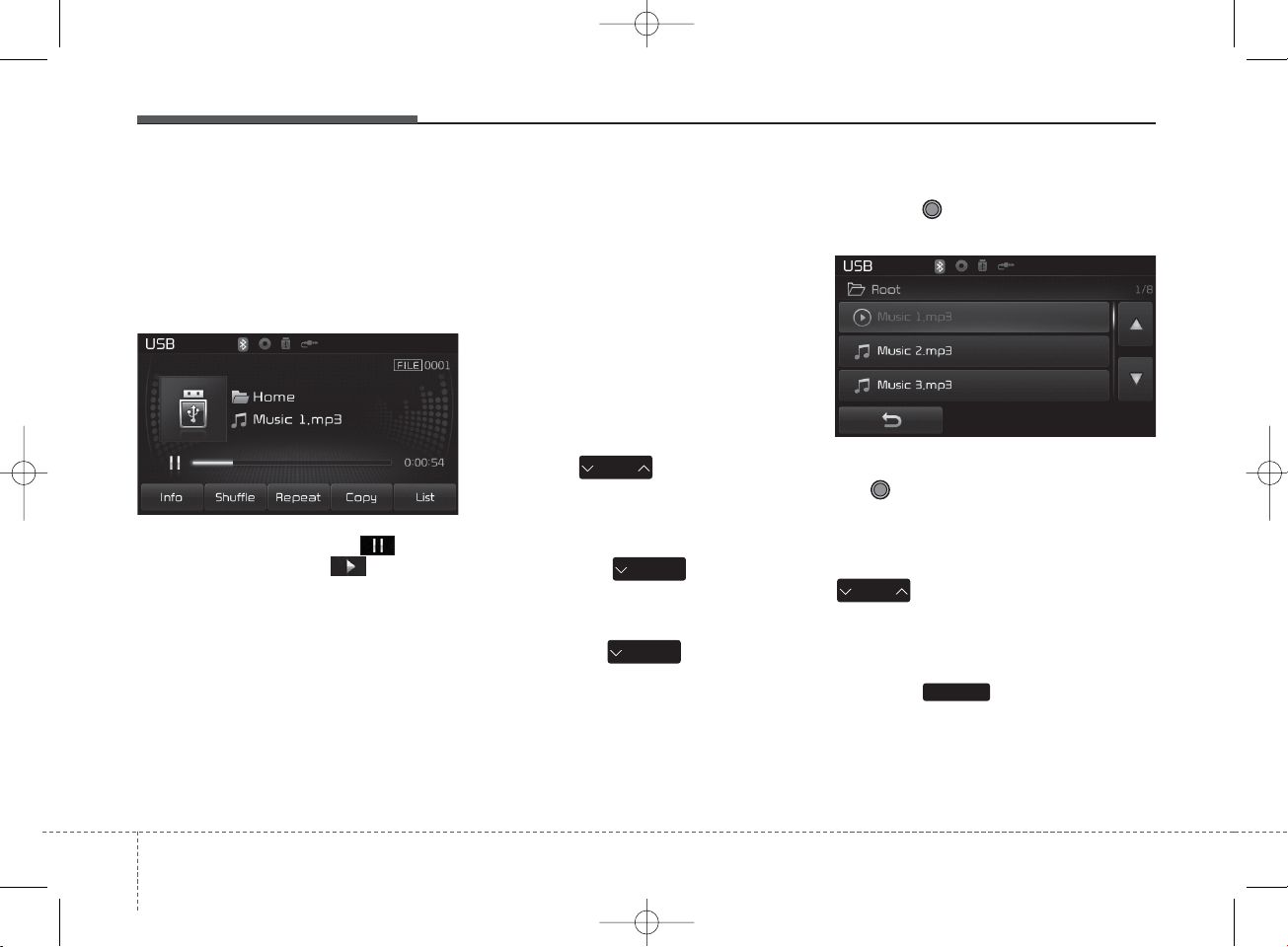

Using USB Mode

Playing/Pausing USB Files

Once a USB is connected, the mode will automatically start and begin playing a USB file.

While playing, press the button to pause and press button to play.

✽ NOTICE

• Loading may require additional time if there are many files and folders within the USB and result in faulty list display or file searching. Normal operations will resume once loading is complete.

• The device may not support normal operation when using a USB memory type besides (Metal Cover Type) USB Memory.

Changing Files

Press the keys to move to the previous or next file.

✽ NOTICE

• Pressing the key after the file has been playing for 2 seconds will start the current file from the beginning.

• Pressing the key before the file has been playing for 1 second will start the previous file.

Selecting from the List

Turn the TUNE knob left/right to search for the desired file.

Once you find the desired file, press the TUNE knob to start playing.

Rewinding / Fast-forwarding Files

While playing, press and hold the

key (over 0.8 seconds) to

rewind or fast-forward the current file.

Scan

Press the key to play the first 10 seconds of each file.

SEEK

TRACK

SEEK

TRACK

SEEK

TRACK

SCAN

SEEK

TRACK

K_YD_B3.0_AUDIO_A7MS7H3E00_V7:NC 3/9/2015 11:39 AM Page 22

4 23

Features of your vehicle

Searching Folders

Press the key to select and search folders.

Once the desired folder is displayed, press the TUNE knob to select.

The first file within the selected folder will begin playing.

USB Mode Menu

Within this mode, you will have access to the Info, Shuffle, Repeat, Copy and List features.

Info

Press the button to display details about the current file.

✽ NOTICE

• When the ‘Folder File’ option is set as the default display within Display setup, the album/artist/file information are displayed as detailed file information.

• When the ‘Album Artist Song’ option is set as the default display, the folder name/file name are displayed as detailed file information.

• The title, artist and album info are displayed only when such informa-

tion are recorded within the MP3 file ID3 tag.

Shuffle

Press the button to play files in shuffle order.

Each time the button is pressed, the feature changes in order of Shuffle Folder

➟ Shuffle All ➟ Off.

• Shuffle Folder : Plays the files in the

current folder in shuffle order.

• Shuffle All : Plays all files in shuffle

order.

CAT

FOLDER

Shuffle

Info

K_YD_B3.0_AUDIO_A7MS7H3E00_V7:NC 3/9/2015 11:39 AM Page 23

Features of your vehicle

244

Repeat

Press the button to repeat the current file or folder.

Each time the button is pressed, the feature changes in order of Repeat➟ Repeat Folder ➟ Off.

• Repeat : Repeats the current file.

• Repeat Folder : Repeats all files wi t hi n the current folder.

Copying Files

Press the button to copy the current file into My Music.

✽ NOTICE

Selecting another feature during copying will display a pop-up asking whether you wish to cancel copying. To cancel, select “Yes”.

List

Press the button to display the file list screen.

Turn the TUNE knob left/right to search for files. Once the desired file is displayed, press the knob to select and play.

Repeat List

Copy

K_YD_B3.0_AUDIO_A7MS7H3E00_V7:NC 3/9/2015 11:39 AM Page 24

4 25

Features of your vehicle

✽ NOTICE - USING THE

iPod

DEVICE

• iPod®is a registered trademark of Apple Inc.

• In order to use the iPod®while operating the keys, you must use a dedicated iPod®cable. (the cable that is supplied when purchasing iPod®/iPhone®products)

• If the iPod®is connected to the vehicle while it is playing, a high pitch sound could occur for approximately 1-2 seconds immediately after connecting. If possible, connect the iPod®to the vehicle with the iPod®stopped/paused.

• During ACC ON state, connecting the iPod®through the iPod®cable will charge the iPod®through the car audio system.

• When connecting with the iPod

cable, make sure to fully insert the jack to prevent communication interference.

(Continued)

• When the EQ features of an external device, such as the iPod

, and the audio system are both active, EQ effects could overlap and cause sound deterioration and distortion. Whenever possible, turn off the EQ feature within the external device upon use by connecting with the audio system.

• Noise may occur when an iPod®or AUX device is connected. When such devices are not being used, disconnect the device for storage.

• When the iPod®or AUX device power is connected to the power jack, playing the external device may result in noise. In such cases, disconnect the power connection before use.

• Skipping or improper operation may occur depending on the characteristics of your iPod® /iPhone

device.

(Continued)

• If your iPhone®is connected to both the Bluetooth®Wireless Technology and USB, the sound may not be properly played. In your iPhone®, select the Dock connector or Bluetooth®Wireless Technology to change the sound output (source).

• iPod®mode cannot be operated when the iPod®cannot be recognized due to versions that do not support communication protocols.

• For fifth generation iPod®Nano devices, the iPod®may not be recognized when the battery level is low. Please charge the iPod®for use.

• Search/play orders shown within the iPod®device may differ with the orders shown within the audio system.

• If the iPod®malfunctions due to an iPod®device defect, reset the iPod

and try again. (To learn more, refer to your iPod®manual)

(Continued)

K_YD_B3.0_AUDIO_A7MS7H3E00_V7:NC 3/9/2015 11:39 AM Page 25

Features of your vehicle

264

iPod®MODE

Basic Mode Screen

1. Mode Displays currently operating mode.

2. Operation State From Repeat/Shuffle, displays the cur-

rently operating function.

3. Song Index Displays the current song/total num-

ber of songs.

4. Song Info Displays information about the cur-

rent song.

5. Play/Pause Changes the play/pause state.

6. Play Time Displays the current play time.

7. Shuffle Turns the Shuffle feature on/off.

8. Repeat Turns the Repeat feature on/off.

9. List Moves to the list screen.

(Continued)

• Some iPod®may not sync with the System depending on its version. If the Media is removed before the Media is recognized, then the system may not properly restore the previously operated mode. (iPad

charging is not supported.)

K_YD_B3.0_AUDIO_A7MS7H3E00_V7:NC 3/9/2015 11:39 AM Page 26

4 27

Features of your vehicle

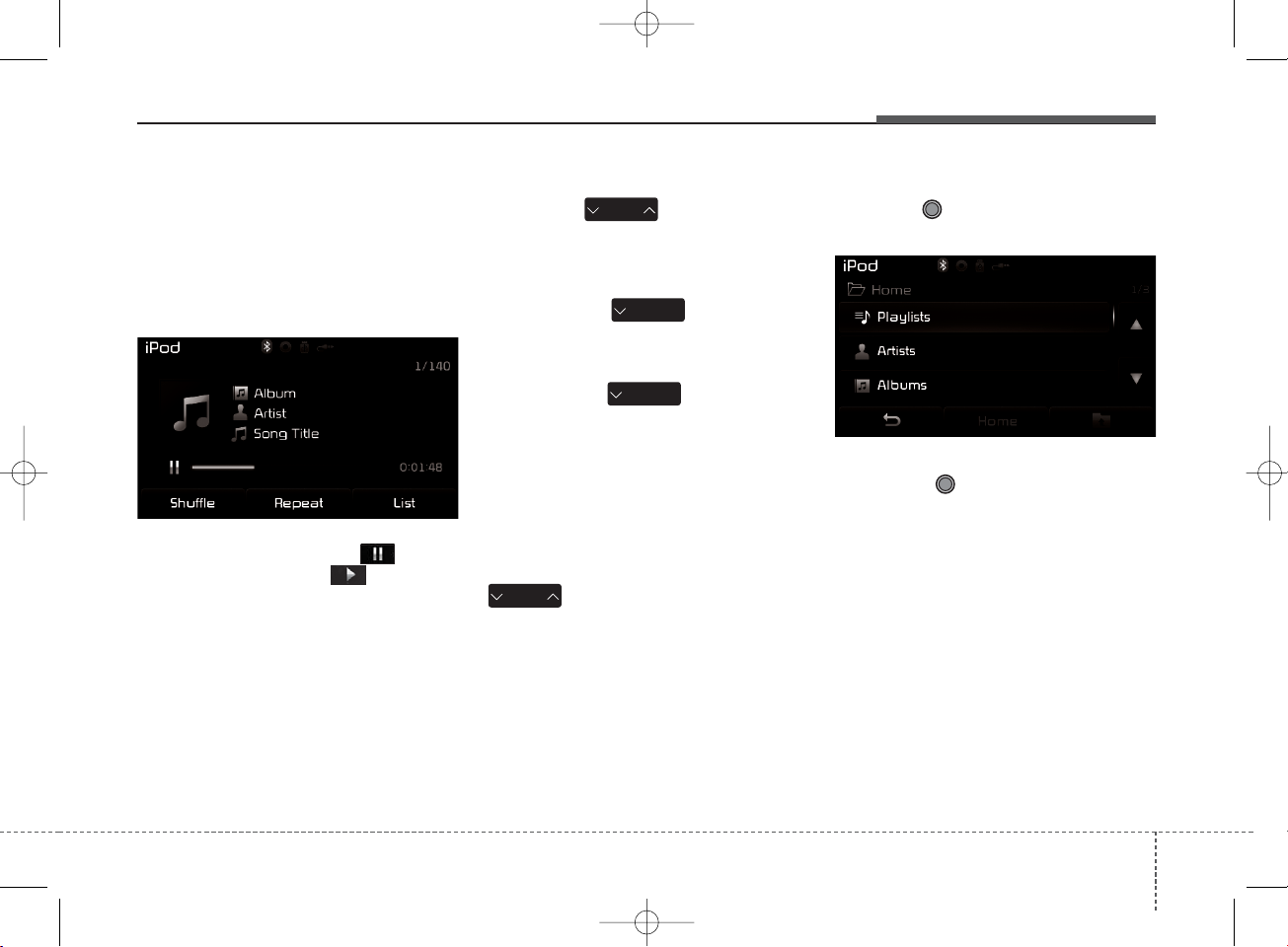

Using iPod®Mode

Playing/Pausing iPod®Songs

Once an iPod®is connected, the mode will automatically start and begin playing an iPod®song.

While playing, press the button to pause and press button to play.

✽ NOTICE

iPod®with unsupported communication protocols may not properly operate in the audio system.

Changing Songs

Press the key to move to the previous or next song.

✽ NOTICE

• Pressing the key after the song has been playing for 2 seconds will start the current song from the beginning.

• Pressing the key before the song has been playing for 1 second will start the previous song.

• Slight time differences may exist depending your iPod®product.

Rewinding / Fast-forwarding Songs

While playing, press and hold the

key (over 0.8 seconds) to rewind or fast-forward the current song.

Searching Categories

Turn the TUNE knob left/right to search for the desired category.

Once you find the desired category, press the TUNE knob to select and play.

✽ NOTICE

There are eight categories that can be searched, including Playlists, Artists, Albums, Genres, Songs, Composers, Audiobooks and Podcasts.

SEEK

TRACK

SEEK

TRACK

SEEK

TRACK

SEEK

TRACK

K_YD_B3.0_AUDIO_A7MS7H3E00_V7:NC 3/9/2015 11:39 AM Page 27

Features of your vehicle

284

Category Menu

Within the iPod®Category menu, you will have access to the ,

, and features.

1. : Displays the play screen

2. : Moves to the iPod

root cat-

egory screen

3. : Moves to the previous category

✽ NOTICE

• If the search mode is accessed while

playing a song, the most recently searched category is displayed.

• Search steps upon initial connection

may differ depending on the type of iPod®device.

iPod®Mode Menu

Within this mode, you will have access to the Shuffle, Repeat and List features.

Shuffle

Press the button to play songs in shuffle order.

Each time the button is pressed, the feature changes in order of Shuffle All

➟ Off ➟ Shuffle All.

• Shuffle All : Plays all songs in shuffle order.

Repeat

Press the button to repeat the current song. Press the button again to turn the repeat feature off.

• Repeat : Repeats the current song

List

Press the button to display the Category Menu.

Turn the TUNE knob left/right to search for the desired category.

Once you find the desired category, press the TUNE knob to select and play.

Home

List

Repeat

Shuffle

Home

K_YD_B3.0_AUDIO_A7MS7H3E00_V7:NC 3/9/2015 11:39 AM Page 28

4 29

Features of your vehicle

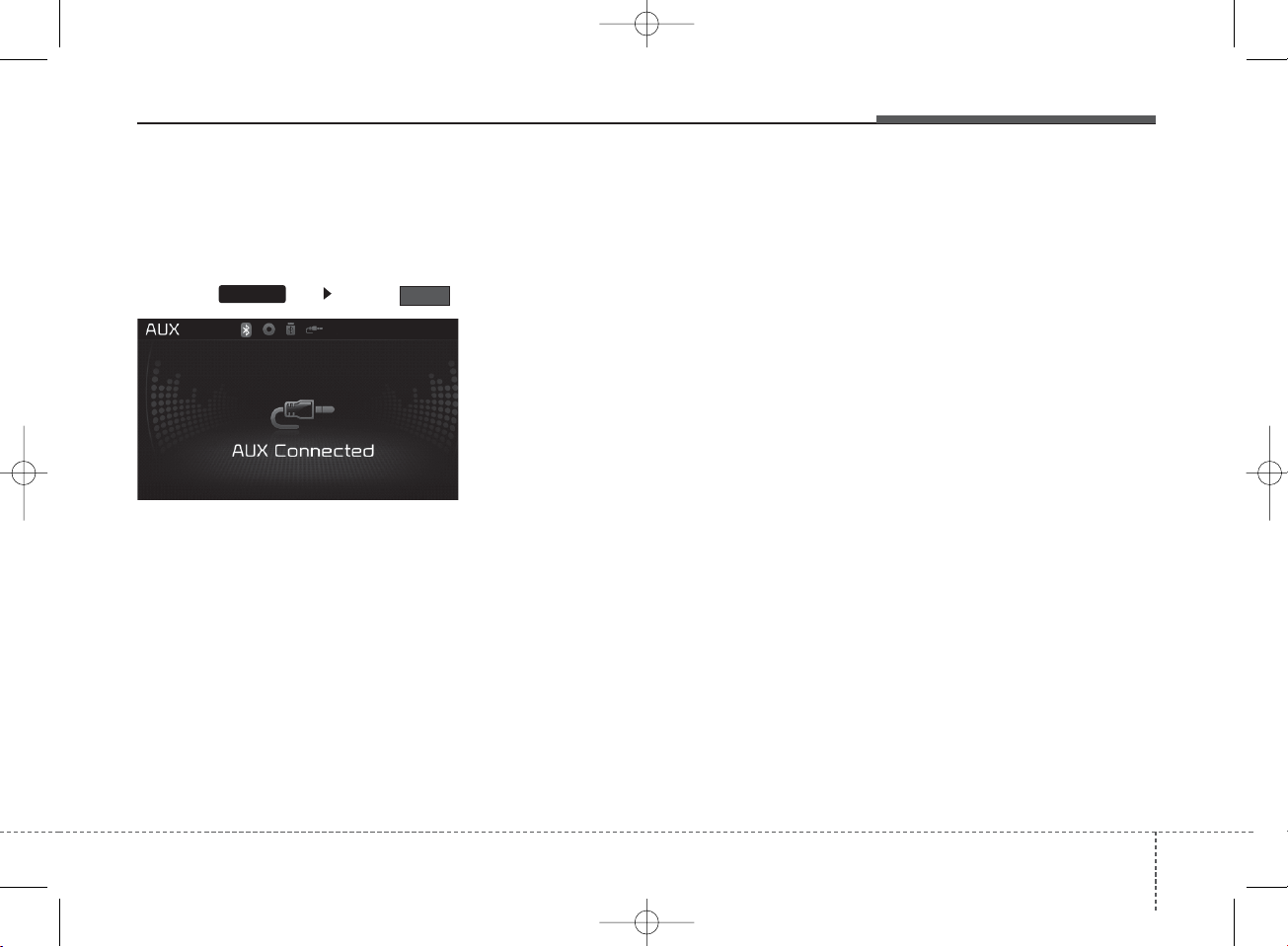

AUX MODE

Using AUX Mode

Press the key Select

An external device can be connected to play music.

Connecting an External Device

External audio players (Camcorders, car VCR, etc.) can be played through a dedicated cable.

✽ NOTICE

• If an external device connector is connected with the AUX terminal, then AUX mode will automatically operate. Once the connector is disconnected, the previous mode will be restored.

• AUX mode can be used only when an external audio player (camcorder, car VCR, etc.) has been connected.

• The AUX volume can be controlled separately from other audio modes.

• Connecting a connector jack to the AUX terminal without an external device will convert the system to AUX mode, but only output noise. When an external device is not being used, also remove the connector jack.

• When the external device power is connected to the power jack, playing the external device may output noise. In such cases, disconnect the power connection before use.

• Fully insert the AUX cable to the AUX jack upon use.

AUX

MEDIA

K_YD_B3.0_AUDIO_A7MS7H3E00_V7:NC 3/9/2015 11:39 AM Page 29

Features of your vehicle

304

MY MUSIC MODE

Basic Mode Screen

1. Mode Displays currently operating mode.

2. Operation State From Repeat/Shuffle/Scan, displays the

currently operating function.

3. File Index Displays the current file/total number

of files.

4. File Info Displays information about the cur-

rent file.

5. Play/Pause Changes the play/pause state.

6. Play Time Displays the current play time.

7. Info Displays detailed information for the

current file.

8. Shuffle Turns the Shuffle feature on/off.

9. Repeat Turns the Repeat feature on/off.

10. Delete Deletes the current file.

11. List

Moves to the list screen.

K_YD_B3.0_AUDIO_A7MS7H3E00_V7:NC 3/9/2015 11:39 AM Page 30

4 31

Features of your vehicle

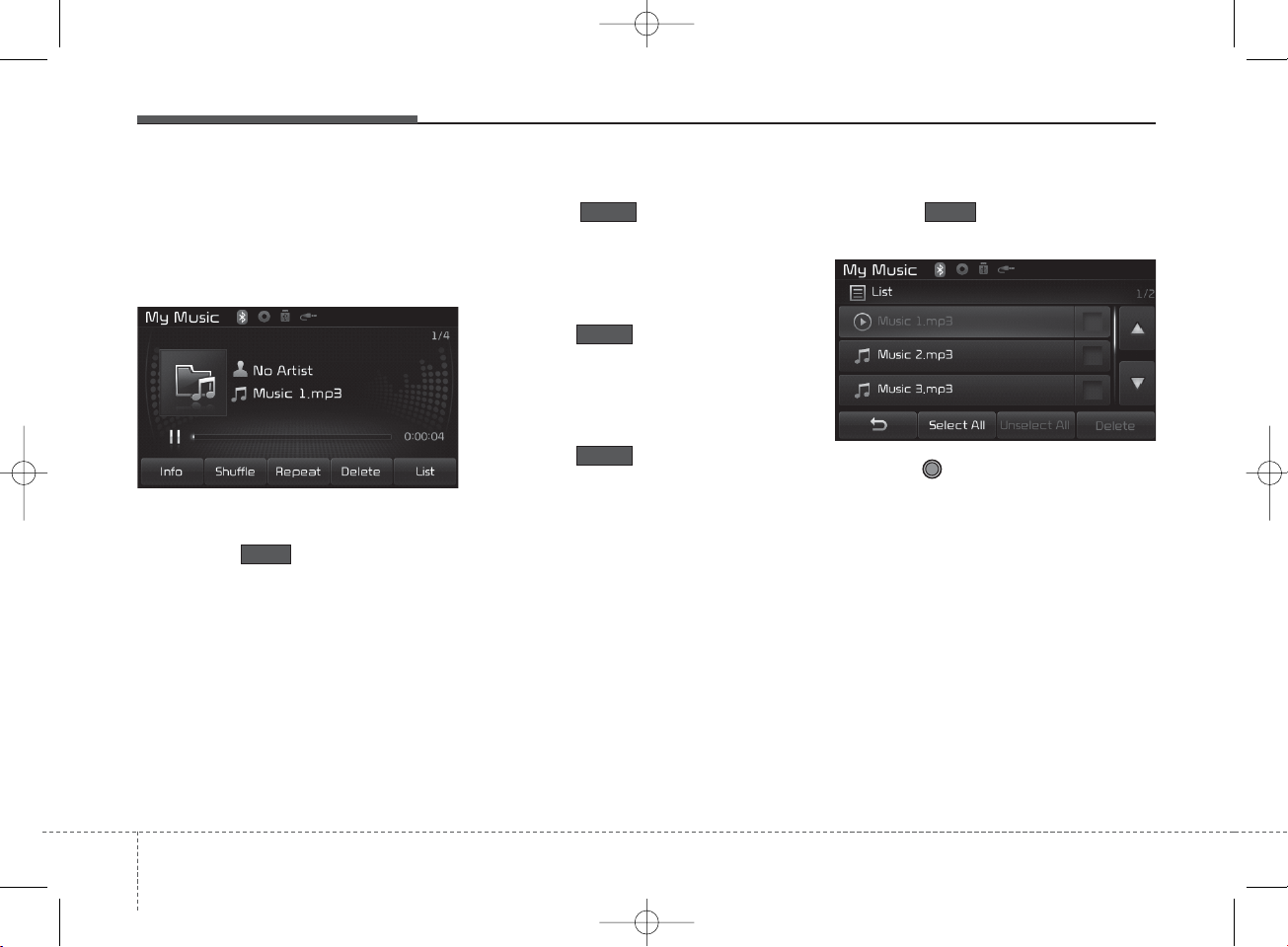

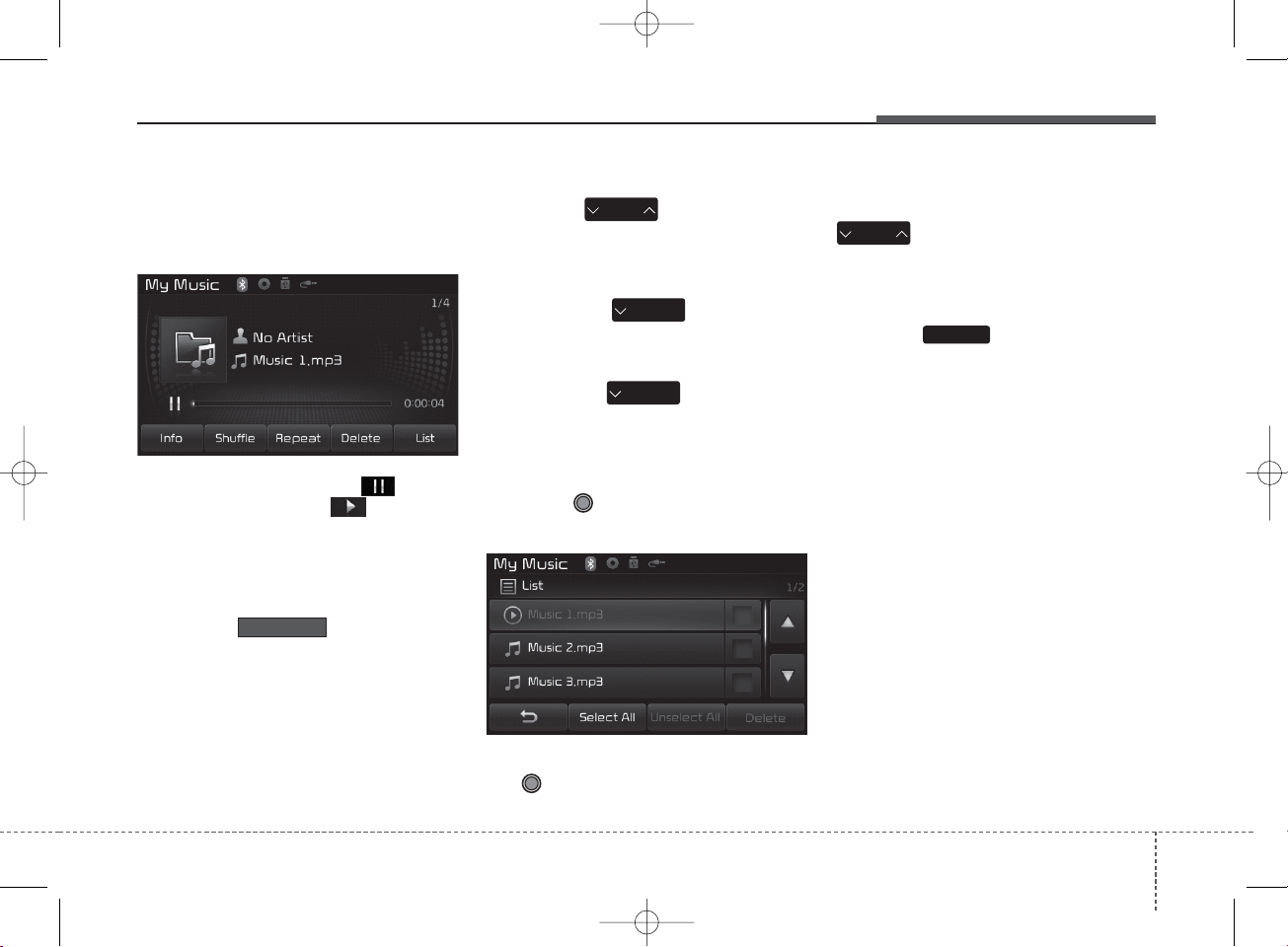

Using My Music Mode

Playing/Pausing My Music Files

While playing, press the button to pause and press button to play.

✽ NOTICE

If there are no files saved within My Music, the button will be disabled.

Changing Files

Press the key to move to the previous or next file.

✽ NOTICE

• Pressing the key after the file has been playing for 2 seconds will start the current file from the beginning.

• Pressing the key before the file has been playing for 1 second will start the previous file.

Selecting from the List

Turn the TUNE knob left/right to search for the desired file.

Once you find the desired file, press the TUNE knob to start playing.

Rewinding / Fast-forwarding Files

While playing, press and hold the

key (over 0.8 seconds) to

rewind or fast-forward the current file.

Scan

Press the key to play the first 10 seconds of each file.

My Music

SEEK

TRACK

SEEK

TRACK

SEEK

TRACK

SEEK

TRACK

SCAN

K_YD_B3.0_AUDIO_A7MS7H3E00_V7:NC 3/9/2015 11:40 AM Page 31

Features of your vehicle

324

My Music Mode Menu

Within this mode, you will have access to the Info, Shuffle, Repeat, Delete and List features.

Info

Press the button to display details about the current file.

✽ NOTICE

The title, artist and album info are displayed only when such information is recorded within the MP3 file ID3 tag.

Shuffle

Press the button to play files in shuffle order. Press the button again to turn the Shuffle feature off.

Repeat

Press the button to repeat the current song. Press the button again to turn the repeat feature off.

Deleting Files

Press the button to delete the current file.

List

Press the button to display the file list screen.

Turn the TUNE knob left/right to search for files. Once the desired file is displayed, press the knob to select and play.

List

Delete

Repeat

Shuffle

Info

K_YD_B3.0_AUDIO_A7MS7H3E00_V7:NC 3/9/2015 11:40 AM Page 32

4 33

Features of your vehicle

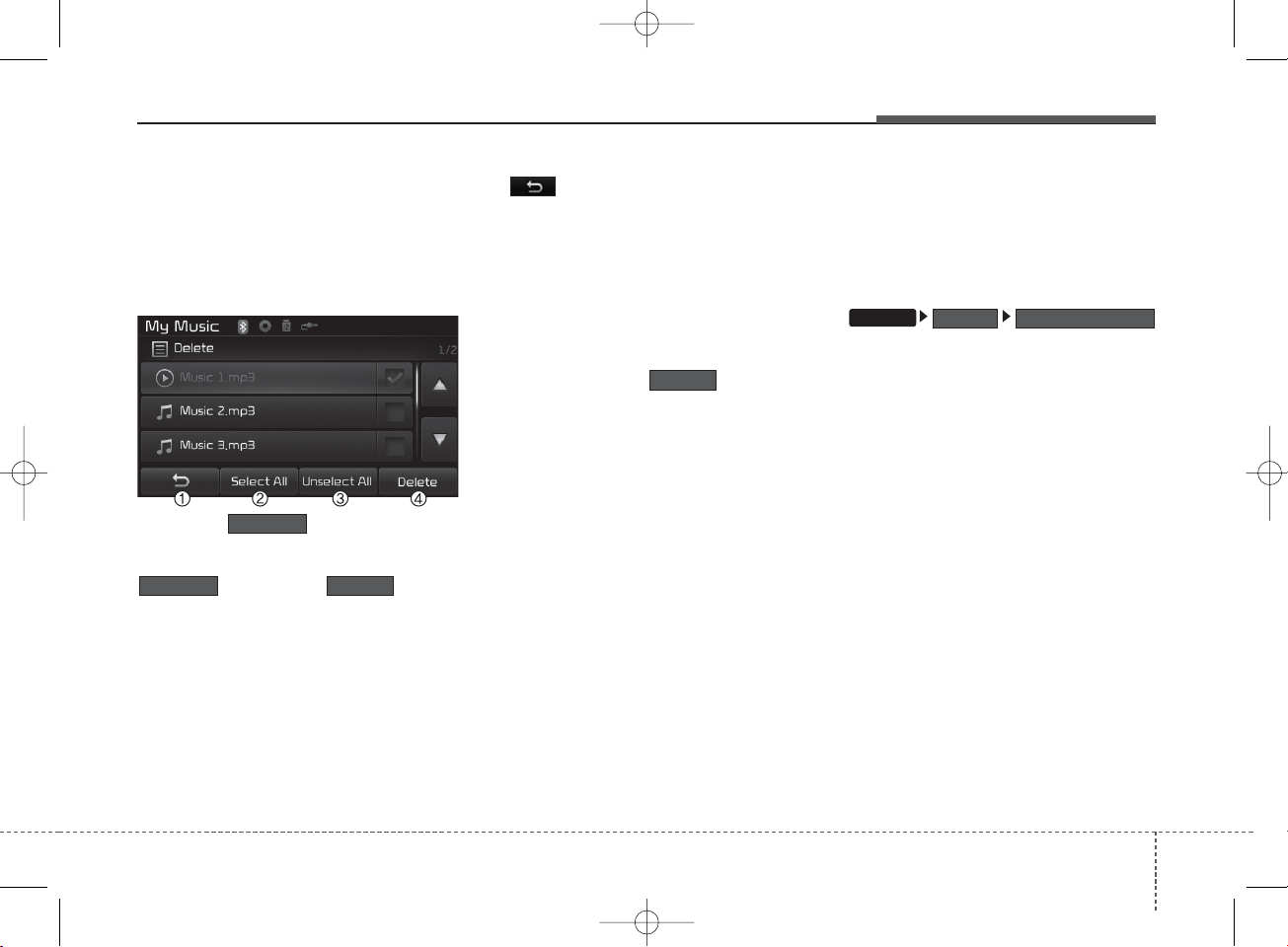

List Menu

From the List screen, it is possible to delete files you previously saved into My Music.

Press the button or individually select the files you want to delete. Once files are selected, the

button and button

will be enabled.

1) : Moves to the previous

screen

2) Select All : Selects all files

3) Unselect All : Deselects all select-

ed files

4) Delete : Deletes selected files

After selecting the files you want to delete, press the button to delete the selected files.

✽ NOTICE

• If there is memory available, up to 6,000 files can be saved.

• Identical files cannot be copied more than 1,000 times.

• To check memory information, go to

Memory InformationSystem

Delete

Unselect All

Select All

Delete

SETUP

K_YD_B3.0_AUDIO_A7MS7H3E00_V7:NC 3/9/2015 11:40 AM Page 33

Features of your vehicle

344

✽ NOTICE - USING THE

Bluetooth

Wireless

Technology Audio Mode

• Bluetooth®Wireless Technology Audio Mode can be used only when a

Bluetooth®Wireless Technology

phone has been connected.

• Bluetooth®Wireless Technology Audio Mode will not be available when connecting mobile phones that do not support this feature.

• While Bluetooth®Wireless Technology Audio is playing, if the Bluetooth

Wireless Technology phone is connected, then the music will also stop.

• Moving the Track up/down while playing Bluetooth®Wireless Technology audio mode may result in pop noises in some mobile phones.

• Bluetooth®Wireless Technology streaming audio may not be supported in some mobile phones.

(Continued)

• When returning to Bluetooth

Wireless Technology Audio mode after ending a call, the mode may not automatically restart in some mobile phones.

• Receiving an incoming call or making an outgoing call while playing

Bluetooth®Wireless Technology Audio

may result in audio interference.

K_YD_B3.0_AUDIO_A7MS7H3E00_V7:NC 3/9/2015 11:40 AM Page 34

4 35

Features of your vehicle

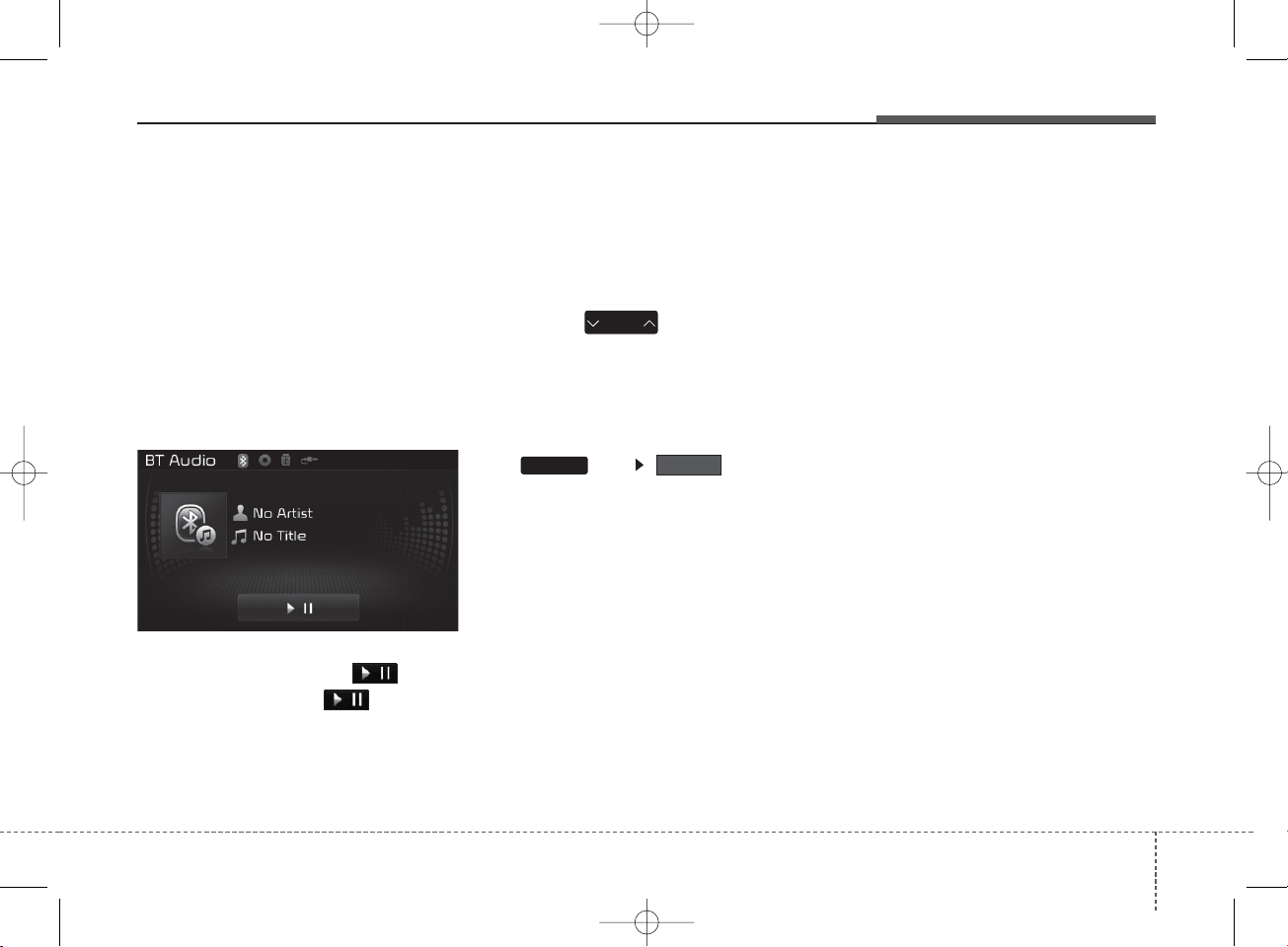

Bluetooth

Wireless

Technology AUDIO MODE

Using

Bluetooth

Wireless

Technology Audio Mode

Playing/Pausing Bluetooth

Wireless Technology Audio

Once a

Bluetooth

Wireless Technology device is connected, the mode will automatically start.

While playing, press the button to pause and press

button to

play.

✽ NOTICE

The play/pause feature may operate differently depending on the mobile phone.

Changing Files

Press the key to move to the previous or next file.

Setting Connection

If a

Bluetooth

Wireless Technology device has not been connected, press the key button to display the

Bluetooth

Wireless

Technology connection screen. It is possible to use the pair phone,

connect/disconnect and delete features from your

Bluetooth

Wireless

Technology phone.

✽ NOTICE

• If music is not yet playing from your mobile device after converting to

Bluetooth®Wireless Technology Audio

mode, pressing the play button once may start playing the mode. Check to see that music is playing from the

Bluetooth®Wireless Technology device

after converting to Bluetooth®Wireless Technology Audio Mode.

Phone

SEEK

TRACK

SETUP

K_YD_B3.0_AUDIO_A7MS7H3E00_V7:NC 3/9/2015 11:40 AM Page 35

Features of your vehicle

364

Pairing a

Bluetooth

Wireless

Technology Device

What is Bluetooth® Wireless Technology Pairing?

Pairing refers to the process of synchronizing your

Bluetooth

Wireless Technology phone or device with the car audio system for connection. Pairing is necessary to connect and use the

Bluetooth

Wireless Technology

feature.

The Bluetooth®word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Kia is under license. Other trademarks and trade names are those of their respective owners. A Bluetooth

enabled cell phone is

required to use

Bluetooth

Wireless Technology.

Pairing Using the Button or the Steering Wheel Control

Button

When No Devices have been Paired

1. Press the key or the key on the steering remote controller. The following screen is displayed.

2. Press the button to enter the Pair Phone screen.

1) Car Name : Name of device as shown when searching from your

Bluetooth

Wireless Technology

device

2) Passkey : Passkey used to pair the device

3. From your

Bluetooth

Wireless Technology device (i.e. Mobile Phone), search and select your car audio system.

PHONE

K_YD_B3.0_AUDIO_A7MS7H3E00_V7:NC 3/9/2015 11:40 AM Page 36

4 37

Features of your vehicle

[Non SSP supported device] (SSP: Secure Simple Pairing)

4. After a few moments, a screen is displayed where the passkey is entered.

Hear, enter the passkey “0000” to pair your

Bluetooth

Wireless Technology device with the car audio system.

[SSP supported device]

4. After a few moments, a screen is

displayed 6 digits passkey.

Hear, check the passkey on your

Bluetooth

Wireless Technology

device and confirm.

5. Once pairing is complete, the fol-

lowing screen is displayed.

✽ NOTICE

If Bluetooth®Wireless Technology devices are paired but none are currently connected, pressing the key or the key on the steering wheel displays the following screen. Press the button to pair a new device or press the to connect a previously paired device.

Pairing through [PHONE] Setup

Press the key Select

Select Select

TUNE knob

1. The following steps are the same as those described in the section "When No Devices have been Paired" on the previous page.

Connect

Pair

Phone

Pair Phone

SETUP

PHONE

K_YD_B3.0_AUDIO_A7MS7H3E00_V7:NC 3/9/2015 11:40 AM Page 37

Features of your vehicle

384

✽ NOTICE

• Bluetooth®Wireless Technology features supported within the vehicle are as follows. Some features may not be supported depending on your

Bluetooth®Wireless Technology device.

- Outgoing/Incoming Handsfree calls

- Operations during a call (Switch to

Private, Switch to call waiting, MIC on/off)

- Downloading Call History

- Downloading Mobile Contacts

- Bluetooth®Wireless Technology

device auto connection

- Bluetooth Audio Streaming

• Up to five Bluetooth®Wireless Technology devices can be paired to the Car Handsfree system.

• Only one Bluetooth®Wireless Technology device can be connected at a time.

• Other devices cannot be paired while a

Bluetooth®Wireless Technology device is

connected.

• Only Bluetooth®Wireless Technology Handsfree and Bluetooth audio related features are supported.

(Continued)

• Bluetooth related operations are possible only with devices that support Handsfree or audio features, such as a Bluetooth

Wireless Technology mobile phone or a Bluetooth audio device.

• If a connected Bluetooth®Wireless Technology device becomes disconnected due to being out of communication range, turning the device OFF, or a Bluetooth®Wireless Technology communication error, corresponding

Bluetooth®Wireless Technology devices

are automatically searched and reconnected.

• If the system becomes unstable due to communication errors between the car Handsfree and the Bluetooth

Wireless Technology device, reset the device by turning off and back on again. Upon resetting Bluetooth

Wireless Technology device, the system will be restored.

(Continued)

• After pairing is complete, a contacts download request is sent once to the mobile phone. Some mobile phones may require confirmation upon receiving a download request, ensure your mobile phone accepts the connection. Refer to your phones user’s manual for additional information regarding phone pairing and connections.

K_YD_B3.0_AUDIO_A7MS7H3E00_V7:NC 3/9/2015 11:40 AM Page 38

4 39

Features of your vehicle

Connecting a Device

Press the key Select

Select

1) Connected Phone : Device that is currently connected

2) Paired Phone : Device that is paired but not connected

From the paired phone list, select the device you want to connect and press the button.

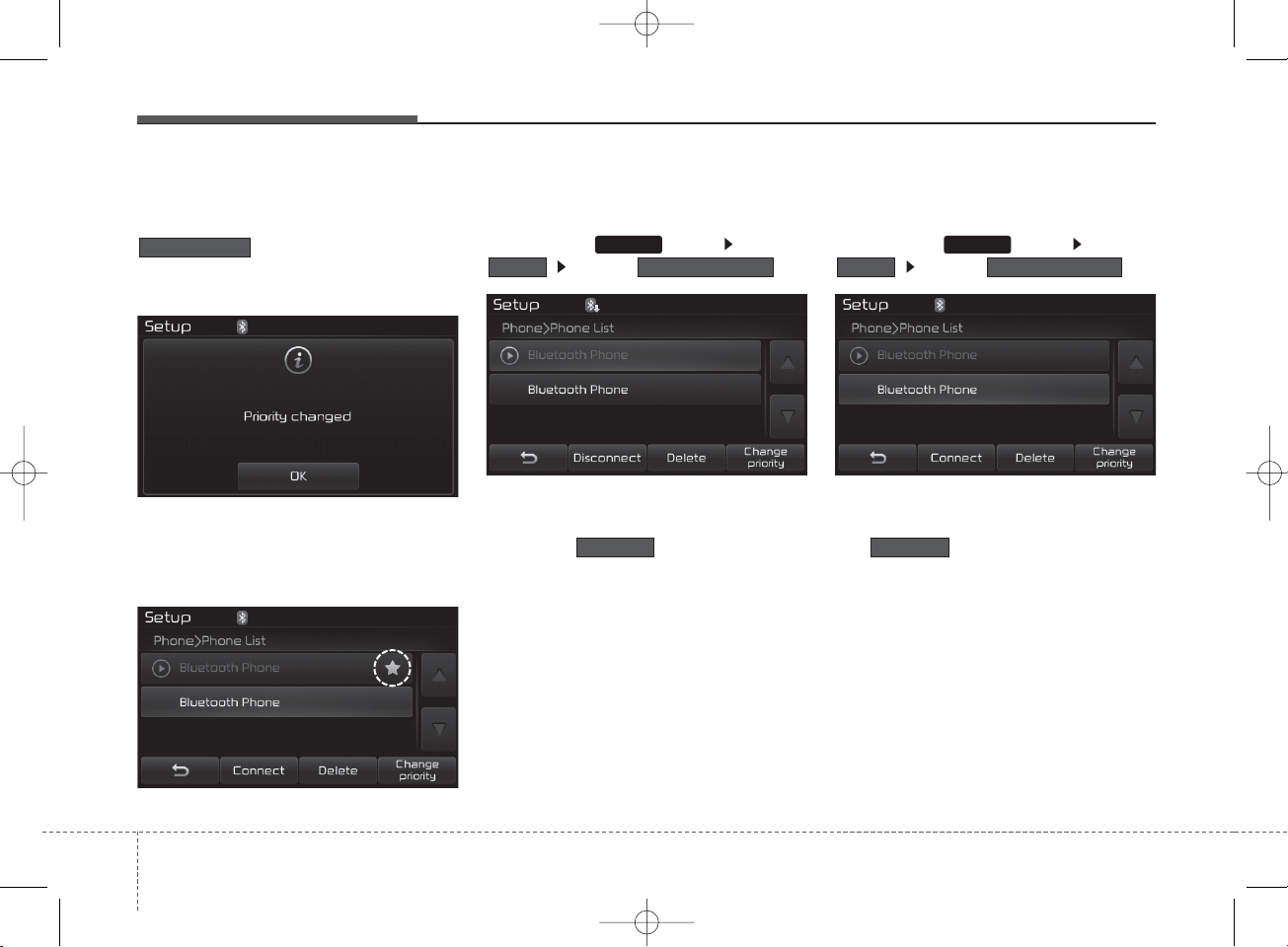

Changing Priority

What is Priority?

It is possible to pair up to five

Bluetooth

Wireless Technology devices with the car audio system. The "Change Priority" feature is used to set the connection priority of paired phones.

Press the key Select

Select

Phone Paired Phone List

Paired Phone ListPhone

SETUP

Connect

SETUP

K_YD_B3.0_AUDIO_A7MS7H3E00_V7:NC 3/9/2015 11:40 AM Page 39

Features of your vehicle

404

From the paired phone list, select the phone you want to switch to the highest priority, then press the

button from the Menu. The selected device will be changed to the highest priority.

✽ NOTICE

Priority icon will be displayed when the selected phone is set as a priority phone.

Disconnecting a Device

Press the key Select

Select

From the paired phone list, select the currently connected device and press the button.

Deleting a Device

Press the key Select

Select

From the paired phone list, select the device you want to delete and press the button.

✽ NOTICE

• When deleting the currently connected device, the device will automatically be disconnected to proceed with the deleting process.

• If a paired Bluetooth®Wireless Technology device is deleted, the device’s call history and contacts data will also be deleted.

• To re-use a deleted device, you must pair the device again.

Paired Phone ListPhonePaired Phone ListPhone

Delete

SETUP

Disconnect

SETUP

Change priority

K_YD_B3.0_AUDIO_A7MS7H3E00_V7:NC 3/9/2015 11:40 AM Page 40

4 41

Features of your vehicle

USING

Bluetooth

Wireless

Technology

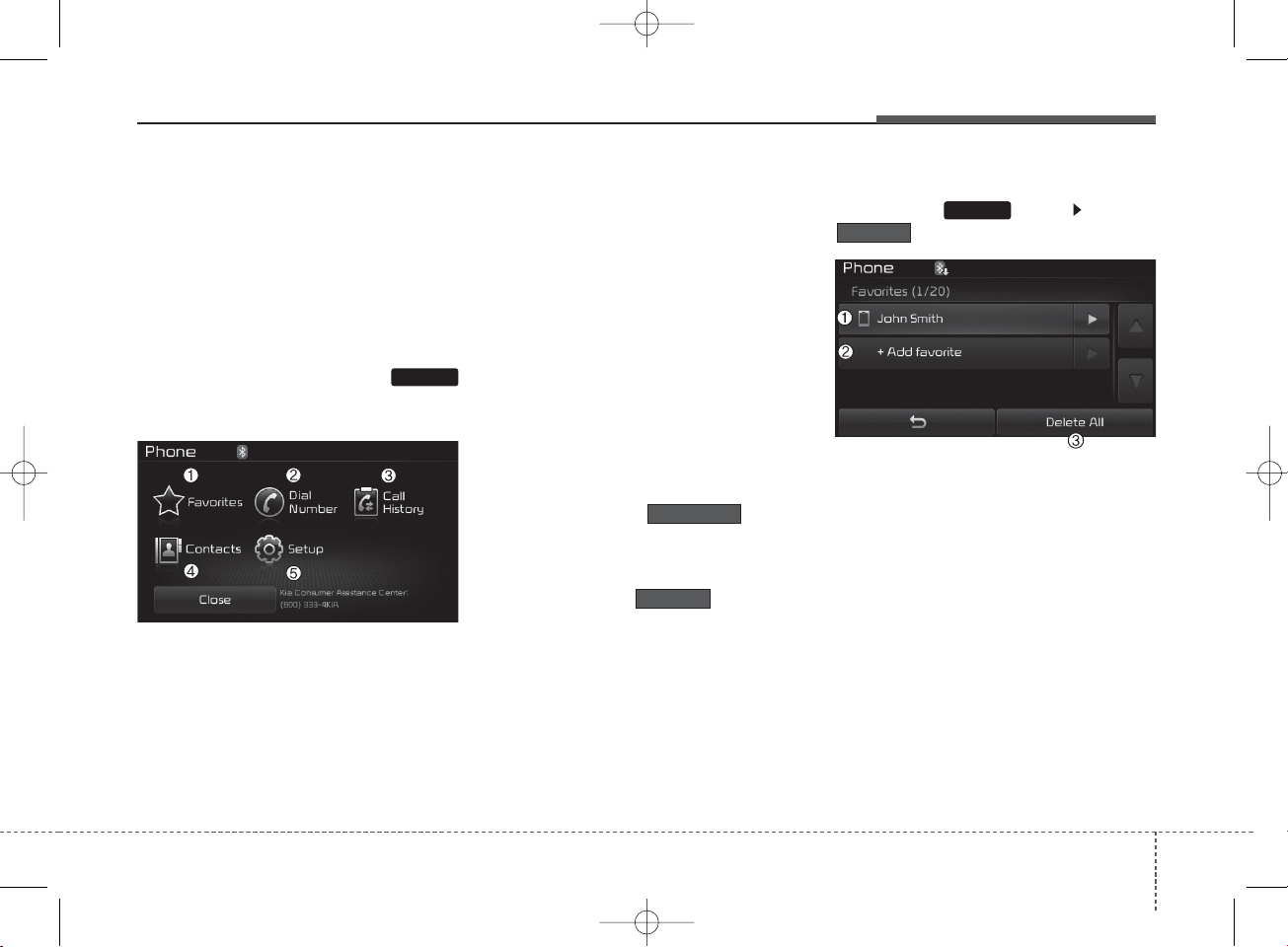

Phone Menu Screen

Phone Menus

With a

Bluetooth

Wireless Technology device connected, press the key to display the Phone menu screen.

1) Favorites : Up to 20 frequently used contacts saved for easy access

2) Dial Number : Displays the dial screen where numbers can be dialed to make calls

3) Call History : Device the call history list screen

4) Contacts : Displays the Contacts list screen

5) Setup : Displays Phone related settings.

✽ NOTICE

• If you press the button

but there is no call history data, a prompt is displayed which asks to download call history data.

• If you press the button but

there is no contacts data stored, a prompt is displayed which asks to download contacts data.

• This feature may not be supported in

some mobile phones. For more information on download support, refer to your mobile phone user’s manual.

Favorites

Press the key Select

1) Saved favorite contact : Connects call upon selection

2) To add favorite : Downloaded contacts be saved as favorite.

3) Delete All : Delete all stored favorite contacts

✽ NOTICE

• To save Favorite, contacts should be

downloaded.

• Contact saved in Favorites will not be

automatically updated if the contact has been updated in the phone. To update Favorites, delete the Favorite and create a new Favorite.

Favori tes

Call History

Contacts

PHONE

K_YD_B3.0_AUDIO_A7MS7H3E00_V7:NC 3/9/2015 11:40 AM Page 41

Features of your vehicle

424

Calling by Dialing a Number

Press the key Select

1) Dial Pad : Used to enter phone number

2) Call : If a number has been entered, calls the number If no number has been entered, switches to call history screen

3) End : Deletes the entered phone number

4) Delete : Deletes entered numbers one digit at a time

Answering Calls

Answering a Call

Answering a call with a

Bluetooth

Wireless Technology device connected will display the following screen.

1) Caller : Displays the other party’s name when the incoming caller is saved within your contacts

2) Incoming Number : Displays the incoming number

3) Accept : Accept the incoming call

4) Reject : Reject the incoming call

✽ NOTICE

• When an incoming call pop-up is displayed, most Audio and SETUP mode features are disabled. Only the call volume will operate.

• The telephone number may not be properly displayed in some mobile phones.

• When a call is answered with the mobile phone, the call mode will automatically revert to Private mode.

Dial Number

PHONE

K_YD_B3.0_AUDIO_A7MS7H3E00_V7:NC 3/9/2015 11:40 AM Page 42

4 43

Features of your vehicle

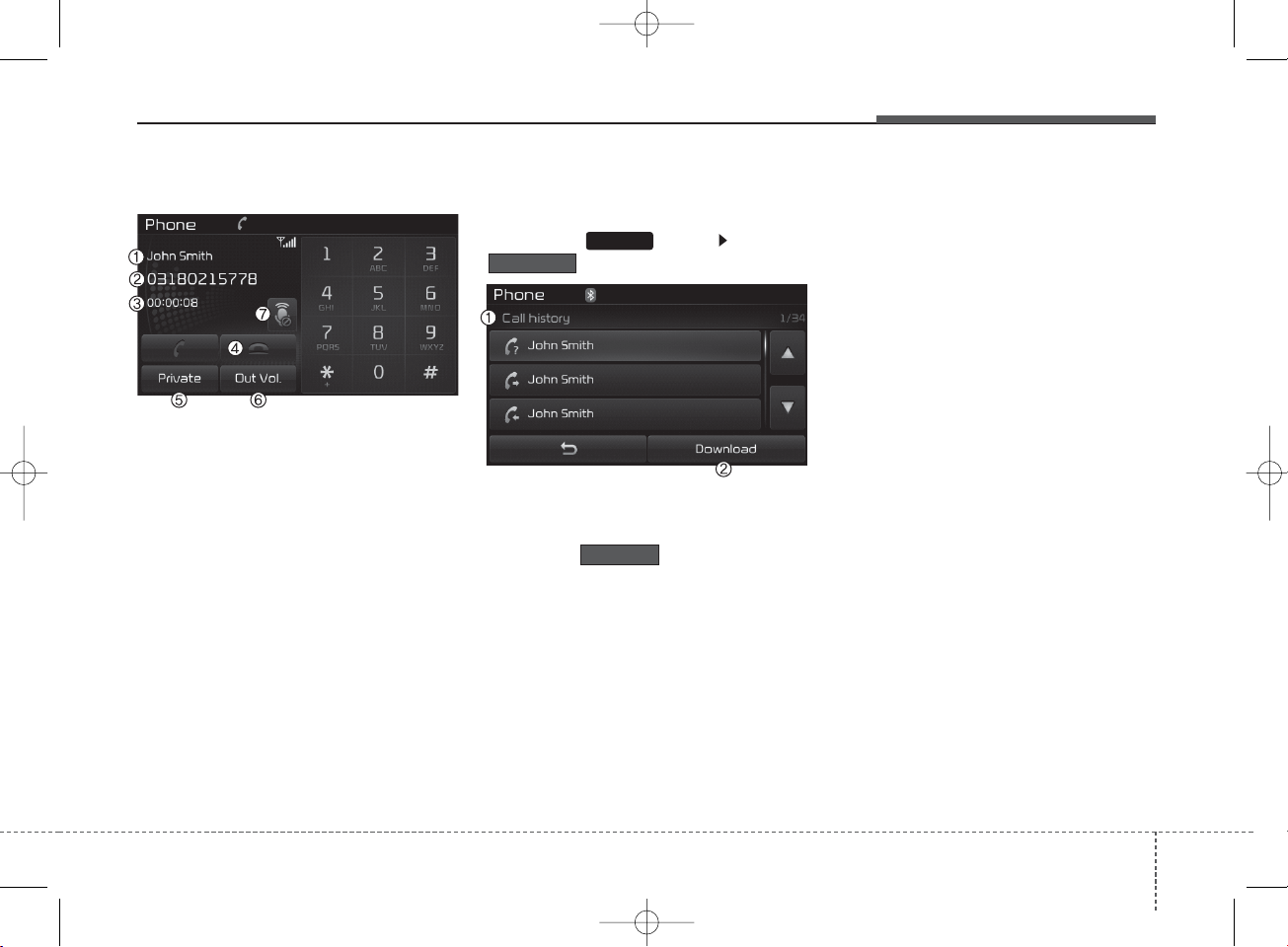

During a Handsfree Call

1) Caller : Displays the other party’s name if the incoming caller is saved within your contacts

2) Incoming Number : Displays the incoming number

3) Call time : Displays the call time

4) End : Ends call

5) Private : Converts to Private mode

6) Out Vol. : Sets call volume as heard by the other party

7) Mute : Turns Mic Mute On/Off

✽ NOTICE

If the mic is muted, the other party will not be able to hear your voice.

Call History

Press the key Select

A list of incoming, outgoing and missed calls is displayed.

Press the button to download the call history.

1) Call History :

- Displays recent calls (call history)

- Connects call upon selection

2) Download : Download Recent Call History

• Call history may not be saved in the call history list in some mobile phones.

• Calls received with hidden caller ID will not be saved in the call history list.

• Calling through the call history is not possible when there is no call history stored or a

Bluetooth

Wireless Technology phone is not connected.

• Up to 50 received, dialed and missed calls are stored in Call History.

• Time of received/dialed calls and call time information are not saved.

Call History

Download

PHONE

K_YD_B3.0_AUDIO_A7MS7H3E00_V7:NC 3/9/2015 11:40 AM Page 43

Features of your vehicle

444

Contacts

Press the key Select

The list of saved phone book entries is displayed. Press the button to download the call history.

1) Contacts List :

- Displays downloaded contacts entries

- Connects call upon selection

2) Sort by : Find a contact in an alphabetical order.

3) Download : Download contacts entries

✽ NOTICE

• Up to 1,000 contacts saved in your

Bluetooth®Wireless Technology

phone can be downloaded into the car contacts. Contacts that have been downloaded to the car cannot be edited or deleted on the phone.

• Mobile phone contacts are managed separately for each paired Bluetooth

Wireless Technology device (max 5 devices x 1,000 contacts each). Previously downloaded data is maintained even if the Bluetooth®Wireless Technology device has been disconnected. (However, the contacts and call history saved to the phone will be deleted if a paired phone is deleted.)

• It is possible to download contacts during Bluetooth streaming audio.

• When downloading contacts, the icon will be displayed within the status bar.

(Continued)

• It is not possible to begin downloading a contact list when the contact download feature has been turned off within the Bluetooth

Wireless Technology device. In addition, some devices may require device authorization upon attempting to download contacts. If downloading does not normally occur, check the Bluetooth

Wireless Technology device settings or the screen state.

• The contacts download feature may not be supported in some mobile phones. For more information of supported Bluetooth®devices and function support, refer to your phone’s user manual.

PHONE

Contacts

Download

K_YD_B3.0_AUDIO_A7MS7H3E00_V7:NC 3/9/2015 11:40 AM Page 44

4 45

Features of your vehicle

Bluetooth

Wireless

Technology Setting

Pairing a New Device

Press the key Select

Select

Bluetooth

Wireless Technology devices can be paired with the audio system.

For more information, refer to the “Pairing through Phone Setup” section within

Bluetooth

Wireless Technology.

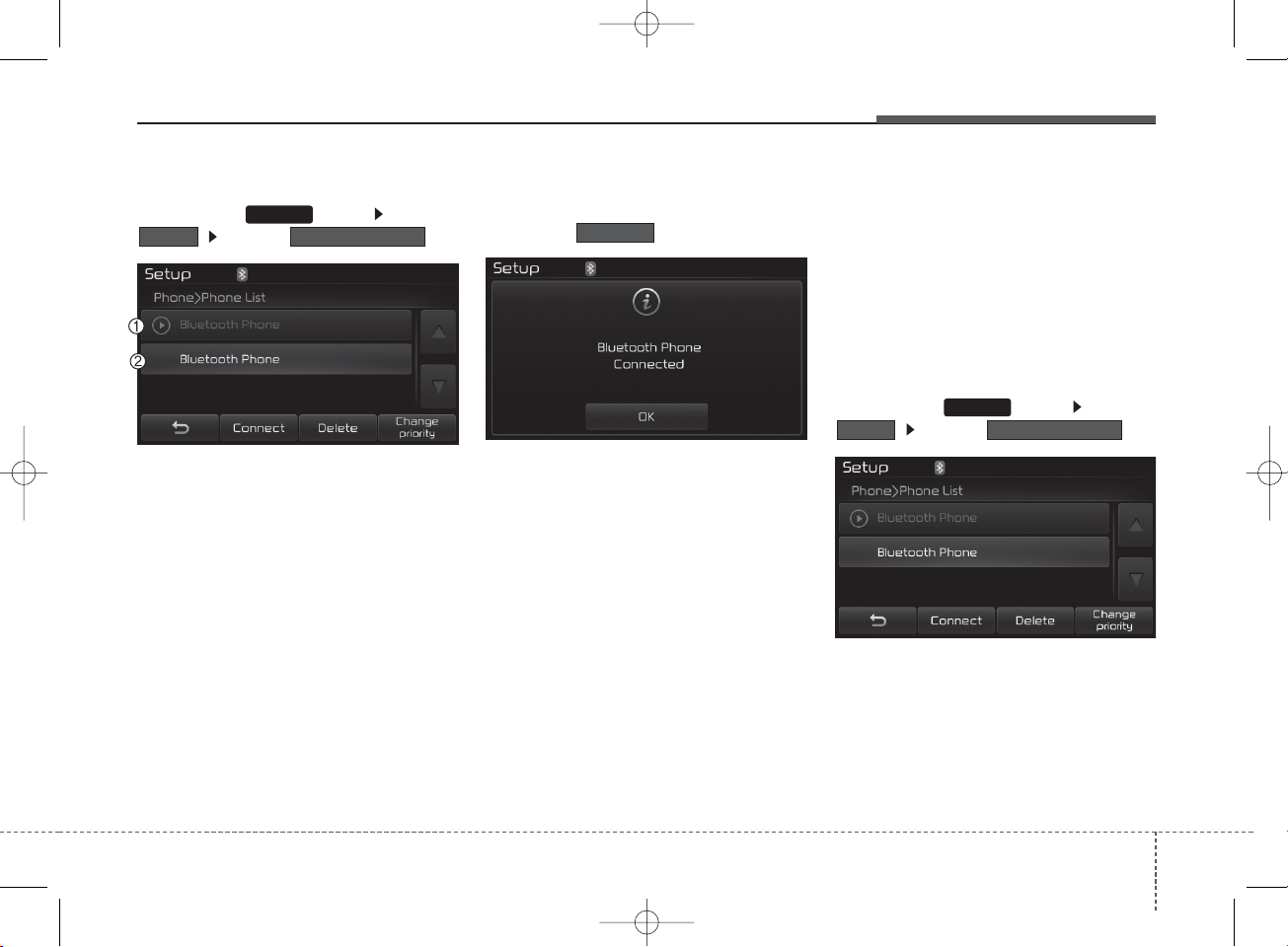

Viewing Paired Phone List

Press the key Select

Select

This feature is used to view mobile phones that have been paired with the audio system. Upon selecting a paired phone, the setup menu is displayed.

For more information, refer to the “Setting

Bluetooth

Wireless Technology

Connection” section within

Bluetooth

Wireless Technology.

1) : Moves to the previous screen

2) Connect/Disconnect Phone : Connect/ disconnects currently selected phone

3) Delete : Deletes the currently selected phone

4) Change priority : Sets currently selected phone to highest connection priority

Paired Phone List

Phone

Paired PhonePhone

SETUP

K_YD_B3.0_AUDIO_A7MS7H3E00_V7:NC 3/9/2015 11:41 AM Page 45

Features of your vehicle

464

✽ NOTICE BEFORE DOWN-

LOADING CONTACTS

• Only contacts within connected phones can be downloaded. Also check to see that your mobile phone supports the download feature.

• To learn more about whether your mobile phone supports contacts downloads, refer to your mobile phone user’s manual.

• The contacts for only the connected phone can be downloaded.

Downloading Contacts

Press the key Select

Select

As the contacts are downloaded from the mobile phone, a download progress bar is displayed.

✽ NOTICE

• Upon downloading phone contacts, the previous corresponding data is deleted.

• This feature may not be supported in some mobile phones.

• Voice Recognition may not operate while contacts are being downloaded.

Outgoing Volume

Press the key Select

Select

Use the , buttons to adjust the outgoing volume level.

✽ NOTICE

While on a call, the volume can be changed by using the key.

Outgoing Volume

PhoneContacts DownloadPhone

SEEK

TRACK

SETUP SETUP

K_YD_B3.0_AUDIO_A7MS7H3E00_V7:NC 3/9/2015 11:41 AM Page 46

4 47

Features of your vehicle

Turning Bluetooth System Off

Press the key Select

Select

Once

Bluetooth

Wireless Technology

is turned off,

Bluetooth

Wireless Technology related features will not be supported within the audio system.

✽ NOTICE

To turn Bluetooth®Wireless Technology back on, go to and press “Yes”.

Phone

Bluetooth System OffPhone

SETUP

K_YD_B3.0_AUDIO_A7MS7H3E00_V7:NC 3/9/2015 11:41 AM Page 47

Features of your vehicle

484

VOICE RECOGNITION

Using Voice Recognition

Starting Voice Recognition

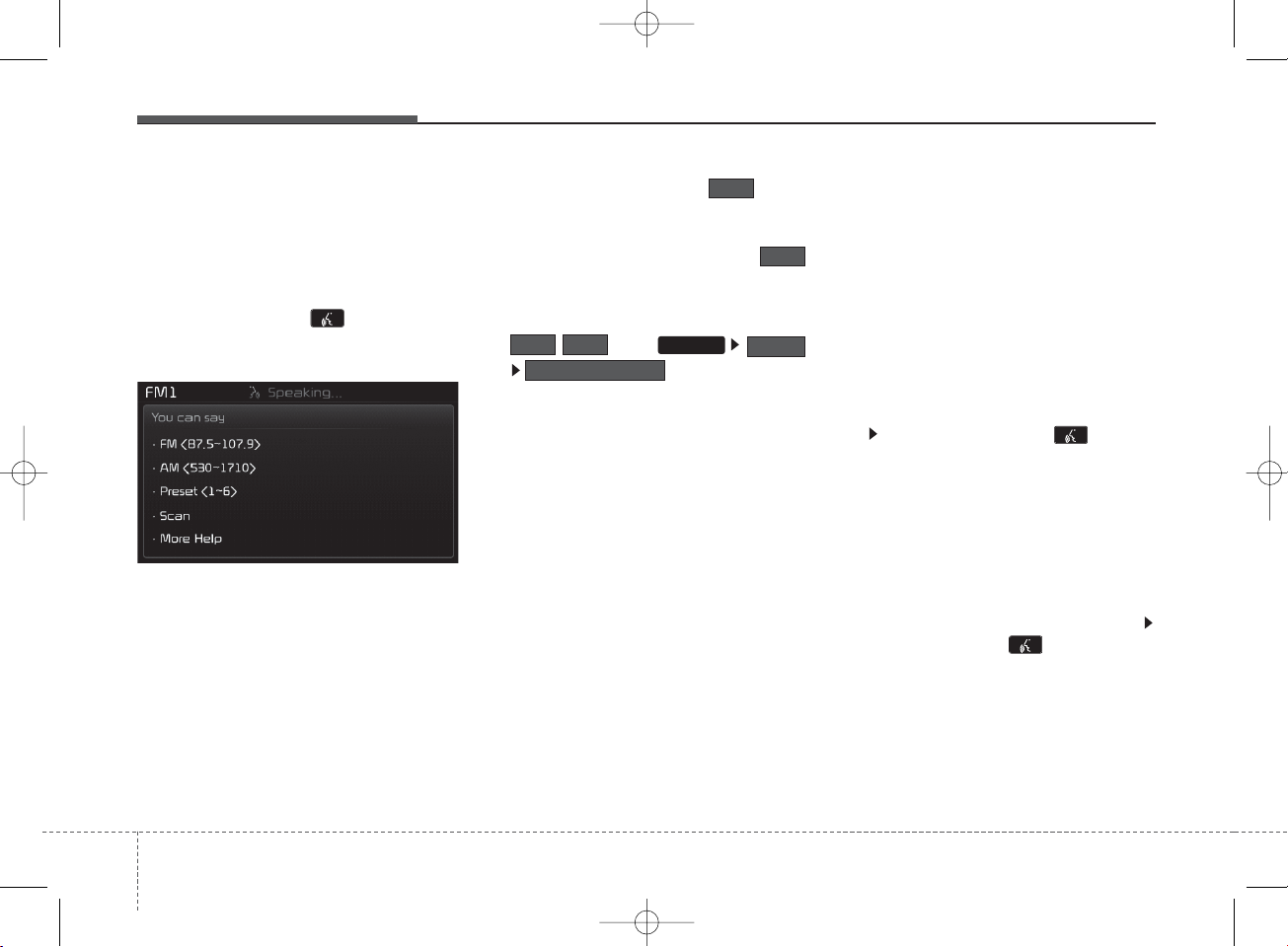

Shortly press the key on the steering wheel remote controller. Say a command.

If prompt feedback is in , then the system will say “Please say a command after the beep (BEEP)”

• If prompt feedback is in mode, then the system will only say “(BEEP)”

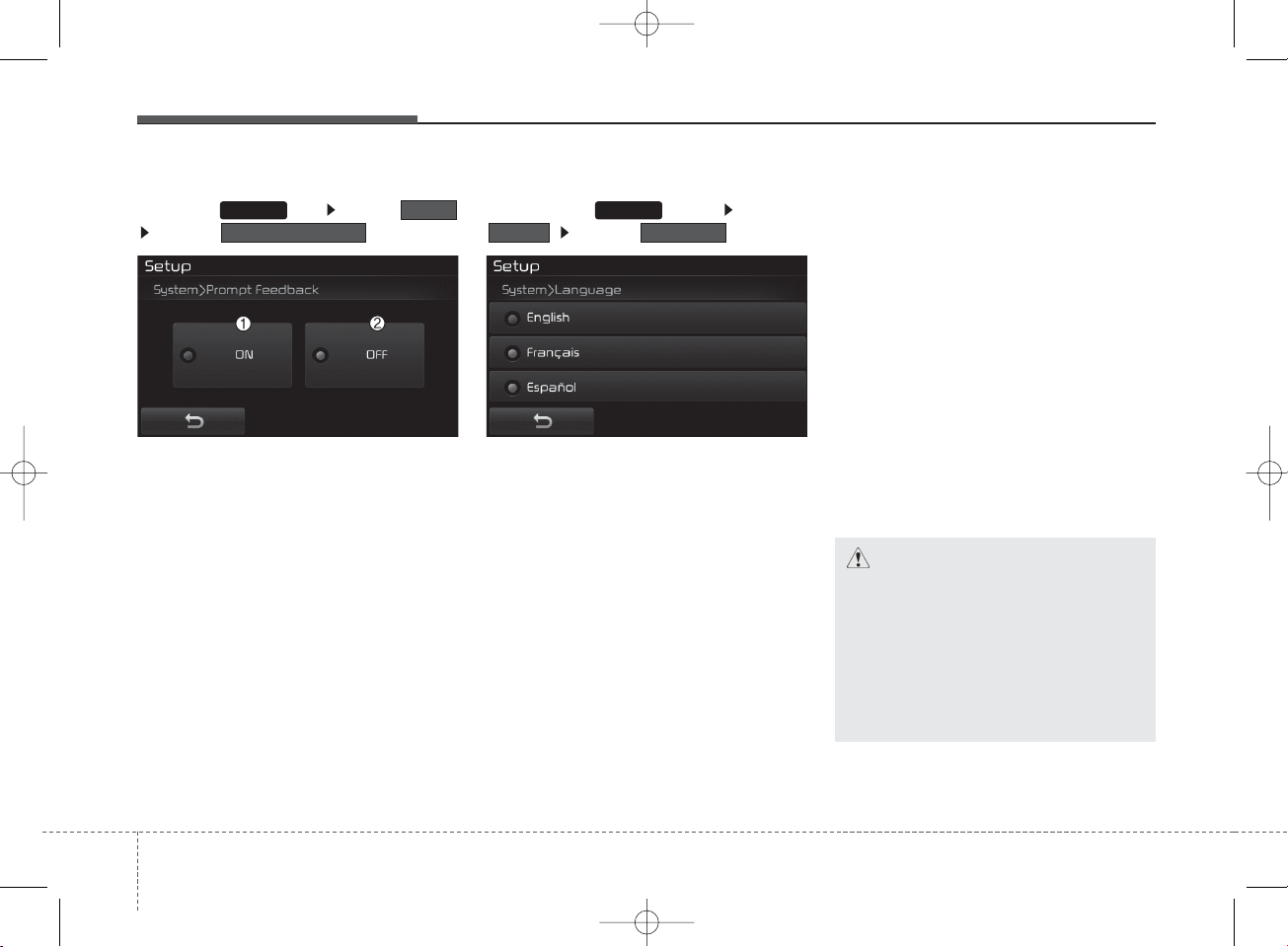

• To change Prompt Feedback

, go to

✽ NOTICE

For proper recognition, say the command after the voice instruction and beep tone.

Contact List Best Practices

1) Do not store single-name entries (e.g., “Bob”, “Mom”, “Kim”, etc.). Instead, always use full names (including first and last names) for all contacts (e.g., use “Jacob Stevenson” instead of “Dad”).

2) Do not use abbreviations (i.e., use “Lieutenant” instead of “Lt.” or “Sergeant” instead of “Sgt.”).

3) Do not use acronyms (i.e., use “County Finance Department” instead of “CFD”).

4) Do not use special characters (e.g., “@”, “hyphen -”, “asterisk *”, “ampersand &”).

5) If a name is not recognized from the contact list, change it to a more descriptive name (e.g., use “Grandpa Joseph” instead of “Pa Joe”).

Skipping Prompt Messages

While prompt message is being stated Shortly press the key on the steering remote controller.

The prompt message is immediately ended and the beep tone will sound. After the “beep”, say the voice command.

Re-starting Voice Recognition

While system waits for a command Shortly press the key on the steering remote controller.

The command wait state is immediately ended and the beep ton will sound. After the “beep”, say the voice command.

Prompt Feedback

OFFON

OFF

System

SETUP

K_YD_B3.0_AUDIO_A7MS7H3E00_V7:NC 3/9/2015 11:41 AM Page 48

4 49

Features of your vehicle

❈ Illustration on using voice commands

• Starting voice command.

Shortly pressing the key (under 0.8 seconds):

• Skipping Voice Recognition

Shortly pressing the key (under 0.8 seconds):

• End voice command.

Shortly pressing the key (under 0.8 seconds):

More Help

Contacts

Cancel

More Help

Please say a command after the beep (BEEP)

Please say a...

Contacts Please say the name of the contacts you want

to call (BEEP)

Ding~

(BEEP)

Ding~

Di-Ding~(Cancel Sound)

Shortly pressing the key (under 0.8 seconds)

More Help Here are some examples of mode commands. You can say a radio type like 'FM', 'AM', or 'Satellite'. You can also say a media source like 'USB', 'My

Music', or 'iPod

Additionally, there are phone commands like "Contacts', 'Call History', or 'Dial Number".

You can find more detailed commands in the user's manual.

Please say a command after the beep.

More Help Here are some examples of mode commands. You can say a radio type like 'FM', 'AM', or 'Satellite'. You can also say a media source like 'USB', 'My

Music', or 'iPod

Additionally, there are phone commands like "Contacts', 'Call History', or 'Dial Number".

You can find more detailed commands in the user's manual.

Please say a command after the beep.

K_YD_B3.0_AUDIO_A7MS7H3E00_V7:NC 3/9/2015 11:41 AM Page 49

Features of your vehicle

504

Command Function

More Help Provides guidance on commands that can be

used anywhere in the system.

Help Provides guidance on commands that can be

used within the current mode.

Call <Name> Calls <Name> saved in Contacts

Ex) Call “John Smith”

Call <Name> Calls <Name> to the number that is saved as

"Mobile" in Contacts Ex) Call "John Smith" on Mobile

Call <Name> Calls <Name> to the number that is saved as

"Office" in Contacts Ex) Call "John Smith" in Office

Call <Name> Calls <Name> to the number that is saved as

"Home" in Contacts Ex) Call "John Smith" at Home

Call <Name> Calls <Name> to the number that is saved as

"Other" in Contacts Ex) Call "John Smith" on Other

Phone Provides guidance on Phone related com-

mands. After saying this command, say “Favorites”,“Dial Number”, “Call History” or “Contacts” execute corresponding functions.

Favorites Display the Favorite screen.

Call History Displays the Call History screen.

Command Function

Contacts Displays the Contacts screen. After saying

this command, say the name of a contact saved in the Contacts to automatically connect the call.

Dial Number Display the Dial number screen. After saying

this command, you can say the number that you want to call.

Redial Connects the most recently called number.

Tutorial Provide guidance on how to use voice

recognition and Bluetooth®connections.

•

When listening to the radio, displays the next radio screen. (FM1

➟

FM2➟AM

➟SAT1➟SAT2➟SAT3➟

FM1)

Radio

•

When listening to a different mode, displays the most recently played radio screen.

•

When currently listening to the FM radio, maintains the current state.

•

When listening to a different mode, displays the most recently played FM screen.

FM1(FM One) Displays the FM1 screen.

FM2(FM Two) Displays the FM2 screen.

AM Displays the AM screen.

(Call by Name)

Voice Command List

• Common Commands : These commands can be used in most operations. (However a few commands may not be available during certain operations)

on Mobile

in Office

at Home

on Other

K_YD_B3.0_AUDIO_A7MS7H3E00_V7:NC 3/9/2015 11:41 AM Page 50

4 51

Features of your vehicle

Command Function

FM Preset 1~6 Plays the most recently played broadcast

saved in FM Preset 1~6.

AM Preset 1~6 Plays the broadcast saved in AM Preset 1~6.

FM 87.5~107.9 Plays the FM broadcast of the corresponding

frequency.

AM 530~1710 Plays the AM broadcast of the corresponding

frequency.

SIRIUS

•

When currently listening to the SIRIUS®, maintains the current state.

•

When listening to a different mode, displays the most recently played SIRIUS®screen.

SIRIUS

Displays the selected SIRIUS®screen.

SIRIUS

Plays the selected SIRIUS®channel.

Media Moves to the most recently played media

screen.

CD Plays the music saved in the CD.

USB Plays USB music.

iPod

Plays iPod®music.

Command Function

My Music Plays the music saved in My Music.

AUX (Auxiliary) Plays the connected external device.

Bluetooth

Audio Plays the music saved in connected Bluetooth

device.

Please repeat Repeats the most recent comment.

Mute Mutes the sound.

Cancel (Exit) Ends voice command.

Channel 0~223

(Satellite)

(Satellite) 1~3

K_YD_B3.0_AUDIO_A7MS7H3E00_V7:NC 3/9/2015 11:41 AM Page 51

Features of your vehicle

524

• FM/AM radio commands : Available during FM, AM radio operation

• Satellite radio commands : Commands that can be used while listening to Satellite Radio.

Command Function

Preset 1~6 Plays the broadcast saved in Preset 1~6.

Scan Scans receivable frequencies from the current

broadcast and plays for 10 seconds each.

Preset Scan Moves to the next preset from the current

present and plays for 10 seconds each.

Command Function

Channel 0~223 Play the selected Satellite Radio channel.

Scan Scans receivable channels from the current

broadcast and plays for 10 seconds each.

Preset 1~6 Plays the broadcast saved in Preset 1~6.

Information Displays the information of the current broad-

cast.

K_YD_B3.0_AUDIO_A7MS7H3E00_V7:NC 3/9/2015 11:41 AM Page 52

4 53

Features of your vehicle

• Audio CD commands : Commands available during Audio CD operation

Command Function

Play Plays the currently paused track.

Pause Pauses the current track.

Shuffle Randomly plays the tracks within the CD.

Shuffle Off Cancels random play to play tracks in sequen-

tial order.

Repeat Repeats the current track.

Repeat Off Cancels repeat play to play tracks in sequen-

tial order.

Track 1~30 Plays the desired track number.

Command Function

Play Plays the currently paused file.

Pause Pauses the current file.

Shuffle Randomly plays the files within the current

folder.

Shuffle Off Cancels random play to play files in sequential

order.

Repeat Repeats the current file.

Repeat Off Cancels repeat play to play files in sequential

order.

Next Folder Play the first file in the next folder.

Previous Folder Play the first file in the previous folder.

• MP3 CD and USB commands : Commands available during USB and MP3 CD operation

K_YD_B3.0_AUDIO_A7MS7H3E00_V7:NC 3/9/2015 11:41 AM Page 53

Features of your vehicle

544

• iPod®Commands : Commands available during iPod

operation

• My Music Commands : Commands available during My Music operation

Command Function

Play Plays the currently paused song.

Pause Pauses the current song.

Shuffle Randomly plays the songs within the current

category.

Shuffle Off Cancels random play to play songs in sequen-

tial order.

Repeat Repeats the current song.

Repeat Off Cancels repeat play to play songs in sequen-

tial order.

Command Function

Play Plays the currently paused file.

Pause Pauses the current file.

Shuffle Randomly plays all saved files.

Shuffle Off Cancels random play to play files in sequential

order.

Repeat Repeats the current file.

Repeat Off Cancels repeat play to play files in sequential

order.

Delete Deletes the current file. You will bypass an

additional confirmation process.

K_YD_B3.0_AUDIO_A7MS7H3E00_V7:NC 3/9/2015 11:41 AM Page 54

4 55

Features of your vehicle

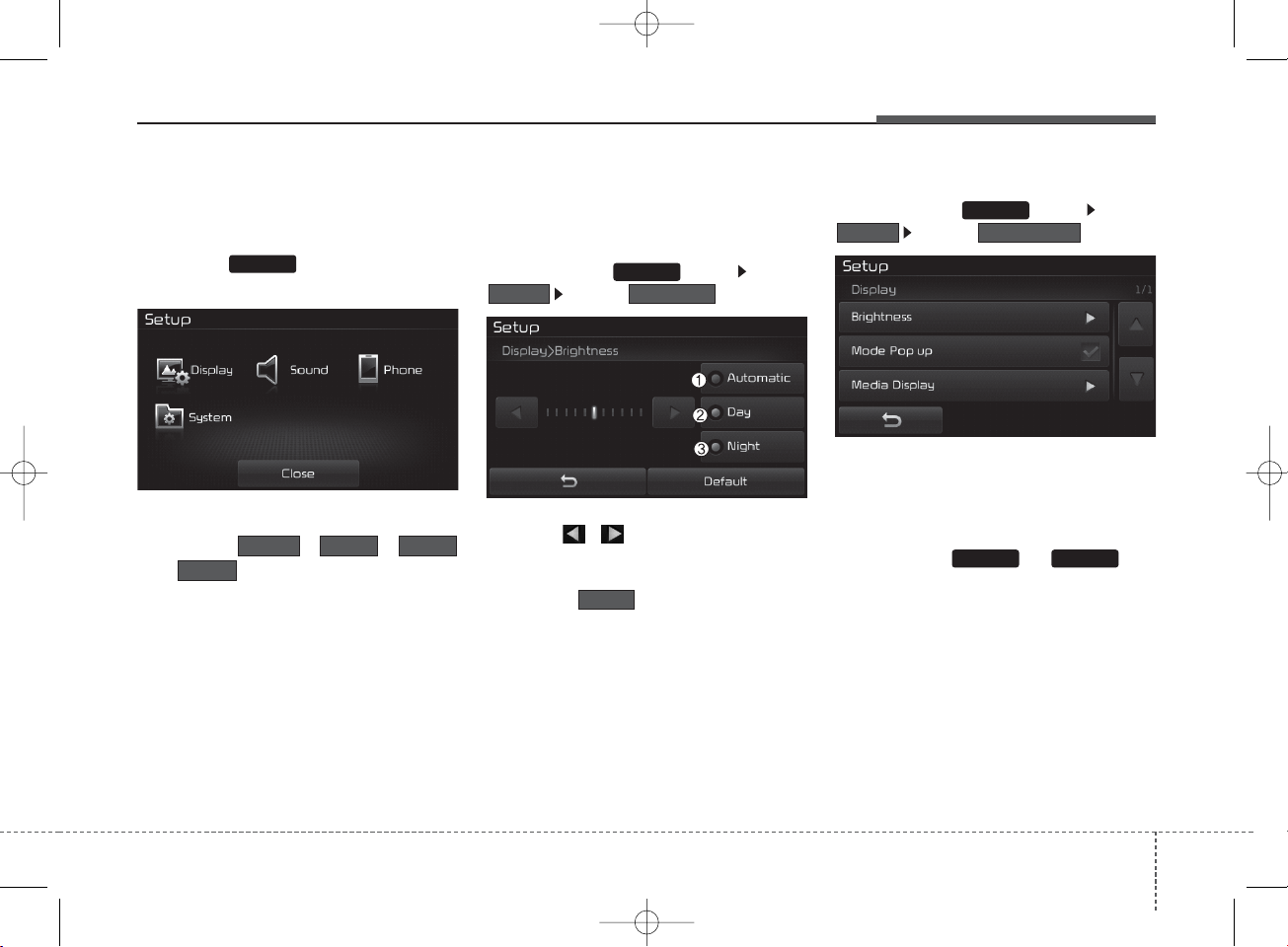

SETUP

Starting Mode

Press the key to display the Setup screen.

You can select and control options related to , ,

and .

Display Settings

Adjusting the Brightness

Press the key Select

Select

Use the , buttons to adjust the screen brightness or set the Brightness on Automatic, Day, or Night mode.

Press the button to reset.

1) Automatic : Adjusts the brightness automatically

2) Day : Always maintains the brightness on high

3) Night: Always maintains the brightness on low

Mode Pop up

Press the key Select

Select

This feature is used to display the Mode Pop up screen when entering radio and media modes.

When this feature is turned on, pressing the or key will display the Mode Pop up screen.

✽ NOTICE

The media Mode Pop up screen can be displayed only when two or more media modes have been connected.

Mode Pop up

Display

Brightness

Display

System

PhoneSoundDisplay

Default

RADIO MEDIA

SETUP

K_YD_B3.0_AUDIO_A7MS7H3E00_V7:NC 3/9/2015 11:41 AM Page 55

Features of your vehicle

564

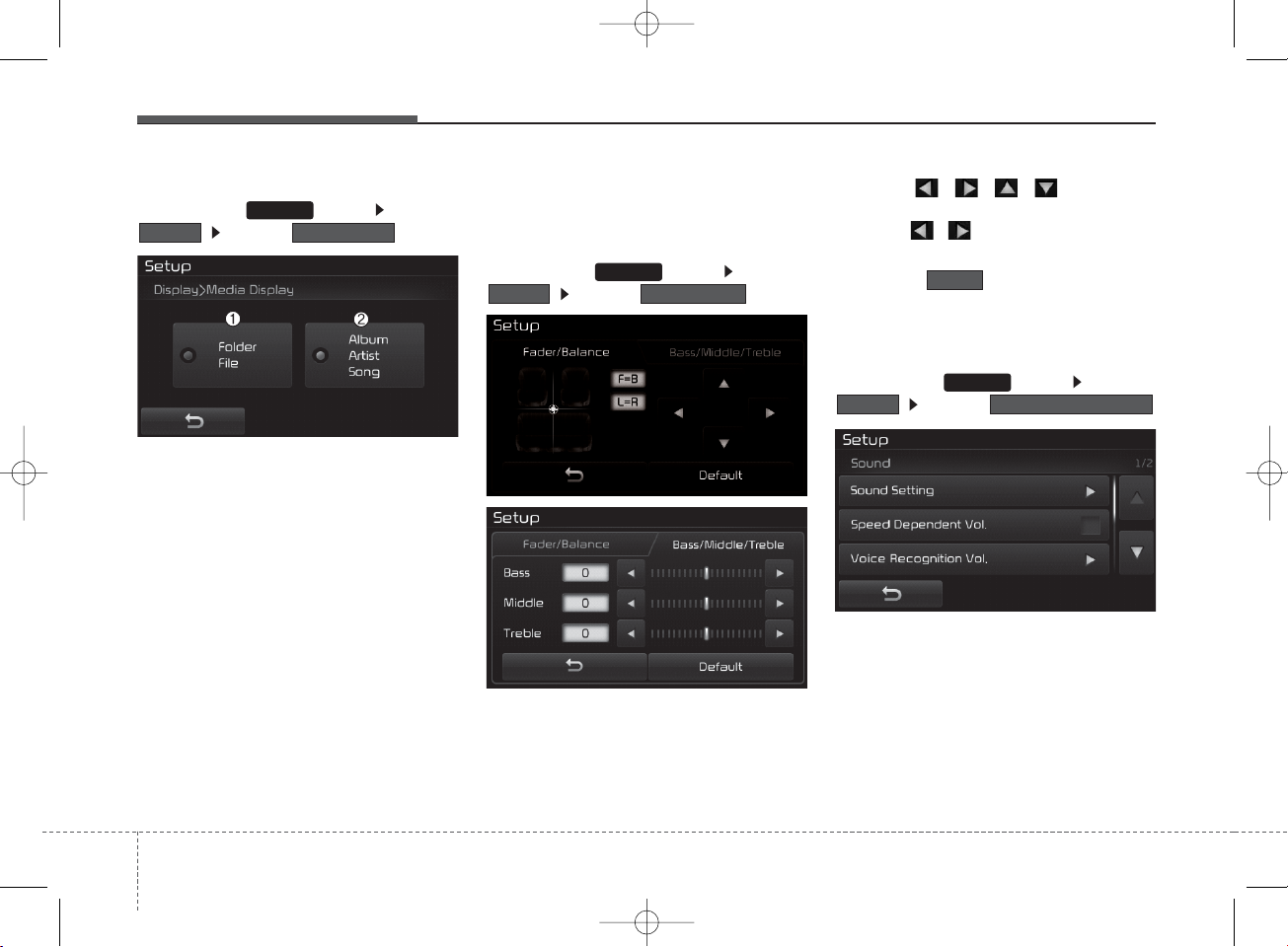

MP3 Information Display

Press the key Select

Select

This feature is used to change the information displayed within USB and MP3 CD modes.

1) Folder File : Displays file name and folder name

2) Album Artist Song : Displays album name/artist name/song name.

Sound Settings

Press the key Select

Select

Use the , , , buttons to adjust the Fader/Balance settings. Use the , buttons to adjust the

Bass/Middle/Treble settings. Press the button to reset.

SDVC (Speed Dependent Volume Control)

Press the key Select

Select

The volume level is controlled automatically according to the vehicle speed. SDVC can be set by selecting from On/Off.

Speed Dependent Vol.

Sound

SETUP

Sound Setting

Sound

Media Display

Display

Default

SETUP

K_YD_B3.0_AUDIO_A7MS7H3E00_V7:NC 3/9/2015 11:41 AM Page 56

4 57

Features of your vehicle

Voice Recognition Volume

Press the key Select

Select

Turn the TUNE knob to adjust the Voice Recognition volume.

Touch Screen Beep

Press the key Select

Select

This feature is used to turn the touch screen beep on/off.

System Setting

Memory Information

Press the key Select

Select

This feature displays information related to system memory.

1) Using : Displays capacity currently in use

2) Capacity : Displays total capacity

Memory Information

System

SETUP

Touch Screen Beep

Sound

Voice Recognition Vol.

Sound

SETUP SETUP

K_YD_B3.0_AUDIO_A7MS7H3E00_V7:NC 3/9/2015 11:42 AM Page 57

Features of your vehicle

584

Prompt Feedback

Press the key Select

Select

This feature is used to select the desired prompt feedback option from ON and OFF.

1) ON : When using voice recognition, provides detailed guidance prompts

2) OFF : When using voice recognition, omits some guidance prompts

Language

Press the key Select

Select

This feature is used to change the system and voice recognition language.

If the language is changed, the system will restart and apply the selected language.

REAR VIEW CAMERA (if equipped)

• The system has been equipped with a rear view camera for user safety by allowing a wider rear range of vision.

• The rear view camera will automatically operate when the ignition key is turned ON and the transmission shift lever is positioned into reverse (R).

• The rear view camera will automatically stop operating when set to a the transmission shift lever is positioned to another gear.

LanguageSystemPrompt Feedback

System

SETUP SETUP

CAUTION

The rear view camera has been equipped with an optical lens to provide a wider range of vision and may appear different from the actual distance. For safety, directly check the rear and left/right sides.

K_YD_B3.0_AUDIO_A7MS7H3E00_V7:NC 3/9/2015 11:42 AM Page 58

4 59

Features of your vehicle

iPod®is a registered trademark of Apple Inc. iPod®mobile digital device sold separately. The

Bluetooth

word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Kia is under license. A

Bluetooth

enabled cell

phone is required to use

Bluetooth

wireless technology. SiriusXM®service requires a subscription, sold separately, after 3 month trial included with vehicle purchase. If you decide to continue your SiriusXM® service at the end of the trial subscription, the plan you choose will automatically renew and bill at the current rates until you call SiriusXM® at 1866-635-2349 to cancel. See our Customer Agreement for complete terms at www.siriusxm.com. Sirius satellite service is available only to those at least 18 and older in the 48 contiguous United States, D.C., and P.R. (with coverage limitations). SiriusXM® Traffic available in select markets. See siriusxm.com/traffic for more information. Sirius, XM and all

related marks and logos are trademarks of Sirius XM Radio Inc. Android™ is a trademark of Google, Inc. BlackBerry

is a registered trademark of Research In Motion Limited (RIM).

K_YD_B3.0_AUDIO_A7MS7H3E00_V7:NC 3/9/2015 11:42 AM Page 59

FCC Warning

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

■ Reorient or relocate the receiving antenna.

■ Increase the separation between the equipment and receiver.

■ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

■ Consult the dealer or an experienced radio/TV technician for help.

Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

IC Warning

This device complies with Industry Canada’s licence-exempt RSSs. Operation is subject to the following two conditions: (1) This device may not cause interference; and (2) This device must accept any interference, including interference that may cause undesired operation of the device.

Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.

HYUNDAI MOBIS AM1A3D9AN, AM213D9GG User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
