CAR MULTIMEDIA SYSTEM

USER'S MANUAL

FCC ID : TQ8-ADBB0F6AN

Read the following safety precautions for your safety

Notations used within this User's Manual

Before using the product, read the contents of this user's manual carefully and use this product safely.

※

The design and speciﬁ cations of this product may change without prior

notiﬁ cation for product and service improvement. The actual features in the vehicle may differ from the illustrations. For more accurate information about the vehicle, please refer to the catalogue.

※

This Audio system contains open source software, including without

limitation, software distributed and/or modiﬁ ed under the GNU General Public license, Version 2, June 1991, and the GNU lesser General Public License, Version 2.1, February 1999. For additional information and to obtain related materials including without limitation, the previous referred to licenses and software, please contact us at MOBIS_OSSrequest@mobis.co.kr

WARNING

• Failure to observe the instructions within this category could result in death

or serious injury or damage to the vehicle.

CAUTION

• Information on matters that could potentially lead to injury or vehicle

damage/malfunction Information that could lead to higher user safety

Information

• Information and tips that provide additional user convenience in using the

product

NOTICE

• Information on specific features that facilitate proper product use and

functional understanding

• Information on terminology used within this manual

iPod

iPod® is a registered trademark of Apple Inc.

Bluetooth®

Wireless Technology

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Kia is under license. Other trademarks and trade names are those of their respective owners.

A Bluetooth

Bluetooth

Wireless Technology enabled cell phone is required to use

Wireless Technology.

part.1

Component Names and Functions

Starting the System for the First Time

Basic

Warnings and Cautions

Key Product Features

Basic

Safety Warnings

• Do not stare at the screen while driving. Staring at the screen for prolonged periods of time could lead to traffic accidents.

• Do not disassemble, assemble, or modify the Multimedia system. Such acts could result in accidents, fire, or electric shock.

• Heed caution not to spill water or introduce foreign objects into the device. Such acts could lead to smoke, fire, or product malfunction.

• If you use phone related functions while driving, you will find it difficult to concentrate on operating the vehicle and the current traffic conditions, so the possibility of an accident may increase. Please use phone related functions only when parked.

• Please refrain from use if the screen is blank or no sound can be heard as these signs may indicate product malfunction. Continued use in such conditions could lead to accidents (fires, electric shock) or product malfunctions.

• Do not touch the antenna during thunder or lightening as such acts may lead to lightning induced electric shock.

• Do not stop or park in parking-restricted areas to operate the product. Such acts could lead to traffic accidents.

• For most Audio and multimedia modes, the display will not operate when the vehicle is in motion. For your safety, first park the vehicle to watch or view the screen. (The screen will only operate when the parking brake is ON for manual transmission vehicles and when the parking brake is ON or the gearshift is in the P (PARK) position for automatic.)

• Some functions other than the one mentioned above cannot be used while driving. These functions operate only when the vehicle is parked.

1-2 I Basic

Safety Cautions

Pay attention to traffic conditions while driving.

• Operating the device while driving could lead to accidents due to a lack of attention to external surroundings. First park the vehicle before operating the device. In addition, the touch screen may not work for some functions when the vehicle is in motion. The touch screen feature will be supported once the vehicle has stopped.

• Adjust the volume to levels that allow the driver to hear sounds from outside of the vehicle. Driving in a state where external sounds cannot be heard may lead to accidents.

• Pay attention to the volume setting when turning the device on. A sudden output of extreme volume upon turning the device on could lead to hearing impairment. (Adjust the volume to a suitable levels before turning off the device.)

• If you want to change the position of device installation, please inquire with your place of purchase or service maintenance center. Technical expertise is required to install or disassemble the device.

• Turn on the car ignition before using this device. Do not operate the Multimedia system for long periods of time with the ignition turned off as such operations may lead to battery discharge.

• Upon using the Multimedia system for more than 10 minutes with the car engine turned off, the following warning will be displayed. After 10 minutes, the warning will be displayed for 5 seconds every 1 minute.

• Do not subject the device to severe shock or impact. Direct pressure onto the front side of the monitor may cause damage to the LCD or touch screen.

• When cleaning the device, make sure to turn off the device and use a dry and smooth cloth. Never use tough materials, chemical cloths, or solvents(alcohol, benzene, thinners, etc.) as such materials may damage the device panel or cause color/quality deterioration. When experiencing product concerns, inquire with your place of purchase or service maintenance center.

• Prevent caustic solutions such as perfume and cosmetic oil from contacting the dashboard because they may cause damage or discoloration.

Warnings and Cautions I 1-3

Key Product Features

This device is a Multimedia system equipped with a multifunctional player that supports Radio (FM, AM), USB, iPod, AUX and Bluetooth Audio features. The WIDE VGA LCD provides a high quality resolution while the powerful and rich sound system adds to the driving enjoyment.

Wide TFT-LCD Display

Display

Radio

Multimedia

Player

• Provides high quality video through a Wide TFTLCD Display using an LED Back Light.

• Touch screen for maximum user convenience.

Digital Tuner Feature

• Digital Tuner using PLL method that supports memory of 40 broadcast stations.

Radio broadcast station name

• Displays broadcast station names.

Support for various Media Formats

• Support for various media formats, including Radio, USB, iPod, AUX and Bluetooth

Audio

Streaming modes.

Miscellaneous

Bluetooth

• Convenient use of Bluetooth

Wireless Technology

Handsfree by

using buttons within the steering wheel control

Digital Screen Control Features

• Easy control of features through touch screen options

Steering Wheel Control

• Control over audio features, Bluetooth

through the steering wheel control for maximum convenience.

1-4 I Basic

Component Names and Functions

Head Unit

Name Description

Converts to FM/AM mode

RADIO

MEDIA

SEEK

TRACK

POWER/

VOL

• Each time the key is pressed, the mode is changed in the following order: FM1 → FM2 AM → FM1.

Moves to MEDIA mode.

• If the media is not connected MEDIA mode will not be activated.

When the key is pressed shortly (for less than 0.8 seconds),

• FM/AM mode: Plays the previous/next frequency.

• MEDIA (USB/iPod) mode: Changes the track, file or title (except for AUX).

When the key is pressed and held down (for over

0.8 seconds),

• FM/AM mode: Continuously changes the frequency until the key is released.

• MEDIA (USB/iPod) mode: Rewinds or fast forwards the track or file (except for Bluetooth Audio, and AUX).

• When power is off, press to turn power on.

• When power is on, press and hold for over 0.8 seconds to turn the power off.

• When power is on, press shortly for less than 0.8 seconds to turn Audio off.

• Turn left/right to adjust the volume.

Name Description

HOME

PHONE

Displays the HOME screen.

Displays the Bluetooth phone mode.

Displays the function set by the user.

SETUP

→

TUNE

Moves to the Setup screen.

• FM/AM mode: Changes the frequency.

• MEDIA (USB/iPod) mode: Changes the track, file or title (except for Bluetooth Audio, and AUX).

RESET

※

The actual feature in the vehicle may differ from the illustration.

Resets the system settings. (Preset radio channels and other data will not be deleted)

Component Names and Functions I 1-5

Steering Wheel Control

Name Description

For more details, refer to Phone Projection guide.

• Each time this key is pressed, mode is changed in the following order: FM1 → FM2 → AM → USB or iPod → AUX → Bluetooth Audio → FM1

MODE

VOL +

VOL -

• If the media is not connected, the corresponding modes will be disabled

• Press and hold the key (more than 0.8 seconds) to turn the Audio system on/off

• When power is off, press the key to turn power back on

Controls the volume

When keys are pressed quickly. (less than 0.8 seconds)

• FM/AM mode: searches broadcast frequencies saved to Presets

• Media (USB/iPod) mode: changes the track, file or title (except for AUX)

When keys are pressed and held. (more than 0.8 seconds)

• FM/AM mode: automatically searches broadcast frequencies

• Media (USB/iPod) mode: quickly looks up songs (excluding AUX and Bluetooth audio files)

Name Description

When pressed quickly. (less than 0.8 seconds)

• When pressed in the dial screen, makes a call

• When pressed in the incoming call screen, answers the call

• When pressed during call waiting, switches to waiting call (Call Waiting)

When pressed and held. (more than 0.8 seconds)

• When pressed in Bluetooth the last dialed call

• When pressed during a Bluetooth

Hands-free, redials

Hands-free

call, switches call back to mobile phone (Private)

• When pressed while calling on the mobile phone, switches call back to Bluetooth (operates only when Bluetooth

Hands-free

Hands-free is

connected)

• When pressed during a call, ends the phone call

• When pressed in the incoming call screen, rejects the call

※

The actual feature in the vehicle may differ from the illustration.

Component Names and Functions I 1-7

Starting the System for the First Time

Turning the System On/Off

Press the engine start button or set the ignition key to On or ACC. Each time you turn on the system, a boot logo and safety warning will appear.

NOTICE

• Cannot operate the system while it is

booting up. It may take some time f f

eatures of the system.

or all of

Pressing and holding the power key on the head unit will turn off the system. You can change Screen Saver Settings in Setup to display a clock on the Screen Saver.

Information

• If you turn off the system during a phone

call using the Hands-free feature call will automatically s

phone

witch to y

, then the

our mobile

System Reset

The System Reset function restores the system when it is not operating correctly. Press and hold the ond or longer. (It is recommended that you press the

RESET

a pin or a clip.)

RESET

key for a sec-

key using a tool, such as

Pressing the power key on the head unit will display the safety guide. To change the system language select the

Language

button.

NOTICE

• Check the volume when turning on the

system. Before tur the v

olume to a reasonable level.

ning on the system, adjust

Starting the System for the First Time I 1-9

Battery Warning Message

Always use the system while the car engine is running. If you turn on the system while the engine is off, a battery warning message will appear. When the engine starts, the message will disappear.

NOTICE

• If you use the system for a long time with

the engine off, the battery may become completely discharged.

Restrictions on Features for Safety Measures

Several features are limited while driving. The restriction screen will disappear when shifting gears into P or putting the parking brake on.

1-10 I Basic

Home Screen

Controls Menu Conﬁ guration for the Home Screen

Tap the icon on any screen to display the Home Screen below.

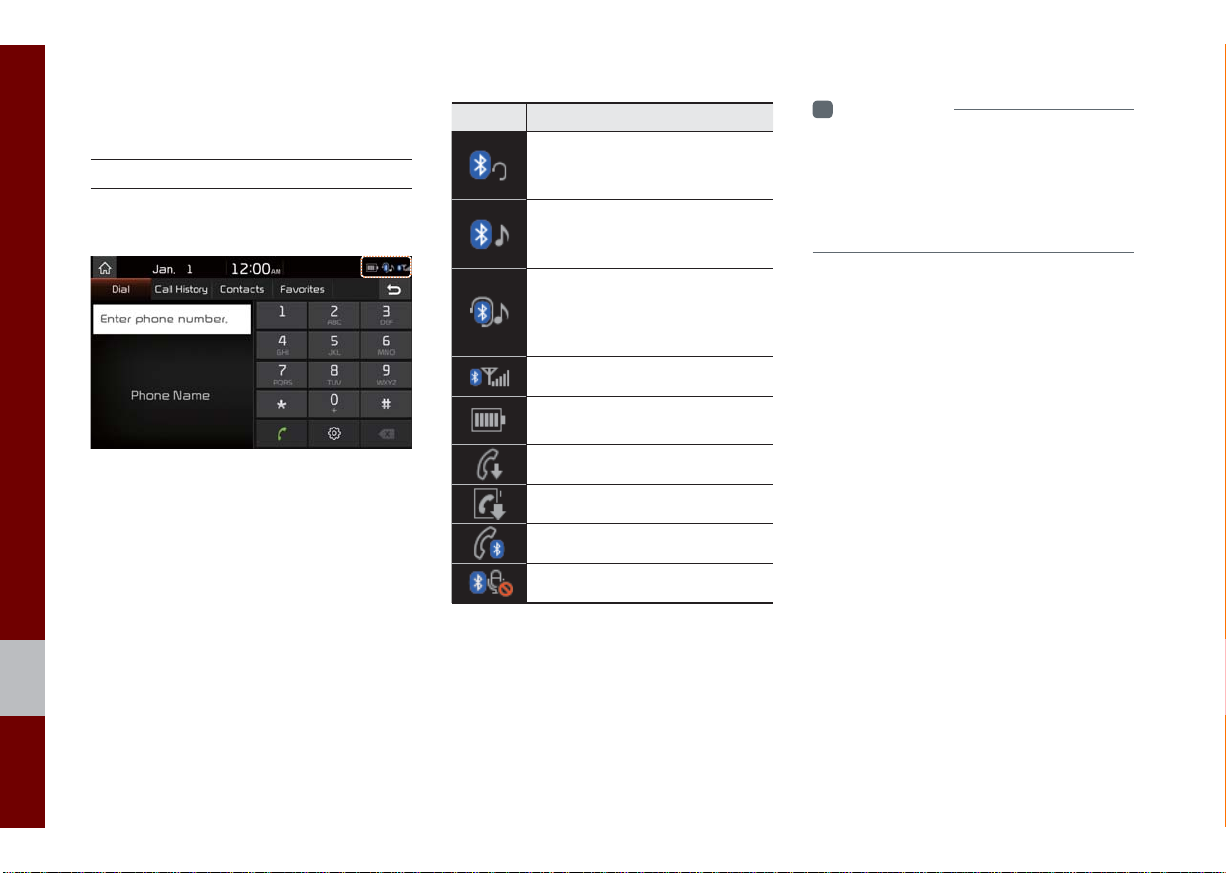

Information Display on the Status Bar

Displays the date and time, along with the system status shown by the various icons to the right of the clock. The icons in the following table indicate the various types of system status details and events.

Icon Description

Displayed when the audio is muted.

Displays the remaining battery of the Bluetooth phone.

Displayed when connected to Bluetooth for handsfree.

Displayed when connected to Bluetooth for streaming audio.

Displayed when connected to Bluetooth for streaming audio and handsfree.

Features Description

• Shows brief information on the radio or media that is now playing.

Radio/

Media Widget

• Tap the area to move to the mode that you are listening to.

• Shows call-related information during a phone call.

Connectivity

Widget

All Menus

My Menu

Apps/Info Setup

Shows any connected devices such as iPod and Bluetooth.

Shows all of the items in the system menu. Add your favorite menus to have quick and easy

access to them. Moves to the Apps/Info screen. Moves to the Setup screen.

Displayed when downloading contacts or recent calls from the Bluetooth phone.

Displayed while on a call with the Bluetooth phone.

Displayed when the microphone of the Bluetooth phone is muted.

Displays the signal strength of the Bluetooth phone.

Starting the System for the First Time I 1-11

Adding a Feature to My Menu

Select add the most frequently used menus, change the menu order, or delete menus.

My Menu

on the Home Screen to

Information

• Up to 24 menus can be added to My Menu.

On-Screen Touch Controls

Learn how to touch the screen to operate the system.

Select

Tap lightly on a menu or an item to select it.

NOTICE

• The system will not recognize your touch if

you wear a glove or other non-conductive material. Touch the screen using your ﬁ nger, an electrostatic touch-screen glove, or a stylus pen.

Drag & Drop

Select a menu or item you want, then drag and drop it to where you want to place it.

Drag or touch the slider along the play bar in the music screens to jump to the point that you want to play from.

1-12 I Basic

Flick (Quick Scrolling)

Quickly moves up and down in the list.

NOTICE

• Moving the list when there are many items

will display a handler on the right of the display. You can easily move many items at a time with the handler.

Press and Hold

Pressing the and buttons in the music player will fast forward/rewind the music.

Starting the System for the First Time I 1-13

MEMO

part.2

Radio/Media

FM/AM

USB

iPod

AUX

Bluetooth

Audio

Radio/Media

FM/AM

You can access the radio player either by pressing the key or by selecting the Radio menu from All Menus on the Home screen.

FM/AM Mode Display Controls

Information

• If you press the

on and a radio broadcast will be tuned from the current mode.

RADIO

key when the power is off, the power will turn

RADIO

Features Description

Mode Display

Preset

Frequencies

Frequency

Back Button Scan/

Preset Scan

Scan

Autostore

Displays the current operating mode.

• The stored preset frequencies are displayed for user selection.

• After selecting frequency, press and hold the preset button for over 0.8 seconds. A beep sound will be heard and the frequency is to be stored in the selected preset button.

• Flick the preset frequencies up/down to scroll quickly through presets.

Displays the current frequency.

• Sound Settings Moves to the Sound Settings.

Converts to basic mode screen. Displays an active mode from Scan and

Preset Scan modes. Shortly plays the broadcasts for the frequencies

with superior reception for 5 seconds per item. Saves frequencies with good reception to

Preset buttons.

While Autostore is operating, pressing the

Autostore button again will cancel the function and play the previous frequency.

2-2 I Radio/Media

Features Description

• Pressing this button briefly (less than 0.8 seconds): Seeks the previous/next frequency.

SEEK/TRACK

TUNE

• Pressing and holding this button (for more than 0.8 seconds): Moves quickly through all of the frequencies. The moment that you release the button, the system seeks the ne

vailable frequency.

Turn the able frequencies.

•

FM: Increment/decrement by 200 kHz AM: Increment/decrement by 10 kHz

•

TUNE

knob to manually seek avail-

FM/AM I 2-3

USB

Before Playing a USB MP3

Connect the USB device after turning on the engine. The USB device may become damaged if it is already connected when the ignition is turned on.

• Files that are not standard format music/image files will not be played.

• For MP3/WMA/OGG files, only music files with compression rates between 8Kbps ~ 320Kbps can be played.

• Heed caution to static electricity when connecting/disconnecting external USB devices.

• Encoded MP3 Players will not be recognized when connected as an external device.

• When connecting an external USB device, the device may not properly recognize the USB is in some states.

• Only products formatted with byte/sectors under 64Kbyte will be recognized.

• USB devices, formatted to the FAT12, FAT16, or FAT32 file system, are recommended. File systems other than FAT12, FAT16, FAT32, exFAT, and NTFS are not supported.

• Some USB devices may not be supported due to compatibility issues.

• Take caution so that the USB connector does not come in contact with body parts or objects.

• Repeated connecting/disconnecting of USB devices within short periods of time may result in product malfunction.

• Make sure to connect/disconnect external USB devices with the audio power turned off.

• The amount of time required to recognize the external USB device may differ depending on the type, size, or file formats stored on the USB.

• The use of USB devices for purposes other than playing music and image files is prohibited.

• Do not use the USB I/F to charge batteries or USB accessories that generate heat. Such acts may lead to worsened performance or damage to the device.

• The device may not recognize the USB device if separately purchased USB hubs and extension cables are being used. Connect the USB directly with the multimedia terminal of the vehicle.

• When using mass storage USB devices with separate logical drives, only files saved to the root drive can be played.

• When application programs are installed to specific USBs, files may not properly play.

2-4 I Radio/Media

• The device may not operate normally if MP3 Players, cellular phones, digital cameras, or other electronic devices (USB devices not recognized as portable disk drives) are connected with the device.

• Charging through the USB may not work for some mobile devices.

• The device may not support normal operation when using a USB memory type besides Metal Cover Type USB Memory.

• The device may not support normal operation when using formats such as HDD Type, CF, or SD Memory.

• Upon playing iPods, please use a dedicated iPod car cable.

• Normal operations cannot be guaranteed when other cables are being used.

• The device will not support files locked by DRM. (Digital Rights Management)

• USB memory sticks used by connecting an Adaptor (SD Type or CF Type) may not be properly recognized.

• Only use Plug type connector products, as shown in the figure below.

• To play USB MP3, the USB device must be connected to the USB port in the front multibox. The USB port in the center console storage (if equipped) is for charging only.

Product Name Manufacturer XTICK LG BMK BMK Technology SKY-DRV Sky Digital TRANSCEND JetFlash Transcend Sandisk Cruzer SanDisk Micro ZyRUS ZyRUS NEXTIK Digiworks

Information

• Problems that occur through use of USB devices not listed within the

above table are not covered by the product warranty.

Plug Type Connector

USB I 2-5

Supported USB MP3 music speciﬁ cations

Name Description

MP3 File Specification

Recommended Bit Rates and Sampling Frequency

ID3 Tag

Detailed Specifications

Information

• The sound quality of MP3 files that use bitrates exceeding 192 Kbps

cannot be guaranteed. When using files without fixed bit rates, some features (FF/REW features) may not properly operate.

Specification: MPEG1 AUDIO LAYER 3

Acceptable sampling frequency: 32, 44.1, 48 (kHz) Acceptable bit rate: 32, 40, 48, 56, 64, 80, 96, 112,

128, 160, 192, 224, 256, 320 (Kbps) 96, 128, 192 Kbps fixed bit rate/44.1kHz Supports ID3v1.0 and ID3v1.1, ID3v2.2, ID3v2.3,

ID3v2.4 ID3 tags Maximum directory layers: 20 layers

Maximum length of folder name/file name: 255Bytes Supported characters for folder name/file name: Alphanumeric characters, Korean standard character set 2,350 characters, Simplified Chinese 4888 characters Maximum number of folders which can be stored onto one USB: 2000 folders (including ROOT) Maximum number of files which can be stored onto one USB: 8000

2-6 I Radio/Media

USB Music Mode Display Controls

Features Description Mode File Index

Repeat/Shuffle

Play Time

Song Info

List Back Button

Displays current operating mode Shows the current file/total files within the USB From Repeat/Shuffle, displays the current oper-

ating function Displays the current play time/total play time Displays the information of the current track

• When a track in the file tab on the list screen is selected: Displays artist, title, album info

• When a track in the other tabs on the list screen is selected: Displays artist, title, album info

Moves to the list screen Converts to basic mode screen

Features Description

If button is pressed (less than 0.8 seconds): Moves to the previous file or play the current file from the beginning (Depends on the play time)

• If play time is less than 3 seconds, moves to

Previous File

previous file

• If play time is more than 3 seconds, play the current file from the beginning

If button is pressed (more than 0.8 seconds): It rewinds the track

Play/Pause

Plays/pauses the current file

• If button is pressed (less than 0.8 seconds):

Next File

Moves to the next file

• If button is pressed (more than 0.8 seconds): It fast-forwards the track

Repeats the current file

• If select the song in the file tab on the list screen: Select the

Repeat

between repeating one song, repeating folder,

Repeat

and turning repeat off

• If select the song in the other tabs (Playlist, Artist, Song, Album) on the list screen: Select

Repeat

the

button to switch between repeating

one song and turning repeat off

Plays files in random order

• If select the song in the file tab on the list screen: Select the

Shuffle

between Shuffle Folder, Shuffle All, and turning

Shuffle

shuffle off

• If select the song in the other tabs (Playlist, Artist, Song, Album) on the list screen: Select

Shuffle

the

button to switch between Shuffle

Category and turning shuffle off

button to switch

USB I 2-7

Features Description

• Delete Current File: A selected file can be deleted. Deleted file can be found in the to_ Delete folder.

This function is only suppored when USB format is compatable with FAT16 or FAT32.

• Sound Settings: Moves to the Sound Settings screen. You can change the settings of the sound.

Turn the

TUNE

knob to search a desired track.

If the desired track is displayed, press the

TUNE

knob to play the track.

If you do not anything with the

for 5 seconds of searching tracks, the track info for the current track is restored.

TUNE

knob

2-8 I Radio/Media

Features Description

Folder/ Category

Name Current Song Back Button Upper Folder/

Category

Search Menu

SEEK/TRACK

TUNE

Displays folder/category name in the list

Displays current playing file name Converts to basic mode screen

Moves to Upper Folder

Now Playing: When moving to a different list screen, moves to the list page where the current file is located (Becomes disabled when the current list includes the current file)

Search tracks by the list type. Search songs according to File, Artist, Song, Album and Recently Added.

If access the search menu while playing a

track, it moves to the previous search mode.

•

If button is pressed (less than 0.8 seconds): Plays previous/next track.

• If button is pressed (more than 0.8 seconds): Moves to play screen, and then it will re or f

ast-forward the track.

Turn the the previous/next list. If the desired track is displayed, press

knob to move the focus to

TUNE

wind

knob to play the track.

USB I 2-9

iPod

※

The use of genuine iPod cables sup-

plied by Apple is recommended. (The use of other products may result in noise or abnormal operation.)

Using iPod Devices

• iPod is a registered trademark of Apple Inc.

• iPod mode will not operate if the connected iPod cannot be recognized due to operation of unsupported versions that do not support related protocols, iPod abnormalities, or iPod device defects. Some iPods with unsupported communication protocols may not properly operate with the Multimedia system.

• For fifth generation iPod Nano devices, the iPod may not be recognized when the battery level is low. Please charge the iPod for use.

• Search/play orders shown within the iPod device may differ with the orders shown within the Multimedia system.

• If the iPod malfunctions due to an iPod device defect, reset the iPod and try again. (To learn more, refer to your iPod manual)

• If repeatedly connect and disconnect iPod/iPhone to the Multimedia system with USB cable in short time, it may cause abnormal operation.

• The time for recognition of iPod/iPhone may vary depending on device type, firmware version and iOS version.

• For some iPod Touch and iPhone

devices, connecting Bluetooth

while the iPod is operating may result in discontinued iPod sound. When such devices

with Bluetooth

support are connected, this problem occurs as the sound source is changed from the Dock Connector (USB connector cable) to Bluetooth.

• To prevent this symptom, Bluetooth Audio function in the Multimedia system is limited if iPod/iPhone is connected to the system through both cable and Bluetooth. To listen to the iPod sound, use either iPod menu with USB connection or Bluetooth Audio with Bluetooth connection.

• To listen to the iPod sound, reconnect the USB cable or change the audio output settings in iPod/iPhone to Dock.

• In order to use the iPod while operating the keys, you must use a dedicated iPod cable. (the cable that is supplied when purchasing iPod/ iPhone products)

※

During ACC ON state, connecting the

iPod through the iPod cable (The cable that is supplied when purchasing iPod/ iPhone product.) will charge the iPod through the head unit.

The use of genuine iPod cables sup-

plied by Apple is recommended. (The use of other products may result in noise or abnormal operation.)

※

To play iPod music through cable con-

nection, the iPod/USB cable must be connected to the USB port in the front multibox. The USB port in the center console storage (if equipped) is for charging only.

2-10 I Radio/Media

• When connecting with the iPod cable, make sure to fully insert the jack to prevent communication interference. If the iPod is connected to the vehicle while it is playing, a high pitch tone may sound for about 1~2 seconds immediately after connection. If possible, connect the iPod to the vehicle with the iPod stopped/ paused.

• Within iPhones, streaming audio and iPod control may occasionally conflict. If problems persist, remove the iPhone and connect again.

• When connecting to iPod Nano/Classic, the Kia Motor logo appears on the Apple device. For the iPod Nano 6 generation, however, the logo image does not appear since it is not supported. Also, all iPhone and iPod Touch products do not support this function.

• In Apple’s iOS 6.0 version or later, Podcast and Audiobook media files are designed to be played with the Podcasts and iBooks applications specifically designed for Apple products. If the Apple device does not provide the Podcast and Audiobook lists, the playlist may not be displayed and played in the iPod mode.

• If the Apple Podcasts and iBooks apps are not installed on the Apple device, but the Apple device provides the Podcast and Audiobook lists, you can play files in other categories in iPod mode.

• The screen of multimedia system can be different when you run other music players (e.g. iHeartRadio) on your connected device.

iPod I 2-11

Caution

• While using a connected iPhone/iPod Touch device, it may not operate normally if the user changed some functions in the device.

• When calling with an iPhone connection, song may stop playing due to an Apple device feature. If sound does not resume after the call is terminated, check the device status.

• If lots of songs have the same information, skipping may occur when previous/ next song is executed due to an Apple device feature. Also problems may occur depending on device type or iOS version.

• If lots of songs have the same information, it may occur difference of playing songs between the Multimedia system and Apple device. Reset the device or delete the same songs in the Apple device using iTunes.

• If you control pause, repeat, shuffle, or seek songs when the play time is when the play time is less than 3s before finished playing, it may occur difference of

• We recommend that your Apple device uses the latest firmware since some problems may occur due to an outdated firmware or other software related issues.

playing song between the Multimedia system and Apple device. Access to iPod music from another mode or pause a song and then play a song again in Apple device.

Type 1G 2G 3G 4G 5G 6G 6.5G 7G

iPod Mini Not Supported

iPod Shuffle Not Supported

iPod Nano

iPod Touch

iPad

iPad Mini

iPod Classic Not Supported

Type 3G 3GS 4 4S 5 5C 5S 6 6+

iPhone

○ ○○○ ○ ○

○

(iOS 1.1 not

supported)

○○○ ○

(Unable to charge, Not verified, Normal working not guaranteed)

○

(Unable to charge, Not verified, Normal working not guaranteed)

○

(iPod with

Video)

Not verified,

Normal working not guaranteed

○○○○○○○○

○

(iPod

Classic)

Not

released

Not released

○

(iPod

Classic)

○

Not

released

2-12 I Radio/Media

Caution

• If the iPhone/iPod Touch supports Bluetooth, it is unable to use Bluetooth Audio if the Apple device that is connected to the Multimedia system through both USB connection and Bluetooth. Disconnect the USB connection then use Bluetooth Audio.

• If iPod/iPhone connected to the Multimedia system through both USB and AUX. iPod/iPhone keeps output sound via AUX, thus it may occur sound will not output in iPod mode.

• If AUX cable connected to iPod/iPhone but not connect to the Multimedia system, it may occur sound will not output in iPod mode due to iPod/iPhone’s feature. Especially, if you use AUX cable like pictures, this problem may occur.

• Disconnect AUX cable from iPod/iPhone first, then connect to the Multimedia system via USB. Or change settings to “Dock” in iPod/iPhone.

• If connect to the Multimedia system while podcast or iTunes music downloading to iPod/iPhone, it may occur some problems when you select song in the list. Reconnect iPod/iPhone to the Multimedia system when downloading is finished or the file deleted.

• If connect to the Multimedia system while sync, it may occur some problems. Try to use iPod/iPhone connection after sync complete. (To learn more, refer to your iPod manual)

• iPhone and iPod Touch devices are guaranteed to work normally on iOS

9.3.2 or below. However, they may not work normally on future iOS versions as their operations have not yet been tested.

iPod I 2-13

iPod Mode Display Controls

Features Description Mode Song Index

Repeat/Shuffle

Play Time Song Info List

Displays current operating mode Shows the current song/total songs From Repeat/Shuffle, displays the current

operating function Displays the current play time/total play time Displays the artist/song title/album info Moves to the list screen

Features Description

If button is pressed (less than 0.8 seconds): Moves to the previous file or play the current file from the beginning (Depends on the play time)

• If play time is less than 3 seconds, moves to

Previous File

previous file

• If play time is more than 3 seconds, play the current file from the beginning

If button is pressed (more than 0.8 seconds): It rewinds the track

Play/Pause

Plays/pauses the current file

• If button is pressed (less than 0.8 seconds):

Next File

Moves to the next file

• If button is pressed (more than 0.8 seconds): It fast-forwards the track

Repeats the current file

Repeat

Select the

Repeat

button to switch between

repeating 1 track, and turning repeat off Plays files in random order

Shuffle

When selecting shuffle category → deactivate shuffle then repeat

• Shuffle Category: Shuffle song in the current category

Back Button

Move to home/previous mode screen Sound Settings: Moves to the Sound Settings

screen. You can change the settings of the sound.

button, it changes to

2-14 I Radio/Media

Features Description

TUNE

knob to search a desired

TUNE

Turn the track. If the desired track is displayed, press the

TUNE

knob to play the track.

If you do not anything with the

for 5 seconds of searching tracks, the track info for the current track is restored.

TUNE

knob

iPod I 2-15

Features Description

Category Name

Displays the category name Displays the contents of selected category

Category List

If there are many items in the list, items are

added in order and the scroll bar on the right

is adjusted accordingly. Back Button Upper Category

Converts to basic mode screen Moves to Upper Category Search tracks by the list type. Search songs

according to Playlist, Artist, Song, Album,

Search Menu

Genre, Composer, Podcast and Audiobook.

If access the search menu while playing a

track, it moves to the previous search mode.

•

If button is pressed (less than 0.8 seconds): Plays previous/next track.

SEEK/TRACK

•

If button is pressed (more than 0.8 seconds): Moves to play screen, and then it will re or f

ast-forward the track.

TUNE

knob to search a desired

Turn the track. If the desired track is displayed, press the

TUNE

knob to play the track.

If you do not anything with the knob for 5 seconds,

TUNE

the

knob search will be terminated.

wind

2-16 I Radio/Media

AUX

Connecting an External Device

If an external device connector is connected with the AUX terminal, then AUX mode will automatically operate. Once the connector is disconnected, the previous mode will be restored.

• AUX mode can be used only when an external audio player has been connected.

• The AUX volume can also be controlled separately through the connected device.

NOTICE

• If only a cable is connected to the AUX

without an external device, the mode will be changed to AUX, but noise may occur. When an external device is not being used, remove the connector jack.

• When the external device power is connected

to the power jack, playing the external device may output noise. In such cases, disconnect the power connection before use.

※

The actual feature in the vehicle may

differ from the illustration.

AUX I 2-17

Bluetooth® Audio

Bluetooth Audio Mode Display Controls

Features Description Mode Phone Name

Displays the current operating mode Displays name of connected phone

Features Description Artist Info Title

Previous File

Play/Pause Next File

Repeat

Shuffle

SEEK/TRACK TUNE

Name of current artist Name of current song

If play time is less than 3 seconds, mov

•

• If play time is over than 3 seconds, plays the

Plays/Pauses Bluetooth Audio Moves to the next file Repeats the current file.

Plays files in random order.

•

Plays the previous/next file

vious file

the pre

current file from the beginning

This function may differ depending on the

model of mobile phone

This function may differ depending on the

model of mobile phone.

This function may differ depending on the

model of mobile phone.

Connections: Mov

You can pair a new device or change/

screen. delete paired device(s). Sound Settings: Mov screen.

You can change the settings of the

sound.

TUNE

is not supported.

es to the Bluetooth Settings

es to the Sound Settings

es to

2-18 I Radio/Media

Information

• Artist info and Title may not be supported by mobile phone.

Bluetooth Connection Settings

Settings for pairing, connection and disconnection of a Bluetooth device.

• In Bluetooth Audio play screen, select

and then

Information

• If the music in the mobile phone is not

played after changing to audio streaming mode, press the play button. Thus check if the music is playing in the Bluetooth device after changing to audio streaming mode. Audio streaming may not be supported for some mobile phones.

Connections

Bluetooth® Audio I 2-19

MEMO

part.3

Bluetooth

Before Using the Bluetooth® Handsfree

Bluetooth Connection

Bluetooth Phone

• • Viewing the screen for prolonged periods of time is dangerous and may lead to accidents. When driving, view the screen only for short periods of time.

Bluetooth

Before Using the Bluetooth

What is Wireless Technology?

•

Bluetooth

to a short-distance wireless networking technology which uses a 2.45GHz frequency to connect various devices within a certain distance.

• Supported within PCs, external devices, Bluetooth tronic devices, and automotive environments, to be transmitted at high speeds without having to use a connector cable.

• Bluetooth which allows the user to conveniently make phone calls with Bluetooth mobile phones through the Multimedia system.

Handsfree

Bluetooth®

Wireless Technology refers

phones, PDAs, various elec-

Bluetooth

Wireless Technology

Handsfree refers to a device

• The Bluetooth® Handsfree feature may not be supported in some mobile phones.

WARNING

- Distracted Driving

• Focus on the road while driving. The driver's

primary responsibility is in the safe and legal operation of the vehicle. Drivers should not use any hand held devices or other equipment or vehicle systems that distract the driver during vehicle operation.

• Do not stare at the multimedia screen for long

periods of time while driving. Staring at the screen for prolonged periods of time can lead to trafﬁ c accidents and can result in personal injuries.

Precautions for Safe Driving

• Bluetooth® is a feature that enables drivers to practice safe driving. Connecting the head unit with a Bluetooth allows the user to conveniently make calls, receive calls, and manage the phonebook. Before using Wireless Technology, carefully read the contents of this user’s manual.

• Excessive use or operations while driving may lead to negligent driving practices and be the cause of accidents. Do not operate the device excessively while driving. Viewing the screen for prolonged periods of time is dangerous and may lead to accidents. When driving, view the screen only for short periods of time.

phone

Bluetooth

3-2 I Bluetooth

CAUTIONS upon Connecting

Bluetooth

• Before connecting the head unit with the mobile phone, check to see that the mobile phone supports Bluetooth tures.

• Even if the phone supports Wireless Technology, the phone will not be found during device searches if the phone has been set to hidden state or the Bluetooth Disable the hidden state or turn on the Bluetooth connecting with the head unit.

• If Auto Connection is used, the Bluetooth phone is automatically connected when the ignition is turned on, making it unnecessary to have to connect the phone with the head unit every time.

Phone

fea-

Bluetooth

power is turned off.

power prior to searching/

• If you do not want automatic connection

with your Bluetooth

Bluetooth

feature off of the Bluetooth®

device, turn the

device.

• Park the vehicle when connecting the head unit with the mobile phone.

• Bluetooth

connection may become intermittently disconnected in some mobile phones. Follow these steps to try again.

1. Turn the Bluetooth

function within the

mobile phone OFF/ON and try again.

2. Turn the mobile phone power OFF/

ON and try again.

3. Completely remove the mobile phone

battery, reboot, and then again.

4. Reboot the Multimedia System and

try again.

5. Delete all paired devices from both of

Phone and Head Unit sides and then try again.

• The Handsfree call volume and quality may differ depending on the mobile phone.

• Pairing Bluetooth other Bluetooth

devices and use of

features are not supported when the vehicle is in motion. For safety, please first park your vehicle.

• If you continue having issues with downloading contacts, please check the mobile phone status or inquire of the mobile phone manufacturer.

Before Using the Bluetooth® Handsfree I 3-3

Bluetooth Connection

Pairing a New Device

Before you can use the Bluetooth feature, you must first pair/connect your mobile phone to your car. Up to 5 Bluetooth devices can be paired. Only one Bluetooth device can be connected at a time.

Pairing a New Device by Selecting Phone/Call

Press the the steering wheel control. ▶ Pair your car after your mobile phone detects the Bluetooth device. ▶ Enter the passkey or accept the authorization popup. ▶ Connect Bluetooth.

PHONE

key or key in

Pairing a New Device Through the Phone Settings

Press the

▶

Select

Add New

SETUP

key. ▶ Select

Bluetooth Connection

. ▶ Pair your car after your mobile phone detects the Bluetooth device. ▶ Enter the passkey or accept the authorization popup. ▶ Connect Bluetooth.

The default passkey is 0000. The vehicle name above is an example. Check the actual information on the product.

Bluetooth

. ▶ Select

Connecting Bluetooth Devices

Connects the Bluetooth devices that you

add.

Connecting Devices by Selecting Phone/Call

Press the the steering wheel control. ▶ Select the name of the device to connect. ▶ Connect Bluetooth.

PHONE

key or key in

3-4 I Bluetooth

Connecting Devices Through the Phone Settings

Press the

▶

Select

SETUP

key. ▶ Select

Bluetooth Connection

name of the device to connect. ▶ Connect Bluetooth.

Bluetooth

. ▶ Select the

Disconnecting Bluetooth Devices

Disconnects Bluetooth devices that are connected.

SETUP

Press the

▶

Select

Bluetooth Connection

name of the device to disconnect.

key. ▶ Select

. ▶ Select the

Bluetooth

Deleting Bluetooth Devices

Deletes the Bluetooth devices that you added. Note that deleting a Bluetooth device will delete all Call History and Contact Info downloaded along with it.

Press the

▶

Select

Delete Devices

to delete. ▶ Select

SETUP

key. ▶ Select

Bluetooth Connection

. ▶ Select the device name

Delete

Bluetooth

. ▶ Select

Bluetooth Connection I 3-5

Bluetooth Phone

Phone Status Icons

Shows the current phone status in the right top of the display.

Icons Description

You can use Bluetooth phones when a Bluetooth Hands-free connection is established.

You can use Bluetooth audio features when a Bluetooth audio connection is established.

You can use Bluetooth phones and audio features when both Bluetooth Hands-free and audio connections are established.

Call signal strength indicator

Battery level of the Bluetooth devices connected

Downloading Call History list

Downloading Contacts

In a Bluetooth phone call

Microphone muted

Information

• The battery level icon and the call signal

strength indicator may not be supported in some Bluetooth devices.

• The battery level may differ from the actual

level remaining.

3-6 I Bluetooth

Dial

Dials a call after the Bluetooth devices are connected.

PHONE

• Press the the steering wheel control.

• You can also select

key or key in

All Menus

▶

Phone

Name Description

Use the keypad to enter the phone number that you want to call. Press

Keypad

Call

Settings

Delete

Information

• Some types of mobile phones may not

support the Speed Dial function.

and hold the last number of a speed dial to dial a number that you added to the Speed Dial list in the phone

Makes a call after you dial a number and select CALL. If the number is listed in Dialed Calls, you can select the number and press CALL to automatically dial that number again.

Moves to a screen of Phone Settings.

Deletes the numbers that you entered.

Accept/Reject Call

If there is an incoming call after you made a Bluetooth connection, a popup message will appear.

Name Description Accept Reject

Information

• In some mobile phones, the caller’s number

may not be displayed, and the Reject feature may not be supported.

Answers the call. Ignores the call.

Bluetooth Phone I 3-7

Using the Menu During a Phone Call

When making a call, you can use the following menu items.

Name Description

Use Private

End

Contacts

Outgoing

Volume

Keypad

Switch

Switches a voice call from the car Hands-free to the mobile phone.

Ends a call. Displays the Contacts

list. Displays the Mic Volume

settings. You can adjust the in-call volume that the other party hears (level 1 - 5).

Moves to a screen for entering numbers.

Switches to a call on hold, if any. You can also switch calls by selecting the number in the Information Display. The Switch function switches the current call to a waiting call in order to answer a new incoming call.

Information

• If the caller’s number is listed in Contacts, the

caller’s name will be displayed. Otherwise, only the number will be displayed. In some mobile phones, the phone number may not be displayed.

• In some Bluetooth devices, the Use Private

feature may not be supported.

• In some Bluetooth devices, the Switch feature

may not be supported.

• During a phone call on a Bluetooth Hands-

free, you cannot access other modes, such as Radio and Setup.

• Depending on handset types, the in-call

volume the other party hears may differ. If the other party hears your voice too low or too loud, adjust the mic volume.

3-8 I Bluetooth

Call History

Press the

PHONE

key, and then

Name Description

All

Dialed

Received

Missed

Call History

Download

Lists the all call history.

Lists the calls that you made.

Lists the calls that you have received.

Lists the calls you missed.

Displays all of your call history. Select from the list to dial the number.

Downloads the call history information from your mobile phone.

Call History

Information

• In some mobile phones, call records may not

be added to your Call History.

• Calls from restricted ID’s are not added to

your Call History Information.

• Up to 50 calls can be added in each Dialed

Calls/Received Calls/Missed Calls list.

• The durations of each dialed/received call are

not displayed in your car’s Call History list.

• While the call history download is in progress,

the status bar displays an icon ( ).

• If the call history download is turned off on the

Bluetooth device, the call history download will fail.

• Some devices require a device authentication

for downloading your call history. If download fails, check if the Bluetooth settings or display status are normal.

• Some devices do not support call history

download. Check if your Bluetooth device supports download feature.

Bluetooth Phone I 3-9

Contacts

Press the

PHONE

key, and then

Name Description

Contacts List

Download

The list of Contacts. Select from the list to dial the number.

Downloads contacts from your mobile phone.

Searches Contacts.

Contacts

Information

• Up to 5000 phone numbers can be

downloaded from a single, paired Bluetooth device.

• You cannot edit or delete downloaded phone

numbers from your car.

• Contacts can be viewed only when the

Bluetooth device is connected.

• Even if the Bluetooth device is disconnected,

the downloaded data will remain. (Note that deleting a paired phone will also delete all downloaded Contacts and Call History data)

• Downloaded phone numbers may be lost

depending on the condition of the head unit. Keep your important data in a safe place.

• Contacts from both the SIM card and your

mobile phone are downloaded at the same time by default.

• The status bar displays a ( ) while

downloading contacts.

• The download will not be available if the

contacts download function is turned off on your Bluetooth device.

• Some devices require a device authentication

for downloading your contacts. If download fails, check your phone screen and confirm the download if necessary.

• Some devices do not support contacts

download feature. Check if your Bluetooth device supports contacts download.

3-10 I Bluetooth

Favorites

Press the

PHONE

key, and then

Name Description

Lists the phone num-

Favorites

Add New

Delete

bers saved as Favorites. Select from the list to dial the number.

Adds a new number to Favorites.

Deletes numbers that you select from Favorites.

Favorites

Bluetooth Phone I 3-11

MEMO

part.4

Other Features

Camera

Other Features

Camera

WARNING

- Backing Up & Using Camera

• Never rely solely on the rear view camera

when backing up. Prior to entering your vehicle always do a visual check of the area behind your vehicle, and before backing up be aware of your surroundings and supplement the rear view camera by looking over your shoulders and checking your rear view mirrors. Due to the difficulty of ensuring that the area behind you remains clear, always back up slowly and stop immediately if you even suspect that a person, and especially a child, might be behind you.

Information

• A separate chipset is used for the camera

screen while booting up, so it may be different after booting up.

Steering-linked camera

• This device is connected to a rear detection camera to see behind the car for safe reversing.

• The Rear View Camera turns on automatically if you shift the gear to R when the power is on or the engine has started.

• While the device boots up, shift the gear to “R” to activate the rear detection cameras. Shift the gear to another position to deactivate the rear detection camera.

NOTICE

• A wide-angle lens is installed as the rear

detection camera to get a wider view, so there may be some difference between the actual distance and the distance that appears. on-screen. For safety, make sure to view the back, right, and left sides of the car for yourself.

• The color of the parking guidelines displayed

in the picture may differ from the actual screen.

• When booted up, blinking may occur when

you switch to a UI screen.

Name Description

Red Line

Yellow Line 1

Yellow Line 2

Yellow Line 3

Yellow Line 4

Blue Line

About 0.5 m from the rear bumper

About 1 m from the rear bumper

About 3 m from the rear bumper

Trajectory of the wheel on the driver’s side

Trajectory of the wheel on the passenger side

Neutral steering trajectory

As you reverse your car and monitor the area behind your car, the steering-linked driving trajectory and the neutral driving trajectory are both displayed.

4-2 I Other Features

part.5

Setup

Sound Settings

Display Settings

Bluetooth Settings

Custom Button Settings

Home Screen Settings

Date/Time Settings

Language Settings

Keyboard Settings

Screen Saver Settings

Advanced Settings

System Info

Setup

Setup is the screen to control Audio system settings. To enter the screen, press the

Setu

key or the

icon in All Menus.

SETUP

Features Description

Provides the sound con-

Sound

Display

Bluetooth

Phone Projection

Custom Button

5-2 I Setup

trol options for Position, Bass, Mid, Treble, Volume, Priority and Advanced settings.

Provides the Mode/ Illumination settings.

Provides the Bluetooth Connection/Auto Connection Priority/ Bluetooth System Info settings.

For more details, refer to Phone Projection guide.

Provides settings that configure the feature to be accessed when the

key is pressed.

Features Description

Provides the function

Home Screen

Date/Time

Language

Keyboard

Screen Saver

Advanced

System Info

Display Off

to customize the three menu items at the bottom of the Home Screen.

Provides the Date and Time settings.

Provides the Change Language settings.

Provides settings to switch keyboard layouts.

Provides the Clock/None settings.

Provides settings that configure notifications per feature, etc.

Provides software and default information.

Provides the Display Off (touch activation) function.

Sound Settings

Cent

Default

Adjusts the sound effects for the whole system.

Features Description

Select the Up/Down/Left/ Right button to control

Position

Tone

sound positioning. Select trate the sound on the center of vehicle.

Drag the slide bar to control Bass/Middle/Treble settings. Select the settings.

to concen-

to initialize

Features Description

Priority

Advanced

Default

Beep

Information

• Advanced sound settings may differ according

to selected AMP option.

• The seat shape may differ according to

vehicle model.

Sets the volume priority for Back-up warning and resets Start-up volume.

Select additional audio options such as “Speed Dependent Volume Control” that automatically controls Audio volume according to vehicle speed.

Resets the sound to factory default settings.

Select to activate a beep when pressing buttons.

Display Settings

Adjusts the level of illumination for the entire system.

Features Description

Select any of LCD illumi-

Mode

Illumination

Default

Display Off

nation change modes: Automatic (changes the level automatically), Daylight, and Night.

Set the levels of illumination for day and night. Select the settings.

Resets the display to factory default settings

Provides the Display Off (touch activation) function.

to initialize

Setup I 5-3

Bluetooth Settings

Changes Bluetooth phone settings.

Bluetooth Settings

Press

the

SETUP

key ▶ Select

Bluetooth

Bluetooth Connection

SETUP

Bluetooth Connection

Press the

▶

Select

key ▶ Select

Bluetooth

Features Description

Paired Device

List

Bluetooth

Audio Connection Status

Bluetooth

Hands-Free Connection Status

Add New

Delete

Devices

Help

Displays the paired Bluetooth device list. When selecting from the list, the device is connected or disconnected.

An icon appears when you make a Bluetooth Audio connection.

An icon appears when you make a Bluetooth Hands-free connection.

Select and delete a paired device.

Switches to the Bluetooth Connection Help screen.

5-4 I Setup

Default Fact

ttings

Information

• Up to 5 Bluetooth devices can be paired.

• Only one Bluetooth device can be connected

at a time.

• During a Bluetooth device connection, another

device cannot be paired.

• When you delete a paired device, the Call

History and Contacts stored in the head unit are also deleted.

• Bluetooth Hands-free and Bluetooth Audio

functions are supported.

• Hands-free and audio-supported devices,

such as a Bluetooth smartphone or audio, will function normally.

• When a Bluetooth device is connected, if

the Bluetooth connection is unexpectedly disconnected, due to being out of communication range, the device powering off, or a Bluetooth communication error, the Bluetooth device automatically searches for and connects to nearby Bluetooth devices.

• If the system is not stable, due to a vehicle-

Bluetooth device communication error, restore the Default Factory Settings.

• For Default Factory Settings, the bluetooth

settings are reset to factory settings.

• Press the

▶

Select

SETUP

key ▶ Select

ory Se

Bluetooth

Auto Connection Priority

Press the

▶

Select

SETUP

key ▶ Select

Auto Connection Priorit

When the engine is running, the selected Bluetooth device is automatically connected. If you fail to connect the selected device, the previously-connected device is automatically connected, and if it also fails, then it tries to connect all paired devices sequentially. Depending on auto connection priority, connection to a device may take time.

Bluetooth

Bluetooth System Info

Press the

▶

Select

SETUP

key ▶ Select

luetooth System Inf

Features Description

Vehicle

Name

You can change the Bluetooth device name of the vehicle.

You can change the pass-

Passkey

key used for Bluetooth device authentication. the initial passkey is 0000.

Information

• The vehicle name above is an example.

Check the actual information on the product.

Bluetooth

Setup I 5-5

Custom Button Settings

Home Screen Settings

Date/Time Settings

You can configure the feature to be accessed when the

key is pressed.

Setting it to a feature that you frequently use will allow you to access the feature quickly and conveniently anytime.

My Menu

For example, setting it to

will

enable you to access the My Menu screen by pressing the

key.

You can customize the three menu items at the bottom right of the Home Screen into the ones you want.

On the Home Screen Settings screen, drag the menu items on the right to the area marked in red in the screen below.

Information

• You can select the

to the factory default settings.

efaul

button to reset

Configure the settings for time and date. Using the arrow buttons, you can change the values. Date/Time settings do not automatically change when crossing into different time zones. The time must be changed manually on this screen.

Features Description

Daylight

Saving Time

24 Hours

Direct entry

The daylight saving time (DST) is applied.

The time display is set in 24-hour format.

If you tap any value, you can directly enter the number in the following screen.

5-6 I Setup

Language Settings

Keyboard Settings

Screen Saver Settings

You can configure the displayed system language.

When the language is changed, the system language is automatically changed. Unique data including MP3 file name is not changed.

You can configure the keyboard layout for each language.

Information

• Configured keyboard layouts are applied

to all input modes.

You can select any of the following screen formats to be displayed when the screen or power is turned off (Press and hold the Power button).

• Digital clock and date

• Analog clock and date

• None

Setup I 5-7

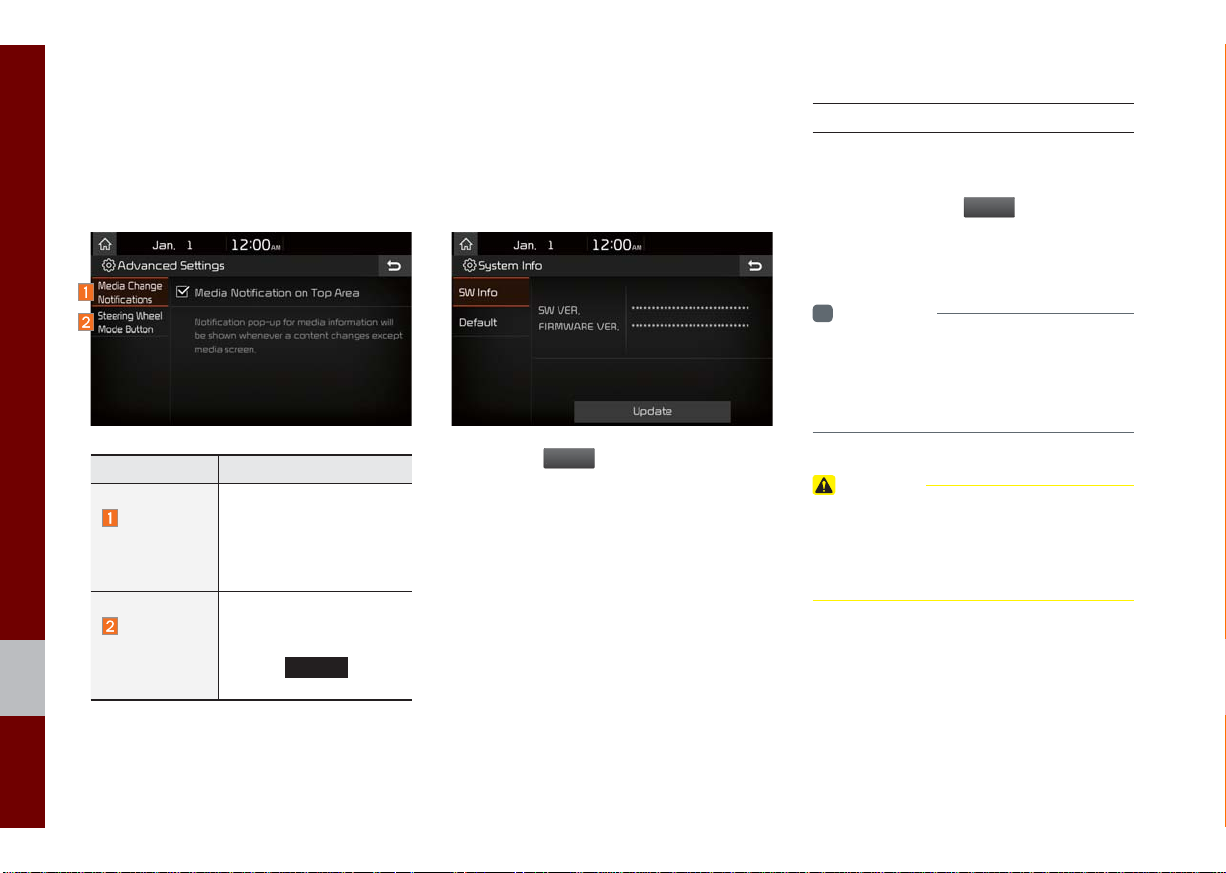

Advanced Settings

You can configure notifications per feature, etc.

System Info

System version information and update details are available.

System Update

At the System Info screen, insert the USB memory with the latest file downloaded,

pdat

and then select the updating. The system will then reboot automatically.

Information

• This product needs supplemented software

updates and additional functions, which collectively may take some time to complete, depending on the amount of data.

button to begin

Features Description

Media

Change Notifications

Steering

Wheel Mode Button

5-8 I Setup

Sets whether to display media information at the top of the screen as the next item is played when not on the media screen.

You can configure the media to be accessed when the steering wheel’s is pressed.

MODE

button

Select the system.

date

button to update the

CAUTION

• If the power is disconnected or the USB is

removed during an update, the data might be damaged. Please do not turn off the vehicle while an update is in progress.

part.6

Appendix

Product Specification

Troubleshooting

FAQ

Appendix

Product Specification

TFT-LCD

Screen Size 7 inch(152.4 X 91.44 mm) Resolution 384000 pixels (Resolution: 800 x 480)

Operating Method

Viewing Angle Left/Right, Top/Bottom: ALL 89° Internal Lighting LED

Radio

Channels

Sensitivity FM: Under 10 dBu/AM: Under 35 dBu Distortion Factor Within 2 %

TFT(Thin Film Transistor) Active Matrix

FM: 87.5 MHz ~ 107.9 MHz(Step: 200 kHz) AM: 530 kHz ~ 1710 kHz(Step: 10 kHz)

Common

Name Car TFT LCD Display Audio Unit

Power Supply DC 14.4 V

Current Consumption

Operating Temperature

Dimensions 178 X 140.2 X 60 mm (Main BOX) Weight 1.7 kg

2.5 A

-20 ~ +70 °C (-4 ~ +158 °F)

Operating Power

Sleep Current

Storage Temperature

DC 9 V ~ DC 16 V

1 mA (Head Unit Only)

-30 ~ +80 °C (-22 ~ +176 °F)

6-2 I Appendix

Bluetooth

Wireless Technology

Frequency Range

Supported Profile

Output

Number of Channels

2402 ~ 2480 MHz

Handsfree(1.6), A2DP(1.2), AVRCP(1.4), PBAP(1.0)

-3.5~ 0dBm (Power Class2, Conducted)

79 channels

Supported Bluetooth

Specification

3.0

CAUTION

• The producer and installer cannot provide services related to

life safety as the concerned radio equipment is liable to radio interference.

Appendix I 6-3

Troubleshooting

1. Errors which occur during the operation or installation of the device may be mistaken as a malfunction of the actual device.

2. If you are having problems with the device, try the suggestions

listed below.

3. If the problems persist, contact your Kia dealer.

Problem Possible Cause

There are small red, blue, or green dots on the screen

The sound or image is not working

The screen is being displayed but sound is not working

When the power is turned on, the corners of the screen are dark

Sound is working from only one speaker

• Because the LCD is manufactured with technology requiring high point density, a pixel or lighting deficiency may occur within 0.01% of total pixels

• Has the Switch for the vehicle been turned to [ACC] or [ON]?

• Has the SYSTEM been turned OFF?

• Has the volume been set to a low level?

• Has the volume been muted?

• The display appearing somewhat dark after prolonged periods of use is normal with LCD panels. It is not a malfunction

• If the screen is very dark, contact your nearest Kia dealer for assistance

• Are the positions of Fader or Balance sound controls adjusted to only one side?

Problem Possible Cause

Sound does not work in AUX mode

The external device is not working

Upon turning power on, the most recent mode screen is not displayed

• Are the audio connector jacks fully inserted into the AUX terminal?

• Is the external device connected with a standard connector cable?

Within modes that play files by reading external sources, such as USB, iPod, or Bluetooth recently played mode screen prior to turning off power may not properly load

• If the corresponding device is not con-

• If the previous mode still cannot be

streaming mode, the most

nected, the mode operated prior to the most recent mode will operate

properly played, the mode operated prior to that will operate

6-4 I Appendix

Problem Possible Cause Countermeasure

• Replace with a suitable fuse

• If the fuse is disconnected again, please contact your point of purchase or Kia dealer

• Check to see that the device has been properly connected

• Charge the battery If the problem persists, contact your point of purchase or Kia dealer

The power does not turn on

The system does not play

The fuse is disconnected

Device is not properly connected

The vehicle battery is low

Problem Possible Cause Countermeasure

The image color/tone quality is low

Sound does not work

The sound or image quality is low

• The brightness, saturation, hue, and contrast levels are not set properly

• The volume level is set to the lowest level

• The connection is not proper

• The device is currently fast-forwarding, rewinding, scanning, or playing in slow mode

• Vibration is occurring from where the conversion switch has been installed

• Image color/tone quality is low

• Properly adjust the brightness, saturation, hue, and contrast levels through Display Setup

• Adjust the volume level

• Check to see that the device has been properly connected

• The sound will not work when the device is fast-forwarding, rewinding, scanning, or playing in slow mode

• The sound may be short-circuited and the image distorted if the device vibrates

• The device will return to normal once vibrations stop

Appendix I 6-5

Problem Possible Cause Countermeasure

The USB does not work

• USB memory is damaged

• USB memory has been contaminated

• A separately purchased USB HUB is being used

• A USB extension cable is being used

• A USB which is not a Metal Cover Type USB Memory is being used

• An HDD type, CF, SD Memory is being used

• There are no music files which can be played

• Please use the USB after formatting it.

• Remove any foreign substances on the contact surface of the USB memory and multimedia terminal

• Directly connect the USB memory with the multimedia terminal on the vehicle

• Use standard USB Memory

• Only MP3, WMA file formats are supported. Please use only the supported music file formats

Problem Possible Cause Countermeasure

• There are no titles which can be

The iPod is not recognized even though it has been connected

Bluetooth does not work or its limited functions are available

Information

• While operating the device, if an abnormality occurs that cannot be

corrected with the above described measures, press the reset the system.

• Press and hold the

turn off and the system will reset.

played

• The iPod firmware version has not been properly updated

• The iPod device does not recognize downloads

• Bluetooth on your mobile phone is set to OFF

• The Bluetooth connection is not made

RESET

key (over 1 second). The device power will

• Use iTunes to download and save MP3 files into the iPod

• Use iTunes to update the firmware version and reconnect the iPod with the device

• Reset the iPod and reconnect with the device

• Set it to ON

• Make the connection active

key to

RESET

6-6 I Appendix

FAQ

About Pairing Mobile Phones

Q I cannot pair my mobile phone. What is the cause?

A Check to see that the mobile phone supports Bluetooth

function. Verify if Bluetooth on the cell phone is set to OFF. If so, set it to ON. If the cell phone still can’t be registered, try again after turning Bluetooth off and on, or delete the device registration on the multimedia system and cell phone and then register the cell phone again.

Q What is the difference between pairing a mobile phone and con-

necting a mobile phone?

A Pairing occurs through authenticating the head unit and mobile

phone

. Mobile phones paired to the head unit can be connected and disconnected until the paired mobile phone is deleted from the system. Bluetooth

Handsfree features, such as making/ answering calls or managing contacts, are supported only in mobile phones connected with the head unit.

Q What is a Passkey?

A A passkey is the password used to authenticate the connection

betw

een the head unit and mobile phone. The passkey only needs to be entered once when pairing the mobile phone for the first time.

The initial passkey is 0000. You can change it with

Bluetooth

luetooth System Inf

▶

asske

menu options.

SETUP

▶

Appendix I 6-7

About Making/Answering Phone Calls

Q How can I answer a call?

A When there is an incoming call, a notification pop-up will

become display

cce

button on the screen or press the steering wheel control To reject the call, select the press the

Q What should I do if I am talking on the Handsfree but want to

switch the call to the mobile phone?

A While on a call, press and hold (o

key on the ton at the bottom of the Phone screen to switch the call to your mobile phone.

ed. To answer the incoming call, select the

Reject

button on the screen or

key on the steering wheel control.

er 0.8 seconds) the

steering wheel control

or select the

se Privat

key on the

but-

About

Bluetooth

Wireless Technology/

Head Unit Use Environment

Q What is the range of my wireless connection?

A The wireless connection can be used within 15 yards

Q How many mobile phones can be paired?

A It is possible to pair up to five mobile phones.

Q Why is call quality sometimes poor?

Check the reception sensitivity of the mobile phone when call quality becomes worsened. The call quality may deteriorate when the signal strength is low. Call quality may also worsen if metal objects, such as beverage cans, are placed near the mobile phone. Check to see if there are metal objects in the vicinity of the mobile phone. The call sound and quality may differ depending on the type of mobile phone.

6-8 I Appendix

Important Safety Information

Before using your Multimedia system, read and follow all instructions and safety information provided in this end user manual (“User’s Guide”). Not following precautions found in this User’s Guide can lead to an accident or other serious consequences.

Keep User’s Guide in Vehicle

When kept in the vehicle, the User’s Guide will be a ready reference for you and other users unfamiliar with the Multimedia system. Please make certain that before using the system for the first time, all persons have access to the User’s Guide and read its instructions and safety information carefully.

Warning

Operating certain parts of this system while driving can distract your attention away from the road, and possibly cause an accident or other serious consequences. Do not change system settings or enter data non-verbally (using your hands) while driving. Stop the vehicle in a safe and legal manner before attempting these operations. This is important since while setting up or changing some functions as you may to distract your attention away from the road and remove your hands from the wheel.

Prolonged Views of Screen

Do not access any function requiring a prolonged view of the screen while you are driving. Pull over in a safe and legal manner before attempting to access a function of the system requiring prolonged attention. Even occasional short scans to the screen may be hazardous if your attention has been diverted away from your driving task at a critical time.

Volume Setting

Do not raise the volume excessively. Keep the volume at a level where you can still hear outside traffic and emergency signals while driving. Driving while unable to hear these sounds could cause an accident.

FCC Warning

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help

Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum 20 cm between the radiator and your body. This transmitter must not be collocated or operating in conjunction with any other antenna or transmitter unless authorized to do so by the FCC.

HYUNDAI MOBIS ADBB0F6AN User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
