H-LCD3700
LCD TV LCD ТЕЛЕВИЗОР
Instruction manual Руководство по эксплуатации
Table of contents
Table of contents ......................................................................................................................................... 2
Important safety precautions ........................................................................................................................ 3
General introduction.................................................................................................................................... 5
Accessories.................................................................................................................................................. 5
Controls and connection............................................................................................................................... 6
OSD operations ..........................................................................................................................................10
Other Operations ........................................................................................................................................14
Troubleshooting..........................................................................................................................................18
The causes of interference...........................................................................................................................19
Specifications .............................................................................................................................................20
Thank you very much for buying our product – the most natural Colour Television Receiver.
To enjoy your set to the full from the very beginning, read this manual carefully and keep it for future reference.
2
Important safety precautions
Warning
Please unplug the power cord from the AC outlet and contact our service personnel to repair under the following conditions:
· Any obvious abnormality appears in the product, such as smoky, peculiar smell or strange sound.
· When a liquid has been spilled or other objects have fallen into the product.
· No picture or sound.
· Cover or panel is broken.
· Although you have operated the product by following the operating instructions, it still cannot work
normally.
Warning
Be careful about the power cord or the plug to avoid the fire or the electric shock.
· Always disconnect the power cord and antenna during the storm.
· Do not fix the power cord with the metal nail.
· Unplug the power cord from the AC outlet; also unplug the signal cables from the input ports when the
product is unused for long periods of time or during a lightning storm.
· When unplug the plug, always hold the wide slot, do not touch the metal part, and do not destroy, refit,
twist, pull or roast the power cord.
· Please contact the personnel service immediately if you found that the core is showed in the air or is
been broken.
· Please replace the AC outlet if the metal bolt cannot be inserted into the power socket completely or it
cannot be fastened even when it was pushed in, otherwise, any accidents of shocks and fires would happen.
· Never touch the antenna lie or power plug if it stars to thunder.
· Do not touch the power plug with wet hands.
· Do not use any non-rated power socket with numerous devices jointed on one power socket or cable de-
vice. The wire of non-designated capacity may cause the fire due to the generation of heat.
Instructions
All instructions must be read and understood well before you operating this product. Heed all warnings and
follow all instructions.
Attachments
Please use the attachment recommended by the manufacturer. Use the inadequate attachments may result in
accidents.
Adjustment
Please adjust the product through the panel buttons or the remote control, do not remove the cover or attempt
to service the product by yourself. Do not disassemble back cover and do not make maintenance by yourself
to avoid the electric shock.
Caution: Over-press the panel may destroy the product.
Placement
· Do not place the product on an unstable cart, stand surface, tripod, bracket, or table. The product may
fall, causing serious accidents as well as the damage to the product.
· Please place the product on a flat surface in a well-ventilated location. Keep it away from the burninglight, direct sunlight, vibration, high-temperature and humidity. Store the product with a temperature
from –200C ~500C; Otherwise you may destroy the product.
· Do not place any vase, potted plant, cup, medicine and any container with water on this product. If the
liquid is spilt, it may cause the fire, electric shock or breakdown.
· Do not install it at the place on the strong magnetic field or current field. It may cause break down. This
equipment may be observed deterioration of the picture by electromagnetic radiation in electromagnetic
environment.
3
· Fasten the wheel of the product or shelf with wheels when installing this product. If it moves or is
tipped over, it may be damaged.
· Do not place any fire source such as candlelight close to this product or place it on this product.
If it is tipped over or fallen down, it may cause damage or fire.
Caution: Do not place the LCD TV into closed space of TV for better ventilation; it can reduce the
product lifetime. Keep a space at list 10cm at above, left, and right of the TV.
Remote control
· Do not expose the remote control to shock, liquids, and do not place it in an area with high humidity.
Please use the qualified batteries and do not mix batteries with different types.
· Do not mix old and new batteries, and do not place the batteries to burn or disassemble them. If the remote control is unused for an extend period of time, remove batteries from the remote control.
Cords
Please place all the signal cords behind of rear panel.
Cleaning
· Unplug the power cord from the AC outlet before cleaning the product. Do not use liquid cleaners or
aerosol cleaners and others; use the special LCD Panel cleaners. Keep the power off before LCD panel
dry completely.
· Clean the dust on the power plug periodically.
Caution: Do not use volatile cleaner or you may damage the LCD Panel/Covers.
Transportation
· Do not overexert or touch the panel when you convey the product. Do not transfer the LCD TV up or
down display direction.
· Do not transport it with the power cord or the connection cable connected. If you move this product
with the power cord or the connection cable connected, the damaged power cord, connection cable or
connection terminal may cause the fire, the electric shock or breakdown.
· 2 persons or more shall transport the device, which is heavier than 18 kg. If you drop or tip over the device, it may damage it.
Other objects
To ensure not to get an electric shock or short circuit, please do not spill liquid or other objects into the ventilation holes of the product.
Caution: Do not stand on the LCD TV, do not push LCD TV or its’ stand. Keep it away from children.
Heating
The temperature of the product’s body becomes a little higher after a long period use. This phenomenon indicates about heat exchange in normal working mode, thus please do not let children or anyone who is sensitive of temperature to touch.
Note: All the OSD and illustrations in this manual may be somewhat different from the actual situation.
Please take the LCD Color TV menu as the standard.
4
General introduction
· Size of the screen: 37"/94 cm
· Aspect ratio: 16:9
· Screen resolution: 1366 x 768
· Brightness: 500 cd/m2
· Contrast: 1000:1
· Wide viewing angle 176º/176º
· Response time: 8 ms
· Progressive scan
· Color systems: PAL, SECAM, NTSC
· Digital comb filter
· NICAM Stereo, 2 x 5 W
· “Picture in picture”
· Teletext
· Convenient OSD menu in Russian and English languages
· Connections: 2 HDMI, VGA, S-Video, 3 composite video inputs, 2 component video inputs, composite
video output, PC audio input, RF antenna
· PC monitor compatible
· Wide range power supply: 100-240 V, 50/60 Hz
Accessories
Note: Please keep the wrapping box and the padding well for future convenient use when you convey them.
Please check the accessories. If anything is missed address to the seller.
LCD TV Instruction manual AC Power cord Remote control (RC) AAA Batteries
5
Controls and connection
Place your LCD TV on a flat surface in a well-ventilated location.
Rear panel
Top panel
Earphone terminal
Top panel button description
Button Description
MENU Open the menu or switch among the menus.
TV/AV To switch among the signal source.
VOL-/+ Decrease/increase the sound volume. Adjust functions in menu operation.
CH+/- In TV mode, decrease/increase channel number. Select functions in menu operation.
POWER Enter or leave the standby mode.
Following indicators are situated on the front panel of the TV. Below is the description of their functions.
Infrared Receiver Sensor is intended for reception of the signal from remote control.
Power Indicator
· Red indicator lighting, this means the TV is in standby mode;
· Red indicator (lighting for 10 seconds) and Yellow or Purple indicator (lighting for 5 seconds) in turn.
This means the TV is in standby mode and the time to turning on the TV is set;
· Green or Blue indicator lighting, this means the TV is in normal working condition;
· Green or Blue indicator (lighting for 10 seconds) and Red indicator (lighting for 5 seconds) in turn. This
means the TV is in normal mode with setting time to turning off or setting the sleeping TV off mode.
6
Rear panel terminals and controls
Items Connection description
1 HDMI 2
2 HDMI 1
3 VGA
4 S-Video
5 Component video input 1
6 Component video input 2
7 Composite video inputs
8 Composite video output
9 VGA (PC) audio input
10 RF antenna The RF output terminal can be connected with the RF input port of the TV.
11 AC (Power) switch
12 AC input
Connect one end of the HDMI cable with HDMI output port, connect the
other end of the HDMI cable with the HDMI port on the TV, and tighten the
bolts clockwise on the each end of HDMI cable.
Connect one end of the VGA cable with the VGA port on computer, connect the other end of the VGA cable with the VGA port on the TV, and
tighten the bolts clockwise on the each end of VGA cable.
The output S-Video terminal of DVD can be connected with the S-Video
input port of the TV through S-Video cable.
It’s convenient to receive the component video signal of high definition
from DVD player. The output Component (YPbPr) terminal of DVD can be
connected with the Component (YPbPr) input port of the TV through AV
cable.
Capable of receiving PAL, NTSC, SECAM color systems; Very convenient
to watch VCR (video cassette recorder), Pickup Camera, other Disc’s programs. The AV input of the TV can be connected with the output port of
other AV equipment through AV cable.
The product can receive different signals (the programs send by TV station)
and transfer these signals through AV signal cable to other audio and video
equipments. The AV output of the TV can be connected with the input port
of other AV equipment through AV cable.
You can enjoy the audio information from computer by connecting with
computer with an audio adapter cable.
Turn on the AC switch; the TV will enter into standby mode. When a complete turning off is required, please turn off the AC switch and unplug the
power cable from the power socket.
Connect the AC power cable with 100-240V AC power supply. Connect the
other end of the AC power cable with the AC power port on the TV.
Notes:
· Ensure that the power to the LCD TV and other connected devices is off before you make any connec-
tions.
· When connect, plug directly and slightly to the interface, otherwise you will damage the stitch.
· SVIDEO and AV cannot be used at same time for they share of one signal channel.
· Check and make sure that all AV cables are connected with the corresponding ports correctly.
7

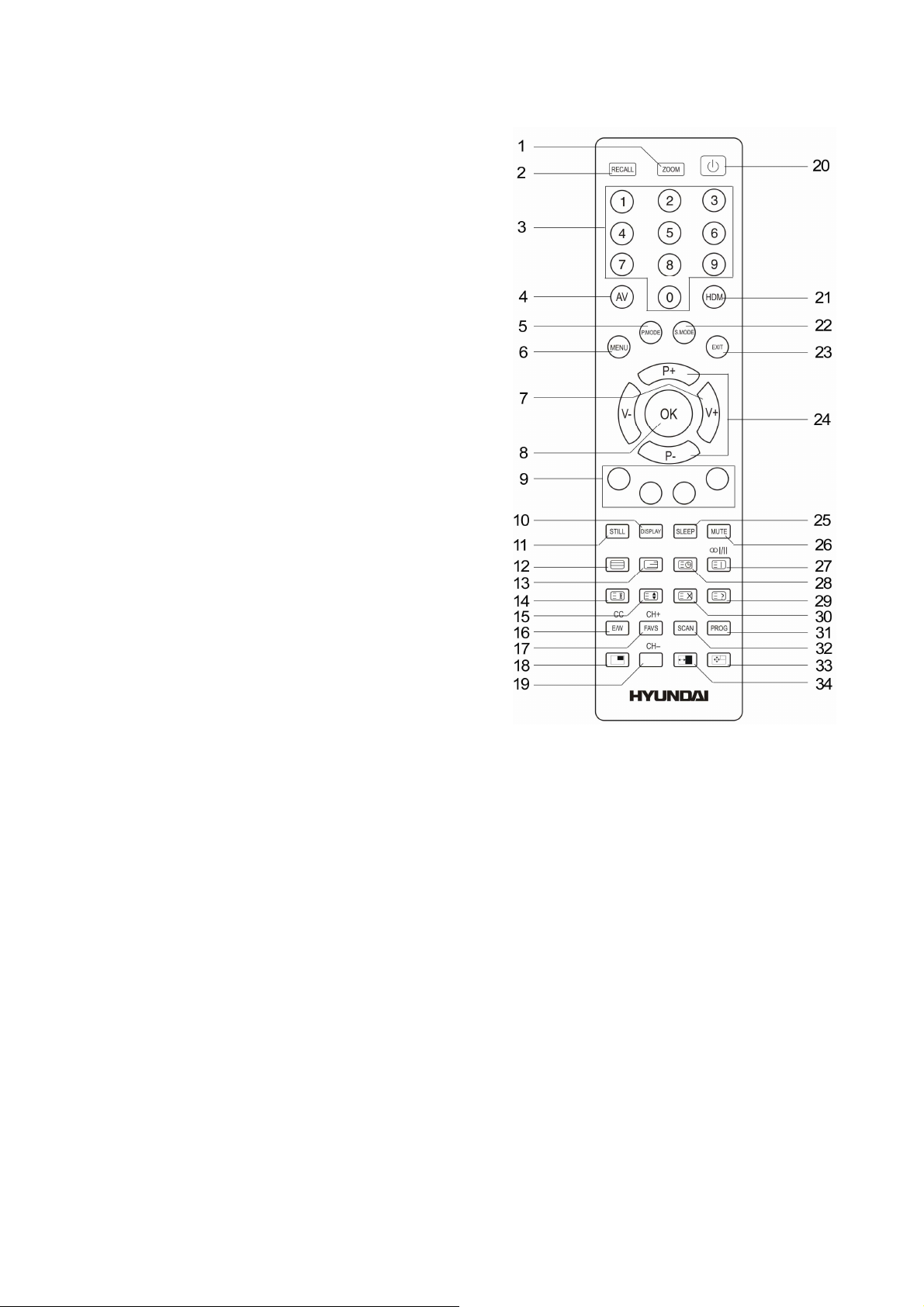

Remote control (RC)
1. ZOOM button. In TV, AV, SVIDEO mode.
2. RECALL button. The former channel can be restored if
the last operation is changing channel; this button also
can be also used go back to the last signal source if the
last operation is changing the signal source.
3. Number buttons.
4. AV button. Switch among the signal sources.
5. P.MODE button. Select among picture modes.
6. MENU button. By pressing this button continuously,
the menu can be displayed or hidden; switching among
each menu can be realized.
7. V-/V+ buttons. Increase/decrease the volume; in menu
operation mode, the buttons are used for function selection and operation; in mute mode, press button V+ to
quit mute mode.
8. OK button. Confirmation of selection or operations.
9. Color buttons. Fast Teletext control.
10. DISPLAY button. Check the current mode, which TV
is working in.
11. STILL button. Freeze or activate the current picture.
12. TEXT button. Enter or quit the Picture/Text mode.
13. MIX button. Lapping over the Picture/Text and picture.
14. HOLD button. Holding the content of the Picture/Text.
15. SIZE button. ZOOM mode for the Picture/Text.
16. E/W button. Switching character set.
17. FAVS/CH+ button. Scanning your favorite program or
increasing the PIP channel number.
18. Enter or exit the PIP function. Only valid when main
source is TV or AV.
19. CH- button. Decrease the PIP channel number.
20. POWER button. Enter or quit the standby mode.
21. HDM button. Shortcut key for entering into HDMI.
22. S.MODE button. Select among four sound modes: Theater, News, User and Music.
23. EXIT button. Key for quit the current operation interface.
24. P+/P- buttons. In TV mode, the buttons are used to increase/decrease the channel number for non-menu
operation; for menu operation, the buttons are used to select the functions; in non-menu operation mode,
the buttons can be used to restore to TV mode when the TV is in other mode.
25. SLEEP button. Set the time to standby mode.
26. MUTE button. Enter or quit mute mode.
27. The button can be used to switch among NICAM/IGR STEREO/MONO; Requests Index page when index link is valid.
28. Sub-code, sub-page of the Picture/Text.
29. Reveal, displaying the hidden information in the Picture/Text.
30. Cancel, displays TV picture while maintaining TXT mode active.
31. PROG button. Clear settings of the “Program Preset” menu.
32. SCAN button. Scanning with 9 pictures.
33. Change the position of the PIP window.
34. Change the size of the PIP window.
8
Insert the batteries
· Remove the battery cover by pressing the symbol and pulling the cover space in the direction of the arrow.
· Insert the two 1.5V (AAA size) batteries making sure the polarity (+ or -) of the batteries matches the
polarity marks inside the unit.
· Replace the battery cover by sliding it in until you hear a click sound.
Note: If the RC doesn’t react to pressing the buttons or the working range was decreased insert the new batteries.
Use of RC
Use the RC by pointing it towards the RC sensor of the set. Objects between the RC and sensor may prevent
proper operation.
Note: The illustration is for your reference only; the remote sensor may locate differently with different
model.
Cautions regarding use of RC
· Do not expose the RC to liquids, and do not place in an area with high humidity.
· Do not install or place the RC under direct sunlight. The heat may cause deformation of the unit.
· The RC may not work properly if the remote sensor of the main unit is under direct sunlight or strong
lighting. In such a case, change the angle of the lighting or LCD TV set, or operate the RC closer to the
remote sensor.
9
OSD operations
Note: In this manual the OSD (On Screen Display) may be different from your TV’s because it is just an ex-
ample to help you with the TV operation.
In the following contents, press MENU button to enter the menu; press P+/P- buttons or CH+/CH- buttons to
select an item. The highlight background means the current selection, press V+/V- buttons to set the selected
item or enter into sub-menu, after setting is done, press OK button or MENU button to go back to the previous menu. Press MENU button or EXIT button to quit the setting menu.
Press MENU button and select the PICTURE setting menu
described as the following picture
· Contrast. To adjust picture contrast.
· Brightness. To adjust picture brightness.
· Saturation. To adjust picture saturation.
· Sharpness. To adjust picture sharpness.
· Tint (in the NTSC mode). To adjust picture tint.
· Color Temp. Following modes of color temperature are
provided: Normal, Warm and Cool.
· DNR. Provide the picture with dynamic noise reduction treatment, checking the high frequency noise of
the picture, there are Off, Low, Middle and High, four modes of noise reduction. “Off” means to close
the noise reduction function.
Sound
Press MENU button, and select the SOUND setting menu
described as the following picture:
· Volume. To adjust the volume.
· Balance. To adjust the balance between right and left
track.
· Treble. To adjust the treble.
· Bass. To adjust the bass.
Setup
Press MENU button, and select the SETUP setting menu described as the following picture:
· Channel. Display the current channel number, you can
switch between the channels with V+/V- buttons, or
pressing number buttons.
· Colour System. Select this item, and then press V+/Vbuttons to select one of the color modes.
· Sound System. Select this item, and then press V+/Vbuttons to select one of the sound modes.
· Auto Search. In TV mode, select automatic selection, and then press V+ button to perform the automatic
channel searching as described in the following picture.
10
During searching, press MENU button to quit the automatic search and go back to the previous menu.
Automatic searching starts from Channel 1, all the searched channels will be stored automatically. During searching, the modes of color and sound are automatically stored, thus to make sure the searched
channel later can be played correctly.
After automatic search has been compete, or the capacity of storing 236 channels has been used up, or
the MENU button is pressed during searching, the system will quit from automatic searching mode and
go back to the previous channel setting menu and switch to Channel 1 automatically.
· Manual search. In TV mode, press V+/V- buttons to search the signal upwards or downward, the system
will stop after one channel is searched, the current channel can be stored through pressing OK button. If
you are still going to search, you can press V+/V- buttons. During searching, the system will quit the
manual searching and will be back to the settings before the searching, also, you can watch the program
by directly inputting the corresponding frequency number through the number buttons, but you have to
be sure the number input is within the range of the system, otherwise, the input will be invalid.
· AFT. In TV mode, select Fine tuning, press V+/V- buttons to finely tune the frequency and to turn
on/off the automatic frequency tracking, the searched program will be stored automatically after tuning.
· Label. Select this item, press OK button or V+/V- buttons to enter submenu to edit the name of each
channel, select the character by P+/P- buttons, press V+/V- buttons to edit the next character after the
previous character edition is complete, operate by this way until the whole edition is complete. Press
OK button or MENU button to save the settings and go back to the previous channel setting menu.
· Program Edit. In TV mode, select the channel sorting item,
press OK button or V+/V- buttons to enter into editing
mode as described in the following picture.
Press P+/P- buttons to highlight the channel you wish to edit,
the operation sequence is to press V+ button to confirm, and
then press P+/P- buttons to select the position you wish to put
the channel in, then press V- button to finish the channel sequencing operation. If this channel is your favorite channel, you
can add the mark “
by press GREEN color button.
Note: In AV, SVIDEO, COMPONENT, PC and HDMI mode,
there is no channel setting information.
Information of “SETUP” displayed in AV and SVIDEO mode.
· Color System. You can select AUTO to allow the system to identify the color mode automatically or
choose the color mode by yourself if the video color is not right.
Information of “SETUP” displayed in VGA mode
· Auto Adjust. Automatic position and effect adjustment of the picture. If the picture position is not so
good, you can select this function.
· Phase. Phase adjustment of the picture: in VGA mode, this function can be worked when there is any
abnormality of pictures.
· H Position. Moving the picture horizontally through V-/V+ buttons.
· V Position. Moving the picture vertically through V-/V+ buttons.
” to the channel as your favorite channel
11
Timer
Press MENU button, and select the TIMER setting menu described as the following picture:
· Current Time. Set the current time by pressing V+/Vbuttons and P+/P- buttons to change the time parameter
(hour: minute), or you can directly input the time
through the number buttons.
· Off Time. Set the time to turning off the TV by pressing
V+/V- buttons and P+/P- buttons to change the time parameter (hour: minute), or you can directly input the
time through the number buttons. You can also reset the
time by pressing PROG button.
· On Time. Set the time to turning on the TV by pressing V+/V- buttons and P+/P- buttons to change the
time parameter (hour: minute), or you can directly input the time through the number buttons. You can
also reset the time by pressing PROG button.
· On Channel. Set the channel for turning on the TV
through V+/V- buttons to change the channel number
(000~235), or directly input the channel number
through the number buttons.
· Timer Mode. Set the timer mode, there are modes of
“Off”, “Once” and “every” for everyday.
· Program Preset. Press OK button or V+/V- buttons to
enter into program booking menu “Program Preset”, as
described in the following picture, and through P+/Pbuttons to select the items in cycle, and then press OK
buttons or V+/V- buttons to enter into number setting
framework.
You can select the position by pressing V+/V- buttons, and by pressing P+/P- buttons to adjust the selected
number (time or the number of channel); also, you can input directly the number to set the relevant time and
corresponding channel; at the setting time, the system will make TV to skip to the setting channel automatically.
If PROG button is pressed, the setting time and channel will be cancelled; press V+/V- buttons to set Preset
Enable on or off. “On” means the Preset is of effect, “Off ” means the Preset is of no effect.
Function
Press MENU button, and select the FUNCTION setting
menu described as the following picture:
· Language. OSD language selection, the TV has English
and other OSD languages.
· Zoom. Picture zoom mode selection. When the TV is in
TV, AV and SVIDEO mode, ZOOM button on the RC
can switch the picture display mode among 16:9, 14:9,
Panorama and 4:3 mode, when TV is in PC, COMPONENT, or HDMI mode, ZOOM button on the RC can
switch the picture display mode among the modes of
16:9 and 4:3.
· Blue Screen. The on and off modes of blue Screen are as following:
When there is no TV signal When there is no other signals
On Blue Screen Blue Screen
Off Picture is spotted with snowflake Black Screen
12
Loading...
