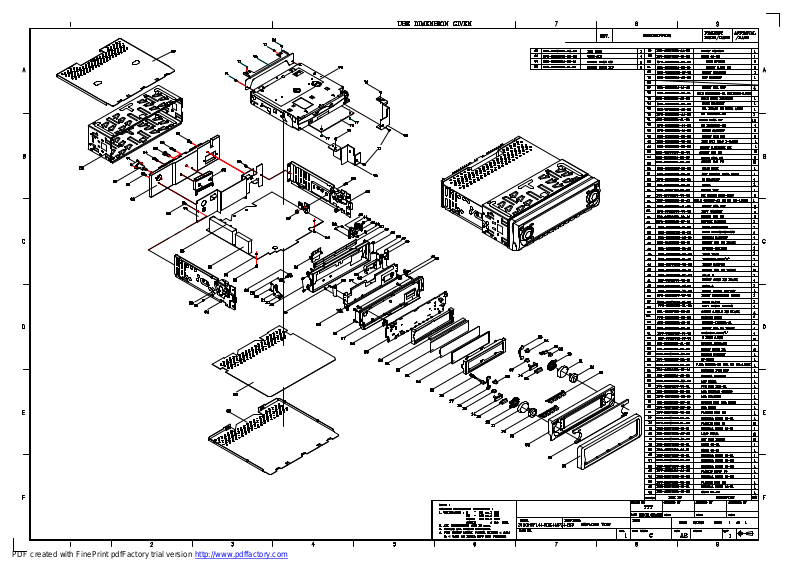

Hyundai H-CDM8069 Schematic
PDF created with FinePrint pdfFactory trial version http://www.pdffactory.com
PDF created with FinePrint pdfFactory trial version http://www.pdffactory.com
PDF created with FinePrint pdfFactory trial version http://www.pdffactory.com
PDF created with FinePrint pdfFactory trial version http://www.pdffactory.com
PDF created with FinePrint pdfFactory trial version http://www.pdffactory.com
H-CDM8069
Product Number: CE319020-H00R0F41-00
2003.01.19
Product Name:
CE3190HFRL4+MP3+RDS+ESP+ISO CD機+普通LCD
(790MCU配CE7300-A1板) 40WX4 AM/FM64-108MHZ LCD
DISPLAY HIGH POWER
Part Code Name/Description Qty Location
零件編號 規格/名稱 用量 位置
Assembly Code:
IS0-929600-00-01 ISO WITHLINE WIRE A'SSY
ISO插座線部件(25WX4以上)
OP0-00929600-00-00 ISO OUT PLUG WITHLINE KIT 1
ISO插座線
OP0-02440002-01-00 OUT PLUG WITH WITE KIT 1
帶16P連接器公插
OS0-02440001-01-00 OUT SOCKET WITH WIRE PCS 0 1
16P連接器母插(不帶線)
PP0-00000000-IS-00 ISO 16P PCS 0 1
ISO膠頭(母)
PW0-10300511-00-01 TWIN WIRE AWG 20 L=5+300+5MM GREEN/ GREEN.BLACK PCS 0 1
綠/綠黑雙PVC線
PW0-10300519-00-01 TWIN WIRE AWG 20 L=5+300+5MM WHITE/WHITE.BLACK PCS 0 1
白/白黑雙PVC線
PW0-10300520-00-01 TWIN WIRE AWG 20 L=5+300+5MM PURPLE/PURPLE.BLACK PCS 0 1
紫/紫黑雙PVC線
PW0-10300531-00-01 TWIN WIRE AWG 20 L=5+300+5MM GREY/GREY BLACK PCS 0 1
灰/灰黑雙PVC線
PW0-20140602-00-02 PVC WIRE AWG 20 L=5+140+5MM RED PCS 0 1
紅色PVC線
PW0-20140606-00-01 PVC WIRE AWG 20 L=5+140+5MM BLUE PCS 0 1
藍色PVC線
PW0-20140704-00-00 PVC WIRE AWG 18 L=5+140+5MM YELLOW PCS 0 1
黃色PVC線
PW0-20300700-00-00 PVC WIRE AWG 18 L=5+300+5MM BLACK PCS 0 1
黑色PVC線
SK0-07031801-00-01 AUDIO SOCKET RCA JACK 180MM WITH WIRE PCS 0 1
灰色RCA線(無上錫)(帶帽)
WE0-00000000-00-00
4400RDS 16P 鐵端子
PCS 0 16
WE0-01000000-00-00 ISO OP & OS PCS 0 12
ISO鐵端子
WE0-02000000-00-00 FUSE VALUE END PCS 0 6
保險絲套端子
JPW-95CE3140-00-00
線仔部件(配CE7300A1板)RDS系列配無ESP伺服板(C
D+MP3+RDS+ESP)
FC0-20213002-01-00 RIBBON WIRE AWG 30 2P L=3+130+3MM COLOUR PCS 1
開關闆
彩色排線
FC0-20309002-00-00 RIBBON WIRE AWG 28 3P L=3+90+3MM COLOUR PCS 1
伺服板
彩色排線
PW0-40080000-00-00 75 OHM SINGLE SHIELD WIRE D=3.0 L=5+80+5MM BLACK PCS 1 ANT
75Ω黑色單芯屏蔽線
PW0-40130608-00-00 SINGLE SHIELD WIRE D=1.8 L=3+130+3MM GREY PCS 1 FMOSC
灰色單芯屏蔽線
MPA-95CE3190-00-00 METAL PARTS A'SSY
五金沖壓料部件(H) LCD
AS0-00000000-02-01 ANT SOCKET DUAL HOLE PCS 1
雙耳天線插
FB0-92CE3010-01-00 FIBER 150X33X0.5MM PCS 1
後機芯支架
快巴紙
FB0-92CE3140-00-00 FIBER 40X8X0.5MM PCS 1
右後PCB
快巴紙
FB0-92CE6950-00-00 FIBER 173X146X0.5MM PCS 1
快巴紙
FB0-92CE8700-01-00 FIBRE SHEET 45X35X0.5MM PCS 1
機芯與伺服板排線之間(
帶ESP時用)
快巴紙
MP0-00000410-28-00 REAR BRACKET PLATE PCS 1
后支撐片
MP0-00001135-29-00 COVER BOX PCS 1
高頻頭屏蔽框
MP0-00882000-09-00 SHORT BRACKET PCS 1
短套
MP0-00928000-27-00 KEY PCS 2
附件
鎖匙片
MP0-00958900-04-00 RIGHT CABINET PCS 1
右側板
MP0-00958900-06-00 TOP CABINET PCS 1
