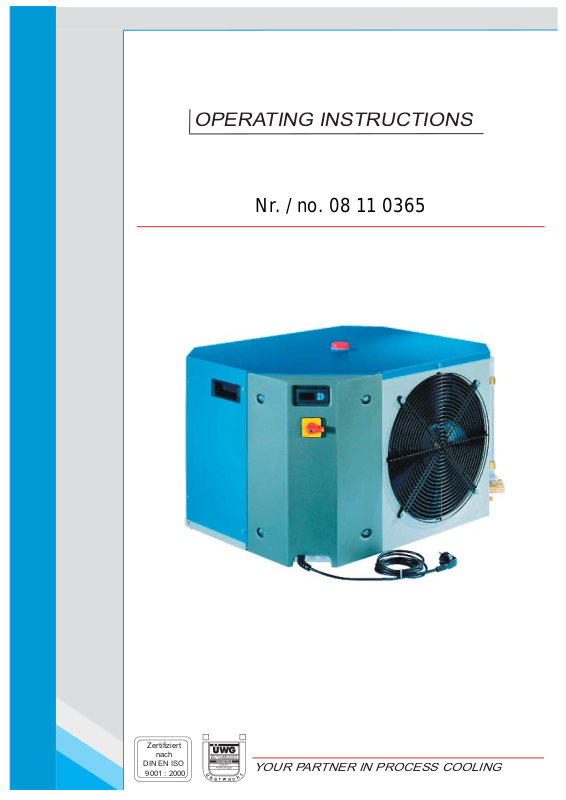

YOUR PARTNER IN PROCESS COOLING
Nr. / no. 08 11 0365
nac
DIN EN I
1 : 2
Page 2
OPERATING INSTRUCTIONS
1 SAFETY / PREVENTION OF ACCIDENTS 2
2 TRANSPORT 4
3 INSTALLATION AND INITIAL OPERATION 5
4 CARE AND MAINTENANCE 9
5 FAULT DIAGNOSIS 11
6 IMPORTANT INFORMATION
ON WATER QUALITY 14
7 PLATE HEAT EXCHANGER (OPTION) 16
8 WASTE DISPOSAL 16
APPENDIX
- TECHNICAL DATA
- TEMPERATURE CONTROLLER
- WIRING DIAGRAM
These operating instructions have to be read carefully before putting the
chiller into operation.
Please observe these instructions, otherwise the manufacturers liability for subsequent damage will be cancelled.
All rights required for further technical development and modifi cation, are reserved.
Proper use of the chiller
This chiller is designed for the cooling of water only. For the use of other agents (e.g. deionised water) please contact
the manufacturer. Limits indicated in the technical data must be adhered to strictly, otherwise the manufacturers
liability for subsequent damage will be cancelled. Chilling of fl ammable or explosive substances is prohibited.
IMPORTANT!
IMPORTANT!
Please keep these operating instructions
for further use!
Operating Instructions 1
Page 3
1 SAFETY / PREVENTION OF ACCIDENTS
General information
These operating instructions contain valuable information which has to be observed during initial
start-up, operation and maintenance. Therefore these instructions are to be read by the installer and operating personnel in charge, before putting the chiller into operation.
All general safety instructions mentioned in this chapter and special security instructions given in other sections of
this manual have to be observed.
Personnel qualifi cation and training
Operating, maintenance, inspection and installation personnel must be qualifi ed. Responsibility and supervision
must be clearly explained to the operator.
Danger due to non-observance of safety instructions
Non-observance of safety instructions may cause injuries, endanger the environment or damage the chiller. Nonobservance of safety instructions will cancel the manufacturers liability for subsequent damage.
Safety conscious operation
The safety instructions given in these operating instructions, including national regulations on accident prevention
as well as any specifi c chiller safety instructions must be observed.
Safety instructions for user / operator
Protective guards that have been installed to prevent contact with moving parts may not be removed when the unit
is being operated. Danger resulting from the use of electrical power is excluded (for detailed information, refer to
the VDE regulations and the regulations of the local power supply authorities).
Safety instructions on maintenance, inspection, and installation work
Basically none of the cleaning or maintenance tasks may be performed until the unit has come to a complete standstill. As soon as this work has been completed, all the safety devices and protective equipment must be mounted or
installed according to their proper function.
Arbitrary modifi cation and production of spare parts
The unit may be converted only if an agreement has been reached with the manufacturer. Original spare parts and
accessories accepted by the manufacturer serve as safety guarantee. Use of other parts may cancel the manufacturer‘s
liability for subsequent damages
2 Operating Instructions
Page 4
1 SAFETY / PREVENTION OF ACCIDENTS
Non-permissible operating methods
The operational safety of the delivered unit is guaranteed only if the unit is properly used as intended.
Limits indicated in the technical data must not be exceed
Health hazards with the refrigerant
The refrigerant has only a very low acute health hazard. It has narcotic effects only at extremely high concentrations. After acute exposure to extremely high concentrations the substance is eliminated over the lungs very quikkly. The refrigerant has a certain irritating effect on skin and mucous membranes. Exposure of the skin to liquid
refrigerant can cause frost bite. In the presence of open fl ames or hot surfaces refrigerant can decompose and form
toxic decomposition products (e.g. hydrogyn chloride, phosgene). The refrigerant evaporates when exposed to air
. Intentional exposure of refrigerant is not permissible. The chiller must be handled with great care to prevent any
damage occuring through transport operations.
Warning!
Attention!
Note!
Safety symbols
This symbol is to be found next to all the safety instructions involving work that
may result in serious injuries. Observe these instructions and proceed with extreme
caution in such instances. Inform all other users as well. In addition to the instructions included in this manual, the applicable general safety and accident prevention
regulations must also be taken into account.
This symbol is to be found next to the items in this manual that must
be strictly observed to ensure proper application of the guidelines, regulations, instructions and procedure of tasks and to make sure that the machine or other parts are not
damaged or destroyed.
This symbol explains that chiller is designed according to state-of-the-art technology and
is safe to operate. Dangerous situations may, however, be the result if the unit is used
by personnel without adequate qualifi cation or if it is not used correctly according to its
intended purpose. Accordingly, this may affect effi cient operation of the unit.
Operating Instructions 3
Page 5
2 TRANSPORT
The chiller may only be transported in original packaging to the site of initial operation. In case of damage the manufacturer must be informed immediately. If the unit is moved to another location in a factory, all connections must
be disconnected from the unit. Moving the unit to another location must be carried out without causing damages.
If damage occurs despite these instructions, the unit must be checked by an expert and repaired as required before
it is put into operation again.
Note:
The Manufacturers Liability excludes any Damage to the Chiller
subsequent to Transportation.
When transporting the unit, consider the weight limits indicated in the technical data.
Use a fork-lift, truck or a crane with the corresponding load-capacity.
The fully-hermetic compressor is mounted on rubber. Avoid vibrations during transport.
Failure to observe can result in compressor damage.
4 Operating Instructions
Page 6
3 INSTALLATION AND INITIAL OPERATION
Installation
Prior to installation and commissioning of the chiller, please observe the following points strictly:
The fresh air intake temperature may not exceed the max.ambient temperature
(refer to name plate)
Assure that the required quantity of air is available at air cooled chillers.
Assure that the chiller hot air outlet does not warm up the environment or room excessivly.
Min.distance of fresh air intake: at least 0,5 m (air cooled version)
Min.distance of hot air outlet: at least 1,0 m (air cooled version)
Connection of an air supply and exhaust duct is not admitted.
The fresh air intake of the unit (condensor) may not be situated infront of a heat rejecting
device like a pump or electric motor.
The unit must be set up on level, solid surfaces only, in order to ensure the required stability.
For outside erected chillers, the minimum outdoor temperature should be considered from the
technical data.
Floor space
A minimum space must be left open around the installation, so that there is access to the various components and
to the control cabinet.
The distance from any constructions blocking the air supply must be at a minimum
distance of 0,5 meter.
Operating Instructions 5
Page 7
3 INSTALLATION AND INITIAL OPERATION
Electrical connection
The chiller is ready for connection and is connected to a one or three phase current network
(mains voltage refer to technical data).
The power supply has to be connected in a right handed rotatory fi eld. In order to confi rm the
correct connection the direction of rotation of the fan motor must turn in the same direction as the
arrow.
All electrical connections in the switch board are to be tightened prior to commissioning.
Incorrect connection of power supply and incorrect power supply will cancel the
manufacturers liability for subsequent damage.
Hydraulic connection
After completing the electrical connection it is necessary to connect the Chiller to the consumer VIA fl exible or
fi xed pipes.
Selection of materials of pipes. PVC, Plastic, Stainless Steel, Copper and Brass are permissible.
Note: Mild Steel and Galvanized Steel is not permissible.
Selection of cross – section of pipes (for advise please refer to manufacturer).
Insulated pipes are to be used if the distance between the chiller and the consumer is greater
than 5 m.
Refer to technical data (pump diagram) for fl ow rate and pressure available from the chiller.
Before starting up it is always necessary to prime the pump with the medium to be transported.
(refer to BLEEDING OF PUMP in this chapter).
If the consumer is placed on a higher level than the chiller unit, a non-return valve has to be
recommend in the water outlet as well as an solenoid valve has to be installed in the water inlet.
Connect water inlet port to consumer return line.
Connect water outlet port to consumer inlet line.
Connect water supply port (if available) to city water net.
Please test fl oat valve adjustment (option). Float valve is factory adjusted at 3 bar water pressure.
Incorrect hydraulic installation will cancel the manufacturers liability for subsequent damag
Refi lling of the tank
Automatic refi ll
Tap/fresh water feed connected to water supply port guarantees constant level in the tank, so that evaporator always
remains submerged.
Manual refi ll
Filling of water manually through water inlet port or directly into tank.
The waterlevel can be observed by the water sightglass which can be seen from the outside of the
housing. Ensure that the evaporator is submerged.
6 Operating Instructions
Page 8
3 INSTALLATION AND INITIAL OPERATION
Important:
Prior to fi lling of the tank it is esessential to test the water quality and if required carry out watertreatment (refer to chapter 7).
To avoid corrosion at the stainless steel evaporator, we recommend to use water with a low salt content (chloride
content < 20 mg/l). To avoid thickening of the tank water, we recommend to replace the system content every 1 to
3 months.
an increasing evaporation of the tank water means an increasing chloride content
(please refer to chapter 6).
For chillers running at temperatures lower than freezing point, a water/glycol mixture at the
appropriate ratio should be fi lled.
30% Glycol up to –10°C, at lower temperatures please refer to the manufacturer.
The tank should be fi lled to the max. level of the water level tube.
Prior to start up it is always necessary to prime the pump with the medium to be transported.
Prior to start up the pump must be bled in order to remove air from the pump.
Bleeding of the pump
Remove bleeding screw P (option)
Reinstall bleeding screw and tighten as soon as medium exits from fi ller fi tting.
Important: Ventilation of the pump
before start the process,following steps are to relize for ventilate the pump:
check the waterlevel in the tank and refi ll it, if necessary
open the outlet of the pump, or
connect only the outlet of the pump, let the inlet free fl ow out
If there is still some air in the system, you have to repeat the steps as described before.
After open the outlet start the pump for a short time.
Attention
before start the operation of the pump, the function of this pump must be absolutly check.
In case that the pump after a longer standstill and ventilation stopp , you have to introduce a
screwdriver through the airgrille into the shaft and turn it clockwise (1-2 turns min. ), until a easiness is produced.
Operating Instructions 7
Page 9
3 INSTALLATION AND INITIAL OPERATION
Start–up of chiller
After successful completion of all instructions given in this chapter, the refrigerating plant is switched
on by means of the main switch or master switch (if installed). The OPERATION light will light up
during normal operation.
Master switch position: O = Off 1 = Operation
In case of irregularities occurring during operation or extraordinary noise, the chiller has to be
switched off by means of the control switch (please contact the manufacturer).
Confi rm the correct power supply connection.The direction of rotation of the fan motor must turn in
the same direction as the arrow.
8 Operating Instructions
Page 10
4 CARE AND MAINTENANCE
General
In case of irregularities occurring during operation or extraordinary noise, the chiller has to be switched off by means
of the main switch or if missing over the power supply.
Fluid (water)
Cleanliness of the water/fl uid should be tested daily. If required, the water/fl uid has to be drained and the evaporator,
tank and pump has to be rinsed or cleaned.

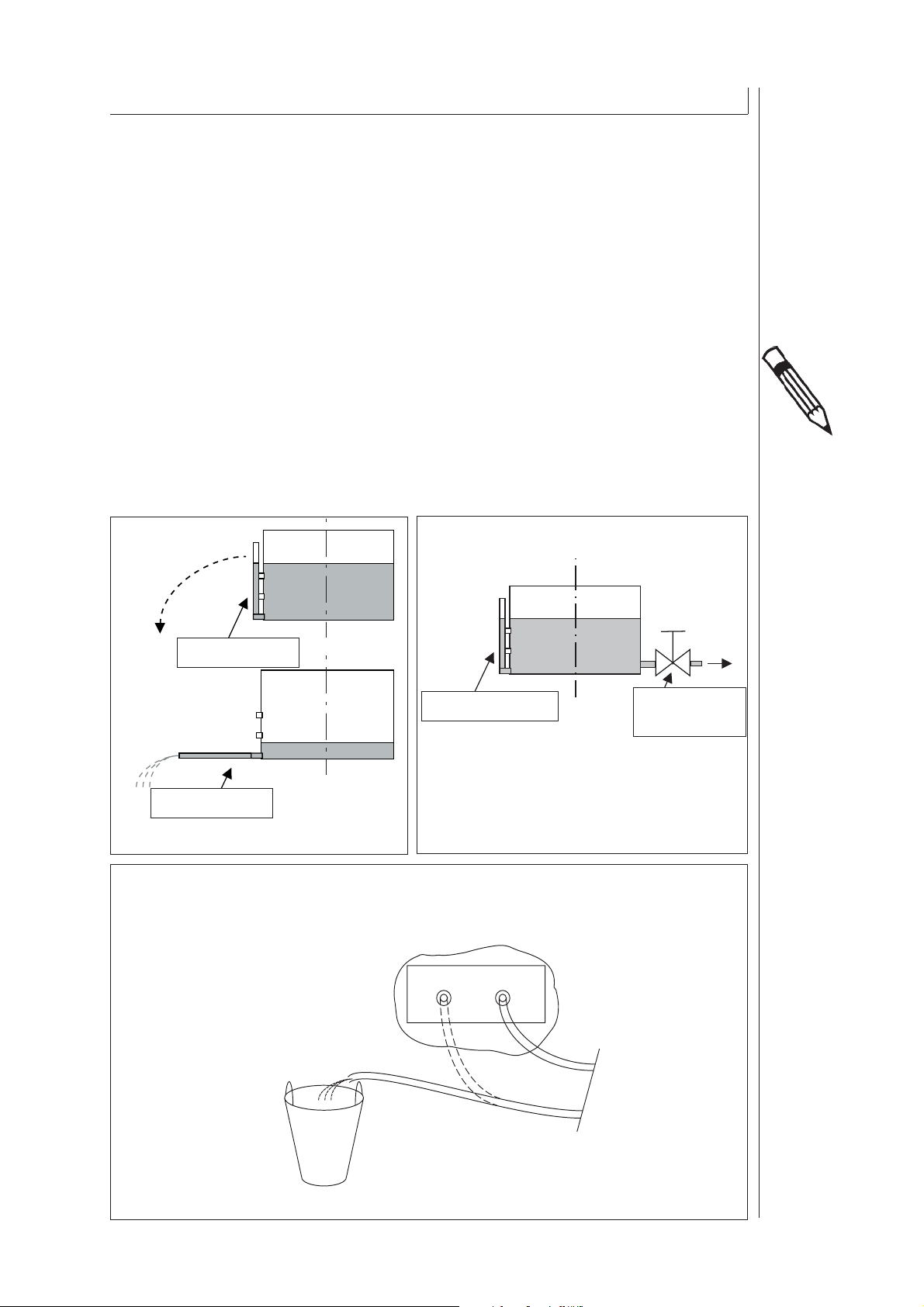

Drain water from the tank as follows:
Option - Turn the water level sight glass (pipe) to the side (A)
Option - drain water through water drain valve (B)
Option - by disconnecting the quick cuppling on the water inlet side while the pump is running
Attenion: use a buchet (C).
(A)
Water level tube
(C)
(B)
Water level tube
Water level tube Water drain
valve
chiller
consumer
Operating Instructions 9
Page 11
4 CARE AND MAINTENANCE
Refi lling of fl uid
Automatic refi ll (option)
Automatic water feed guarantees constant level in the tank, ensure that the evaporator always remains submerged.
Float valve function has to be tested regularly.
Manual refi ll
Ensure that the evaporator is always submerged.
Water supply
Larger volumes of fresh water supply may disturb the equilibrium of mixture or reduce concentration of antifreezing
agent. The content of concentration should be checked and determined at required intervals of time.
Standstill for prolonged period
Longer standstill of chiller requires draining of tank and complete water circuit. For renewed start-up of the chiller
the same steps as for the initial start-up must be considered.
Cleaning of condenser (air-cooled chillers)
Make sure that the cooling fi ns of the condenser remain clean in order to guarantee the required heat exchange.
The condensor must be cleaned in monthly intervals or if required at shorter time intervals.
Dust and dirt clogging up the cooling fi ns should be removed by means of compressed air.
10 Operating Instructions
Page 12
5 FAULT DIAGNOSIS
By means of the following instructions a quick failure analysis can be made. The user can repair some failures
without any assistance. Please do not hesitate in phoning the manufacturers after sale service department if assistance is required.
Corrective maintenance of the refrigeration cycle must be performed by competent refrigeration specialists
only. In case of any problems concerning the refrigeration cycle, please contact the manufacturer
Note:
Please ensure to switch »0« the main switch, before any maintenance or
repairment work has to be performed on the chiller.
Operating Instructions 11
Page 13
5 FAULT DIAGNOSIS
Fault
Refrigeration cycle
A. Compressor and fan motor
running, but chiller has no
cooling capacity
B. Compressor and fan motor is
not running
Possible cause Repairement
Refrigerant leakage refrigerant level to low
Dirty condensor Clean condensor
Ambient temp. to high Refer to technical specifi cations
Consumer capacity to high Refer to technical specifi cations
Temperature controller setting incorrect
Temperatur controller defect Replacement by qualifi ed techni-
Fan Motor defect Switch off the chiller and restart
Repairement by qualifi ed
refrigeration technician only
Re-adjustment of temp. controller
cian only
after 3 hours only.
If compressor does not start,
replacement by qualifi ed
refrigeration technician only.
If compressor starts, refer to D.
C. Compressor does not run, but
fan motor is running
D. Compressor is running, but
fan motor does not run
Compressor Bimetal/Clixon
switches compressor of due to
overheating
If compressor starts after 3 hours 1. Refrigerant leakage -
Fan Motor defect Replacement by qualifi ed techni-
Switch off the chiller and restart
chiller after 3 hours only.
If compressor does not start,
replacement by qualifi ed refrigeration technician only.
refrigerant level to low
2. Dirty condensor
3. Ambient temp. to high
4. Consumer capacity to high
cian only.
12 Operating Instructions
Page 14
5 FAULT DIAGNOSIS
Fault
Water cycle
Pump is not pumping any water Air in the water cycle Refer to air bleeding instructions
Possible cause Repairement
in Documentation
Pump fuse defect Replace fuse
Pump defect Replacement by qualifi ed techni-
cian only
Operating Instructions 13
Page 15
6 IMPORTANT INFORMATION ON WATER QUALITY
In order to achieve a correct and trouble-free operation on your water chiller it is necessary to
examine the water quality and, when necessary, carry out water treatment. Corrosion, furring and biological
problems can occur in the water system.
The following information is important for the assessment of a half-open system:
- water quality
- all materials having contact with the cooling water
- max. and min. system water temperature
- requirements for water quality
1. Deionized / Demineralized / Destilled / Return Osmosis water
When using deionized, demineralized, destilled or return osmosis water it is required to add a
corrosion inhibitor or glycol to the water system.
2. Fresh water/ City water / Tap water
When using fresh water, city water or tap water it is recommended to analyse the water by a
specialist to minimize the risk of any chiller damage through a high chloride content. A high chloride content
(>20mg/l) in the system water can cause corrosion on the stainless steel evaporator.
It is required to make use of a corrosion inhibitor as additive to the system water. We recommend the use of
Nalco 77382 at a concentration of 5g/l in the complete water system, unless an Inhibitor with similar characteristics is prescribed from the manufacturer.
Organic sediments and algae in the water cycle can be controlled by analysing the number of organic germs. If
the number of organic germs exceeds 1000 KBE/ml, we recommend to use
Biozid Nalco 77352 at a concentration of 100mg/l. After 3 to 4 days it is recommended to exchange the
complete system water. The chiller can operate during this period.
Evaporation leads to a concentration of minerals and chloride in the system water, especially at the surface level.
The water parameters which are initially below the guide values, can increase to exceed the guideline value as a
result of the evaporation. An excessive chloride content in the system water will cause corrosion on the stainless
steel evaporators and stainless steel tank. We therefore recommend to regularly monitor the water quality and if
necessary drain the concentrated water from the system in order to rematch the water values to the parameters as
per guideline. It is recommended to exchange the water at least once or more times per year and to inspect the
evaporators on regular intervals.
Water quality parameters:
ph-value: 7-9 alkality (°dH): <1
conductivity: <300 µS/cm chloride content: <20 mg/L
hardness (°dH): <0,1 organic germs: <1000 KBE/ml
For any further questions please contact the water specialist (S. 16)
Ignorance of the above information cancels the Manufacturers liability for
subsequent damage.
14 Operating Instructions
Page 16
6 IMPORTANT INFORMATION ON WATER QUALITY
For assistance regarding watertreatment please contact:
GERMANY
Nalco Deutschland GmbH
Ludwig-Landmann-Strasse 405
D-60486 Frankfurt am Main
Phone: 069-793-40
Fax: 069-793-4295
FRANCE
Nalco
N°5 rue Rosa Bonheur
F-59290 Wasquehal
Phone: 03 20 11 70 00
Fax: 03 20 11 70 70
EUROPE
Nalco European Operations
2342 BV Oegstgeest
P.O. Box 627, NL-2300 Leiden, The Netherlands
Phone: 31-71-524-1100
Fax: 31-71-524-1197
USA
Nalco Company
Nalco Center
1601 W. Diehl Road
Naperville, IL 60563-1198 U.S.A.
Phone: 630-305-1000
Fax: 630-305-2900
SOUTH AMERICA
Nalco Latin America Operations
Av. Das Nacoes Unidas
17.891, 11o, Andar
Santo Amaro 04795-100
Sao Paulo, Brazil
Phone: 55-11-5644-6500
Fax: 55-11-5641-7687
ASIA
2 International Business
# 2-20 The Stategy Tower 2
Singapore 609930
Phone: 0065 (0) 68 61 40 11
Fax: 0065 (0) 68 61 40 11
Operating Instructions 15
Page 17
7 PLATE HEAT EXCHANGER (OPTION)
Cleaning of plate exchanger
Soldered heat exchanger: For the removal of lime- and rust deposits, purifying agent SWEPcip AS, RS, CS or
S (according to material) is suitable. Cleaning may be performed by means of SWEP cleaning device C.I.P 90
(circulation method) or a stationary pump.
Screwed heat-exchanger: In this case the heat exchanger can also be disassembled for cleaning.
Steel Lime Rust Lime + Rust
SWEPcip AS SWEPcip RS SWEPcip S
Max. Temp: 80 °C 80 °C 50 °C
Max. time: 8 h 8 h 8 h
Mixture ratio: 1:10 1:5 1:5
Stainless steel
SWEPcip AS SWEPcip CS SWEPcip AS
Max. Temp: 80 °C 80 °C 80 °C
Max. time: 8 h 8 h 8 h
Mixture ratio: 1:10 1:5 1:10
See attached concept for further technical data
Lime Rust Lime + Rust
8 Waste disposal
The refrigerant cycle of the chiller contains an enviroment friendly refrigeration fl uid. Only registered and qualifi ed refrigeration companies are permissible to carry out work on the chiller. Before attending any repairments or
maintanance work on the refrigeration cycle the refrigerant must be recovered by means of a recovery unit. Any
intention blowing off the refrigerant is prohibited. Disposal of the refrigerant and any other parts like compressor
oil or waste water must be completed according to local regulations only.
Specifi cation subject to change.
16 Operating Instructions
Page 18
FOR YOUR NOTICE
Operating Instructions 17
Page 19
T E C H N I C A L D A T A S H E E T
=======================================
Cooler
Typ: CHILLY 25
---------------
1. GENERAL DATA
--------------Refrigerant gas: R407C
Specifications:
--------------Nominal ambient air: °C 37
Coolant temperature: °C 10 15 20
Cooling Capacity: W 1645 2060 2475
Min ambient air: °C 10
Max ambient air: °C 42
Min coolant temperature: °C 10
Max coolant temperature: °C 25
Evaporator material: Stainless steel 1.4301
Temperature control: electronic, direct
Temperature display: digital
Control voltage: 230V AC
Main Power supply: 1/N/PE/50Hz 230V/+-10%
Total absorbed power: kW max: 1.8
Full load current: A max: 10.5
Safety fuse protection: A 16.00
Paint: RAL
Cabinet structure: stainless steel, not painted
-----------------
2. AIR CONDENSER: air cooled, axial
----------------Nominal Air Flow: m³/h 914.00
Number of fan: Unit 1
Nom Absorbed power: kW 0.03
Starting current: A 0.76
Sound-pressure-levels in 1m Distance dB(A) 63.00
--------------
3. COMPRESSOR: reciprocating
-------------Number: Unit 1
Technology: direct
Total absorbed power: kW max: 1.17
Full load current: A max: 5.90
Page 20
--------
4. PUMP:
-------First PUMP: vertical pump
Type: Y 2051.0018
Number: Unit 1
Total absorbed power: kW 0.35
Full load current: A 3.50
Nominal flow rate: m³/h 0.43
Nominal pressure rate: bar 2.90
---------------
5. LIQUID TANK: plastic
--------------Volume: l 18.00
Outlet / inlet connections: Inch 1/2
----------------------------
6. WEIGHT AND PHYSICAL SIZE:
---------------------------Length: mm 707
Width: mm 523
Height: mm 421
Weight : kg 65
Page 21
Description of the Digital controller
Temperature - setting:
Press the `` SET `` key for 1 second until the current temperature value appears.
With the key and
The min / max temperature set values are restricted by the manufacturer.
Parameter Set Value Description
ST 1 15°C Mode: cooling
Can be adjusted within the restricted values
the values can be adjusted and must be confi rmed with `` SET `` key.
Adjustment of controller by manufacturer:
OUT 1: Set point is set on 15°C by factory. Relay switches
on cooler as soon as temperature is exceeded.
OUT 2: provides a fault signal: temperature to low, temperature to
(Option) high and water level or water fl ow to low.
Indication of display:
In normal operation display indicates actual values measured by the sensor of medium.
Hysteresis:
Hysteresis is set by the factory and this value must not be changed.
Fault Analyses:
During an alarm, an acoustic signal is released, this can be discontinued by pressing the “SET” key.
Indieation Desripition Cause Correction
E0 Failure: Sensor cable broken Check connections between
Sensor or short circuidet sensor and thermostat
Connection failure Check sensor and thermostat
Sensor desfective 10 k bei 25°C
IA Failure Water level or Examine water level
digital input: waterfl ow to low Dirty consumer
HI Alarm “HI“ Temperature of medium
10°C above set point
LO Alarm “LO“ Temperature of medium Temperature of medium too low
3°C below set point
Temperature of medium too high
Page 22
Elektrodokumentation
Electrical documentation
Anschlußdaten
Technical data
Anschlußpannung
Voltage
Frequenz
frequency
Steuerspannung 1
control voltage 1
Steuerspannung 2
control voltage 2
Anschlußleistung
Total absorb power
Max. Betriebsstrom
Full load Current
Max. Vorsicherung
Safety Fuse
Maschinentyp
:
Chilly 25
Type
:
:
:
:
:
:
:
230 V
50 Hz
230 V
---
1,8 kW
10,5 A
16 A
Zust. Änderung Datum Name
Datum
Bearb.
Gepr.
Norm
20.8.2007
Wiebe
Lacher
Ursp. Ers. f. Ers. d.
Anschlußdaten
Technical data
Zeichng.
Nr.
Typ
E0010202
Chilly 25
=
+
Blatt
1
4
Blattvon
Page 23
23456781
1
A
X1 L1
2345678
Sämtliche Leitungen ohne besondere Querschnitts-angabe sind H05V-K 2,5mm ²
all cables without numbers are H05V-K 2,5mm ²
X1 L1
3.1
L1
A
A
1
K2
3.5
2
B
C
X1 2
K1
214
Q1
D
3
C1
C2
K1
1 2
5
Anlaufrelais
start relais
F2
X1 4
F2
B
B
C
D
X1 PE
E
XS1 L N
Einspeisung
power supply
F
Zust. Änderung Datum Name
PE
X1 N
Anlaufkondensator
start capacitor
Datum
20.8.2007
Bearb.
Wiebe
Gepr.
Lacher
Norm
X1 3
apc
X1 PE
M1
1,17KW 5,9A
Betriebskondensator
run capacitor
Ursp. Ers. f. Ers. d.
Kompressor
compressor
X1 PE N
M2
0,034KW 0,76 A
Lüfter
fan
Hauptstromkreise
Main circuit
M3
0,35KW 3,5A
Zeichng.
Nr.
Typ
Pumpe
pump
E0010202
Chilly 25
X1 PE N
E
3.1
N
F
=
+
Blatt
2
4
Blattvon
Page 24
23456781
1
2.8
L1
A
B
2345678
Sämtliche Leitungen ohne besondere Querschnitts-angabe sind H05V-K 2,5mm ²
all cables without numbers are H05V-K 2,5mm ²
A
X1 L1
F1
X1 L1
P>
sw
X1 1
bl
rt
Mediumtemperatur
medium temperature
A
B
B
C
D
E
2.8
N
F
Zust. Änderung Datum Name
Datum
Bearb.
Gepr.
Norm
20.8.2007
Wiebe
Lacher
6
U1
7
Ursp. Ers. f. Ers. d.
11 9
Zeitverzögerung Intern: 1min
Time delay on inlet: 1min.
5
T1 AUX
15.0
4
K2
12
2.4
34
56
13 14
Kompressor
compressor
Hauptstromkreise
Main circuit
9
1
8
2
B1
C
D
E
F
Zeichng.
Nr.
Typ
E0010202
Chilly 25
=
+
Blatt
3
4
Blattvon
Page 25
Pos.
pos.
1
2
3
4
5
6
7
8
9
10
11
12
13
Seite
page
3
2
2
3
2
2
2
3
2
2
2
2
3
Bez.
Label
B1
C1
C2
F1
F2
F2
K1
K2
M1
M2
M3
Q1
U1
Benennung
designation
Fühler
sensor
Kondensator
Condenser
Kondensator
Condenser
Hochdruckbegrenzer
high pressure limiter
Sicherungshalter
Fuse holder
Sicherung
Fuse
Schütz
contactor
Schütz
contactor
Kompressor
compressor
Lüfter
fan
Pumpe
pump
Hauptschalter
main-switch
Thermostat
thermostat
Typ
type
NTC 030WP00, 3,0m Kabel, IP 67
21µF-330V, Code no. .640.152
15µF
ACB 061F9248
8WA1011-1SF12
5x20F 4A
RVA 4 G 3 D für AJ 5515C "F"
3TG10 10-OAL2
AJ 5512 C, PSC, 240/1/50
34W EVR Motor, + 27 °A.A. blades
Y-2051.0018
H216-41300-2X062
PJEZS0G000
Hersteller
manufacturer
CAREL
Tecumseh Europe- SA
Tecumseh Europe- SA
Danfoss
SIEMENS
Sonepar
Tecumseh Europe- SA
SIEMENS
Tecumseh Europe- SA
MA-VIB S.P.A.
Walter Speck KG
Sälzer GmbH
CAREL
Artikelnummer
Part number
10197
19036
----28766
12593
24642
19040
17891
17007
18505
23073
18315
34736
Zust. Änderung Datum Name
Datum
Bearb.
Gepr.
Norm
20.8.2007
Wiebe
Lacher
Ursp. Ers. f. Ers. d.
Stückliste
Bill of Materials
Zeichng.
Nr.
Typ
E0010202
Chilly 25
=
+
Blatt
4
4
Blattvon
Page 26
Page 27
Page 28
PRODUKT-ÜBERSICHT
OVERVIEW
PROSPECTUS
Loading...
