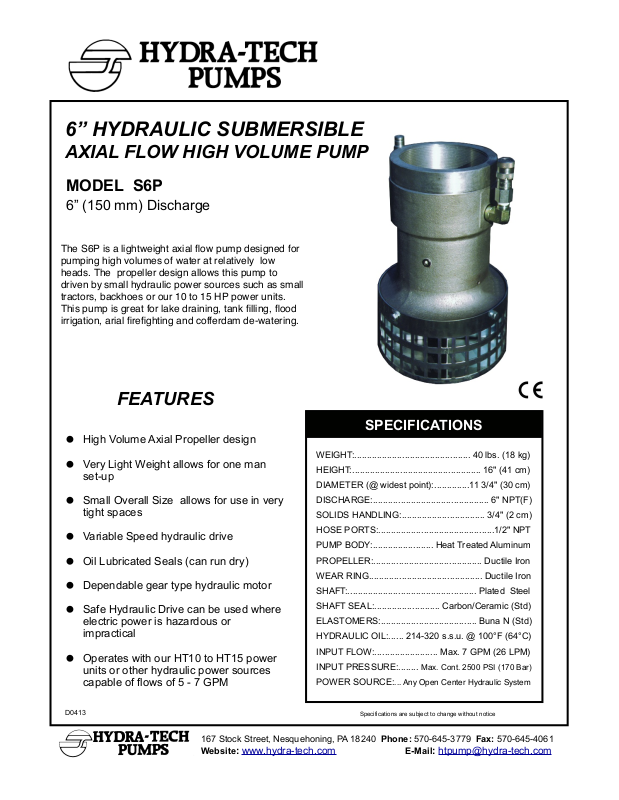

Hydra-Tech S6P User Manual
6” HYDRAULIC SUBMERSIBLE
AXIAL FLOW HIGH VOLUME PUMP
MODEL S6P
6” (150 mm) Discharge
The S6P is a lightweight axial flow pump designed for
pumping high volumes of water at relatively low
heads. The propeller design allows this pump to
driven by small hydraulic power sources such as small
tractors, backhoes or our 10 to 15 HP power units.
This pump is great for lake draining, tank filling, flood
irrigation, arial firefighting and cofferdam de-watering.
FEATURES
High Volume Axial Propeller design
•
Very Light Weight allows for one man
•
set-up
Small Overall Size allows for use in very
•
tight spaces
Variable Speed hydraulic drive
•
Oil Lubricated Seals (can run dry)
•
Dependable gear type hydraulic motor
•
Safe Hydraulic Drive can be used where
•
electric power is hazardous or
impractical
Operates with our HT10 to HT15 power
•
units or other hydraulic power sources
capable of flows of 5 - 7 GPM
D0413
SPECIFICATIONS
WEIGHT:.............................................. 40 lbs. (18 kg)
HEIGHT:................................................... 16" (41 cm)
DIAMETER (@ widest point):..............11 3/4" (30 cm)
DISCHARGE:.............................................. 6" NPT(F)
SOLIDS HANDLING:................................. 3/4" (2 cm)
HOSE PORTS:..............................................1/2" NPT
PUMP BODY:........................ Heat Treated Aluminum
PROPELLER:........................................... Ductile Iron
WEAR RING............................................. Ductile Iron
SHAFT:................................................... Plated Steel
SHAFT SEAL:.......................... Carbon/Ceramic (Std)
ELASTOMERS:...................................... Buna N (Std)
HYDRAULIC OIL:...... 214-320 s.s.u. @ 100°F (64°C)
INPUT FLOW:......................... Max. 7 GPM (26 LPM)
INPUT PRESSURE:........ Max. Cont. 2500 PSI (170 Bar)
POWER SOURCE:... Any Open Center Hydraulic System
Specifications are subject to change without notice
167 Stock Street, Nesquehoning, PA 18240 Phone: 570-645-3779 Fax: 570-645-4061
Website: www.hydra-tech.com E-Mail: htpump@hydra-tech.com
Model S6P Overall Dimensions
10 1/2"
(27 cm)
16"
(41 cm)
11 3/4"
(30 cm)
0
30
27
24
21
18
15
12
9
6
3
3
6
9
U.S.G.P.M.
Cu.Mtr./Hr.
Feet
Meters
30
CAPACITY
TOTAL HEAD
* Typical Performance with
HT11 or HT13 Power Units
** Maximum Performance
HYDRAULIC INPUT:
(A) 4 GPM @ 1300 - 2100 PSI
(B) * 4.1 - 6 GPM @ 2100 PSI
(C) ** 4.2 - 6.5 GPM @ 2750 PSI
A
B
C
125
250
375
500
625
750
875
1000
1125
1250
6090120
150
180
210
240
270
S6P Typical Performance
Curves are based on pumping water at 60°F. For performance curves other than shown above, consult factory.
167 Stock Street, Nesquehoning, PA 18240 Phone: 570-645-3779 Fax: 570-645-4061
Website: www.hydra-tech.com E-Mail: htpump@hydra-tech.com
