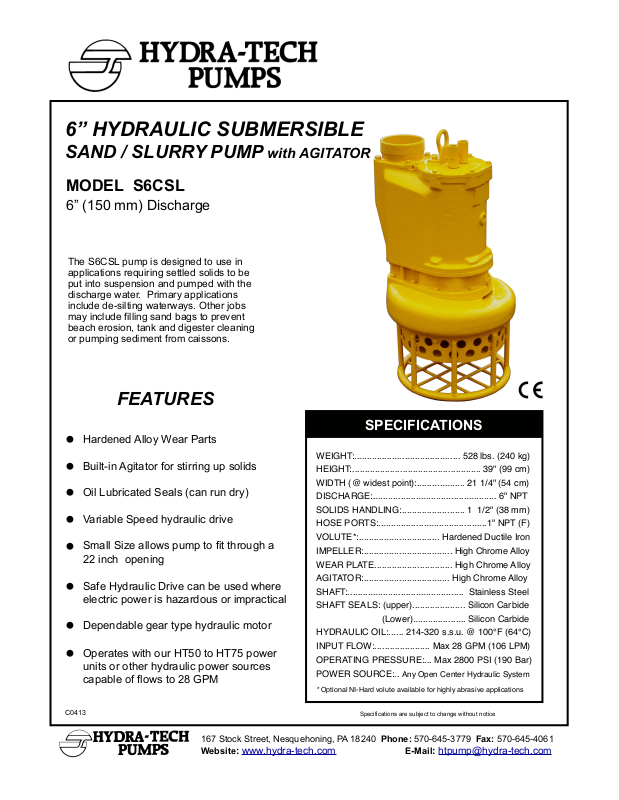

Hydra-Tech S6CSL User Manual
6” HYDRAULIC SUBMERSIBLE
SAND / SLURRY PUMP with AGITATOR
MODEL S6CSL
6” (150 mm) Discharge
The S6CSL pump is designed to use in
applications requiring settled solids to be
put into suspension and pumped with the
discharge water. Primary applications
include de-silting waterways. Other jobs
may include filling sand bags to prevent
beach erosion, tank and digester cleaning
or pumping sediment from caissons.
FEATURES
Hardened Alloy Wear Parts
•
Built-in Agitator for stirring up solids
•
Oil Lubricated Seals (can run dry)
•
Variable Speed hydraulic drive
•
Small Size allows pump to fit through a
•
22 inch opening
Safe Hydraulic Drive can be used where
•
electric power is hazardous or impractical
Dependable gear type hydraulic motor
•
Operates with our HT50 to HT75 power
•
units or other hydraulic power sources
capable of flows to 28 GPM
C0413
SPECIFICATIONS
WEIGHT:.......................................... 528 lbs. (240 kg)
HEIGHT:................................................... 39" (99 cm)
WIDTH (@ widest point):................... 21 1/4" (54 cm)
DISCHARGE:................................................. 6" NPT
SOLIDS HANDLING:......................... 1 1/2" (38 mm)
HOSE PORTS:...........................................1" NPT (F)
VOLUTE*:................................ Hardened Ductile Iron
IMPELLER:................................... High Chrome Alloy
WEAR PLATE............................... High Chrome Alloy
AGITATOR:.................................. High Chrome Alloy
SHAFT:.............................................. Stainless Steel
SHAFT SEALS: (upper)..................... Silicon Carbide
(Lower)..................... Silicon Carbide
HYDRAULIC OIL:...... 214-320 s.s.u. @ 100°F (64°C)
INPUT FLOW:...................... Max 28 GPM (106 LPM)
OPERATING PRESSURE:... Max 2800 PSI (190 Bar)
POWER SOURCE:.. Any Open Center Hydraulic System
* Optional NI-Hard volute available for highly abrasive applications
Specifications are subject to change without notice
167 Stock Street, Nesquehoning, PA 18240 Phone: 570-645-3779 Fax: 570-645-4061
Website: www.hydra-tech.com E-Mail: htpump@hydra-tech.com
Model S6CSL Overall Dimensions
39"
(99cm)
18"
21-1/4"
(46cm)
(54cm)
Pressure Return
Hydra-Tech Pumps
HYDRAULIC INPUT:
(A) 15 GPM @ 700 - 950 PSI
(B) 20 GPM @ 1050 - 1500 PSI
(C) 25 GPM @ 1650 - 2150 PSI
(D) * 27 GPM @ 1950 - 2550 PSI
* Typical Performance with
HT60DJV Power Unit
0
150
135
120
105
90
75
60
45
30
15
15
30
45
U.S.G.P.M.
Liters/Minute
Feet
Meters
900
A
B
C
CAPACITY
TOTAL HEAD
150
300
450
600
750
900
1050
1200
1350
1500
1800
2700
3600
4500
5400
D
S6CSL Typical Performance
Curves are based on pumping water at 60°F. For performance curves other than shown above, consult factory.
