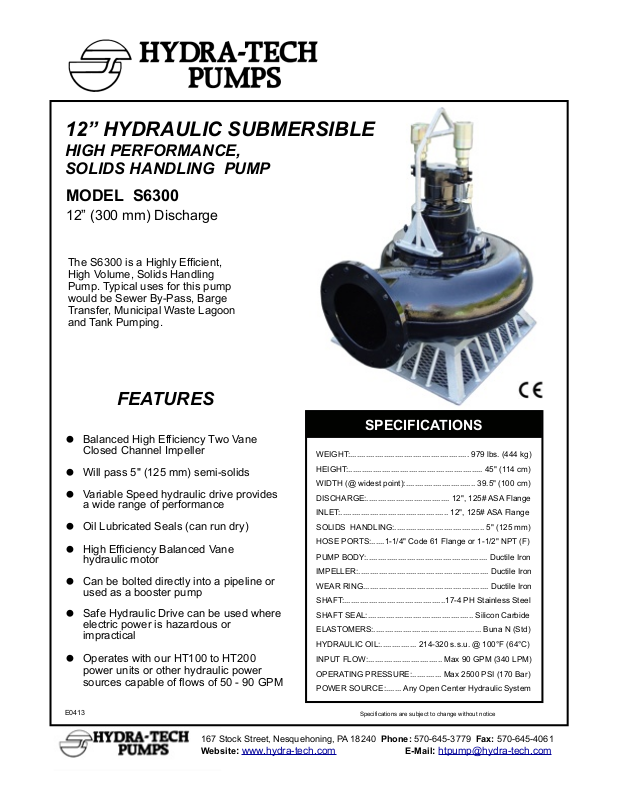

Hydra-Tech S6300 User Manual
12” HYDRAULIC SUBMERSIBLE
HIGH PERFORMANCE,
SOLIDS HANDLING PUMP
MODEL S6300
12” (300 mm) Discharge
The S6300 is a Highly Efficient,
High Volume, Solids Handling
Pump. Typical uses for this pump
would be Sewer By-Pass, Barge
Transfer, Municipal Waste Lagoon
and Tank Pumping.
FEATURES
Balanced High Efficiency Two Vane
•
Closed Channel Impeller
Will pass 5" (125 mm) semi-solids
•
Variable Speed hydraulic drive provides
•
a wide range of performance
Oil Lubricated Seals (can run dry)
•
High Efficiency Balanced Vane
•
hydraulic motor
Can be bolted directly into a pipeline or
•
used as a booster pump
Safe Hydraulic Drive can be used where
•
electric power is hazardous or
impractical
Operates with our HT100 to HT200
•
power units or other hydraulic power
sources capable of flows of 50 - 90 GPM
E0413
SPECIFICATIONS
WEIGHT:..................................................... 979 lbs. (444 kg)
HEIGHT:............................................................ 45" (114 cm)
WIDTH (@ widest point):............................... 39.5" (100 cm)
DISCHARGE:..................................... 12", 125# ASA Flange
INLET:................................................ 12", 125# ASA Flange
SOLIDS HANDLING:........................................ 5" (125 mm)
HOSE PORTS:......1-1/4" Code 61 Flange or 1-1/2" NPT (F)
PUMP BODY:...................................................... Ductile Iron
IMPELLER:.......................................................... Ductile Iron
WEAR RING........................................................ Ductile Iron
SHAFT:.............................................17-4 PH Stainless Steel
SHAFT SEAL:............................................... Silicon Carbide
ELASTOMERS:................................................ Buna N (Std)
HYDRAULIC OIL:................ 214-320 s.s.u. @ 100°F (64°C)
INPUT FLOW:................................. Max 90 GPM (340 LPM)
OPERATING PRESSURE:............. Max 2500 PSI (170 Bar)
POWER SOURCE:....... Any Open Center Hydraulic System
Specifications are subject to change without notice
167 Stock Street, Nesquehoning, PA 18240 Phone: 570-645-3779 Fax: 570-645-4061
Website: www.hydra-tech.com E-Mail: htpump@hydra-tech.com
Model S6300 Overall Dimensions
32"
9"
(81cm)
(23cm)
(100cm)
12", 125# ASA Flanges
39.5"
32"
45"
(81cm)
(57cm)
(114cm)
22.6"
0
110
100
90
80
70
60
50
40
30
20
10
10
20
30
U.S.G.P.M.
Cu. Mtr./Hr.
Feet
Meters
400
CAPACITY
TOTAL HEAD
8000
7200
6400
5600
4800
4000
3200
2400
1600
800
8600
1600
1200
800
2000
A
B
C
HYDRAULIC INPUT:
A) 53 GPM
!!!!!Typical Performance with
!!!! HT100 Power Unit
B) 70 GPM
!!!Typical Performance with
!!!!HT150 Power Unit
C) 90 GPM
!!!!Typical Performance with
!!!!!HT200 Power Unit
S6300 Typical Performance
Curves are based on pumping water at 60°F. For performance curves other than shown above, consult factory.
167 Stock Street, Nesquehoning, PA 18240 Phone: 570-645-3779 Fax: 570-645-4061
Website: www.hydra-tech.com E-Mail: htpump@hydra-tech.com
