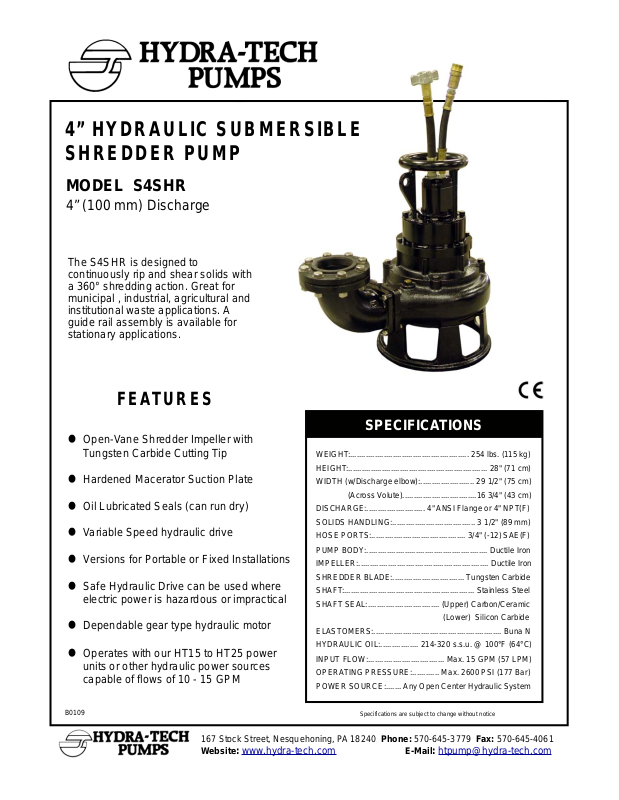

Hydra-Tech S4SHR User Manual
4” HYDRAULIC SUBMERSIBLE
SHREDDER PUMP
MODEL S4SHR
4” (100 mm) Discharge
The S4SHR is designed to
continuously rip and shear solids with
a 360° shredding action. Great for
municipal , industrial, agricultural and
institutional waste applications. A
guide rail assembly is available for
stationary applications.
FEATURES
Open-Vane Shredder Impeller with
•
Tungsten Carbide Cutting Tip
Hardened Macerator Suction Plate
•
Oil Lubricated Seals (can run dry)
•
Variable Speed hydraulic drive
•
Versions for Portable or Fixed Installations
•
Safe Hydraulic Drive can be used where
•
electric power is hazardous or impractical
Dependable gear type hydraulic motor
•
Operates with our HT15 to HT25 power
•
units or other hydraulic power sources
capable of flows of 10 - 15 GPM
B0109
SPECIFICATIONS
WEIGHT:..................................................... 254 lbs. (115 kg)
HEIGHT:.............................................................. 28" (71 cm)
WIDTH (w/Discharge elbow):........................ 29 1/2" (75 cm)
(Across Volute).................................16 3/4" (43 cm)
DISCHARGE:.......................... 4" ANSI Flange or 4" NPT(F)
SOLIDS HANDLING:..................................... 3 1/2" (89 mm)
HOSE PORTS:.......................................... 3/4" (-12) SAE(F)
PUMP BODY:...................................................... Ductile Iron
IMPELLER:.......................................................... Ductile Iron
SHREDDER BLADE:................................ Tungsten Carbide
SHAFT:.......................................................... Stainless Steel
SHAFT SEAL:................................ (Upper) Carbon/Ceramic
(Lower) Silicon Carbide
ELASTOMERS:......................................................... Buna N
HYDRAULIC OIL:................. 214-320 s.s.u. @ 100°F (64°C)
INPUT FLOW:.................................. Max. 15 GPM (57 LPM)
OPERATING PRESSURE:............ Max. 2600 PSI (177 Bar)
POWER SOURCE:....... Any Open Center Hydraulic System
Specifications are subject to change without notice
167 Stock Street, Nesquehoning, PA 18240 Phone: 570-645-3779 Fax: 570-645-4061
Website
: www.hydra-tech.com E-Mail: htpump@hydra-tech.com
Model S4SHR Overall Dimensions
S4SHR Typical Performance
27 1/2" [699]
29 1/2" [749]
17" [430]
7" [176]
15" [381]
16 3/4" [425]
1
0
"
[256]
Mating Flange
4" NPT (Female)
0
160
140
120
100
80
60
40
20
20
40
U.S.G.P.M.
Liters/Minute
Feet
Meters
600
CAPACITY
TOTAL HEAD
30
50
10
100 200 300 400 500 600 700 800 900 1000
1200 1800 2400 3000 3600
HYDRAULIC INPUT:
A) 6 GPM @ 350 - 500 PSI
B) 8 GPM @ 550 - 750 PSI
C) 10 GPM @ 850 - 1150 PSI
D) 12 GPM @ 1200 - 1600 PSI
E) 14 GPM @ 1600 - 2200 PSI
F) 15 GPM @ 1800 - 2600 PSI
A
B
C
D
E
F
Curves are based on pumping water at 60°F. For performance curves other than shown above, consult factory.
