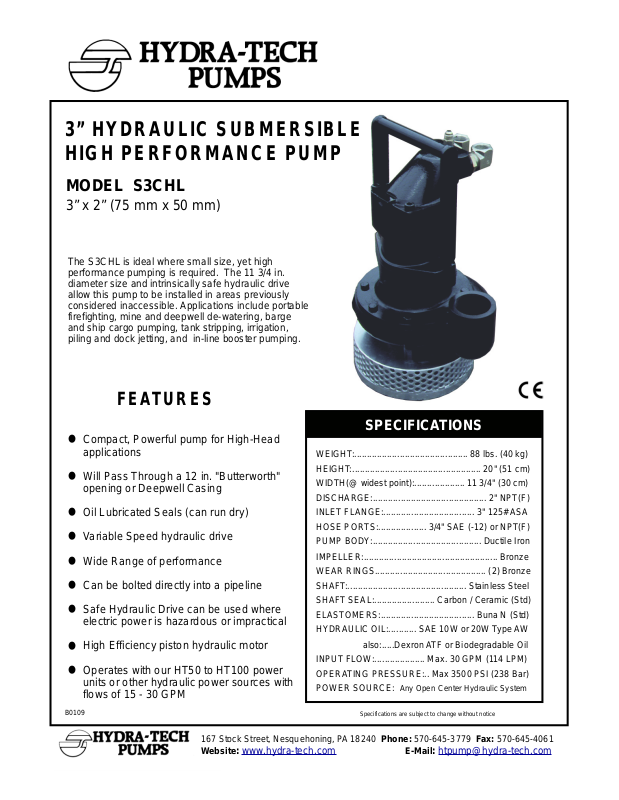

Hydra-Tech S3CHL User Manual
3” HYDRAULIC SUBMERSIBLE
HIGH PERFORMANCE PUMP
MODEL S3CHL
3” x 2” (75 mm x 50 mm)
The S3CHL is ideal where small size, yet high
performance pumping is required. The 11 3/4 in.
diameter size and intrinsically safe hydraulic drive
allow this pump to be installed in areas previously
considered inaccessible. Applications include portable
firefighting, mine and deepwell de-watering, barge
and ship cargo pumping, tank stripping, irrigation,
piling and dock jetting, and in-line booster pumping.
FEATURES
Compact, Powerful pump for High-Head
•
applications
Will Pass Through a 12 in. "Butterworth"
•
opening or Deepwell Casing
Oil Lubricated Seals (can run dry)
•
Variable Speed hydraulic drive
•
Wide Range of performance
•
Can be bolted directly into a pipeline
•
Safe Hydraulic Drive can be used where
•
electric power is hazardous or impractical
High Efficiency piston hydraulic motor
•
Operates with our HT50 to HT100 power
•
units or other hydraulic power sources with
flows of 15 - 30 GPM
B0109
SPECIFICATIONS
WEIGHT:............................................. 88 lbs. (40 kg)
HEIGHT:................................................... 20" (51 cm)
WIDTH(@ widest point):.................... 11 3/4" (30 cm)
DISCHARGE:............................................. 2" NPT(F)
INLET FLANGE:.................................... 3" 125# ASA
HOSE PORTS:................... 3/4" SAE (-12) or NPT(F)
PUMP BODY:........................................... Ductile Iron
IMPELLER:..................................................... Bronze
WEAR RINGS............................................ (2) Bronze
SHAFT:............................................... Stainless Steel
SHAFT SEAL:........................ Carbon / Ceramic (Std)
ELASTOMERS:..................................... Buna N (Std)
HYDRAULIC OIL:........... SAE 10W or 20W Type AW
also:.....Dexron ATF or Biodegradable Oil
INPUT FLOW:.................... Max. 30 GPM (114 LPM)
OPERATING PRESSURE:.. Max 3500 PSI (238 Bar)
POWER SOURCE:
Specifications are subject to change without notice
Any Open Center Hydraulic System
167 Stock Street, Nesquehoning, PA 18240 Phone: 570-645-3779 Fax: 570-645-4061
Website
: www.hydra-tech.com E-Mail: htpump@hydra-tech.com
Model S3CHL Overall Dimensions
20"
(51 cm)
11 3/4"
(30 cm)
10 1/4"
(26 cm)
0
440
400
360
320
280
240
200
160
120
80
40
40
80
120
U.S.G.P.M.
Liters/Minute
Feet
Meters
300
CAPACITY
TOTAL HEAD
60
100
20
50
100
150
200
250
300
350
400
450
500
600
900
1200
1500
1800
HYDRAULIC INPUT:
28 GPM @ 2300 - 2800 PSI
134
S3CHL Typical Performance
Curves are based on pumping water at 60°F. For performance curves other than shown above, consult factory.
