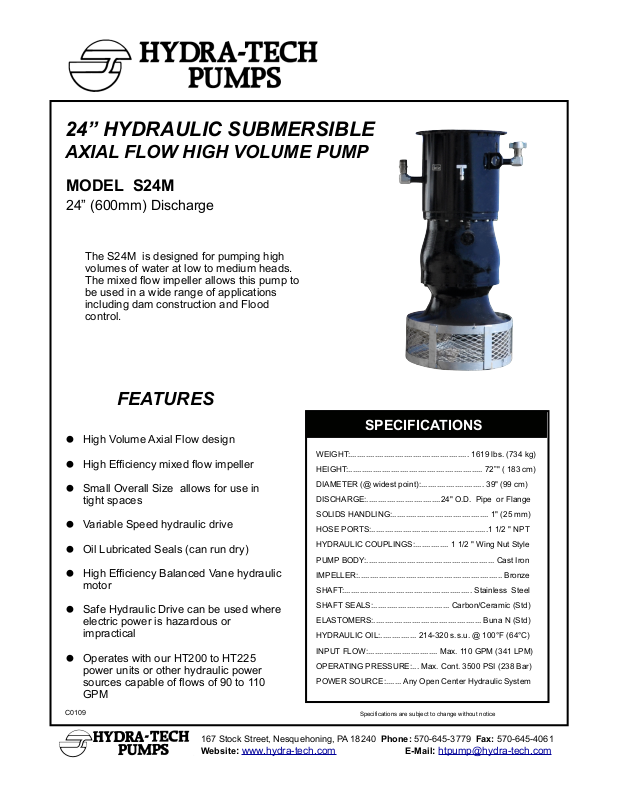

Hydra-Tech S24M User Manual
24” HYDRAULIC SUBMERSIBLE
AXIAL FLOW HIGH VOLUME PUMP
MODEL S24M
24” (600mm) Discharge
The S24M is designed for pumping high
volumes of water at low to medium heads.
The mixed flow impeller allows this pump to
be used in a wide range of applications
including dam construction and Flood
control.
FEATURES
High Volume Axial Flow design
•
High Efficiency mixed flow impeller
•
Small Overall Size allows for use in
•
tight spaces
Variable Speed hydraulic drive
•
Oil Lubricated Seals (can run dry)
•
High Efficiency Balanced Vane hydraulic
•
motor
Safe Hydraulic Drive can be used where
•
electric power is hazardous or
impractical
Operates with our HT200 to HT225
•
power units or other hydraulic power
sources capable of flows of 90 to 110
GPM
C0109
SPECIFICATIONS
WEIGHT:..................................................... 1619 lbs. (734 kg)
HEIGHT:............................................................ 72”" ( 183 cm)
DIAMETER (@ widest point):............................ 39" (99 cm)
DISCHARGE:.................................24" O.D. Pipe or Flange
SOLIDS HANDLING:........................................... 1" (25 mm)
HOSE PORTS:....................................................1 1/2 " NPT
HYDRAULIC COUPLINGS:............... 1 1/2 " Wing Nut Style
PUMP BODY:......................................................... Cast Iron
IMPELLER:................................................................ Bronze
SHAFT:......................................................... Stainless Steel
SHAFT SEALS:.................................. Carbon/Ceramic (Std)
ELASTOMERS:................................................ Buna N (Std)
HYDRAULIC OIL:................ 214-320 s.s.u. @ 100°F (64°C)
INPUT FLOW:............................... Max. 110 GPM (341 LPM)
OPERATING PRESSURE:... Max. Cont. 3500 PSI (238 Bar)
POWER SOURCE:....... Any Open Center Hydraulic System
Specifications are subject to change without notice
167 Stock Street, Nesquehoning, PA 18240 Phone: 570-645-3779 Fax: 570-645-4061
Website: www.hydra-tech.com E-Mail: htpump@hydra-tech.com
34"W/Flange (86 cm)
18" Pipe O.D.
55"
(46 cm)
(140 cm)
Optional
Flange
29" W/O Flange (74 cm)
25 1/4"
(64 cm)
Optional
Flange
PUMP PERFORMANCE CURVES
Model: S24M (20MF)
Impeller: Mixed Flow, A5 37°
Hydraulic Motor: Rineer 20 Cu.In./Rev.
Input Hydraulic Flow: 39 - 90 GPM
Input Hydraulic Pressure: 1200 - 3500 PSI
Hydraulic Oil: ISO 46@ 100-150° F
Liquid Tested: Clear Water @ 70° F.
Date: 10/13/2010
0
40
35
30
25
20
15
10
5
6
12
U.S.G.P.M.
M3/Minute
F
e
e
t
M
e
t
e
r
s
10
CAPACITY
T
O
TA
L
HE
A
D
9
15
3
2000 4000 6000 8000 10000 12000 14000 16000 18000 20000
20 30 40 50 60
A
B
C
D
E
45
HYDRAULIC INPUT
A) 39 GPM @ 950 - 1200 PSI
RPM: 400
B) 53 GPM @ 1450 - 2300 PSI
RPM: 525
C) 67-70 GPM @ 2100 - 3500 PSI
RPM: 625-680
D) 67-80 GPM @ 1950 - 3500 PSI
RPM: 625-800
E) 67-90 GPM @ 3250 - 3500 PSI
RPM: 625-875
50
70
72”
(183 cm)
Model S24M Overall Dimensions
39” w/Flange (99cm)
24” Pipe O.D.
60
S24M Typical Performance
HYDRAULIC INPUT
A) 39 GPM @ 950 -1200 PSI
B) 53 GPM @1450 - 2300 PSI
! RPM 525
C) 67-70 GPM @ 2100 -3500 PSI
! RPM 625-680
D) 67-80 GPM @ 1950 -3500 PSI
! RPM 625-800
E) 67 - 110 GPM @ 3250 -3500 PSI
Curves are based on pumping water at 60°F. For performance curves other than shown above, consult factory.
167 Stock Street, Nesquehoning, PA 18240 Phone: 570-645-3779 Fax: 570-645-4061
Website: www.hydra-tech.com E-Mail: htpump@hydra-tech.com
RPM 400
RPM 625-875
