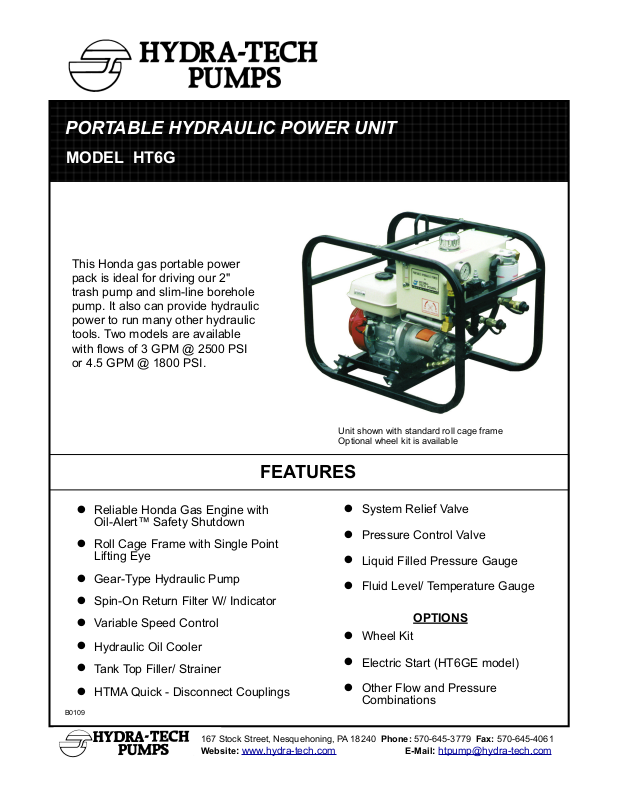

MODEL HT6G
PORTABLE HYDRAULIC POWER UNIT
This Honda gas portable power
pack is ideal for driving our 2"
trash pump and slim-line borehole
pump. It also can provide hydraulic
power to run many other hydraulic
tools. Two models are available
with flows of 3 GPM @ 2500 PSI
or 4.5 GPM @ 1800 PSI.
Unit shown with standard roll cage frame
Optional wheel kit is available
Reliable Honda Gas Engine with
•
Oil-Alert™ Safety Shutdown
Roll Cage Frame with Single Point
•
Lifting Eye
Gear-Type Hydraulic Pump
•
Spin-On Return Filter W/ Indicator
•
Variable Speed Control
•
Hydraulic Oil Cooler
•
Tank Top Filler/ Strainer
•
HTMA Quick - Disconnect Couplings
•
B0109
167 Stock Street, Nesquehoning, PA 18240 Phone: 570-645-3779 Fax: 570-645-4061
Website: www.hydra-tech.com E-Mail: htpump@hydra-tech.com
FEATURES
•
•
•
•
•
•
•
System Relief Valve
Pressure Control Valve
Liquid Filled Pressure Gauge
Fluid Level/ Temperature Gauge
OPTIONS
Wheel Kit
Electric Start (HT6GE model)
Other Flow and Pressure
Combinations
Model HT6G Overall Dimensions
(76 cm)
30"
25"
(64 cm)
20"
(51 cm)
SPECIFICATIONS
ENGINE:............................................................. Honda GX200 Gasoline
HORSE POWER:.......................................................... 6.5 @ 3500 RPM
HYDRAULIC OUTPUT:.............. 3 GPM (11 LPM) @ 2500 PSI (170 Bar)
or:...........4.5 GPM (17 LPM) @ 1800 PSI (122 Bar)
HOSE PORT SIZE:..................................................................... 1/2" NPT
HYDRAULIC OIL:.......................................... SAE 10W or 20W Type AW
also: Dexron ATF or Biodegradable oil
OIL FILTRATION:.....................................................10 Micron (Standard)
OIL RESERVOIR CAPACITY:........................ 4 U.S. Gallons (15.1 Liters)
FUEL TANK CAPACITY:............................... .95 U.S. Gallons (3.6 Liters)
FUEL CONSUMPTION:................. Approx. .9 U.S. Gal/Hr (3.4 Liters/Hr)
DIMENSIONS:.............. H 25" (63.5 cm) x W 20" (51 cm) x L 30" (76 cm)
w/ Wheel Kit H:. 28 3/4" (73 cm) x W 30 1/2" (78 cm) x L 41" (104 cm)
WEIGHT (Dry):................................................................. 150 lbs. (68 kg)
* For Flows and Pressures Other Than Standard, Consult Factory
Since we are constantly working to improve our products, specifications are subject to change without notice.
