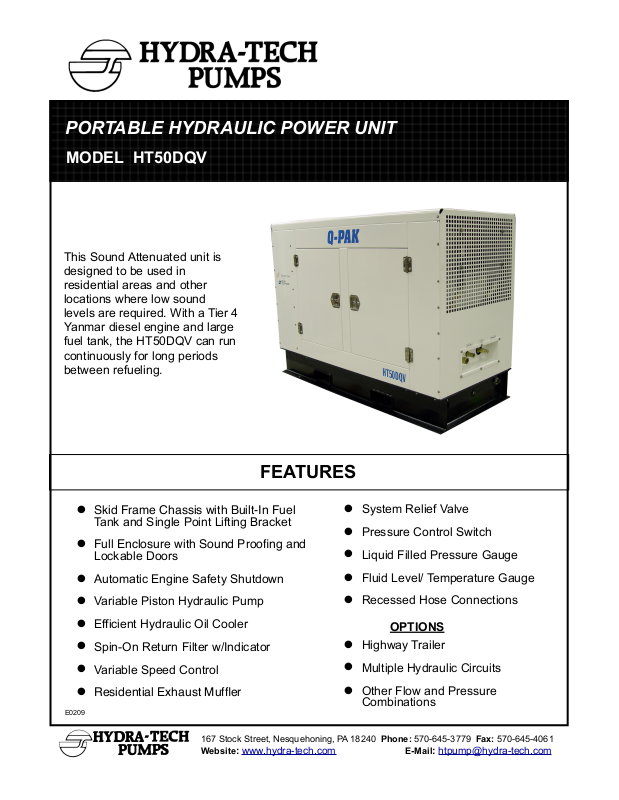

Hydra-Tech HT50DQV User Manual

MODEL HT50DQV

PORTABLE HYDRAULIC POWER UNIT

This Sound Attenuated unit is
designed to be used in
residential areas and other
locations where low sound
levels are required. With a Tier 4
Yanmar diesel engine and large
fuel tank, the HT50DQV can run
continuously for long periods
between refueling.

Skid Frame Chassis with Built-In Fuel

•

Tank and Single Point Lifting Bracket

Full Enclosure with Sound Proofing and

•

Lockable Doors

Automatic Engine Safety Shutdown

•

Variable Piston Hydraulic Pump

•

Efficient Hydraulic Oil Cooler

•

Spin-On Return Filter w/Indicator

•

Variable Speed Control

•

Residential Exhaust Muffler

•

E0209

167 Stock Street, Nesquehoning, PA 18240 Phone: [phone] Fax: [phone]

Website: www.hydra-tech.com E-Mail: [e-mail]

FEATURES

•

•

•

•

•

•

•

•

System Relief Valve

Pressure Control Switch

Liquid Filled Pressure Gauge

Fluid Level/ Temperature Gauge

Recessed Hose Connections

OPTIONS

Highway Trailer

Multiple Hydraulic Circuits

Other Flow and Pressure
Combinations

Model HT50DQV Overall Dimensions

84" (213 cm)

Q-PAK

HT50DQV

36" (91 cm)

58" (147 cm)

SPECIFICATIONS

ENGINE:......................................... Yanmar 4TNV84T Diesel (Tier 4 Int.)

HORSEPOWER:............................................................ 50 @ 2800 RPM

HYDRAULIC OUTPUT*:...................... Variable, Max. 25 GPM (95 LPM)

OPERATING PRESSURE*:....................... Maximum 3000 PSI (204 Bar)

HOSE PORT SIZE:................................ (Pressure and Return).. 1" NPT

(Case Drain).. 1/2" NPT

HYDRAULIC OIL:...................... (Standard) SAE 20W (ISO 46) Type AW

also: Biodegradable oil (Consult Factory)

OIL FILTRATION:.................................................... 10 Micron (Standard)

OIL RESERVOIR CAPACITY:...................... 38 U.S. Gallons (144 Liters)

FUEL TANK CAPACITY:............................... 75 U.S. Gallons (284 Liters)

FUEL CONSUMPTION:............... Approx. 2.5 U.S. Gal/Hr (9.5 Liters/Hr)

NOISE LEVELS @ 2800 RPM:. 79dB @ 3 Ft. (1M), 64dB @ 23 Ft. (7M)

DIMENSIONS:............. H 56" (142 cm) x W 36" (91 cm) x L 78" (198 cm)

WEIGHT (Dry):........................................................... 2400 lbs. (1087 kg)

* For Flows and Pressures Other Than Standard, Consult Factory

Since we are constantly working to improve our products, specifications are subject to change without notice.
