Hydra-Tech HT35DYS User Manual

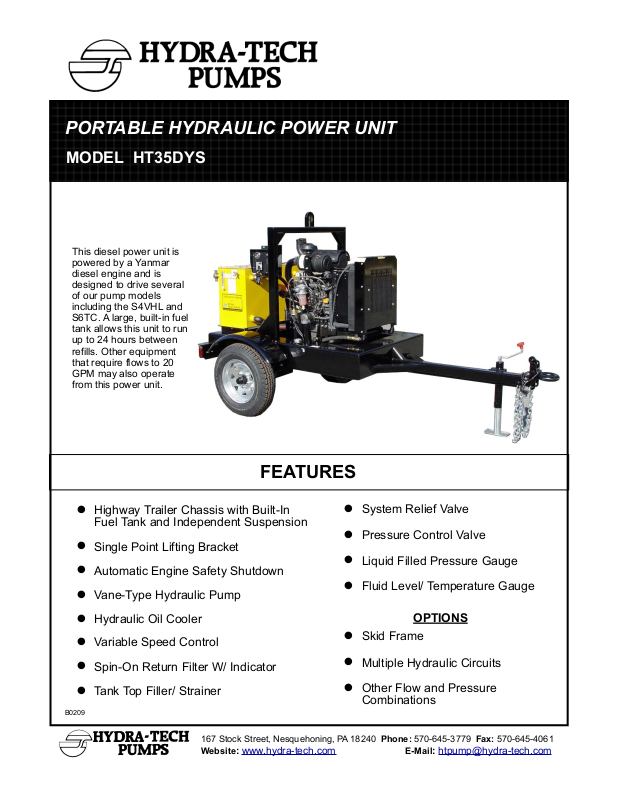

MODEL HT35DYS
PORTABLE HYDRAULIC POWER UNIT
This diesel power unit is
powered by a Yanmar
diesel engine and is
designed to drive several
of our pump models
including the S4VHL and
S6TC. A large, built-in fuel
tank allows this unit to run
up to 24 hours between
refills. Other equipment
that require flows to 20
GPM may also operate
from this power unit.
Highway Trailer Chassis with Built-In
•
Fuel Tank and Independent Suspension
Single Point Lifting Bracket
•
Automatic Engine Safety Shutdown
•
Vane-Type Hydraulic Pump
•
Hydraulic Oil Cooler
•
Variable Speed Control
•
Spin-On Return Filter W/ Indicator
•
Tank Top Filler/ Strainer
•
B0209
167 Stock Street, Nesquehoning, PA 18240 Phone: 570-645-3779 Fax: 570-645-4061
Website: www.hydra-tech.com E-Mail: htpump@hydra-tech.com
FEATURES
•
•
•
•
•
•
•
System Relief Valve
Pressure Control Valve
Liquid Filled Pressure Gauge
Fluid Level/ Temperature Gauge
OPTIONS
Skid Frame
Multiple Hydraulic Circuits
Other Flow and Pressure
Combinations
Model HT35DYS Overall Dimensions
64"
58"
(163 cm)
(147 cm)
105"
(267 cm)
SPECIFICATIONS
ENGINE:..................... Yanmar 3TNV88 Liquid Cooled Diesel (Tier 4 Int.)
POWER:...................................................... 35 HP(26 KW) @ 3000 RPM
HYDRAULIC OUTPUT*:...................... Variable, Max. 20 GPM (76 LPM)
OPERATING PRESSURE*:....................... Maximum 2500 PSI (170 Bar)
HOSE PORT SIZE:..................................................................... 3/4" NPT
HYDRAULIC OIL:.................. SAE 10W or 20W (ISO 32 or 46) Type AW
................................................. also: Biodegradable oil (Consult Factory)
OIL FILTRATION:.................................................... 10 Micron (Standard)
OIL RESERVOIR CAPACITY:....................... 30 U.S. Gallons (113 Liters)
FUEL TANK CAPACITY:............................... 42 U.S. Gallons (159 Liters)
FUEL CONSUMPTION:............... Approx. 1.5 U.S. Gal/Hr (5.7 Liters/Hr)
DIMENSIONS:......... H 64" (163 cm) x W 58" (147 cm) x L 105" (267 cm)
WEIGHT (Dry):............................................................. 1420 lbs. (643 kg)
* For Flows and Pressures Other Than Standard, Consult Factory
Since we are constantly working to improve our products, specifications are subject to change without notice.
