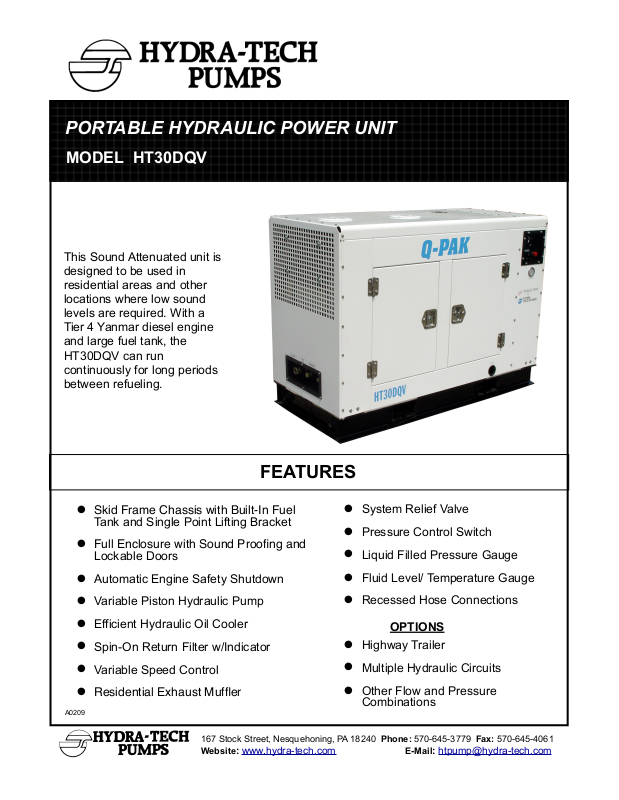

Hydra-Tech HT30DQV User Manual

MODEL HT30DQV

PORTABLE HYDRAULIC POWER UNIT

This Sound Attenuated unit is
designed to be used in
residential areas and other
locations where low sound
levels are required. With a
Tier 4 Yanmar diesel engine
and large fuel tank, the
HT30DQV can run
continuously for long periods
between refueling.

Skid Frame Chassis with Built-In Fuel

•

Tank and Single Point Lifting Bracket

Full Enclosure with Sound Proofing and

•

Lockable Doors

Automatic Engine Safety Shutdown

•

Variable Piston Hydraulic Pump

•

Efficient Hydraulic Oil Cooler

•

Spin-On Return Filter w/Indicator

•

Variable Speed Control

•

Residential Exhaust Muffler

•

A0209

167 Stock Street, Nesquehoning, PA 18240 Phone: [phone] Fax: [phone]

Website: www.hydra-tech.com E-Mail: [e-mail]

FEATURES

•

•

•

•

•

•

•

•

System Relief Valve

Pressure Control Switch

Liquid Filled Pressure Gauge

Fluid Level/ Temperature Gauge

Recessed Hose Connections

OPTIONS

Highway Trailer

Multiple Hydraulic Circuits

Other Flow and Pressure
Combinations

Model HT30DQV Overall

32"

69"

49

"

(

1

25

c

m

)

(175 cm)

(81 cm)

SPECIFICATIONS

ENGINE:........................................... Yanmar 3TNV88 Diesel (Tier 4 Int.)

HORSEPOWER:............................................................ 30 @ 2800 RPM

HYDRAULIC OUTPUT*:...................... Variable, Max. 15 GPM (57 LPM)

OPERATING PRESSURE*:....................... Maximum 2800 PSI (190 Bar)

HOSE PORT SIZE:............................. (Pressure and Return).. 3/4" NPT

(Case Drain).. 1/2" NPT

HYDRAULIC OIL:...................... (Standard) SAE 20W (ISO 46) Type AW

also: Biodegradable oil (Consult Factory)

OIL FILTRATION:.................................................... 10 Micron (Standard)

OIL RESERVOIR CAPACITY:...................... 30 U.S. Gallons (114 Liters)

FUEL TANK CAPACITY:............................... 40 U.S. Gallons (151 Liters)

FUEL CONSUMPTION:..................... Approx. 2 U.S. Gal/Hr (8 Liters/Hr)

NOISE LEVELS @ 2800 RPM:. 79dB @ 3 Ft. (1M), 64dB @ 23 Ft. (7M)

DIMENSIONS:............ H 49" (125 cm) x W 32" (81 cm) x L 69" (175 cm)

WEIGHT (Dry):............................................................. 1850 lbs. (838 kg)

* For Flows and Pressures Other Than Standard, Consult Factory

Since we are constantly working to improve our products, specifications are subject to change without notice.
