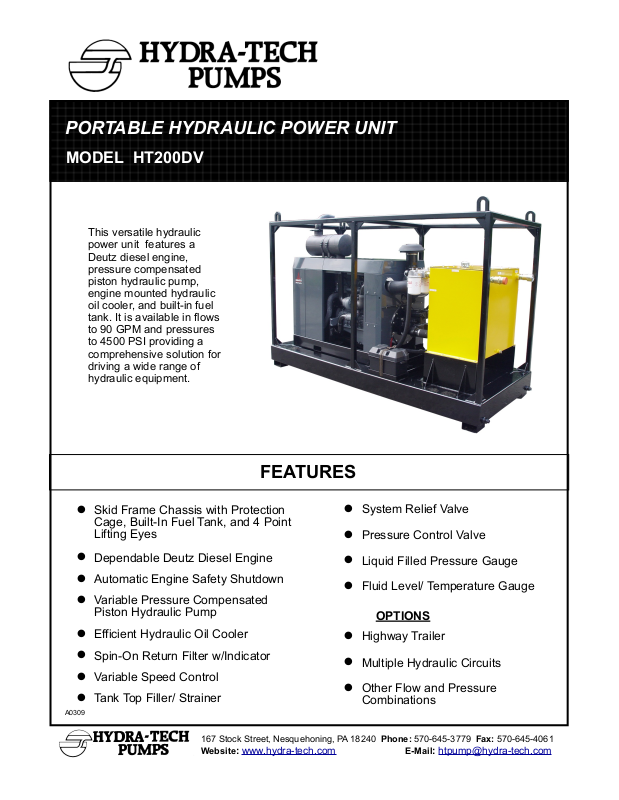

MODEL HT200DV
PORTABLE HYDRAULIC POWER UNIT
This versatile hydraulic
power unit features a
Deutz diesel engine,
pressure compensated
piston hydraulic pump,
engine mounted hydraulic
oil cooler, and built-in fuel
tank. It is available in flows
to 90 GPM and pressures
to 4500 PSI providing a
comprehensive solution for
driving a wide range of
hydraulic equipment.
Skid Frame Chassis with Protection
•
Cage, Built-In Fuel Tank, and 4 Point
Lifting Eyes
Dependable Deutz Diesel Engine
•
Automatic Engine Safety Shutdown
•
Variable Pressure Compensated
•
Piston Hydraulic Pump
Efficient Hydraulic Oil Cooler
•
Spin-On Return Filter w/Indicator
•
Variable Speed Control
•
Tank Top Filler/ Strainer
•
A0309
167 Stock Street, Nesquehoning, PA 18240 Phone: 570-645-3779 Fax: 570-645-4061
Website: www.hydra-tech.com E-Mail: htpump@hydra-tech.com
FEATURES
•
•
•
•
•
•
•
System Relief Valve
Pressure Control Valve
Liquid Filled Pressure Gauge
Fluid Level/ Temperature Gauge
OPTIONS
Highway Trailer
Multiple Hydraulic Circuits
Other Flow and Pressure
Combinations
Model HT200DV Overall Dimensions
79"
122"
(310 cm)
(201 cm)
50" (127 cm)
SPECIFICATIONS
ENGINE:............................................ Deutz TCD2012L06 Diesel (Tier 3)
HORSEPOWER:.......................................................... 197 @ 2300 RPM
HYDRAULIC OUTPUT*:........ Maximum 90 GPM (341 LPM)@ 2800 PSI
OPERATING PRESSURE*:..... Maximum 4500 PSI (306 Bar)@ 55 GPM
HOSE PORT SIZE:..................................................... 1 1/2" NPT or SAE
HYDRAULIC OIL:...........................................SAE 10W or 20W Type AW
also:........................... Biodegradable Oil (Consult Factory)
OIL FILTRATION:.....................................................10 Micron (Standard)
OIL RESERVOIR CAPACITY:..................... 100 U.S. Gallons (378 Liters)
FUEL TANK CAPACITY:............................... 99 U.S. Gallons (375 Liters)
FUEL CONSUMPTION:.................... Approx. 9 U.S. Gal/Hr (34 Liters/Hr)
DIMENSIONS:......... H 79" (201 cm) x W 50" (127 cm) x L 122" (310 cm)
WEIGHT (Dry):........................................................... 3900 lbs. (1767 kg)
* For Flows and Pressures Other Than Standard, Consult Factory
Since we are constantly working to improve our products, specifications are subject to change without notice.
