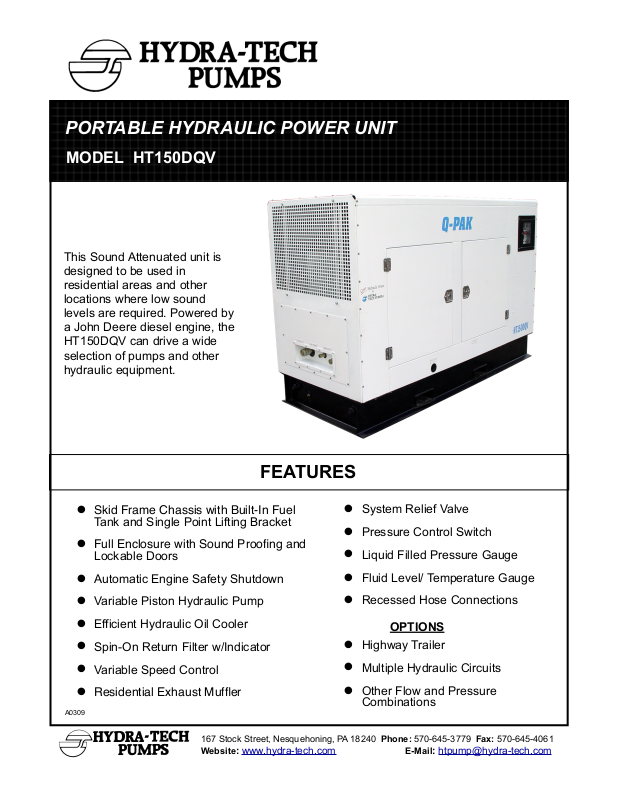

MODEL HT150DQV

PORTABLE HYDRAULIC POWER UNIT

This Sound Attenuated unit is
designed to be used in
residential areas and other
locations where low sound
levels are required. Powered by
a John Deere diesel engine, the
HT150DQV can drive a wide
selection of pumps and other
hydraulic equipment.

Skid Frame Chassis with Built-In Fuel

•

Tank and Single Point Lifting Bracket

Full Enclosure with Sound Proofing and

•

Lockable Doors

Automatic Engine Safety Shutdown

•

Variable Piston Hydraulic Pump

•

Efficient Hydraulic Oil Cooler

•

Spin-On Return Filter w/Indicator

•

Variable Speed Control

•

Residential Exhaust Muffler

•

A0309

167 Stock Street, Nesquehoning, PA 18240 Phone: [phone] Fax: [phone]

Website: www.hydra-tech.com E-Mail: [e-mail]

FEATURES

•

•

•

•

•

•

•

•

System Relief Valve

Pressure Control Switch

Liquid Filled Pressure Gauge

Fluid Level/ Temperature Gauge

Recessed Hose Connections

OPTIONS

Highway Trailer

Multiple Hydraulic Circuits

Other Flow and Pressure
Combinations

Model HT150DQV Overall Dimensions

7

3

1

/

2

"

112"

Fuel Level

Hyd. Filter

Hyd. Pressure Adjust Hyd. Flow Adjust H ydraulics ON/O FF

Emergency Stop

Engine Monitor

(285 cm)

(

1

87

c

m

)

HT150DQV

45"

Return Case Drain Pressure

Rear View

(114 cm)

SPECIFICATIONS

ENGINE:...................................... John Deere 6068HF285 Diesel (Tier 3)

HORSEPOWER:.......................................................... 155 @ 2300 RPM

HYDRAULIC OUTPUT*:.................... Variable, Max. 70 GPM (265 LPM)

OPERATING PRESSURE*:....................... Maximum 2500 PSI (170 Bar)

HOSE PORT SIZE:.......................... (Pressure and Return)... 1-1/2" NPT

(Case Drain).. 1/2" NPT

HYDRAULIC OIL:...................... (Standard) SAE 20W (ISO 46) Type AW

also: Biodegradable oil (Consult Factory)

OIL FILTRATION:.................................................... 10 Micron (Standard)

OIL RESERVOIR CAPACITY:...................... 95 U.S. Gallons (359 Liters)

FUEL TANK CAPACITY:............................. 105 U.S. Gallons (398 Liters)

FUEL CONSUMPTION:............... Approx. 2.5 U.S. Gal/Hr (9.5 Liters/Hr)

NOISE LEVELS @ 2000 RPM:. 83dB @ 3 Ft. (1M), 68dB @ 23 Ft. (7M)
DIMENSIONS:... H 73-1/2" (187 cm) x W 45" (114 cm) x L 112" (285 cm)

WEIGHT (Dry):........................................................... 4650 lbs. (2106 kg)

* For Flows and Pressures Other Than Standard, Consult Factory

Since we are constantly working to improve our products, specifications are subject to change without notice.
