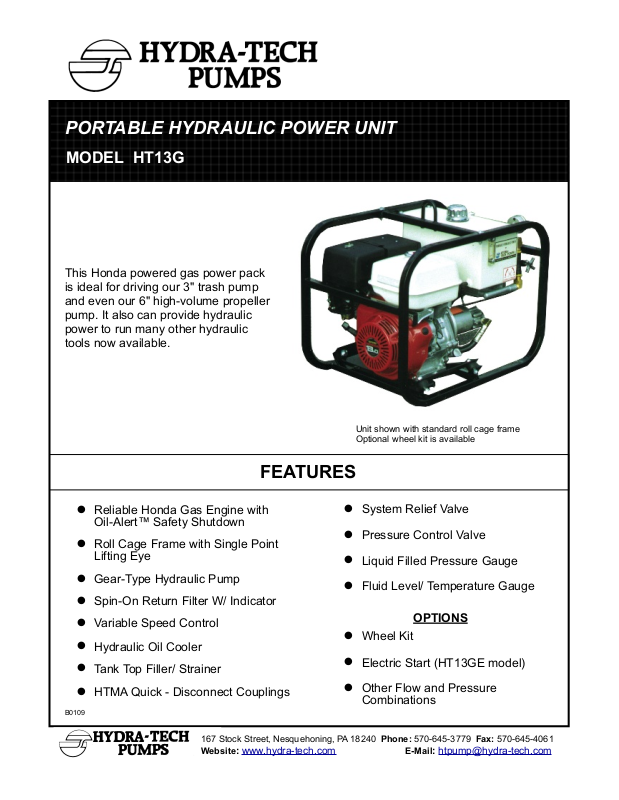

Hydra-Tech HT13G User Manual
MODEL HT13G
PORTABLE HYDRAULIC POWER UNIT
This Honda powered gas power pack
is ideal for driving our 3" trash pump
and even our 6" high-volume propeller
pump. It also can provide hydraulic
power to run many other hydraulic
tools now available.
Unit shown with standard roll cage frame
Optional wheel kit is available
Reliable Honda Gas Engine with
•
Oil-Alert™ Safety Shutdown
Roll Cage Frame with Single Point
•
Lifting Eye
Gear-Type Hydraulic Pump
•
Spin-On Return Filter W/ Indicator
•
Variable Speed Control
•
Hydraulic Oil Cooler
•
Tank Top Filler/ Strainer
•
HTMA Quick - Disconnect Couplings
•
B0109
167 Stock Street, Nesquehoning, PA 18240 Phone: 570-645-3779 Fax: 570-645-4061
Website: www.hydra-tech.com E-Mail: htpump@hydra-tech.com
FEATURES
•
•
•
•
•
•
•
System Relief Valve
Pressure Control Valve
Liquid Filled Pressure Gauge
Fluid Level/ Temperature Gauge
OPTIONS
Wheel Kit
Electric Start (HT13GE model)
Other Flow and Pressure
Combinations
Model HT13G Overall Dimensions
(76 cm)
30"
25"
(64 cm)
20"
(51 cm)
SPECIFICATIONS
ENGINE:............................................................. Honda GX390 Gasoline
HORSE POWER:........................................................... 13 @ 3500 RPM
HYDRAULIC OUTPUT:............................ Variable Max 6 GPM (23 LPM)
OPERATING PRESSURE:........................ Maximum 2100 PSI (143 Bar)
HOSE PORT SIZE:..................................................................... 1/2" NPT
HYDRAULIC OIL:.......................................... SAE 10W or 20W Type AW
also: Dexron ATF or Biodegradable oil
OIL FILTRATION:.....................................................10 Micron (Standard)
OIL RESERVOIR CAPACITY:........................ 4 U.S. Gallons (15.1 Liters)
FUEL TANK CAPACITY:............................... 1.8 U.S. Gallons (6.8 Liters)
FUEL CONSUMPTION:................. Approx. .9 U.S. Gal/Hr (3.4 Liters/Hr)
DIMENSIONS:.............. H 25" (63.5 cm) x W 20" (51 cm) x L 30" (76 cm)
w/ Wheel Kit H:. 28 3/4" (73 cm) x W 30 1/2" (78 cm) x L 41" (104 cm)
* For Flows and Pressures Other Than Standard, Consult Factory
Since we are constantly working to improve our products, specifications are subject to change without notice.
