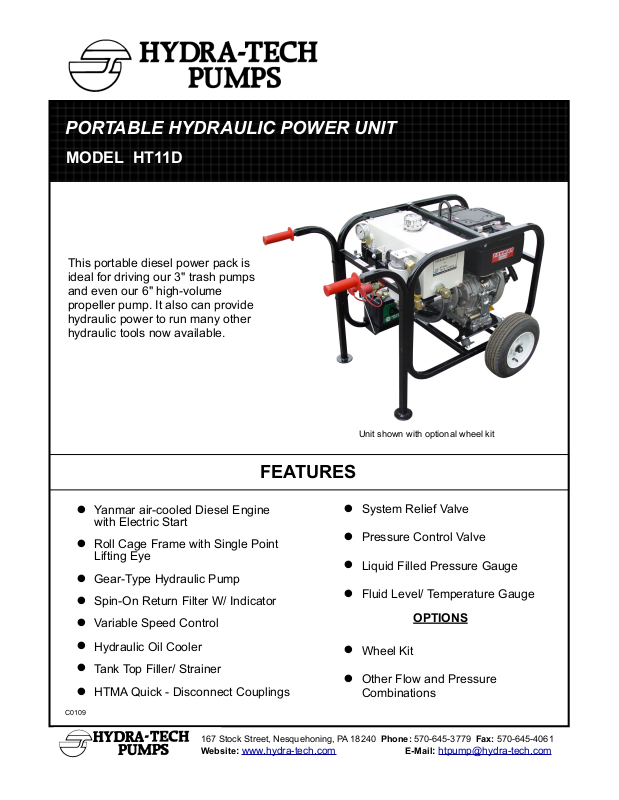

MODEL HT11D
PORTABLE HYDRAULIC POWER UNIT
This portable diesel power pack is
ideal for driving our 3" trash pumps
and even our 6" high-volume
propeller pump. It also can provide
hydraulic power to run many other
hydraulic tools now available.
Unit shown with optional wheel kit
Yanmar air-cooled Diesel Engine
•
with Electric Start
Roll Cage Frame with Single Point
•
Lifting Eye
Gear-Type Hydraulic Pump
•
Spin-On Return Filter W/ Indicator
•
Variable Speed Control
•
Hydraulic Oil Cooler
•
Tank Top Filler/ Strainer
•
HTMA Quick - Disconnect Couplings
•
C0109
167 Stock Street, Nesquehoning, PA 18240 Phone: 570-645-3779 Fax: 570-645-4061
Website: www.hydra-tech.com E-Mail: htpump@hydra-tech.com
FEATURES
•
•
•
•
•
•
System Relief Valve
Pressure Control Valve
Liquid Filled Pressure Gauge
Fluid Level/ Temperature Gauge
OPTIONS
Wheel Kit
Other Flow and Pressure
Combinations
Model HT11D Overall Dimensions
WEIGHT (Dry):................................................................ 225lbs. (102 kg)
41"
28 3/4"
(104 cm)
(73 cm)
30 1/2"
(78 cm)
SPECIFICATIONS
ENGINE:................................................................ Yanmar L100V Diesel
HORSE POWER:........................................................... 11 @ 3500 RPM
HYDRAULIC OUTPUT:............................ Variable Max 6 GPM (23 LPM)
OPERATING PRESSURE:........................ Maximum 2100 PSI (143 Bar)
HOSE PORT SIZE:......................................................................1/2" NPT
HYDRAULIC OIL:.......................................... SAE 10W or 20W Type AW
also:..Dexron ATF or Biodegradable Oil
OIL FILTRATION:.....................................................10 Micron (Standard)
OIL RESERVOIR CAPACITY:....................... 4 U.S. Gallons (15.1 Liters)
FUEL TANK CAPACITY:............................ 1.45 U.S. Gallons (5.5 Liters)
FUEL CONSUMPTION:................ Approx. .5 U.S. Gal/Hr (1.9 Liters/Hr)
DIMENSIONS:............. H 25" (63.5 cm) x W 20" (51 cm) x L 30" (76 cm)
w/ Wheel Kit: H 28 3/4" (73 cm) x W 30 1/2" (78 cm) x L 41" (104 cm)
* For Flows and Pressures Other Than Standard, Consult Factory
Since we are constantly working to improve our products, specifications are subject to change without notice.
