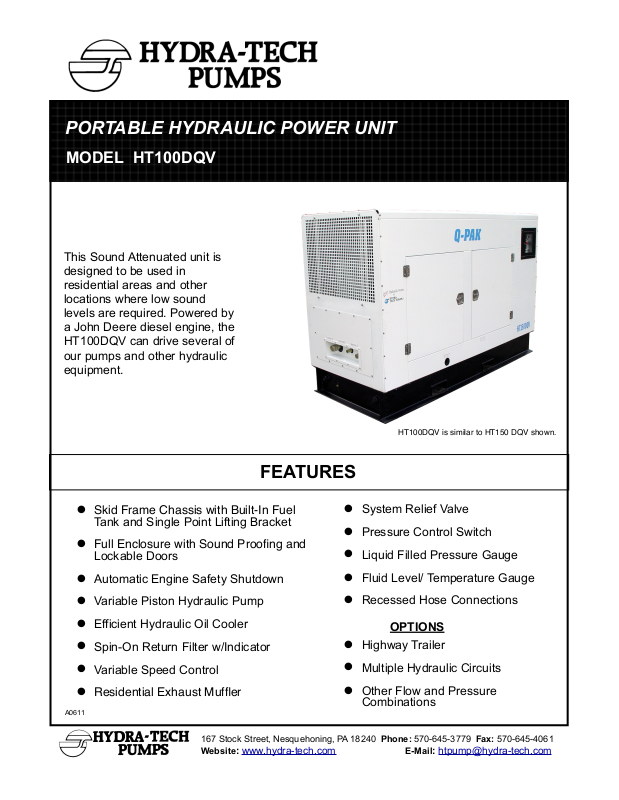

Hydra-Tech HT100DQV User Manual

MODEL HT100DQV

PORTABLE HYDRAULIC POWER UNIT

This Sound Attenuated unit is
designed to be used in
residential areas and other
locations where low sound
levels are required. Powered by
a John Deere diesel engine, the
HT100DQV can drive several of
our pumps and other hydraulic
equipment.

HT100DQV is similar to HT150 DQV shown.

Skid Frame Chassis with Built-In Fuel

•

Tank and Single Point Lifting Bracket

Full Enclosure with Sound Proofing and

•

Lockable Doors

Automatic Engine Safety Shutdown

•

Variable Piston Hydraulic Pump

•

Efficient Hydraulic Oil Cooler

•

Spin-On Return Filter w/Indicator

•

Variable Speed Control

•

Residential Exhaust Muffler

•

A0611

167 Stock Street, Nesquehoning, PA 18240 Phone: [phone] Fax: [phone]

Website: www.hydra-tech.com E-Mail: [e-mail]

FEATURES

•

•

•

•

•

•

•

•

System Relief Valve

Pressure Control Switch

Liquid Filled Pressure Gauge

Fluid Level/ Temperature Gauge

Recessed Hose Connections

OPTIONS

Highway Trailer

Multiple Hydraulic Circuits

Other Flow and Pressure
Combinations

Model HT100DQV Overall Dimensions

40"

(102 cm)

Return Case Drain Pressure

6

0

"

102" (259 cm)

(

1

5

2

c

m

)

HT100DQV

Fuel Level

Hyd. Filter

Hyd. Pressure Adjust Hyd. Flow Adjust Hydraulics ON/OFF

Emergency Stop

Engine Monitor

SPECIFICATIONS

ENGINE:........................................ John Deere 4045T285 Diesel (Tier 3)

HORSEPOWER:............................................................. 99@ 2400 RPM

HYDRAULIC OUTPUT*:.................... Variable, Max. 53 GPM (201 LPM)

OPERATING PRESSURE*:....................... Maximum 2700 PSI (184 Bar)

HOSE PORT SIZE:.......................... (Pressure and Return)... 1-1/4" NPT

(Case Drain).. 1/2" NPT

HYDRAULIC OIL:...................... (Standard) SAE 20W (ISO 46) Type AW

also: Biodegradable oil (Consult Factory)

OIL FILTRATION:.................................................... 10 Micron (Standard)

OIL RESERVOIR CAPACITY:...................... 50 U.S. Gallons (189 Liters)

FUEL TANK CAPACITY:............................... 75 U.S. Gallons (284 Liters)

FUEL CONSUMPTION:............... Approx. 4.5 U.S. Gal/Hr (17 Liters/Hr)

NOISE LEVELS @ 2000 RPM:. 83dB @ 3 Ft. (1M), 68dB @ 23 Ft. (7M)

DIMENSIONS:........ H 60" (152 cm) x W 40" (102 cm) x L 102" (259 cm)

WEIGHT (Dry):........................................................... 3100 lbs. (1404 kg)

* For Flows and Pressures Other Than Standard, Consult Factory

When used to drive our pumps the flow and pressure may be set to optimize pump performance

Since we are constantly working to improve our products, specifications are subject to change without notice.
