Hustler Turf 114675-0311 C-1 User Manual

1500 Riding Greens
Parts Manual
•••••••
Excel Industries, Inc.
•••••
P.O. Box 7000
•••
Hesston, Kansas
67062-2097

Table of Contents

General Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1
Section 2
Front Roller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2
Reel Blade. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4
Bedknife . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-6
Rear Roller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-8
Gear Motor Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-10
Reel Cover—11 Blade Count Reels . . . . . . . . . . . . . . . . . . . . . . . . 2-11
Reel Cover—7 Blade Count Reels . . . . . . . . . . . . . . . . . . . . . . . . . 2-12
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . i-1
114675_0311 c-1
c-2 114675_0311

General Information

This Manual covers Hustler Riding Greens 5" Reel models 929729 (11-Blade) & 929745 (7-Blade).
Frequently Ordered Parts
PART NO. DESCRIPTION
042532078 TAPER ROLLER BEARING 050203130 OIL SEAL A70320020 ADJUSTING KNOB A99432090 ADJUSTING STUD A99480030 BEDKNIFE SCREW M6 X 12
SEE BEDKNIFE OPTIONS ON PAGE 2-7
Service Literature
PART NO. DESCRIPTION
113417 OPERATOR’S MANUAL 114445 GENERAL SERVICE MANUAL
Accessories Available From Your Dealer
PART NO. DESCRIPTION
114263 REAR ROLLER BRUSH KIT 114676 PIVOTING REAR ROLLER SCRAPER KIT 114634 GROOMER KIT
SEE FRONT ROLLER OPTIONS ON PAGE 2-3
Note: When ordering parts, yo u must use the part number as shown for each part, not the index number . Always give the model and serial number to your parts and service represen tative.
Note: Items sold in bulk such as seals and hoses are sold by the foot.
Using this manual
This manual is part of a service package for the Hustler mowers. Use of this manual in conjunction with other Hustler mower and component manuals will provide the information necessary to service and maintain Hustler mowers.
This Parts Manual provides a complete part s listing for th e unit. Use thi s manual when orde ring part s. Illustrations used were current at the time of printing, but subsequent production changes may cause your machine to vary slightly in detail. Excel Industries, Inc. reserves the right to redesign and change the machine as deemed necessary, without noti­fication. If a change has been made to your machine which is not reflecte d in this pa rts manual, see your Hustler dealer for current information and parts.
The Service Manual is a service guide for use by Service Technicians. It provides the necessary information neede d to perform normal maintenance requirements on these units.
The Operator's Manual provides fundamental ope ratio nal inform ation and oper ational safety that is needed when oper ­ating the mower.
The component manuals are furnished by the various manufacturers to be used for the troubleshooting and servicing of their products.
114675_0311 1-1
1-2 114675_0311

Section 2

Front Roller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2
Reel Blade. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4
Bedknife. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-6
Rear Roller. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-8
Gear Motor Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-10
Reel Cover—11 Blade Count Reels . . . . . . . . . . . . . . . . . . . . . . . . 2-11
Reel Cover—7 Blade Count Reels . . . . . . . . . . . . . . . . . . . . . . . . . 2-12
114675_0311 2-1

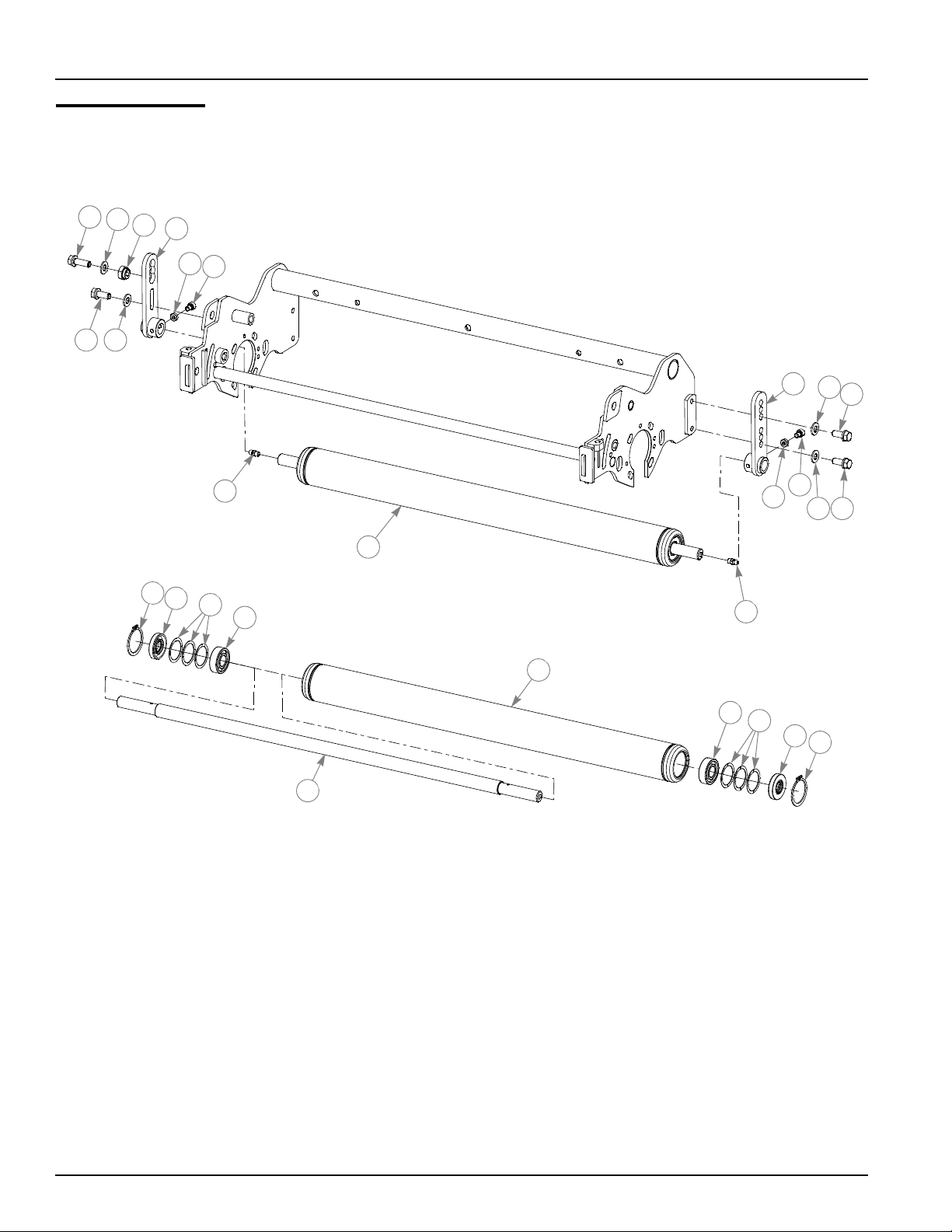

Front Roller

1
2
3
6
4
1
2
3
4
5
7
8
9
9
8
7
10
13
3
14
11
10
13
3
14
12
5
6
18
19
20
21
22
21
20
19
18
25
25
26
23 24
15 16 17
2-2 114675_0311
Front Roller
INDEX NO. PART NO. QTY. DESCRIPTION
1 A70320020 2 ADJUSTING KNOB 2 A99432090 2 ADJUSTING STUD 3 020700008 4 NUT 4 A99460230 2 NUT 5 027100010 2 M10 LOCK WASHER 6 A99240200 2 WASHER 7 A98510640 2 BUSHING 8 026100012 2 WASHER
9 A99432100 2 BOLT 10 A99431840 2 BOLT - BRACKET 11 A72160890 1 RS ROLLER BRACKET 12 A72160880 1 LS ROLLER BRACKET 13 A99210010 2 SPACER 14 010310830 2 BOLT M8X30, 8.8 15 755220 1 ROLLER ASSEMBLY (SMOOTH) 16 A72010320 1 ROLLER ASSEMBLY (GROOMING) 17 A72010420 1 ROLLER ASSEMBLY (GROOVED)
ROLLER ASSEMBLIES INCLUDE THE FOLLOWING: 18 A99480160 6 SCREW M5 X 15 19 A72120030 2 ROLLER CAP 20 A98530040 2 OIL SEAL 21 040136202 2 BEARING 6202LU 22 A72100110 1 ROLLER TUBE (SMOOTH) 23 A72110400 1 ROLLER TUBE (GROOMING) 24 A72110500 1 ROLLER TUBE (GROOVED) 25 060610000 2 GREASE FITTING M6 X .075 26 A72460170 1 SHAFT ROLLER
NOTES:
114675_0311 2-3

Reel Blade

1
3
5
6
4
14
21
23
24
22
7 8
10
9
10
6
7
11
8
5
12
13
15
16
17
18
20
19
2
2-4 114675_0311
Reel Blade
INDEX NO. PART NO. QTY. DESCRIPTION
1 A70151460 1 5"D 11-BLADE RH DRIVE REEL 2 A70151380 1 5"D 7-BLADE RH DRIVE REEL 3 A22360310 1 REEL COUPLER 4 036100028 1 SNAP RING 5 042532078 2 TAPER ROLLER BEARING 6 060609002 2 GREASE FITTING 7 060609006 2 GREASE FITTING 8 A98510120 2 BUSH
9 A22260971 1 RS BEARING HOUSING 10 050203130 2 OIL SEAL 11 A22260951 1 LS BEARING HOUSING 12 A99231780 1 COLLAR 13 A98220100 1 SPRING 14 A99230240 1 COLLAR 15 026109018 1 WASHER 16 027100012 1 LOCK WASHER 17 010131225 1 BOLT 18 015209029 4 SCREW 19 015300510 1 SCREW 20 A22330031 1 MOTOR BRACKET 21 A74101240 1 FRAME 22 A22330040 1 WEIGHT BRACKET 23 052400530 1 O-RING 24 015209030 4 SCREW
NOTES:
114675_0311 2-5

Bedknife

4
4
3
12
5
10
3
16
15
12
13
10
11
8
3
5
6
9
7
10
11
12
12
13
9
10
2
1
3
6
1
8
7
14
2-6 114675_0311
Bedknife
INDEX NO. PART NO. QTY. DESCRIPTION
1 A70320150 2 ADJUSTING NUT 2 010709061 2 BOLT 3 026100012 4 WASHER 4 A98221130 2 SPRING 5 A99231710 2 COLLAR 6 A70310120 2 ADJUSTER BOLT 7 060609002 2 GREASE FITTING 8 A99430330 2 BOLT
9 022409012 2 NUT 10 026200014 4 WASHER 11 A98221140 2 SPRING 12 A99231230 4 COLLAR 13 A99432080 2 BOLT 14 A70110430 1 BED BAR 15 A99480030 13 SCREW M6 X 12 16 SEE TABLE BELOW FOR BEDKNIFE OPTIONS
NOTES:
BEDKNIFE
DESCRIPTION
TOURNAMENT A70430230 (22", 2.5MM) A70430291 (22", 2.5MM) FAIRWAY/TEES A70430240 (22", 3.0MM) A70430301 (22", 3.0MM) FAIRWAY/TEES A70430250 (22", 3.5MM) A70430311 (22", 3.5MM) FAIRWAY/TEES A70430260 (22", 4.5MM) A70430280 (22", 4.5MM)
HIGH SPEED PREMIUM
BEDKNIFE TOOL STEEL
INSERTED LEADING EDGE
ALL STEEL BEDKNIFE
114675_0311 2-7

Rear Roller

3
7
10
6
7
2
15
16
14
14
9
9
6
5
2
5
11
12
12
1
25
4
2
8
13
13
11
2-8 114675_0311
Rear Roller
INDEX NO. PART NO. QTY. DESCRIPTION
1 011510825 1 BOLT 2 026100008 4 WASHER, M8 X 16 X 1.6 3 A72170060 1 CAM BOSS 4 A72160800 1 RS BRACKET 5 011510820 3 BOLT, M8 X 1.25 X 20 6 020300006 2 NUT 7 010709063 2 SCREW 8 A72160790 1 LS BRACKET 9 060609002 2 GREASE FITTING
10 A72010451 1 REAR ROLLER ASSEMBLY
REAR ROLLER ASSEMBLY INCLUDES THE FOLLOWING: 11 036100035 2 SNAP RING 12 050209128 2 OIL SEAL 13 A99240880 6 WAVEY WASHER 14 040136202 2 BEARING 6202LU 15 A72100200 1 REAR ROLLER TUBE 16 A72460391 1 SHAFT
NOTES:
114675_0311 2-9

Gear Motor Weight

5
1
3
2
6
4
INDEX NO. PART NO. QTY. DESCRIPTION
1 A62110400 1 WEIGHT 2 011511030 2 BOLT, M10 X 30 3 026100010 2 WASHER, M10 X 20 X 2 4 A22990230 1 GASKET 5 026100008 2 WASHER, M8 X 16 X 1.6 6 011510825 2 BOLT
NOTES:
2-10 114675_0311

Reel Cover—11 Blade Count Reels

4
1
7
7
4
3 4
5
6
2
4
INDEX NO. PART NO. QTY. DESCRIPTION
1 A74251120 1 COVER 2 A74350410 1 BAFFLE PLATE 3 022300008 3 M8 U-NUT 4 026100008 8 WASHER, M8 X 16 X 1.6 5 A98221120 3 SPRING 6 010310845 2 BOLT 7 021500008 2 NUT
NOTES:
114675_0311 2-11

Reel Cover—7 Blade Count Reels

12
2
3
11
4
1
2
3
6
2
4
10
9
8
5
7
1
INDEX NO. PART NO. QTY. DESCRIPTION
1 011510845 2 BOLT, M8 X 45 2 026100008 5 WASHER, M8 X 16 X 1.6 3 021300006 4 NUT 4 026100006 4 WASHER, M6 X 12 X 1.6 5 022300008 3 M8 U-NUT 6 A98221120 3 SPRING 7 A74250950 1 FRONT CUTTER COVER 8 A74350350 1 COVER PLATE
9 A74260970 1 DISCHARGE COVER 10 010110645 2 BOLT 11 A74350380 2 BRACKET 12 011150612 2 BOLT
NOTES:
2-12 114675_0311
Numerical Index
Part Page No. No.

Index

010110645 2-12 010131225 2-5 010310830 2-3 010310845 2-11 010709061 2-7 010709063 2-9 011150612 2-12 011510820 2-9 011510825 2-9 011510845 2-12 011511030 2-10 015209029 2-5 015209030 2-5 015300510 2-5 020300006 2-9 020700008 2-3 021300006 2-12 021500008 2-11 022300008 2-11 022409012 2-7 026100006 2-12 026100008 2-9 026100010 2-10 026100012 2-3 026109018 2-5 026200014 2-7 027100010 2-3 027100012 2-5 036100028 2-5 036100035 2-9 040136202 2-3 042532078 1-1 050203130 1-1 050209128 2-9 052400530 2-5 060609002 2-5 060609006 2-5
, 2-10
, 2-12
, 2-10, 2-11, 2-12 , 2-7
, 2-9 , 2-5 , 2-5
, 2-7, 2-9
Part Page No. No.
060610000 2-3 113417 1-1 114263 1-1 114445 1-1 114634 1-1 114676 1-1 755220 2-3 929729 1-1 929745 1-1 A22260951 2-5 A22260971 2-5 A22330031 2-5 A22330040 2-5 A22360310 2-5 A22990230 2-10 A62110400 2-10 A70110430 2-7 A70151380 2-5 A70151460 2-5 A70310120 2-7 A70320020 1-1 A70320150 2-7 A70430230 2-7 A70430240 2-7 A70430250 2-7 A70430260 2-7 A70430280 2-7 A70430291 2-7 A70430301 2-7 A70430311 2-7 A72010320 2-3 A72010420 2-3 A72010451 2-9 A72100110 2-3 A72100200 2-9 A72110400 2-3 A72110500 2-3
, 2-3
Part Page No. No.
A72120030 2-3 A72160790 2-9 A72160800 2-9 A72160880 2-3 A72160890 2-3 A72170060 2-9 A72460170 2-3 A72460391 2-9 A74101240 2-5 A74250950 2-12 A74251120 2-11 A74260970 2-12 A74350350 2-12 A74350380 2-12 A74350410 2-11 A98220100 2-5 A98221120 2-11 A98221130 2-7 A98221140 2-7 A98510120 2-5 A98510640 2-3 A98530040 2-3 A99210010 2-3 A99230240 2-5 A99231230 2-7 A99231710 2-7 A99231780 2-5 A99240200 2-3 A99240880 2-9 A99430330 2-7 A99431840 2-3 A99432080 2-7 A99432090 1-1 A99432100 2-3 A99460230 2-3 A99480030 1-1 A99480160 2-3
, 2-3
, 2-7
, 2-12
114675_0311 i-1
