hussman Q1-DC User Manual

Download
Installation
& Operation
REV. 0508
/CHINO
Q1-DC
DELI SERVICE CASE
Q1-DC
DELI SERVICE CASE
P/N Q1-DC-0508
INSTALLATION & OPERATION GUIDE

General Instructions

This equipment is to be installed to comply with the applicable NEC, Federal, State , and Local Plumbing and Construction Code h a ving j urisdict i o n .
Q1-DC-0508
Table of Contents
General Instructions.....................................................2
Cut and Plan Views ......................................................3
Installation .....................................................................3
Location ..................................................................................... 3
Uncrating the Stand ................................................................... 3
Tighten Glass Screws ............................................................. 3
Exterior Loading ......................................................................... 3
Setting and Joining .................................................................... 3
Leveling .....................................................................................3
Q1-DC Refrigerated Wedges and Standard Cases ................... 4
Plumbing .......................................................................5
Waste Outlet and P-TRAP ......................................................... 5
Installing Condensate Drain....................................................... 5
Refrigeration .................................................................5
Refrigerant Type ........................................................................ 5
Piping ......................................................................................... 5
Refrigeration Lines ..................................................................... 5
Control Settings ......................................................................... 5
Access to TEV Valves and Drain Lines ..................................... 5
Electronic Expansion Valve (Optional) ....................................... 6
Expansion Valve Adjustment ..................................................... 6
Measuring the Operating Superheat.......................................... 6
Thermostat Location .................................................................. 6
Electrical........................................................................6
Wiring Color Code ..................................................................... 6
Electrical Circuit Identication .................................................... 6
Field Wiring and Serial Plate Amperage .................................... 6
Ballast Location .........................................................................6
Wiring and Serial Plate Amperage ............................................. 7
ASHRAE Color Code ................................................................. 7
Finishing Touches ........................................................7
Bumper Installation Tips ............................................................ 7
Installing Splashguard ............................................................... 7
User Information ........................................................... 7
Stocking ..................................................................................... 7
Important Steps .........................................................................8
Case Cleaning ........................................................................... 8
Cleaning Glass and Mirrors ....................................................... 8
Non-Glare Glass ........................................................................ 9
Plexiglass and Acrylic Care ....................................................... 9
Cleaning ..................................................................................... 9
Antistatic Coatings ..................................................................... 9
Maintenance ................................................................ 10
Replacing Fluorescent Lamps ................................................. 10
Evaporator Fans ...................................................................... 10
Coils ......................................................................................... 10
Tips and Troubleshooting ........................................................ 10
Glass Replacement and Adjustment Instructions .................... 10
Electrical Wiring Diagrams ........................................ 11
Wiring Diagrams ......................................................... 12
Appendices .................................................................32
Appendix A. - Temperature Guidelines - Refrigerated ............. 32
Appendix B. - Application Recommendations - Refrigerated ... 32
Appendix C. - Field Recommendations - Refrigerated ............ 32
Appendix D. - Recommendations to User - Refrigerated ........ 33
This Booklet Contains Information on:
Q1-DC refrigerated, service deli merchandiser.
Shipping Damage
All equipment should be thoroughly examined for shipping damage before and during unloading.
This equipment has been carefully inspected at our factory and the carrier has assumed responsibility for safe arrival. If damaged, either apparent or concealed, claim must be made to the carrier.
Apparent Loss or Damage
If there is an obvious loss or damage, it must be noted on the freight bill or express receipt and signed by the carrier’s agent; otherwise, carrier may refuse claim. The carrier will supply necessary claim forms.
Concealed Loss or Damage
When loss or damage is not apparent until after equipment is uncrated, a claim for concealed damage is made. Make
request in writing to carrier for inspection within 15 days, and retain all packaging. The carrier will supply inspection report and required claim forms.
Shortages
Check your shipment for any possible shortages of material. If a shortage should exist and is found to be the responsibility of Hussmann Chino, notify Hussmann Chino. If such a shortage involves the carrier, notify the carrier immediately, and request an inspection. Hussmann Chino will acknowledge shortages within ten days from receipt of equipment.
Hussmann Chino Product Control
The serial number and shipping date of all equipment
has been recorded in Hussmann’s les for warranty and
replacement part purposes. All correspondence pertaining to warranty or parts ordering must include the serial number of each piece of equipment involved, in order to provide the customer with the correct parts.
Keep this booklet with the case at all times for future reference.
/CHINO
A publication of HUSSMANN® Chino 13770 Ramona Avenue • Chino, California 91710 (909) 628-8942 FAX (909) 590-4910 (800) 395-9229
2
Rev. 0508
45 13/16"
45"
34 1/8"
11 7/8"
35"
11 5/16"
17 1/8"
8"
9 3/4"
24 3/8"
15 7/8"
27 3/4"
6 7/8"
11"
29 3/8"
4 3/8"
Q1-DC
Single Deck Deli - Curved Glass
Scale = 1/2"
44 7/
1
6"
"
5
4
21
1/8"
39 1/
8"
55 1/2
"
4
5
/8
"
45° I/S
4'
STRAIGHT
45° O/S
48"
DRAIN
DRAIN
DRAIN
REF. DROP
REF. DROP
REF
.
DROP
14 "
6 1/8"
Drain 5" from Center LIne
/
1
7
1
8"
6 1/4"
16 1/2"
13
1/8"
1
2
1
/8
"
4 3/8"
9 1/2"
13 3
/8"
28 "
Plan View
Straight plan view with
Inside and Outside Wedges
Scale = 1/2"
C
L

Location

The refrigerated merchandisers have been designed for use only in air conditioned stores where temperature and humidity are maintained at or below 75°F and 55% relative humidity. DO NOT allow air conditioning, electric fans, ovens, open doors or windows (etc.) to create air currents around the merchandiser, as this will impair its correct operation.
Product temperature should always be maintained at a constant and proper temperature. This means that from the time the product is received, through storage, preparation and display, the temperature of the product must be controlled to maximize life of the product.

Uncrating the Stand

Place the xture as close to its permanent position as
possible. Keep in place, attached case until ready to set/bolt to adjoining case.

Tighten Glass Screws

Tighten screws along clamshell located on the underside of glass before placing unit into operation.

Exterior Loading

These models have not been structurally designed to support excessive external loading. Do not walk on their tops; This could cause serious personal injury and damage
to the xture.

Setting and Joining

The sectional construction of these models enable them to be joined in line to give the effect of one continuous display.
An Alignment pin kit is supplied with every case and must be used in alignment.
Leveling IMPORTANT! IT IS IMPERATIVE THAT CASES BE LEVELED FROM FRONT TO BACK AND SIDE TO SIDE PRIOR TO JOINING. A LEVEL CASE IS NECESSARY TO INSURE PROPER OPERATION, WATER DRAINAGE, GLASS ALIGNMENT, AND OPERATION OF THE HINGES SUPPORTING THE GLASS. LEVELING THE CASE CORRECTLY WILL SOLVE ALL HINGE OPERATION AND GLASS PROBLEMS.

Cut and Plan Views

Installation

NOTE: A. To avoid removing concrete ooring, begin lineup
leveling from the highest point of the store oor.
B. When wedges are involved in a lineup, set them rst.
All cases were leveled and joined prior to shipment to
insure the closest possible t when cases are joined in the eld. When joining, use a carpenters level and adjust
legs accordingly. The legs on the Q1-DC are adjustable and do not require shims. Simply screw the leg up or down to adjust height.
1. Using case blueprints, measure off and mark on the
oor the exact dimensions of where the cases will
sit. Snap chalk line for front and back positions of base rail or pedestal. Mark the location of each joint front and back. Find the highest point throughout the lineup. FLOORS ARE NORMALLY NOT LEVEL!
Determine the highest point of the oor; cases will
be set off this point. All cases in the entire lineup must be brought up to the highest level of the case sitting at the highest point in the lineup. This may be done a few different ways.
a) Walk the oor looking for any mounds or dips.
b) Use a string level. c) Use a transit.
If a wedge is used in the middle of a lineup, the
wedge must be set on the highest point on the oor
FIRST, with the rest if the lineup being leveled from it. The Q1-DC case has adjustable legs to allow for leveling.
2. Set rst case over the highest part of the oor and
3
adjust legs so that case is level. Remove side and back leg braces after case is set and joined.
3. Set second case within one foot (1’) of the rst case,
and remove leg skids. Keep the supports along the length of the case and far end of case. Level case to
the rst using the instructions in step one.
4. Apply masking tape 1/8” in from end of case on inside and outside rear mullion and body work on both cases to be joined.
It is the contractor’s responsibility to install case(s) according to local construction and
health codes.
Do not use bolts to pull cases together.
FRONT BODY PANEL REMOVED
FOR ACCESS TO FRONT CASE BOLTING
FRONT CASE BOLT (UPPER 3/8" HOLE)
LINE-UP PLATE
(INSERT INTO ALUMINUM PROFILE)
LINE-UP PLATE
(INSERT INTO VERTICAL SLOT)
LINE-UP PIN
(INSERT INTO OUTER 1/2" HOLE)
CASE BOLTING (MULTIPLE 3/8" HOLES) ACCESS BEHIND AIR DISCHARGE WALL
CASE BOLTING
USE 1/4"- 20 X 1 1/2" SCREW AT TOP
CASE BOLTING (UPPER EXTERIOR FRAME)
USE 3/8" X 5 1/2" BOLTS OR 3/8" ALLTHREAD
Q SERIES CASE JOINING GUIDE
LINE-UP TAB
(AT BACK OF BUMPER)
Installation (Cont'd)
Q1-DC-0508
5. Apply liberal bead of case joint sealant (butyl) to rst
case. Sealant area is shown using a dotted line in illustration in Step 8. Apply heavy amount to cover entire shaded area.
DO NOT USE PERMAGUM!
6. Slide second case up to rst case snugly. Then level second case to the rst case so glass front, bumper and top are ush.
7. To compress butyl at joint, use two Jurgenson wood clamps. Make sure case is level from front to
back and side to side on inside bulkheads at joint.
8. Attach sections together via the bolts pictured in the illustration below.
9. Apply bead of butyl to top of bulkheads
and slip on stainless steel bulkhead cap. Also apply
silicone to seam between overhead light tubes.
10. Use nger to smooth silicone as thin as possible at
masking tape on inside and outside of rear mullion (apply additional silicone if necessary). Remove tape applied on line #4.
11. Remove front, back and end shipping braces.

Q1-DC Refrigerated Wedges and Standard Cases

Line-up taper pins and line-up plates with holes on adjoining case. Bolting is located at the rear of the case, behind the air discharge wall, and behind the front body panel. The cases are bolted together in front by means of a bracket located behind the front panel. Remove the front panel by unscrewing these bottom screws.
4
Rev. 0508

Plumbing

Waste Outlet and P-TRAP

The waste outlet is located off the center of the case on one side allowing drip piping to be run lengthwise under
the xture.
A 1-1/2” P-TRAP and threaded adapter are supplied with
each xture. The P-TRAP must be installed to prevent air leakage and insect entrance into the xture.
NOTE: PVC-DWV solvent cement is recommended. Follow the
Hussmann’s instructions.

Installing Condensate Drain

Poorly or improperly installed condensate drains can seriously interfere with the operation of this refrigerator, and result in costly maintenance and product losses. Please follow the recommendations listed below when installing condensate drains to insure a proper installation:
1. Never use pipe for condensate drains smaller than the nominal diameter of the pipe or P-TRAP supplied with the case.
2. When connecting condensate drains, the P-TRAP must be used as part of the condensate drain to prevent air leakage or insect entrance. Store
plumbing system oor drains should be at least 14”
off the center of the case to allow use of the P-TRAP pipe section. Never use two water seals in series in any one line. Double P-TRAPS in series will cause a lock and prevent draining.
3. Always provide as much down hill slope (“fall”) as possible; 1/8” per foot is the preferred minimum. PVC pipe, when used, must be supported to maintain the 1/8” pitch and to prevent warping.
4. Avoid long runs of condensate drains. Long runs make it impossible to provide the “fall” necessary for good drainage.
5. Provide a suitable air break between the ood rim of the oor drain and outlet of condensate drain. 1” is
ideal.
6. Prevent condensate drains from freezing: a. Do not install condensate drains in contact with
non-insulated suction lines. Suction lines should be insulated with a nonabsorbent insulation
material such as Armstrong’s Armaex.
b. Where condensate drains are located in dead
air spaces (between refrigerators or between a refrigerator and a wall), provide means to prevent freezing. The water seal should be insulated to prevent condensation.

Refrigeration

Refrigerant Type

The standard refrigerant will be R-22 unless otherwise
specied on the customer order. Check the serial plate on
the case for information.

Piping

The refrigerant line outlets are located under the case.
Locate rst the electrical box, the outlets are then on the
same side of the case, but at the opposite end. Insulate suction lines to prevent condensation drippage.

Refrigeration Lines

Liquid Suction
3/8” O.D. 5/8” O.D.
NOTE: The standard coil is piped at 1/2” (suction); however,
the store tie-in may vary depending on the number of coils and the draw the case has. Depending on the case setup, the connecting point in the store may be 5/8”, 7/8”, or 11/8”. Refer to the particular case you are hooking up.
Refrigerant lines should be sized as shown on the refrigeration legend furnished by the store. Install P-TRAPS (oil traps) at the base of all suction line vertical risers.
Pressure drop can rob the system of capacity. To keep the pressure drop to a minimum, keep refrigerant line run as short as possible, using the minimum number of elbows. Where elbows are required, use long radius elbows only.

Control Settings

See Q1-DC technical data sheet for the appropriate settings for your merchandiser. Maintain these parameters to achieve near constant product temperatures. Product
temperature should rst be measured in the morning, after
having been refrigerated overnight. For all multiplexing, defrost should be time terminated. Defrost length and frequency should be as directed in the Q1-DC technical data sheet. The number of defrosts per day should never change. The duration of the defrost cycle may be adjusted to meet conditions present at your location.
Access to TEV Valves and Drain Lines MECHANICAL - Remove product from case. Remove
pans. TX valve (mechanical only) and drain are located under the pans within the case.
ELECTRONIC - The electronic expansion valve master and slave cylinder(s) are located within the electrical access panel(s) in the rear of case. Rear panels lift up and out.
NOTE: Duplex receptacles must be detached before removing
rear panels.
5
After case has been brought to running temperature
verify screws along glass clamp aluminum
extrusion are tight.
BEFORE SERVICING
ALWAYS DISCONNECT ELECTRICAL
POWER AT THE MAIN DISCONNECT
WHEN SERVICING OR REPLACING ANY
ELECTRICAL COMPONENT.
This includes (but not limited to) Fans, Heaters
Thermostats, and Lights.
Refrigeration (Cont'd)
Q1-DC-0508

Electronic Expansion Valve (Optional)

A wide variety of electronic expansion valves and case controllers can be utilized. Please refer to EEV and controller Hussmann’s information sheet. Sensors for electronic expansion valves will be installed on the coil inlet, coil outlet, and in the discharge air. (Some supermarkets require a 4th sensor in the return air). Case controllers will be located in the electrical raceway or under the case.

Expansion Valve Adjustment

Expansion valves must be adjusted to fully feed the evaporator. Before attempting any adjustments, make sure the evaporator is either clear or very lightly covered
with frost, and that the xture is within 10°F of its expected
operating temperature.

Measuring the Operating Superheat

1. Determine the suction pressure with an accurate pressure gauge at the evaporator outlet.
2. From a refrigerant pressure temperature chart, determine the saturation temperature at the observed suction pressure.
3. Measure the temperature of the suction gas at the thermostatic remote bulb location.
4. Subtract the saturation temperature obtained in step No. 2 from the temperature measured in step No. 3.
5. The difference is superheat.
6. Set the superheat for 5°F - 7°F.

Thermostat Location

Thermostats are located in the electrical section; behind the rear panel, on the right-hand side of the case (facing the back of the case).

Wiring Color Code

CASE MUST BE GROUNDED
NOTE: Refer to label afxed to case to determine the actual
conguration as checked in the “TYPE INSTALLED”
boxes.
Electrical Circuit Identication
Standard lighting for all models will be full length uorescent
lamps located within the case at the top. The switch controlling the lights, the plug provided for digital scale, and the thermometer are located at the rear of the case mullion.

Electrical

The receptacle that is provided on the exterior back of these
models is intended for computerized scales with a ve amp
maximum load, not for large motors or other high wattage appliances. It should be wired to a dedicated circuit.

Field Wiring and Serial Plate Amperage

Field Wiring must be sized for component amperes printed on the serial plate. Actual ampere draw may be less than
specied. Field wiring from the refrigeration control panel to
the merchandisers is required for refrigeration thermostats. Case amperes are listed on the wiring diagram, but always check the serial plate.

Ballast Location

Ballasts are located within the access panel that runs the length of the rear of the case.
6
Rev. 0508
Electrical (Cont'd)

Wiring and Serial Plate Amperage

Field Wiring must be sized for component amperes stamped on the serial plate. Actual ampere draw may be less than
specied. Field wiring from the refrigeration control panel to
the merchandisers is required for refrigeration thermostats. Case amperes are listed on the wiring diagram, but always check the serial plate.

ASHRAE Color Code

NOTE: All other manufacturers have no standard sensor codes.

Finishing Touches

Bumper Installation Tips

1. Start to attach the bumper at one end of the lineup, preferably on a straight case.
2. Push the end of the bumper into the bumper
channel rmly. This may be difcult if bumper is cold.
3. Bend the bumper backwards to open and guide it forward onto the bumper channel.
4. An inside bumper miter must be cut on wedges.
5. Loose ends on miters must be anchored with screws on the bottom edge.
6. The top and bottom edges of the bumper must be
rmly seated into the retainer by applying with a
rubber mallet (not by hand).
7. The bumper should be struck by the mallet at a slight angle that forces the bumper back into itself to prevent stretching. The installation can be made
easier by applying a parafn block to the retainer
grooves.
Case Control Systems SENSOR COLOR Manufacturer ® > EIL CPC Location Coil Inlet
Coil Outlet
Discharge Air
Return Air
Defrost Term.
Liquid Line
Color Blue Blue Part# 225-01-1755 225-01-3255 Color Red Red
Part# 225-01-1757 225-01-3123 Color Green Green
Part# 225-01-1756 225-01-3260 Color Purple Green
Part# 225-01-1758 225-01-3260 Color White Orange Part# 225-01-0650 225-01-3254 Color White Blue Part# 225-01-0650 225-01-3255

Installing Splashguard

After merchandisers have been leveled and joined, and all drip piping, electrical and refrigeration work has been completed, install the splashguards. Splashguards may
be sealed to the oor using a vinyl cove base trim. The size of trim needed will depend on how much the oor is
out of level.
NOTE: The splashguard must be removable to allow access to
components behind it.
1. Remove all dirt, wax, debris, etc. from the area of the splashguard to ensure a secure adhesion.
2. Apply a good contact cement to the trim, allowing a proper dry time.
3. Install trim to the splashguard so that it is ush with the oor.

User Information

Stocking

Improper temperature and lighting will cause serious product loss. Discoloration, dehydration and spoilage can be controlled with proper use of the equipment and handling of product. Product temperature should always be maintained at a constant and proper temperature. This means that from the time the product is received, through storage, preparation and display, the temperature of the product must be controlled to maximize life of the product. Hussmann cases were not designed to “heat up” or “cool down” product - but rather to maintain an item’s proper temperature for maximum shelf life. To achieve the protection required always:
1. Minimize processing time to avoid damaging temperature rise to the product. Product should be at proper temperature.
2. Keep the air in and around the case area free of foreign gasses and fumes or food will rapidly deteriorate.
3. Maintain the display merchandisers temperature controls as outlined in the refrigerator section of this manual.
4. Do not place any product into these refrigerators until all controls have been adjusted and they are operating at the proper temperature. Allow merchandiser to operate a minimum of six (6) hours before stocking with any product.
5. When stocking, never allow the product to extend beyond the recommended load limit. Air discharge
and return air ow must be unobstructed at all times
to provide proper refrigeration.
6. There are vents located at the base of the front of the glass, just above the front rail. These vents
supply a continuous, gentle ow of air across the
front glass which inhibits condensation. Do not place any signs or other restrictive objects on the front of the refrigerator that will block these vents.
7
CLEANING PRECAUTIONS
When cleaning:
• Do not use high pressure water hoses
• Do not introduce water faster than waste outlet can drain
• NEVER USE A CLEANING OR SANITIZING SOLUTION THAT HAS AN OIL BASE (these will dissolve the butyl sealants) or an AMMONIA BASE (this will corrode the copper componets of the case)
TO PRESERVE THE ATTRACTIVE FINISH:
• DO USE WATER AND A MILD DETERGENT FOR THE EXTERIOR ONLY
• DO NOT USE ABRASIVES OR STEEL WOOL PADS AS THESE WILL MAR THE FINISH
User Information (Cont'd)
Q1-DC-0508
7. Keep the service doors closed (when applicable). Refrigeration performance will be seriously affected if left open for a prolonged period of time.
8. Avoid the use of supplemental ood or spot lighting.
Display light intensity has been designed for maximum visibility and product life at the factory.
The use of higher output uorescent lamps (H.O.
and V.H.O.), will shorten the shelf life of the product.
9. In the Deli, Meat and Fish cases, completely cover the product each night with a clean damp cloth or butcher paper (never use plastic, as it does not allow for proper circulation). Make sure the cloth or paper is in direct contact with the product.
10. Turn and rotate the meat fairly often. The blood which gives the pink color works its way downward with time.
11. Cold coils remove heat and moisture from the case and deposit this as frost onto the coil. Thus, a defrost is required. Our humidity system induces moisture into the case and helps slow down the dehydration process. The only other moisture within the case is that in the product itself. A single level of meat will dry out faster than a fully loaded case of 3-4 levels of meat.

Important Steps

1. Do not set temperature too cold, as this causes product dehydration. Product Temperature: 33°-35°F! Set thermostat to cut in at 28°F discharge air. Meat holding box: 32°F. Meat prep room: 55°F. Meat bloom box: 36°F. Process the meat to enter case at 40°F or below. Product deterioration is very rapid above 40°F.
2. Temperature control should be by means of a T-STAT and Suction Stop Solenoid at each case. Do not use EPR valves, Liquid line solenoids or electronic control devices of any kind, as these allow temperature swings causing dehydration and excessive energy consumption.
3. Product should be worked and rotated on a regular basis, not to exceed a 4 hour period.
4. At night, turn off case lights and cover the product with a damp (not wet) cloth similar to cheese cloth (etc.). This should be washed out in the morning and kept in a walk-in box during the day - so that it is cool and moist when covering the product.
5. Discharge air temperature should be approximately 26°F, with between 150-200 FPM air velocity. Do not display product directly within the air discharge.
6. Clean humidity system a minimum of every 90 days for proper system operation.

Case Cleaning

Long life and satisfactory performance of any equipment are dependent upon the care given to it. To insure long life, proper sanitation and minimum maintenance costs, the refrigerator should be thoroughly cleaned frequently. SHUT OFF FAN DURING CLEANING PROCESS. It can be unplugged within the case, or shut off entire case at the source. The interior bottom may be cleaned with any domestic soap or detergent based cleaners. Sanitizing solutions will not harm the interior bottom, however, these solutions should always be used according to the Hussmann’s directions. It is essential to establish and regulate cleaning procedures. This will minimize bacteria causing discoloration which leads to degraded product
appearance and signicantly shortening product shelf
life.
Soap and hot water are not enough to kill this bacteria. A sanitizing solution must be included with each cleaning process to eliminate this bacteria.
1. Scrub thoroughly, cleaning all surfaces, with soap and hot water.
2. Rinse with hot water, but do not ood.
3. Apply the sanitizing solution according to Hussmann’s directions.
4. Rinse thoroughly.
5. Dry completely before resuming operation.

Cleaning Glass and Mirrors

Only use a soft cloth and mild glass cleaner for cleaning any glass or mirrored components. Be sure to rinse and/or dry completely.
Never use hot water on cold glass surfaces! It may shatter and cause serious injury! Allow glass surfaces
to warm rst.
8
Rev. 0508
User Information (Cont'd)

Non-Glare Glass

The high optical clarity of this glass is possible due to special coatings on the glass surface itself. To preserve this coating and the optical clarity, keep the glass clean.
Water is the only solution recommended for use in cleaning non-glare glass. The damage to the glass from improper, caustic solutions is irreparable.
In addition to cleaning the glass with the recommended product, there are precautions that should be taken when working and cleaning the inside of the case.
• When cleaning the inside of the cases, we recommend that the glass be fully opened and covered to prevent solutions from splashing onto the glass and ruining the coating on the inside.

Plexiglass and Acrylic Care

Improper cleaning not only accelerates the cleaning cycle but also degrades the quality of this surface. Normal daily
bufng motions can generated static cling attracting dust
to the surface. Incorrect cleaning agents or cleaning cloths can cause micro scratching of the surface, causing the plastic to haze over time.

Cleaning

Hussmann recommends using a clean damp chamois, or a paper towel marked as “dust and abrasive free” with 210® Plastic Cleaner and Polish available by calling Sumner Labs at 1-800-542-8656. Hard, rough cloths or paper towels will scratch the acrylic and should not be used.

Antistatic Coatings

The 210® has proven to be very effective in not only cleaning and polishing the Plexiglass surface, but also providing antistatic and anti-fog capabilities. This product also seals pores and provides a protective coating.
9

Maintenance

FOR PROMPT
SERVICEHave case Model and
Serial Numberready!
This information is located on
thenameplate of the unit.
BEFORE SERVICING
ALWAYS DISCONNECT ELECTRICAL
POWER AT THE MAIN DISCONNECT
WHEN SERVICING OR REPLACING ANY
ELECTRICAL COMPONENT.
This includes (but not limited to) Fans, Heaters
Thermostats, and Lights.
ENCAPSULITE
SHATTERPROOF COATING - SA 10645
Complies with FDA USDA
& OSHA Regulations
for replacement call:
1-800-395-9229
Turn switch off then on after replacing bulb
NSF
U
R
R
CLEANING PRECAUTIONS
When cleaning:
• Do not use high pressure water hoses
• Do not introduce water faster than waste outlet can drain
• NEVER USE A CLEANING OR SANITIZING SOLUTION THAT HAS AN OIL BASE (these will dissolve the butyl sealants) or an AMMONIA BASE (this will corrode the copper componets of the case)
TO PRESERVE THE ATTRACTIVE FINISH:
• DO USE WATER AND A MILD DETERGENT FOR THE EXTERIOR ONLY
• DO NOT USE ABRASIVES OR STEEL WOOL PADS AS THESE WILL MAR THE FINISH

Evaporator Fans

The evaporator fans are located at the center front of these merchandisers directly beneath the display pans. Should
fans or blades need servicing, always replace fan blades with the raised embossed side of the blade TOWARD THE MOTOR.

Coils

The copper coils used in Hussmann merchandisers may
be repaired in the eld. Materials are available from local
refrigeration wholesalers. Hussmann recommends using #15 Sil-Fos for repairs.
Tips and Troubleshooting Before calling for service, check the following:
1. Check electrical power supply to the equipment for
2. Check xture loading. Overstocking case will affect
3. If frost is collecting on xture and/or product, check
Q1-DC-0508
connection.
its proper operation.
that Humidity Control is working properly, and that no outside doors or windows are open - allowing moisture to enter store.

Replacing Fluorescent Lamps

Fluorescent lamps are furnished with a shatterproof protective coating. The same type of lamp with protective coating must be used if replaced.

Glass Replacement and Adjustment Instructions

In order to replace or adjust the glass, the glass must be placed in the raised position. The underside of the clamp is exposed, revealing the tightening screws. By turning these screws counterclockwise 1/4 turn each, the glass will be loosened for either removal or adjustment.
Note: Do not overtighten the screws since damage may occur.
10
Rev. 0508

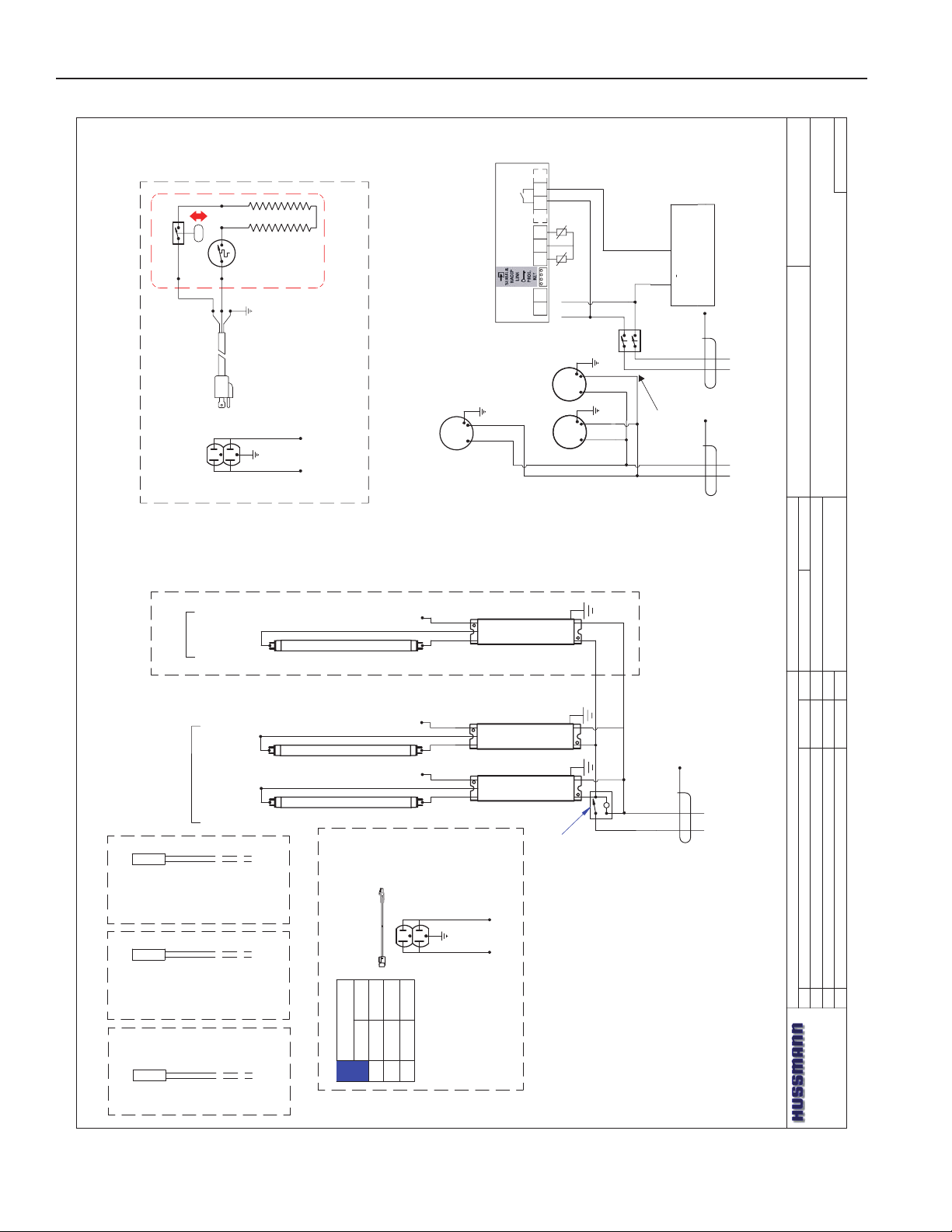

Electrical Wiring Diagrams

Q1-DC Q1-DC-4R 4’ W1750001
Deli-Curve Glass Q1-DC-6R 6’ W1750002
RJ-45,Ledge Lights Q1-DC-8R 8’ W1750003
12’ W1750005
Q1-DC Q1-DC-4R 4’ W1750006
Q1-DC-5R 5’ W1750026
Deli-Curve Glass Q1-DC-6R 6’ W1750007
Standard Case Q1-DC-8R 8’ W1750008
Q1-DC-9R 9’ W1750009
Q1-DC-10R 10’ W1750009
Q1-DC-12R 12’ W1750010
Q1-DC-S Q1-DC-3S 3’ W1750034-01
Q1-DC-4S 4’ W1750034-02
Q1-DC-5S 5’ W1750034-03
Q1-DC-6S 6’ W1750034-04
Q1-DC-7S 7’ W1750034-05
Q1-DC-8S 8’ W1750034-06
Q1-DC-9S 9’ W1750034-07
Q1-DC-10S 10’ W1750034-08
Q1-DC-11S 11’ W1750034-09
Q1-DC-12S 12’ W1750034-10
11
Q1-DC-0508
DATE:
PROJECT TITLE:
DWG #:DRAWN BY:
PRODUCTION ORDER #:
DRAWING TITLE:
DATE:
REVISIONS:
:YB DEKCE
H C:NOITPIRCSED :#
BY:
FILE LOCATION:
D.QUAN
---
PAGE OF
HUSSMANN CORPORATION
13770 RAMONA AVENUE
CHINO, CA.91710
(909) 590-4910 LIC.#: 644406
1
2
3
1 1
12/01/05
F:\WIRESCHEMATICS\NEW-W IRING
Q1 DELI
W1750001
Q1-DC-4R
REVISED BALLAST TO LH-2 (ECN=10665) 09/21/06 D.Q.
~115 VAC - 1Ø - 50/60 Hz.
L
LIGHT SWITCH
TIPPETTE
125-01-0311
CANOPY LIGHT
T-STAT
SUCTION
SOLENOID
AIR SWEEP
FANS
COMAIR™
MX2B1-E1
(1)125-01-2012
15 AMP FUSE
125-01-3282
FUSE HOLDER
125-01-3283
SOLENOID
225-01-3206
THERMOSTAT
225-01-0707
L1
L2
L3
N
G
CIRCUIT #1
F28T5-48"
125-03-1132
F28T5-48"
125-03-1132
F28T5-48"
125-03-1132
CAP OFF
WIRE
M
EVAP
FAN MOTOR
(1)0392457
M
LEDGE LIGHT
(OPTIONAL)
BALLAST 125-01-3267
FULHAM LH4-120-L
BALLAST 125-01-3265
FULHAM LH2-120-L
OPTIO
AL
SENSOR
SENSOR
CPC
225-01-3260
CIRCUIT #1
NOTE:
CASE MUST
BE GROUNDED
#.#
#.#
#.#
3.1
#.#
#.#
L1
L2
L3
115 V
LOADING

Wiring Diagrams

12
Rev. 0508
DATE:
PROJECT TITLE:
DWG #:DRAWN BY:
PRODUCTION ORDER #:
DRAWING TITLE:
DATE:
REVISIONS:
:YB DEKCE
H C:NOITPIRCSED :#
BY:
FILE LOCATION:
D.QUAN
---
PAGE OF
HUSSMANN CORPORATION
13770 RAMONA AVENUE
CHINO, CA.91710
(909) 590-4910 LIC.#: 644406
1
2
3
1 1
03/29/06
ENG\WIRESCHEMATICS\NEW-W IRING
Q1 DELI
W1750002
Q1-DC-6R
~115 VAC - 1Ø - 50/60 Hz.
L
LIGHT SWITCH
TIPPETTE
125-01-0311
CANOPY LIGHT
T-STAT
SUCTION
SOLENOID
AIR SWEEP
FANS
COMAIR™
MX2B1-E1
(2)125-01-2012
15 AMP FUSE
125-01-3282
FUSE HOLDER
125-01-3283
SOLENOID
225-01-3206
THERMOSTAT
225-01-0707
L1
L2
L3
N
G
CIRCUIT #1
M
M
EVAP
FAN MOTOR
(2)0392457
M M
LEDGE LIGHT
(OPTIONAL)
BALLAST 125-01-3267
FULHAM LH4-120-L
BALLAST 125-01-3267
FULHAM LH4-120-L
BALLAST 125-01-3267
FULHAM LH4-120-L
F21T5-36"
125-03-1129
F21T5-36"
125-03-1129
F21T5-36"
125-03-1129
F21T5-36"
125-03-1129
F21T5-36"
125-03-1129
F21T5-36"
125-03-1129
RECPTACLE
(1) 125-101-0443
RJ-45 NETWORK JACK
125-01-0200
125-01-0202
CIRCUI T#2
~115 VAC - 1Ø -60 Hz
CIRCUIT #2
NOTE: CASE MUST
BE GROUNDED
15.0L1
L2
L3
115 V
LOADING
W G BK
OPTIONAL SCALE STAND
OPTIONAL
SENSOR
SENSOR
CPC
225-01-3260
(TWO MAXIMUM)
CIRCUIT #1
NOTE:
CASE MUST
BE GROUNDED
#.#
#.#
#.#
4.2
#.#
#.#
L1
L2
L3
115 V
LOADING
Wiring Diagrams (Cont'd)
13
DATE:
PROJECT TITLE:
DWG #:DRAWN BY:
PRODUCTION ORDER #:
DRAWING TITLE:
DATE:
REVISIONS:
:YB DEKCE
H C:NOITPIRCSED :#
BY:
FILE LOCATION:
D.QUAN
---
PAGE OF
HUSSMANN CORPORATION
13770 RAMONA AVENUE
CHINO, CA.91710
(909) 590-4910 LIC.#: 644406
1
2
3
1 1
11/18/05
F:\WIRESCHEMATICS\NEW-W IRING
Q1 DELI
W1750003
Q1-DC-8R
~115 VAC - 1Ø - 50/60 Hz.
L
LIGHT SWITCH
TIPPETTE
125-01-0311
CANOPY LIGHT
F28T5-48"
125-03-1132
F28T5-48"
125-03-1132
T-STAT
SUCTION
SOLENOID
AIR SWEEP
FANS
COMAIR™
MX2B1-E1
(2)125-01-2012
15 AMP FUSE
125-01-3282
FUSE HOLDER
125-01-3283
SOLENOID
225-01-3206
THERMOSTAT
225-01-0707
L1
L2
L3NG
CIRCUIT #1
F28T5-48"
125-03-1132
F28T5-48"
125-03-1132
F28T5-48"
125-03-1132
F28T5-48"
125-03-1132
M M
EVAP
FAN MOTOR
(2)0392457
M M
LEDGE LIGHT
(OPTIONAL)
BALLAST 125-01-3267
FULHAM LH4-120-L
BALLAST 125-01-3267
FULHAM LH4-120-L
BALLAST 125-01-3267
FULHAM LH4-120-L
RECPTACLE
(1) 125-101-0443
RJ-45 NETWORK JACK
125-01-0200
125-01-0202
CIRCUI T#2
~115 VAC - 1Ø -60 Hz
CIRCUIT #2
NOTE: CASE MUST
BE GROUNDED
15.0L1
L2
L3
115 V
LOADING
W G BK
OPTIONAL SCALE STAND
OPTIONAL
SENSOR
SENSOR
CPC
225-01-3260
(1 MAXIMUM)
CIRCUIT #1
NOTE:
CASE MUST
BE GROUNDED
#.#
#.#
#.#
4.9
#.#
#.#
L1
L2
L3
115 V
LOADING
Q1-DC-0508
Wiring Diagrams (Cont'd)
14
Rev. 0508
DATE:
PROJECT TITLE:
DWG #:DRAWN BY:
PRODUCTION ORDER #:
DRAWING TITLE:
DATE:
REVISIONS:
:YB DEKCE
H C:NOITPIRCSED :#
BY:
FILE LOCATION:
D.QUAN
---
PAGE OF
HUSSMANN CORPORATION
13770 RAMONA AVENUE
CHINO, CA.91710
(909) 590-4910 LIC.#: 644406
1
2
3
1 1
03/29/06
ENG\WIRESCHEMATICS\NEW-W IRING
Q1 DELI
W1750005
Q1-DC-12R
REVISED BALLAST TO LH-4 (ECN=10664) 09/21/06 D.Q.
~115 VAC - 1Ø - 50/60 Hz.
L
LIGHT SWITCH
TIPPETTE
125-01-0311
F28T5-48"
125-03-1132
F28T5-48"
125-03-1132
T-STAT
SUCTION
SOLENOID
15 AMP FUSE
125-01-3282
FUSE HOLDER
125-01-3283
SOLENOID
225-01-3206
THERMOSTAT
225-01-0707
L1
L2
L3NG
CIRCUIT #1
F28T5-48"
125-03-1132
F28T5-48"
125-03-1132
AIR SWEEP
FANS
(3)125-01-2012
M M
EVAP
FAN MOTOR
(3)0392457
M
M
M
M
F28T5-48"
125-03-1132
F28T5-48"
125-03-1132
F28T5-48"
125-03-1132
F28T5-48"
125-03-1132
F28T5-48"
125-03-1132
CAP OFF
WIRE
CANOPY LIGHTS
LEDGE LIGHTS
OPTIONAL
BALLAST 125-01-3267
FULHAM LH4-120-L
BALLAST 125-01-3267
FULHAM LH4-120-L
BALLAST 125-01-3267
FULHAM LH4-120-L
BALLAST 125-01-3267
FULHAM LH4-120-L
BALLAST 125-01-3265
FULHAM LH2-120-L
RECPTACLE
(1) 125-101-0443
RJ-45 NETWORK JACK
125-01-0200
125-01-0202
CIRCUI T#2
~115 VAC - 1Ø -60 Hz
CIRCUIT #2
NOTE: CASE MUST
BE GROUNDED
15.0
L1L2L3
115 V
LOADING
W G BK
OPTIONAL SCALE STAND
OPTIONAL
SENSOR
SENSOR
CPC
225-01-3260
(TWO MAXIMUM)
CIRCUIT #1
NOTE:
CASE MUST
BE GROUNDED
#.#
#.#
#.#
6.7
#.#
#.#
L1
L2
L3
115 V
LOADING
Wiring Diagrams (Cont'd)
15
DATE:
PROJECT TITLE:
DWG #:DRAWN BY:
PRODUCTION ORDER #:
DRAWING TITLE:
DATE:
REVISIONS:
:YB DEKCE
H C:NOITPIRCSED :#
BY:
FILE LOCATION:
D.QUAN
---
PAGE OF
HUSSMANN CORPORATION
13770 RAMONA AVENUE
CHINO, CA.91710
(909) 590-4910 LIC.#: 644406
1
2
3
1 1
02/02/06
F:\WIRESCHEMATICS\NEW-W IRING
Q1 DELI
W1750006
Q1-DC-4R
REVISED BALLAST TO LH-4 (ECN=10663) 09/21/06 D.Q.
~115 VAC - 1Ø - 50/60 Hz.
L
LIGHT SWITCH
TIPPETTE
125-01-0311
CANOPY LIGHT
T-STAT
SUCTION
SOLENOID
AIR SWEEP
FAN
(1)125-01-2012
15 AMP FUSE
125-01-3282
FUSE HOLDER
125-01-3283
SOLENOID
225-01-3202
THERMOSTAT
225-01-0707
L1L2L3
N
G
CIRCUIT #1
F28T5-48"
125-03-1132
F28T5-48"
125-03-1132
M
EVAP
FAN MOTOR
(1)0392457
M
BALLAST 125-01-3267
FULHAM LH4-120-L
CIRCUIT #1
NOTE:
CASE MUST
BE GROUNDED
#.#
#.#
#.#
3.6
#.#
#.#
L1
L2
L3
115 V
LOADING
Wiring Diagrams (Cont'd)
Q1-DC-0508
16
Rev. 0508
DATE:
PROJECT TITLE:
DWG #:DRAWN BY:
PRODUCTION ORDER #:
DRAWING TITLE:
DATE:
REVISIONS:
:YB DEKCE
H C:NOITPIRCSED :#
BY:
FILE LOCATION:
D.QUAN
---
PAGE OF
HUSSMANN CORPORATION
13770 RAMONA AVENUE
CHINO, CA.91710
(909) 590-4910 LIC.#: 644406
1
2
3
1 1
07/11/06
ENG\WIRESCHEMATICS\NEW-W IRING
Q1 DELI
W1750026
Q1-DC-5R
~115 VAC - 1Ø - 50/60 Hz.
L
LIGHT SWITCH
TIPPETTE
125-01-0311
T-STAT
SUCTION
SOLENOID
AIR SWEEP
FANS
(1) 125-01-2012
15 AMP FUSE
125-01-3282
FUSE HOLDER
125-01-3283
SOLENOID
225-01-3202
THERMOSTAT
225-01-0707
L1
L2
L3
N
G
CIRCUIT #1
M
EVAP
FAN MOTOR
(2) 0392457
M M
BALLAST 125-01-3267
FULHAM LH4-120-L
BALLAST 125-01-3267
FULHAM LH4-120-L
BALLAST 125-01-3267
FULHAM LH4-120-L
F35T5-60"
125-03-1135
CAP OFF
WIRE
F35T5-60"
125-03-1135
CAP OFF
WIRE
CAP OFF
WIRE
F35T5-60"
125-03-1135
CAP OFF
WIRE
CANOPY LIGHT
LEDGE LIGHT
OPTIONAL
DANFOSS
AKS-11/164
225-01-3225
OPTIONAL
SENSOR
SENSOR
CPC
225-01-3260
(TWO MAXIMUM)
OPTIONAL
SENSOR
SENSOR
COMTROL
90TB002G01
225-01-2028
OPTIONAL
SENSOR
RJ-45 NETWORK JACK
125-01-0200
125-01-0202
CIRCUI T#2
~115 VAC - 1Ø -60 Hz
CIRCUIT #2
NOTE: CASE MUST
BE GROUNDED
15.0
L1L2L3
115 V
LOADING
W G BK
OPTIONAL SCALE STAND
GFCI
DUPLEX
125-01-3178
CIRCUIT #1
NOTE:
CASE MUST
BE GROUNDED
3.6
L1L2L3
115 V
LOADING
Wiring Diagrams (Cont'd)
17
DATE:
:# GWD:ELTIT TCEJORPDRAWN BY:
PRODUCTION ORDER #:
DRAWING TITLE:
DATE:
REVISIONS:
:YB DEKCEHC:NOITPIRCSED :# BY:
FILE LOCATION:
D.QUAN
---
PAGE OF
HUSSMANN CORPORATION
13770 RAMONA AVENUE
CHINO, CA.91710
(909) 590-4910 LIC.#: 644406
1
2
3
1 1
11/22/05
F:\WIRESCHEMATICS\NEW-WIRING
Q1 DELI
W1750007
Q1-DC-6R
UPDATE-02/02/06 02/02/06 D.Q.
~115 VAC - 1Ø - 50/60 Hz.
L
LIGHT SWITCH
TIPPETTE
125-01-0311
CANOPY LIGHT
T-STAT
SUCTION
SOLENOID
AIR SWEEP
FANS
(2)125-01-2012
RECPTACLE
(1) 125-01-0443
15 AMP FUSE
125-01-3282
FUSE HOLDER
125-01-3283
SOLENOID
225-01-3202
THERMOSTAT
225-01-0707
L1L2L3
N
G
CIRCUIT #1
BALLAST 125-01-3266
FULHAM LH3-120-L
BALLAST 125-01-3266
FULHAM LH3-120-L
M M
EVAP
FAN MOTOR
(2)0392457
M M
F21T5-36"
125-03-1129
F21T5-36"
125-03-1129
F21T5-36"
125-03-1129
F21T5-36"
125-03-1129
RJ-45 NETWORK JACK
125-01-0200
125-01-0202
W G BK
~115 VAC - 1Ø - 50/60 Hz.
CIRCUIT #2
CIRCUIT #2 RECPTACLE
NOTE:
CASE MUST
BE GROUNDED
#.#
#.#
#.#
15.0
#.#
#.#
L1L2L3
115 V
LOADING
OPTIONAL SCALE STAND
CIRCUIT #1
NOTE:
CASE MUST
BE GROUNDED
#.#
#.#
#.#
3.3
#.#
#.#
L1
L2
L3
115 V
LOADING
Wiring Diagrams (Cont'd)
Q1-DC-0508
18
DATE:
PROJECT TITLE:
DWG #:DRAWN BY:
PRODUCTION ORDER #:
DRAWING TITLE:
DATE:
REVISIONS:
:YB DEKCE
H C:NOITPIRCSED :#
BY:
FILE LOCATION:
D.QUAN
---
PAGE OF
HUSSMANN CORPORATION
13770 RAMONA AVENUE
CHINO, CA.91710
(909) 590-4910 LIC.#: 644406
1
2
3
1 1
11/18/05
F:\WIRESCHEMATICS\NEW-W IRING
Q1 DELI
W1750008
Q1-DC-8R
UPDATE-02/02/06 02/02/06 D.Q.
REVISED BALLAST TO LH-4 (ECN=10662) 09/21/06 D.Q.
~115 VAC - 1Ø - 50/60 Hz.
L
LIGHT SWITCH
TIPPETTE
125-01-0311
CANOPY LIGHT
F28T5-48"
125-03-1132
F28T5-48"
125-03-1132
T-STAT
SUCTION
SOLENOID
AIR SWEEP
FANS
(2)125-01-2012
15 AMP FUSE
125-01-3282
FUSE HOLDER
125-01-3283
SOLENOID
225-01-3202
THERMOSTAT
225-01-0707
L1
L2L3N
G
CIRCUIT #1
F28T5-48"
125-03-1132
F28T5-48"
125-03-1132
M M
EVAP
FAN MOTOR
(2)0392457
M M
BALLAST 125-01-3267
FULHAM LH4-120-L
BALLAST 125-01-3267
FULHAM LH4-120-L
DANFOSS
AKS-11/164
225-01-3225
OPTIONAL
SENSOR
SENSOR
CPC
225-01-3260
(TWO MAXIMUM)
OPTIONAL
SENSOR
SENSOR
COMTROL
90TB002G01
225-01-2028
OPTIONAL
SENSOR
RJ-45 NETWORK JACK
125-01-0200
125-01-0202
CIRCUI T#2
~115 VAC - 1Ø -60 Hz
CIRCUIT #2
NOTE: CASE MUST
BE GROUNDED
15.0
L1L2L3
115 V
LOADING
W G BK
OPTIONAL SCALE STAND
GFCI
DUPLEX
125-01-3178
CIRCUIT #1
NOTE:
CASE MUST
BE GROUNDED
#.#
#.#
#.#
3.6
#.#
#.#
L1
L2
L3
115 V
LOADING
Rev. 0508
Wiring Diagrams (Cont'd)
19
DATE:
PROJECT TITLE:
DWG #:DRAWN BY:
PRODUCTION ORDER #:
DRAWING TITLE:
DATE:
REVISIONS:
:YB DEKCE
H C:NOITPIRCSED :#
BY:
FILE LOCATION:
D.QUAN
---
PAGE OF
HUSSMANN CORPORATION
13770 RAMONA AVENUE
CHINO, CA.91710
(909) 590-4910 LIC.#: 644406
1
2
3
1 1
07/11/06
ENG\WIRESCHEMATICS\NEW-W IRING
Q1 DELI
W1750009
Q1-DC-10R / Q1-DC-9R
ADDED Q1-DC-9R 08/ 23/06 D.Q.
ADDED ADDITION AIR SWEEP MOTORS 08/29/06 D.Q.
REVISED BALLAST (ECN=10658) 09/21/06 D.Q.
~115 VAC - 1Ø - 50/60 Hz.
L
LIGHT SWITCH
TIPPETTE
125-01-0311
T-STAT
SUCTION
SOLENOID
AIR SWEEP
FANS
(4) 125-01-2012
15 AMP FUSE
125-01-3282
FUSE HOLDER
125-01-3283
SOLENOID
225-01-3202
THERMOSTAT
225-01-0707
L1
L2
L3
N
G
CIRCUIT #1
EVAP
FAN MOTOR
(4) 0392457
M MM
CANOPY LIGHT
M
LEDGE LIGHT
OPTIONAL
Q1-DC-9R
Q1-DC-10R
BALLAST 125-01-3267
FULHAM LH4-120-L
F28T5-48"
125-03-1132
F28T5-48"
125-03-1132
F28T5-48"
125-03-1132
CAP OFF
WIRE
Q1-DC-9R
Q1-DC-9R
Q1-DC-10R
Q1-DC-10R
CANOPY LIGHT
CANOPY LIGHT
Q1-DC-9R
LEDGE LIGHT
Q1-DC-9R
LEDGE LIGHT
LEDGE LIGHT
OPTIONAL
LEDGE LIGHT
OPTIONAL
M MMM
Q1-DC-9R
Q1-DC-10R
F35T5-60"
125-03-1135
F35T5-60"
125-03-1135
BALLAST 125-01-3267
FULHAM LH4-120-L
F35T5-60"
125-03-1135
F35T5-60"
125-03-1135
F35T5-60"
125-03-1135
F35T5-60"
125-03-1135
BALLAST 125-01-3267
FULHAM LH4-120-L
BALLAST 125-01-3267
FULHAM LH4-120-L
BALLAST 125-01-3265
FULHAM LH2-120-L
DANFOSS
AKS-11/164
225-01-3225
OPTIONAL
SENSOR
SENSOR
CPC
225-01-3260
(TWO MAXIMUM)
OPTIONAL
SENSOR
SENSOR
COMTROL
90TB002G01
225-01-2028
OPTIONAL
SENSOR
RJ-45 NETWORK JACK
125-01-0200
125-01-0202
CIRCUI T#2
~115 VAC - 1Ø -60 Hz
CIRCUIT #2
NOTE: CASE MUST
BE GROUNDED
15.0L1
L2
L3
115 V
LOADING
W G BK
OPTIONAL SCALE STAND
GFCI
DUPLEX
125-01-3178
CIRCUIT #1 Q1-DC-10R
NOTE:
CASE MUST
BE GROUNDED
7.3
L1L2L3
115 V
LOADING
CIRCUIT #1 Q1-DC-9R
NOTE:
CASE MUST
BE GROUNDED
6.1
L1L2L3
115 V
LOADING
Wiring Diagrams (Cont'd)
Q1-DC-0508
20
Rev. 0508
DATE:
PROJECT TITLE:
DWG #:DRAWN BY:
PRODUCTION ORDER #:
DRAWING TITLE:
DATE:
REVISIONS:
:YB DEKCE
H C:NOITPIRCSED :#
BY:
FILE LOCATION:
D.QUAN
---
PAGE OF
HUSSMANN CORPORATION
13770 RAMONA AVENUE
CHINO, CA.91710
(909) 590-4910 LIC.#: 644406
1
2
3
1 1
11/18/05
F:\WIRESCHEMATICS\NEW-W IRING
Q1 DELI
W1750010
Q1-DC-12R
UPDATE-02/02/06 02/02/06 D.Q.
REVISED BALLAST TO LH-4 (ECN=10661) 09/21/06 D.Q.
~115 VAC - 1Ø - 50/60 Hz.
L
LIGHT SWITCH
TIPPETTE
125-01-0311
CANOPY LIGHT
F28T5-48"
125-03-1132
F28T5-48"
125-03-1132
T-STAT
SUCTION
SOLENOID
AIR SWEEP
FANS
(3)125-01-2012
15 AMP FUSE
125-01-3282
FUSE HOLDER
125-01-3283
SOLENOID
225-01-3202
THERMOSTAT
225-01-0707
L1L2L3NG
CIRCUIT #1
F28T5-48"
125-03-1132
F28T5-48"
125-03-1132
M M
EVAP
FAN MOTOR
(3)0392457
M M
F28T5-48"
125-03-1132
F28T5-48"
125-03-1132
M
M
BALLAST 125-01-3267
FULHAM LH4-120-L
BALLAST 125-01-3267
FULHAM LH4-120-L
BALLAST 125-01-3267
FULHAM LH4-120-L
DANFOSS
AKS-11/164
225-01-3225
OPTIONAL
SENSOR
SENSOR
CPC
225-01-3260
(TWO MAXIMUM)
OPTIONAL
SENSOR
SENSOR
COMTROL
90TB002G01
225-01-2028
OPTIONAL
SENSOR
RJ-45 NETWORK JACK
125-01-0200
125-01-0202
CIRCUI T#2
~115 VAC - 1Ø -60 Hz
CIRCUIT #2
NOTE: CASE MUST
BE GROUNDED
15.0
L1L2L3
115 V
LOADING
W G BK
OPTIONAL SCALE STAND
GFCI
DUPLEX
125-01-3178
CIRCUIT #1
NOTE:
CASE MUST
BE GROUNDED
4.9
L1L2L3
115 V
LOADING
Wiring Diagrams (Cont'd)
21
Q1-DC-0508
DATE:
PROJECT TITLE:
DRAWING #:
DRAWN BY:
PRODUCTION ORDER #:
DRAWING TITLE:
DATE:
Hussmann Corporation, Int'l.
13770 Ramona Avenue
Chino, CA. 91710
(909)-590-4910 Lic.#: 644406
REVISIONS:
#: DESCRIPTION:
CHECKED BY:
BY:
FILE LOCATION:
JESSE RIOS
PAGE OF
?
1
11
03/8/07
A Updated dwg; removed ballast fuse 5/10/07 JR
Q1-DC-XS/Q1-DS-XS
Q1-DC-3S/Q1-DS-3S
L
LIGHT SWITCH
TIPPETTE
125-01-0311
CANOPY LIGHT
AIR SWEEP
FAN
COMAIR™
MX2B1-E1
125-01-2012
15W, .18A
CIRCUIT #1
EVAP
FAN MOTOR
0392457 .29A
LEDGE LIGHT
(OPTIONAL)
F21T5-36"
125-03-1129
F21T5-36"
125-03-1129
F21T5-36"
125-03-1129
BALLAST 125-01-3267
FULHAM LH4-120-L
BALLAST 125-01-3266
FULHAM LH3-120-L
L1 N
*
**
OMNI STAT PN
952896-120VAC
POWER
SUPPLY
115Vac
PROD.
TEMP.
AIR
TEMP.
9
1 2 3 4
5 678
DEFROST TIMER
OMNI-STAT 120V - 50/60 Hz.
125-01-2303
CONDENSING UNIT
RLA= 6.7A
MCC= 10.5A
LRA= 45.6A
R C
LIGHT SWITCH
TIPPETTE
125-01-0311
LIGHT SWITCH
TIPPETTE
125-01-0311
SWITCH
MOTOR START
SQ "D"
125-01-0271
BUNDLE
PURPLE
LABELED
EVAP PAN
CIRCUIT
BUNDLE
ORANGE
LABELED
LIGHT CIRCUIT
BUNDLE
BROWN
LABELED
FAN CIRCUIT
BUNDLE BLUE
LABELED
CONDENSING
UNIT CIRCUIT
TECUMSEH
HGA9430YXAXB
115VAC, 60HZ
225-03-0100
FISHER™ EVAPOWAY™
DM15WW1D (OPTIONAL)
1500W @ ~ 120 VAC
12.5A
125-01-0765
OPTIONAL
SENSOR
SENSOR
CPC
225-01-3260
OPTIONAL
M
M
CAP OFF
WIRE
NOTE:
CASE MUST
BE GROUNDED
SAFETY
SWITCH
FLOAT SWITCH
~120 VAC - 60 Hz.
MCA= 15.7A
MOP= 20A
PLUG NEMA 5-15P
L1
N
G
BLACK # 14
WHITE # 14
DUPLEX
125-01-6984
L1
N
~120 VAC - 60 Hz.
MCA= .66A
MOP= 15A
L1
N
~120 VAC - 60 Hz.
MCA= .54A
MOP= 15A
L1
N
~120 VAC - 60 Hz.
MCA= 8.4A
MOP= 15A
LIGHT CIRCUIT= .35A
LIGHT CIRCUIT= .18A
BLACK # 14
WHITE # 14
BLACK # 14
WHITE # 14
BLACK # 14
WHITE # 14
W1750034-01
Wiring Diagrams (Cont'd)
22
DATE:
PROJECT TITLE:
DRAWING #:
DRAWN BY:
PRODUCTION ORDER #:
DRAWING TITLE:
DATE:
Hussmann Corporation, Int'l.
13770 Ramona Avenue
Chino, CA. 91710
(909)-590-4910 Lic.#: 644406
REVISIONS:
#: DESCRIPTION:
CHECKED BY:
BY:
FILE LOCATION:
JESSE RIOS
PAGE OF
?
2
11
03/8/07
Q1-DC-XS/Q1-DS-XS
Q1-DC-4S/Q1-DS-4S
L
LIGHT SWITCH
TIPPETTE
125-01-0311
CANOPY LIGHT
AIR SWEEP
FAN
COMAIR™
MX2B1-E1
125-01-2012
15W, .18A
CIRCUIT #1
EVAP
FAN MOTOR
0392457 .29A
LEDGE LIGHT
(OPTIONAL)
F28T5-48"
125-03-1132
F28T5-48"
125-03-1132
F28T5-48"
125-03-1132
BALLAST 125-01-3267
FULHAM LH4-120-L
BALLAST 125-01-3267
FULHAM LH4-120-L
L1
N
*
**
OMNI STAT PN
952896-120VAC
POWER
SUPPLY
115Vac
PROD.
TEMP.
AIR
TEMP.
9
1 23
4 5
678
DEFROST TIMER
OMNI-STAT 120V - 50/60 Hz.
125-01-2303
CONDENSING UNIT
RLA= 6.7A
MCC= 10.5A
LRA= 45.6A
R C
LIGHT SWITCH
TIPPETTE
125-01-0311
LIGHT SWITCH
TIPPETTE
125-01-0311
SWITCH
MOTOR START
SQ "D"
125-01-0271
BUNDLE
PURPLE
LABELED
EVAP PAN
CIRCUIT
BUNDLE
ORANGE
LABELED
LIGHT CIRCUIT
BUNDLE
BROWN
LABELED
FAN CIRCUIT
BUNDLE BLUE
LABELED
CONDENSING
UNIT CIRCUIT
TECUMSEH
HGA9430YXAXB
115VAC, 60HZ
225-03-0100
FISHER™ EVAPOWAY™
DM15WW1D (OPTIONAL)
1500W @ ~ 120 VAC
12.5A
125-01-0765
OPTIONAL
SENSOR
SENSOR
CPC
225-01-3260
OPTIONAL
M
M
CAP OFF
WIRE
NOTE:
CASE MUST
BE GROUNDED
SAFETY
SWITCH
FLOAT SWITCH
~120 VAC - 60 Hz.
MCA= 15.7A
MOP= 20A
PLUG NEMA 5-15P
L1
N
G
BLACK # 14
WHITE # 14
DUPLEX
125-01-6984
L1
N
~120 VAC - 60 Hz.
MCA= .88A
MOP= 15A
BLACK # 14
WHITE # 14
LIGHT CIRCUIT= .47A
LIGHT CIRCUIT= .23A
L1
N
~120 VAC - 60 Hz.
MCA= .54A
MOP= 15A
BLACK # 14
WHITE # 14
L1
N
~120 VAC - 60 Hz.
MCA= 8.4A
MOP= 15A
BLACK # 14
WHITE # 14
W1750034-02
A Updated dwg; removed ballast fuse 5/10/07 JR
Rev. 0508
Wiring Diagrams (Cont'd)
23
DATE:
PROJECT TITLE:
DRAWING #:
DRAWN BY:
PRODUCTION ORDER #:
DRAWING TITLE:
DATE:
Hussmann Corporation, Int'l.
13770 Ramona Avenue
Chino, CA. 91710
(909)-590-4910 Lic.#: 644406
REVISIONS:
#: DESCRIPTION:
CHECKED BY:
BY:
FILE LOCATION:
JESSE RIOS
PAGE OF
?
3
11
03/8/07
Q1-DC-XS
L
LIGHT SWITCH
TIPPETTE
125-01-0311
CANOPY LIGHT
AIR SWEEP
FAN
COMAIR™
MX2B1-E1
125-01-2012
15W, .18A
CIRCUIT #1
EVAP
FAN MOTOR
(2)0392457
LEDGE LIGHT
(OPTIONAL)
F35T5-60"
125-03-1135
BALLAST 125-01-3267
FULHAM LH4-120-L
BALLAST 125-01-3267
FULHAM LH4-120-L
L1 N
*
**
OMNI STAT PN
952896-120VAC
POWER
SUPPLY
115Vac
PROD.
TEMP.
AIR
TEMP.
9
1 2 3 4
5 6 7
8
DEFROST TIMER
OMNI-STAT 120V - 50/60 Hz.
125-01-2303
EVAP
FAN MOTOR
(2)0392457 .29A
CONDENSING UNIT
RLA= 6.7A
MCC= 10.5A
LRA= 45.6A
R C
LIGHT SWITCH
TIPPETTE
125-01-0311
LIGHT SWITCH
TIPPETTE
125-01-0311
SWITCH
MOTOR START
SQ "D"
125-01-0271
BUNDLE
ORANGE
LABELED
LIGHT CIRCUIT
BUNDLE
BROWN
LABELED
FAN CIRCUIT
BUNDLE BLUE
LABELED
CONDENSING
UNIT CIRCUIT
TECUMSEH
HGA9430YXAXB
115VAC, 60HZ
225-03-0100
FISHER™ EVAPOWAY™
DM15WW1D (OPTIONAL)
1500W @ ~ 120 VAC
12.5A
125-01-0765
OPTIONAL
M
M
CAP OFF
WIRE
M
DANFOSS
AKS-11/164
225-01-3225
OPTIONAL
SENSOR
SENSOR
CPC
225-01-3260
(TWO MAXIMUM)
OPTIONAL
SENSOR
SENSOR
COMTROL
90TB002G01
225-01-2028
OPTIONAL
SENSOR
RJ-45 NETWORK JACK
125-01-0200
125-01-0202
CIRCUI T#2
~120 VAC - 1Ø -60 Hz
CIRCUIT #2
NOTE:
CASE MUST
BE GROUNDED
15.0
L1L2L3
120 V
LOADING
OPTIONAL SCALE STAND
GFCI
DUPLEX
125-01-3178
W G BK
CAP OFF
WIRE
BALLAST 125-01-3267
FULHAM LH4-120-L
CAP OFF
WIRE
F35T5-60"
125-03-1135
F35T5-60"
125-03-1135
BUNDLE
PURPLE
LABELED
EVAP PAN
CIRCUIT
SAFETY
SWITCH
FLOAT SWITCH
~120 VAC - 60 Hz.
MCA= 15.7A
MOP= 20A
PLUG NEMA 5-15P
L1
N
G
BLACK # 14
WHITE # 14
DUPLEX
125-01-6984
L1
N
~120 VAC - 60 Hz.
MCA= .66A
MOP= 15A
LIGHT CIRCUIT= .35A
LIGHT CIRCUIT= .18A
L1
N
~120 VAC - 60 Hz.
MCA= .83A
MOP= 15A
L1
N
~120 VAC - 60 Hz.
MCA= 8.4A
MOP= 15A
BLACK # 14
WHITE # 14
BLACK # 14
WHITE # 14
BLACK # 14
WHITE # 14
NOTE:
PRE-LIMINARY,
SUBJECT TO
CHANGE
03/8/07
Q1-DC-XS/Q1-DS-XS
Q1-DC-5S/Q1-DS-5S
W1750034-03
A Updated dwg; removed ballast fuse 5/10/07 JR
Q1-DC-0508
Wiring Diagrams (Cont'd)
24
Rev. 0508
DATE:
PROJECT TITLE:
DRAWING #:
DRAWN BY:
PRODUCTION ORDER #:
DRAWING TITLE:
DATE:
Hussmann Corporation, Int'l.
13770 Ramona Avenue
Chino, CA. 91710
(909)-590-4910 Lic.#: 644406
REVISIONS:
#: DESCRIPTION:
CHECKED BY:
BY:
FILE LOCATION:
JESSE RIOS
PAGE OF
?
L
LIGHT SWITCH
TIPPETTE
125-01-0311
CANOPY LIGHT
AIR SWEEP
FANS
COMAIR™
MX2B1-E1
(2)125-01-2012
15W, .18A
CIRCUIT #1
EVAP
FAN MOTOR
(2)0392457
LEDGE LIGHT
(OPTIONAL)
F21T5-36"
125-03-1129
F21T5-36"
125-03-1129
F21T5-36"
125-03-1129
F21T5-36"
125-03-1129
F21T5-36"
125-03-1129
F21T5-36"
125-03-1129
BALLAST 125-01-3267
FULHAM LH4-120-L
BALLAST 125-01-3267
FULHAM LH4-120-L
BALLAST 125-01-3267
FULHAM LH4-120-L
L1 N
*
**
OMNI STAT PN
952896-120VAC
POWER
SUPPLY
115Vac
PROD.
TEMP.
AIR
TEMP.
9
1 23
4 5
678
DEFROST TIMER
OMNI-STAT 120V - 50/60 Hz.
125-01-2303
EVAP
FAN MOTOR
(2)0392457
EVAP
FAN MOTOR
(2)0392457 4W .29A
CONDENSING UNIT
RLA= 6.7A
MCC= 10.5A
LRA= 45.6A
R C
LIGHT SWITCH
TIPPETTE
125-01-0311
LIGHT SWITCH
TIPPETTE
125-01-0311
SWITCH
MOTOR START
SQ "D"
125-01-0271
BUNDLE
ORANGE
LABELED
LIGHT CIRCUIT
BUNDLE
BROWN
LABELED
FAN CIRCUIT
BUNDLE BLUE
LABELED
CONDENSING
UNIT CIRCUIT
TECUMSEH
HGA9430YXAXB
115VAC, 60HZ
225-03-0100
FISHER™ EVAPOWAY™
DM15WW1D (OPTIONAL)
1500W @ ~ 120 VAC
12.5A
125-01-0765
OPTIONAL
SENSOR
SENSOR
CPC
225-01-3260
(TWO MAXIMUM)
RJ-45 NETWORK JACK
125-01-0200
125-01-0202
CIRCUI T#2
~120 VAC - 1Ø -60 Hz
CIRCUIT #2
NOTE:
CASE MUST
BE GROUNDED
15.0
L1L2L3
120 V
LOADING
OPTIONAL SCALE STAND
GFCI
DUPLEX
125-01-3178
W G BK
OPTIONAL
M M
M M
BUNDLE
PURPLE
LABELED
EVAP PAN
CIRCUIT
SAFETY
SWITCH
FLOAT SWITCH
~120 VAC - 60 Hz.
MCA= 15.7A
MOP= 20A
PLUG NEMA 5-15P
L1
N
G
BLACK # 14
WHITE # 14
DUPLEX
125-01-6984
L1
N
~120 VAC - 60 Hz.
MCA= 1.3A
MOP= 15A
LIGHT CIRCUIT= 0.7A
BLACK # 14
WHITE # 14
L1
N
~120 VAC - 60 Hz.
MCA= 1.0A
MOP= 15A
BLACK # 14
WHITE # 14
L1
N
~120 VAC - 60 Hz.
MCA= 8.4A
MOP= 15A
BLACK # 14
WHITE # 14
LIGHT CIRCUIT= .35A
4
11
03/8/07
Q1-DC-XS
03/8/07
Q1-DC-XS/Q1-DS-XS
Q1-DC-6S/Q1-DS-6S
W1750034-04
A Updated dwg; removed ballast fuse 5/10/07 JR
Wiring Diagrams (Cont'd)
25
DATE:
PROJECT TITLE:
DRAWING #:
DRAWN BY:
PRODUCTION ORDER #:
DRAWING TITLE:
DATE:
Hussmann Corporation, Int'l.
13770 Ramona Avenue
Chino, CA. 91710
(909)-590-4910 Lic.#: 644406
REVISIONS:
#: DESCRIPTION:
CHECKED BY:
BY:
FILE LOCATION:
JESSE RIOS
PAGE OF
?
L
LIGHT SWITCH
TIPPETTE
125-01-0311
CANOPY LIGHT
AIR SWEEP
FAN
COMAIR™
MX2B1-E1
(2) 125-01-2012
15W, .18A
CIRCUIT #1
EVAP
FAN MOTOR
(2) 0392457 .29A
LEDGE LIGHT
(OPTIONAL)
F28T5-48"
125-03-1132
F28T5-48"
125-03-1132
F28T5-48"
125-03-1132
BALLAST 125-01-3267
FULHAM LH4-120-L
BALLAST 125-01-3267
FULHAM LH4-120-L
L1
N
*
**
OMNI STAT PN
952896-120VAC
POWER
SUPPLY
115Vac
PROD.
TEMP.
AIR
TEMP.
9
1 23
4 5
678
DEFROST TIMER
OMNI-STAT 120V - 50/60 Hz.
125-01-2303
CONDENSING UNIT
RLA= 9.6A
MCC= 15.0A
R C
LIGHT SWITCH
TIPPETTE
125-01-0311
LIGHT SWITCH
TIPPETTE
125-01-0311
SWITCH
MOTOR START
SQ "D"
125-01-0271
BUNDLE
ORANGE
LABELED
LIGHT CIRCUIT
BUNDLE
BROWN
LABELED
FAN CIRCUIT
BUNDLE BLUE
LABELED
CONDENSING
UNIT CIRCUIT
TECUMSEH
HGA9443YXAXB
115VAC, 60HZ
225-03-0104
FISHER™ EVAPOWAY™
DM15WW1D (OPTIONAL)
1500W @ ~ 120 VAC
12.5A
125-01-0765
OPTIONAL
SENSOR
SENSOR
CPC
225-01-3260
OPTIONAL
M
M
CAP OFF
WIRE
NOTE:
CASE MUST
BE GROUNDED
CANOPY LIGHT
F21T5-36"
125-03-1129
F21T5-36"
125-03-1129
BALLAST 125-01-3267
FULHAM LH4-120-L
LEDGE LIGHT
(OPTIONAL)
F21T5-36"
125-03-1129
BALLAST 125-01-3266
FULHAM LH3-120-L
CAP OFF
WIRE
M
M
BUNDLE
PURPLE
LABELED
EVAP PAN
CIRCUIT
SAFETY
SWITCH
FLOAT SWITCH
~120 VAC - 60 Hz.
MCA= 15.7A
MOP= 20A
PLUG NEMA 5-15P
L1
N
G
BLACK # 14
WHITE # 14
DUPLEX
125-01-6984
L1
N
~120 VAC - 60 Hz.
MCA= 1.54A
MOP= 15A
LIGHT CIRCUIT= .82A
BLACK # 14
WHITE # 14
LIGHT CIRCUIT= .41A
L1
N
~120 VAC - 60 Hz.
MCA= 1.0A
MOP= 15A
BLACK # 14
WHITE # 14
L1
N
~120 VAC - 60 Hz.
MCA= 12A
MOP= 15A
BLACK # 14
WHITE # 14
NOTE:
PRE-LIMINARY,
SUBJECT TO
CHANGE
5
11
03/8/07
Q1-DC-XS
03/8/07
Q1-DC-XS/Q1-DS-XS
Q1-DC-7S/Q1-DS-7S
W1750034-05
A Updated dwg; removed ballast fuse 5/10/07 JR
Wiring Diagrams (Cont'd)
Q1-DC-0508
26
Rev. 0508
DATE:
PROJECT TITLE:
DRAWING #:
DRAWN BY:
PRODUCTION ORDER #:
DRAWING TITLE:
DATE:
Hussmann Corporation, Int'l.
13770 Ramona Avenue
Chino, CA. 91710
(909)-590-4910 Lic.#: 644406
REVISIONS:
#: DESCRIPTION:
CHECKED BY:
BY:
FILE LOCATION:
JESSE RIOS
PAGE OF
?
L
LIGHT SWITCH
TIPPETTE
125-01-0311
CANOPY LIGHT
AIR SWEEP
FANS
COMAIR™
MX2B1-E1
(2)125-01-2012
15W, .18A
CIRCUIT #1
EVAP
FAN MOTOR
(2)0392457
LEDGE LIGHT
(OPTIONAL)
F28T5-48"
125-03-1132
F28T5-48"
125-03-1132
F28T5-48"
125-03-1132
F28T5-48"
125-03-1132
F28T5-48"
125-03-1132
F28T5-48"
125-03-1132
BALLAST 125-01-3267
FULHAM LH4-120-L
BALLAST 125-01-3267
FULHAM LH4-120-L
BALLAST 125-01-3267
FULHAM LH4-120-L
L1 N
*
**
OMNI STAT PN
952896-120VAC
POWER
SUPPLY
115Vac
PROD.
TEMP.
AIR
TEMP.
9
1
23
4
5
678
DEFROST TIMER
OMNI-STAT 120V - 50/60 Hz.
125-01-2303
EVAP
FAN MOTOR
(2)0392457
EVAP
FAN MOTOR
(2)0392457 4W .29A
CONDENSING UNIT
RLA= 9.6A
MCC= 15.0A
R C
LIGHT SWITCH
TIPPETTE
125-01-0311
LIGHT SWITCH
TIPPETTE
125-01-0311
SWITCH
MOTOR START
SQ "D"
125-01-0271
BUNDLE
ORANGE
LABELED
LIGHT CIRCUIT
BUNDLE
BROWN
LABELED
FAN CIRCUIT
BUNDLE BLUE
LABELED
CONDENSING
UNIT CIRCUIT
TECUMSEH
HGA9443YXAXB
115VAC, 60HZ
225-03-0104
FISHER™ EVAPOWAY™
DM15WW1D (OPTIONAL)
1500W @ ~ 120 VAC
12.5A
125-01-0765
OPTIONAL
SENSOR
SENSOR
CPC
225-01-3260
(TWO MAXIMUM)
RJ-45 NETWORK JACK
125-01-0200
125-01-0202
CIRCUI T#2
~120 VAC - 1Ø -60 Hz
CIRCUIT #2
NOTE:
CASE MUST
BE GROUNDED
15.0
L1L2L3
120 V
LOADING
OPTIONAL SCALE STAND
GFCI
DUPLEX
125-01-3178
W G BK
OPTIONAL
M M
M M
BUNDLE
PURPLE
LABELED
EVAP PAN
CIRCUIT
SAFETY
SWITCH
FLOAT SWITCH
~120 VAC - 60 Hz.
MCA= 15.7A
MOP= 20A
PLUG NEMA 5-15P
L1
N
G
BLACK # 14
WHITE # 14
DUPLEX
125-01-6984
L1
N
~120 VAC - 60 Hz.
MCA= 1.8A
MOP= 15A
LIGHT CIRCUIT= .93A
BLACK # 14
WHITE # 14
L1
N
~120 VAC - 60 Hz.
MCA= 12A
MOP= 15A
BLACK # 14
WHITE # 14
L1
N
~120 VAC - 60 Hz.
MCA= 1.0A
MOP= 15A
BLACK # 14
WHITE # 14
LIGHT CIRCUIT= .47A
6
11
03/8/07
Q1-DC-XS
03/8/07
Q1-DC-XS/Q1-DS-XS
Q1-DC-8S/Q1-DS-8S
W1750034-06
A Updated dwg; removed ballast fuse 5/10/07 JR
Wiring Diagrams (Cont'd)
27
DATE:
PROJECT TITLE:
DRAWING #:
DRAWN BY:
PRODUCTION ORDER #:
DRAWING TITLE:
DATE:
Hussmann Corporation, Int'l.
13770 Ramona Avenue
Chino, CA. 91710
(909)-590-4910 Lic.#: 644406
REVISIONS:
#: DESCRIPTION:
CHECKED BY:
BY:
FILE LOCATION:
JESSE RIOS
PAGE OF
?
L
LIGHT SWITCH
TIPPETTE
125-01-0311
CIRCUIT #1
EVAP
FAN MOTOR
(3)0392457 .29A
LEDGE LIGHT
(OPTIONAL)
F35T5-60"
125-03-1135
F28T5-48"
125-03-1132
BALLAST 125-01-3267
FULHAM LH4-120-L
BALLAST 125-01-3267
FULHAM LH4-120-L
L1 N
*
**
OMNI STAT PN
952896-120VAC
POWER
SUPPLY
115Vac
PROD.
TEMP.
AIR
TEMP.
9
1 23
4 5
678
DEFROST TIMER
OMNI-STAT 120V - 50/60 Hz.
125-01-2303
CONDENSING UNIT
RLA= 9.6A
MCC= 15.0A
R C
LIGHT SWITCH
TIPPETTE
125-01-0311
LIGHT SWITCH
TIPPETTE
125-01-0311
SWITCH
MOTOR START
SQ "D"
125-01-0271
BUNDLE
ORANGE
LABELED
LIGHT CIRCUIT
BUNDLE
BROWN
LABELED
FAN CIRCUIT
BUNDLE BLUE
LABELED
CONDENSING
UNIT CIRCUIT
TECUMSEH
HGA9443YXAXB
115VAC, 60HZ
225-03-0104
FISHER™ EVAPOWAY™
DM15WW1D (OPTIONAL)
1500W @ ~ 120 VAC
12.5A
125-01-0765
OPTIONAL
SENSOR
SENSOR
CPC
225-01-3260
(TWO MAXIMUM)
RJ-45 NETWORK JACK
125-01-0200
125-01-0202
CIRCUI T#2
~120 VAC - 1Ø -60 Hz
CIRCUIT #2
NOTE:
CASE MUST
BE GROUNDED
15.0
L1L2L3
120 V
LOADING
OPTIONAL SCALE STAND
GFCI
DUPLEX
125-01-3178
W G BK
OPTIONAL
M M
DANFOSS
AKS-11/164
225-01-3225
OPTIONAL
SENSOR
SENSOR
COMTROL
90TB002G01
225-01-2028
OPTIONAL
SENSOR
M
LEDGE LIGHT
OPTIONAL
CAP OFF
WIRE
CAP OFF
WIRE
BALLAST 125-01-3267
FULHAM LH4-120-L
BALLAST 125-01-3267
FULHAM LH4-120-L
M M
AIR SWEEP
FANS
COMAIR™
MX2B1-E1
(2)125-01-2012
15W, .18A
F35T5-60"
125-03-1135
F35T5-60"
125-03-1135
CANOPY
LIGHT
CANOPY
LIGHT
F28T5-48"
125-03-1132
F28T5-48"
125-03-1132
BUNDLE
PURPLE
LABELED
EVAP PAN
CIRCUIT
SAFETY
SWITCH
FLOAT SWITCH
~120 VAC - 60 Hz.
MCA= 15.7A
MOP= 20A
PLUG NEMA 5-15P
L1
N
G
BLACK # 14
WHITE # 14
DUPLEX
125-01-6984
L1
N
~120 VAC - 60 Hz.
MCA= 1.3A
MOP= 15A
LIGHT CIRCUIT= 1.34A
BLACK # 14
WHITE # 14
L1
N
~120 VAC - 60 Hz.
MCA= 1.3A
MOP= 15A
BLACK # 14
WHITE # 14
L1
N
~120 VAC - 60 Hz.
MCA= 12A
MOP= 15A
BLACK # 14
WHITE # 14
NOTE:
PRE-LIMINARY,
SUBJECT TO
CHANGE
7
11
03/8/07
Q1-DC-XS
03/8/07
Q1-DC-XS/Q1-DS-XS
Q1-DC-9S/Q1-DS-9S
W1750034-07
A Updated dwg; removed ballast fuse 5/10/07 JR
Wiring Diagrams (Cont'd)
Q1-DC-0508
28
Rev. 0508
DATE:
PROJECT TITLE:
DRAWING #:
DRAWN BY:
PRODUCTION ORDER #:
DRAWING TITLE:
DATE:
Hussmann Corporation, Int'l.
13770 Ramona Avenue
Chino, CA. 91710
(909)-590-4910 Lic.#: 644406
REVISIONS:
#: DESCRIPTION:
CHECKED BY:
BY:
FILE LOCATION:
JESSE RIOS
PAGE OF
?
L
CIRCUIT #1
EVAP
FAN MOTOR
(4)0392457 .29A
LEDGE LIGHT
(OPTIONAL)
SAFETY
SWITCH
FLOAT SWITCH
~208/240 VAC - 60 Hz.
L1 L2
*
**
OMNI STAT PN 952911
-240VAC
POWER
SUPPLY
240Vac
PROD.
TEMP.
AIR
TEMP.
9
1 23
4 5
678
DEFROST TIMER
OMNI-STAT 240V - 50/60 Hz.
125-01-2300
CONDENSING UNIT
RLA= 6.2A
MCC= 9.7A
LRA= 34
R C
LIGHT SWITCH
TIPPETTE
125-01-0311
SWITCH
MOTOR START
SQ "D"
125-01-0271
BUNDLE
PURPLE
LABELED
EVAP PAN
CIRCUIT
BUNDLE
ORANGE
LABELED
LIGHT CIRCUIT
BUNDLE
BROWN
LABELED
FAN CIRCUIT
BUNDLE BLUE
LABELED
CONDENSING
UNIT CIRCUIT
~208/240 VAC - 60 Hz.
TECUMSEH
HGA9462ZXDXM
208VAC, 60HZ
225-03-0101
FISHER™ EVAPOWAY™
DM15WW-3D (OPTIONAL)
1500W @ ~ 240 VAC
6.25A
125-01-0765A
OPTIONAL
SENSOR
SENSOR
CPC
225-01-3260
(TWO MAXIMUM)
RJ-45 NETWORK JACK
125-01-0200
125-01-0202
CIRCUI T#2
~120 VAC - 1Ø -60 Hz
CIRCUIT #2
NOTE:
CASE MUST
BE GROUNDED
15.0
L1L2L3
120 V
LOADING
OPTIONAL SCALE STAND
GFCI
DUPLEX
125-01-3178
OPTIONAL
M
M
DANFOSS
AKS-11/164
225-01-3225
OPTIONAL
SENSOR
SENSOR
COMTROL
90TB002G01
225-01-2028
OPTIONAL
SENSOR
M
BALLAST 125-01-3267
FULHAM LH4-120-L
F35T5-60"
125-03-1135
F35T5-60"
125-03-1135
L1 N
L1 L2
M
L1 N
L1 L2
M
M
BALLAST 125-01-3267
FULHAM LH4-120-L
F35T5-60"
125-03-1135
F35T5-60"
125-03-1135
BALLAST 125-01-3267
FULHAM LH4-120-L
F35T5-60"
125-03-1135
F35T5-60"
125-03-1135
CANOPY
LIGHT
AIR SWEEP
FANS
COMAIR™
MX2B1-E1
(2)125-01-2012
15W, .18A
~120 VAC - 60 Hz.
MCA= 2.2A
MOP= 15A
LIGHT CIRCUIT= 1.17A
BLACK # 14
WHITE # 14
LIGHT CIRCUIT= .58A
MCA= 7.8A
MOP= 15A
~120 VAC - 60 Hz.
MCA= 1.6A
MOP= 15A
MCA= 7.8A
MOP= 15A
BLACK # 14
WHITE # 14
BLACK # 14
RED # 14
BLACK # 14
RED # 14
W G BK
NOTE:
PRE-LIMINARY,
SUBJECT TO
CHANGE
8
11
03/8/07
Q1-DC-XS
03/8/07
Q1-DC-XS/Q1-DS-XS
Q1-DC-10S/Q1-DS-10S
W1750034-08
A Updated dwg; removed ballast fuse 5/10/07 JR
Wiring Diagrams (Cont'd)
29
DATE:
PROJECT TITLE:
DRAWING #:
DRAWN BY:
PRODUCTION ORDER #:
DRAWING TITLE:
DATE:
Hussmann Corporation, Int'l.
13770 Ramona Avenue
Chino, CA. 91710
(909)-590-4910 Lic.#: 644406
REVISIONS:
#: DESCRIPTION:
CHECKED BY:
BY:
FILE LOCATION:
JESSE RIOS
PAGE OF
?
L
LIGHT SWITCH
TIPPETTE
125-01-0311
CANOPY LIGHT
AIR SWEEP
FAN
COMAIR™
MX2B1-E1
(3) 125-01-2012
15W, .18A
CIRCUIT #1
EVAP
FAN MOTOR
(3) 0392457 .29A
LEDGE LIGHT
(OPTIONAL)
F28T5-48"
125-03-1132
F28T5-48"
125-03-1132
F28T5-48"
125-03-1132
BALLAST 125-01-3267
FULHAM LH4-120-L
BALLAST 125-01-3267
FULHAM LH4-120-L
SAFETY
SWITCH
FLOAT SWITCH
~208/240 VAC - 60 Hz.
L1 L2
*
**
OMNI STAT PN
952911-240VAC
POWER
SUPPLY
115Vac
PROD.
TEMP.
AIR
TEMP.
9
1 23
4 5
678
DEFROST TIMER
OMNI-STAT 240V - 50/60 Hz.
125-01-2300
CONDENSING UNIT
RLA= 6.2A
MCC= 9.7A
R C
LIGHT SWITCH
TIPPETTE
125-01-0311
LIGHT SWITCH
TIPPETTE
125-01-0311
SWITCH
MOTOR START
SQ "D"
125-01-0271
BUNDLE
PURPLE
LABELED
EVAP PAN
CIRCUIT
BUNDLE
ORANGE
LABELED
LIGHT CIRCUIT
BUNDLE
BROWN
LABELED
FAN CIRCUIT
BUNDLE BLUE
LABELED
CONDENSING
UNIT CIRCUIT
TECUMSEH
HGA9462ZXDXM
115VAC, 60HZ
225-03-0101
FISHER™ EVAPOWAY™
DM15WW-3D (OPTIONAL)
1500W @ ~ 240 VAC
6.25A
125-01-0765A
OPTIONAL
SENSOR
SENSOR
CPC
225-01-3260
OPTIONAL
M
M
CAP OFF
WIRE
NOTE: CASE MUST
BE GROUNDED
CANOPY LIGHT
F21T5-36"
125-03-1129
F21T5-36"
125-03-1129
BALLAST 125-01-3267
FULHAM LH4-120-L
LEDGE LIGHT
(OPTIONAL)
F21T5-36"
125-03-1129
BALLAST 125-01-3266
FULHAM LH3-120-L
CAP OFF
WIRE
M
M
M
M
F28T5-48"
125-03-1132
F28T5-48"
125-03-1132
BALLAST 125-01-3267
FULHAM LH4-120-L
CANOPY LIGHT
LEDGE LIGHT
(OPTIONAL)
F28T5-48"
125-03-1132
BALLAST 125-01-3267
FULHAM LH4-120-L
CAP OFF
WIRE
LEDGE LIGHT
(OPTIONAL)
F28T5-48"
125-03-1132
BALLAST 125-01-3267
FULHAM LH4-120-L
CAP OFF
WIRE
LEDGE LIGHT
(OPTIONAL)
F28T5-48"
125-03-1132
BALLAST 125-01-3267
FULHAM LH4-120-L
CAP OFF
WIRE
L1 N
L1 N
L1 L2
L1 L2
~208/240 VAC - 60 Hz.
~120 VAC - 60 Hz.
MCA= 2.4A
MOP= 15A
LIGHT CIRCUIT= 1.28A
BLACK # 14
WHITE # 14
LIGHT CIRCUIT= .64A
~120 VAC - 60 Hz.
MCA= 1.5A
MOP= 15A
MCA= 7.8A
MOP= 15A
MCA= 7.8A
MOP= 15A
BLACK # 14
WHITE # 14
BLACK # 14
RED # 14
BLACK # 14
RED # 14
NOTE:
PRE-LIMINARY,
SUBJECT TO
CHANGE
9
11
03/8/07
Q1-DC-XS
03/8/07
Q1-DC-XS/Q1-DS-XS
Q1-DC-11S/Q1-DS-11S
W1750034-09
A Updated dwg; removed ballast fuse 5/10/07 JR
Wiring Diagrams (Cont'd)
Q1-DC-0508
30
Rev. 0508
DATE:
PROJECT TITLE:
DRAWING #:
DRAWN BY:
PRODUCTION ORDER #:
DRAWING TITLE:
DATE:
Hussmann Corporation, Int'l.
13770 Ramona Avenue
Chino, CA. 91710
(909)-590-4910 Lic.#: 644406
REVISIONS:
#: DESCRIPTION:
CHECKED BY:
BY:
FILE LOCATION:
JESSE RIOS
PAGE OF
?
10
11
03/8/07
Q1-DC-XS
03/8/07
Q1-DC-XS/Q1-DS-XS
Q1-DC-12S/Q1-DS-12S
W1750034-010
A Updated dwg; removed ballast fuse 5/10/07 JR
L
LIGHT SWITCH
TIPPETTE
125-01-0311
CIRCUIT #1
EVAP
FAN MOTOR
(3)0392457 .29A
LEDGE
LIGHTS(OPTIONAL)
SAFETY
SWITCH
FLOAT SWITCH
L1 L2
*
**
OMNI STAT PN 952911
-240VAC
POWER
SUPPLY
240Vac
PROD.
TEMP.
AIR
TEMP.
9
1 23
4 5
6 7
8
DEFROST TIMER
OMNI-STAT 240V - 50/60 Hz.
125-01-2300
CONDENSING UNIT
RLA= 6.2A
MCC= 9.7A
LRA= 34
R C
LIGHT SWITCH
TIPPETTE
125-01-0311
LIGHT SWITCH
TIPPETTE
125-01-0311
SWITCH
MOTOR START
SQ "D"
125-01-0271
BUNDLE
PURPLE
LABELED
EVAP PAN
CIRCUIT
BUNDLE
ORANGE
LABELED
LIGHT CIRCUIT
BUNDLE
BROWN
LABELED
FAN CIRCUIT
BUNDLE BLUE
LABELED
CONDENSING
UNIT CIRCUIT
TECUMSEH
HGA9462ZXDXM
208VAC, 60HZ
225-03-0101
FISHER™ EVAPOWAY™
DM15WW-3D (OPTIONAL)
1500W @ ~ 240 VAC
6.25A
125-01-0765A
(TWO MAXIMUM)
RJ-45 NETWORK JACK
125-01-0200
125-01-0202
CIRCUI T#2
~120 VAC - 1Ø -60 Hz
CIRCUIT #2
NOTE:
CASE MUST
BE GROUNDED
15.0L1
L2
L3
120 V
LOADING
OPTIONAL SCALE STAND
GFCI
DUPLEX
125-01-3178
W G BK
OPTIONAL
M M
M
BALLAST 125-01-3267
FULHAM LH4-120-L
L1 N
L1 L2
L1 N
L1 L2
BALLAST 125-01-3267
FULHAM LH4-120-L
F28T5-48"
125-03-1132
F28T5-48"
125-03-1132
F28T5-48"
125-03-1132
CAP OFF
WIRE
OPTIONAL
SENSOR
SENSOR
CPC
225-01-3260
BALLAST 125-01-3267
FULHAM LH4-120-L
BALLAST 125-01-3267
FULHAM LH4-120-L
BALLAST 125-01-3267
FULHAM LH4-120-L
CANOPY LIGHTS
F28T5-48"
125-03-1132
F28T5-48"
125-03-1132
F28T5-48"
125-03-1132
F28T5-48"
125-03-1132
F28T5-48"
125-03-1132
F28T5-48"
125-03-1132
M
M
M
AIR SWEEP
FANS
COMAIR™
MX2B1-E1
(3)125-01-2012
15W, .18A
~120 VAC - 60 Hz.
MCA= 2.6A
MOP= 15A
LIGHT CIRCUIT= 1.4A
BLACK # 14
WHITE # 14
LIGHT CIRCUIT= 0.7A
~120 VAC - 60 Hz.
MCA= 1.5A
MOP= 15A
~208/240 VAC - 60 Hz.
~208/240 VAC - 60 Hz.
MCA= 7.8A
MOP= 15A
MCA= 7.8A
MOP= 15A
BLACK # 14
WHITE # 14
BLACK # 14
RED # 14
BLACK # 14
RED # 14
Wiring Diagrams (Cont'd)
31

Appendices

Q1-DC-0508

Appendix A. - Temperature Guidelines - Refrigerated

The refrigerators should be operated according to the
manufacturer’s published engineering specications for entering air temperatures for specic equipment applications.
Table 1 shows the typical temperature of the air entering the food zone one hour before the start of defrost and one hour after defrost for various categories of refrigerators. Refer to Appendix C for Field Evaluation Guidelines.
Table 1
Type of Refrigerator
I. OPEN DISPLAY A. Non frozen:
1) Meat 28°F
2) Dairy/Deli 32°F
3) Produce a. Processed 36°F b. Unprocessed 45°F B. Frozen 0°F C. Ice Cream -5°F II. CLOSED DISPLAY A. Non frozen:
1) Meat 34°F
2) Dairy/Deli 34°F
3) Produce a. Processed 36°F b. Unprocessed 45°F B. Frozen 0°F C. Ice Cream -5°F
Single Deck Multi Deck Service Case Reach-In
I. Open Display Styles II. Closed Display Styles
Typical Entering Air Temperature
Appendix B. - Application Recommendations ­Refrigerated
1.0 Temperature performance is critical for controlling bacteria growth. Therefore, the following recommendations are included in the standard.
They are based on conrmed eld experience
over many years.
1.1 The installer is responsible for following the installation instructions and recommendations provided by Hussmann for the installation
of each individual type refrigerator.
1.2
Refrigeration piping should be sized according to the equipment manufacturer’s recommendations and installed in accordance with normal refrigeration practices. Refrigeration piping should be insulated according to Hussmann’s recommendations.
1.3 A clogged waste outlet blocks refrigeration. The installer is responsible for the proper installation of the system which dispenses condensate waste through an air gap into the building indirect waste system.
1.4 The installer should perform a complete start-up evaluation prior to the loading of food into the refrigerator, which includes such items as:
a) Initial temperature performance, Coils should
be properly fed with a refrigerant according to manufacturer’s recommendations.
b) Observation of outside inuences such
as drafts, radiant heating from the ceiling
and from lamps. Such inuence should be
properly corrected or compensated for.
c) At the same time, checks should be made of
the store dry-bulb and wet-bulb temperatures to ascertain that they are within the limits prescribed by Hussmann.
d) Complete start-up procedures should include
checking through a defrost to make certain of its adequate frequency and length without substantially exceeding the actual needs. This should include checking the electrical or refrigerant circuits to make sure that defrosts are correctly programmed for all the refrigerators connected to each refrigeration system.
e) Recording instruments should be used to
check performance.

Appendix C. - Field Recommendations - Refrigerated

Recommendations for eld evaluating the
performance of retail food refrigerators and hot cases.
1.0 The most consistent indicator of display refrigerator performance is temperature of the air entering the product zone (see Appendix A). In practical use, the precise determination of return
air temperature is extremely difcult. Readings of
return air temperatures will be variable and results will be inconsistent. The product temperature alone is not an indicator of refrigerator performance.
NOTE: Public Health will use the temperature of the product in
determining if the refrigerator will be allowed to display potentially hazardous food. For the purpose of this evaluation, product temperature above the FDA Food Code 1993 temperature for potentially hazardous food
will be the rst indication that an evaluation should
be performed. It is expected that all refrigerators will keep food at the FDA Food Code 1993 temperature for potentially hazardous food.
32
Rev. 0508
Appendices (Cont'd)
1.1 The following recommendations are made for the purpose of arriving at easily taken and understood data which, coupled with other observations, may be used to determine whether a display refrigerator is working as intended:
a) INSTRUMENT - A stainless steel stem-type
thermometer is recommended and it should have a dial a minimum of 1 inch internal diameter. A test thermometer scaled only in Celsius or dually scaled in Celsius and Fahrenheit shall be accurate to 1°C (1.8°F). Temperature measuring devices that are scaled only in Fahrenheit shall be accurate to 2°F. The thermometer should be checked for proper calibration. (It should read 32°F when the stem is immersed in an ice water bath).
b) LOCATION - The probe or sensing element
of the thermometer should be located in
the airstream where the air rst enters the
display or storage area, and not more than 1 inch away from the surface and in the center of the discharge opening.
c) READING - It should rst be determined
that the refrigerator is refrigerating and has operated at least one hour since the end of the last defrost period. The thermometer reading should be made only after it has been allowed to stabilize, i.e., maintain a constant reading.
d) OTHER OBSERVATIONS - Other
observations should be made which may indicate operating problems, such as unsatisfactory product, feel/appearance.
e) CONCLUSIONS - In the absence of any
apparent undesirable conditions, the refrigerator should be judged to be operating properly. If it is determined that such condition is undesirable, i.e., the product is above proper temperature, checks should be made for the following:
1. Has the refrigerator been loaded with warm product?
2. Is the product loaded beyond the “Safe Load Line” markers?
3. Are the return air ducts blocked?
4. Are the entering air ducts blocked?
5. Is a dumped display causing turbulent air
ow and mixing with room air?
6. Are spotlights or other high intensity lighting directed onto the product?
7. Are there unusual draft conditions (from heating/air-conditioning ducts, open doors, etc.)?
8. Is there exposure to direct sunlight?
9. Are display signs blocking or diverting
airow?
10. Are the coils of the refrigerator iced up?
11. Is the store ambient over 75°F, 55% RH as set forth in ASHRAE Standard 72 and ASHRAE Standard 117?
12. Are the shelf positions, number, and size other than recommended by Hussmann?
13. Is there an improper application or control system?
14. Is the evaporator fan motor/blade inoperative?
15. Is the defrost time excessive?
16. Is the defrost termination, thermostat (if used) set too high?
17. Are the refrigerant controls incorrectly adjusted?
18. Is the air entering the condenser above
design conditions? Are the condenser ns
clear of dirt, dust, etc.?
19. Is there a shortage of refrigerant?
20. Has the equipment been modied
to use replacements for CFC-12, CFC-502 or other refrigerant? If so,
have the modications been made in
accordance with the recommendations of the equipment manufacturer? Is the refrigerator charged with the proper refrigerant and lubricant? Does the system use the recommended compressor?
Appendix D. - Recommendations to User ­Refrigerated
1.0 Hussmann Corporation provides instructions and recommendations for proper periodic cleaning. The user will be responsible for such cleaning, including the cleaning of low temperature equipment within the compartment and the cooling coil area(s). Cleaning practices, particularly with respect to proper refrigerator unloading and warm-up, must be in accordance with applicable recommendations.
33
Appendices (Cont'd)
1.1 Cleaning of non frozen food equipment should include a weekly cleaning of the food compartment as a minimum to prevent bacteria growth from accumulating. Actual use and products may dictate more frequent cleaning. Circumstances of use and equipment design must also dictate the frequency of cleaning the display areas. Weekly washing down of the storage compartment is also recommended, especially for equipment subject to drippage of milk or other liquids, or the collection of vegetable, meat, crumbs, etc. or other debris or litter. Daily cleaning of the external areas surrounding the storage or display compartments with detergent and water will keep the equipment presentable and prevent grime buildup.
1.2 Load levels as dened by the manufacturer must
be observed.
1.3 The best preservation is achieved by following these rules:
a) Buy quality products. b) Receive perishables from transit equipment
at the ideal temperature for the particular product.
c) Expedite perishables to the store’s storage
equipment to avoid unnecessary warm-up and prolonged temperature recovery. Food store refrigerators are not food chillers nor can they reclaim quality lost through previous mishandling.
Q1-DC-0508
d) Care must be taken when cross
merchandising products to ensure that potentially hazardous vegetable products are not placed in non refrigerated areas.
e) Display and storage equipment doors should
be kept closed during periods of inactivity.
f) Minimize the transfer time of perishables
from storage to display.
g) Keep meat under refrigeration in meat cutting
and processing area except for the few moments it is being handled in processing. When a cut or tray of meat is not to be worked on immediately, the procedure should call for returning it to refrigeration.
h) Keep tools clean and sanitized. Since
mechanical equipment is used for fresh meat processing, all such equipment should be cleaned at least daily and each time a different kind of meat product comes in contact with the tool or equipment.
i) Make sure that all refrigeration equipment is
installed and adjusted in strict accordance with the manufacturer’s recommendations.
j) See that all storage and refrigeration
equipment is kept in proper working order by routine maintenance.
For further technical information, please log on to http://www.hussmann.com/products/Q1-DC.htm
34
Q1-DC-0508
Service Record
Last service date: By:
_______________ __________________________________________________________________________________________________
_______________ __________________________________________________________________________________________________
_______________ __________________________________________________________________________________________________
_______________ __________________________________________________________________________________________________
_______________ __________________________________________________________________________________________________
_______________ __________________________________________________________________________________________________
_______________ __________________________________________________________________________________________________
/Chino
Additional copies of this publication may be obtained by contacting:
Hussmann® Chino 13770 Ramona Avenue • Chino, California 91710 (909) 628-8942 FAX (909) 590-4910 (800) 395-9229
The MODEL NAME and SERIAL NUMBER is required in order to provide you with the correct parts and information for your particular unit.
They can be found on a small metal plate on the unit. Please note them below for future reference.
MODEL:
SERIAL NUMBER:
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
