Manual
Installation
& Operation
Rev.0303
/Chino
ESSS / ESS
Self Service Match ESC / ESCS
ESSS / ESS
Self Service Cases (Match ESC / ESCS)
p/n IGSS-ESSS / ESS-0303
INST ALLA TION & OP ERAT ION GUIDE
Table of Contents
IGSS-ESS/ESSS-0303
General Instructions
THIS BOOKLET CONTAINS INFORMATION ON:
General Instructions................................................. 2
Cut & Plan Views....................................................... 3
Installation ................................................................. 4
SETTING AND JOINING.........................................................................................4
JOINT TRIM........................................................................................................... 5
Plumbing.................................................................... 6
WASTE OUTLET AND P-TRAP .............................................................................. 6
Refrigeration ............................................................. 7
T-STAT LOCATION.................................................................................................. 7
Electrical .................................................................... 8
WIRING COLOR CODE ......................................................................................... 8
Joint T rim ................................................................... 9
User Information ...................................................... 9
STOCKING.............................................................................................................. 9
CASE CLEANING.................................................................................................... 10
PLEXIGLASS & ACRYLIC CARE.............................................................................. 10
PLEXIGLASS REPAIR ............................................................................................. 11
Maintenance .............................................................. 12
ELECTRICAL PRECAUTIONS...................................................................................12
REPLACING FLUORESCENT LAMPS ....................................................................... 12
TIPS & TROUBLESHOOTING ................................................................................. 12
Specifications............................................................. 13
Condensing Unit Data.............................................. 13

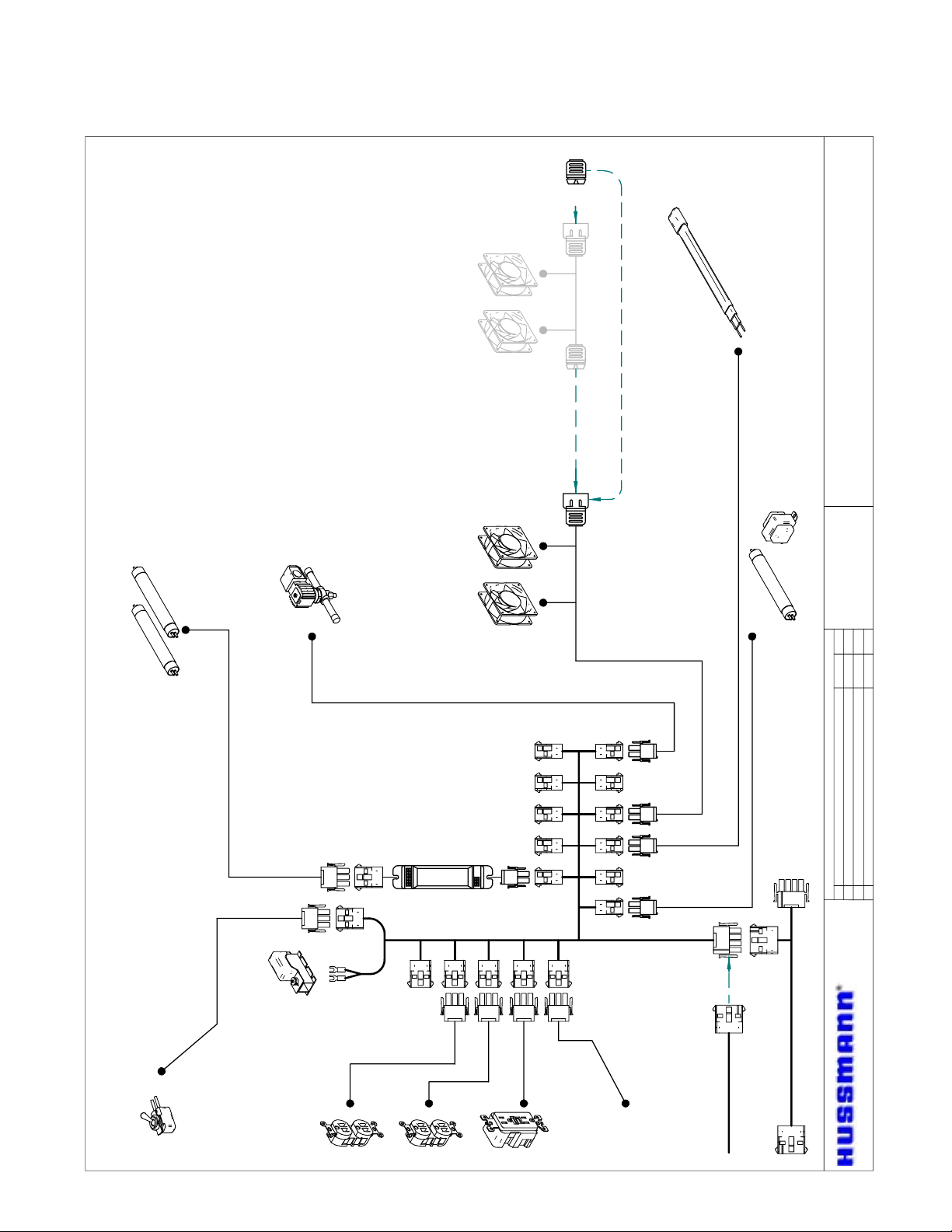

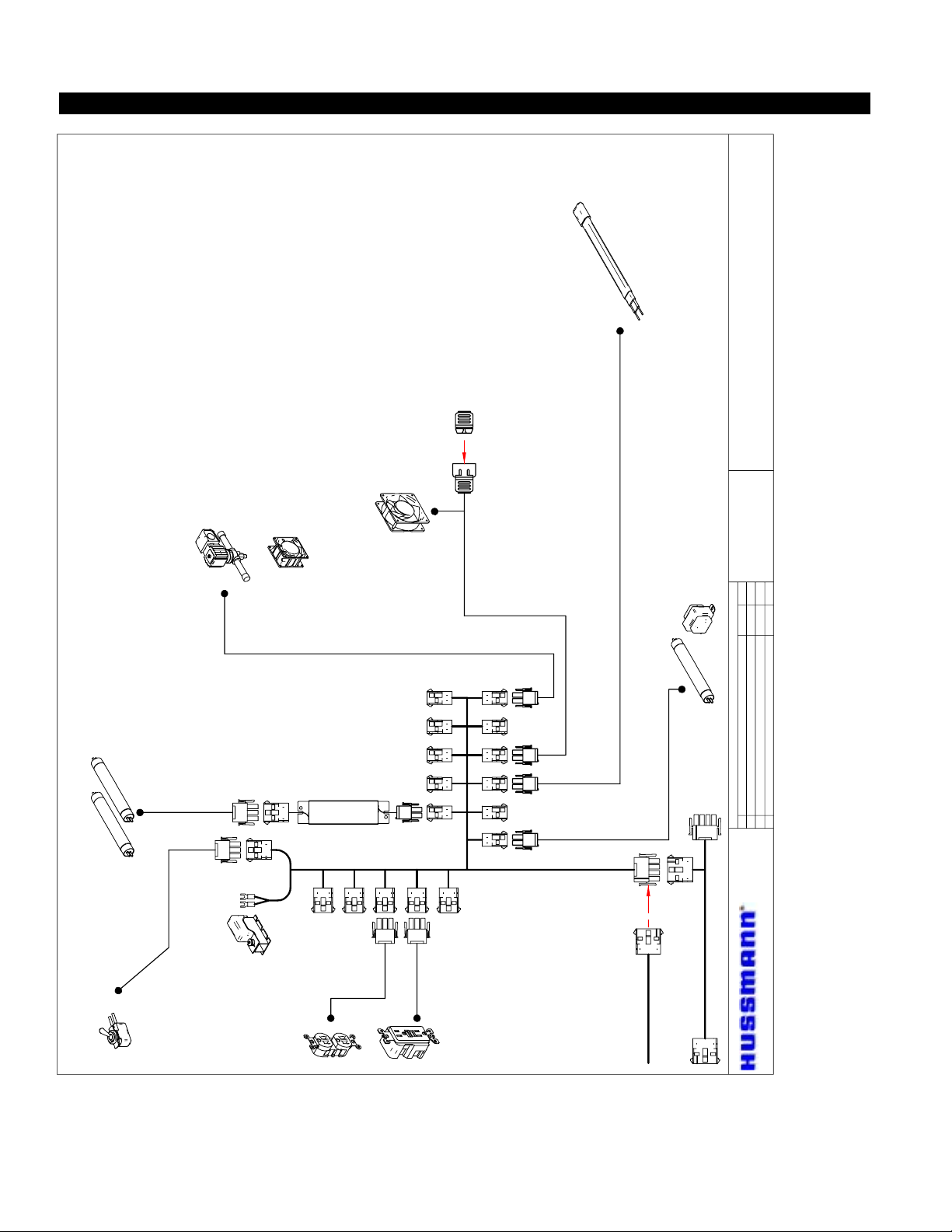

Electrical Schematics ............................................... 14
Appendices ................................................................ 20
APPENDIX A. – Temperature Guidlines..............................................................20
APPENDIX B. – Application Recommendations.................................................. 20
APPENDIX C. – Field Recommendations............................................................20
APPENDIX D. – Recommendations to user ....................................................... 21
ESSS: Refrigerated Self Service cases Matches Multideck Ser-
vice Cases
ESS: Refrigerated Self Service Case (Matches Single Deck
Service Case)
SHIPPING DAMAGE
All equipment should be thoroughly examined for shipping damage before and during unloading.
This equipment has been carefully inspected at our factory and the carrier has assumed responsibility for safe
arrival. If damaged, either a pparent or concealed, claim must
be made to the carrier.
APPARENT LOSS OR DAMAGE
If there is an obvious loss or damage, it must be noted on
the freight bill or express r eceipt and signed by the carrier’ s
agent; otherwise, carrier ma y r efuse claim. The carrier will
supply necessary claim forms.
CONCEALED LOSS OR DAMAGE
When loss or damage is not apparent until after equipment
is uncrated, a claim for concealed damage is made. Make
request in writing to carrier for inspection within 15 da ys,
and retain all packaging. The car rier will suppl y inspection
report and required claim forms.
SHORTAGES
Check your shipment for any possible shortages of material. If a shortage should exist and is found to be the responsibility of Hussmann Chino, notify Hussmann Chino. If
such a shortage involves the carrier, notify the carrier imme-
diately, and request an inspection. Hussmann Chino will
acknowledge shortages within ten days from receipt of
equipment.
HUSSMANN CHINO PRODUCT CONTROL
The serial number and shipping date of all equipment has
been recorded in Hussmann’s files for warranty and replacement part purposes. All correspondence pertaining
to warranty or parts ordering must include the serial number of each piece of equipment involved, in order to provide the customer with the correct parts.
Keep this booklet with the case at all times for future reference.
/Chino
A publication of
Hussmann® Chino
13770 Ramona A ven ue • Chino, California 91710
(909) 628-8942 FAX
(909) 590-4910
(800) 395-9229
The Hussmann warranty is printed on the back
of this guide.
2
Rev.0303
ESSS
Cut & Plan Views
5 1/8"
"
4
/
1
7
18"
36"
"
8
/
1
11
10
1
/2"
31"
2 1/8"
43 5/8"
ESS
Self-Service
Scale = 1/2"
8"
8"
DRAIN AND
ELECTRICAL
MECHANICAL
STUB UP
AREA
18" X 18"
1" 1"
CASE FRONT
8'-2"
(VARIABLE LENGTHS)
ESS (ESSS)
Plan View
Scale = 1/4"
REFRIG.
MECHANICAL
STUB UP
AREA
18" X 18"
5
"
8
/
43
"
8
/
5
34
")
4
/
3
" / 46
4
/
1
(49
"
1
6
1
1
1
1
/
2
/
1
1
le
b
ia
r
a
V
s
h
t
g
n
e
L
1
2
"
R
L
V
a
r
ia
b
le
L
e
n
g
t
h
s
FRONT
30° INSIDE WEDGE
V
a
r
ia
b
le
L
e
n
g
t
h
s
L
R
1
1
1
1
/
1
6
1
"
FRONT
le
b
ia
r
a
V
s
h
t
g
n
e
L
1
"
2
/
2
30° OUTSIDE WEDGE
3
5
/4"
Light
36"
"
4
/
1
34
"
8
/
1
19
11"
1
2
13
5
/8"
46
31"
3
/4"
/8"
ESSS
Self-Service
Scale = 1/2"
1
"
3
9
3
4
/
/
L
FRONT
8
"
R
V
a
r
i
a
b
L
l
e
e
n
g
t
4
h
s
4
3
6
5
/
3
8
/
"
4
"
7
1
e
l
b
a
i
r
s
a
h
V
t
g
n
e
4
4
3
6
5
3
/
/
8
4
"
"
L
45° INSIDE WEDGE
4
4
4
4
6
3
3
5
/
4
/
8
"
"
V
a
r
i
a
b
L
l
e
e
n
g
t
h
s
L
1
7
3
/
4
"
1
FRONT
a
i
r
a
V
g
n
e
L
R
"
3
8
/
9
6
3
3
5
/
e
l
b
h
t
4
/
"
8
s
"
45° OUTSIDE WEDGE
4
6
4
3
3
/
5
4
"
/
8
Variable
Lengths
17
3
/
1
/2"
10
C
L
4
"
46"
1
49
/4"
R
Variable
Lengths
17
"
"
4
/
3
FRONT
90° OUTSIDE WEDGE
3
Installation
LOCATION
The refrigerated merchandisers have been designed for
use only in air conditioned stores where temperatur e and
humidity are maintained at or below 75°F and 55% relative humidity . DO NO T allow air conditioning, electric fans,
ovens, open doors or windows (etc .) to create air currents around the merchandiser, as this will impair its correct operation.
Product temperature should always be maintained at a
constant and proper temperature. This means that from
the time the product is received, through storage, preparation and display, the temperature of the product must
be controlled to maximize life of the pr oduct.
UNCRA TING THE ST AND
Place the fixture as close to its permanent position as
possible. Remove the top of the crate. Detach the walls
from each other and remove from the skid. Unbolt the
case from the skid. The fixture can now be lifted off the
crate skid. Lift only at base of stand!
EXTERIOR LOADING
These models have not been structurally designed to sup-
port excessive external loading. Do not walk on their
tops; This could cause serious personal injury and damage to the fixture.
SETTING AND JOINING
The sectional construction of these models enable them
to be joined in line to give the effect of one continuous
display. A joint trim kit is supplied with each joint.
LEVELING AND PLACEMENT
IMPOR TANT! It is imperative that cases be leveled from front to back and side to side prior to
joining.
NOTE: A. To avoid removing concrete flooring, begin lineup
leveling from the highest point of the store floor.
B. When wedges are involved in a lineup, set them first.
All cases were leveled and joined prior to shipment to
insure the closest possible fit when cases are joined in the
field. When joining, use a carpenters level and shim legs
accordingly. Case must be raised correctly, under legs
where support is best, to prevent damage to case.
1. Check level of floor where cases ar e to be set.
Determine the highest point of the floor; cases will
be set off this point.
2. Set first case, and adjust legs over the highest part of
the floor so that case is level. Prevent damage – case
must be raised under leg or by use of 2x6 or 2x4 leg
brace. Remove side and back leg braces after case is
set.
3. Set second case as close as possible to the first case,
and level case to the first using the instructions in
IGSS-ESS/ESSS-0303
step one.
JOINING - ESSS
1. Apply masking tape 1/8" in from end of case on
inside and outside rear mullion on both cases to be
joined.
2. Apply liberal bead of case joint sealant (butyl) to
dotted area shown in (Fig.2, #1) of first case. Apply
heavy amount to cov er entire shaded area.
DO NO T USE PERMAGUM!
It is the contractor’s responsibility to install
case(s) according to local construction and
health codes.
3. Slide second case up to first case snugly . Then lev el
second case to the first case so glass front, bumper
and top are flush.
4. To compress silicone at joint, use two Jurgenson
wood clamps. Mak e sure case is lev el from front to
back and side to side on inside bulkheads at joint.
5. Attach sections together via a 2 bolts located in the
base of the case. Secure the ov erhead structure by
bolting the bracket, located inside behind lights.
6. Apply bead of silicone to top of bulkheads.
7. Slip on stainless steel bulkhead cap. Also apply
silicone to seam between overhead light tubes.
8. Recheck all camlocks.
JOINING - ESS
1. Using a 7mm Allen Wrench, lock in and close the
three camlock.
4
Rev.0303
Installation (cont.)
Do not use cam locks to pull cases together.
2. Secure joint backer. Located behind cart bumper
suport at joints. T o adjust scr ews holding bumper
cart to case on either side or the joint and slide
extrusion to center of joint. This piece supports the
fornt panel at the joint.
3. Apply bead of silicone to top of bulkheads.
4. Slip on stainless steel bulkhead cap. Also apply
silicone to seam between overhead light tubes.
5. Recheck all camlocks.
CORNER WEDGES
If a wedge is used in the middle of the lineup, the wedge
must be set off the highese point on the floor FIRST, with
the rest of the lineup being leveled from that point.
If an outside corner display is used, it must be mounted
and set before attaching any joint trim parts. Set the front
stainless steel bumper so it aligns with bumpers on the
two cases.
ESSS
Anchor woth bolts through brack et hjoles on legs of cases.
Install rear stianless steel plate with shelf standards to back
edge of ends with screws. Install brackest and shelves.
Next, connect applicable electrical, refrigeration, water , and
drain lines throug the access panels in the side of the stand.
After the cases have been leveled and joined, and refrigeration, electrical, and waste paping work completed, install the splashguards. (See instructions in the “Finishing
Touches” section of this booklet). Fasten along the top
edge, or center, with #10 x 3/4” sheet metal screws in the
pre-drilled holes.
ESS
REFRIGERATED
Inside Wedge: Line up taper pins with holes on adjoining
case. Turn camlock to lock in. Two camlocks are located at
the rear of the case behind the air discharge and behind
the lower electrical raceway panel. Bolt the front of the
wedge into the adjoining case. In refrigerated cases, the
bolt is located under the pans in the front. In the hot case,
the cases are bolted together by means of a bracket located behind the front panel. Remove the front panel by
lifting up and then sliding out.
Outside wedge: Taper pin and camlock locations are the
same as a standard case.
DRY
Inside Wedge: Bolt the w edge into the sides of the adjoining case. Use bolts provided.
Inside Pedestal Wedge: Set wedge on the adjoining case’s
mounting brackets located at the base of the unit, and
bolt down. Drive screws provided through the sides of
the wedge (4 screws per side), accessible through the back
of the wedge.
COMMON END BETWEEN UNLIKE CASES AND HOT
CASES
Bolt end onto case using bolts provided in pr e-drilled holes
behind front panel through brakcet provided and in the
rear behind the rear access panel on the bottom. Hot
cases are onlu bolted in two places. Common ends between refrigerated cases are bolted together the air discharge panel. Remove air discharge panel by lifting up and
out.
Nex connect applicable electrical, r efrigeration, water , and
drain lines.
JOINT TRIM
After cases have been leveled and joined, and refrigeration, electrical, and wasted piping work completed, install
the splashguards. Fasten along the top edge, or center, with
#10 X 3/3" sheet metal screws.
D
O NOT SEAL JOINT TRIM TO FLOOR!
5
Plumbing
WASTE OUTLET AND P-TRAP
The waste outlet is located off the center of the case on
one side allowing drip piping to be run lengthwise under
the fixture.
A 1-1/2" P-trap and threaded adapter are supplied with
each fixture. The P-trap must be installed to prevent air
leakage and insect entrance into the fixture.
NOTE: PVC-DWV solvent cement is recommended.
Follow the manufacturer’s instructions.
INSTALLING CONDENSATE DRAIN
Poorly or improperly installed condensate drains can seriously interfere with the operation of this refrigerator,
and result in costly maintenance and pr oduct losses. Please
follow the recommendations listed below when installing
condensate drains to insure a proper installation:
1. Never use pipe for condensate drains smaller than
the nominal diameter of the pipe or P-trap supplied
with the case.
2. When connecting condensate drains, the P-trap
must be used as part of the condensate drain to
prevent air leakage or insect entrance. Store plumbing system floor drains should be at least 14" off the
center of the case to allow use of the P-trap pipe
IGSS-ESS/ESSS-0303
section. Nev er use two water seals in series in any
one line. Double P-traps in series will cause a lock
and prevent draining.
3. Always pr ovide as much down hill slope (“fall”) as
possible; 1/8" per foot is the pr eferred minimum.
PVC pipe, when used, must be supported to maintain the 1/8" pitch and to prevent warping.
4. Avoid long runs of condensate drains. Long runs
make it impossible to pro vide the “fall” necessary for
good drainage.
5. Provide a suitable air break betw een the flood rim of
the floor drain and outlet of condensate drain. 1" is
ideal.
6. Prevent condensate drains fr om freezing:
a. Do not install condensate drains in contact with
non-insulated suction lines. Suction lines should be
insulated with a nonabsorbent insulation material
such as Armstrong’s Armaflex.
b. Where condensate drains are located in dead air
spaces (between refrigerators or betw een a
refrigerator and a wall), provide means to pr event
freezing. The water seal should be insulated to
prevent condensation.
6
Rev.0303
S
L
S
B
Refrigeration
REFRIGERANT TYPE
The standard refrigerant will be R-22 unless otherwise
specified on the customer order. Check the serial plate
on the case for information.
PIPING
The refrigerant line outlets are located under the case.
Locate first the electrical box, the outlets are then on the
same side of the case but at the opposite end. Insulate
suction lines to prevent condensation drippage.
REFRIGERATION LINES
LIQUID SUCTION
3/8" O.D. 5/8" O.D.
NOTE: The standard coil is piped at 5/8" (suction); however,
the store tie-in may vary depending on the number of
coils and the draw the case has. Depending on the case
setup, the connecting point in the store may be
5
/8", 7/8", or 11/8". Refer to the particular case you are
hooking up.
Refrigerant lines should be sized as shown on the refrigeration legend furnished by the store.
Install P-traps (oil traps) at the base of all suction line ver tical risers.
Pressure drop can rob the system of capacity. To keep the
pressure drop to a minimum, keep refrigerant line run as
short as possible, using the minimum number of elbows.
Where elbows are required, use long radius elbows only.
CONTROL SETTINGS
See the “Case Specs” section of this guidebook for the
appropriate settings for y our merchandiser . Maintain these
parameters to achieve near constant product temperatures. Pr oduct temperature should be measured first thing
in the morning, after having been refrigerated overnight.
For all multiplexing, defrost should be time terminated.
Loadmaster valves are not recommended. Defrost times
should be as follows: OFF CYCLE - One time daily for
110 minutes. The number of defrosts per da y should never
change. The duration of the defrost cycle ma y be adjusted
to meet conditions present at your location.
ACCESS TO TX VALVES & DRAIN LINES
MECHANICAL - Remove product fr om end of case. Remove
product racks. Remo ve refrigeration and drain access panels
(labeled). TX valve (mechanical only) and drain are located
under each access panel at end of the case.
ELECTRONIC - The Electr onic Expansion valve master and
slave cylinder(s) are located within the electrical access
panel(s).
ELECTRONIC EXPANSION VALVE (OPTIONAL)
A wide variety of electronic expansion valves and case
controllers can be utilized. Please refer to EEV and controller manufacturers inf ormation sheet. Sensors for elec-
tronic expansion valves will be installed on the coil inlet,
coil outlet, and in the discharge air. (Some supermarkets
require a 4th sensor in the return air). Case controllers
will be located in the electrical racewa y or under the case
THERMOSTATIC EXPANSION VALVE LOCATION
This device is located on the same side as the refrigeration stub. A Sporlan balanced port expansion valve model
is furnished as standard equipment, unless otherwise specified by customer.
EXP ANSION V AL VE ADJUSTMENT
Expansion valves must be adjusted to fully feed the e vaporator. Before attempting any adjustments, make sure the
evaporator is either clear or very lightly covered with frost,
and that the fixture is within 10°F of its expected operating temperature.
MEASURING THE OPERATING SUPERHEAT
1. Determine the suction pressure with an accurate
pressure gauge at the e vaporator outlet.
2. From a refrigerant pr essure temperature chart,
determine the saturation temperature at the
observed suction pressure.
3. Measure the temperature of the suction gas at the
thermostatic remote bulb location.
4. Subtract the saturation temperature obtained in step
No. 2 fr om the temperature measured in step No. 3.
3. The difference is superheat.
5. Set the superheat for 5°F - 7°F.
T-STAT LOCATION
T-Stats are located within the electrical raceway. Refer to
diagram below .
DY
OPTIONAL
OPTIONAL
ESS
OPTIONAL
T-stats are located in the front electrical race way and can
be adjusted through the knock out hole without removing
any panels. The sensing bulb is in the discharge air.
ESSS
T-stat is located in the rear electrical raceway and can be
adjusted through the knock out hole without removing any
panels. The sensing bulb is in the discharge air. If the optional front electrical raceway is installed, the T-stat is located in the font electrical raceway and can be adjusted
through the knockout hole in the front closeoff without
removing any panels.
7
Electrical
S
L
S
B
WIRING COLOR CODE
GREEN GROUND
PURPLE ANTI-SWEAT
ORANGE LIGHTS
YELLOW RECEPTACLE
RED / BLACK T-STAT /SOLENOID230V
BLACK / WHITE T-STAT / S O L E N O I D 115V
BROWN FAN MOTORS
CASE MUST BE GROUNDED
NOTE: Refer to label affixed to case to determine the actual
configuration as checked in the “TYPE INSTALLED” boxes.
ELECTRICAL CIRCUIT IDENTIFICATION
Standard lighting for all models will be full length fluorescent lamps located within the case at the top.
The switch controlling the lights, the plug provided for
digital scale, and the thermometer ar e located at the r ear
of the case mullion.
The receptacle that is provided on the exterior back of
these models is intended for computerized scales with a
five amp maximum load, not for large motors or other
high wattage appliances. It should be wired to a dedicated
circuit.
ELECTRICAL SERVICE RECEPTACLES
(When Applicable)
The receptacles located on the exterior of the merchandiser are intended for scales and lighted displa ys. They
are not intended nor suitable for large motors or other
external appliances.
IGSS-ESS/ESSS-0303
BEFORE SERVICING
ALWAYS DISCONNECT ELECTRICAL
POWER AT THE MAIN DISCONNECT
WHEN SERVICING OR REPLACING ANY
ELECTRICAL COMPONENT.
This includes (but not limited to) Fans, Heat-
ers, Thermostats, and Lights.
FIELD WIRING & SERIAL PLATE AMPERAGE
Field Wiring must be sized for component amperes
printed on the serial plate. Actual ampere draw may be
less than specified. Field wiring from the refrigeration
control panel to the merchandisers is r equired for r efrigeration thermostats. Most component amper es are
listed in the “Case Specs” section, but always check the
serial plate.
BALLAST LOCATION
Ballasts are located within the access panel that runs
the length of the rear of the case. See T-stat location
for placement, as they are in the same location.1
DY
OPTIONAL
OPTIONAL
OPTIONAL
8
Rev.0303
ESSS Only
(ESS dows not have joint trim)
JOINT BACKER
LOCATION
CAMLOCK
LOCATION
CAMLOCK
ACCESS
PANEL
BOLT INSIDE
WEDGES
APPLY SEALANT
TO SHADED AREA
SEAL AROUND PIPING
ACCESS HOLES
CAMLOCK
&
SEALANT
LOCATIONS
Joint Trim
CAMLOCK
LOCATIONS
User Information
STOCKING
Improper temperature and lighting will cause serious pr oduct loss. Discoloration, dehydration and spoilage can be
controlled with proper use of the equipment and handling
of product. Product temperature should always be maintained at a constant and proper temperature. This means
that from the time the product is received, through storage, preparation and displa y, the temperature of the pr oduct must be controlled to maximize life of the product.
Hussmann cases were not designed to “heat up” or “cool
down” product—but rather to maintain an item’s proper
temperature for maximum shelf life. To achieve the protection required always:
1. Minimize processing time to a void damaging temperature rise to the product. Product should be at
proper temperature.
2. K eep the air in and around the case area fr ee of
foreign gasses and fumes or food will rapidly deteriorate.
3. Maintain the display mer chandisers temperature
controls as outlined in the refrigerator section of
this manual.
4. Do not place any product into these r efrigerators
until all controls ha ve been adjusted and they are
operating at the proper temperature. Allow mer chandiser to operate a minimum of 6 hours before
stocking with any product.
5. When stocking, nev er allow the product to extend
beyond the recommended load limit. Air dis-
charge and return air flue must be unobstructed at all times to pro vide proper refrigeration.
6. There are v ents located at the base of the front of
the glass, just abov e the front rail. These vents supply
a continuous, gentle flow of air acr oss the front glass
which inhibits condensation. Do not place any
signs or other restrictive objects on the fr ont
of the refrigerator that will block these v ents.
7. Keep the service doors closed (when applicable).
Refrigeration performance will be seriously affected
if left open for a prolonged period of time.
8. Avoid the use of supplemental flood or spot lighting.
Display light intensity has been designed for maximum visibility and product life at the factory . The use
of higher output fluorescent lamps (H.O . and V.H.O.),
will shorten the shelf life of the product.
9. In the Deli, Meat and Fish cases, completely cover
the product each night with a clean damp cloth or
butcher paper (never use plastic, as it does not allow
for proper circulation). Make sure the cloth or paper
is in direct contact with the product.
10.Turn and rotate the meat fairly often. The blood
which gives the pink color works its wa y downward
with time.
11.Cold coils remove heat and moistur e from the case
and deposit this as frost onto the coil. Thus, a
defrost is requir ed. Our humidity system induces
moisture into the case and helps slow down the
9
IGSS-ESS/ESSS-0303
dehydration pr ocess. The only other moisture
within the case is that in the product itself. A single
level of meat will dry out faster than a fully loaded
case of 3–4 levels of meat.
IMPORTANT STEPS
1. Do not set temperature too cold, as this causes
product deh ydration. Product T emperature:
33°–35°!
Set thermostat to cut in at 28° discharge air . Meat
holding box: 32°. Meat prep room: 55°. Meat bloom
box: 36°.
Process the meat to enter case at 40° or below .
Product deterioration is very rapid abov e 40°.
2. Temperature control should be by means of a T-Stat
and Suction Stop Solenoid at each case. Do not use
EPR valves, Liquid Line Solenoids or electr onic
control devices of an y kind, as these allow temperature swings causing deh ydration and excessive
energy consumption.
3. Product should be work ed and rotated on a regular
basis, not to exceed a 4-hour period.
4. At night, turn off case lights and cov er the product
with a damp (not wet) cloth similar to cheese cloth
(etc.). This should be washed out in the morning and
kept in a walk-in box during the da y—so that it is
cool and moist when covering the product.
5. Discharge air temperature should be appr oximately
26°F, with between 150-200 FPM air velocity. Do not
display pr oduct directly within the air discharge.
6. Clean Humidity system a minimum of every 90 da ys
for proper system operation.
CASE CLEANING
Long life and satisfactory performance of any equipment
are dependent upon the care giv en to it. To insure long life,
proper sanitation and minimum maintenance costs, the
refrigerator should be thoroughly cleaned frequently . SHUT
OFF FAN DURING CLEANING PROCESS. It can be unplugged within the case, or shut off case at the source. The
interior bottom may be cleaned with any domestic soap
or detergent based cleaners. Sanitizing solutions will not
harm the interior bottom, howe ver , these solutions should
always be used accor ding to the manufacturer’ s directions.
It is essential to establish and regulate cleaning procedur es.
This will minimize bacteria causing discoloration which
leads to degraded product appearance and signifigantly
shortening product shelf life.
Soap and hot water are not enough to kill this bacteria. A
sanitizing solution must be included with each cleaning process to eliminate this bacteria.
1. Scrub thoroughly , cleaning all surfaces, with soap and
hot water .
2. Rinse with hot water , but do not flood.
3. Apply the sanitizing solution according to the
manufacturer’ s dir ections.
4. Rinse thoroughly .
5. Dry completely before resuming operation.
CLEANING GLASS & MIRRORS
Only use a soft cloth and mild glass cleaner for cleaning
any glass or mirrored components. Be sure to rinse and/
or dry completely .
Never use hot water on cold glass surfaces! It
may shatter and cause serious injury! Allow glass
surfaces to warm first.
CLEANING PRECAUTIONS
WHEN CLEANING:
• DO NOT USE HIGH PRESSURE WATER HOSES
• DO NOT INTRODUCE WATER FASTER THAN WASTE OUTLET CAN DRAIN
• NEVER ON A SELF CONTAINED UNIT WITH AN EVAPORATOR FAN
• NEVER USE A CLEANING OR SANITIZING SOLUTION THAT HAS AN OIL
BASE (these will dissolve the butyl sealants) or an AMMONIA BASE
(this will corrode the copper componets of the case)
TO PRESERVE THE ATTRACTIVE FINISH:
• DO USE WATER AND A MILD DETERGENT FOR THE EXTERIOR ONLY
• DO NOT USE ABRASIVES OR STEEL WOOL SCOURING PADS
(these will mar the finish)
PLEXIGLASS & ACRYLIC CARE
CLEANING
Clean with plenty of nonabrasive soap (or detergent) and
luke warm water, using the bare hand to f eel and dislodge
any caked-on dirt. A soft, grit-free cloth, sponge or chamois may be used, but only as a means of carrying the water
to the plastic. Dry with a clean damp chamois or clean
soft cloth such as cotton flannel. Hard, rough cloths or
paper towels will scratch the acrylic and should not be
used.
WAXING
If after removing dirt and grease, the acrylic can be waxed
with a good grade commercial wax. This will improve the
appearance of the surface by filling in most minor scratches.
Wax should be a pplied in a thin ev en coat and br ought to
a high polish by rubbing lightly with a dry clean soft cloth,
such as a cotton flannel. Excessive rubbing may cause
scratching and/or buildup an electrostatic charge which
10
Rev.0303
attracts dust and dirt to the surface. Blotting with a clean
damp cloth is recommended to remove charge.
ANTISTATIC COATINGS
For acrylic used indoors, antistatic coatings successfully
prevent the accumulation of an electrostatic charge for
periods of several months—if the surface is not washed
or wiped down with a wet cloth. Between applications of
the antistatic coatings, the parts need only be dusted with
a soft clean cloth to maintain a good appearance. In use ,
liquid antistatic coatings should be applied in a very thin
even coat. If beads appear as it is applied, the coat is too
thick and the excess should be removed with another cloth.
Allow the coating to dry , then bring to a high gloss with a
soft cloth.
PLEXIGLASS REPAIR
plastic
rod
masking
tape
PARTS LIST
acrylic
cement
• 1" Plastic rod 3/16" diameter
•Acrylic Solvent Cement (IPS weldon #16, #40 or
comparable)
• Masking tape & duct tape (not supplied)
INSTRUCTIONS
Note: Cases must be leveled and set prior to joining
plexiglass. Cases were prejoined, leveled and set
at the factory to assure proper fit at the installation.
Step 1 Prepare front plexiglass for cement applica-
tion by placing masking tape, a maximum 1/16
of an inch from the seam, on both sides front
and back. Tape is to protect plexiglass from
cement spill over. Scarring will occur if cement
touches clear plexiglass.
Step 2 Sand edges with 60-80 grit paper. Parts must
fit well with no visual gap. Keep plexiglass
clean and clear of dust.
Step 3 Remove protectiv e mask fr om plexiglass.
Separate front plexiglass pieces enough to
apply a bead of #16 cement within one edge
inside of seam and plastic rod area. If Weldon
#40 was supplied, refer to the instructions
below.
Step 4 Realign front plexiglass and push together
gently allowing cement to wet both surfaces.
Insert the plastic rod until flush with top of
plexiglass.
Step 5 Clamp firmly and apply tape (2" duct tape
recommended) across face of seam to secure
plexiglass from shifting while cement dries.
Allow 24 hours for glue to cure completely,
however joint will be strong enough to work
on after 2 hours.
INSTRUCTIONS FOR #40 WELD-ON CEMENT
INSTRUCTIONS:
Step 1 Bring components "A" and "B" to room
temperature.
Step 2 Add component "A" to component "B". Items
have been pre-measured at the factory.
Step 3 Stir mixture slowly and evenly to prevent air
bubbles. Mix for 1-3 minutes.
Step 4 Apply cement to one or both surfaces with
applicator. Assemble immediately!
Step 5 Apply just enough pressure to remove air
bubbles. Do not squeeze joint so hard as to
force cement out of the joint – a dry joint
may result.
Step 4 Allow to dry approximately 4 hours (at 70°).
More time may be required at lower temperatures.
11
Maintenance
IGSS-ESS/ESSS-0303
ELECTRICAL PRECAUTIONS
BEFORE SERVICING – Always disconnect
electrical power at the main disconnect when
servicing or replacing any electrical component
This includes (but not limited to) Fans, Heaters,
Thermostats, and Lights.
REPLACING FLUORESCENT LAMPS
Fluorescent lamps are furnished with moisture resistant
lamp holders, shields and end caps. Whene ver a florescent
lamp is replaced, be cer tain to reinstall the lamp shield
and end caps over the lamp . The lamps supplied are single
slim-line or bi-pin type with or without starters.
T- 5 REPLACEMENT
After replacing the T-5 bulbs, be sure to turn the light(s)
off then on again.
EVAPORATOR FANS
The evaporator fans are located at the center front of
these merchandisers directly beneath the display pans.
Should fans or blades need servicing, always replace f an blades
with the raised embossed side of the blade TOWARD THE
MOTOR.
COPPER COILS
The copper coils used in Hussmann merchandisers may
be repaired in the field. Materials are available from local
refrigeration wholesalers.
Hussmann recommends using #15 Sil-Fos for repairs.
TIPS & TROUBLESHOOTING
Before calling for service, check the following:
1. Check electrical power supply to the equipment for
connection.
2. Check fixture loading. Ov erstocking case will affect
its proper operation.
3. If frost is collecting on fixture and/or pr oduct, check
that Humidity Control is working pr operly , and that
no outside doors or windows are open—allowing
moisture to enter store.
FOR PROMPT SERVICE
When contacting the factory,
be sure to have the Case Model and Serial
Number handy. This information is on a plate
located on the case itself.
12
Rev.0303
Specifications
ModelRefrigeration Average Disch. Air T~Stat Coil Fan Blade Qty. Defrosts Elec. Load (Amps) @ ~115 VAC
&Btu / Hr.Temperatures (°F) Speed Settings Type Size (in) & Evap. per day Fans Fans Case Case
Length Application (Ft.) (Total) Evap. Prod. Disch. (CFM) (°F) Pitch ( ° ) Fans Min. Qty. Eng. Eff. Std. Warmer Lights
ESS
4' Deli 550 3,300 20° 36° 28° 300 26° Forced Air 8" x 10° 1 40 3 0.33 0.66 0.35 0.59
6' Deli 550 3,300 20° 36° 28° 300 26° Forced Air 8" x 10° 2 40 3 0.66 1.20 0.52 0.59
8' Deli 550 4,400 20° 36° 28° 300 26° Forced Air 8" x 10° 2 40 3 0.66 1.20 0.70 0.59
10' Deli 550 5,500 20° 36° 28° 300 26° Forced Air 8" x 10° 3 40 3 0.99 1.80 0.87 0.59
12' Deli 550 6,600 20° 36° 28° 300 26° Forced Air 8" x 10° 3 40 3 0.99 1.80 1.04 0.59
ESS - Wedges
45° I nside - Deli 1,650 20° 36° 28° 200 28° Forced Air 8" x 10° 1 40 3 0.33 0.60 0.26 0.61
90° I nside - Deli 3,850 36° 28° 28° 200 28° Forced Air 8" x 10° 1 40 3 0.33 0.60 0.43 0.61
ESS - 72" Tall
4' Deli 30 50 1/3 115 10.9
6' Deli 30 50 1/3 115 10.9
8' Deli 30 50 3/4 208 /230 8.7
10' Deli 30 50 3/4 208 /230 8.7
12' Deli 30 50 1 208 /230 13.0
Meat / Fish 650 2,600 20° 33° 26° 300 26° Forced Air 8" x 10° 1 40 3 0.33 0.60 0.35 0.59
Meat / Fish 650 3,900 20° 33° 26° 300 26° Forced Air 8" x 10° 2 40 3 0.66 1.20 0.52 0.59
Meat / Fish 650 5,300 20° 33° 26° 300 26° Forced Air 8" x 10° 2 40 3 0.66 1.20 0.70 0.59
Meat / Fish 650 6,500 20° 33° 26° 300 26° Forced Air 8" x 10° 3 40 3 0.99 1.80 0.87 0.59
Meat / Fish 650 7,800 20° 33° 26° 300 26° Forced Air 8" x 10° 3 40 3 0.99 1.80 1.04 0.59
Inside - Meat 1,950 33° 24° 26° 200 28° Forced Air 8" x 10° 1 40 3 0.33 0.60 0.26 0.61
Outside - Deli 1,650 36° 28° 28° 200 28° Forced Air 8" x 10° 1 40 3 0.33 0.60 0.09 0.61
Outside - Meat 1,950 33° 24° 26° 200 28° Forced Air 8" x 10° 1 40 3 0.33 0.60 0.09 0.61
Inside - Meat 4,550 33° 24° 26° 200 28° Forced Air 8" x 10° 1 40 3 0.33 0.60 0.43 0.61
Outside - Deli 3,850 36° 28° 28° 200 28° Forced Air 8" x 10° 1 40 3 0.33 0.60 0.09 0.61
Outside - Meat 4,550 33° 24° 26° 200 28° Forced Air 8" x 10° 1 40 3 0.33 0.60 0.09 0.61
Condensing Unit Data
Set (PSI) Size VoltageAmpacity
Out In (HP) (VAC)
Meat / Fish 30 50 1/3 115 10.9
Meat / Fish 30 50 1/2 115 19.9
Meat / Fish 30 50 3/4 208 /230 8.7
Meat / Fish 30 50 1 208 /230 13.0
Meat / Fish 30 50 1 208 /230 13.0
13
NOTES:These refrigerated merchandisers have been designed for use in stores where temperatures and humidity are maintained at or below 75°F and 55%RH.
Stores are responsible for setting their cases approprately in conditions which vary from the above. The number of defrosts and/or the duration may vary
Electrical Schematics
Light Switch
Overhead Canopy Lights
Ledge Light
(Optional)
Ballats
WH3-120-164
(125-04-0118)
Thermostat
Suction Solenoid
Duplex Receptacles
GFCI Dedicated
Line
Evaporator Fan
Cap
Case to Case Harness
Single case Pigtail
F17T8-SPX30 (2)
125-04-0101
125-04-0110
125-04-0111
125-04-0113
125-04-0113
125-04-0112
125-04-0100
(Not used)
(Not used)
(Not used)
125-04-0115
125-04-0115
125-04-0125
125-04-0126
Heater Wire
(Length of case)
Sheet ____ of ____
X
Date:
Project Title:
Drawing No.:
Drawn By:
Next Assembly:
Drawing Title:
Date:
Hussmann Corporation
13770 Ramona Avenue
Chino, CA. 91710
(909)-590-4910
Lic.#: 644406
Revisions:
No. Description:
Checked By:
By:
2' Case layout with T8 Lights
W0100007.dft
11
ASC-SS UPP Universal Power Module
Adrian Crisci
06/01/2000
IGSS-ESS/ESSS-0303
14
Rev.0303
Light Switch
Front Lights (optional)
Ledge Lights
(optional)
Ballast
WH3-120-164
(125-04-0118)
Thermostat
Liquid Solenoid
Duplex Receptacles
GFCI Dedicated
Line
Ballast Extension Box
(Switched Power)
Evaporator Fans
Cap
Case to Case Harness
Single case Pigtail
F32T8-SPX30 (2)
125-04-0103
125-04-0101
125-04-0108
125-04-0110
125-04-0111
125-04-0113
125-04-0112
125-04-0113
125-04-0100
(Not used)
(Not used)
(Not used)
(Not used)
Heater Wire
(length of case)
125-04-0115
125-04-0115
Sheet ____ of ____
X
Date:
Project Title:
Drawing No.:
Drawn By:
Next Assembly:
Drawing Title:
Date:
Hussmann Corporation
13770 Ramona Avenue
Chino, CA. 91710
(909)-590-4910
Lic.#: 644406
Revisions:
No. Description:
Checked By:
By:
4' Case layout with T8 Lights
W0100008
11
ASC-SS-UPP Universal Power Module
Adrian Crisci
05.25.00
1 Added rear heater to case 07/19/99 AEC
15
IGSS-ESS/ESSS-0303
Light Switch
Front Lights
Ledge Lights
(Optional)
Ballast
WH3-120-164
(125-04-0118)
Thermostat
Liquid Solenoid
Duplex Receptacles
GFCI Dedicated
Line
Ballast Extension Box
(Switched Power)
Evaporator Fans
Cap
Case to Case Harness
Single case Pigtail
F25T8-SPX30 (2)
Plenum extension
Evaporator Fans
125-04-0104
125-04-0101
125-04-0108
125-04-0110
125-04-0111
125-04-0113
No number yet
125-04-0109
125-04-0112
125-04-0113
125-04-0113
125-04-0100
(Not used)
(Not used)
(Not used)
Heater Wire
(length of case)
125-04-0115
(Not used)
Sheet ____ of ____
X
Date:
Project Title:
Drawing No.:
Drawn By:
Next Assembly:
Drawing Title:
Date:
Hussmann Corporation
13770 Ramona Avenue
Chino, CA. 91710
(909)-590-4910
Lic.#: 644406
Revisions:
No. Description:
Checked By:
By:
6' Case layout with T8 Lights
W0100009
11
ASC-SS-UPP Universal Power Module
Adrian Crisci
05.25.2000
1 Added rear heater to case 07/19/99 AEC
16
Rev.0303
Light Switch
Front Lights
Ledge Lights
(Optional)
Ballast
WH3-120-164
(125-04-0118)
Thermostat
Liquid Solenoid
Duplex Receptacles
GFCI Dedicated
Line
Ballast Extension Box
(Switched Power)
Evaporator Fans
Cap
Case to Case Harness
Single case Pigtail
F32T8-SPX30 (2)
Plenum extension
Evaporator Fans
125-04-0105
125-04-0101
125-04-0108
125-04-0110
125-04-0111
125-04-0113
No number yet
125-04-0109
125-04-0112
125-04-0113
125-04-0113
125-04-0100
(Not used)
(Not used)
(Not used)
Heater Wire
(length of case)
125-04-0115
(Not used)
Sheet ____ of ____
X
Date:
Project Title:
Drawing No.:
Drawn By:
Next Assembly:
Drawing Title:
Date:
Hussmann Corporation
13770 Ramona Avenue
Chino, CA. 91710
(909)-590-4910
Lic.#: 644406
Revisions:
No. Description:
Checked By:
By:
8' Case layout with T8 Lights
W0100010
11
ASC-SS-UPP Universal Power Module
Adrian Crisci
05.25.2000
1 Added rear heater to case 07/19/99 AEC
17
IGSS-ESS/ESSS-0303
Light Switch
Front Lights
Ledge Lights
(Optional)
Ballasts
WH3-120-164
(125-04-0118)
Thermostat
Liquid Solenoid
F32T8-SPX30 (1)
Duplex Receptacles
GFCI Dedicated
Line
Ballast Extension Box
(Switched Power)
Evaporator Fans
Cap
Case to Case Harness
Single case Pigtail
F25T8-SPX30 (2)
Plenum extension
Evaporator Fans
Plenum extension
Evaporator Fans
125-04-0106
125-04-0101
125-04-0108
125-04-0109
125-04-0110
125-04-0112
125-04-0111
125-04-0114
125-04-0113
125-04-0109
125-04-0112
125-04-0113
125-04-0113
125-04-0100
Heater Wire
(length of case)
125-04-0115
125-04-0115
Sheet ____ of ____
X
Date:
Project Title:
Drawing No.:
Drawn By:
Next Assembly:
Drawing Title:
Date:
Hussmann Corporation
13770 Ramona Avenue
Chino, CA. 91710
(909)-590-4910
Lic.#: 644406
Revisions:
No. Description:
Checked By:
By:
10' Case layout with T8 Lights
W0100011
11
ASC-SS-UPP Universal Power Module
Adrian Crisci
05.25.2000
1 Added rear heater to case 07/19/99 AEC
18
Rev.0303
Light Switch
Front Lights
Ledge Lights
(Optional)
Ballasts
WH3-120-164
(125-04-0118)
Thermostat
Liquid Solenoid
F32T8-SPX30 (1)
Duplex Receptacles
GFCI Dedicated
Line
Ballast Extension Box
(Switched Power)
Evaporator Fans
Cap
Case to Case Harness
Single case Pigtail
F32T8-SPX30 (2)
Plenum extension
Evaporator Fans
Plenum extension
Evaporator Fans
125-04-0107
125-04-0101
125-04-0108
125-04-0109
125-04-0110
125-04-0112
125-04-0111
125-04-0114
125-04-0113
125-04-0109
125-04-0112
125-04-0113
125-04-0113
125-04-0100
Heater Wire
(length of case)
125-04-0115
125-04-0115
Sheet ____ of ____
X
Date:
Project Title:
Drawing No.:
Drawn By:
Next Assembly:
Drawing Title:
Date:
Hussmann Corporation
13770 Ramona Avenue
Chino, CA. 91710
(909)-590-4910
Lic.#: 644406
Revisions:
No. Description:
Checked By:
By:
12' Case with T8 Lights
W0100012
11
ASC-SS-UPP Universal Power Module
Adrian Crisci
05/25/99
1 Added rear heater to case 07/19/99 AEC
19
Appendices
APPENDIX A. – Temperature Guidlines
The refrigerators should be operated according to the manufacturer’s
published engineering specifications for entering air temperatures for
specific equipment applications. Table 1 shows the typical temperature
of the air entering the food zone one hour before the start of defrost
and one hour after defrost for various categories of refrigerators.
Refer to Appendix C for Field Evaluation Guidelines.
TABLE 1
Type of Refrigerator Typical Entering
Air Temperatur e
I. OPEN DISPLAY
A. Non frozen:
1) Meat 28°F
2) Dairy/Deli 32°F
3) Produce
a. Processed 36°F
b. Unprocessed 45°F
B. Frozen 0°F
C. Ice Cream -5°F
II. CLOSED DISPLAY
A. Non frozen:
1) Meat 34°F
2) Dairy/Deli 34°F
3) Produce
a. Processed 36°F
b. Unprocessed 45°F
B. Frozen 0°F
C. Ice Cream -5°F
Single Deck Multi Deck ServiceCase Reach-In
I. Open Display Styles II. Closed Display Styles
APPENDIX B. – Application Recommendations
1.0 Temperature performance is critical for controlling bacteria
growth. Therefore, the following recommendations are included in
the standard. They are based on confirmed field experience over
many years.
1.1 The installer is responsible for following the installation instructions and recommendations provided by the manufacturer for the
installation of each individual type refrigerator.
1.2 Refrigeration piping should be sized according to the equipment
manufacturer’s recommendations and installed in accordance with
normal refrigeration practices. Refrigeration piping should be
IGSS-ESS/ESSS-0303
insulated according to the manufacturer’s recommendations.
1.3 A clogged waste outlet blocks refrigeration. The installer is
responsible for the proper installation of the system which
dispenses condensate waste through an air gap into the building
indirect waste system.
1.4
The installer should perform a complete start-up evaluation prior to
the loading of food into the refrigerator, which includes such items as:
a)Initial temperature performance, Coils should be properly fed with
a refrigerant according to manufacturer’s recommendations.
b)Observation of outside influences such as drafts, radiant
heating from the ceiling and from lamps. Such influence should
be properly corrected or compensated for.
c) At the same time, checks should be made of the store dry-
bulb and wet-bulb temperatures to ascertain that they are
within the limits prescribed by the manufacturer.
d)Complete start-up procedures should include checking through
a defrost to make certain of its adequate frequency and length
without substantially exceeding the actual needs. This should
include checking the electrical or refrigerant circuits to make
sure that defrosts are correctly programmed for all the
refrigerators connected to each refrigeration system.
e) Recording instruments should be used to check performance.
APPENDIX C. – Field Recommendations
Recommendations for field evaluating the performance of retail
food refrigerators
1.0 The most consistent indicator of display refrigerator performance
is temperature of the air entering the product zone (see
Appendix A). In practical use, the precise determination of return
air temperature is extremely difficult. Readings of return air
temperatures will be variable and results will be inconsistent. The
product temperature alone is not an indicator of refrigerator
performance.
NOTE: Public Health will use the temperature of the product in
determining if the refrigerator will be allowed to display potentially
hazardous food. For the purpose of this evaluation, product
temperature above the FDA Food Code 1993 temperature for
potentially hazardous food will be the first indication that an
evaluation should be performed. It is expected that all refrigerators
will keep food at the FDA Food Code 1993 temperature for potentially
hazardous food.
1.1 The following recommendations are made for the purpose of
arriving at easily taken and understood data which, coupled with
other observations, may be used to determined whether a display
refrigerator is working as intended:
a) INSTRUMENT – A stainless steel stem-type thermometer is
recommended and it should have a dial a minimum of 1 inch
internal diameter. A test thermometer scaled only in Celsius or
dually scaled in Celsius and Fahrenheit shall be accurate to
1°C (1.8°F). Temperature measuring devices that are scaled
20
Rev.0303
only in Fahrenheit shall be accurate to 2°F. The thermometer
should be checked for proper calibration. (It should read 32°F
when the stem is immersed in an ice water bath).
b) LOCATION – The probe or sensing element of the thermometer
should be located in the airstream where the air first enters
the display or storage area, and not more than 1 inch away
from the surface and in the center of the discharge opening.
c) READING – It should first be determined that the refrigerator
is refrigerating and has operated at least one hour since the
end of the last defrost period. The thermometer reading should
be made only after it has been allowed to stabilize, i.e.,
maintain a constant reading.
d) OTHER OBSERVATIONS – Other observations should be made
which may indicate operating problems, such as unsatisfactory
product, feel/appearance.
e) CONCLUSIONS – In the absence of any apparent undesirable
conditions, the refrigerator should be judged to be operating
properly. If it is determined that such condition is undesirable,
i.e., the product is above proper temperature, checks should be
made for the following:
1. Has the refrigerator been loaded with warm product?
2. Is the product loaded beyond the “Safe Load Line” markers?
3. Are the return air ducts blocked?
4. Are the entering air ducts blocked?
5.
Is a dumped display causing turbulent air flow and mixing with room air?
6. Are spotlights or other high intensity lighting directed onto the
product?
7. Are there unusual draft conditions (from heating /air-conditioning
ducts, open doors, etc.)?
8. Is there exposure to direct sunlight?
8. Are display signs blocking or diverting airflow?
9. Are the coils of the refrigerator iced up?
11. Is the store ambient over 75°F, 55% RH as set forth in ASHRAE
Standard 72 and ASHRAE Standard 117?
12. Are the shelf positions, number, and size other than recommended by the manufacturer?
13. Is there an improper application or control system?
14. Is the evaporator fan motor/blade inoperative?
15. Is the defrost time excessive?
16. Is the defrost termination, thermostat (if used) set too high?
17. Are the refrigerant controls incorrectly adjusted?
18. Is the air entering the condenser above design conditions? Are
the condenser fins clear of dirt, dust, etc.?
19. Is there a shortage of refrigerant?
20. Has the equipment been modified to use replacements for CFC-12,
CFC-502 or other refrigerant? If so, have the modifications been
made in accordance with the recommendations of the equipment
manufacturer? Is the refrigerator charged with the proper
refrigerant and lubricant? Does the system use the recommended
compressor?
APPENDIX D. – Recommendations to user
1.0 The manufacturer should provide instructions and recommendations
for proper periodic cleaning. The user will be responsible for such
cleaning, including the cleaning of low temperature equipment within
the compartment and the cooling coil area(s). Cleaning practices,
particularly with respect to proper refrigerator unloading and warmup, must be in accordance with applicable recommendations.
1.1 Cleaning of non frozen food equipment should include a weekly cleaning
of the food compartment as a minimum to prevent bacteria growth from
accumulating. Actual use and products may dictate more frequent cleaning.
Circumstances of use and equipment design must also dictate the frequency
of cleaning the display areas. Weekly washing down of the storage
compartment is also recommended, especially for equipment subject to
drippage of milk or other liquids, or the collection of vegetable, meat,
crumbs, etc. or other debris or litter. Daily cleaning of the external areas
surrounding the storage or display compartments with detergent and water
will keep the equipment presentable and prevent grime buildup.
1.2 Load levels as defined by the manufacturer must be observed.
1.3 The best preservation is achieved by following these rules:
a) Buy quality products.
b) Receive perishables from transit equipment at the ideal temperature
for the particular product.
c) Expedite perishables to the store’s storage equipment to avoid
unnecessary warm-up and prolonged temperature recovery. Food
store refrigerators are not food chillers nor can they reclaim quality
lost through previous mishandling.
d) Care must be taken when cross merchandising products to ensure
that potentially hazardous vegetable products are not placed in non
refrigerated areas.
e) Display and storage equipment doors should be kept closed during
periods of inactivity.
f) Minimize the transfer time of perishables from storage to display.
g) Keep meat under refrigeration in meat cutting and processing area
except for the few moments it is being handled in processing. When
a cut or tray of meat is not to be worked on immediately, the
procedure should call for returning it to refrigeration.
h) Keep tools clean and sanitized. Since mechanical equipment is used
for fresh meat processing, all such equipment should be cleaned at
least daily and each time a different kind of meat product comes
in contact with the tool or equipment.
i) Make sure that all refrigeration equipment is installed and adjusted
in strict accordance with the manufacturer’s recommendations.
j) See that all storage and refrigeration equipment is kept in proper
working order by routine maintenance.
21
IGSS-ESS/ESSS-0303
22
Rev.0303
Limited Warranty
This warranty is made to the original user at the original installation site and is not transferable.
Hussmann merchandisers are warranted to be fr ee fr om defect in material and w orkmanship under normal use and
service for a period of one (1) year from the date of original installation (not to exceed fifteen (15) months from the date of
shipment for the factory). Hussmann Impact
the above criteria. Hussmann’s obligation under this warranty shall be limited to r epairing or exchanging any part or parts,
without charge F.O.B. factory or nearest authorized parts depot within said period and which is prov en to the satisfaction of
the original manufacturing plant warranty group to be thus defective.
Hussmann covers the entire case or r efrigeration product and all its components (except for lamps, driers, fuses, and
other maintenance type replacement parts) for the one (1) year warranty period.
Additionally, Hussmann warrants for a total period of three (3) years all sealed, multi-glass assemblies except those
used in sliding doors on closed meat display cases. If within three (3) years from the date of installation (not to exceed thirtynine (39) months from the date of shipment from factory), it shall be proven to the satisfaction of the originating factory
warranty group that there is impaired visibility through the multi-glass assemblies thereof caused by moisture between the
glasses, the multi-glass assembly will be replaced free of charge, F.O.B. factory. This additional warranty excludes accident,
misuse, or glass breakage.
On Hussmann manufactured self-contained display cases, Hussmann agrees to repair or exchange, at its option, the
original motor/compressor unit only with a motor/compressor of like or of similar design and capacity if it is shown to the
satisfaction of Hussmann that the motor/compressor is inoperative due to defects in factory workmanship or material under
normal use and service as outlined in Hussmann’s “Installation Instructions” which are shipped inside new Hussmann equipment. Hussmann’s sole obligation under this warranty shall be limited to a period not to exceed five years from date of
factory shipment.
On Hussmann refrigeration systems, an additional (4) year extended warranty for the motor/compressor assembly
is available, but must be purchased prior to shipment to be in effect. Hussmann reserves the right to inspect the job site,
installation and reason for failure.
The motor/compressor warranties listed abov e do not include replacement or r epair of contr ols, relays, capacitors,
overload protectors, valve plates, oil pumps, gaskets or any external part on the motor/compressor replaceable in the field, or
any other part of the refrigeration system or self-contained display case.
THE WARRANTIES TO REPAIR OR REPLACE ABOVE RECITED ARE THE ONLY WARRANTIES, EXPRESS, IMPLIED OR STATUTORY, MADE BY HUSSMANN WITH RESPECT TO THE ABOVE MENTIONED EQUIPMENT, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS, AND HUSSMANN NEITHER ASSUMES NOR
AUTHORIZES ANY PERSON TO ASSUME FOR IT, ANY OTHER OBLIGATION OR LIABILITY IN CONNECTION WITH
THE SALE OF SAID EQUIPMENT OR ANY PART THEREOF.
THIS WARRANTY SHALL NOT APPLY TO LOSS OF FOOD OR CONTENTS OF THE EQUIPMENT DUE
TO FAILURE FOR ANY REASON. HUSSMANN SHALL NOT BE LIABLE:
•For pa yment of labor for any remo val or installation of warranted parts;
•For any r epair or replacements made without the written consent of Hussmann, or when the equipment is installed or
operated in a manner contrary to the printed instructions covering installation and service which accompanied such
equipment;
•For any damages, delays, or losses, direct or consequential which may arise in connection with such equipment or part
thereof;
•For damages caused by fire, flood, strikes, acts of God or circumstances beyond its control;
•When the equipment is subject to negligence, abuse, misuse or when the serial number of the equipment has been
removed, defaced, or altered;
•When the equipment is operated on low or improper v oltages
•When the equipment is put to a use other than normally recommended by Hussmann (i.e. deli case used for fresh
meat);
•When operation of this equipment is impaired due to improper drain installation;
•For pa yment of refrigerant loss for any r eason;
•For costs related to shipping or handling of r eplacement parts.
Hussmann Corporation, Corporate Headquarters: Bridgeton, Missouri, U.S.A. 63044 August 1, 1998
Modular Coils are warranted for a total of fiv e (5) years based upon
23
IGSS-ESS/ESSS-0303
Service Record
Last service date: By:
/Chino
Additional copies of this publication may be obtained by contacting:
Hussmann® Chino
13770 Ramona Avenue • Chino, California 91710
(909) 628-8942 FAX
(909) 590-4910
(800) 395-9229
The MODEL NAME and SERIAL NUMBER is required in order to provide y ou
with the correct parts and information for your particular unit.
They can be found on a small metal plate on the unit.
Please note them below for future reference.
MODEL:
SERIAL NUMBER:
24
Loading...
