Page 1
Page 2
Page 3

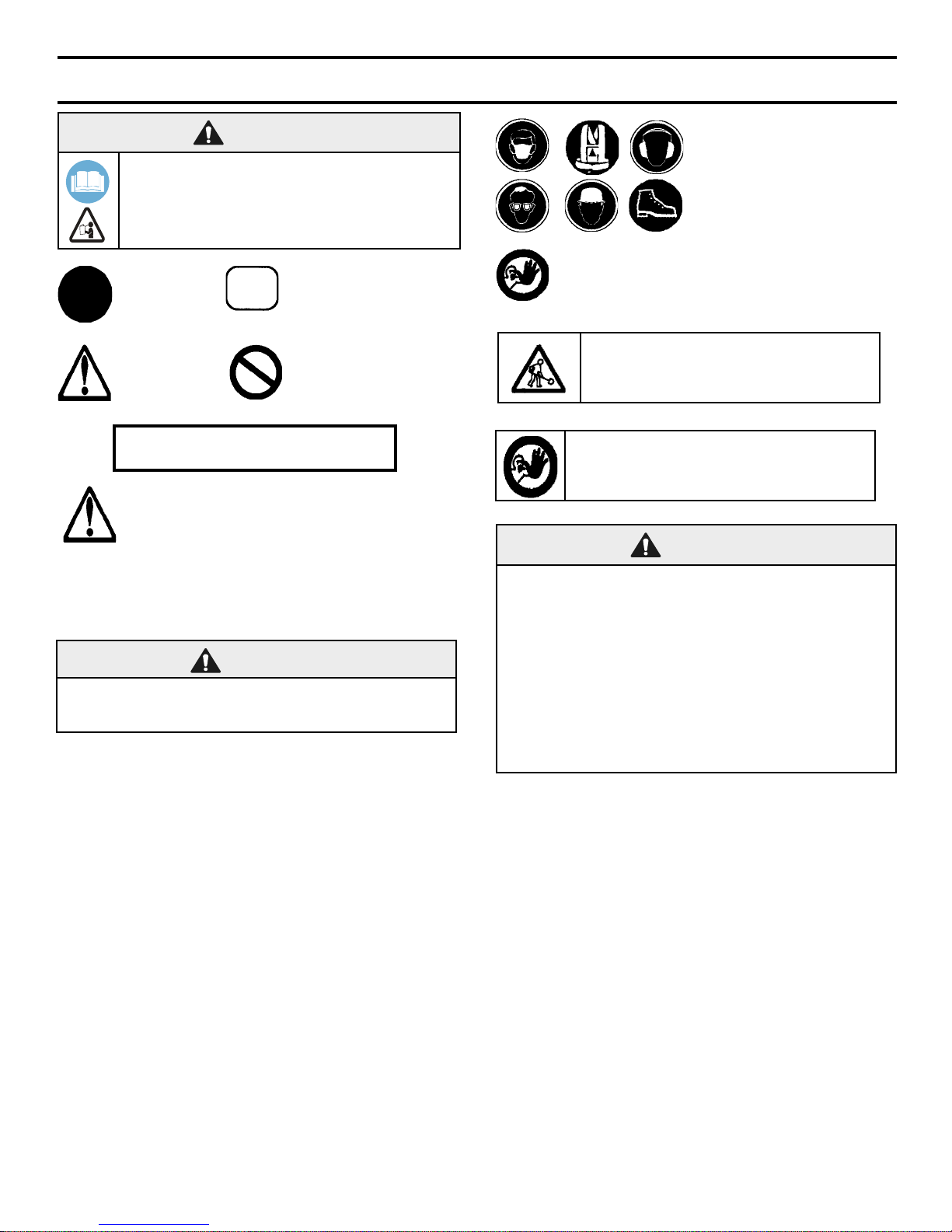

WARNING!
Before starting up machine make sure you
completely read these instructions. Be familiar
with operation of the machine before operation!
Introduction
Thank you for purchasing your new machine from Husqvar na Construction Products. We have provided important
safety messages in this manual and on the machine.
Please read these messages carefully. A safety message
alerts you to potential hazards that could hurt you or others.
Each safety message is preceded by a symbol or the safety
alert symbol ( ) and one of two words, WARNING , or
CAUTION .
These signal words mean:
WARNING : Indicates a hazardous situation which, if not
avoided COULD result in death or serious injury.
CAUTION : Indicates a hazardous situation, which, if not
avoided, COULD result in minor or moderate injury. It may
also be used to alert against unsafe practices.
Each message tells you what the hazard is, what can hap pen, and what you can do to avoid or reduce injury. Other
important messages are preceded by the word NOTICE.
NOTICE means:
NOTICE : Indicates a hazardous situation which, if not
avoided, could result in property damage. Your machine
or other property can be damaged if you don’t follow this
instruction.
The safety labels should be periodically inspected and
cleaned by the user to maintain good legibility at a safe
viewing distance. If the label is worn, damaged, or is illeg ible, it should be replaced.
TABLE OF CONTENTS & INTRODUCTION
Table of Contents
Section Page No.
Table of Contents.............................................. 2
Introduction....................................................... 2
Symbols & Decals ...................................... 3 - 7
Safety Instructions..................................... 8 - 11
What-Is-What (Part Identification)................. 12
Assembly......................................................... 13
Operation.................................................. 14 - 19
Maintenance............................................. 20 - 24
Specifications.................................................. 25
Contact Information.........................................26
EVERY MACHINE IS THOROUGHLY TESTED BEFORE LEAVING THE FACTORY. EACH MACHINE IS
SUPPLIED WITH A COPY OF THIS MANUAL. OPERATORS OF THIS EQUIPMENT MUST READ AND BE
FAMILIAR WITH THE SAFETY WARNINGS. FAILURE TO OBEY WARNINGS MAY RESULT IN INJURY OR
DEATH. FOLLOW INSTRUCTIONS STRICTLY TO ENSURE LONG SERVICE IN NORMAL OPERATION.
2
Page 4
• Please read the instructions for use prior to operating the machine for the first time.
• Antes de la puesta en marcha, lea detenidamente las instrucciones y familiaricese con la máquina.
• Mandatory
• Obligatorio
• Indication
• Indicación
• Prohibition
• Prohibición
• Warning Triangle
• Triángwulo De Advertencia
• Wear Eye Protection
• Usar Gafas De Protección
• Wear Head Protection
• Usar Casco De Protección
• Wear Breathing Protection
• Usar Máscara De Protección
• The Use Of Ear Protection Is Mandatory
• Es Obligatorio El Uso De Protección Auditiva
• Wear a Hard Hat
• Usar Casco Duro
• Wear Safety Shoes
• Usar Zapatos De Seguridad
• Wear Appropriate Clothing
• Usar Ropa Adecuada
• Remove The Blade Prior To Hoisting, Loading, Unloading And Transporting The Machine On Jobsite.
• Desmontar El Disco Antes De Desplazar, Cargar, Descargar O Transportar La Máquina En La Obra.
SYMBOLS and DECALS
3
Page 5

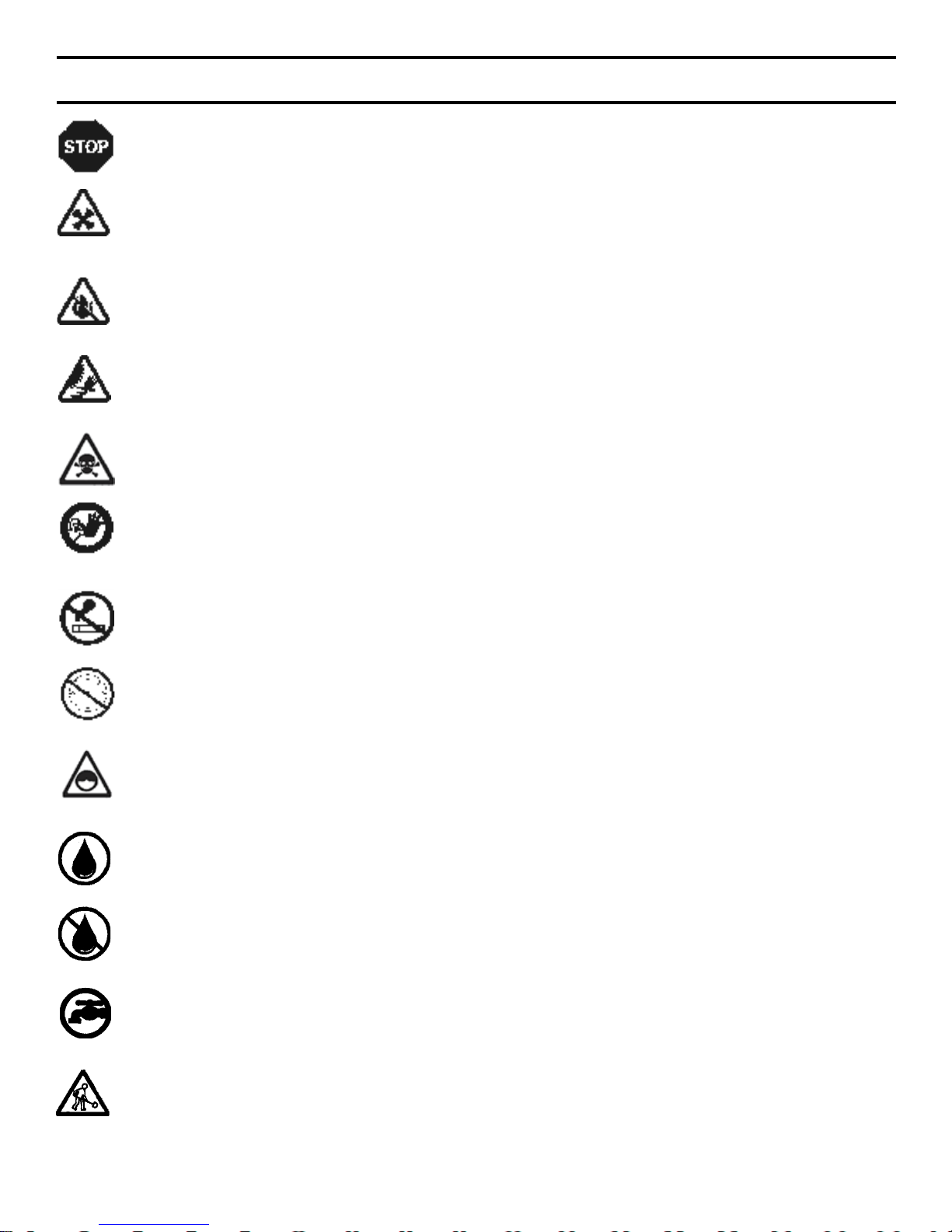

• Motor Off
• Parar El Motor
• Use In Well Ventilated Area
• Usar En Una Área Bien Ventilada
• Do Not Use In Flammable Areas
• No Usar In Áreas Inflamables
• Machinery Hazard, Keep Hands And Feet Clear.
• Máquina Peligrosa - Mantenga Manos Y Pies Alejados De La Máquina
• Danger, Poison Exhaust Gas
• Peligro, Gases De Escape Tóxicos
• No Non-working Personnel In Area
• Prohibido Para Personas Ajenas A La Obra
• No Smoking
• No Fumar
• Do Not Operate Without All Guards In Place
• No Operar Sin Todas Las Protecciones In Su Sitio
• Always Keep the Blade Guards In Place
• Mantenga Siempre Las Protecciones De La Hoja En Su Sitio
• Water Supply On
• Suministro De Agua Conectado
• Water Supply Off
• Suministro De Agua Desconectado
• Water Supply
• Suministro De Agua
• Keep Work Area Clean/Well Lit, Remove All Safety Hazards
• Mantenga Limpio El Sitio De Trabajo/Bien Iluminado, Elimine Todos Los Riesgos De Seguridad
SYMBOLS and DECALS
4
Page 6

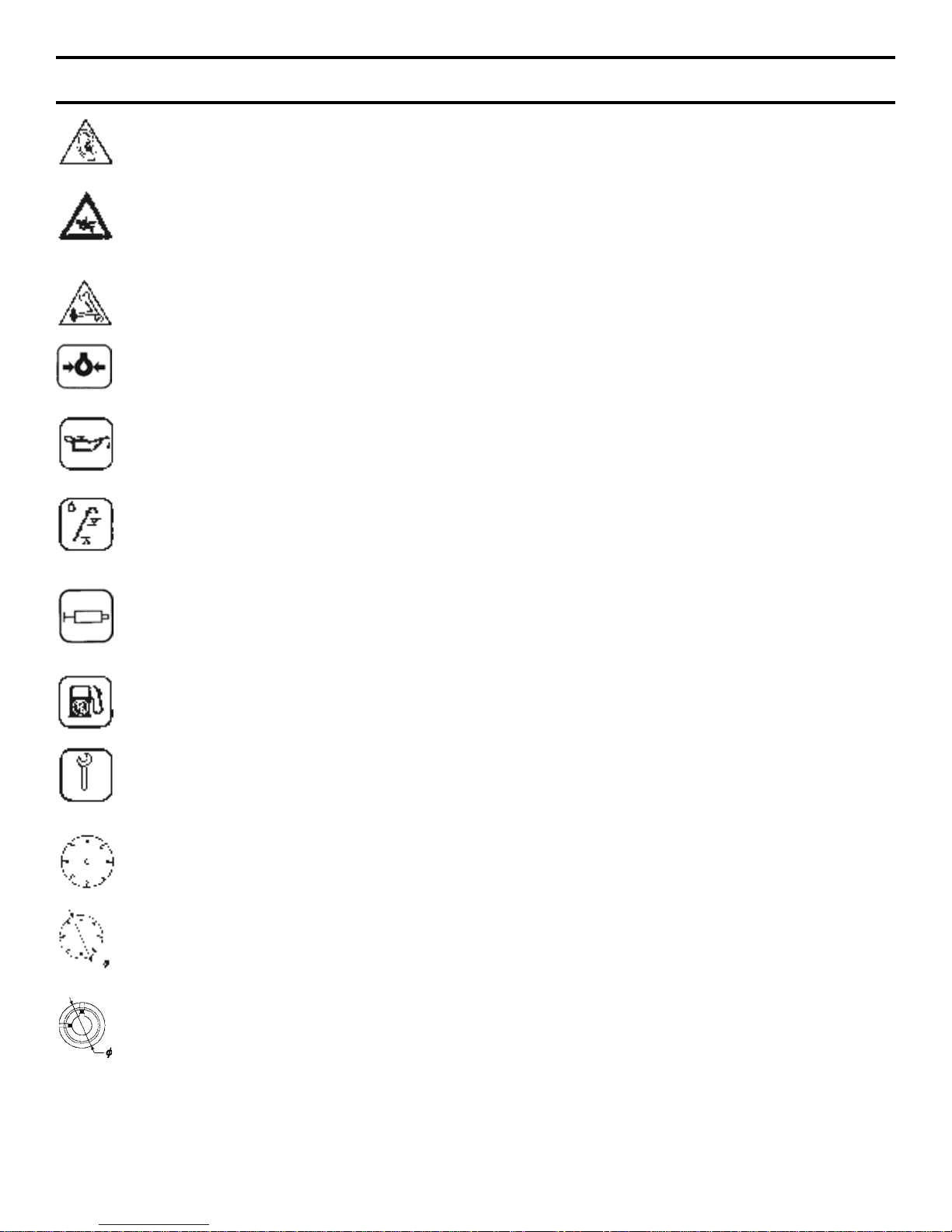

• Dangerously High Noise Level
• Nivel De Ruido Elevadamente Peligroso
• Pay Extreme Attention To The Care And Protection Of The Machine Before Starting Up
• Ponga Extrema Atención Al Cuidado Y Preparación De La Máquina Antes De Ponerla En Marcha
• Remove Tools From Area and Machine
• Elimine Las Herramientas Del Área Y De La Máquina
• Oil Pressure
• Presión De Aceite
• Oil Required
• Necesita Aceite
• Dipstick, Maintain Proper Oil Level
• Varilla De Control, Mantenga El Nivel De Aceite Correcto
• Lubrication Point
• Punto De Lubrication
• Unleaded Fuel Only
• Solamente Combustible Sin Plomo
• Repairs Are To Be Done By An Authorized Dealer Only
• Las Reparaciones Deben Ser Efectuadas Únicamente Por Un Distribuidor Autorizado
• Diamond Blade
• Sierra Diamantada
• Blade Diameter
• Diámetro De La Hoja
• Pulley Diameter
• Diámetro De La Correa
SYMBOLS and DECALS
5
Page 7
• Number of Revolutions Per Minute, Rotational Speed
• N° De Revoluciones Por Minuto, Velocidad De Rotación
• Blade Flange Diameter
• Diámetro De La Brida De La Hoja
• Weight (lbs)
• Masa De La Máquina (lbs)
• Engine
• Motor
• Engine Speed Revolutions/Minute
• Velocidad Del Motor En Revoluciones Por Minuto (RPM)
• Engine Start
• Arranque Del Motor
• Electric Motor
• Motor Electrica
SYMBOLS and DECALS
6
Page 8

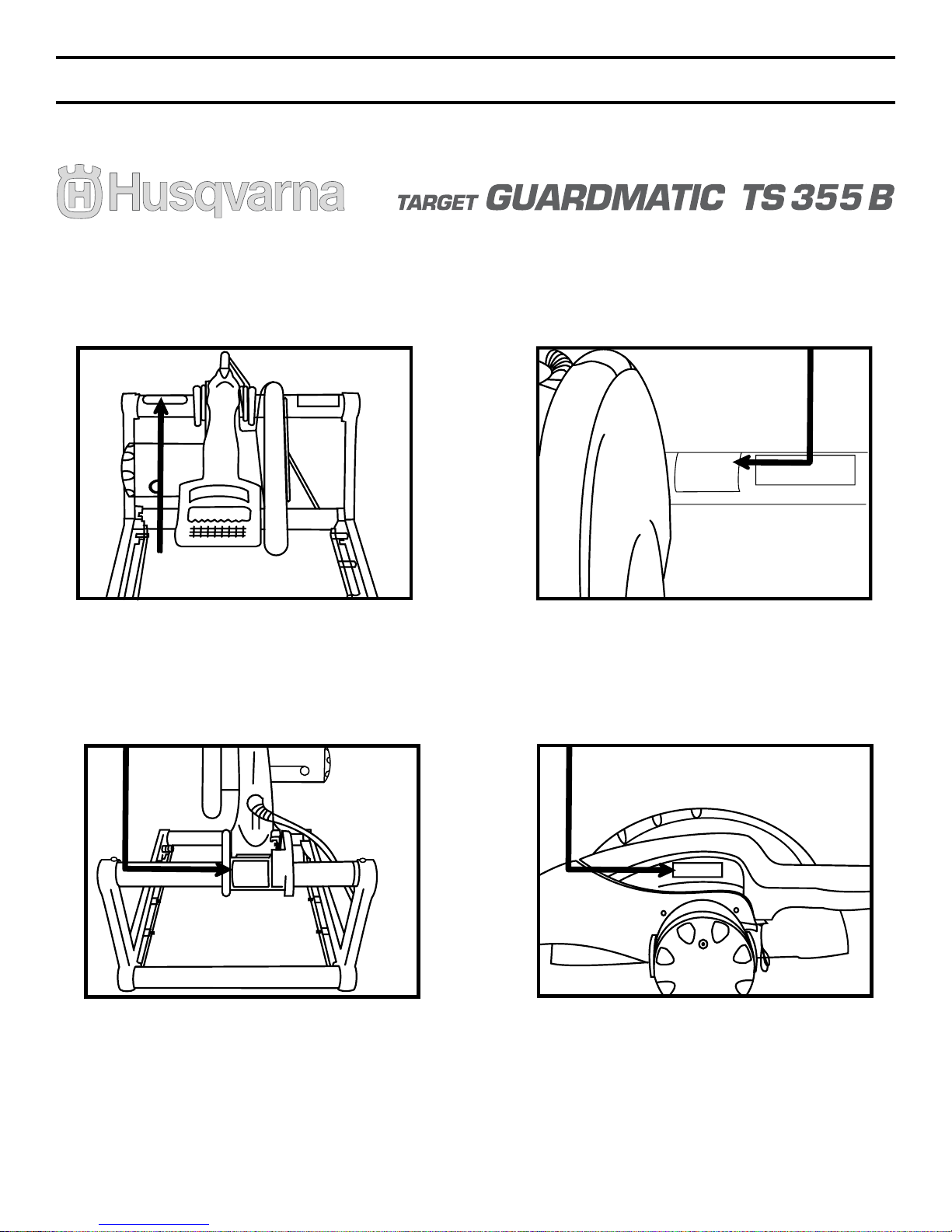

Caution Safety Label
P/N 155576
Location: Left Side, Upper Cross Member
SYMBOLS and DECALS
Dust Inhalation Warning Label
P/N 154337
Location: Right Side, Upper Cross Member
Extension Cord Warning Label
P/N 155672
Location: Back, Upper Cross Member
Serial Number and Motor Specifications
P/N 158096
Location: Blade Guard
7
Page 9
WARNING!
Before starting up machine make sure you
completely read these instructions. Be familiar
with operation of the machine before operation!
WARNING!
Always make sure the saw is connected to a properly
grounded electrical outlet. Failure to comply with this
warning could result in serious bodily injury or death!
SAFETY INSTRUCTIONS
WARNING!
Use ONLY Reinforced Abrasive Blades or Diamond
Blades with this machine.
Use ONLY blades marked with a maximum operating
speed greater than the blade shaft speed.
DO NOT use carbide tipped, wood cutting, or circular
saw blades with this machine.
Before performing any maintenance, ALWAYS locate
the machine on a level surface with the engine / motor
OFF and the start switch in the OFF position, and the
power source disconnected.
The working area must be completely
clear, well lit and all safety hazards
removed.
Any persons not involved in the work,
should leave the area.
The operator must
wear protective clothing
appropriate to the work
he is doing.
Any persons not involved in the work should
leave the area.
These signs will give
advice for your safety
Follow our instructions strictly and your machine
wi ll give y ou long s er vi ce in n or mal operating
conditions.
MANDATORY
INDICATION
I N F O R M ATION
INSTRUCTION
WARNING
PROHIBITION
Before leaving our factory every machine
is thoroughly inspected.
8
Page 10

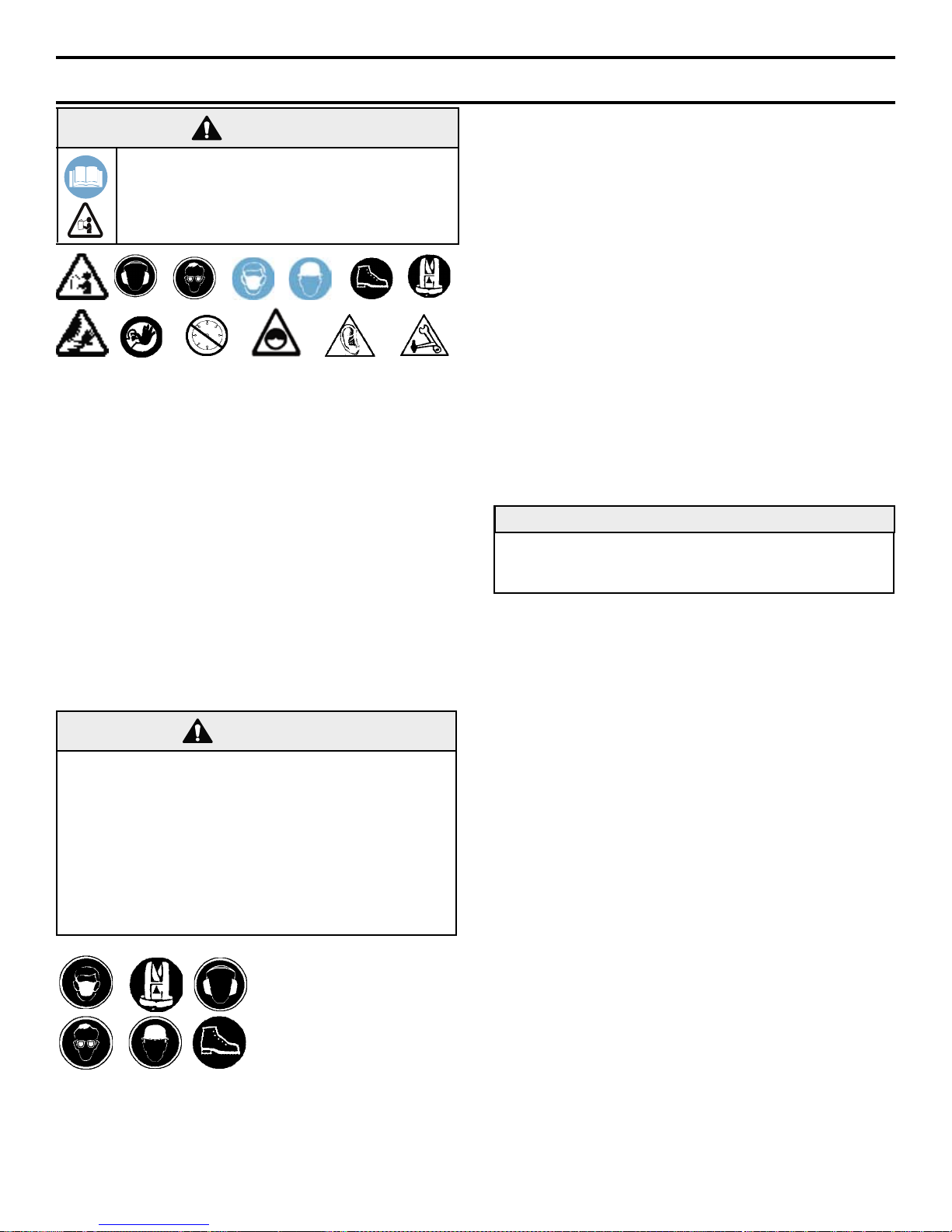

WARNING!
HEARING HAZARD! DURING NORMAL USE
OF THIS MACHINE, OPERATOR MAY BE
EXPOSED TO A NOISE LEVEL EQUAL OR
SUPERIOR TO 85 dB (A)
SAFETY INSTRUCTIONS
DUST WARNING
Cutting, especially when DRY cutting, generates dust that comes from the material being cut, which
frequently contains silica. Silica is a basic component of sand, quartz, brick clay, granite and numerous other
minerals and rocks. Exposure to excessive amount of such dust can cause:
• Respiratory diseases (affecting your ability to breath), including chronic bronchitis, silicosis and pulmonary fibrosis from exposure to silica. These diseases may be fatal;
• Skin irritation and rash; and
• Cancer according to NTP* and IARC*
* National Toxicology Program, International Agency for Research on Cancer
Take precautionary steps
• Avoid inhalation of and skin contact with dust, mist and fumes;
• Wet cut when feasible, to minimize dust;
• Wear and ensure that all bystanders wear appropriate respiratory protection such as dust masks de-
signed to filter out microscopic particles. (See OSHA 29 CFR Part 1910.1200)
California Prop 65 Warning:
Use of this product can cause exposure to materials known to the State of California to cause cancer and/or birth
defects or other reproductive harm.
9
Page 11
SAFETY FIRST!
WARNINGS
DO’s AND DO NOT’s
WARNING: FAILURE TO COMPLY WITH THESE WARNINGS AND OPERATING
INSTRUCTIONS COULD RESULT IN DEATH OR SERIOUS BODILY INJURY.
DO read this entire operator’s manual before operating this machine. Understand all warnings, instructions,
and controls.
DO keep all guards in place and in good condition.
DO wear safety approved hearing, eye, head and respiratory protection.
DO read and understand all warnings and instructions on the machine.
DO read and understand the symbol definitions contained in this manual.
DO keep all parts of your body away from the blade and all other moving parts.
DO know how to stop the machine quickly in case of emergency.
DO shut off the engine and allow it to cool before refueling.
DO inspect the blade, flanges and shafts for damage before installing the blade.
DO use only reinforced abrasive blades or steel center diamond blades manufactured for use on masonry saws.
DO use only blades marked with a maximum operating speed greater than the blade shaft speed. Verify speed
by checking blade shaft rpm and pulley diameters and blade flange diameters.
DO verify saw drive configuration by checking blade shaft RPM, pulley diameters, and blade flange diameter.
DO read all safety materials and instructions that accompany any blade used with this machine.
DO inspect each blade carefully before using it. If there are any signs of damage or unusual wear, DO NOT
USE THE BLADE..
DO mount the blade solidly and firmly. Wrench tighten the arbor nut.
DO make sure the blade and flanges are clean and free of dirt and debris before mounting the blade on the saw.
DO use dry cutting diamond blades with a 1" (diameter arbor only). Never use damaged or worn blade flanges.
DO use the correct blade for the type of work being done. Check with blade manufacturer if you do not know if
blade is correct.
DO operate this machine only in well ventilated areas.
DO instruct bystanders, visitors and children to stand a safe distance from work area.
DO establish a training program for all operators of this machine.
DO clear the work area of unnecessary people. Never allow anyone to stand in front of or behind the blade
while the engine is running.
DO make sure the blade is not contacting anything before starting the engine.
DO tie down the machine when transporting. Use caution and follow instructions for transporting the machine.
DO have all service performed by competent service personnel.
DO use caution when handling fuel. Make sure the gas caps of the machine and the fuel can are properly tightened
before starting the engine. Move fuel can at least 10 feet from machine after fueling.
DO remove adjusting keys and wrenches from tool before turning it on.
DO keep the handles dry, clean and free of oil and dirt. Clean the machine after each day’s use.
DO carefully maintain and clean for better and safer performance. Follow instructions for changing accessories.
Inspect tool cords periodically and, if damaged, have repaired by authorized service facility.
DO use the proper blade flange size for each blade size. Never use damaged or worn blade flanges.
DO only cut in a straight line. Always feed work into a blade or cutter against the direction of rotation.
DO make sure electric powered machines are plugged into a properly grounded circuit.
DO make sure power cords are the proper size and in good condition.
DO follow all electrical codes in your area.
DO use correct voltage and proper extension cords. Never carry tool by cord or yank it to disconnect
it from receptacle. Keep cord away from heat, oil and sharp edges.
DO disconnect tools from power source when not in use, before servicing and when changing accessories.
DO carefully maintain and clean for better and safer performance. Follow instructions for changing
accessories. Inspect tool cards periodically and, if damaged, have repaired by authorized service facility.
DO always give a copy of this manual to the equipment user. For extra copies, call TOLL FREE 1-800-288-5040.
DO
DO make the workshop kid-proof by using padlocks, master switches or by removing starter keys.
DO reduce the risk of unintentional starting. Make sure the trigger switch/locking button is in the RELEASE
position before plugging in a power tool.
DO verify the blade arbor hole matches the machine spindle before mounting the blade.
10
Page 12
SAFETY FIRST!
WARNINGS
DO’s AND DO NOT’s
WARNING:
FAILURE TO COMPLY WITH THESE WARNINGS AND OPERATING
INSTRUCTIONS COULD RESULT IN DEATH OR SERIOUS BODILY INJURY.
DO NOT
This saw was designed for certain applications only. DO NOT modify this saw or use for any application other than
for which is it was designed. If you have any questions relative to its application, DO NOT use the saw until you
have written Diamant Boart, Inc. and we have advised you.
Husqvarna Construction Products, North America
17400 West 119th Street
Olathe, Kansas 66061
In USA 1-800-288-5040
DO NOT operate this machine unless you have read and understood this operator’s manual.
DO NOT operate this machine without the blade guard, or other protective guards in place.
DO NOT leave this machine unattended while the engine is running.
DO NOT work on this machine while the engine is running.
DO NOT operate this machine when you are tired or fatigued.
DO NOT use a wet blade without adequate water supply to the blade.
DO NOT exceed maximum blade speed shown for each blade size. Excessive speed could result in blade breakage.
DO NOT operate the machine if you are uncertain of how to run the machine.
DO NOT use damaged equipment or blades.
DO NOT touch or try to stop a moving blade with your hand.
DO NOT cock, jam, wedge or twist the blade in a cut.
DO NOT transport a cutting machine with the blade mounted on the machine.
DO NOT use a blade that has been dropped or damaged.
DO NOT use carbide tipped blades.
DO NOT lay power cords in or near water.
DO NOT replace the motor with any motor that does not have a special grounding connection.
DO NOT use segmented diamond blades without water unless specifically designed for dry cutting.
DO NOT touch a dry cutting diamond blade immediately after use. These blades require several minutes to cool
after each cut.
DO NOT use damaged or worn blade flanges.
DO NOT allow other persons to be near the machine when starting, refueling, or when the machine is in operation.
DO NOT operate this machine in an enclosed area unless it is properly vented.
DO NOT operate this machine in the vicinity of anything that is flammable. Sparks could cause a fire or an explosion.
DO NOT allow blade exposure from the guard to be more than 180 degrees.
DO NOT operate this machine with the belt guard or blade guard removed.
DO NOT operate this machine unless you are specifically trained to do so.
DO NOT use a blade that has been over heated.
DO NOT jam material into the blade.
DO NOT grind on the side of the blade.
DO NOT start cutting with a saw until you have a clear work area and secure footing.
DO NOT operate this machine while under the influence of drugs or alcohol.
DO NOT use improper accessories that may increase the risk of personal or bystander injury. Consult the owner’s
manual for recommended accessories.
DO NOT stand on the tool. Injury may occur if a power tool is tipped or a cutting tool is unintentionally contacted.
DO NOT touch electrical wires or components while the motor is running.
DO NOT overreach. Keep proper footing and balance at all times by not overreaching.
11
Page 13
A1 Casting, Frame, Right
A2 Casting, Frame, Left
A3 Support, Horizontal Frame
A4 Tube Connector, ¼-20
A5 Screw, ¼-20 x 1 ½ Hex Head Cap
A6 Washer, ¼ SAE Flat
A7 Washer, ¼ Split Lock
A8 Strap, Table Guide Rail
A9 Screw, ¼-20 x ¾, Hex Head Ca
A10 Washer, ¼ Split Lock
A11 Drive Stud, Round Head Grooved #16 (¼) x ½
B1 Casting, Arm, Motor Mount
B2 Bushing, Nylon Flange
C1 Casting, Pivot Clamp
C2 Screw, ¼-20 x 1 ¼ Socket Hd. Cap
C3 Washer, ¼ Split Lock
C4 Pin, Pivot, .625 x 5.6
C5 Screw, Set ¼-20 x ¼ Cup Point
C6 Spring, Torsion
C7 Stop Block
C8 Screw, ¼-20 x 5/8, Socket Hd Cap
C9 Pin, Detent w/ Pull Ring
C10 Lanyard
D1 Handle, Upper
D2 Handle, Lower
D3 Screw, M3.5 x 12mm
D4 Screw, ¼-20 x ¾, Socket Hd. Cap
D5 Washer, ¼ SAE, Flat
D6 Washer, ¼ Split Lock
D7 Insert, Expansion, ¼-20 Standard
D8 Switch, Trigger
D9 Plate, Screw, Switch Mounting

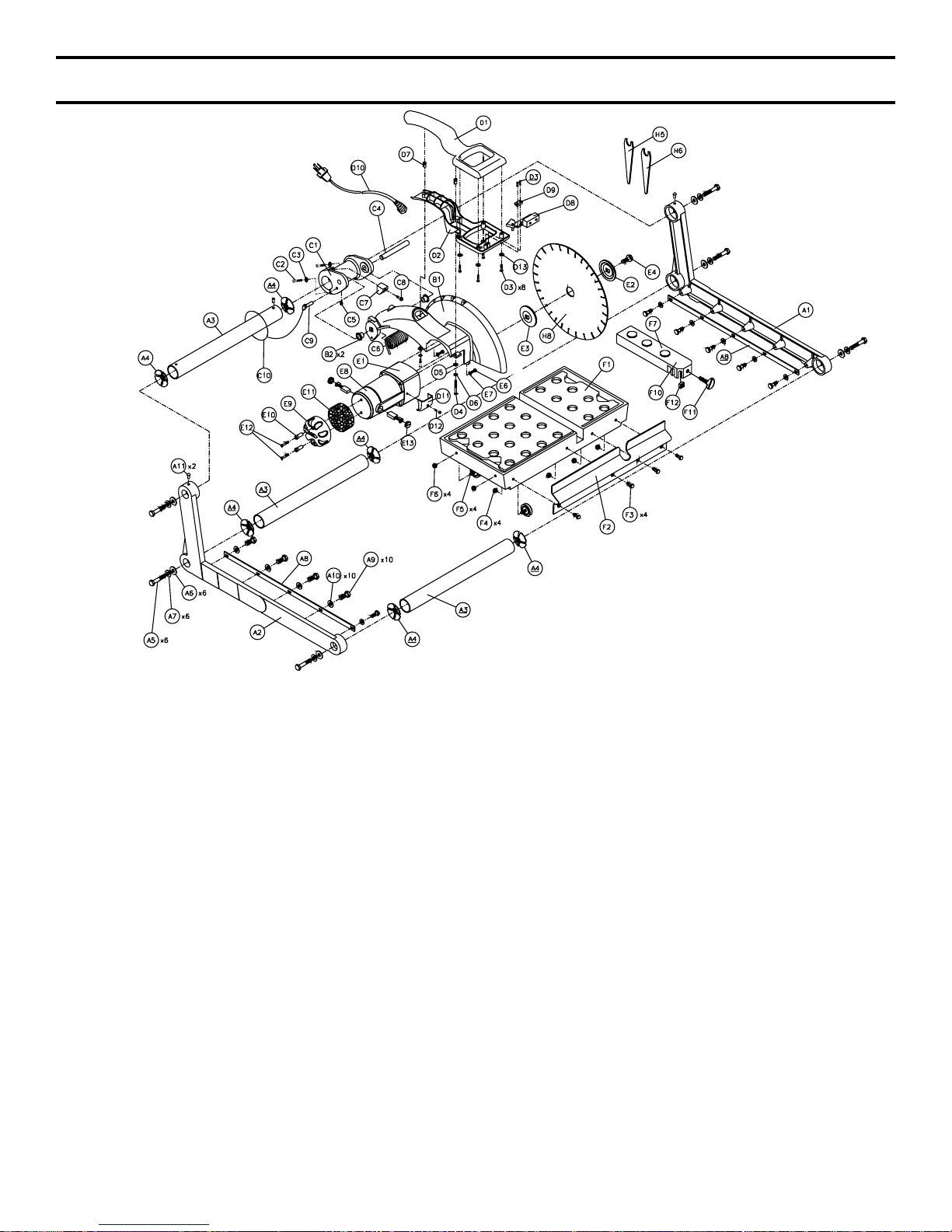

WHAT-IS-WHAT (PARTS IDENTIFICATION)
D10 Cord, AC Power 120V
D11 Cover, Wire
D12 Screw, # 6-32 x 1 ¼, Socket Flat Head
D13 Washer, #6 Flat SAE
E1 Motor, AC 115 Volt / 13 Amp, 3500 RPM
E2 Flange, Outer
E3 Flange, Inner
E4 Screw, M10 – 1.5 x 20mm Hex Flange
E6 Screw, M6-1 x 20mm Hex Head Cap
E7 Washer, M6 Split Lock
E8 Cap, Motor
E9 Cap, Motor Filter
E10 Spacer Pin, Cap Screw
E11 Filter Element
E12 Screw, #6 x 1 ½, Combo Head Pan, Tapping
E13 Motor Brush Cap
F1 Casting, Table
F2 Stop, Rule
F3 Screw, ¼-20 x ¾ Hex Head Cap
F4 Nut, ¼-20, Hex w/ External Tooth Washer
F5 Wheel, Roller
F6 Nut, 5/16-18, Hex w/ External Tooth Washer
F7 Wood Strip, Table Insert
F10 Casting, Squaring Arm
F11 Screw, 5/16-18 x 1 ½, Thumb
F12 Nut, 5/16-18 Square
H5 Wrench, Blade Nut
H6 Wrench, Shaft
H7 Extra Filter Element (Acessory Pack)
H8 Blade, Dry Cutting 14”, Segmented
H8-A Blade, Dry Cutting 14”, Segmented Block (Accessory Pack)
Owner’s Manual (Accessory Pack)
12
Page 14

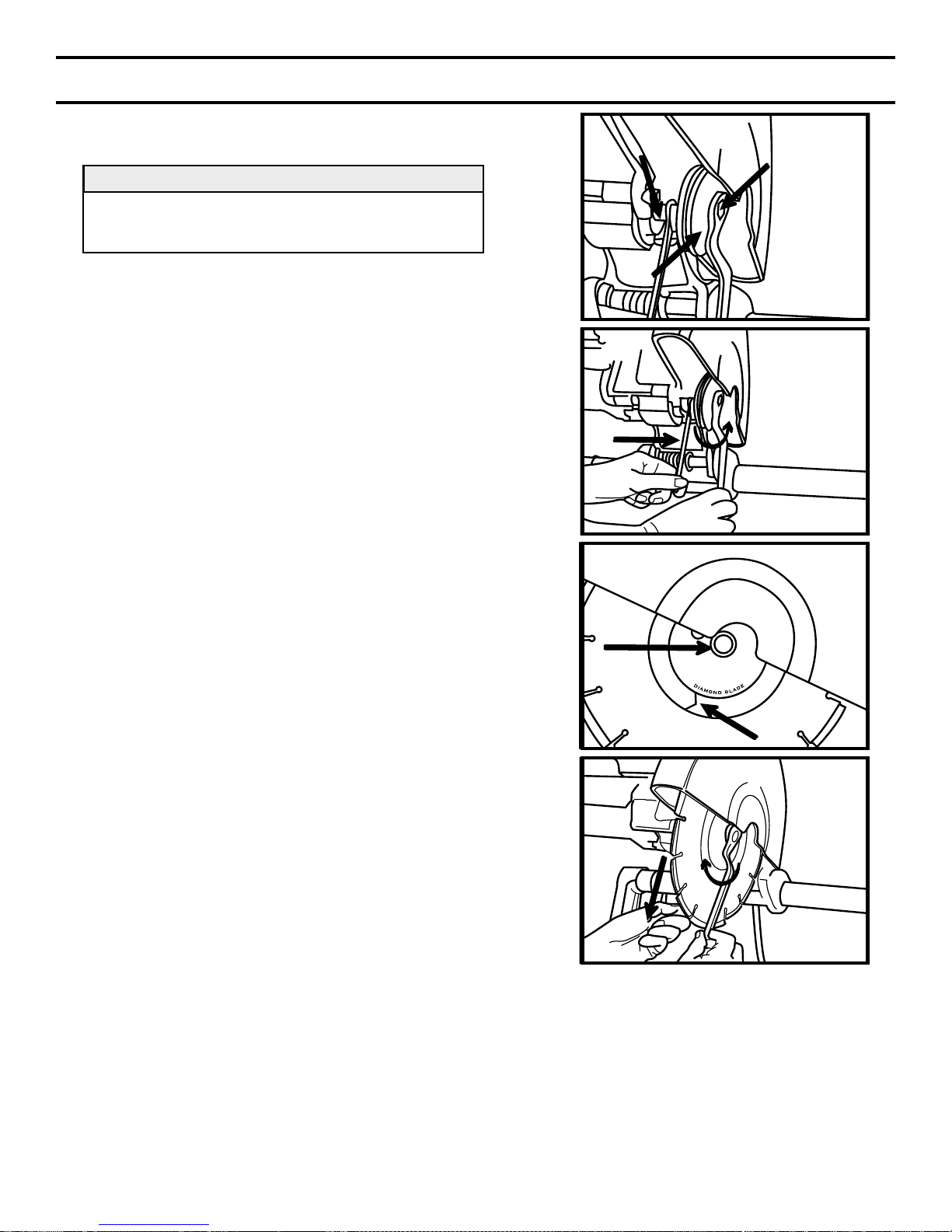

ASSEMBLY
Diamond Blade Installation
• Identify Motor Shaft, Retaining Screw (E4) and Outer
Flange (E2).
• Hold Shaft Wrench (H6) stationary. Rotate Blade
Wrench (H5) counter-clockwise. Remove Retaining
Screw and Outer Flange.
• Seat Blade (H8) on Inner Flange (F3). Verify rotation
direction.
• Hold Shaft Wrench (H6) stationary. Rotate Blade
Wrench (H5) clockwise. Install Retaining Screw (E4)
and Outer Flange (E2). Tighten.
NOTICE
When installing the Retaining Screw (E4), do not
“cross-thread” or over tighten the screw.
13
E4
Motor
Shaft
H6
H5
F3
H8
E2
H5
H6
Page 15
WARNING!
Before starting up machine make sure you
completely read these instructions. Be familiar
with operation of the machine before operation!
Use: Wet or Dry sawing of masonry and refractory materials
such as brick and block, as shown in American National
Standard Institute, B7.1-2000 "SAFETY REQUIRE MENTS FOR THE USE, CARE & PROTECTION OF
ABRASIVE WHEELS" (ANSI B7.1-2000). This machine
is designed for use as a Masonry Saw, and conforms to
ANSI B7.1-2000. All other applications are prohibited.
Not for use with material shapes that are unstable on a
flat surface, such as rocks, natural stone, or man-made
material of irregular shape.
Tools: Diamond blades — dry or water cooled.
Reinforced Abrasive blades — dry cutting only.
Sizes:
Ø: 12" (300 mm), 14" (356 mm), 18" (450 mm),
and 20" (500 mm)
with Arbor Ø 1" (25.4 mm).
For information contact your Dealer, and obtain a
copy of ANSI B7.1-2000.
OPERATION
WARNING!
Use ONLY REINFORCED Abrasive Blades or Diamond
Blades with this machine.
Use ONLY blades marked with a maximum operating
speed greater than the blade shaft speed.
DO NOT use carbide tipped, wood cutting, or circular
saw blades with this machine.
Conventional “Wet” diamond blades MUST be used with
water.
DO NOT use Abrasive Blades WITH water!
Description:
dry, masonry saw. It is engineered as a 14” dry saw,
consisting of a powerful 115v motor in a hard plastic
case. The saw is capable of cutting brick and
masonry up to 8” x 8” x16” in size; the blade has a
5” cutting depth.
The TS 355B is a versatile lightweight,
Depth of Cut (Maximum):
5.00" (127 mm) with Ø 14" (356 mm) blade.
Maximum Material Size:
8" x 8" x 16" (20.3 x 20.3 x 40.6 cm) block.
Nominal Weight: See “Specifications”.
Operating Weight: See “Specifications”.
Dimensions: See “Specifications”.
Blade Guard Capacity: See "Tools" above.
Masonry Types:
including cinder block, slump stone block, wall brick,
paver brick, concrete block and cylinders, roofing
tile, marble, granite, decorative rock or almost any
other non-ferrous material.
Can cut a variety of masonry types
NOTICE
This machine is not designed to cut plastic or ferrous
(metal) material.
Features:
Head to allow for easier step cutting. The Cutting
Head can be locked in a down position when cutting
smaller pieces. This machine also has a lockable
trigger-operating switch in the handle. For extended
operating life, this machine is designed with a clean
motor air filter and replaceable motor brushes.
Designed with a spring-assisted Cutting
The operator must
wear protective clothing
appropriate to the work
he is doing.
14
Page 16
OPERATION
WARNING!
Always make sure the saw is connected to a properly
grounded electrical outlet. Failure to comply with this
warning could result in serious bodily injury or death!

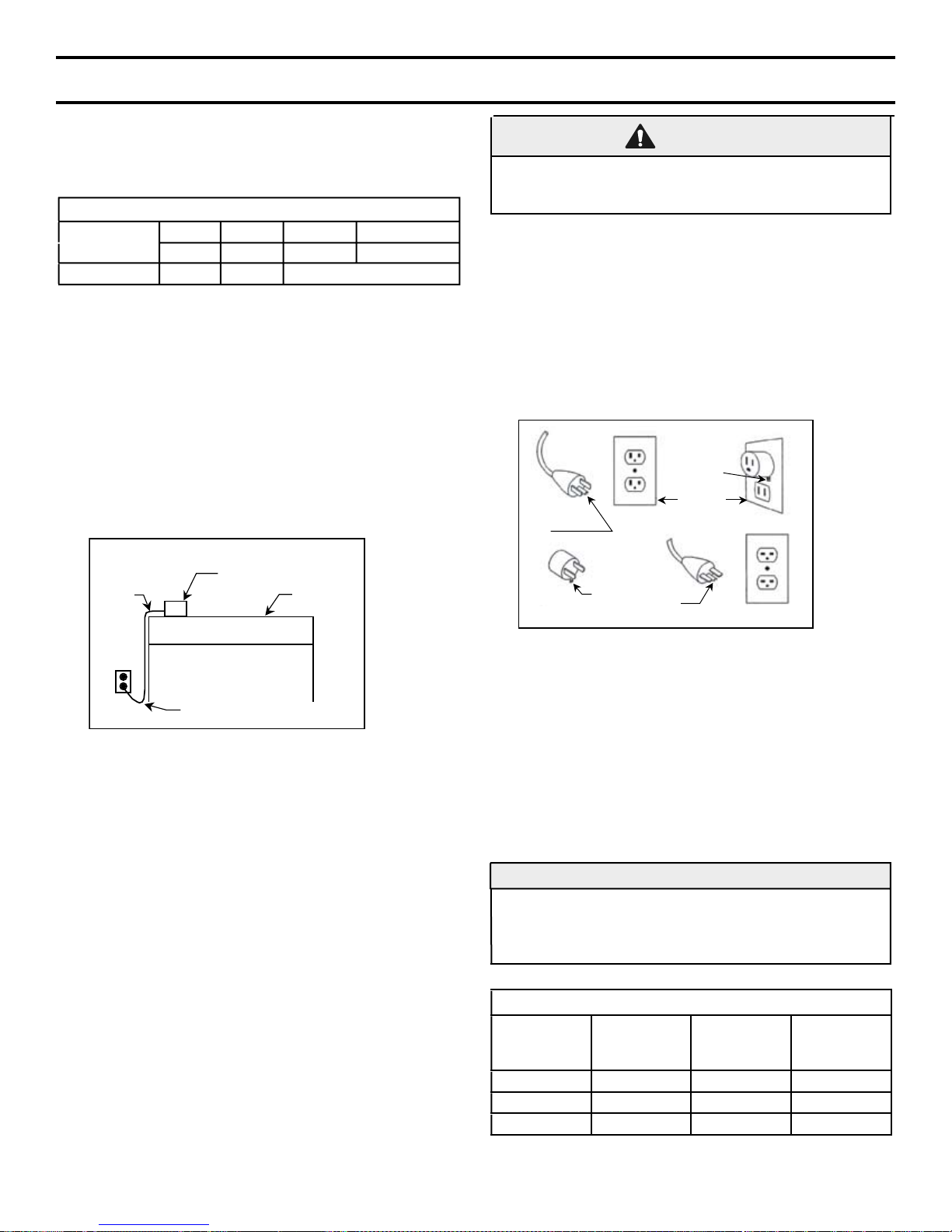

Check Before Operation:
• Make sure that extension cord length is properly sized
for motor used on saw. See chart below.
Electric Motor Plugs & Connectors
Motor
Wired For
Voltage
Motor Pigtail
Plug
(NEMA No.)
Connector
Required
(NEMA No.)
1-1/2 HP 115 V L5-20P L5-20R
2 HP 230 V L6-15P L6-15R
3 HP 230 V L6-30P L6-30R
NOTICE
DO NOT operate on low voltage! Low voltage causes
loss of power, motor overheating, and possibly motor
winding burnout. Voltage should be checked at the motor while it is operating.
EXTENSION CORD SIZE (A.W.G. Minimum)
Motor
HP
25 ft 50 ft
120 V 120 V
AWG 14 12
100 ft
120 V
Not recommended
150 ft
120 V
•
In case of a malfunction, grounding provides a path of
least resistance for electric current to reduce the risk of
electric shock.
Do not modify the plug provided. If it will not fit, have
the proper outlet installed by a qualified electrician. If
repair or replacement of the electric plug is necessary,
do not connect the equipment-grounding conductor to a
live terminal.
•
Surface
Power
Tool
Drip Loop
Power
Cord
Supporting
(A)
(B)
(C) (D)
ADAPTER
Grounding
Pin
Grounding
Means
Grounding
Pin
Cover of Grounded
Outlet Box
Metal Screw
Use only extensions cords that are intended for
outdoor use and have an electrical rating not less than
the rating of the product. Use only 3-wire extension
cords that have 3-prong grounding plugs and 3-pole
receptacles that accept the tool's plug.
Keep all connections dry, off the ground, away fromheat and sharp edges. Always disconnect the extensioncord from the receptacle before disconnecting the
product form the extension cord. Do not touch the plug
with wet hands. Repair or replace a damaged or worn
cord immediately.
To avoid getting the plug wet, a "drip loop” should be
arranged to properly position the power cord relative to
the power source, as indicated above. The "drip loop"
is that part of the cord below the level of the receptacle,
or the connector, if an extension cord is used. This
method of positioning the cord prevents water from
travelling along the power cord and coming in contact
with the receptacle.
If the plug or receptacle gets wet, DO NOT unplug the
cord. Disconnect the fuse or circuit breaker that
supplies power to the tool. Then unplug and examine
for presence of water in the receptacle.
This saw is intended for use on a circuit as shown
above. The tool has a grounding plug (A). A temporary
adapters (C) may be used to connect this plug to a
2-pole receptacle (B), if a properly grounded outlet is
not available. The adapter should be used only until a
grounded outlet can be installed by a qualified electrician.
NOTE: Use of a temporary adapter is not permitted in
Canada.
•
•
•
•
•
15
Page 17
16
OPERATION

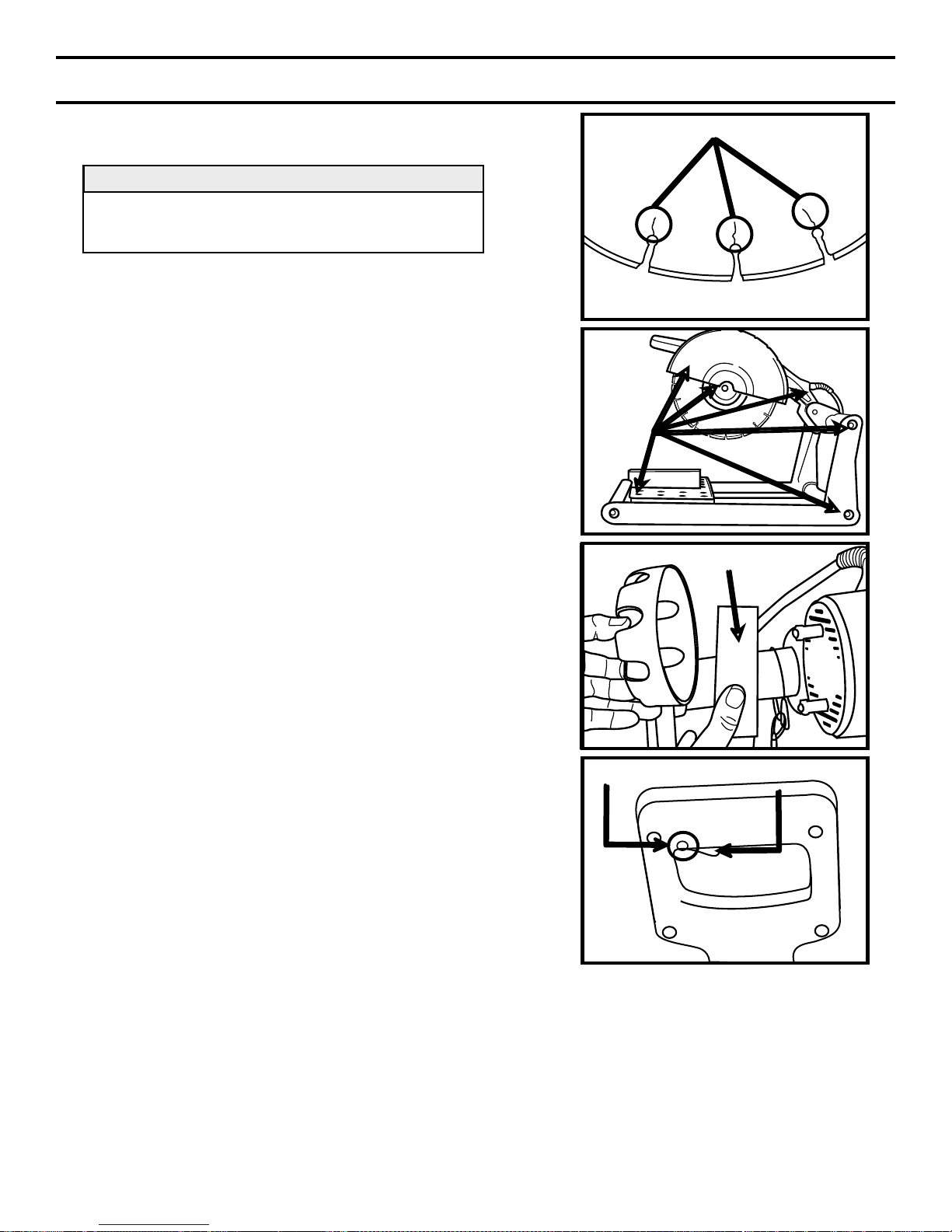

Pre-Start Inspection
• Inspect Blade (H8) for damage. Verify that the Blade
is correct for the material being cut.
• Inspect other areas for damage, including the Frame
Assembly (A), Motor Mount Assembly (B), Handle
and Cord Assembly (D) and Table Assembly (F).
• Inspect Motor Air Filter (E11) for cleanliness.
• Verify that the Trigger Switch (D8) on the underside
of the handle is unlocked.
NOTICE
The pre-start inspection should be performed before
beginning any job. In order to avoid breaker tripping,
a 20-amp circuit breaker should be used.
H8
A
A
B
B
D
F
E11
D8 (unlocked)
D8 (locked)
Page 18
17
OPERATION

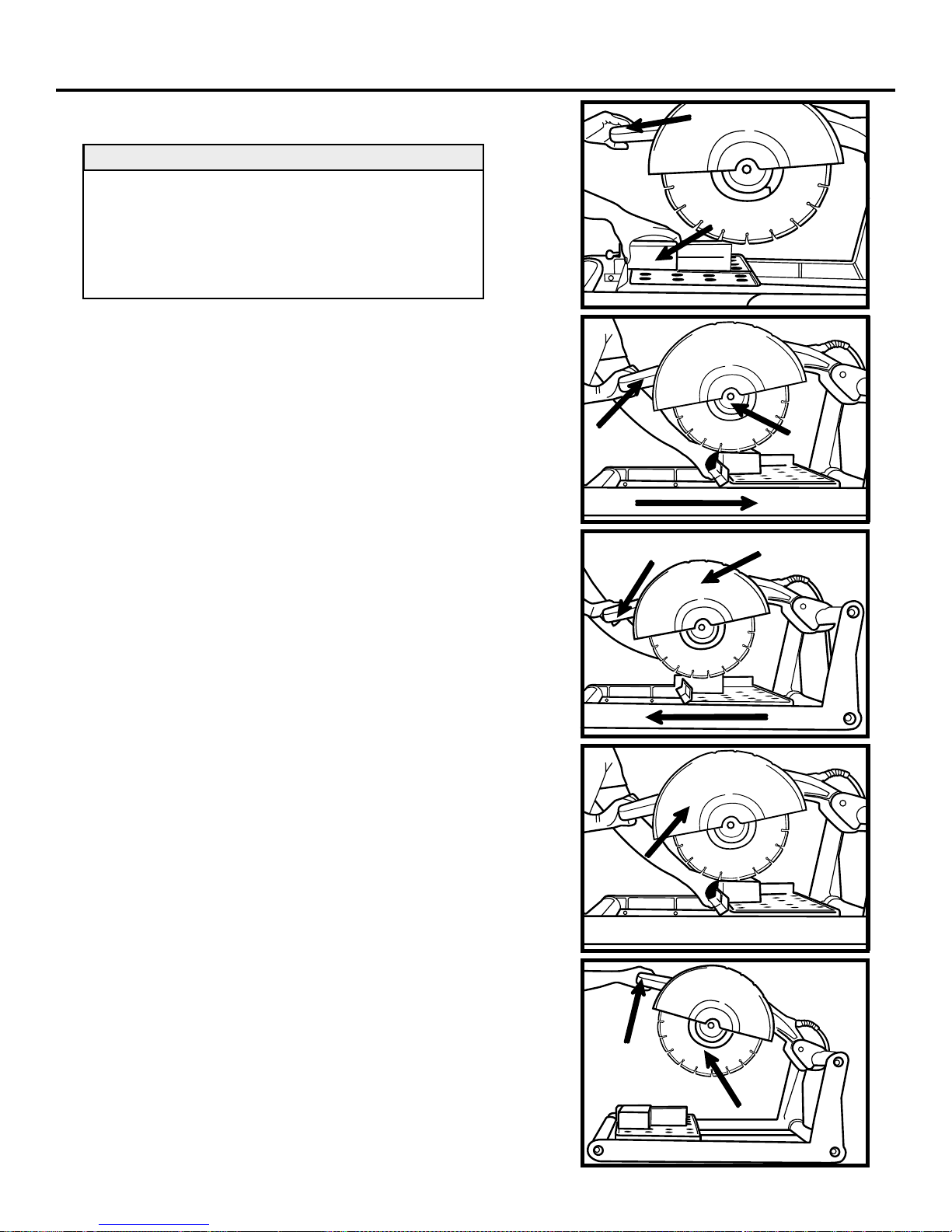

Step Cuts
• Step cut “push” stroke: Using the Handle (D1), lower
the Cutting Head 1/4-1/2 inch during the “push” stroke.
Push the Casting Table (F1) away from you.
• Step cut “pull” stroke: Using the Handle (D1), lower
the Cutting Head an additional 1/4-1/2 inch during the
“pull” stroke. Pull the Casting Table (F1) towards you.
• Repeat “push” and “pull” strokes until the cut is
complete.
NOTICE
A step cut is performed when a series of small cuts are
used to complete a single cut.
1. Step cutting is the preferred method for all cuts.
2. When cutting large or hard material, step cutting
should always be used.
3. Step cutting will extend the life of the diamond blade.
• Step cut setup: Depress Trigger (D8) to start (lock if
desired). Hold work in position.
• When the cut is complete, release the Trigger
Switch (D8). Allow the Blade (H8) to stop before
removing work. Using the Handle (D1), raise the
Cutting Head.
D8
F1
D1
F1
D1
H8
D1
Work
Cutting
Head
Cutting
Head
Cutting
Head
Page 19
18
OPERATION

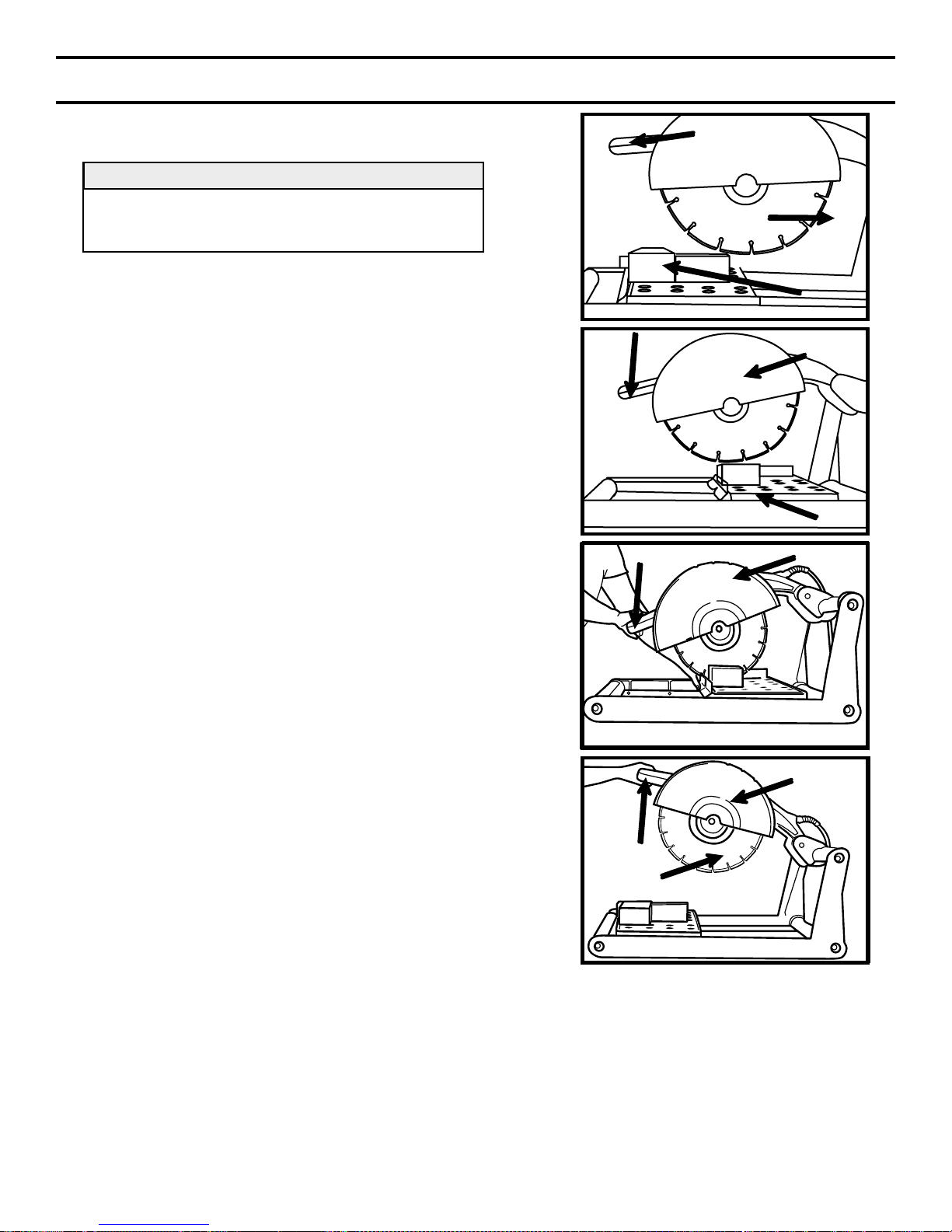

Chop cutting:
• Hold Casting Table (F1) stationery. Using the
Handle (D1), lower the Cutting Head to begin cutting.
• Using the Handle (D1), continue to lower the Cutting
Head until the cut is complete.
• When the cut is complete, release the Trigger
Switch (D8). Allow the Blade (H8) to stop before
removing work. Using the Handle (D1), raise the
Cutting Head.
NOTICE
A chop cut is performed by cutting completely through
an object in one pass.
• Chop cut setup: Depress Trigger (D8) to start (lock if
desired). Position work below the Blade (H8).
D8
H8
Work
F1
Casting
Head
H8
D1
D1
Casting
Head
D8
Casting
Head
Page 20
19
OPERATION

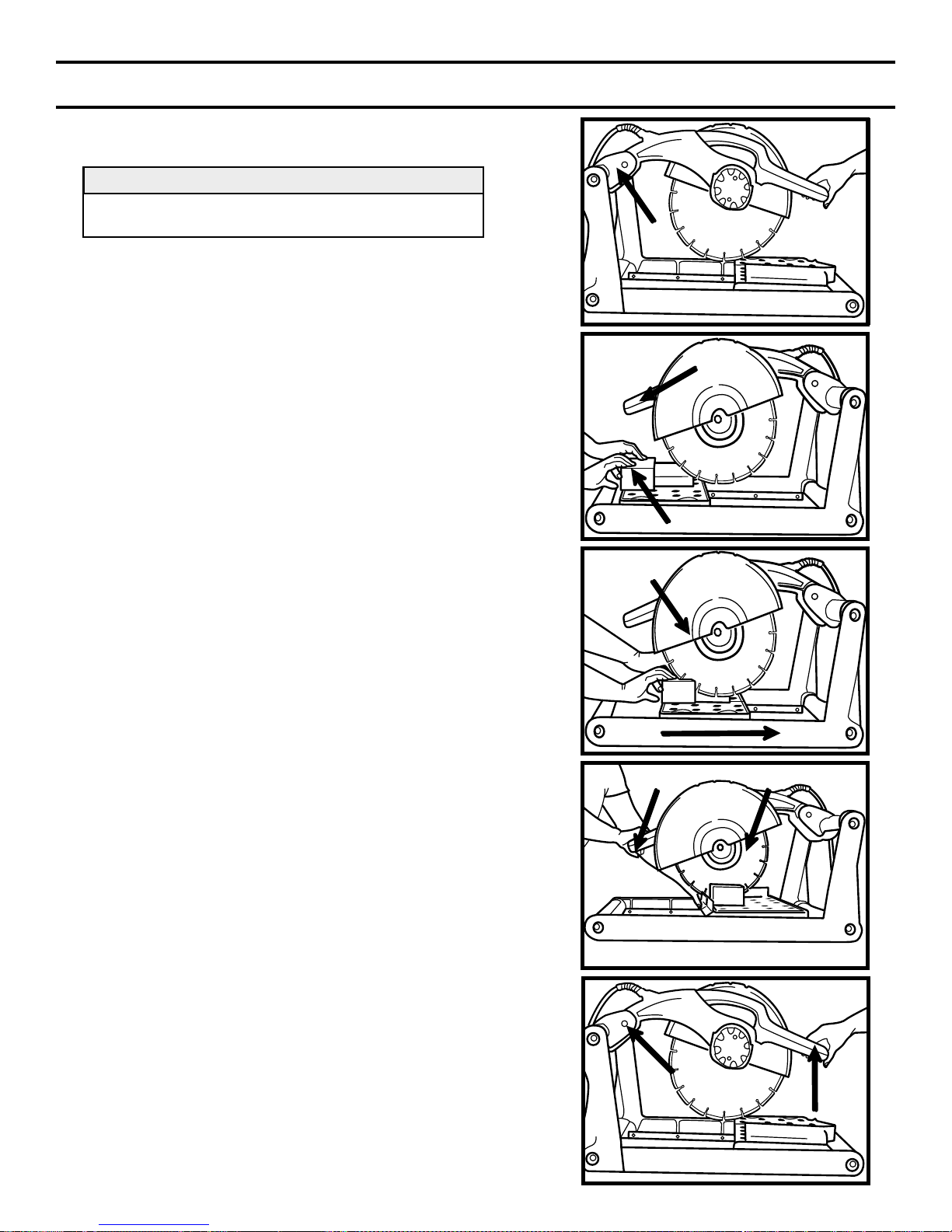

Cutting with the Cutting Head locked down
• Locked Cutting Head setup: Lock the Trigger
Switch (D8). Hold work in position.
• Slowly push the Casting Table (F1) towards the
Blade (H8) to begin cutting.
• Continue to push work into the Blade (H8) until
the cut is complete. Unlock the Trigger Switch (D8).
Allow the Blade (H8) to stop moving before
removing the work.
NOTICE
This method is preferred when cutting small objects.
• Align holes on the Pivot Clamp (C1). Insert the
Pivot Pin (C4) to lock the Cutting Head in the down
position.
C1
• When the cut is complete, hold the Handle (D1) in
the down position. Remove the Pivot Pin (C4) to
release the Cutting Head.
D8
Work
H8
F1
H8
D8
D1
C4
Page 21
20
MAINTENANCE

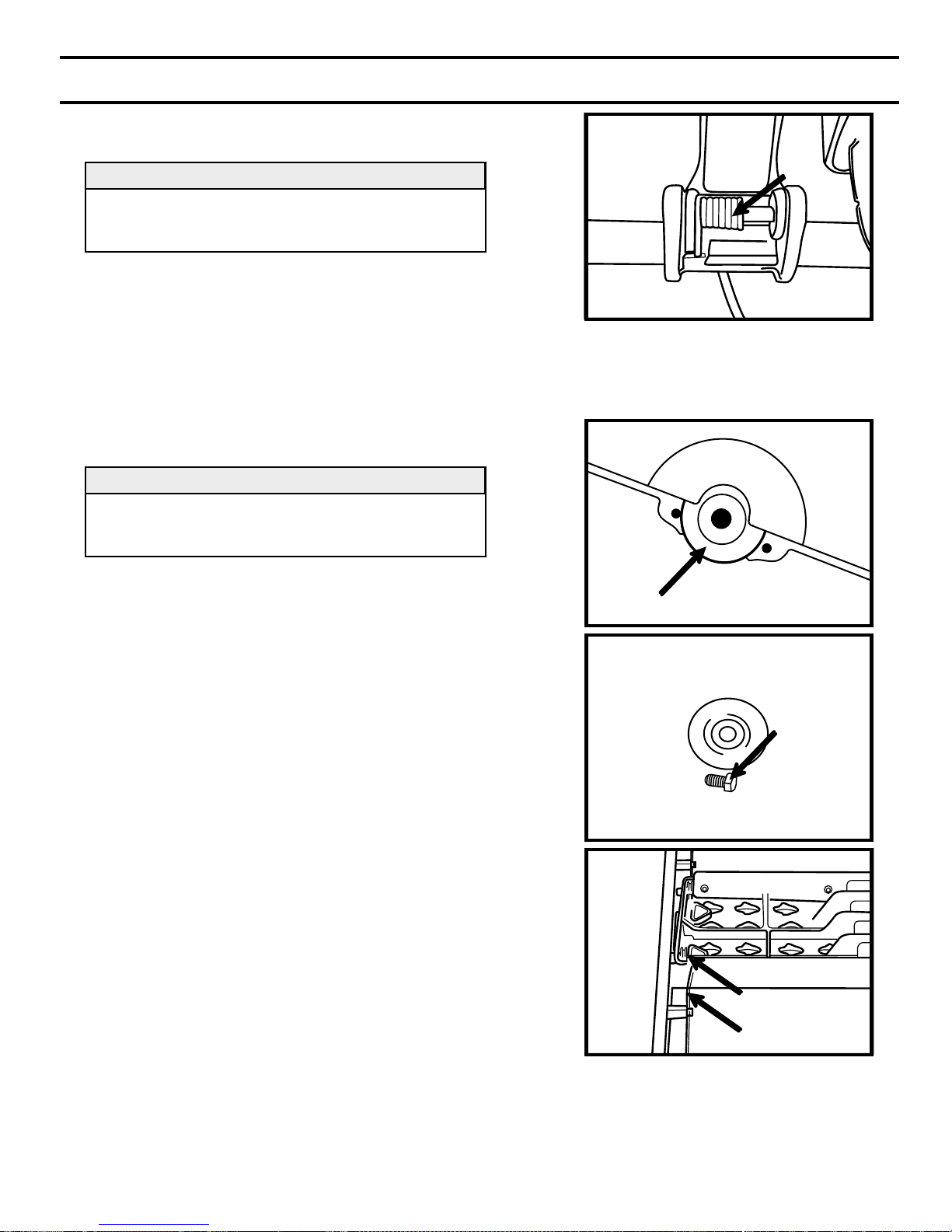

General Maintenance:
•
Clean and lubricate Inner Flange (E2) and Motor Shaft.
•
Clean and lubricate the Blade Retaining Screw (E4)
•
Check Roller Wheels (F5) and Guide Rails (A8) for
wear or damage.
NOTICE
Maintenance should be performed after each use. Use
light oil when lubricating parts.
• Lubricate Torsion Spring (C6).
E2
Monthly Maintenance:
NOTICE
Maintenance for these specified parts should be
performed monthly.
C6
E4
F5
A8
Page 22
21
MAINTENANCE

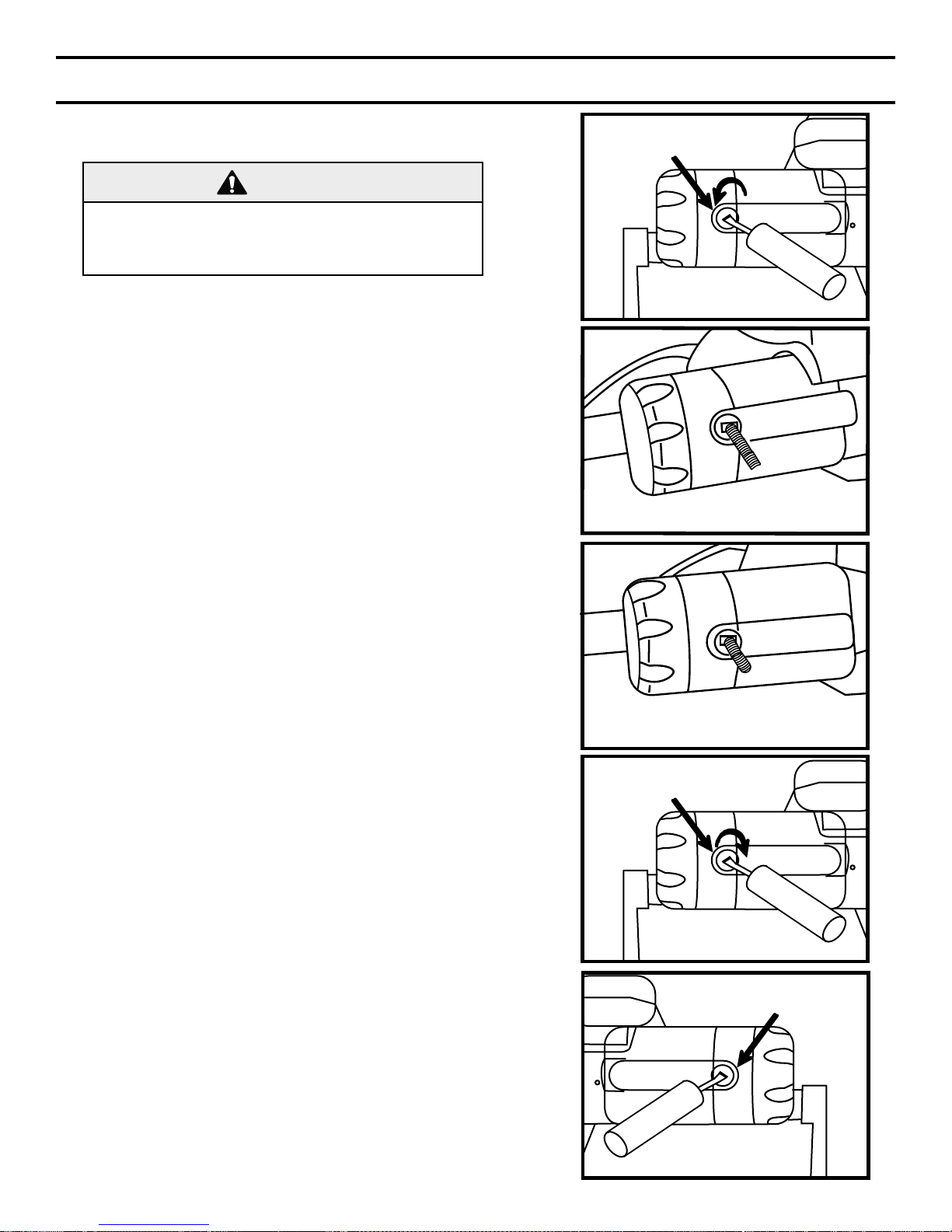

Motor Brush change-out
• Remove the Motor Brush. Clean the Brush Housing
of all carbon dust and fragments.
• Align a new Motor Brush with the Brush Housing. Insert
the new Motor Brush.
• Replace the Motor Brush Cap (E8). Using the slotted
screwdriver, rotate clockwise to secure in place.
• Using this same method, install a new Motor Brush
on the other side of the Motor.
WARNING!
Disconnect the tool before servicing and when changing
accessories. Care must be taken to ensure the spring
end is straight before installing the Motor Brush Cap.
• Insert a slotted screwdriver into the Motor Brush
Cap (E8). Rotate counter-clockwise and remove the
Cap. Repeat on the other side of the Motor.
E8
Page 23
Important Advise:
• Never transport the saw with the cutting head positioned
on the frame. The movement can knock the head out
of alignment.
• When storing for an extended period of time, use a
wire brush to remove hard, caked sludge. Clean and
thoroughly lubricate moving parts so the next job saw
is ready for operation.
• The blade must fit the arbor snugly - especially diamond
blades. Otherwise, pounding will occur and this will
seriously damage the blades. If the arbor shoulder is
grooved where the diamond blade has bound in the cut
as the shaft has continued to turn, the arbor must be
replaced, or the blade life will be severely shortened.
• Blade flanges must be full diameter - minimum of 3"
(76 mm). Replace worn flanges at once because
undersized flanges shorten blade life and cause blade
breakage.
• Check the conveyor cart condition on a regular basis.
Replace the wheels and the wooden insert frequently.
• Be certain the cutting head is correctly aligned.
Blade misalignment because of handling damage, or
transporting the saw with the cutting head on the frame
can seriously affect blade life.
• Replace noisy bearings immediately! Worn bearings
will quickly destroy the blade.
• Diamond blades may need to be “sharpened”. Blades
may be efficiently “dressed” with dressing sticks.
MAINTENANCE
WARNING!
Never use fire bricks to “sharpen” or dress diamond
blades!
WARNING!
Abrasive blades must be a reinforced type!
Never use an abrasive blade with water!
Abrasive Blades can be damaged by operator abuse,
such as jamming material into blade!
22
Page 24
The manufacturer accepts no
responsibility caused by unsuitable
use or modifications.
The instructions for use found in this document
are for information only and are not binding. As part of our product
quality improvement policy, we reserve the right to make any and
all technical modifications without prior notice.
We carry out all repairs in the shortest possible time and at
the most economical prices. See inside back cover for our
address and telephone numbers.
PRE OPERATION CHECKLIST
Before leaving our factory, every machine is thoroughly tested. Follow the instructions strictly and
your machine will give you long service in normal operating conditions.
Before starting up the machine, make sure you read this entire Operation’s Manual and are familiar
with the operation of the machine.
WITH MACHINE COLD AND SETTING LEVEL:
1. Electric Models: Verify all electrical connections are intact.
1 - 2 HOUR OPERATION CHECK LIST:
ALWAYS place the machine on a level surface with the engine/motor “OFF", the ignition switch set
in the “OFF” position and disconnected from the power source before performing any maintenance.
Let the machine cool down!
SCHEDULED MAINTENANCE QUICK REFERENCE:
Before performing any maintenance, ALWAYS place the machine on a level surface with the
engine/motor “OFF” and the ignition switch set in the “OFF” position.
SERVICE DAILY:
1. Check blade guard for damage.
2. Check clamps for damage
or looseness. Tighten or replace as necessary.
MAINTENANCE
23
Page 25
NOTES
24
Page 26
Specifications
MODEL NO. TS 355B
TYPE Electric
Blade Guard
Capacity
14.00"
(356 mm)
Blade Shaft RPM: 3500
Max. Depth of Cut: 5.0" (127 mm)
Blade Arbor Size:
Blade Shaft Drive: Direct Drive
Aluminum
Cast Aluminum
Blade Guard:
Conveyor Cart:
Frame:
Weight Pounds (kg):
Saw Crated:
Power Source
MODEL NO. TS 355B
TYPE: Electric
Engine / Motor: Ryobi
Horsepower (kw): 3 (2.2)
RPM: 3500
Voltage:
115
Cycle (Hz) /
Current / Phase:
60 / A.C. / 1
Full Load Amps: 15
Starting Amps: 188-95
SPECIFICATIONS
25
1.0" (25 mm)
14.00" (356 mm)
50 lbs. (22.7 kg)
30" X 22" X 18"
Page 27
DUST WARNING
Cutting, especially when DRY cutting, generates dust that comes from the material being cut, which
frequently contains silica. Silica is a basic component of sand, quartz, brick clay, granite and numerous other
minerals and rocks. Exposure to excessive amount of such dust can cause:
• Respiratory diseases (affecting your ability to breath), including chronic bronchitis, silicosis and pulmonary fibrosis from exposure to silica. These diseases may be fatal;
• Skin irritation and rash; and
• Cancer according to NTP* and IARC*
* National Toxicology Program, International Agency for Research on Cancer
Take precautionary steps
• Avoid inhalation of and skin contact with dust, mist and fumes;
• Wet cut when feasible, to minimize dust;
• Wear and ensure that all bystanders wear appropriate respiratory protection such as dust masks de-
signed to filter out microscopic particles. (See OSHA 29 CFR Part 1910.1200)
California Prop 65 Warning:
Use of this product can cause exposure to materials known to the State of California to cause cancer and/or birth
defects or other reproductive harm.
Husqvarna Construction Products, North America
Corporate Office
17400 West 119th Street
Olathe, Kansas 66061
Customer Service: 800-288-5040
Customer Serv. Fax: 800-825-0028
Corporate Office: 913-928-1000
Corp. Office Fax: 913-438-7951
South Carolina
Customer Service: 800-845-1312
Customer Serv. Fax: 800-257-9284
Canada
Customer Service: 800-461-9589
Customer Serv. Fax: 800-728-1907
International
Customer Service: 913-928-1300
Customer Serv. Fax: 913-438-7938
26
