Page 1
Operator′s manual
Leaf Blower
Please read the operator’s manual carefully and make sure you
understand the instructions before using the machine.
English
Page 2
ENGLISH
2
EN
Contents
1 S A FETY I N S T R U C T IONS .. . . . ... . . . . ... . . . . .... . . . . ... . . . . ... . . . . .... . . . .... . . . . ... . . . . ... . . . . .... . . . . ... . . . . ... . . 6
1.1 GENERAL ......................................................................................................................................................6
1.2 PROPER USE.................................................................................................................................................6
1.3 GENERAL SAFETY AND ACCIDENT PREVENTION REGULATIONS ..................................................................6
1.4 PICTOGRAMS USED ......................................................................................................................................9
2 D E SCRIP T I O N . . . ... . . . . ... . . . . .... . . . . ... . . . . ... . . . . .... . . . . ... . . . . ... . . . . .... . . . . ... . . . . ... . . . . ... . . . . .... . . . . ... . . . . 1 0
2.1 GENERAL DESCRIPTION OF THE LEAF BLOWER........................................................................................10
2.2 MOUNTING ON CARRIER VEHICLE ..............................................................................................................10
3 I NSTAL L A T I O N . ... . . . . ... . . . . .... . . . . ... . . . . ... . . . . ... . . . . .... . . . . ... . . . . ... . . . . .... . . . . ... . . . . ... . . . . .... . . . . ... . . . 1 0
3.1 MECHANICAL COUPLING.............................................................................................................................10
3.2 CONNECTING HYDRAULIC HOSES ..............................................................................................................10
4 D E TACHI N G . ... . . . . ... . . . . .... . . . . ... . . . . ... . . . . ... . . . . .... . . . . ... . . . . ... . . . . .... . . . . ... . . . . ... . . . . .... . . . . ... . . . . ... . 1 1
5 O P ERATI O N .. . . . .... . . . . ... . . . . ... . . . . ... . . . . .... . . . . ... . . . . ... . . . . .... . . . . ... . . . . ... . . . . .... . . . . ... . . . . ... . . . . ... . . . . . 11
5.1 GENERAL ....................................................................................................................................................11
5.2 ADJUSTING THE WORKING HEIGHT ...........................................................................................................11
5.3 TRAVEL SPEED ...........................................................................................................................................11
6 M A INTEN A N C E ... . . . . ... . . . . .... . . . . ... . . . . ... . . . . .... . . . . ... . . . . ... . . . . .... . . . .... . . . . ... . . . . ... . . . . .... . . . . ... . . . . 1 2
6.1 GENERAL ....................................................................................................................................................12
6.2 DAILY MAINTENANCE ..................................................................................................................................12
6.3 MAINTENANCE AFTER 50 OPERATING HOURS OR LONG STOPPAGES.......................................................12
7 T E CHNIC A L D A T A . . ... . . . . ... . . . . .... . . . . ... . . . . ... . . . . .... . . . . ... . . . . ... . . . . .... . . . .... . . . . ... . . . . ... . . . . .... . . . . 1 3

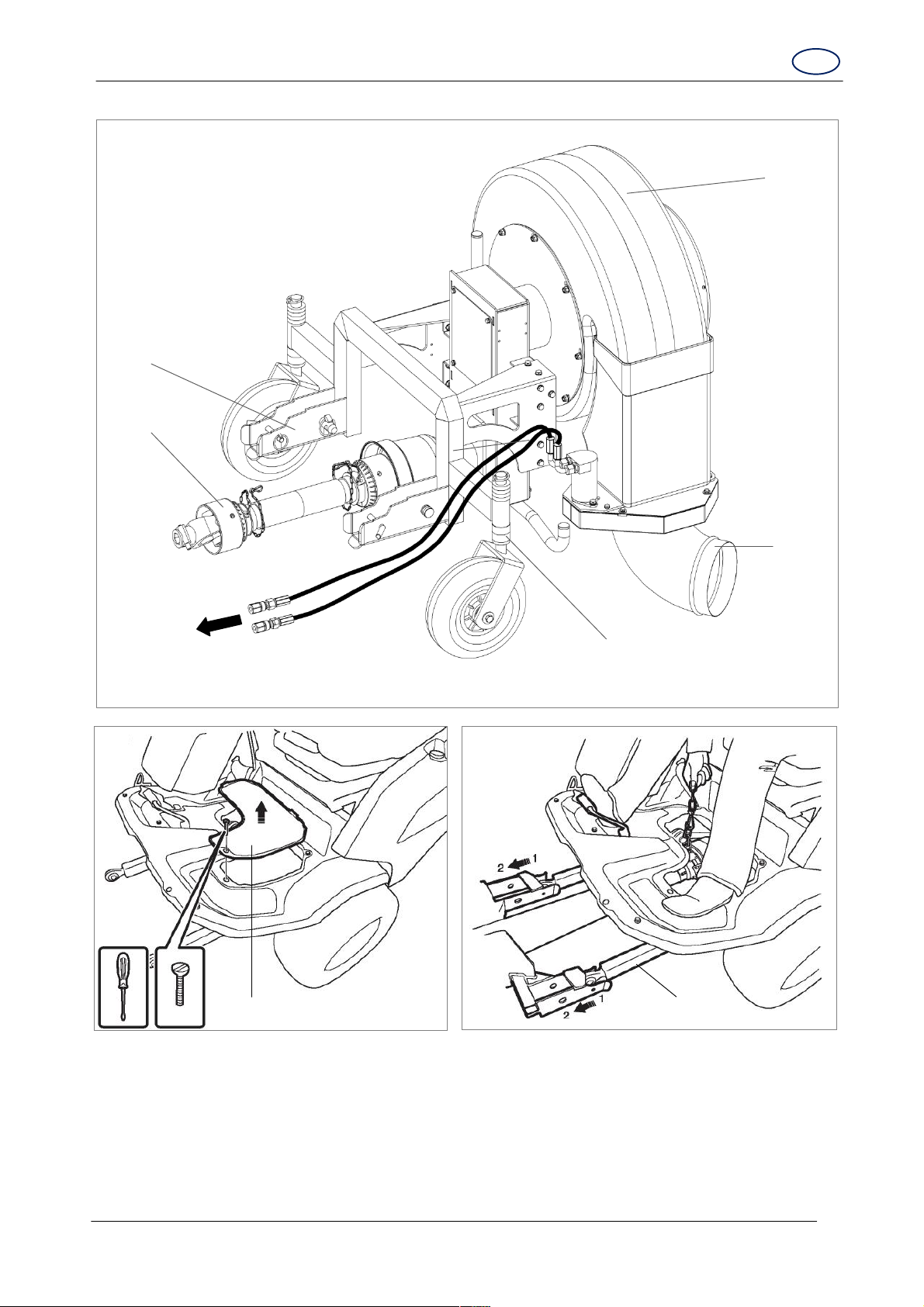

Page 3
ENGLISH
3
EN
2
3
F
G
1
A B C
E
D

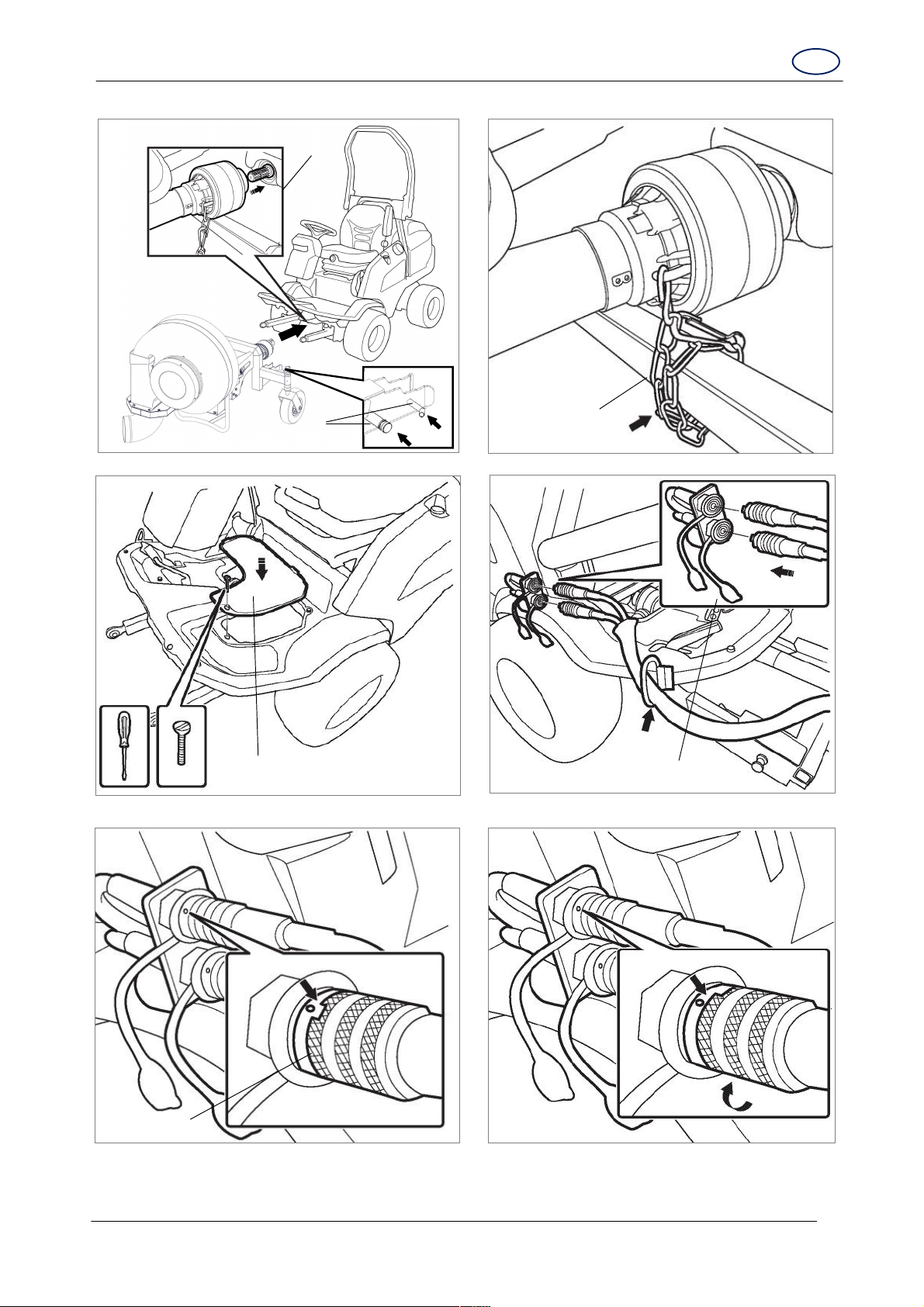

Page 4
ENGLISH
4
EN
5
4 KL
6
7
M
8
9
J
H
N

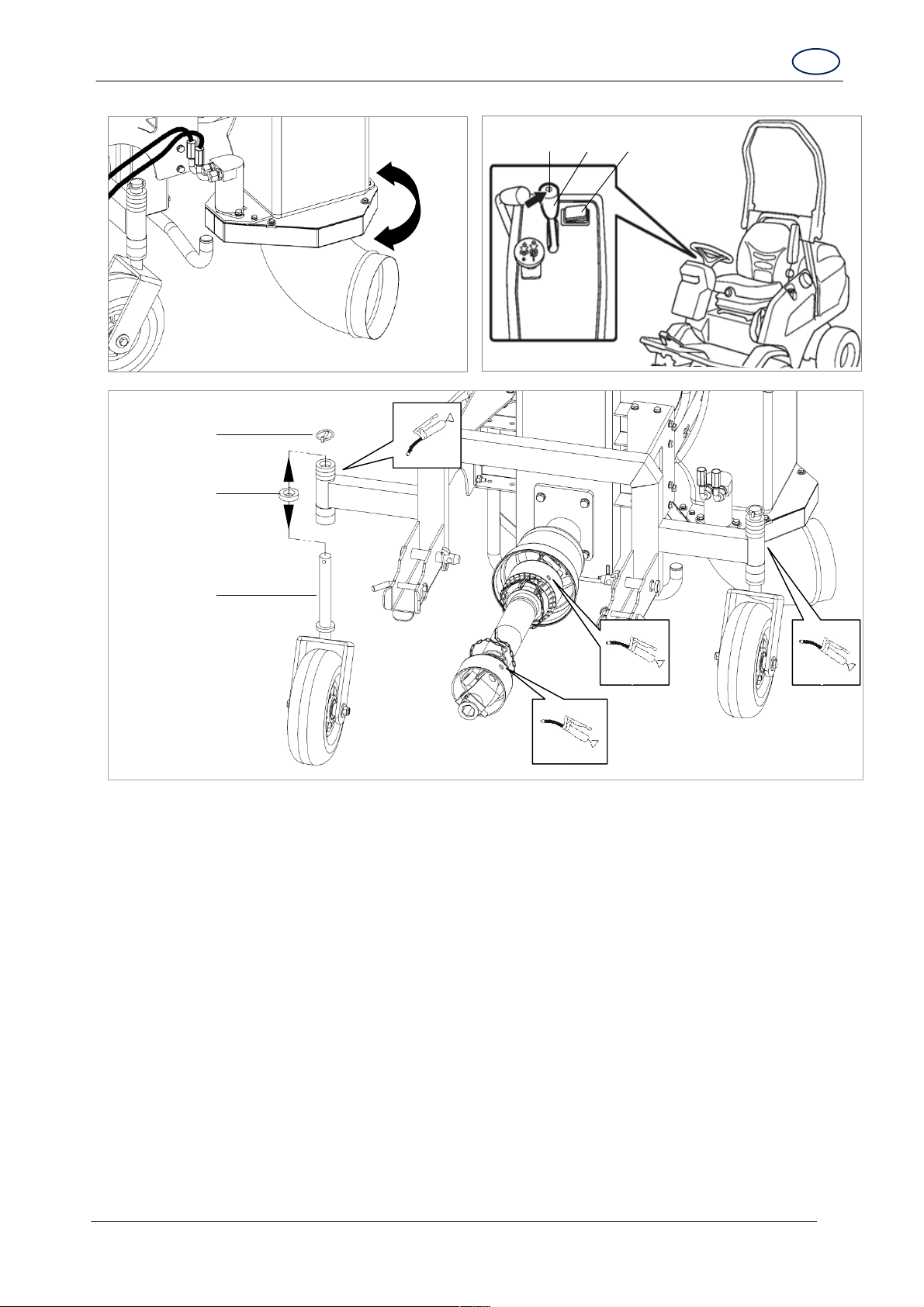

Page 5
ENGLISH
5
EN
11
10
P R O S T
U
12
Page 6
ENGLISH
6
EN
1 Safety instructions
The safety instructions in this manual cannot cover all eventualities. It is self-evident that the
good judgment and care of the person using and maintaining the machine are as important as
the safety features installed in the machine itself.
To minimize the risk of accidents, make sure the following sections are read and
understood.
1.1 General
• This symbol indicates a WARNING. Failure to follow the instructions can result in severe injury
and / or damage.
• Before starting the machine, this operating manual, along with the safety instructions for the
carrier vehicle, must be read thoroughly.
1.2 Proper use
• The leaf blower is intended for use with a Husqvarna P 520D or P 525D device.
• The machine is designed for clearing leaves. It can be used for standard applications and
agricultural and forestry operations, e.g. lawn care and grounds maintenance.
• Any alternative or additional use is classed as improper. The manufacturer accepts no liability
for any resulting damage. The operator is solely responsible for the risk involved.
• Proper use also includes adherence to the operating, service and maintenance conditions
stipulated by the manufacturer.
• The attachment may only be used, maintained or repaired by personnel who are familiar with it
and are aware of the hazards involved.
• The applicable accident prevention regulations, along with any other generally recognized
health and safety rules, must be adhered to.
• Unauthorized modifications to the machine void all manufacturer liability for resulting damage.
1.3 General safety and accident prevention regulations
1.3.1 Basic rules
• Observe the safety instructions in the carrier vehicle operating manual.
• In addition to the information provided in this operating manual, observe the generally
applicable safety and accident prevention regulations.
• Only trained personnel are permitted to operate this machine.
• Reaching into the fan housing may result in serious injuries. The operator must ensure that no
persons or animals can gain access to parts within this housing.
• When using the attachment on public highways, the national road traffic regulations must be
observed, e.g. rear reflectors, lights.
• The user should wear tightly fitting clothing. Avoid loose clothing and wear solid footwear or
safety shoes.
• Only work when visibility and lighting conditions are good.
• In areas with restricted visibility, switch off the leaf blower and make sure that no-one is
present in the danger area.
• The warning and information signs attached provide important instructions to ensure safe
operation. It is important to follow these instructions for your own safety.
• For transportation on motor vehicles or trailers, and outside the area being worked on, the
attachment must be turned off.
• Exercise caution around rotating and oscillating tools - maintain a safe distance.
• Exercise caution with trailing machine parts. Before working on these, wait until they have
completely stopped.
Page 7
ENGLISH
7
EN
• There are crushing and shearing points on driven parts.
• Attached or towed equipment and loads can affect handling, steering, braking and stability.
Work at a speed appropriate to the relevant conditions.
• Unauthorized modifications jeopardize the operating safety of the machine and are prohibited.
• Before each use, check that the machine is safe to operate.
• Never remove or modify safety equipment.
• Never move under an unsecured unit for repairs or inspection.
1.3.2 Working and danger area
• The user is responsible for third parties in the working area.
• Standing in the danger area around the machine is prohibited. Ensure that all persons have
left the danger area. Danger area: 25 m radius
• While working, the operator must ensure that no people or animals come within 25 m of the
exhaust opening. The leaf blower must be switched off in a timely manner if people or animals
enter this danger zone.
• Before turning on and starting the attachment, check the immediate vicinity. Pay particular
attention to children and animals. Ensure adequate visibility.
• Before starting work, remove any foreign bodies from the area to be worked. During work, look
out for any further foreign bodies and remove them in good time.
• When working in enclosed areas, the safety distance from the edge must be maintained to
avoid damage to the machine and tools.
• When working in close proximity to public roads and paths, the airflow must be pointed in the
opposite direction to these areas to minimize the risk of other people being injured due to
objects in the airflow.
• Never work with the leaf blower against the wind. Otherwise, objects may be hurled out in an
uncontrolled manner and could strike people, animals or the operator.
• When working on or immediately adjacent to public roads and spaces, erect information and
warning signs to draw the attention of third parties to the work being carried out.
• Due to the risk of injury from catapulted objects, protective goggles are mandatory. Approved
protective goggles in this case are those that comply with the ANSI Z87.1 standard for the
USA and/or EN 166 for EU countries.
• Due to the increased noise level, ear protection must be worn during operation.
1.3.3 Before starting work
• Before starting work, familiarize yourself with all equipment and operating controls and their
function, and make sure that all safety equipment is properly fitted and in the correct position.
Once work has started it is too late.
• Before each use, check that the machine is safe to operate.
• Before each use, check that the drive shaft is securely mounted on the drive drum on the
carrier vehicle and on the leaf blower.
• Check the hydraulic connections and hoses for leaks and replace them if necessary.
• Never operate the machine with defective or missing safety equipment.
Page 8
ENGLISH
8
EN
1.3.4 During operation
• If unusual noises or vibrations occur while operating the leaf blower, stop the motor
immediately and consult a specialist. Checks must be carried out on the fan propeller;
otherwise, serious accidents may occur.
• If persons or vehicles approach the danger area (25-m radius), the attachment must be
switched off immediately.
• Never leave the operator console while moving.
• Only leave the operator console when the tools on the attachment have come to a standstill.
• Do not make any adjustments to the attachment during operation as this results in a risk of
accidents.
• Carrying persons or objects is prohibited.
• If the attachment has taken hold of a foreign body, for example, and is blocked, switch off the
auxiliary power unit, stop the motor and remove the ignition key. The attachment can then be
cleared of foreign bodies with a suitable tool. The work must be carried out with due care and
attention, as the components may be interlocked with one another and could slip abruptly.
• In case of damage, switch off the attachment and have the damage repaired.
1.3.5 Maintenance, cleaning and repair work
• Only the work described in this operating manual may be carried out to care for and maintain
the weed brush.
• Only perform maintenance, cleaning and repair work when the auxiliary drive is switched off
and the motor is stopped.
• If protective equipment and working tools are subject to wear, check them regularly and
replace if necessary.
• Only use genuine spare parts from the manufacturer, as these comply with the technical
requirements and therefore minimize the risk of accidents. If genuine spare parts are not used,
the guarantee or warranty claim will become void.
• Carry out cleaning work with a high-pressure cleaner, ensuring that the water jet is not aimed
directly at bearings, rotating parts, lubricating nipples, shaft sealing rings, wheel hubs, etc.
After every clean with the high-pressure cleaner, the lubricating points must be regreased.
Failure to comply with this requirement voids all warranty entitlements.
• Check the moving parts for free movement and regrease as required.
• After maintenance and cleaning work, always re-install the safety equipment and set it to
safety position.
• Keep the machine clean to reduce the risk of fire.
• Regularly check that nuts and bolts are tightly fitted and tighten if necessary.
• For maintenance, cleaning and repair work on a raised unit, always use appropriate supports
to ensure safety.
• Before repair work, make sure that the hydraulic system is depressurized as pressurized fluid
can penetrate the skin and cause serious injuries. If injuries of this kind occur, seek medical
attention immediately as there is a risk of infection.
• Repairs may only be carried out by specialist personnel.
• Inspect hydraulic hoses for damage and aging at regular intervals and replace if necessary.
Replace all hoses after a maximum of 6 years of operation. The date of manufacture is
embossed on the hose.
Page 9
ENGLISH
9
EN

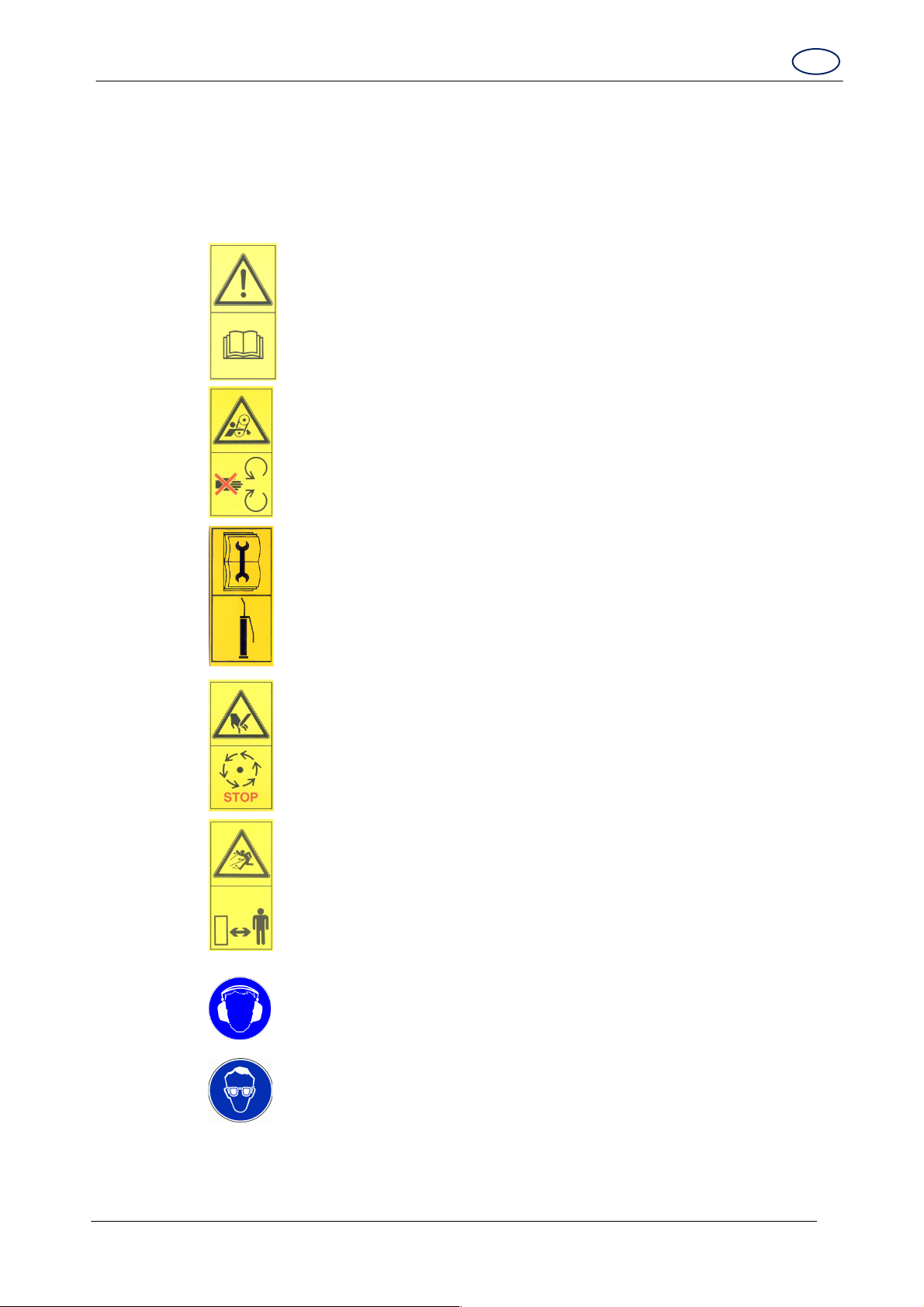

1.4 Pictograms used
The following pictograms are located on the unit to inform the operator that care and attention
is required when using and maintaining the unit.
Explanation of pictograms used:
Observe instructions in the technical manual.
Lubricating point
Do not touch machine components until they have
completely stopped.
Hazard due to ejected parts when the motor is running
- maintain safety distance.
Read and observe the operating manual and the
safety instructions before starting up.
Never open or remove safety equipment when the motor
is running.
Wear ear protection!
Wear protective
Page 10
ENGLISH
10
EN
2 Description
2.1 General Description of the Leaf Blower
The leaf blower consists of a steel construction with a plastic turbine housing (1:A). In the
turbine housing, the air sucked in at the front is accelerated and blown out again through the
vertically positioned rotatable air scoop (1:B). The rotatable air scoop can be hydraulically
rotated 360 degrees from the driver's seat, enabling the direction of the discharged airflow to
be changed.
2.2 Mounting on carrier vehicle
The leaf blower is mounted on the lifting struts (3:G) on the carrier vehicle. It is securely
connected to each lifting strut by means of two bolts, as shown in the figure (4:H).
3 Installation
3.1 Mechanical coupling
• For more information, please refer to the operating manual for the carrier vehicle.
• When coupling there is a risk of injury, e.g. due to crushing. Particular caution must be
exercised.
• The procedure for coupling the attachment is as follows:
1. Lower the lifting struts and move the carrier vehicle slowly towards the attachment in
a straight line.
2. Open the viewing panel on the base (2:F) and observe to make sure the lifting struts
(3:G) engage in the holding pockets on the attachment. In addition, ensure that the
drive shaft (4:J) is in the correct position.
3. When the fastening holes are aligned, a large and a small locking bolt are inserted
and secured by means of a cotter pin (4:H).
4. Push the drive shaft onto the splined shaft on the carrier vehicle and secure the chain
on the carrier machine (5:K) to prevent the drive shaft guard from turning with the
shaft.
5. Raise the attachment and move the support to the upper end position so that it does
not collide with the rotatable air scoop.
3.2 Connecting hydraulic hoses
• Before connecting the hydraulic hoses, make sure that the carrier vehicle hydraulic system is
not pressurized.
• Before connecting, make sure all connections are clean. Contaminants in the hydraulic oil
cause severe damage to the hydraulic system.
• Stop the motor.
• Move the hydraulic controls back and forth to relieve any excess pressure.
• Remove the protective covers (7:M) from the couplings and connect the couplings to the
carrier machine (7–9).
Page 11
ENGLISH
11
EN
4 Detaching
• For more information, please refer to the operating manual for the carrier vehicle.
• When uncoupling there is a risk of injury, e.g. due to crushing. Particular caution must be
exercised.
• The procedure for uncoupling the attachment is as follows:
1. Raise the attachment and move the supports to the lower end position.
2. Detach the chain from the shaft guard on the carrier machine and disconnect the
shaft.
3. Lower the attachment and stop the motor.
4. Release any excess pressure in the hydraulic system by moving all hydraulic controls
back and forth.
5. Disconnect the hydraulic hoses and fit the protective covers on the couplings.
6. Remove the locking bolts and slowly reverse away.
5 Operation
5.1 General
• Never start the leaf blower suddenly. When starting the leaf blower, keep the motor speed low
and then steadily increase the speed.
• The rotatable air scoop can be hydraulically rotated 360 degrees (figure 10). The air scoop is
controlled by the valve lever (11:P) on the carrier vehicle. To ensure that the hydraulic auxiliary
drive is actuated and not the lifting struts, the top button (11:O) on the valve lever must be
pressed and held down while operating the valve lever.
5.2 Adjusting the Working Height
• The distance between the discharge air scoop and the ground can be adjusted from 5 cm to
13 cm. The distance is adjusted by adding and removing spacer bushings (12:T) at the wheel
forks (12:U) in increments of 10 mm or 20 mm. To adjust the working height, proceed as
follows:
1. Raise the attachment.
2. Remove the retractable pin (12:S).
3. Pull wheel fork (12:U) down and out.
4. Add spacer bushings to or remove spacer bushings from the wheel fork shaft.
5. Refit the wheel fork and secure in place with the retractable pin.
• An insufficient distance between the air scoop and ground increases the risk of collision. The
working height must be adjusted to local conditions.
5.3 Travel Speed
• The travel speed depends on the amount and nature of the leaves. If possible, drive at the
maximum motor speed. The higher the motor speed, the greater the airflow rate and the
associated area covered.
Page 12
ENGLISH
12
EN
6 Maintenance
6.1 General
• The attachment must be maintained regularly.
• Failure to comply with this requirement can result in injuries or damage to the machine. Before
each use, check all parts relevant to safety.
• The safety instructions set out in 1.3.5 must be followed.
• Repair, maintenance and cleaning work, as well as remedying malfunctions, must only ever be
carried out with the drive turned off and the motor stopped. Remove the ignition key or the spark
plug connector. After carrying out the work, re-install all safety equipment.
• Check all screw and bolt connections after the first 5 hours of operation.
6.2 Daily maintenance
• Check safety equipment and moving parts for wear and replace if necessary.
• Check that the moving parts move freely and lubricate them at the lubrication points, as shown
in figure 12. Remove any excess grease.
• Carry out a test run before each use.
• Check the hydraulic connection and lines for leaks.
• Lubricate the drive shaft as specified by the manufacturer.
6.3 Maintenance after 50 operating hours or long stoppages
• Check the V-belt and make sure that the tension spring still adequately tensions the V-belt.
• The moving parts must be greased or oiled at regular intervals, and at the beginning and end of
every season.
• Check hydraulic fittings and hoses for leaks and damage, and replace if necessary. Refer to the
legal requirements for the maximum usage period.
Page 13
13
7 Technical data
Technical data
Drive
Mechanical
Sound level L
pA,eq
90.1 dB(A) at operator ear
Measurement based on DIN EN 12733:2009
Max. power take-off speed
2,500 rpm
Flow rate
4300 m³/h
Discharge air range
Approx. 12 m
Weight
Approx. 85 kg
Length / Width / Height
Approx. 100/110/100 cm
- Subject to technical modifications. -
Page 14
14
EG - Konformitätserklärung
CE Déclaration de conformité
EC Declaration Conformity
EG conformiteitsverklaring
Nous
We
Wij
Kersten Arealmaschinen GmbH
Empeler Straße 95
D- 46459 Rees
erklären, dass das
Produkt
déclarons que le
produit
herewith declare
that the product
verklaren dat het
produkt
Anbau –
Laubblasgerät
Souffleurs de feuillage
Cultivation –
Blowers
Teelt - Blowers
LBV 4300-ABR
mit allen einschlägigen
Bestimmungen der
EG-Maschinenrichtlinie 2006/42/EG in
Übereinstimmung ist.
satisfait à l'ensemble
de la directive machines
2006/42/CE.
fulfiles all relevant
provisions of Directive
2006/42/EC.
voldoet aan alle
toepasselijke bepalingen van EGMachinerichtlijn
2006/42/EG.
Die Maschine ist auch
in Übereinstimmung
mit allen einschlägigen
Bestimmungen der folgenden EG-Richtlinien:
Cette machine satisfait
également à toutes les
dispositions pertinentes
des directives CE
suivantes:
The machinery is also
in compliance with all
relevant provisions of
the following EC
directives:
De machine is ook
in overeenstemming
met alle toepasselijke
bepaligen van de volgende EG- richtlijnen:
Weiterhin wurden folgende Normen angewendet:
En outre, les normes et
spécifications techniques
suivantes ont été utilisées:
The following
harmonised standards
apply:
Volgende geharmoniseerde normen warden
gehanteerd:
EN ISO 12100 : 2010
Herr
Monsieur
Mr.
De heer
Dipl.- Ing. (FH) Robert Bosch
Empeler Straße 95
D- 46459 Rees
ist bevollmächtigt
die technischen Unterlagen zusammenzustellen.
est autorisé à constituer
la documentation
Technique conformément
à l'annexe VII A.
is authorised to
compile the technical
file according to Annex
VII A.
is gemachtigd het
technische dossier
samen te stellen.
Rees, 16.02.2015
Geschäftsführer
Directeur
Managing Director
Bedrijfsleider
D
NL
GB
F
Page 15
Page 16
www.husqvarna.com
Original instructions
Order number: B00063 From machine no.: 55010 Revision: R00 As of: 01.2015
2015-02-19
Loading...
