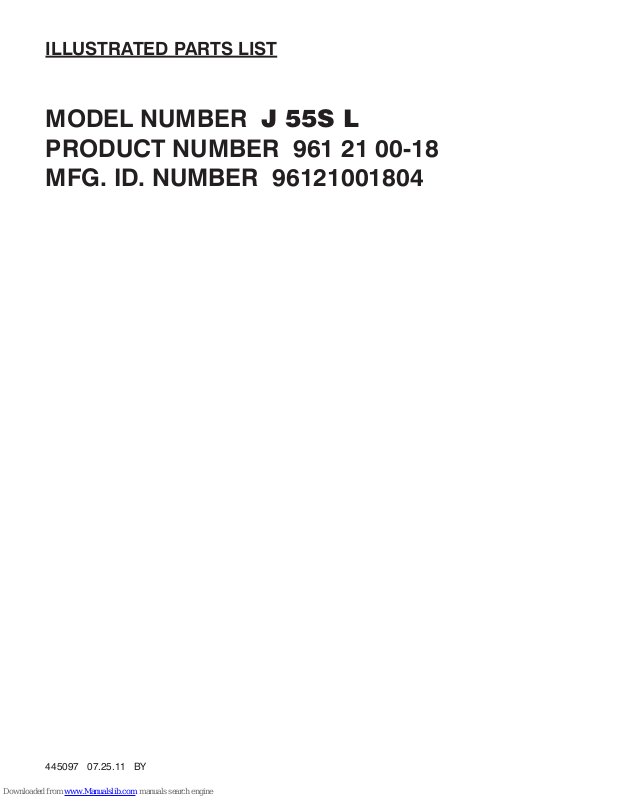

Page 1
ILLUSTRATED PARTS LIST
MODEL NUMBER J 55S L
PRODUCT NUMBER 961 21 00-18
MFG. ID. NUMBER 96121001804
445097 07.25.11 BY

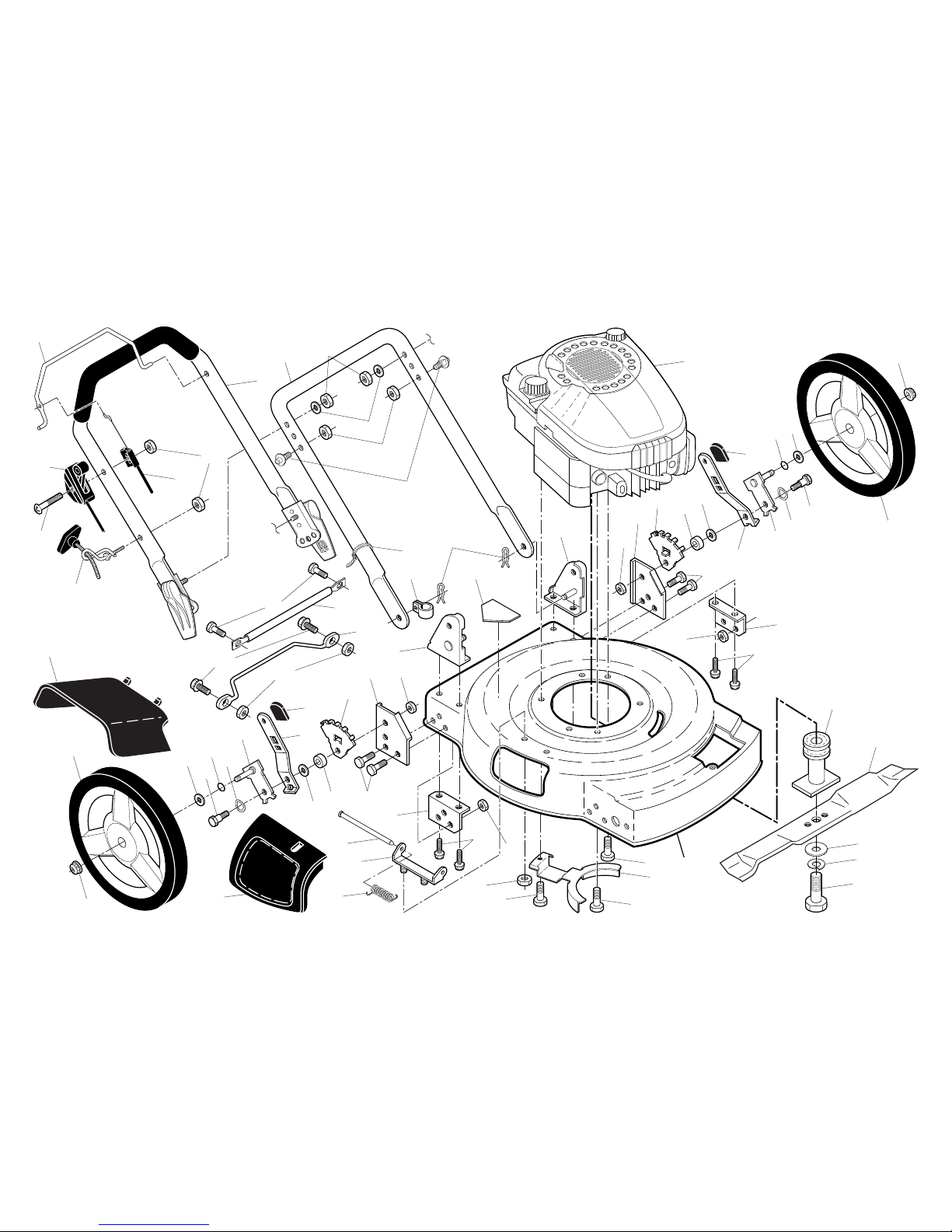

Page 2
2
ROTARY LAWN MOWER - - MODEL NUMBER J 55S L (96121001804) PRODUCT NUMBER 961 21 00-18
1
2
5
8
10
11
12
14
14
16
17
18
19
20
24
25
27
25
27
28
28
29
29
30
30
31
31
32
32
33
34
34
35
35
36
38
39
40
42
44
45
52
54
54
54
54
56
57
58
59
60
60
61
61
61
61
64
67
67
72
75
65
76
69
68
9
41
41
41
43
46
47
48
49
50
55
Page 3
3
ROTARY LAWN MOWER - - MODEL NUMBER J 55S L (96121001804) PRODUCT NUMBER 961 21 00-18
KEY PART
NO. NO. DESCRIPTION
1 532 42 08-35 Upper Handle Assembly
2 532 14 92-93 Engine Zone Control Cable
5 532 06 64-26 Wire Tie
8 532 19 05-27 Control Bar
9 532 19 58-00 Support Bracket, Handle, LH
10 532 42 44-45 Handle Bracket Assembly, RH
11 532 19 57-99 Support Bracket, Handle, RH
12 532 42 44-46 Handle Bracket Assembly, LH
14 532 14 97-41 Screw, Thread Cutting 5/16-18 x 3/4
16 817 06 04-10 Screw, Hex Head, Self-Tapping
1/4-20 x 1/2
17 532 17 71-41 Rod, Support
18 532 13 20-04 Locknut, Keps
19 532 19 47-88 Rope Guide
20 532 43 19-95 Foot Guard
24 532 06 91-80 Nut, Hex
25 532 40 91-49 Locknut, Hex 3/18-16
27 532 41 08-15 Wheel & Tire Assembly, Rear
28 532 17 47-19 Shoulder Bolt
29 532 40 16-30 Curved Washer
30 532 40 65-82 Axle Arm Assembly
31 532 13 28-00 Knob, Selector
32 532 40 64-28 Spring, Selector
33 532 19 60-10 Discharge Guard
34 532 40 16-29 Spacer
35 532 41 08-07 Bracket, Wheel Adjuster
36 532 15 41-32 Bracket, Housing
38 532 19 60-11 Deflector, Discharge
39 532 41 93-62 Support Bracket, LH
40 532 41 93-61 Support Bracket, RH
41 532 15 04-06 Screw, Hex Head, Threaded, Rolled
3/8-16 x 1-1/8
KEY PART
NO. NO. DESCRIPTION
42 532 15 21-24 Spring, Torsion
43 873 80 04-00 Locknut, Hex
44 532 40 06-60 Kit, Mower Housing (Includes Key Number 52)
45 532 14 72-86 Rod, Hinge
46 532 42 11-76 Blade Adapter / Pulley
47 532 19 93-79 Blade, 22"
48 532 85 10-74 Washer, Hardened
49 532 85 02-63 Washer, Lock, Helical
50 532 85 10-84 Screw, Hex Head 3/8-24 x 1-3/8 (Grade 8)
52 532 18 21-66 Decal, Danger
54 532 08 83-48 Washer, Flat 3/8
55 532 42 90-01 Belt Keeper
56 871 19 10-12 Screw, Hex Washer Head #10-24 x 1/2
57 532 05 17-93 Hairpin Cotter
58 532 41 93-63 Lower Handle
59 532 40 04-13 Locknut, Hex 1/4-20
60 874 76 06-12 Bolt, Hex Head 3/8-16 x 3/4
61 873 93 06-00 Locknut, Hex
64 - - - Engine, Briggs & Stratton, Model Number 124T02-
6254-H1 (Order parts from engine manufacturer)
65 532 15 54-15 Washer, Flat
67 532 19 74-80 O-Ring
68 532 42 06-11 Control Throttle
69 532 18 33-65 Screw Hex 1/4 x 20 x 2.17
72 532 19 79-91 Clip, Cable
75 532 19 92-55 Stud
76 532 75 11-53 Nut, Hex
- - 532 18 21-34 Warning Decal (not shown)
- - 532 41 90-73 Operator’s Manual, European
- - 532 41 90-74 Operator’s Manual, Scandinavian
- - 532 41 90-75 Operator’s Manual, East Bloc
- - 532 41 90-76 Operator’s Manual, Baltic
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts. Failure to do so could be hazardous, damage your lawn mower and void your warranty.

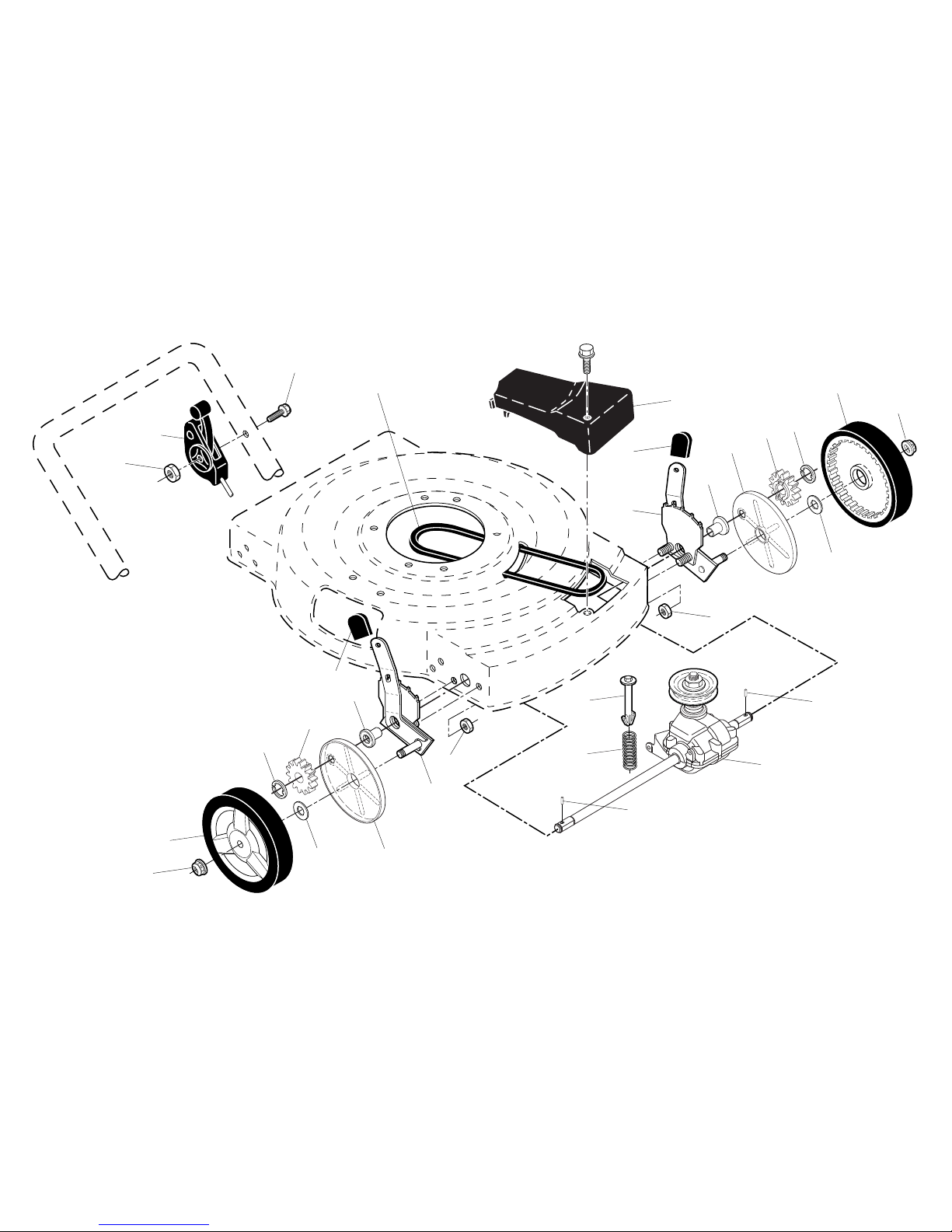

Page 4
4
ROTARY LAWN MOWER - - MODEL NUMBER J 55S L (96121001804) PRODUCT NUMBER 961 21 00-18
1
4
5
6
7
15
15
28
36
38
38
40
9
9
2
2
11
13
14
16
18
35
12
11
12
13
14
16
18
41
Page 5
5
ROTARY LAWN MOWER - - MODEL NUMBER J 55S L (96121001804) PRODUCT NUMBER 961 21 00-18
KEY PART
NO. NO. DESCRIPTION
1 532 18 45-88 Drive Control Assembly
(Includes Cable)
2 532 19 10-39 Bearing, Wheel Adjuster
4 532 15 87-55 Screw, Machine, Pan Head
1/4-20 x 2-3/16
5 532 14 65-27 V-Belt
6 532 15 04-95 Bolt, Hex Head 1/4-20 x 2
7 532 19 17-30 Nut, Hex
9 532 40 91-48 Locknut, Hex
11 532 41 10-81 Wheel & Tire Assembly
12 812 00 00-58 E-Ring
13 532 40 38-49 Pinion
KEY PART
NO. NO. DESCRIPTION
14 532 18 94-03 Dust Cover
15 532 40 48-45 Pawl, Drive
16 532 06 77-25 Washer
18 532 13 28-00 Knob, Selector
28 532 43 26-69 Drive Cover Assembly (Includes
Mounting Screw and Pushnut)
35 532 43 84-85 Kit, Wheel Adjuster, LH
(Includes Knob and Bearing)
36 532 41 52-26 Gear Case Assembly, Complete
38 873 80 04-00 Locknut, Hex
40 532 13 70-90 Spring
41 532 43 84-86 Kit, Wheel Adjuster, RH
(Includes Knob and Bearing)
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts. Failure to do so could be hazardous, damage your lawn mower and void your warranty.
