For Husqvarna Parts Call 606-678-9623 or 606-561-4983
Parts Manual Models:
968999131/DT22H5NRA
968999212/DT22B5NRA
968999213/DT22B5FA
968999243/DT22H5FA
968999244/DT22B5DSA
968999247/DT22NEFA
MANUAL NO. 539107175 REV. 05 (03/09/04)
www.mymowerparts.com
Page 2
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
©2004 Husqvarna. All Right s Reserved.
Beatrice, NE. Printed in U.S.A.
2
www.mymowerparts.com
Page 3
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
INDEX
HANDLE ASSEMBLY ............................4-5
BODY ASSEMBLY ................................6-7
FLAIL REEL ASSEMBLY ......................8
DELTA REEL ASSEMBLY.....................9
SPRING REEL ASSEMBLY ..................10
DECALS ................................................11
BAGGER ASSEMBLY...........................12-13
SEEDER ASSEMBLY ...........................14-15
www.mymowerparts.com
3
Page 4
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
HANDLE ASSEMBL Y
2
1
21
8
4
10
3
10
22
17
20
14
18
15
13
11
7
16
18
6
19
5
9
9
19
16
16
5
12
10
7
4
8
19
4
www.mymowerparts.com
Page 5
For Husqvarna Parts Call 606-678-9623 or 606-561-4983

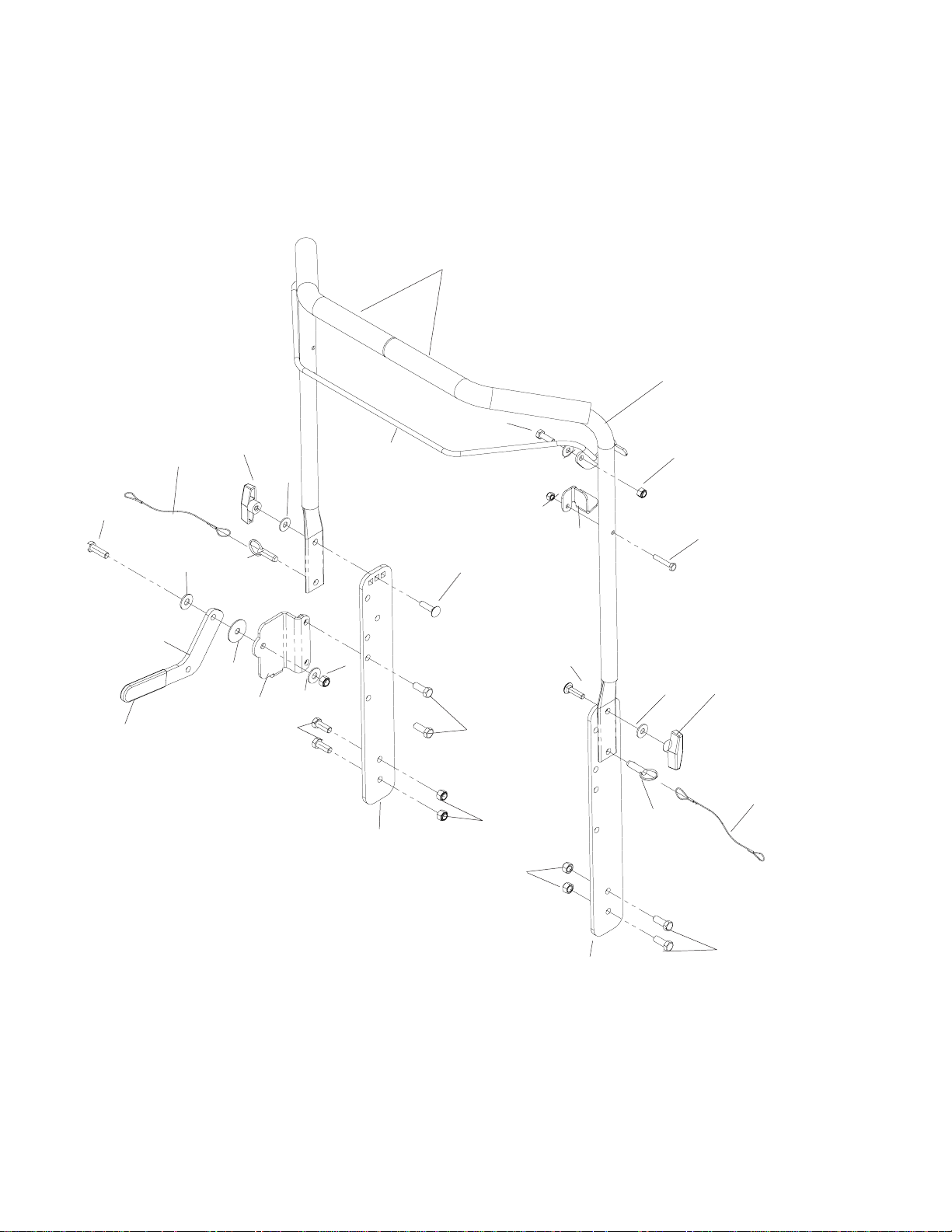

HANDLE ASSEMBL Y
ITEM PART NO. QTY. DESCRIPTION
1 ...... 539106758.....1........... HANDLE
2 ...... 539052561.....2........... FOAM GRIP
3 ...... 539106760.....1........... BAIL
4 ...... 539100481.....2........... KNOB
5 ...... 539106755.....2........... HANDLE SIDE
6 ...... 539106654.....1........... MOUNT
7 ...... 539100556.....2........... PIN
8 ...... 539102563.....2........... LANYARD
9 ...... 539100472.....2........... RHSNB 5/16C X 1 1/4
10 ...... 539990692.....3 ........... WASHER, 5/16, FLA T
11 ...... 539106688.....1 ........... CABLE TAB
12 ...... 539990639.....1 ........... HCS 1/4C X 1 1/2
13 ...... 539976978.....1 ........... NUT , 1/4C, NYLOC
14 ...... 539106645.....1 ........... LEVER
15 ...... 539102998.....1 ........... WASHER, FRICTION
16 ...... 539976979.....7 ........... NUT , 3/8C, NYLOC
17 ...... 539976941.....1 ........... HCS 3/8C X 1 1/4
18 ...... 539990517.....2 ........... WASHER, 3/8, FLA T
19 ...... 539990563.....6 ........... HCS 3/8C X 1
20 ...... 539976526.....1 ........... ADJ. LEVER GRIP
21 ...... 539990209.....1 ........... HCS 5/16C X 1
22 ...... 539990717.....1 ........... NUT , 5/16C, NYLOC
www.mymowerparts.com
5
Page 6
For Husqvarna Parts Call 606-678-9623 or 606-561-4983

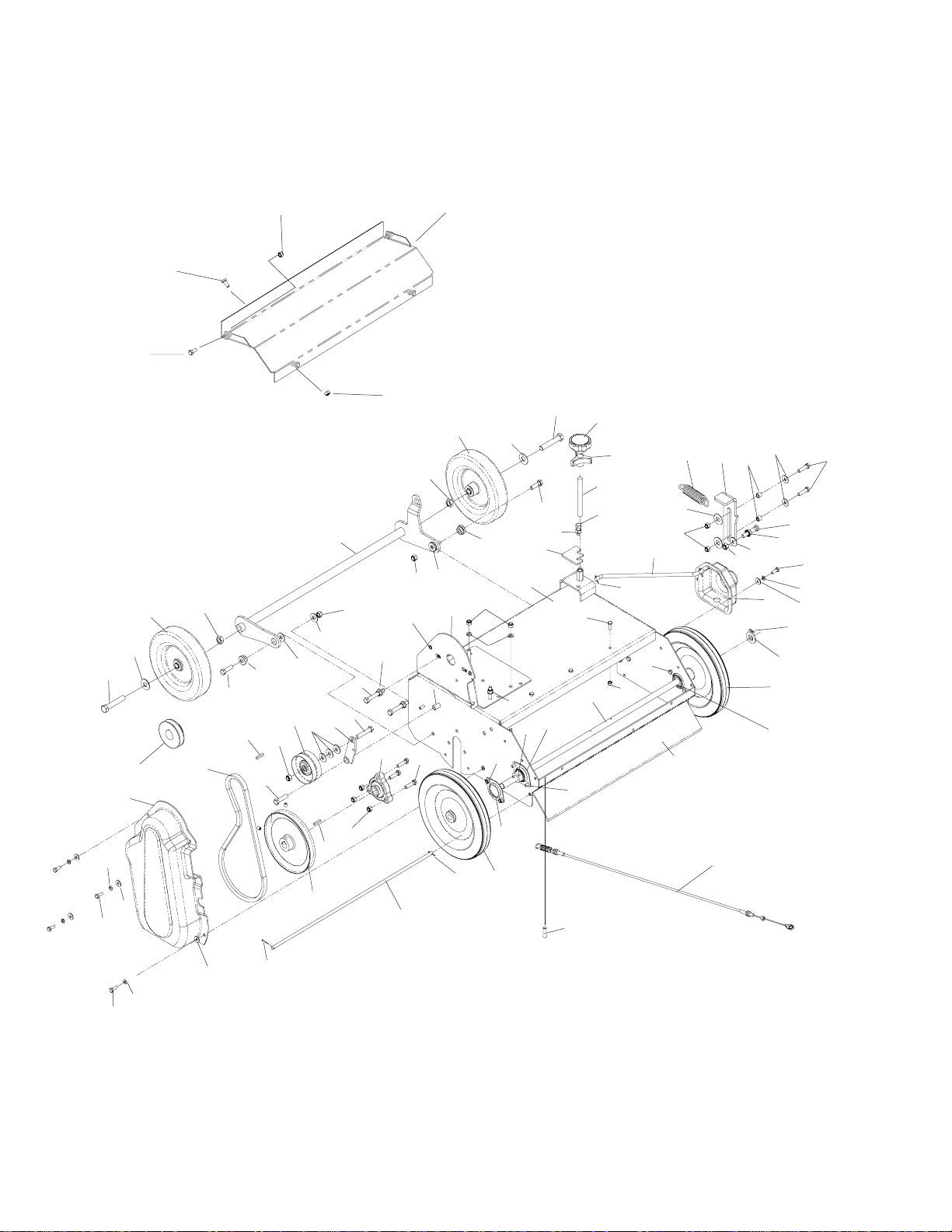

BODY ASSEMBL Y
10
29
9
54
52
15
52
13
36
53
53
18
3
4
4
5
2
16
37
40
22
4
3
7
39
8
12
43
36
3
11
21
4
43
51
15
20
5
42
49
10
9
2
57
1
41
49
48
32
33
34
56
3
24
25
25
26
46
25
14
20
9
17
6
30
35
3
31
8
4
28
50
45
48
11
7
25
55
58
59
25
6
55
25
58
55
58
27
26
44
47
20
40
19
23
27
www.mymowerparts.com
38
Page 7
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
BODY ASSEMBL Y
ITEM PART NO. QTY. DESCRIPTION
1 .. 539106762 .....1...... BODY
2 .. 539976941 .....2...... HCS 3/8C X 1 1/4
3 .. 539976979 .....6...... NUT , 3/8C, NYLOC
4 .. 539990517 .....8...... WASHER, 3/8, FLA T
5 .. 539106847 .....2...... BUSHING
6 .. 539106850 .....1...... SPRING
7 .. 539990613 .....5...... NUT , 3/8C
8 .. 539990588 .....2...... HCS 3/8C X 2
9 .. 539990550 .....4...... WASHER, 1/2, FLA T
10 .. 539101332 .....2...... HCS 1/2C X 2 3/4
11 .. 539990627 .....8...... HCS 5/16C X 1 1/4
12 .. 539100488 .....2...... C.I. FLANGE
........................................ BEARING
13 .. 539100439 .....1...... BELT
14 .. 539106805 .....1...... LINKAGE
15 .. 540075051 .....2...... WHEEL, 8 X 1 3/4
16 .. 539000342 .....1...... IDLER PULLEY , FLA T
17 .. 539106643 .....1...... REAR FLAP
18 .. 539106759 .....1...... FRONT AXLE
19 .. 539108541 .....1...... PULLEY
........................................ W/SET SCREW
20 .. 539990717 .....12.... NUT , 5/16, NYLOC
21 .. 539100482 .....1...... BUSHING
22 .. 539990655 .....1...... HCS 3/8C X 1 1/2
23 .. 539106672 .....1...... FLAP ROD
24 .. 539990365 .....2...... COTTER PIN
25 .. 539990580 .....13.... HCS 1/4C X 3/4
26 .. 539976978 .....13.... NUT , 1/4C, NYLOC
27 .. 539990365 .....2...... COTTER PIN
28 .. 539106754 .....1...... SHAFT GUARD
29 .. 539108069 .....1...... BELT GUARD
30 .. 539106816 .....1...... SLIDER
31 .. 539990692 .....2...... WASHER, 5/16, FLA T
32 .. 540000035 .....1...... KNOB
ITEM PART NO. QTY. DESCRIPTION
33 .. 540030485 .....1...... KNOB
34 .. 540052761 ..... 1...... ROD, THREADED
35 .. 539102827 .....1...... SP ACER, PULLEY
36 .. 539990625 .....2...... NUT, 1/2 HEX, JAM
37 .. 539108067 .....1...... IDLER ARM, ORANGE
38 .. 539106849 .....1...... CABLE
39 .. 539990637 .....2...... HCS 3/8C X 2 1/2
40 .. 540005226 .....2...... KEY, 3/16 X 3/16 X 1
41 .. 539990669 .....4...... HCS 5/16C X 1 3/4
42 .. 539990187 .....4...... LOCKWASHER, 5/16
43 .. 539106772 .....1...... BACKING PLATE
44 .. 540000058 .....1...... WHEEL, 10 X 1 3/4,
........................................ DRILLED
45 .. 540053401 .....1...... WHEEL, 10 X 1 3/4,
........................................ W/BUSHINGS
46 .. 539106663 .....1...... AXLE, REAR
47 .. 540000364 .....1...... ROLL PIN, 1/4 X 1 1/8
48 .. 540000319 .....2...... BEARING , 5/8"
........................................ W/COLLAR
49 .. 540000321 .....4...... FLANGE, FOR
........................................ BEARING 5/8"
50 .. 539000436 .....1...... WASHER, 5/8, SAE
51 .. 539106757 .....1...... REAR COVER
52 .. 539990072 .....4...... HCS 1/4C X 5/8
53 .. 539976978 .....2...... NUT , 1/4C, NYLOC
54 .. 539108543 .....1...... PULLEY , ENGINE
........................................ W/SET SCREW
55 .. 539990052 .....6...... LOCKWASHER, 1/4
56 .. 539990563 .....1...... SCREW, 3/8C X 1
57 .. 539108022 .....1...... DEPTH SHIM
58 .. 539990598 .....6...... WASHER, 1/4, FLA T
59 .. 539990297 .....1...... COTTER PIN,
........................................ 1/8 X 1 1/2
60 .. 539108147 .....6...... KNURLED INSERT ,
........................................ 1/4-20
www.mymowerparts.com
7
Page 8
For Husqvarna Parts Call 606-678-9623 or 606-561-4983

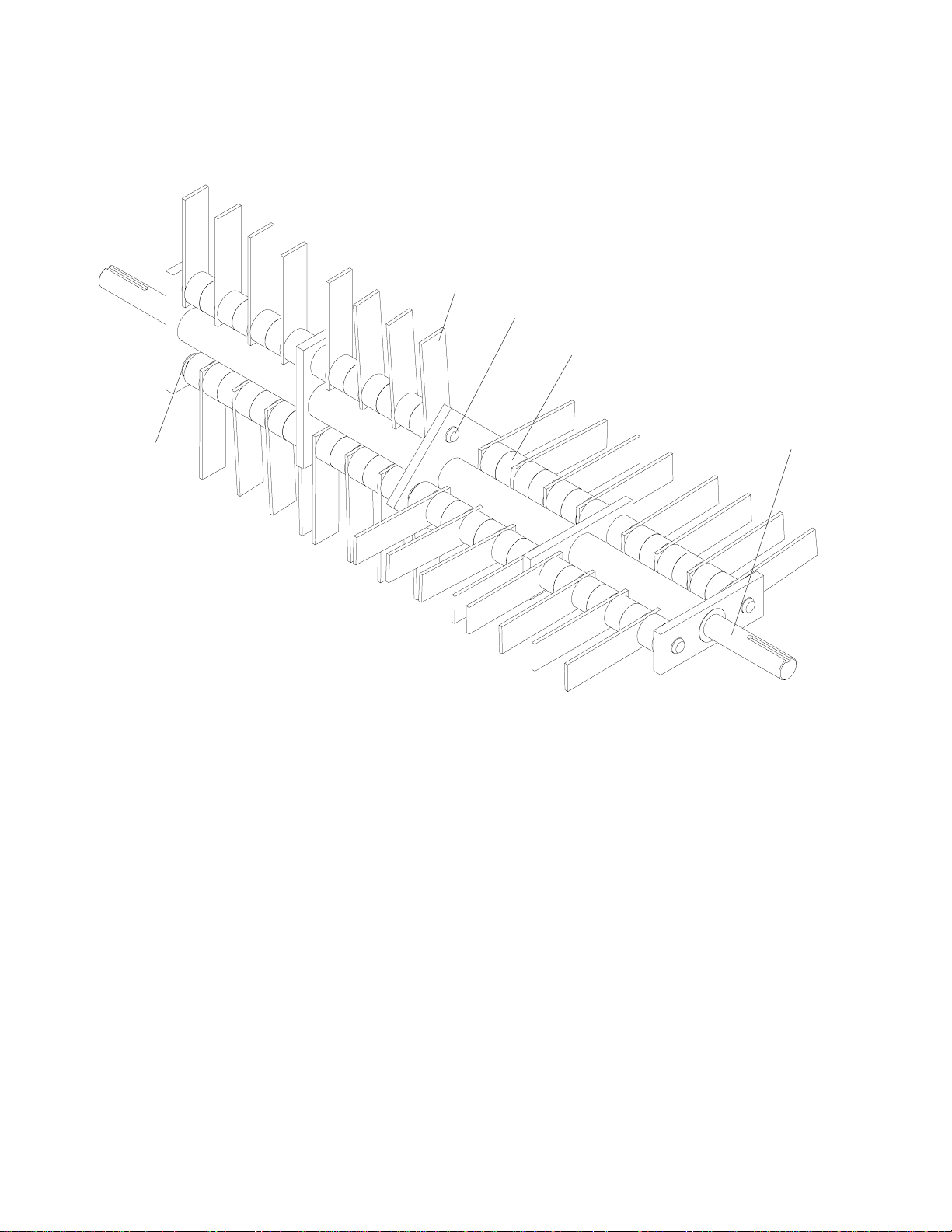

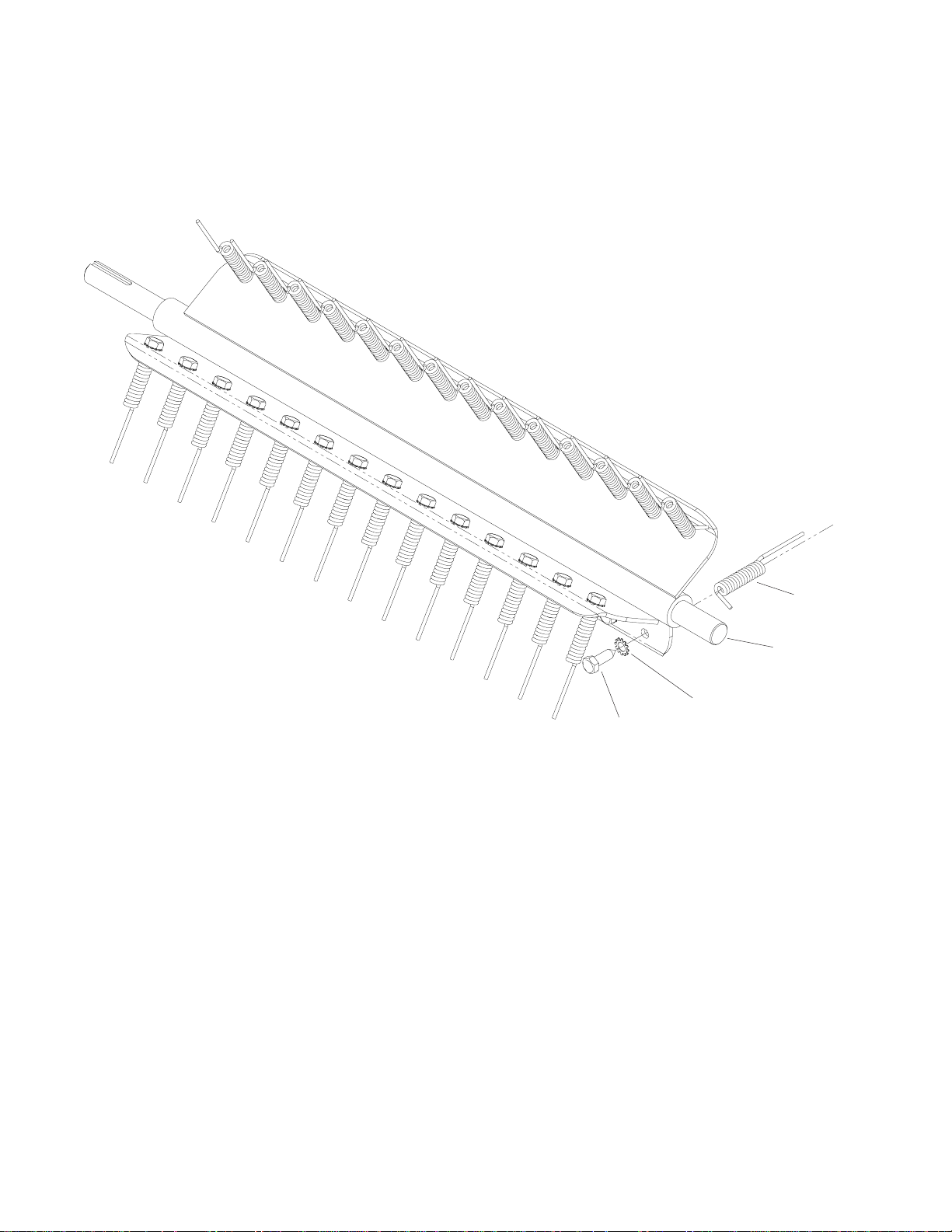

FLAIL REEL ASSEMBLY
4
3
2
5
ITEM PART NO. QTY. DESCRIPTION
........ 539107183 ..........1 ......... 22" FLAIL REEL (COMPLETE)
1 ...... 539106641 .......... 1 .........SHAFT
2 ...... 539108113...........1 .........SPACER SET (56 SP ACERS)
3 ...... 53910811 1........... 1 .........SHAFT & HARDWARE SET(4 SHAFTS)
4 ...... 539108110...........1 .........BLADE SET (32 BLADES)
........ 5391081 12........... 1 .........BLADES W/SHAFTS & HARDWARE SET (32 BLADES)
5 ...... 539101949 .......... 8 .........E-RING 1/2
1
8
www.mymowerparts.com
Page 9
For Husqvarna Parts Call 606-678-9623 or 606-561-4983

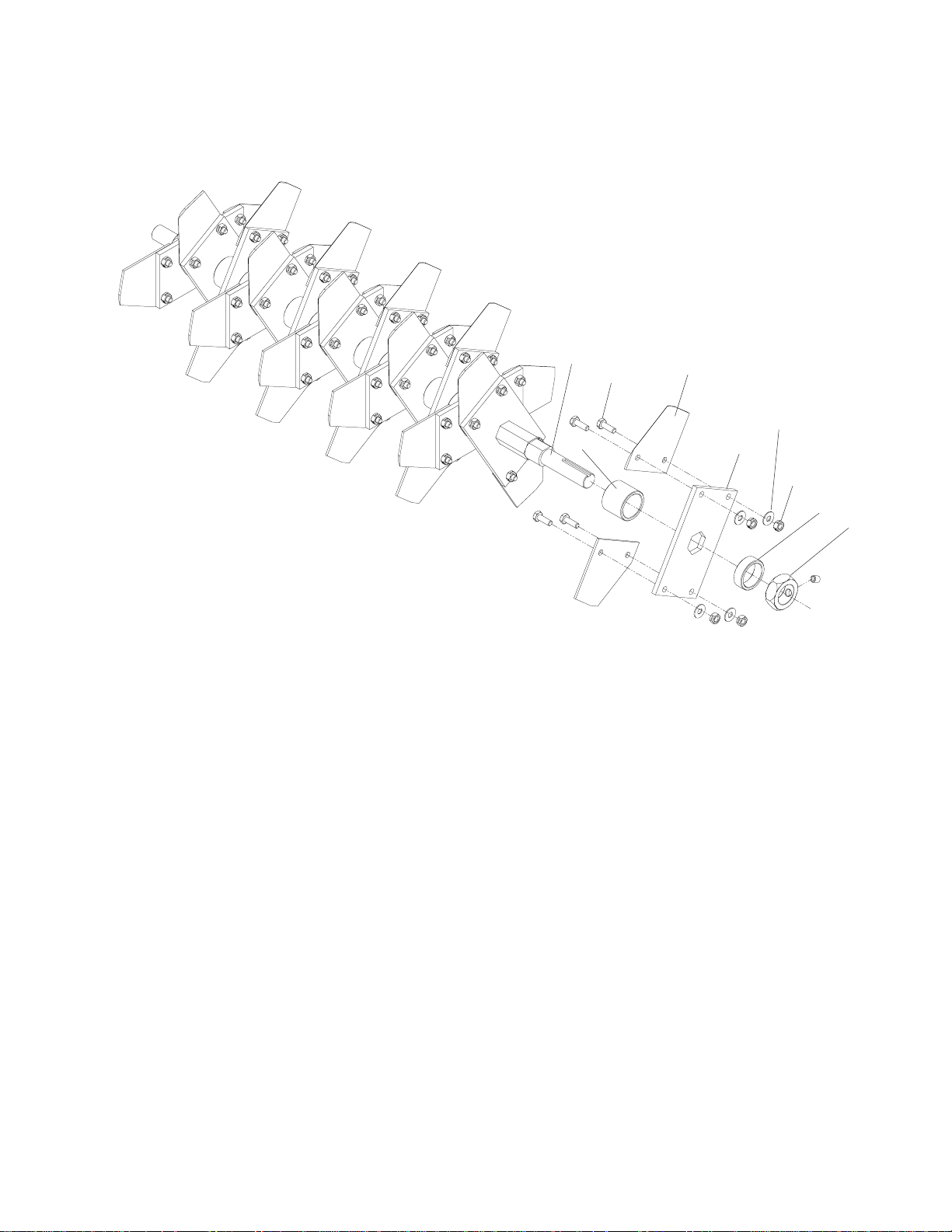

DELTA REEL ASSEMBLY
5
7
4
ITEM PART NO. QTY. DESCRIPTION
........ 539107184 ..........1 ......... 22" DELT A REEL (COMPLETE)
1 ...... 539100530 .......... 2 .........JAM NUT W/SETSCREW
2 ...... 539106653 .......... 2 .........END SPACER
3 ...... 539106651 .......... 1 5........ BLADE MTG . PLA TE
4 ...... 539106652 .......... 14........ SP ACER - LONG
5 ...... 539106650 .......... 1 .........SHAFT
6 ...... 539108116...........1 .........BLADE W/HARDWARE SET (30 BLADES)
7 ...... 539108117...........1 .........SCREW & NUT SET (60 EACH)
6
3
7
7
2
1
www.mymowerparts.com
9
Page 10
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
SPRING REEL ASSEMBLY
2
ITEM PART NO. QTY. DESCRIPTION
........ 539107185 ..........1 .........22" SPRING REEL (COMPLETE)
1 ...... 539106683 .......... 1 .........SHAFT
2 ...... 540108119...........1 ......... SPRING W/HARDWARE SET (42 SPRINGS)
2
1
2
10
www.mymowerparts.com
Page 11
For Husqvarna Parts Call 606-678-9623 or 606-561-4983

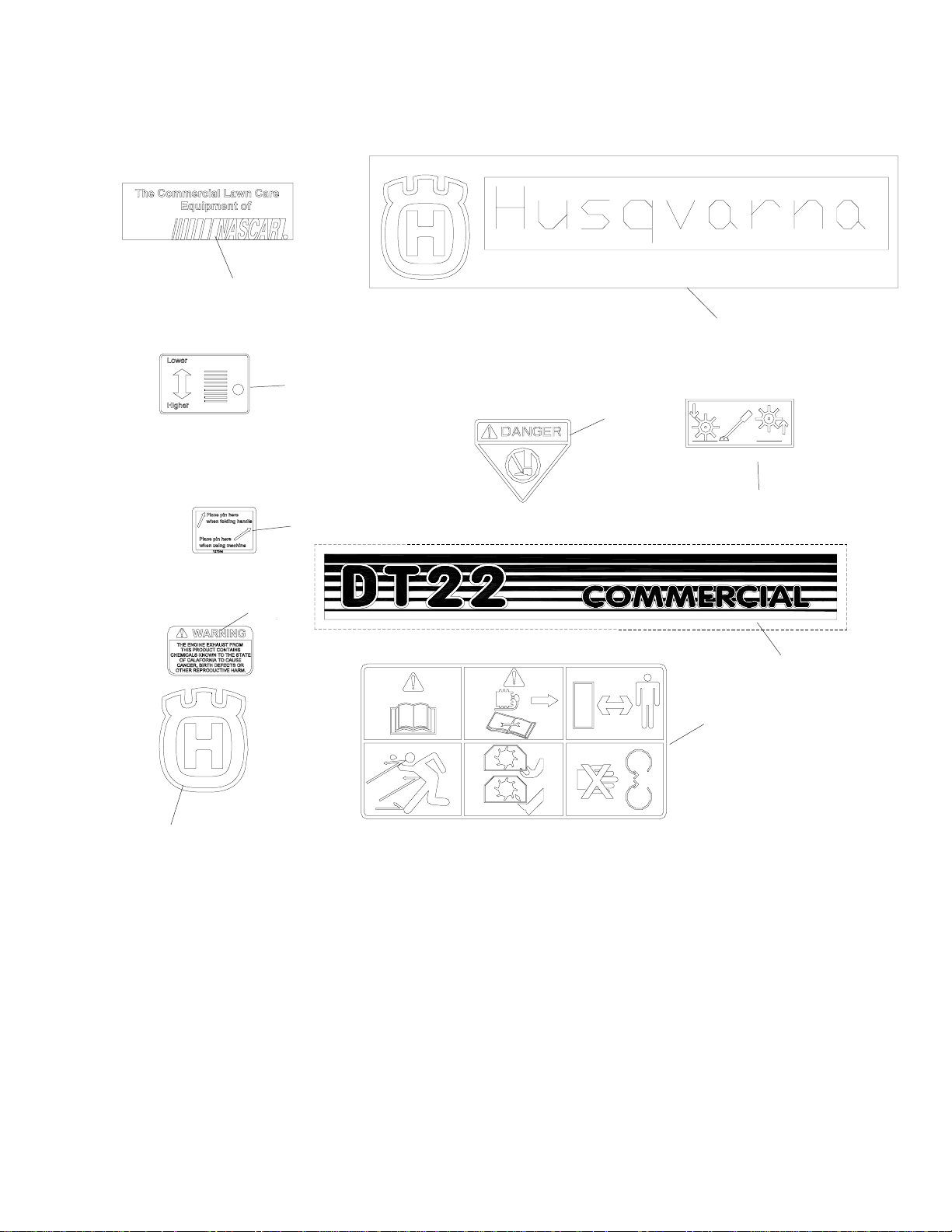

DECALS
1
7
2
8
6
3
4
10
9
5
ITEM PART NO. QTY DESCRIPTION
1 ....... 539105071 ...1........ DECAL, NASCAR
2 ....... 539107337 ...1........ DECAL, HEIGHT
3 ....... 539107244 ...1........ DECAL, HANDLE PIN
4 ....... 539101881 ...1........ DECAL, PROP 65
5 ....... 539104789 ...1........ DECAL SMALL CROWN
6 ....... 540200028 ...1........ DECAL, HEIGHT ADJUST
7 ....... 540200732 ...1........ DECAL, 12" HUSQVARNA W/CROWN
8 ....... 540200076 ...1........ DECAL, FOOT DANGER
9 ....... 539107359 ...1........ DECAL, GRAPHIC
10 ....... 539107189 ...1 ........ DECAL, DT22
www.mymowerparts.com
11
Page 12
For Husqvarna Parts Call 606-678-9623 or 606-561-4983

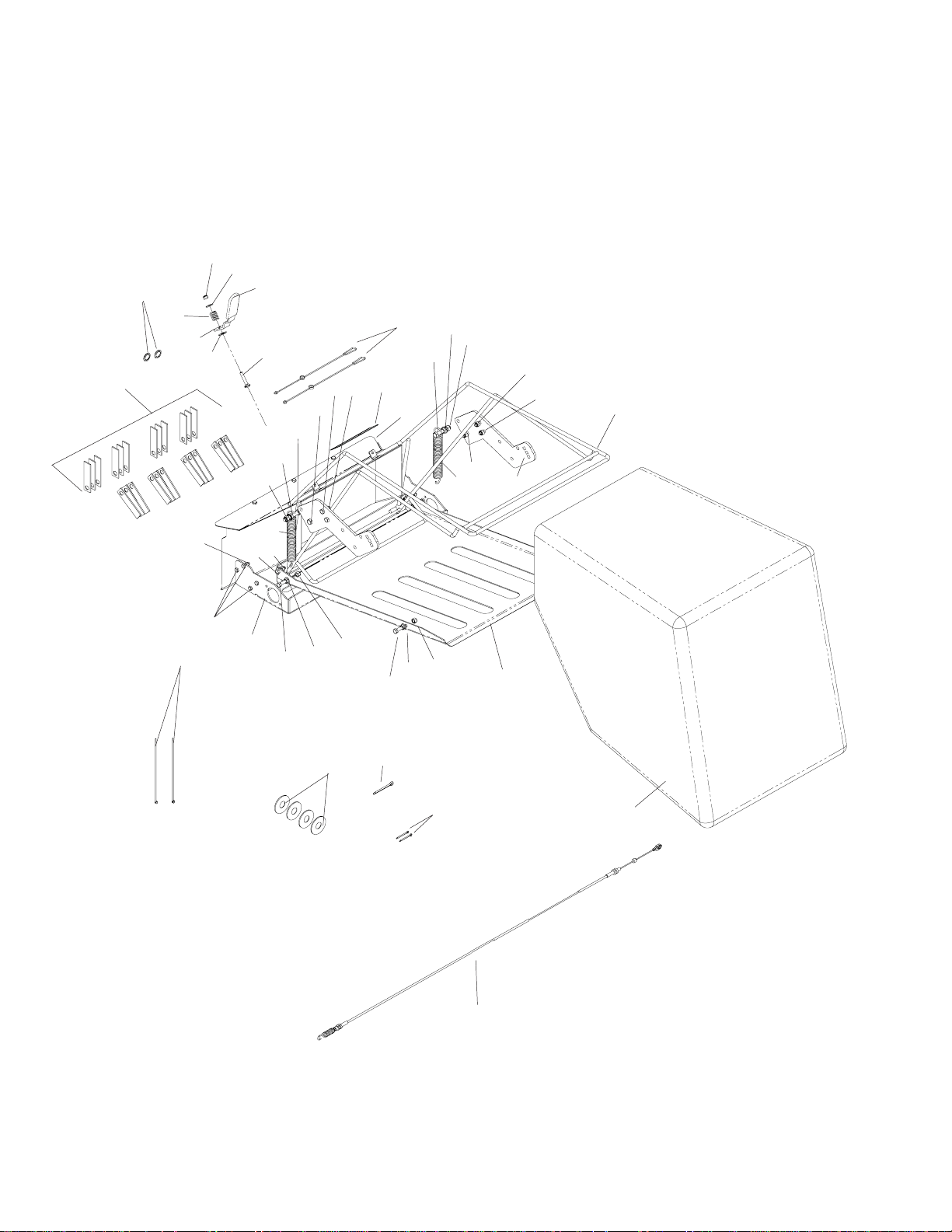

BAGGER ASSEMBL Y
7
27
24
28
32
30 31
19
29
13
14
12
17
23
14
13
12
16
7
6
1
13
18
6
7
4
3
22
9
8
18
7
6
2
10
11
25
7
7
11
10
20
26
5
15
12
21
www.mymowerparts.com
Page 13
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
BAGGER ASSEMBL Y
ITEM PART NO. QTY DESCRIPTION
1 ......... 539106799 ...1 ........ CHUTE
2 ......... 539106803 ...1 ........ TRAY
3 ......... 539107242 ...1 ........ BAG FRAME, BLACK
4 ......... 539106846 ...2 ........ EXTENDER
5 ......... 539106835 ...1 ........ SAFETY DOOR
6 ......... 539990209 ...6 ........ SCREW, 5/16 X 1
7 ......... 539990717 ...10 ...... NUT , 5/16, NYLOC
8 ......... 539990580 ...13 ...... SCREW, 1/4 X 3/4
9 ......... 539976978 ...13 ...... NUT , 1/4, NYLOC
10 ....... 539990669 ...3 ........ SCREW, 5/16 X 1 3/4
11 ....... 539990585 ...3 ........ NUT, 5/16, SERRATED WASHER
12 ....... 539990588 ...2 ........ SCREW, 3/8 X 2
13 ....... 539976979 ...4 ........ NUT, 3/8, NYLOC
14 ....... 539990613 ...2 ........ NUT, 3/8, SERRATED WASHER
15 ....... 540005464 ...1 ........ BAG
16 ....... 539976583 ...1 ........ DECAL, WARNING
17 ....... 539990563 ...2 ........ SCREW, 3/8 X 1
18 ....... 539107315 ...2 ........ SPRING, BAGGER
19 ....... 539109771 ...1 ........ BLADE SET (56)
20 ....... 539990297 ...1 ........ COTTER PIN 1/8 X 1 1/2 (FOR REAR AXLE)
21 ....... 539106827 ...1 ........ CABLE, BAGGER
22 ....... 539976856 ...2 ........ WIRE TIE
23 ....... 539102563 ...2 ........ LANYARD
24 ....... 540053411 ...2 ........ RETAINING RING
25 ....... 539000436 ...4 ........ WASHER, 5/8, SAE (FOR REAR AXLE)
26 ....... 539099037 ...2 ........ COTTER PIN, 3/32 X 3/4
27 ....... 539990692 ...1 ........ W ASHER, 5/16
28 ....... 539976438 ...1 ........ SPRING
29 ....... 539110865 ...1........ GRIP
30 ....... 539990517 ...1 ........ W ASHER, 3/8
31 ....... 539990861 ...1 ........ RHSNB, 5/16-18 X 1 3/4
32 ....... 539110982 ...1........ BAG CLAMP
NOTE: Ref. No. 22 is used for attaching cable to extender.
Ref. No. 23 is used for reattaching pin to extender.
Ref. No. 24 is used for reinstalling tire to axle.
Some models use a metal removable lanyard. For those models the plastic lanyard is not
necessary (item 23).
Some models use a cotter pin in the rear axle. For those models (item 24) retaining ring is not
necessary.
www.mymowerparts.com
13
Page 14
For Husqvarna Parts Call 606-678-9623 or 606-561-4983

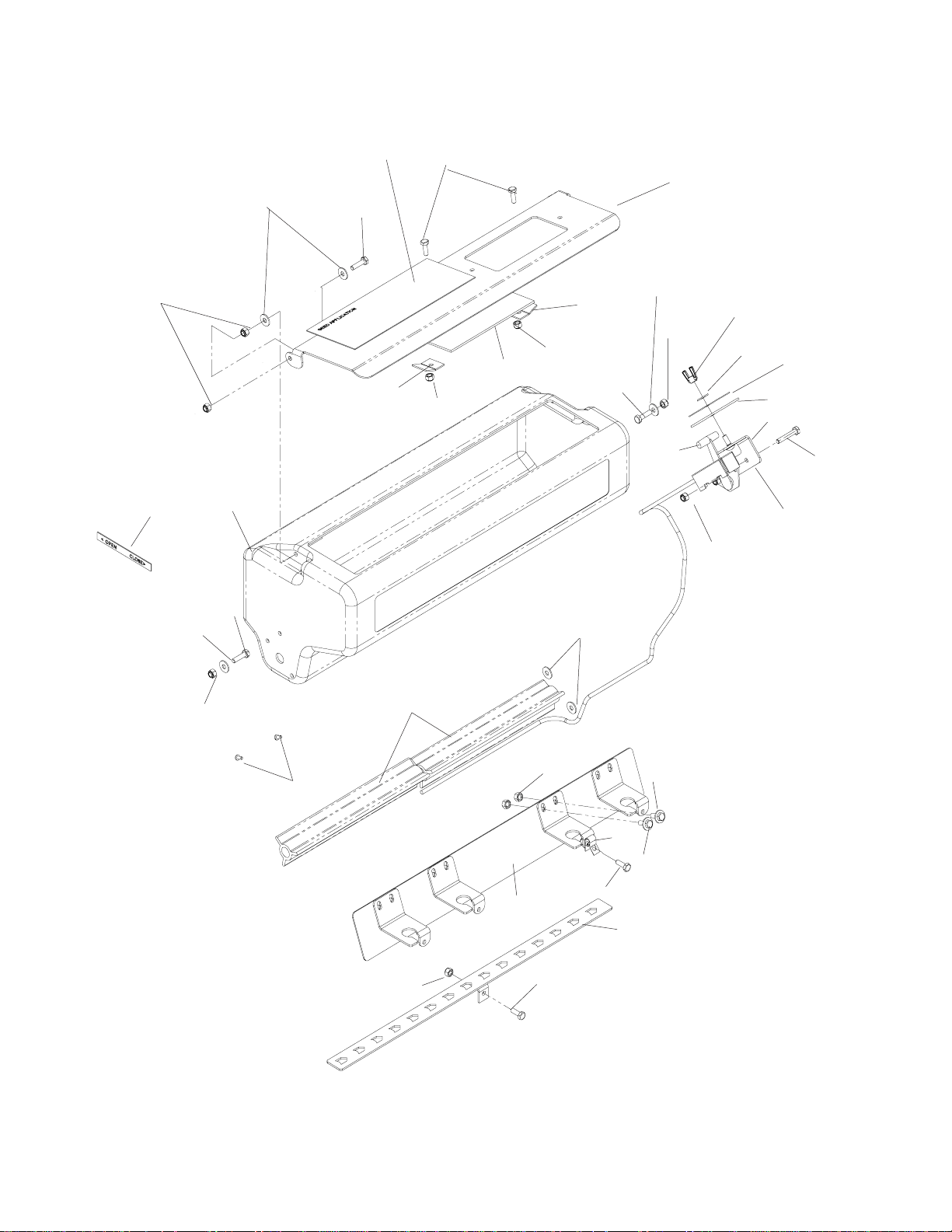

SEEDER ASSEMBLY
22
5
7
23
1
14
21
4
15
(INSIDE SEED BOX)
16
5
7
11
20
5
18
13
19
10
12
7
21
17
7
7
(INSIDE SEED BOX)
16
5
7
3
2
9
7
5
7
24
4
4
(INSIDE SEED BOX)
5
4
8
14
www.mymowerparts.com
Page 15
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
SEEDER ASSEMBLY
ITEM PART NO. QTY DESCRIPTION
1 ......... 539109374 ...1 ........ SEEDBOX
2 ......... 539106661 ...2 ........ AGITA TOR
3 ......... 540000113 ...2 ........ SCREW , #8-32 X 3/8, TAPPING
4 ......... 539990580 ...12 ...... HCS 1/4C X 3/4
5 ......... 539990598 ...20 ...... WASHER, 1/4, FLAT
6 ......... 539106677 ...4 ........ GUIDE
7 ......... 539976978 ...20 ...... NUT , 1/4C, NYLOC
8 ......... 539106678 ...1 ........ GAT E
9 ......... 539109375 ...1 ........ SHIELD
10 ....... 539990639 ...2 ........ HCS 1/4C X 1 1/2
11 ....... 540052551 ...1 ........ SEEDER CABLE
12 ....... 539106680 ...1 ........ MOUNT
13 ....... 539107357 ...1 ........ SEED DIAL
14 ....... 539977761 ...6 ........ HCS 1/4C X 1
15 ....... 539106684 ...1 ........ SEED DOOR
16 ....... 539990548 ...2 ........ HCS 1/4C X 1
17 ....... 539106806 ...1 ........ SEED WINDOW
18 ....... 540200141 ...1 ........ DECAL, SEED DIAL
19 ....... 539990074 ...1 ........ RHSNB 1/4C X 3/4
20 ....... 539990997 ...1 ........ WINGNUT, 1/4C, NYLOC
21 ....... 539107246 ...2 ........ WINDOW CLIP
22 ....... 540200140 ...1 ........ DECAL, SEED APPICA TION
23 ....... 540200143 ...1 ........ DECAL, OPEN/CLOSE
24 ....... 540052931 ...1 ........ CABLE CLAMP
........... 540053411 ...2 ........ PUSH NUTS, 5/8 (REAR AXLE) (NOT SHOWN)
Some models use a cotter pin on the rear axle. For those models pushnuts are not necessary.
www.mymowerparts.com
15
Page 16
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
www.mymowerparts.com
Loading...
