Page 1
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
Illustrated Parts
List
5524 ST
(HU5524STA) 954223067
2002-09
I0202015
Repair Parts Manual Snow Thrower
www.mymowerparts.com
Page 2
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
SNOW THROWER - - MODEL NO. 5524ST (HU5524STA), PRODUCT NO. 954 22 30-67
49
32
41
40
16
14
19
39
4
13

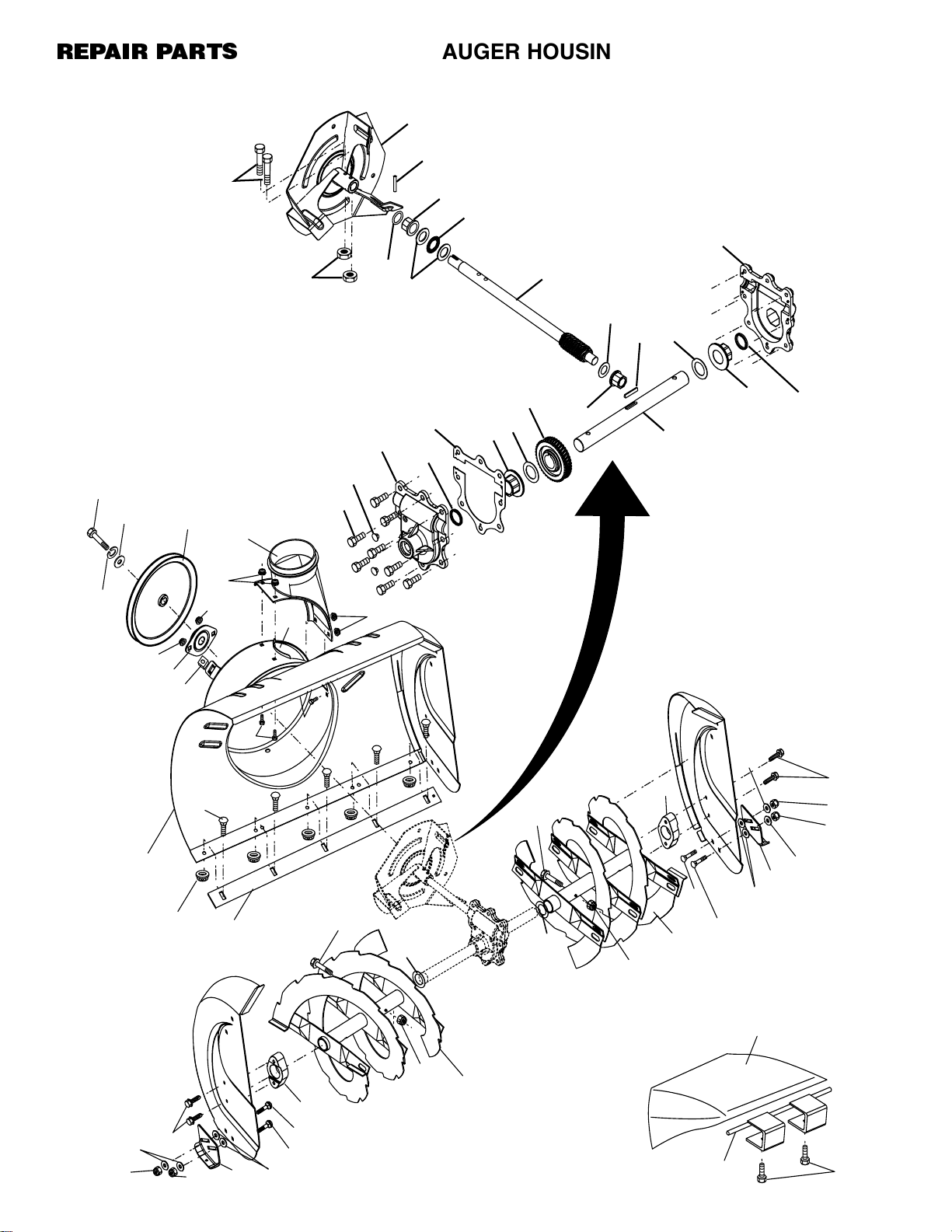

AUGER HOUSING / IMPELLER ASSEMBLY
48
51
33
35
47
45
36
38
37
44
27
43
46
34
50
42
43
27
42
15
10
6
6
6
5
9
8
6
11
12
7
7
28
6
21
18
19
20
21
27
28
27
19
26
31
25
29
23
24
1
19
21
18
20
22
19
26
25
24
23
30
20
www.mymowerparts.com
2
3
Page 3
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
AUGER HOUSING / IMPELLER ASSEMBLY
SNOW THROWER - - MODEL NO. 5524ST (HU5524STA), PRODUCT NO. 954 22 30-67
KEY PART
NO. NO. DESCRIPTION
1 532 18 35-78 Bag, Weight
2 532 18 35-77 Bracket, Weight Bag
3 874 52 05-24 Screw, Hex Head 5/16-18 x 1-1/2
4 532 18 10-83 Pulley, Impeller
5 532 17 53-23 Bearing Assembly, Flange
6 532 15 53-77 Nut, Hex Flange 5/16-18
7 532 18 03-55 Bolt, Flat Head, Carriage 5/16-18 x 5/8
8 872 27 05-05 Bolt, Carriage 5/16-1 8 x 5/8
9 532 17 88-20 Nut, Cage 3/8-16
10 532 18 40-90 Housing, Auger
11 532 18 40-96 Bar, Scraper
12 532 18 40-95 Bracket, Corner Discharge
13 532 17 53-22 Base, Discharge Chute
14 532 05 92-89 Washer, Flat
15 810 04 05-00 Washer, Lock 5/16
16 874 95 05-12 Screw, Hex Head 5/16-18 x 3/4
18 532 17 95-82 Screw, Hex Head 5/16 x 1
19 873 80 04-00 Nut, Hex Lock 1/4-20
20 873 80 05-00 Nut, Hex Lock 5/16-18
21 532 15 54-15 Washer, Flat
22 532 18 40-94 Skid Plate, RH
23 532 17 92-46 Washer, Nylon, Friction
24 872 27 05-06 Bolt, Carriage 5/16-18 x 3/4
25 532 17 98-29 Bolt, Shoulder
26 532 17 46-58 Bearing, Auger
27 532 17 46-97 Washer, Thrust, 1"
28 532 17 98-28 Bolt, Shoulder 1/4-20 x 2
29 532 18 40-93 Skid Plate, LH
30 532 18 41-02 Auger Assembly, RH
31 532 18 40-99 Auger Assembly, LH
32 532 17 46-99 O-Ring
33 532 17 47-00 Bushing, Flange 3/4
34 532 17 46-81 Washer, Thrust 3/4
35 532 17 46-84 Bearing, Thrust 3/4
36 532 17 46-60 Shaft, Impeller
37 532 17 46-83 Washer, Thrust 5/8
38 532 17 46-86 Bushing, Flange 5/8
39 532 15 00-78 Screw, Hex Head 5/16-18 x 3/4
40 532 08 64-47 Plug, Case
41 532 17 46-88 Housing, Gearbox, RH
42 532 17 46-98 Seal, Oil
43 532 17 47-01 Bushing, Flange, 1"
44 532 17 88-79 Key, Square 1/4 x 1/4 x 7/8
45 532 17 46-59 Gear, Worm
46 532 17 46-57 Shaft, Auger
47 532 17 46-87 Housing, Gearbox, LH
48 532 18 41-05 Impeller Assembly
49 874 78 04-26 Screw, Hex Head 1/4-20 x 1-5/8
50 532 17 53-11 Gasket, Gearbox
51 532 18 42-05 Pin, Roll 3/16 x 1-1/8
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
21
www.mymowerparts.com
Page 4
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS

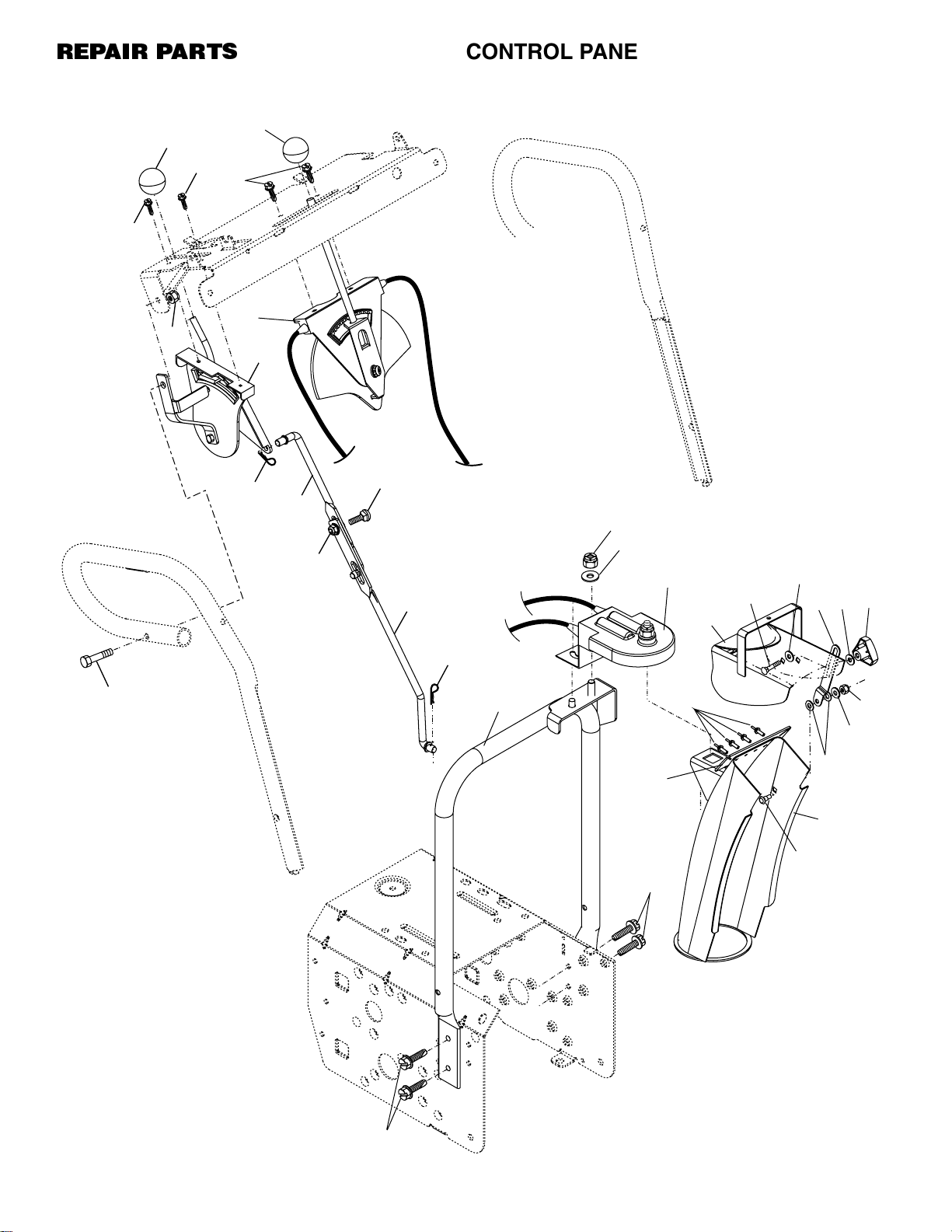

CONTROL PANEL / DISCHARGE CHUTE
SNOW THROWER - - MODEL NO. 5524ST (HU5524STA), PRODUCT NO. 954 22 30-67
2
27
6
1
26
28
25
20
29
4
5
13
14
3
11
6
16
19
2
2
14
9
24
27
7
17
8
18
12
11
14
15
10
8
22
www.mymowerparts.com
Page 5
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
CONTROL PANEL / DISCHARGE CHUTE
SNOW THROWER - - MODEL NO. 5524ST (HU5524STA), PRODUCT NO. 954 22 30-67
KEY PART
NO. NO. DESCRIPTION
1 532 18 33-34 Knob, Lever
2 817 50 10-10 Screw #10-24 x 5/8
3 532 18 41-14 Strap, Slotted
4 873 80 06-00 Nut, Lock 3/8-16
5 819 13 13-16 Washer, Flat 3/8
6 532 17 86-59 Control Assembly, Chute Rotater
7 532 18 40-89 Support, Pivot
8 532 15 00-78 Screw, Hex Head 5/16-18 x 3/4
9 532 18 04-53 Knob, Deflector
10 532 17 98-29 Bolt, Shoulder
11 532 15 54-15 Washer, Flat
12 873 80 04-00 Nut, Lock 1/4-20
13 872 27 05-05 Bolt, Carriage 5/16-18 x 5/8
14 532 17 92-46 Washer, Nylon
15 532 18 41-12 Chute Assembly
16 532 18 41-13 Deflector Assembly
17 532 17 91-45 Seal, Deflector
18 532 12 84-15 Rivet, Blind
19 532 18 33-33 Knob, Speed Control Lever
20 872 27 05-06 Bolt, Carriage 5/16-18 x 3/4
24 874 78 05-28 Screw, Hex Head 5/16-18 x 1-3/4
25 532 15 53-77 Nut, Lock 5/16-18
26 532 17 92-57 Lever Assembly, Speed Control
27 532 16 96-75 Retainer, Hairpin
28 532 18 04-45 Rod, Upper, Speed Control
29 532 18 04-46 Rod, Lower, Speed Control
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
23
www.mymowerparts.com
Page 6
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS

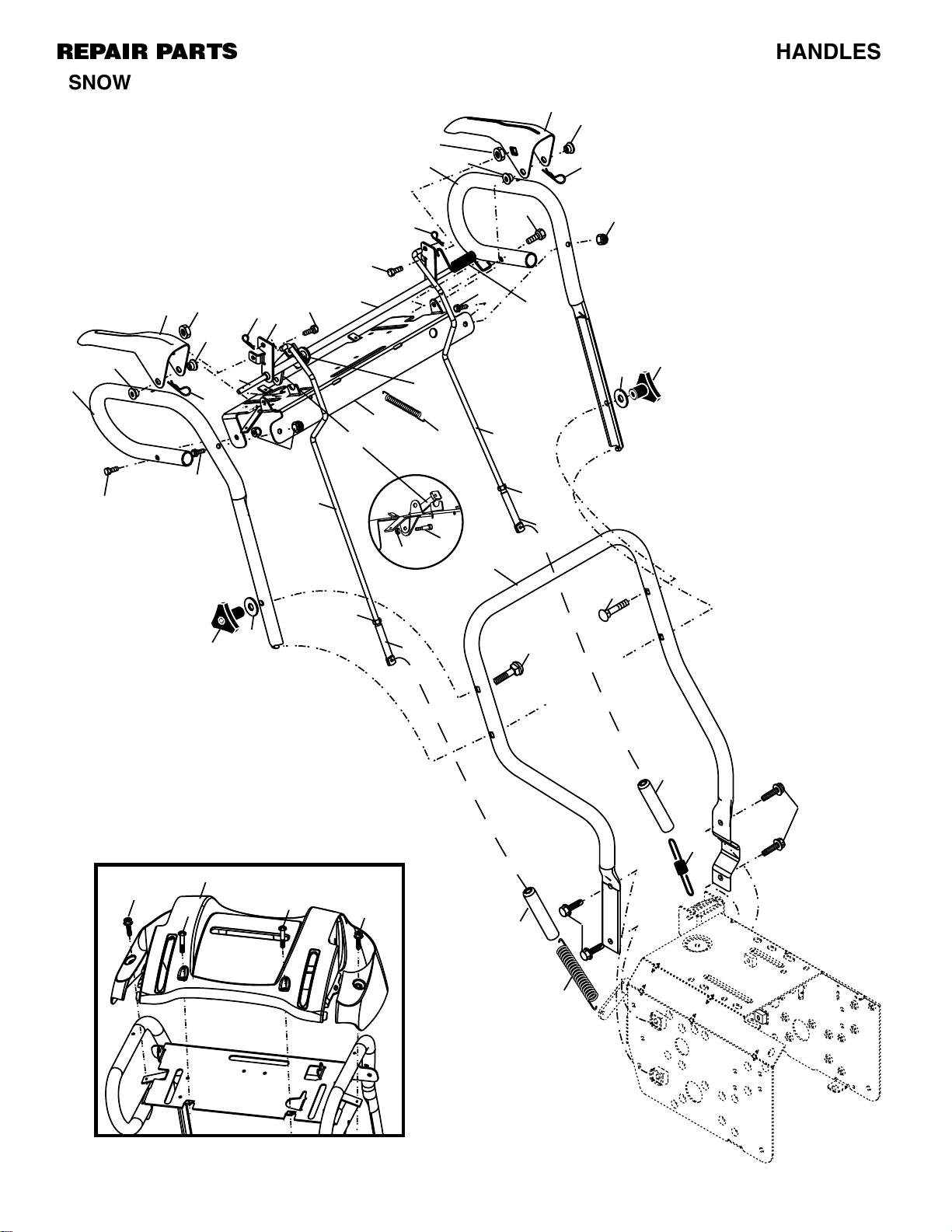

HANDLES
SNOW THROWER - - MODEL NO. 5524ST (HU5524STA), PRODUCT NO. 954 22 30-67
2
4
3
14
12
4
13
11
5
6
37
34
23
11
36
19
21
20
22
9
3
1
4
4
11
17
5
7
5
16
6
8
28
10
33
15
18
35
21
20
5
15
17
16
22
32
31
30
31
32
24
24
27
26
www.mymowerparts.com
24
27
25
Page 7
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
HANDLES
SNOW THROWER - - MODEL NO. 5524ST (HU5524STA), PRODUCT NO. 954 22 30-67
KEY PART
NO. NO. DESCRIPTION
1 532 18 41-10 Lever, Auger Control, RH
2 532 18 41-09 Lever, Traction Drive Control, LH
3 532 17 94-39 Nut, Cage 1/4-20
4 532 17 88-88 Bushing, Flange
5 532 16 96-75 Retainer, Hairpin
6 532 18 04-02 Screw, Hex Head 1/4-20 x 3/4
7 532 17 86-52 Rod, Interlock
8 532 18 40-03 Tube Assembly, Interlock, RH
9 532 17 86-51 Tube Assembly, Interlock, LH
10 532 18 41-06 Panel, Control
11 874 78 05-24 Screw, Hex Head 5/16-18 x 1-1/2
12 874 78 05-28 Screw, Hex Head 5/16-18 x 1-3/4
13 532 18 41-07 Handle Tube, LH
14 532 18 41-08 Handle Tube, RH
15 873 80 05-00 Nut, Lock 5/16-18
16 819 13 13-16 Washer, Flat 3/8
17 532 17 88-99 Knob, Handle
18 532 17 90-93 Rod, Auger Control
19 532 17 90-98 Rod, Traction Control
20 532 18 04-28 End, Control Rod
21 873 35 05-00 Nut, Hex, Jam 5/16-18
22 872 12 06-18 Bolt, Carriage 3/8-16 x 2-1/4
23 532 18 40-87 Handle Tube, Lower
24 532 18 04-47 Sleeve, Spring
25 532 18 09-26 Spring, Traction Drive
26 532 17 86-69 Spring, Auger Control
27 871 21 06-16 Screw, Hex Head 3/8-16 x 1
28 532 18 04-94 Clip, Panel
30 532 18 33-52 Console, Panel
31 532 17 52-62 Screw, Hex Head, Tapping #10-24 x 1-1/4
32 532 75 06-34 Screw, Hex Head, Tapping #10-24 x 1/2
33 532 18 41-11 Latch, Interlock
34 532 18 35-18 Bolt, Shoulder
35 532 06 80-38 Nut, Lock 1/4-20
36 532 17 88-31 Spring, Torsion
37 532 17 86-58 Spring, Interlock
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
25
www.mymowerparts.com
Page 8
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS

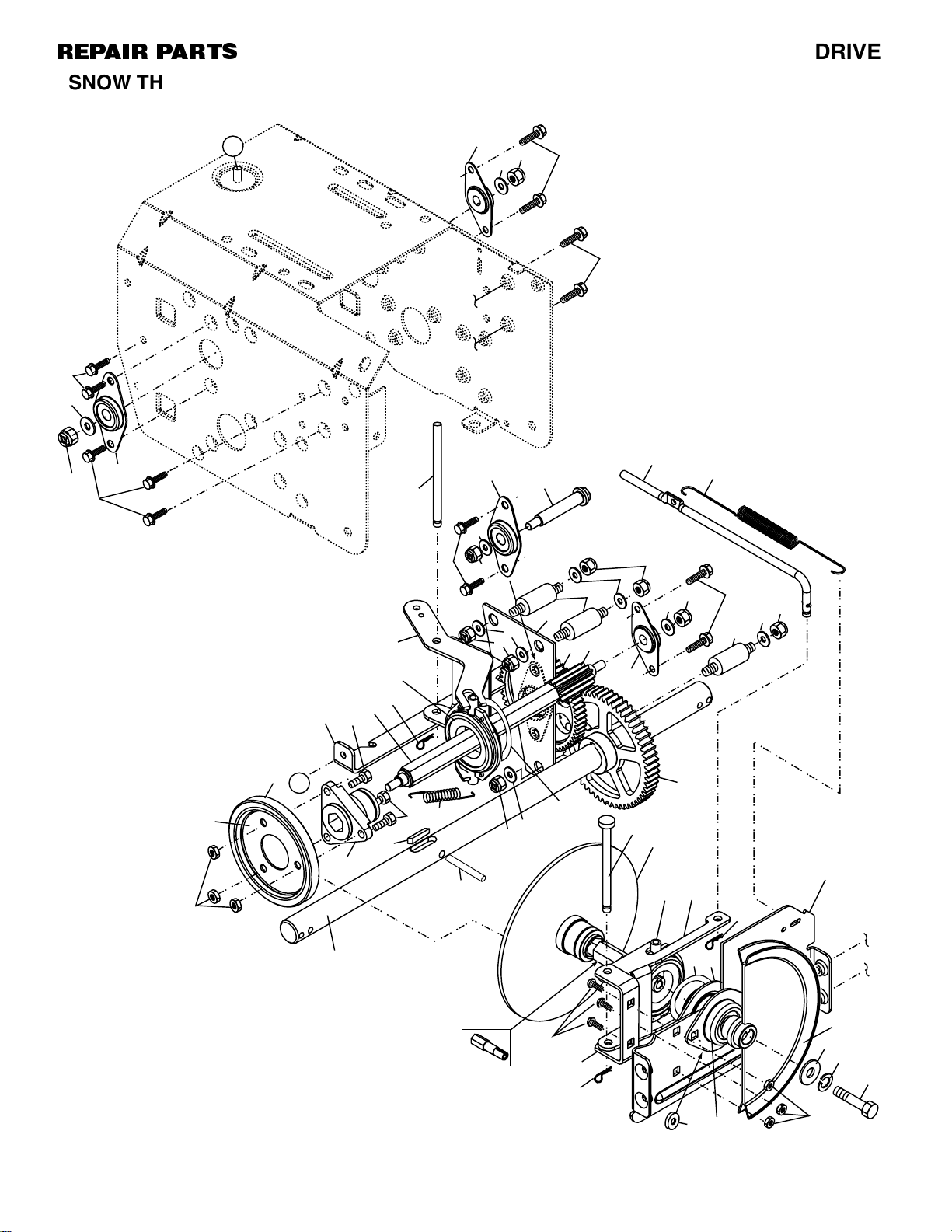

DRIVE
SNOW THROWER - - MODEL NO. 5524ST (HU5524STA), PRODUCT NO. 954 22 30-67
13
1
3
5
2
1
13
5
2
3
5
3
1
1
11
6
43
19
18
17
4
2
7
8
3
44
2
3
2
14
15
22
27
20
21
12
32
21
23
16
1
41
10
9
2
3
1
2
3
5
24
25
26
29
15
41
33
2
3
7
34
22
31
28
30
22
26
www.mymowerparts.com
35
33
36
38
39
40
37
Page 9
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
DRIVE
SNOW THROWER - - MODEL NO. 5524ST (HU5524STA), PRODUCT NO. 954 22 30-67
KEY PART
NO. NO. DESCRIPTION
1 532 14 63-15 Screw, Hex Head 5/16-18 x 3/4
2 873 80 05-00 Nut, Lock 5/16-18
3 532 15 54-15 Washer, Flat
4 817 49 05-08 Screw, Hex Head 5/16-18 x 1/2
5 532 18 00-17 Bearing, Flange
6 532 18 01-34 Shaft, Auxiliary
7 532 17 92-70 Spacer, Plate
8 532 18 40-79 Plate, Auxiliary
9 532 18 00-82 Gear, Intermediate (12/58)
10 532 18 00-65 Gear, Pinion
11 532 17 88-12 Rod, Clutch
12 532 18 00-66 Shaft, Long, Hex
13 532 17 88-07 Pin, Pivot
14 532 18 40-80 Lever, Shifter / Wheel
15 532 17 53-44 Trunnion Bearing Assembly
16 532 18 40-81 Bracket, Pivot, Shift
17 532 17 98-31 Ring, Rubber Wheel
18 532 18 40-78 Plate, Rubber Wheel
19 873 93 05-00 Nut, Lock 5/16-18
20 532 17 86-13 Hub, Rubber Wheel
21 874 76 05-14 Screw, Hex Head 5/16-18 x 7/8
22 532 08 51-79 Retainer, Hairpin
23 532 18 01-35 Spring, Bias
24 532 18 00-81 Gear, Axle (58 Teeth)
25 532 17 86-95 Pin, Pivot Lever
26 532 17 53-41 Plate Assembly, Drive
27 532 17 86-21 Shaft, Axle
28 532 17 53-40 Shaft, Short Hex
29 532 18 40-77 Lever, Shifter Plate
30 532 18 40-76 Bracket, Shifter Support
31 872 27 05-05 Bolt, Carriage 5/16-18 x 5/8
32 532 17 88-79 Key, Square 1/4 x 1/4 x 7/8
33 532 17 53-23 Bearing, Flange
34 532 18 40-75 Plate, Drive Mounting
35 532 18 25-04 Spacer, Bearing
36 532 17 53-48 Pulley, Traction Drive
37 532 15 53-77 Nut, Lock 5/16-18
38 532 05 92-89 Washer, Flat
39 810 04 05-00 Washer, Lock 5/16
40 874 95 05-12 Screw, Hex Head 5/16-18 x 3/4
41 812 00 00-12 Ring, Retaining
43 532 17 90-95 Spring, Return
44 532 18 42-06 Pin, Roll
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
27
www.mymowerparts.com
Page 10
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS

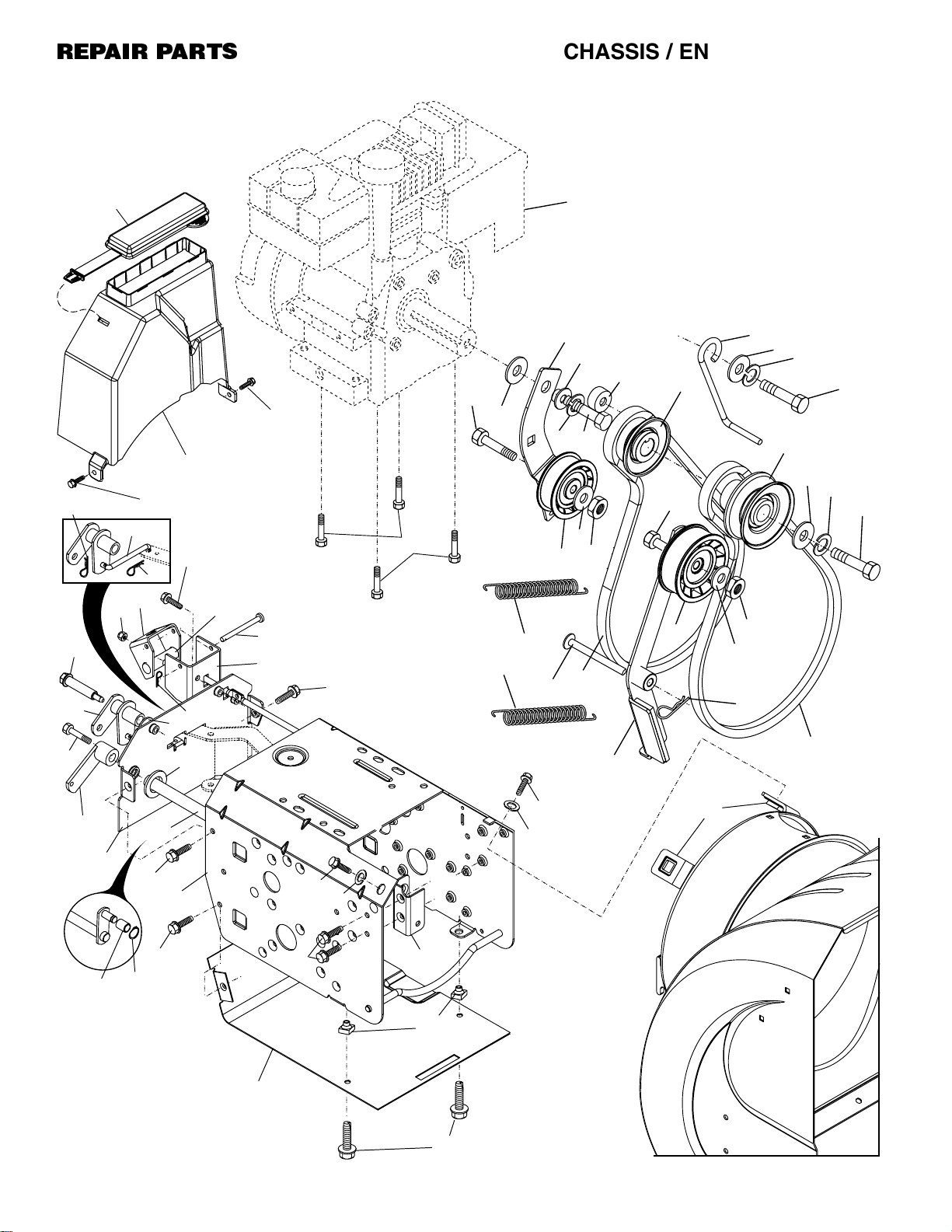

CHASSIS / ENGINE / PULLEYS
SNOW THROWER - - MODEL NO. 5524ST (HU5524STA), PRODUCT NO. 954 22 30-67
8
10
3
17
19
22
21
6
7
2
9
12
23
18
20
28
6
10
24
25
26
7
6
13
15
55
33
34
32
30
36
38
37
31
55
4
31
29
11
39
42
43
11
41
6
52
16
6
1
14
21
27
35
50
53
54
11
51
11
49
44
26
44
26
11
46
45
48
47
28
www.mymowerparts.com
40
Page 11
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
CHASSIS / ENGINE / PULLEYS
SNOW THROWER - - MODEL NO. 5524ST (HU5524STA), PRODUCT NO. 954 22 30-67
KEY PART
NO. NO. DESCRIPTION
1 532 18 10-44 Spring, Traction Idler
2 532 18 05-22 Pulley, Idler (2-1/4)
3 - - - Engine, Tecumseh, Model Number OHSK55
(Order parts from Engine manufacturer)
4 874 78 05-20 Screw, Hex Head 5/16-18 x 1-1/4
6 532 05 92-89 Washer, Flat
7 873 93 05-00 Nut, Jam, Lock 5/16-18
8 532 17 53-30 Pin, Idler Pivot
9 532 17 90-92 V-Belt, Traction Drive
10 810 04 05-00 Washer, Lock 5/16
11 532 15 00-78 Screw, Hex Head 5/16-18 x 3/4
12 532 18 47-89 Arm & Bracket Assembly, Impeller Idler (Includes Key Nos. 8, 12, 13 & 45)
13 532 08 51-79 Retainer, Hairpin
14 532 17 88-28 Spring, Brake
15 532 18 35-33 V-Belt, Impeller Drive
16 532 15 04-06 Screw, Hex Head 3/8-16 x 1-1/4
17 532 18 48-04 Arm, Idler
18 874 78 05-24 Screw, Hex Head 5/16-18 x 1-1/2
19 532 17 53-31 Bushing, Idler Pivot
20 532 18 05-23 Pulley, Idler (2-3/4)
21 874 61 05-16 Screw, Hex Head 5/16-18 x 1
22 532 17 93-71 Spacer, Engine Pulley
23 532 18 04-78 Pulley, Engine, Traction Drive
24 532 17 91-57 Pulley, Engine, Impeller Drive
25 532 06 27-35 Washer, Flat 3/8
26 810 04 06-00 Washer, Lock 3/8
27 532 85 10-84 Screw, Hex Head 3/8-24 x 1-3/8
28 532 15 54-52 Guide, Belt
29 532 18 04-65 Cover, Belt
30 532 17 88-30 Cover, Toolbox
31 817 49 04-08 Screw, Hex Head 1/4-20 x 1/2
32 532 17 92-56 Bolt, Shoulder 5/16-18
33 532 17 92-50 Bellcrank Shifter
34 532 18 04-01 Screw, Hex Head 1/4-28 x 3/4
35 532 17 92-40 Arm, Auger Control
36 873 80 05-00 Nut, Lock 5/16-18
37 532 18 40-86 Bellcrank Assembly
38 532 17 92-51 Link, Speed Control
39 532 17 90-64 Trunnion, Pivot Bracket
40 532 17 88-90 Nut, Cage 3/8-16
41 876 02 02-08 Pin, Cotter 1/16 x 1/2
42 532 17 90-65 Pin, Pivot Bracket
43 532 18 40-85 Bracket, Bellcrank
44 874 78 06-24 Screw, Hex Head 3/8-16 x 1-1/2
45 532 18 47-89 Arm & Bracket Assembly, Impeller Idler (Includes Key Nos. 8, 12, 13 & 45)
46 532 18 40-84 Pan, Frame Bottom
47 871 02 05-12 Screw, Hex Head 5/16-18 x 3/4
48 532 18 11-56 Nut, Speed 5/16-18
49 532 18 40-73 Frame Assembly
50 532 18 40-83 Plate, Frame End
51 532 18 40-82 Shaft, Auger Control
52 532 05 70-79 Washer, Hardened
53 532 17 90-62 Roller
54 812 00 00-10 Ring, Retaining
55 532 70 02-79 Clip, Retainer
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
29
www.mymowerparts.com
Page 12
For Husqvarna Parts Call 606-678-9623 or 606-561-4983

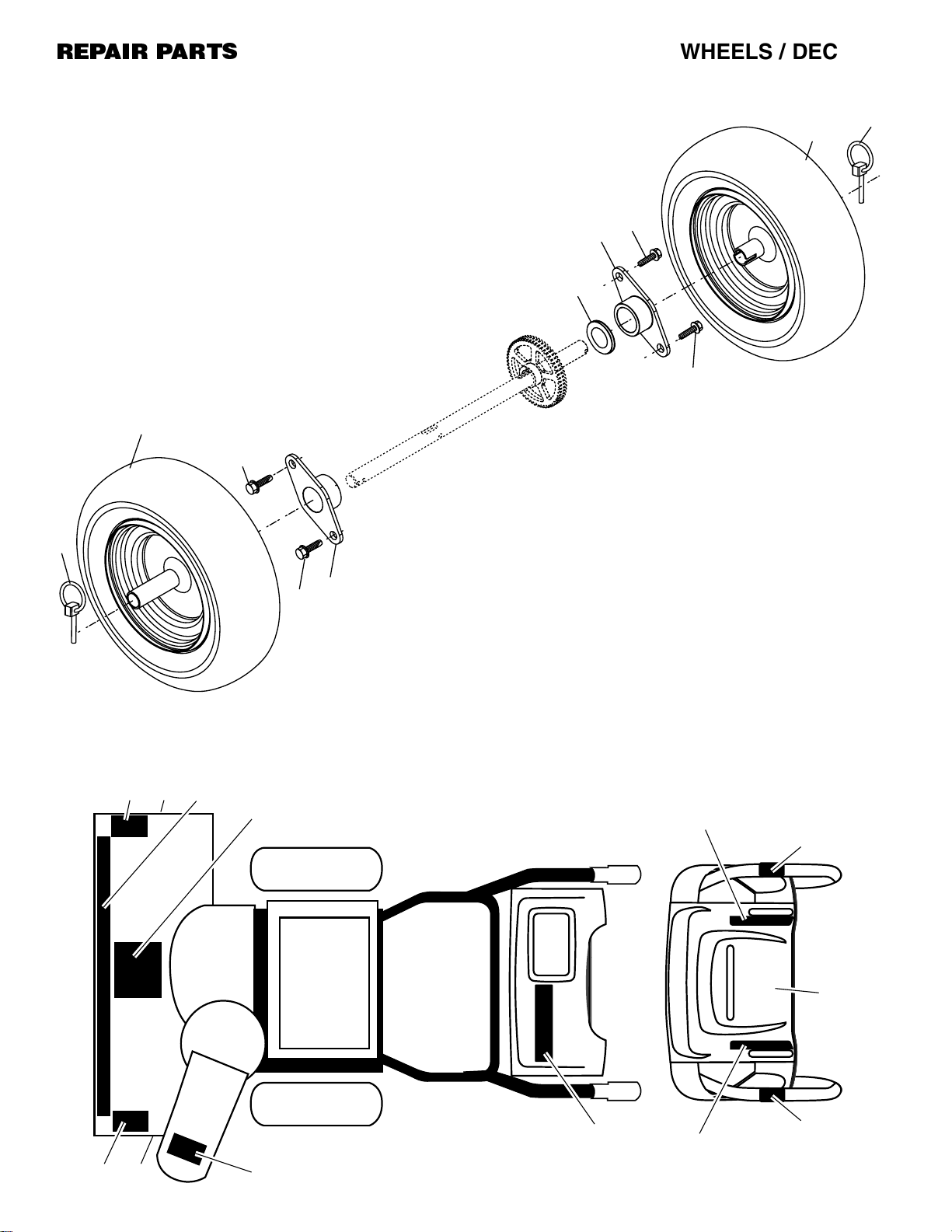

REPAIR PARTS
WHEELS / DECALS
SNOW THROWER - - MODEL NO. 5524ST (HU5524STA), PRODUCT NO. 954 22 30-67
1
4
5
6
4
1
3
2
2
5
3
1
10
2
4
9
8
6
110
3
30
www.mymowerparts.com
5
10
7
Page 13
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
WHEELS / DECALS
SNOW THROWER - - MODEL NO. 5524ST (HU5524STA), PRODUCT NO. 954 22 30-67
KEY PART
NO. NO. DESCRIPTION
1 532 17 92-64 Wheel Assembly (13")
2 532 15 54-43 Pin, Klik 1/4
3 532 15 00-78 Screw, Hex Head 5/16-18 x 3/4
4 817 49 05-08 Screw, Hex Head 5/16-18 x 1/2
5 532 17 98-30 Bearing, Axle
6 532 17 46-97 Washer, Thrust (1")
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
KEY PART
NO. NO. DESCRIPTION
1 532 18 10-38 Decal, Danger
2 532 18 41-19 Decal, Husqvarna
3 532 18 10-34 Decal, Danger, Deflector
4 532 18 10-41 Decal, Danger
5 532 18 40-54 Decal, Husqvarna, 5524ST
6 532 18 10-32 Decal, Instruction
7 532 15 57-98 Decal, Traction Lever
8 532 15 58-00 Decal, Auger Lever
9 532 18 10-36 Decal, Speed Control
10 532 15 57-94 Decal, Husqvarna
- - 532 18 31-99 Owner’s Manual
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
31
www.mymowerparts.com
Loading...
