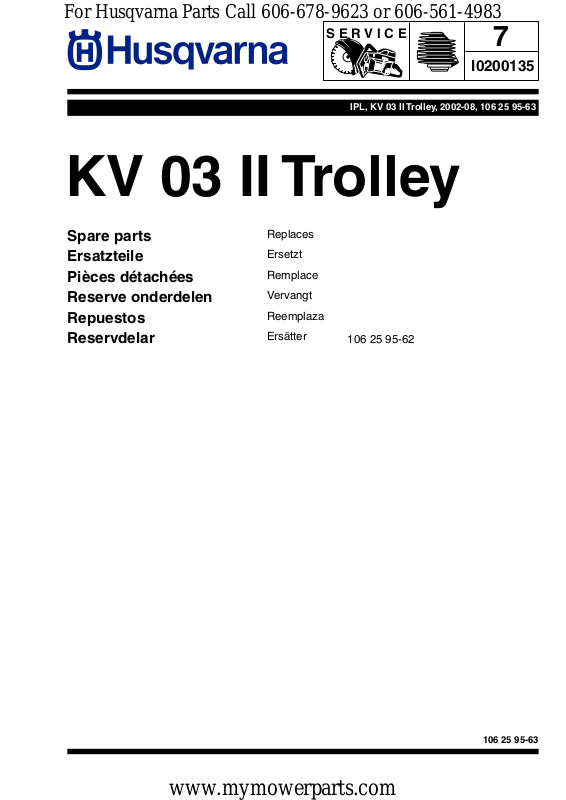

IPL, KV 03 II Trolley, 2002-08, 106 25 95-63

KV 03 II Trolley

Spare parts Ersatzteile Pièces détachées Reserve onderdelen

Replaces

Ersetzt

Remplace

Vervangt

I0200135

Repuestos Reservdelar

Reemplaza

Ersätter

106 25 95-62

www.mymowerparts.com

106 25 95-63

Page 2

For Husqvarna Parts Call 606-678-9623 or 606-561-4983

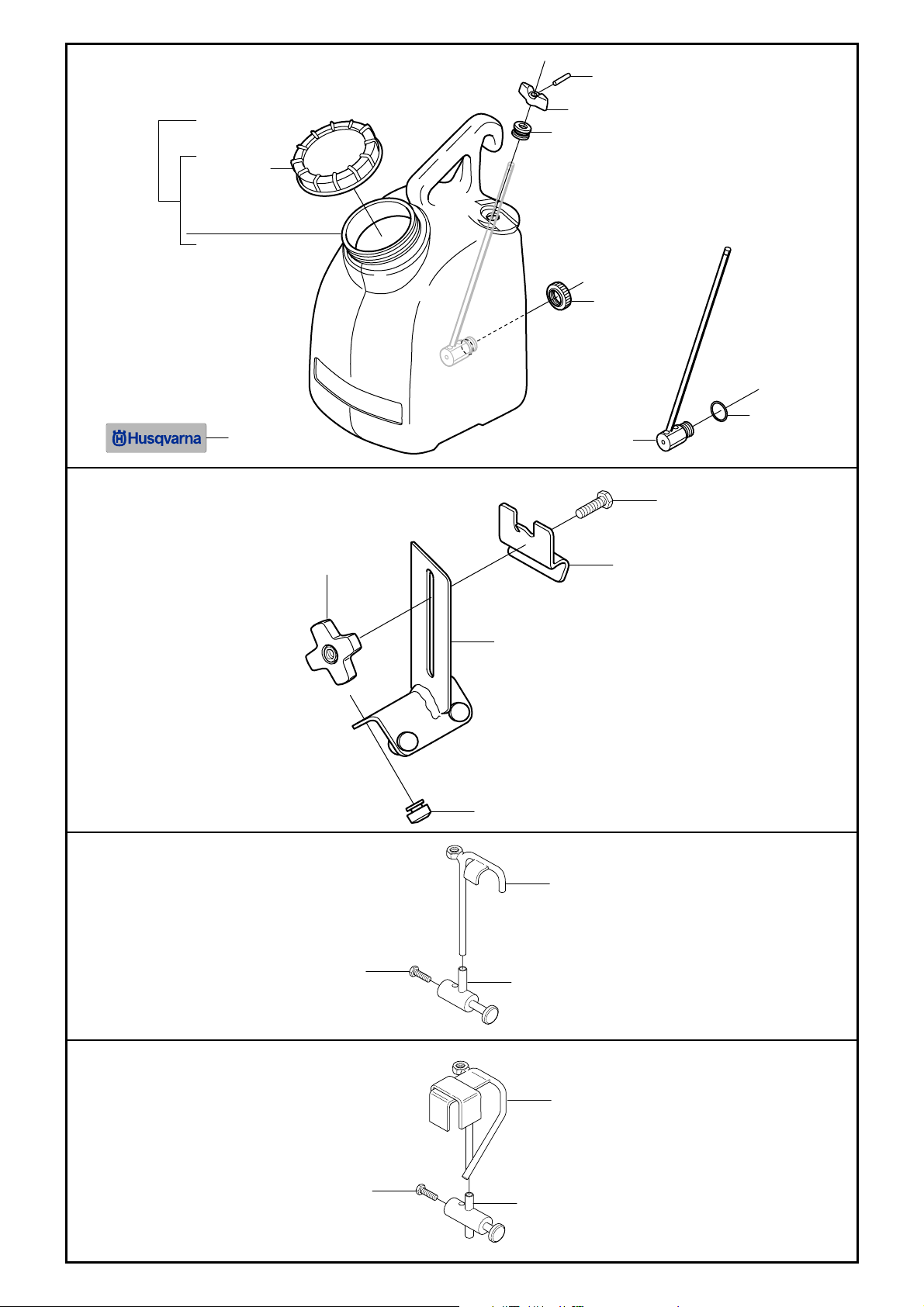

compl 506 29 54-12

506 22 21-01

506 36 03-01

501 69 17-02

504 12 50-17

506 30 88-01

740 48 03-03

740 42 09-00

506 35 99-01

506 30 86-01

506 22 21-01

compl 506 31 42-01

740 48 03-03

506 30 87-01

*506 10 88-01

*compl 506 36 16-01

*506 20 55-02

*506 10 88-01

www.mymowerparts.com

Page 3

For Husqvarna Parts Call 606-678-9623 or 606-561-4983

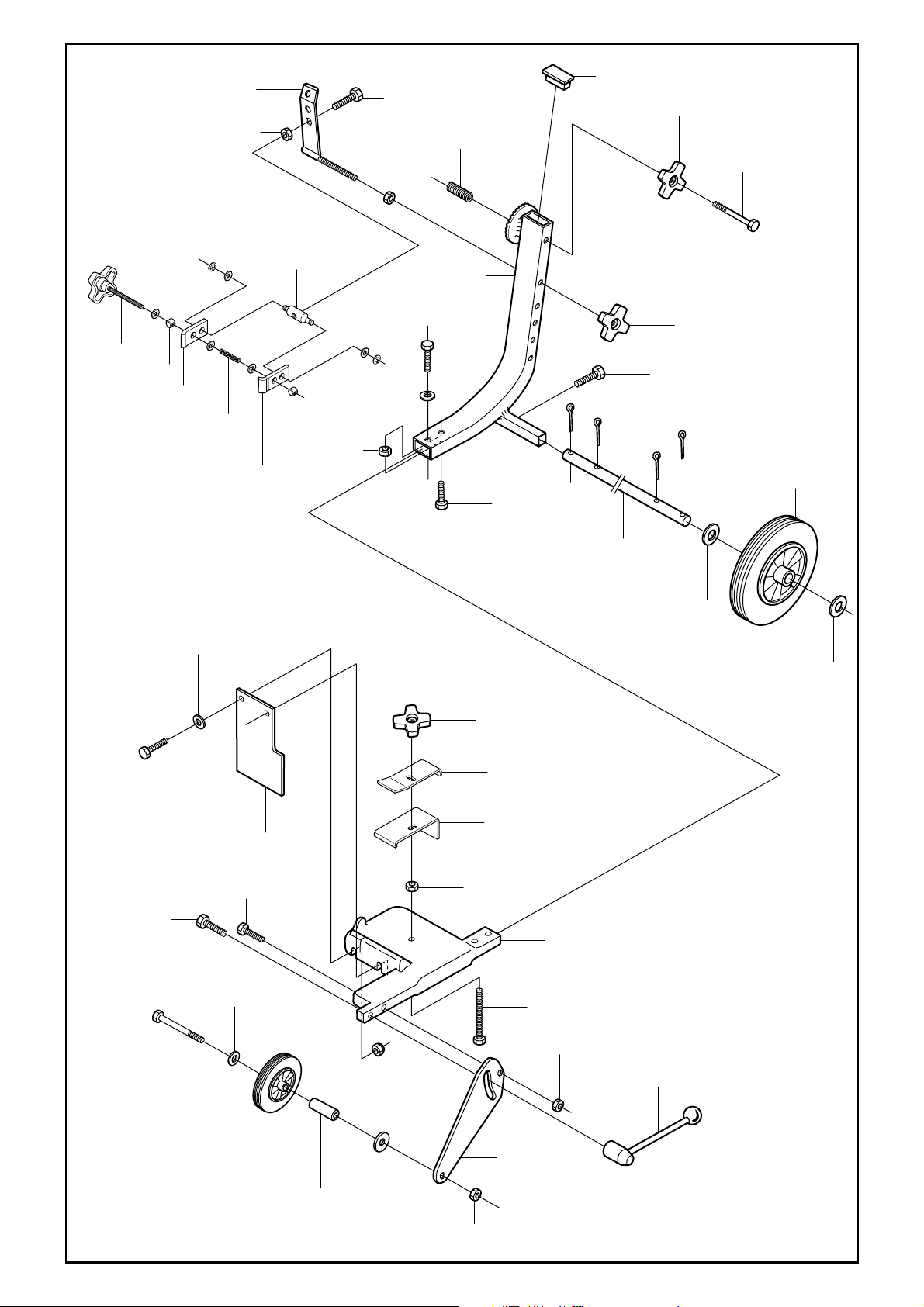

compl 506 29 54-12

*compl 506 36 09-01

*734 11 52-01 (x3)

*506 36 14-01

*506 36 13-01

*506 36 10-01

506 30 51-02

731 23 20-51

*735 31 09-20 (x2)

*506 36 15-01

*734 11 52-01 (x2)

*506 36 11-01

*506 36 12-01

731 23 18-01

*506 36 10-01

725 54 99-21

731 23 18-01

734 11 65-41

506 36 00-01

506 35 98-01

725 54 55-21

506 31 39-01

506 36 01-01

725 24 75-51

506 31 95-01

725 24 51-51

721 61 98-01 (x4)

506 20 07-03 (x2)

725 54 55-21

734 18 09-51 (x2)

725 23 29-51 (x2)

725 25 40-71

725 24 65-51

506 30 96-01

725 24 59-51

506 20 52-01

531 03 10-12 (x2)

506 31 95-01

506 30 76-01 3120K

506 30 83-01 371K

731 23 18-01

506 36 02-01

734 11 65-41

506 20 07-04

725 24 65-71

732 21 18-01

503 22 65-04 (x2)

506 13 66-02

734 11 65-41

506 30 47-01

732 21 18-01

506 13 97-01

www.mymowerparts.com

Page 4

For Husqvarna Parts Call 606-678-9623 or 606-561-4983

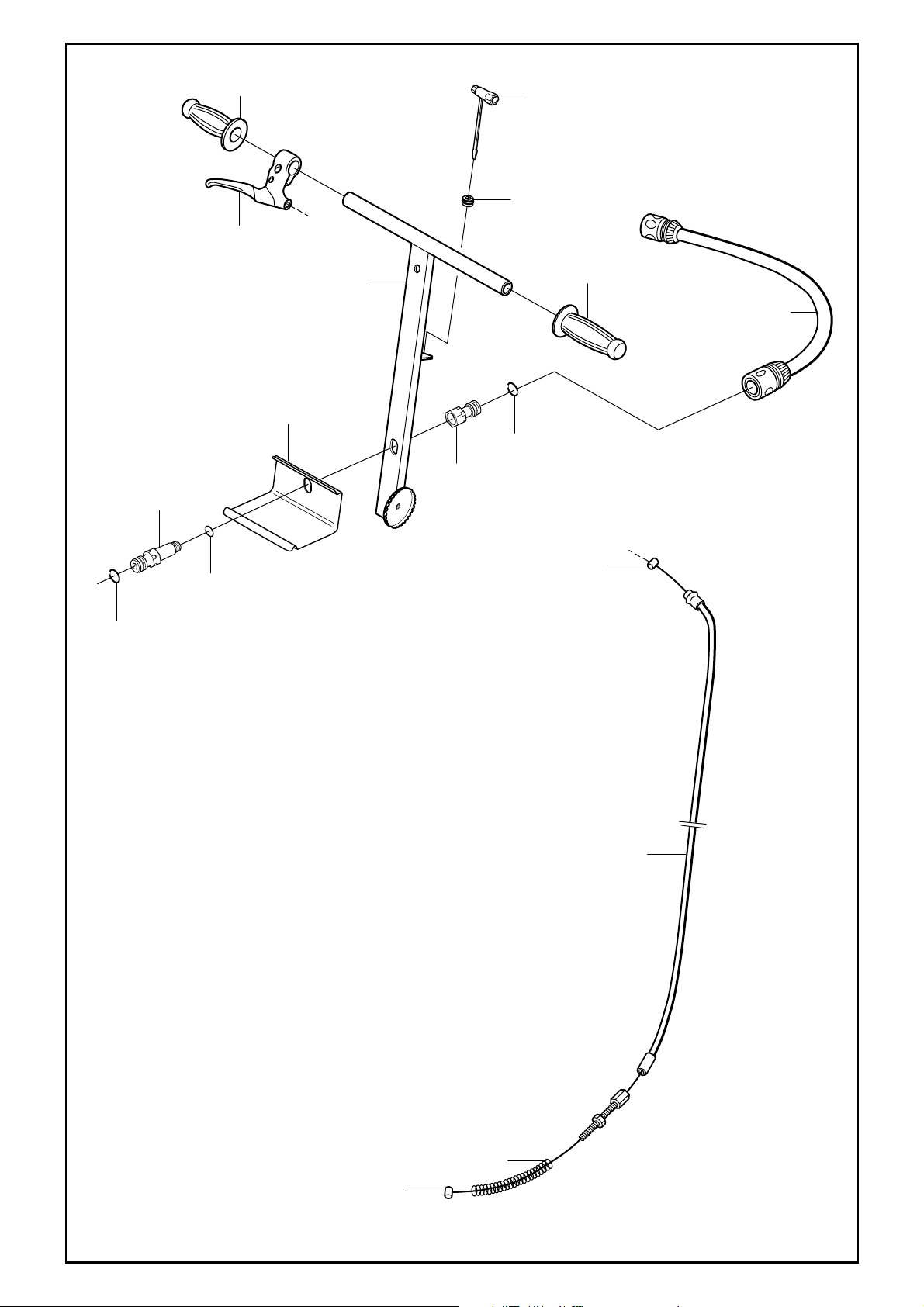

*compl 506 29 55-12

*compl 506 31 05-01

506 30 84-01*

506 30 85-01

506 30 20-02*

720 12 71-52*

506 30 94-01*

504 12 50-17*

506 30 92-01*

740 48 12-04*

*compl 506 31 41-01

725 24 51-51*

Throttle Kit 371K *compl 506 36 20-01

506 31 95-01*

*725 23 29-51

506 30 70-01*

503 47 16-01* (x4)

506 36 22-01*

506 36 23-01*

Throttle Kit 3120K *compl 506 36 18-01

506 36 04-01*

*725 23 29-51

506 36 05-01*

www.mymowerparts.com

Page 5

For Husqvarna Parts Call 606-678-9623 or 606-561-4983

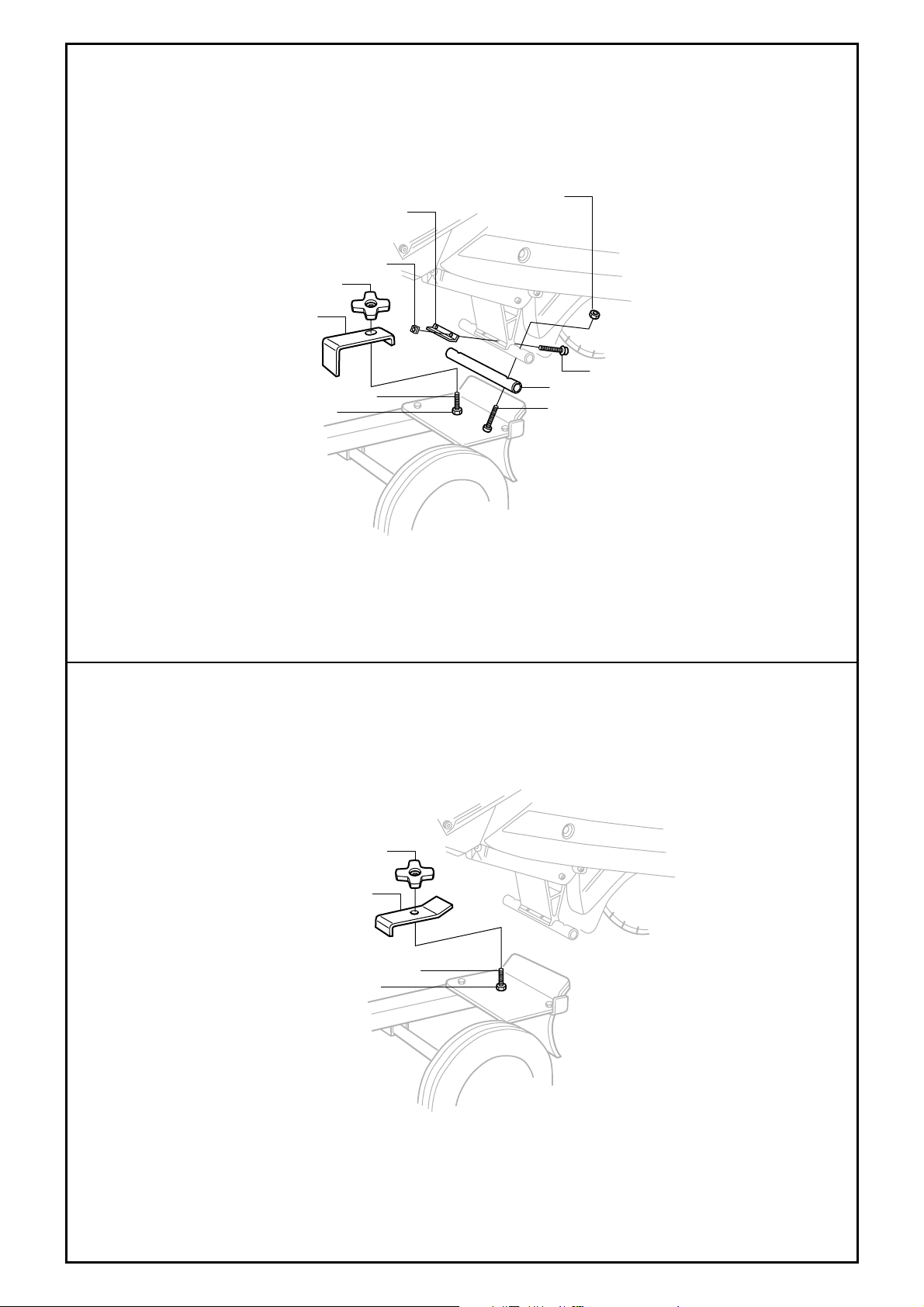

Adapter Kit 371K *compl 506 36 24-01

*732 21 14-01 (x2)

*506 31 95-01

*506 30 83-01

*725 24 69-51

*731 23 18-01

*506 30 81-01

*731 23 18-01 (x2)

725 53 29-55* (x2)

506 31 48-01*

725 24 63-51* (x2)

Adapter Kit 3120K *compl 506 31 46-01

*506 31 95-01

*506 30 76-01

*725 24 65-51

*731 23 18-01

www.mymowerparts.com

Page 6

For Husqvarna Parts Call 606-678-9623 or 606-561-4983

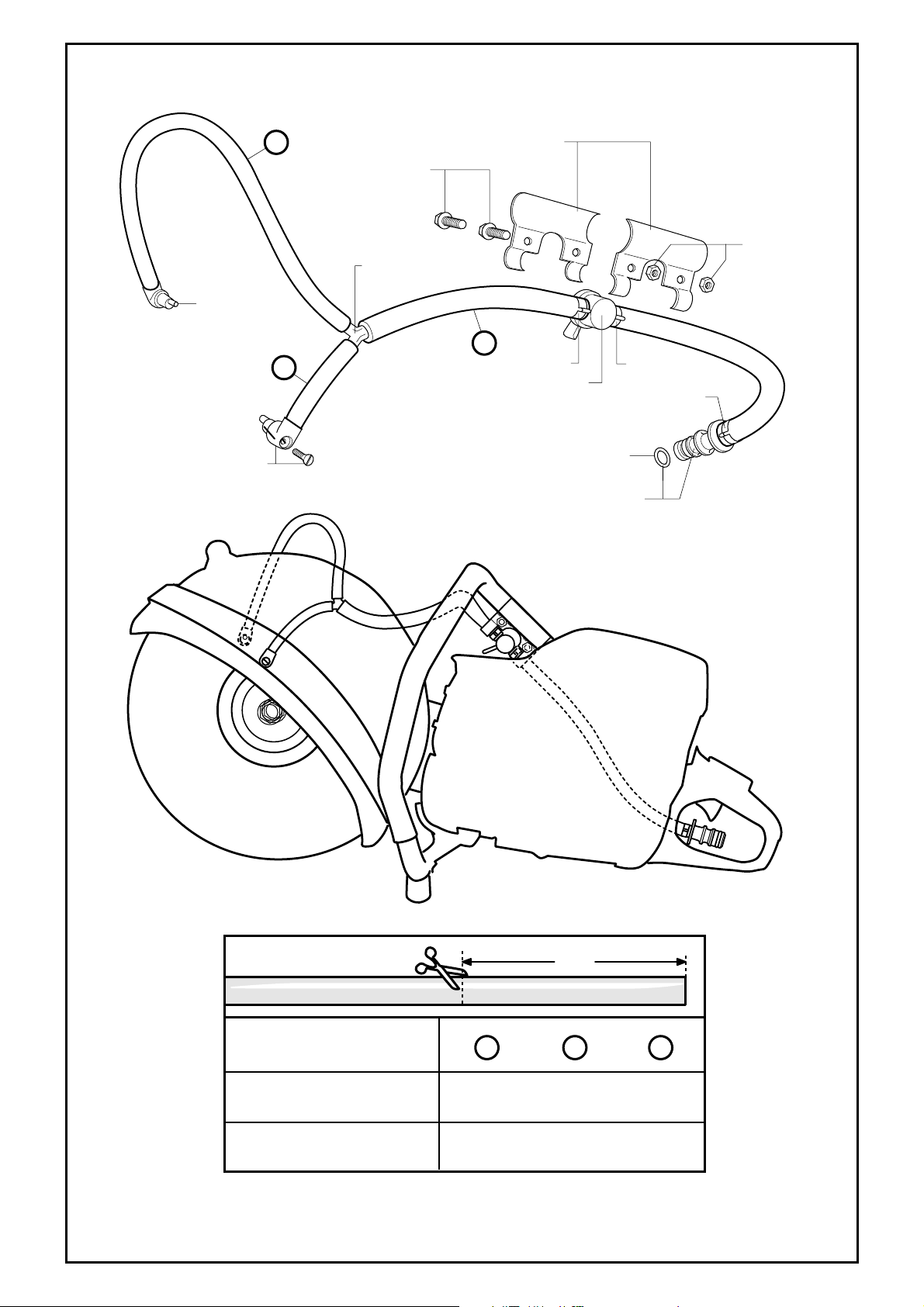

Wet cutting kit 506 29 30-13

506 29 56-01

503 20 00-03

506 09 74-01

506 07 68-02

506 09 56-02

506 09 57-02

731 23 14-05

506 09 56-02

503 26 30-21

506 29 57-01

Husqvarna Power Cutter

371K 12”

371K 14”

3120K 14”

3120K 16”

A B C

180 50 290

230 50 290

230 50 340

290 50 340

www.mymowerparts.com

Page 7

For Husqvarna Parts Call 606-678-9623 or 606-561-4983

KV 03 II Trolley

PART NUMBER SQUARE NOTE PART NUMBER SQUARE NOTE PART NUMBER SQUARE NOTE PART NUMBER SQUARE NOTE

501 69 17-02 A 503 20 00-03 J 503 22 65-04 B 503 26 30-21 J 503 47 16-01 D 504 12 50-17 AC 506 07 68-02 J 506 09 56-02 J 506 09 57-02 J 506 09 74-01 J

506 10 88-01 A 506 13 66-02 B 506 13 97-01 B 506 20 07-03 B 506 20 07-04 B 506 20 52-01 B 506 20 55-02 A 506 22 21-01 A 506 22 30-09 K 506 29 30-13 J

506 29 46-02 K 506 29 46-04 K 506 29 46-06 K 506 29 47-02 K 506 29 47-04 K 506 29 47-06 K 506 29 48-02 K 506 29 48-04 K 506 29 54-12 AB 506 29 55-12 C

506 36 11-01 B 506 36 12-01 B 506 36 13-01 B 506 36 14-01 B 506 36 15-01 B 506 36 16-01 A 506 36 18-01 F 506 36 20-01 E 506 36 22-01 E 506 36 23-01 E

506 36 24-01 G 531 00 60-76 K 531 03 10-12 B 720 12 71-52 C 721 61 98-01 B 725 23 29-51 BEF 725 24 51-51 BD 725 24 59-51 B 725 24 63-51 G 725 24 65-51 BH

725 24 65-71 B 725 24 69-51 G 725 24 75-51 B 725 25 40-71 B 725 53 29-55 G 725 54 55-21 B 725 54 99-21 B 731 23 14-05 J 731 23 18-01 BGH 731 23 20-51 B

506 29 56-01 J 506 29 57-01 J 506 30 20-02 C 506 30 47-01 B 506 30 51-02 B 506 30 70-01 D 506 30 76-01 BH 506 30 81-01 G 506 30 83-01 BG 506 30 84-01 C

506 30 85-01 C 506 30 86-01 A 506 30 87-01 A 506 30 88-01 A 506 30 92-01 C 506 30 94-01 C 506 30 96-01 B 506 31 05-01 D 506 31 39-01 B 506 31 41-01 C

506 31 42-01 A 506 31 46-01 H 506 31 48-01 G 506 31 95-01 BDGH 506 35 03-02 K 506 35 03-04 K 506 35 03-06 K 506 35 04-02 K 506 35 04-04 K 506 35 04-06 K

732 21 14-01 G 732 21 18-01 BGH 734 11 52-01 B 734 11 65-41 B 734 18 09-51 B 735 31 09-20 B 740 42 09-00 A 740 48 03-03 A 740 48 12-04 C

506 35 98-01 B 506 35 99-01 A 506 36 00-01 B 506 36 01-01 B 506 36 02-01 B 506 36 03-01 A 506 36 04-01 F 506 36 05-01 F 506 36 09-01 B 506 36 10-01 B
