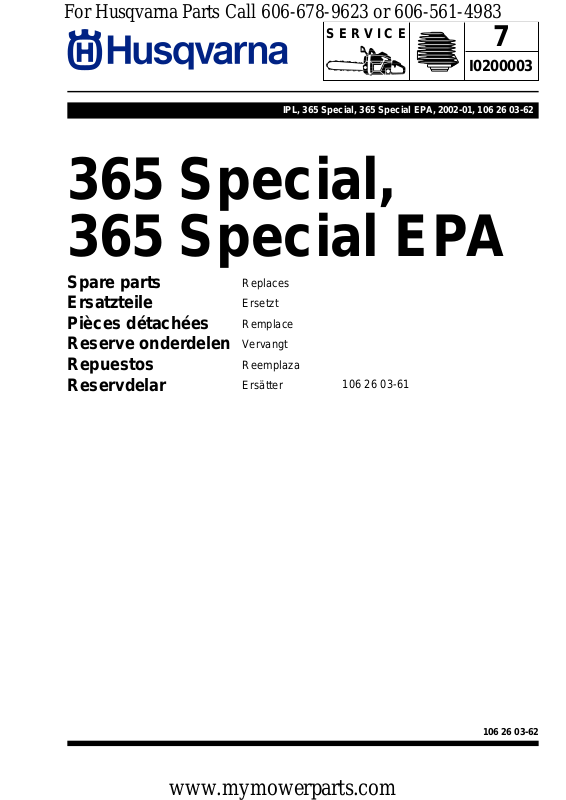

SERVICE

I0200003

IPL, 365 Special, 365 Special EPA, 2002-01, 106 26 03-62

365 Special, 365 Special EPA

Spare parts Ersatzteile

Replaces Ersetzt

Pièces détachées Reserve onderdelen Repuestos Reservdelar

Remplace Vervangt Reemplaza Ersätter

106 26 03-61

www.mymowerparts.com

106 26 03-62

Page 2

For Husqvarna Parts Call 606-678-9623 or 606-561-4983

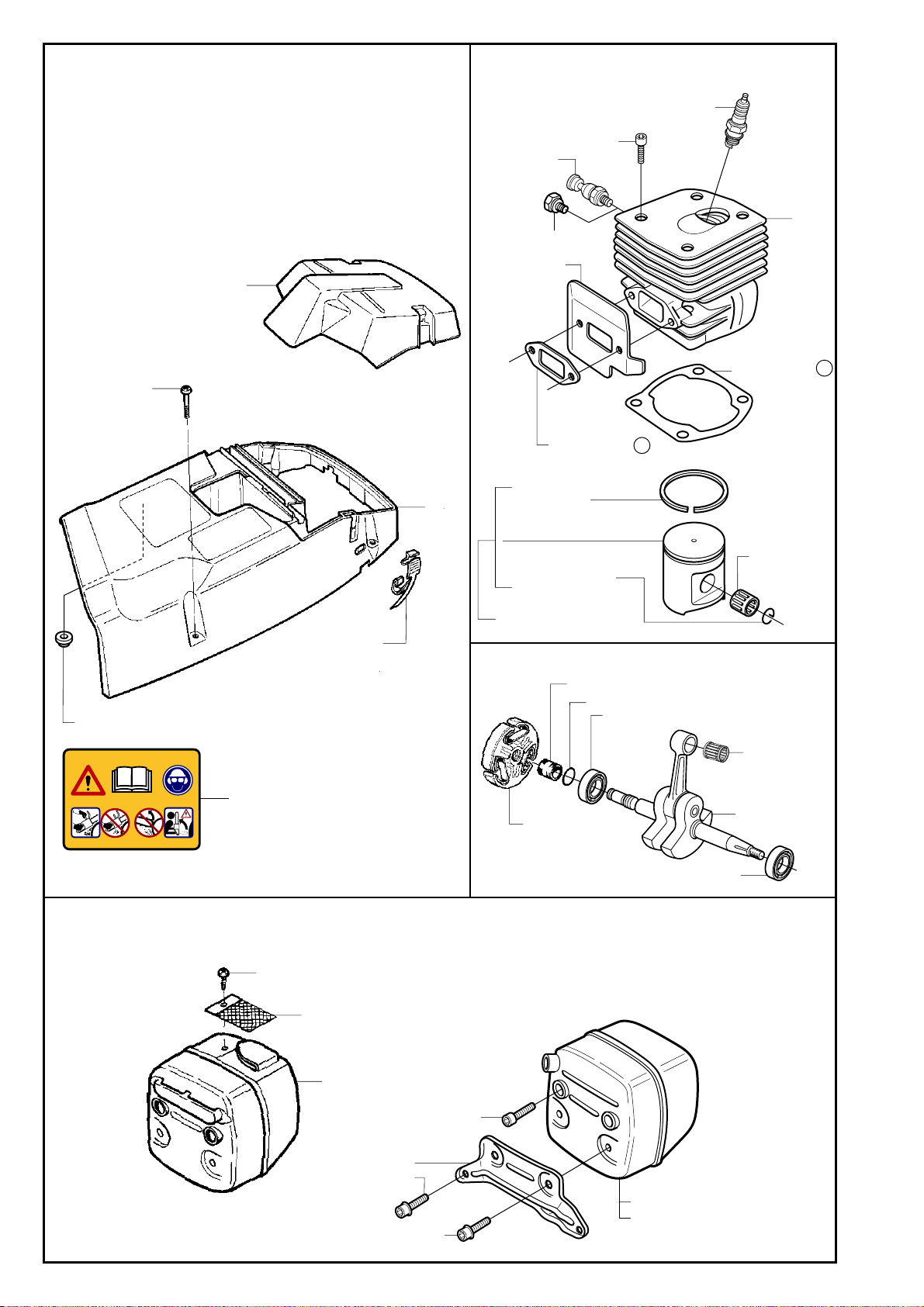

503 20 02-12 (x4)

503 20 25-12

503 43 65-01

503 83 81-02

*compl 537 03 35-01

503 22 00-01 (x2)

537 00 87-01

503 75 11-03

503 21 28-10

501 87 53-03

503 76 49-03

503 70 99-01

503 79 27-01

503 77 52-01

503 75 22-01

*537 03 35-71

537 03 38-01

503 76 29-02 503 89 70-01 503 21 28-10

503 21 28-10

503 71 97-01

*537 04 41-02

**compl 503 93 24-71 (3/8"x7T) **compl 503 93 24-72 (3/8"x8T)

503 75 24-01 503 27 21-01

740 48 07-02 503 23 00-63 537 07 94-01

537 01 74-01 503 99 83-01 537 07 95-01 503 23 00-66 537 01 68-01

503 75 61-02

503 23 00-59 503 77 43-01 503 64 47-01

501 51 72-01*

503 21 28-10* (x2)

*compl 503 52 13-01

*503 62 49-01 *503 52 15-01

725 53 29-56

503 23 00-04* 501 61 58-01* 503 81 30-01*

**3/8"x7T 501 59 80-02 **3/8"x8T 505 30 36-61

**503 43 20-01

504 30 00-26

503 86 17-71 (3/8"x7T)

503 74 43-01

503 43 20-01

www.mymowerparts.com

503 81 13-01*

503 42 67-01 501 54 41-02

compl 503 74 44-01

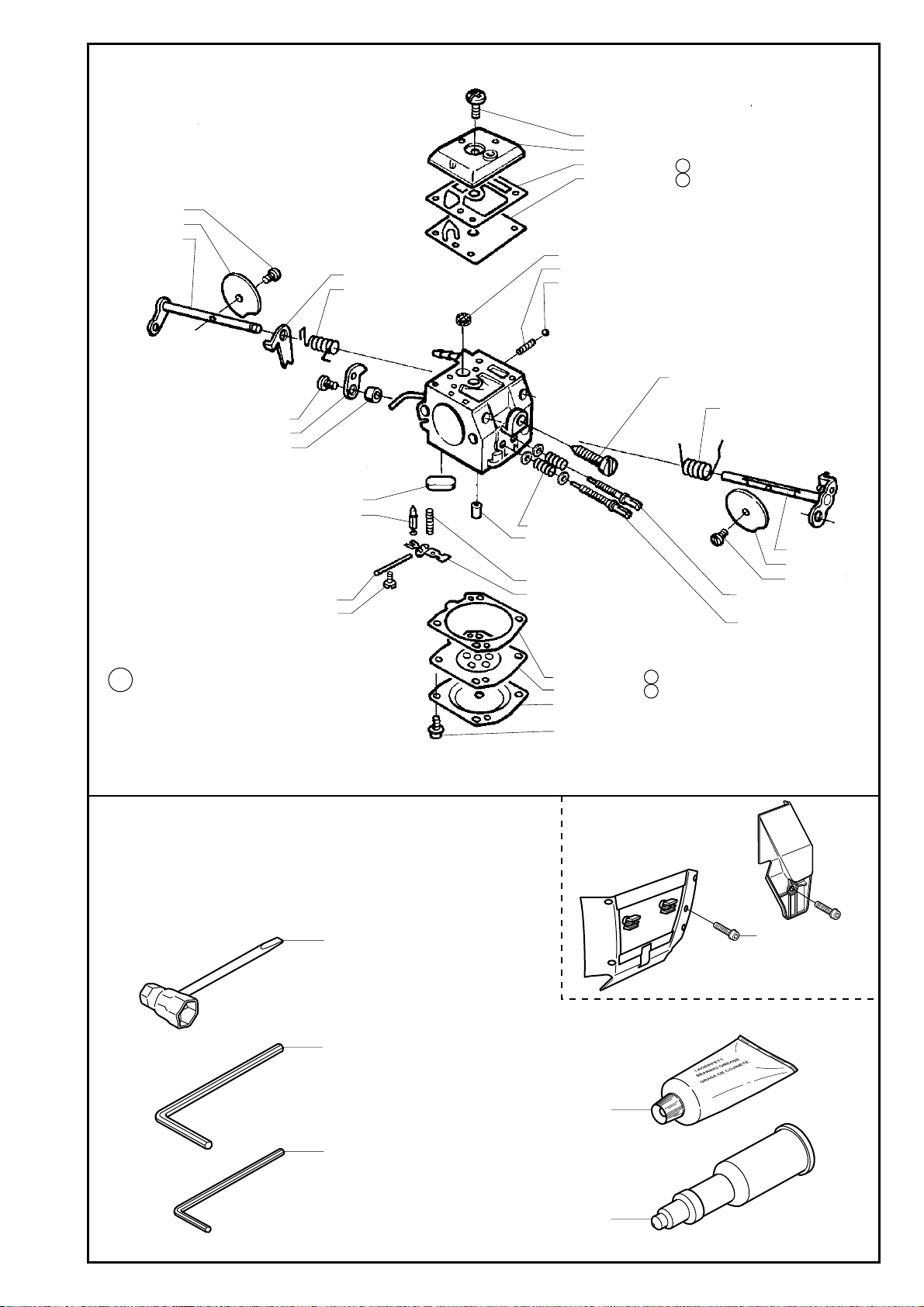

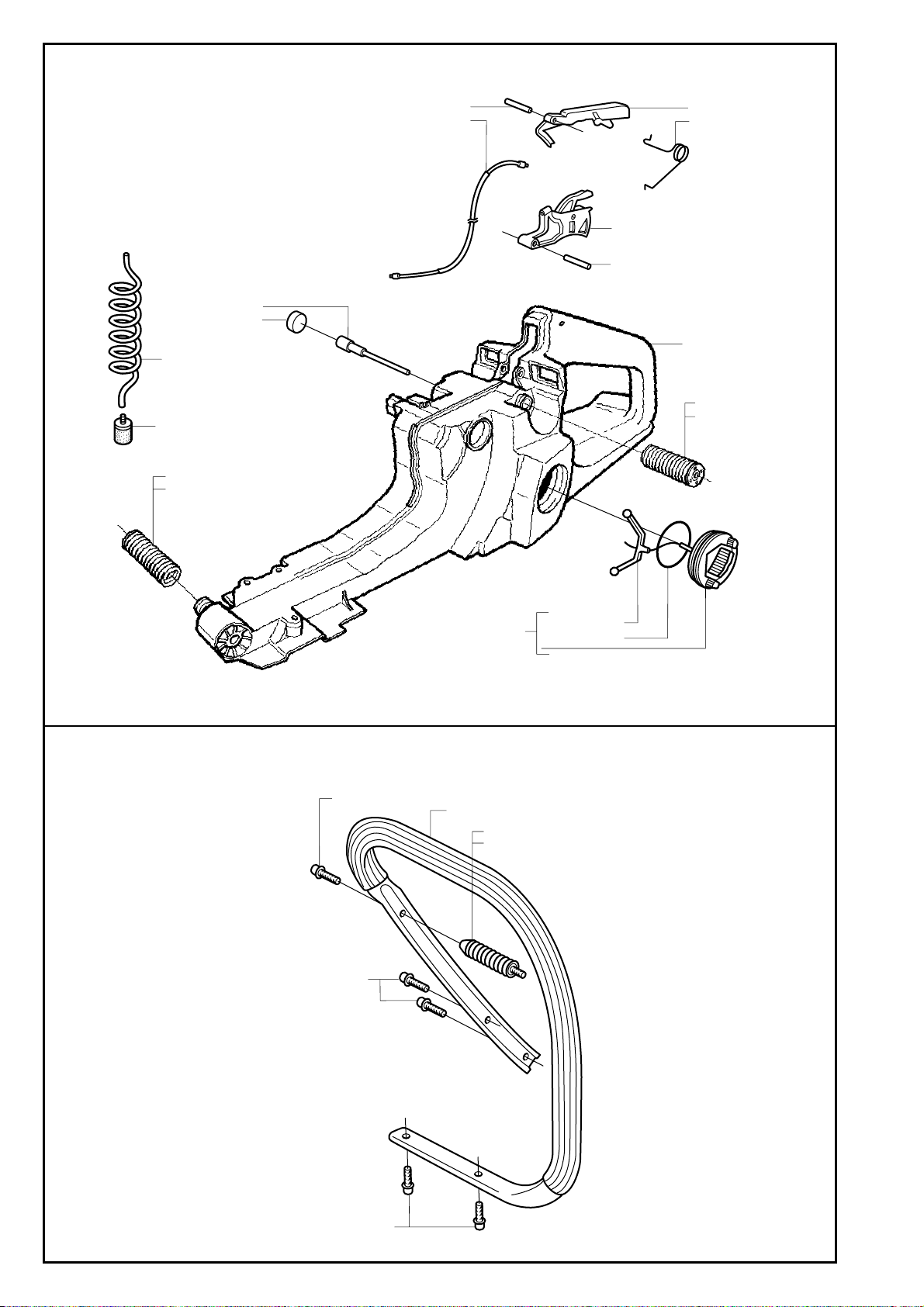

Page 3

For Husqvarna Parts Call 606-678-9623 or 606-561-4983

*compl 503 62 78-07

*503 62 80-01

*503 20 34-25

*compl 503 69 10-73 *compl 503 93 90-72 EPA

725 53 33-55 (x4)

503 71 53-01

*503 55 22-01

503 77 58-02

503 77 59-01

503 28 90-15

503 23 51-08

RCJ 7 Y

503 90 99-01

537 01 65-01

compl 503 76 52-01 FG

*compl 503 76 54-02 DF

*503 74 01-02

503 98 74-01*

724 12 87-59*

737 43 12-00 (x2)

*compl 503 69 13-71

*compl 503 74 87-01

503 77 91-01

503 74 44-01*

503 25 56-01*

503 26 30-19

738 22 02-25*

503 25 56-01*

*738 22 02-25

503 76 64-02*

725 53 70-55 (x2)

503 76 65-03 503 20 02-16 (x2)

503 20 06 -08 (x2)

www.mymowerparts.com

compl 503 76 53-01 Std compl 503 76 53-02 Jungle

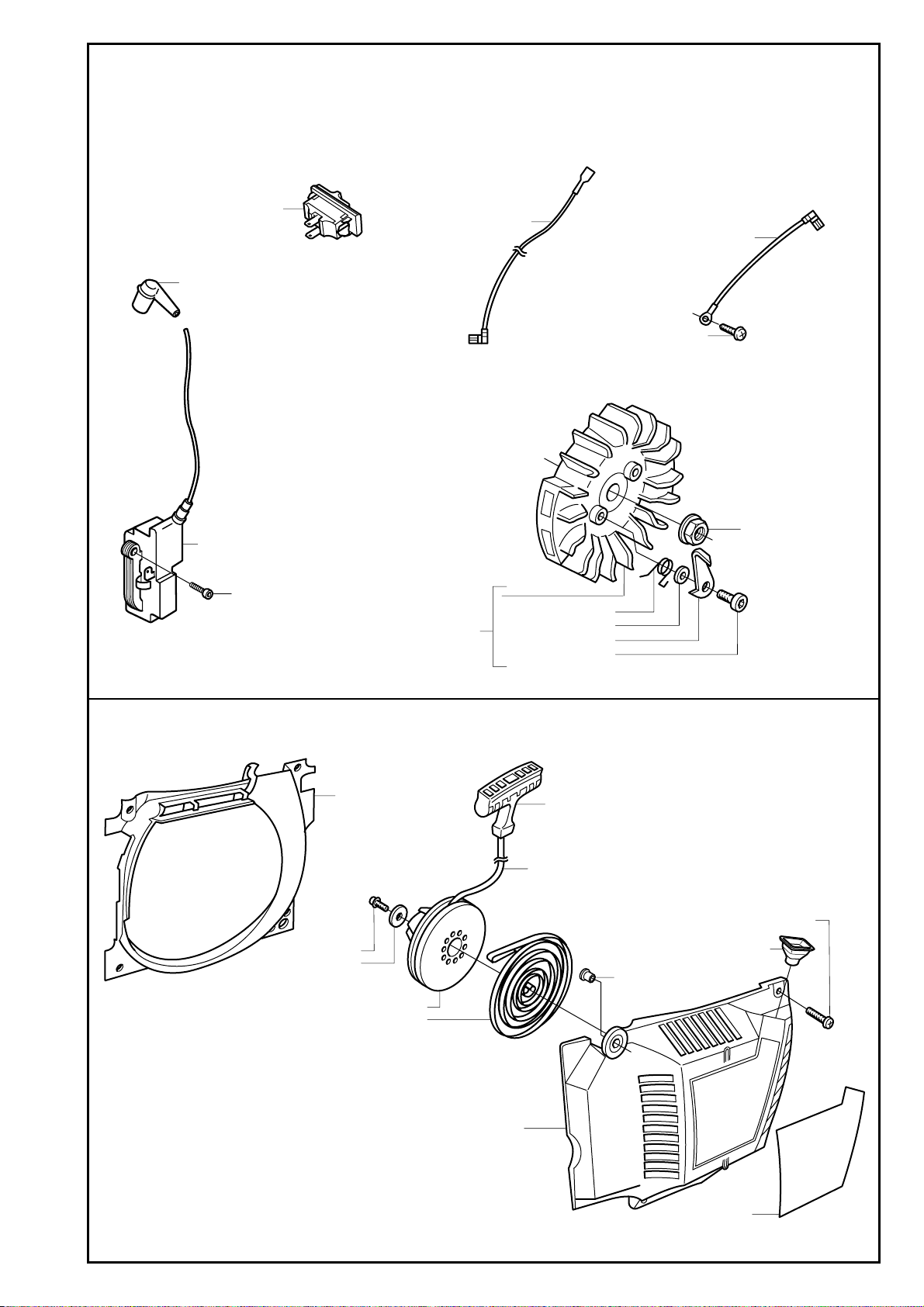

Page 4

For Husqvarna Parts Call 606-678-9623 or 606-561-4983

502 20 65-04 502 20 83-02

503 81 80-01

Felt

503 81 80-02

80µ

503 81 80-03

44µ

compl 503 81 78-01

731 23 14-01

EPA 503 56 00-04

80µ 503 81 45-01 44µ 503 81 45-02 Felt 503 81 45-03

compl 503 71 27-01

503 74 38-01 725 53 29-55

EPA 503 28 18-05 503 28 32-03

503 22 65-03

503 73 54-01

503 62 75-01 725 53 05-55

503 40 06-06

503 70 11-01

503 68 41-01

503 66 53-01 503 66 74-01 EPA

503 43 18-01

503 74 39-01 503 96 45-01 EPA

*compl 503 62 68-76

503 21 28-10 537 01 37-71

*537 04 03-01

725 53 31-55

501 68 68-01

503 96 70-01* 503 26 03-01

503 75 18-01*

503 62 73-03 503 20 02-12 (x4)

503 74 93-01

503 62 77-01

503 73 44-01

501 27 08-01*

503 62 72-01 503 85 73-01

503 67 86-01 537 09 54-01

505 27 57-19

537 04 29-01

503 20 02-16

503 20 02-30

537 02 44-01

537 08 92-01

*501 27 08-01

*501 81 57-01

503 22 24-01

537 01 71-01

503 64 79-01

503 26 30-17 503 57 89-01

www.mymowerparts.com

503 62 84-01 503 20 02-12

503 84 61-01 503 20 08-32

compl 501 81 96-02

Page 5

For Husqvarna Parts Call 606-678-9623 or 606-561-4983

*compl 503 71 32-75

*720 12 40-20 *503 71 76-01

503 82 98-01*

720 12 72-20*

*501 87 31-01 *503 60 04-01

503 57 76-02

503 44 32-01

503 55 66-01* 503 73 64-01*

503 89 56-01 Std 503 89 56-02 Hard

*compl 503 62 67-71

503 63 76-01 Std 503 63 76-02 Hard

compl 501 81 96-02

503 21 05-22*

503 57 89-01 503 26 30-17

503 63 75-02* STD 503 63 75-03 HARD

*503 21 06-16

www.mymowerparts.com

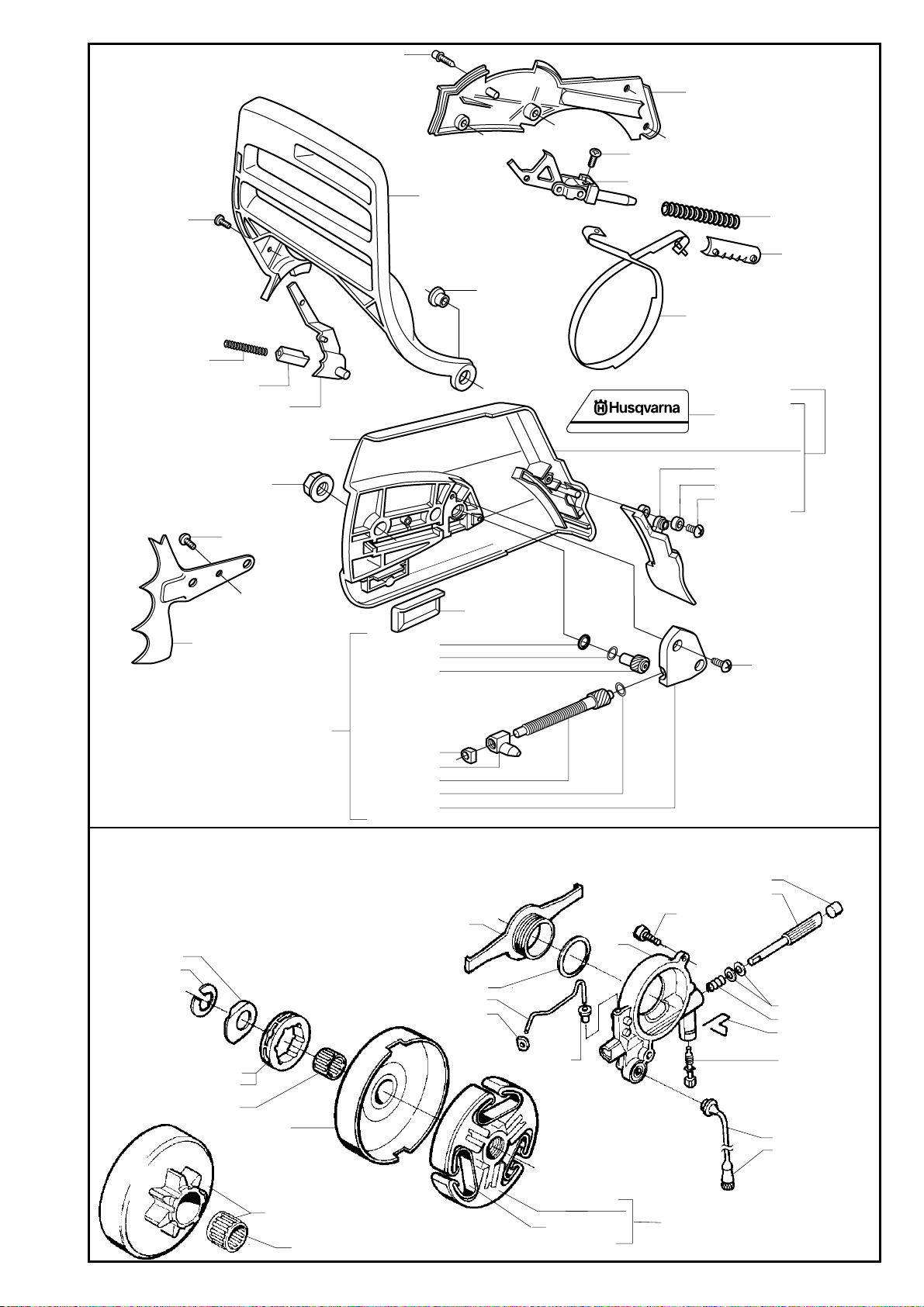

Page 6

For Husqvarna Parts Call 606-678-9623 or 606-561-4983

503 71 82-01

501 48 54-02

537 16 22-01

503 20 02-20 (x2)

503 62 61-01

compl 537 05 16-05

503 89 76-01

503 21 28-10

503 22 04-01

501 67 35-01 (x2) 503 23 00-42 (x2) 537 01 55-01 (x2) 501 81 99-01 (x2)

*compl 503 62 81-71

503 62 83-01

*503 21 06-16 *503 23 43-02

*503 85 96-01 *503 78 72-01

* **compl 503 62 82-02

503 54 39-01*

501 20 15-02*

*503 20 34-19 (x4)

* **501 63 06-01

537 08 67-01* **

* **

www.mymowerparts.com

537 08 65-09

Page 7

For Husqvarna Parts Call 606-678-9623 or 606-561-4983

compl 503 28 18-05 EPA

501 66 61-01

503 85 59-01

503 80 14-01 503 85 58-01

501 46 69-01

503 79 98-01

501 66 69-01

502 25 47-01

Walbro HD-12B EPA

501 46 85-01

501 46 84-01

*537 01 89-01

*compl 537 01 91-01

501 46 87-01

503 79 96-01

537 01 90-01

501 46 87-01

503 80 15-01

505 52 01-25

503 57 42-01

503 94 36-01 EPA

537 00 33-01 EPA

503 56 34-01

505 31 67-17

501 66 77-01

503 94 38-01 L EPA

503 94 37-01 EPA

501 66 83-01

503 80 00-01

503 80 09-01

530 03 50-15

503 79 99-01

501 66 78-01

503 80 08-01

501 66 77-01

503 94 39-01 H EPA

503 91 39-01 EPA

503 91 40-01 EPA

503 91 54-01 EPA

503 64 78-01

Set of gaskets Dichtungssatz Jeu de joints Juego de juntas Packningssats

504 13 09-05

503 80 07-01

537 07 76-01

503 10 87-01 (x4)

www.mymowerparts.com

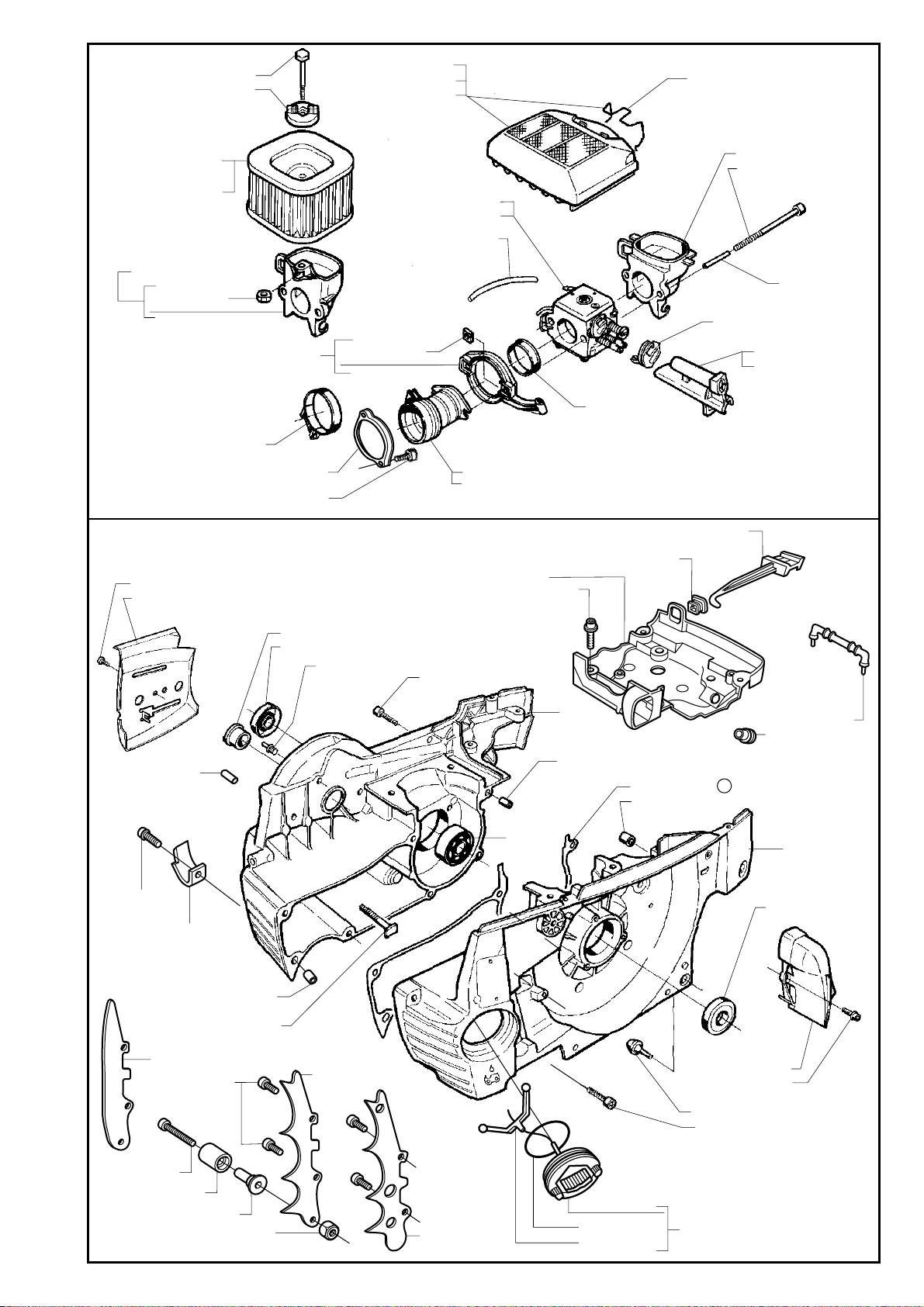

Page 8

For Husqvarna Parts Call 606-678-9623 or 606-561-4983

compl 503 28 32-03

503 48 18-01 537 01 27-01 537 01 23-01

503 47 90-01 503 93 67-01 503 47 89-01

503 53 56-01 503 47 97-01

503 48 00-01 503 48 01-01

503 61 64-01 537 01 24-01

503 47 96-01 503 61 67-01 503 61 66-01 3 503 93 68-01 3

503 53 57-01 537 01 26-01 537 01 25-01

503 48 08-01 537 07 90-01

503 47 81-01 503 66 59-01

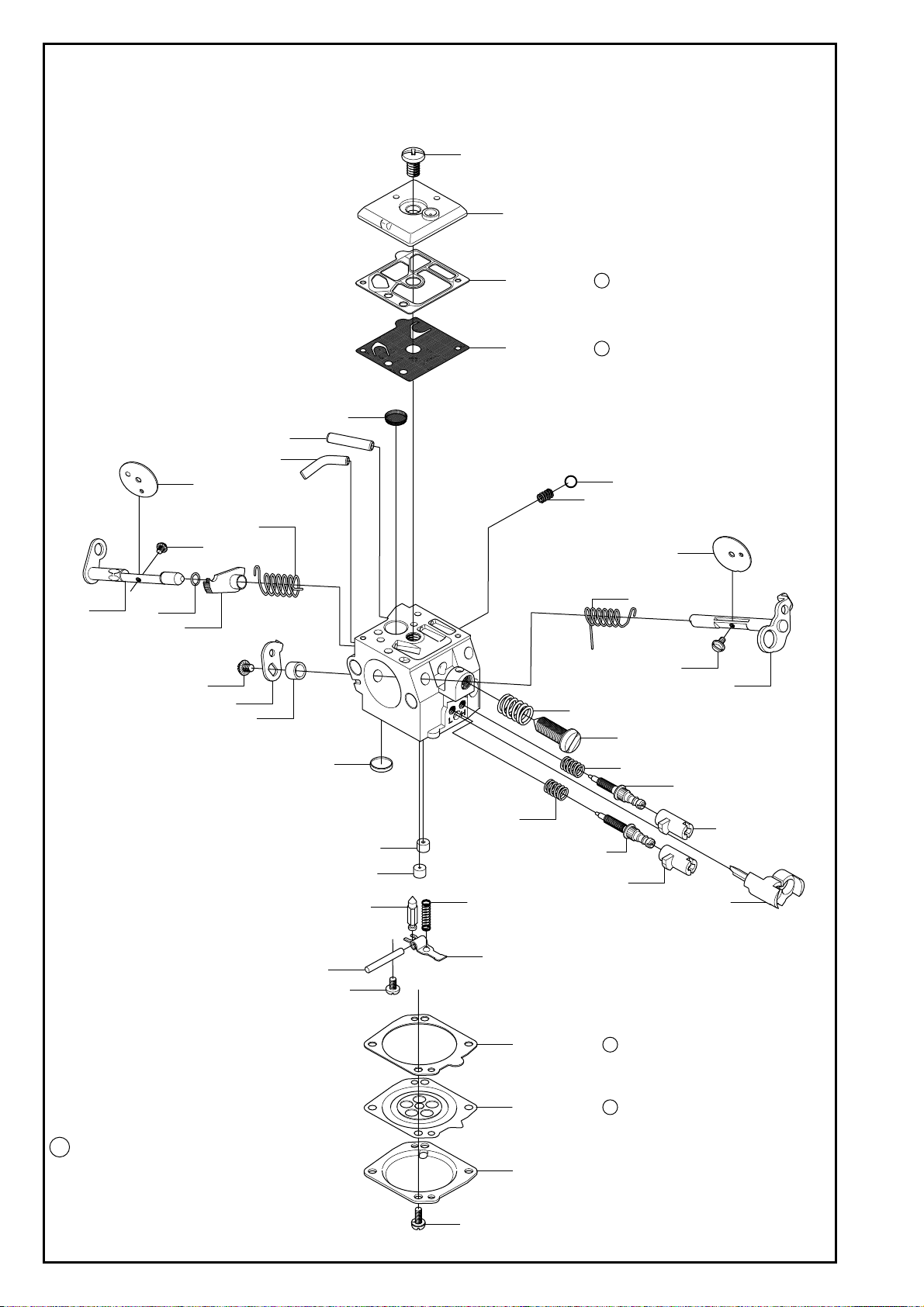

Zama C3M-EL2C

503 88 67-01

503 55 45-01

503 55 44-01 503 55 46-01 503 52 36-01

503 88 66-01 H 503 88 65-01 L

503 56 46-01

Set of gaskets Dichtungssatz Jeu de joints Juego de juntas Packningssats

Accessories

Zubehöre Accessories Accessorios Tillbehör

*compl 503 55 85-01

501 69 17-01*

503 55 86-02* NV5

503 88 44-01 3 503 61 68-01 3 503 88 45-01

503 48 05-01

WINTER compl 503 96 90-01

503 21 27-16 (x2)

*503 62 12-01

503 55 86-01* NV4

*501 91 14-01

www.mymowerparts.com

Page 9

For Husqvarna Parts Call 606-678-9623 or 606-561-4983

365 Special, 365 Special EPA

PART NUMBER SQUARE NOTE PART NUMBER SQUARE NOTE PART NUMBER SQUARE NOTE PART NUMBER SQUARE NOTE

501 20 15-02 M 501 27 08-01 H 501 46 69-01 N N 501 46 84-01 N N 501 46 85-01 N N 501 46 87-01 N N 501 48 54-02 L 501 51 72-01 A 501 54 41-02 B 501 59 80-02 B

501 61 58-01 B 501 63 06-01 M N 501 66 61-01 N N 501 66 69-01 N 2,N 501 66 77-01 N N 501 66 78-01 N N 501 66 83-01 N N 501 67 35-01 L 501 68 68-01 H N 501 69 17-01 Q

501 81 57-01 H 501 81 96-02 H,J 501 81 99-01 L 501 87 31-01 J N 501 87 53-03 A 501 91 14-01 Q 502 20 65-04 G N 502 20 83-02 G N 502 25 47-01 N 2,N 503 10 87-01 N N

503 47 90-01 P 503 47 96-01 P 503 47 97-01 P 503 48 00-01 P 503 48 01-01 P 503 48 05-01 P 503 48 08-01 P 503 48 18-01 P 503 52 13-01 B 503 52 15-01 B

503 52 36-01 P 503 53 56-01 P 503 53 57-01 P 503 54 39-01 M 503 55 22-01 D 503 55 44-01 P 503 55 45-01 P 503 55 46-01 P 503 55 66-01 J 503 55 85-01 Q

503 55 86-01 Q 503 55 86-02 Q 503 56 00-04 G EPA 503 56 34-01 N N 503 56 46-01 P 3=compl 503 57 42-01 N N 503 57 76-02 J 503 57 89-01 H,J 503 60 04-01 J N 503 61 64-01 P

503 71 97-01 A 503 73 44-01 H 503 73 54-01 G 503 73 64-01 J 503 74 01-02 C 503 74 38-01 G 503 74 39-01 G 503 74 43-01 B 503 74 44-01 B,E 503 74 87-01 E N

503 74 93-01 H 503 75 11-03 A 503 75 18-01 H 503 75 22-01 A 503 75 24-01 B 503 75 61-02 B 503 76 29-02 A 503 76 49-03 A 503 76 52-01 F 503 76 53-01 F

503 76 53-02 F 503 76 54-02 F 503 76 64-02 F 503 76 65-03 F N 503 77 43-01 B 503 77 52-01 A 503 77 58-02 D 503 77 59-01 D 1 503 77 91-01 E 503 78 72-01 M

503 93 24-71 B 503 93 24-72 B 503 93 67-01 P 503 93 68-01 P 3 503 93 90-72 D EPA 503 94 36-01 N EPA,N 503 94 37-01 N EPA,N 503 94 38-01 N EPA,N 503 94 39-01 N EPA,N 503 96 45-01 G EPA,N

503 96 70-01 H 503 96 90-01 Q 503 98 74-01 C 503 99 83-01 A 504 13 09-05 N 2,N 504 30 00-26 B 505 27 57-19 H 505 30 36-61 B 505 31 67-17 N N 505 52 01-25 N N

530 03 50-15 N N 537 00 33-01 N EPA,N 537 00 87-01 A 537 01 23-01 P 537 01 24-01 P 537 01 25-01 P 537 01 26-01 P 537 01 27-01 P 537 01 37-71 H 537 01 55-01 L N

503 20 02-12 A,H 503 20 02-16 F,H 503 20 02-20 L 503 20 02-30 H 503 20 06-08 F N 503 20 08-32 H 503 20 25-12 A 503 20 34-19 M 503 20 34-25 C 503 21 05-22 K

503 21 06-16 K,M 503 21 27-16 Q 503 21 28-10 A,H,L 503 22 00-01 A 503 22 04-01 L N 503 22 24-01 H 503 22 65-03 G 503 23 00-04 B 503 23 00-42 L 503 23 00-59 B

503 23 00-63 A 503 23 00-66 A 503 23 43-02 M 503 23 51-08 D 503 25 56-01 D,E 503 26 03-01 H 503 26 30-17 H,J 503 26 30-19 E 503 27 21-01 B 503 28 18-05 G,N EPA,N

503 61 66-01 P 3 503 61 67-01 P 503 61 68-01 P 3 503 62 12-01 Q 503 62 49-01 B 503 62 61-01 L 503 62 67-71 K 503 62 68-76 H 503 62 72-01 H 1 503 62 73-03 H

503 62 75-01 G 503 62 77-01 H 503 62 78-07 C 503 62 80-01 C 503 62 81-71 M 503 62 82-02 M N 503 62 83-01 M 503 62 84-01 H 503 63 75-02 K 503 63 75-03 K

503 63 76-01 J 503 63 76-02 J 503 64 47-01 B 503 64 72-01 1=compl 503 64 78-01 N 2=compl,N 503 64 79-01 H N 503 66 53-01 G 503 66 59-01 P 503 66 74-01 G EPA,N 503 67 86-01 H

503 79 27-01 A 503 79 96-01 N N 503 79 98-01 N N 503 79 99-01 N N 503 80 00-01 N N 503 80 07-01 N 2,N 503 80 08-01 N N 503 80 09-01 N N 503 80 14-01 N N 503 80 15-01 N N

503 81 13-01 B 503 81 30-01 B 503 81 45-01 G 503 81 45-02 G 503 81 45-03 G 503 81 78-01 G N 503 81 80-01 G N 503 81 80-02 G N 503 81 80-03 G N 503 82 98-01 J

503 83 81-02 A 503 84 61-01 H 503 85 58-01 N N 503 85 59-01 N N 503 85 73-01 H 503 85 96-01 M 503 86 17-71 B 503 88 44-01 P 3 503 88 45-01 P 503 88 65-01 P

537 01 65-01 C 537 01 68-01 A 537 01 71-01 H 537 01 74-01 A 537 01 89-01 N N 537 01 90-01 N N 537 01 91-01 N N 537 02 44-01 H 537 03 35-01 A 537 03 35-71 A

537 03 38-01 A 537 04 03-01 H 537 04 29-01 H N 537 04 41-02 A 537 05 16-05 L N 537 07 76-01 N N 537 07 90-01 P N 537 07 94-01 A 537 07 95-01 A 537 08 65-09 M

537 08 67-01 M N 537 08 92-01 H 537 09 54-01 H N 537 16 22-01 L N 720 12 40-20 J 720 12 72-20 J 724 12 87-59 F 725 53 05-55 G 725 53 29-55 G 725 53 29-56 B

503 28 32-03 G,P 503 28 90-15 D 503 40 06-06 G 503 42 67-01 B 503 43 18-01 G 503 43 20-01 B 503 43 65-01 A 503 44 32-01 J 503 47 81-01 P 503 47 89-01 P

1 = 503 64 72-01 2 = 503 64 78-01 3 = 503 56 46-01

503 68 41-01 G 503 69 10-73 D 503 69 13-71 D 503 70 11-01 G 503 70 99-01 A 503 71 27-01 G 503 71 32-75 J 503 71 53-01 D 503 71 76-01 J 503 71 82-01 L

Set of gaskets, Dichtungssats, Jeu de joints, Juego de juntas, Packningssats

www.mymowerparts.com

503 88 66-01 P 503 88 67-01 P 503 89 56-01 J 503 89 56-02 J 503 89 70-01 A 503 89 76-01 L 503 90 99-01 D 1 503 91 39-01 N EPA,N 503 91 40-01 N EPA,N 503 91 54-01 N EPA,N

N = New part, Neues teil,

Nouvelle piece, Nueva pieza Ny detalj

725 53 31-55 H N 725 53 33-55 D 725 53 70-55 F 731 23 14-01 G N 737 43 12-00 D 738 22 02-25 E 740 48 07-02 A

EPA = Environmental Protection Agency

(for USA only)
