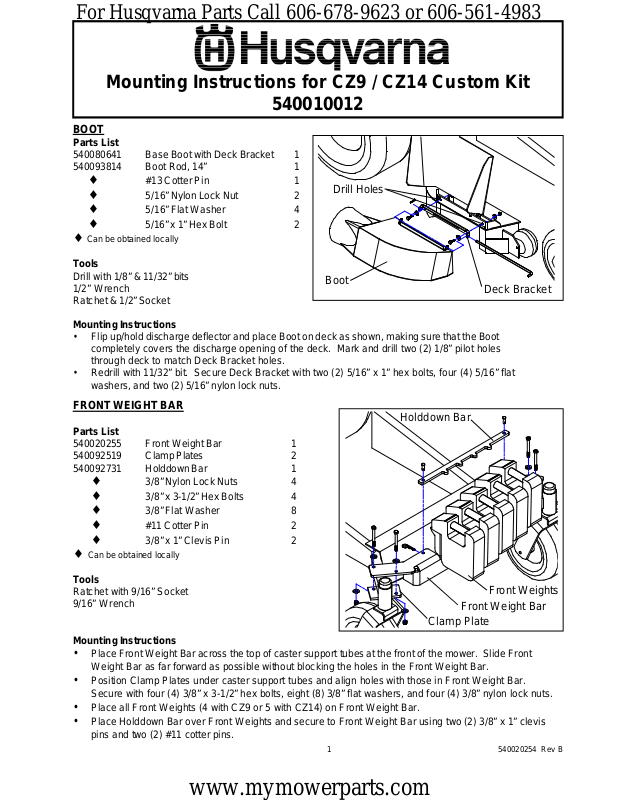

Mounting Instructions for CZ9 / CZ14 Custom Kit
540010012
BOOT
Parts List
540080641 Base Boot with Deck Bracket 1
540093814 Boot Rod, 14” 1
♦ #13 Cotter Pin 1
♦ 5/16” Nylon Lock Nut 2
♦ 5/16” Flat Washer 4
♦ 5/16” x 1” Hex Bolt 2
♦ Can be obtained locally
Tools
Drill with 1/8” & 11/32” bits
1/2” Wrench
Ratchet & 1/2” Socket

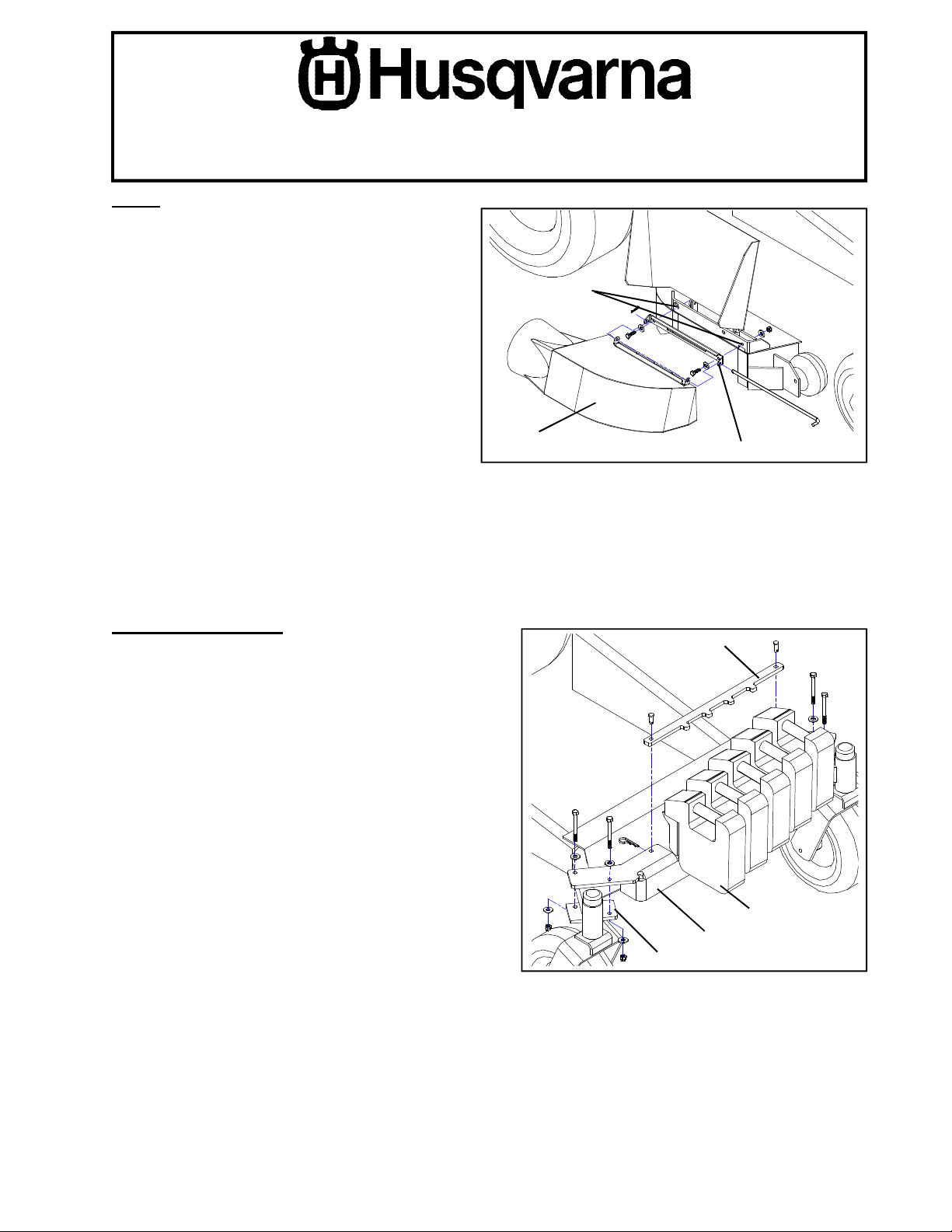

Drill Holes
Boot
Deck Bracket
Mounting Instructions
• Flip up/hold discharge deflector and place Boot on deck as shown, making sure that the Boot
completely covers the discharge opening of the deck. Mark and drill two (2) 1/8” pilot holes
through deck to match Deck Bracket holes.
• Redrill with 11/32” bit. Secure Deck Bracket with two (2) 5/16” x 1” hex bolts, four (4) 5/16” flat
washers, and two (2) 5/16” nylon lock nuts.
FRONT WEIGHT BAR
Holddown Bar
Parts List
540020255 Front Weight Bar 1
540092519 Clamp Plates 2
540092731 Holddown Bar 1
♦ 3/8” Nylon Lock Nuts 4
♦ 3/8” x 3-1/2” Hex Bolts 4
♦ 3/8” Flat Washer 8
♦ #11 Cotter Pin 2
♦ 3/8” x 1” Clevis Pin 2
♦ Can be obtained locally
Tools
Ratchet with 9/16” Socket
9/16” Wrench
Clamp Plate
Front Weights
Front Weight Bar
Mounting Instructions
• Place Front Weight Bar across the top of caster support tubes at the front of the mower. Slide Front
Weight Bar as far forward as possible without blocking the holes in the Front Weight Bar.
• Position Clamp Plates under caster support tubes and align holes with those in Front Weight Bar.
Secure with four (4) 3/8” x 3-1/2” hex bolts, eight (8) 3/8” flat washers, and four (4) 3/8” nylon lock nuts.
• Place all Front Weights (4 with CZ9 or 5 with CZ14) on Front Weight Bar.
• Place Holddown Bar over Front Weights and secure to Front Weight Bar using two (2) 3/8” x 1” clevis
pins and two (2) #11 cotter pins.
1 540020254 Rev B
www.mymowerparts.com
Page 2
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
Mounting Instructions for CZ9 / CZ14 Custom Kit
540010012
HITCH
Parts List
540020256 Hitch 1
♦ 3/8” x 1-1/4” Hex Bolts 8
♦ 3/8” Flat Washers 16
♦ 3/8” Nylon Lock Nuts 8
♦ Can be obtained locally
Tools
- Drill with 1/8”& 13/32” bits - Combination Square
- Ratchet & 9/16” Socket - Center Punch
- 9/16” Wrench - Marking Scribe
Mounting Instructions
• Remove rear bumper of mower. Raise/hold rear of mower and remove wheels.
• Using combination square and scribe, mark hole centers in back plate of mower frame as shown in
Figure 2 below. Note: 0.75” dimension is to outside of mower frame. Use center punch to locate hole
center.
• Drill 1/8” pilot hole in two locations marked. Redrill with 13/32” bit.
• Position Hitch to mower frame by aligning the holes in the Hitch Support Plates to the holes drilled in
the previous step. Enlarge holes in mower frame if needed to insert bolts. Attach Hitch to mower frame
using two (2) 3/8” x 1” hex bolts, four (4) 3/8” flat washers, and two (2) 3/8” nylon lock nuts.
• Attach Skid Plates to Hitch using two (2) 3/8” x 1” hex bolts, four (4) 3/8” flat washers, and two (2) 3/8”
nylon lock nuts.
• Using Hitch as a guide, mark and centerpunch hole centers at two locations on each side of the mower
frame. Drill 1/8” pilot hole in four locations marked. Redrill with 13/32” bit.
• Secure Hitch to mower frame using four (4) 3/8” x 1” hex bolts, eight (8) 3/8” flat washers, and four (4)
3/8” nylon lock nuts.
• Ensure all hardware is tight and replace wheels.

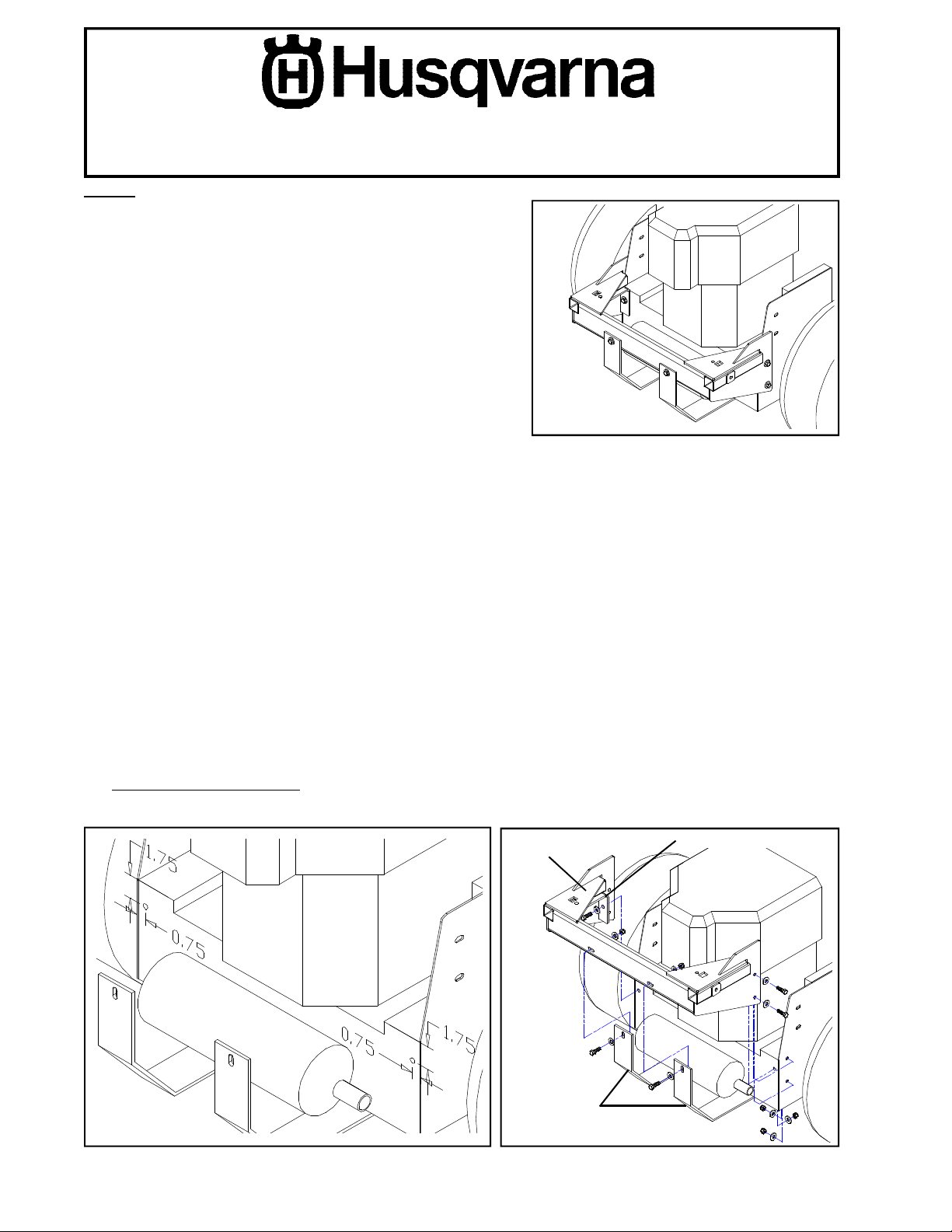

Figure 1. Assembled View
Figure 2. Hole Location
www.mymowerparts.com
Figure 3. Exploded View
Hitch Support Plate
Hitch
Skid Plates
2 540020254 Rev B
