Parts manual Models:
968999114 / W3213
968999116 / W3613
MANUAL NO. 539106472 REV. IR (09/26/01)
www.mymowerparts.com
Page 2
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
MODEL NUMBER
SERIAL NUMBER
DATE PURCHASED
DEALER ADDRESS
NOTES:
2
www.mymowerparts.com
Page 3
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
Contents
SECTION PAGE
TRANSMISSION & SHIFTER ASSEMBLY ...................................... 4
WHEEL DRIVE & AXLE ASSEMBLY-32", 36" MODELS ................ 6
TRACTION WHEEL ASSEMBLY-36" MODEL ............................... 8
TRACTION WHEEL ASSEMBLY-32" MODEL ................................ 10
32" & 36" FRONT DECK................................................................. 12
CUTTER HOUSING ASSEMBLY .................................................... 14
UPPER HANDLE ............................................................................ 16
FRONT CASTER ASSEMBLY ........................................................ 18
WIRING HARNESS ......................................................................... 20
TRANSMISSION.............................................................................. 22
Husqvarna policy is to improve its products whenever it is possible and practical to do so. In
an effort to keep pace with changes in technology, Husqvarna reserves the right to make changes
or improvements at any time without incurring any obligation to make such changes on products
previously manufactured.
3
www.mymowerparts.com
Page 4
For Husqvarna Parts Call 606-678-9623 or 606-561-4983

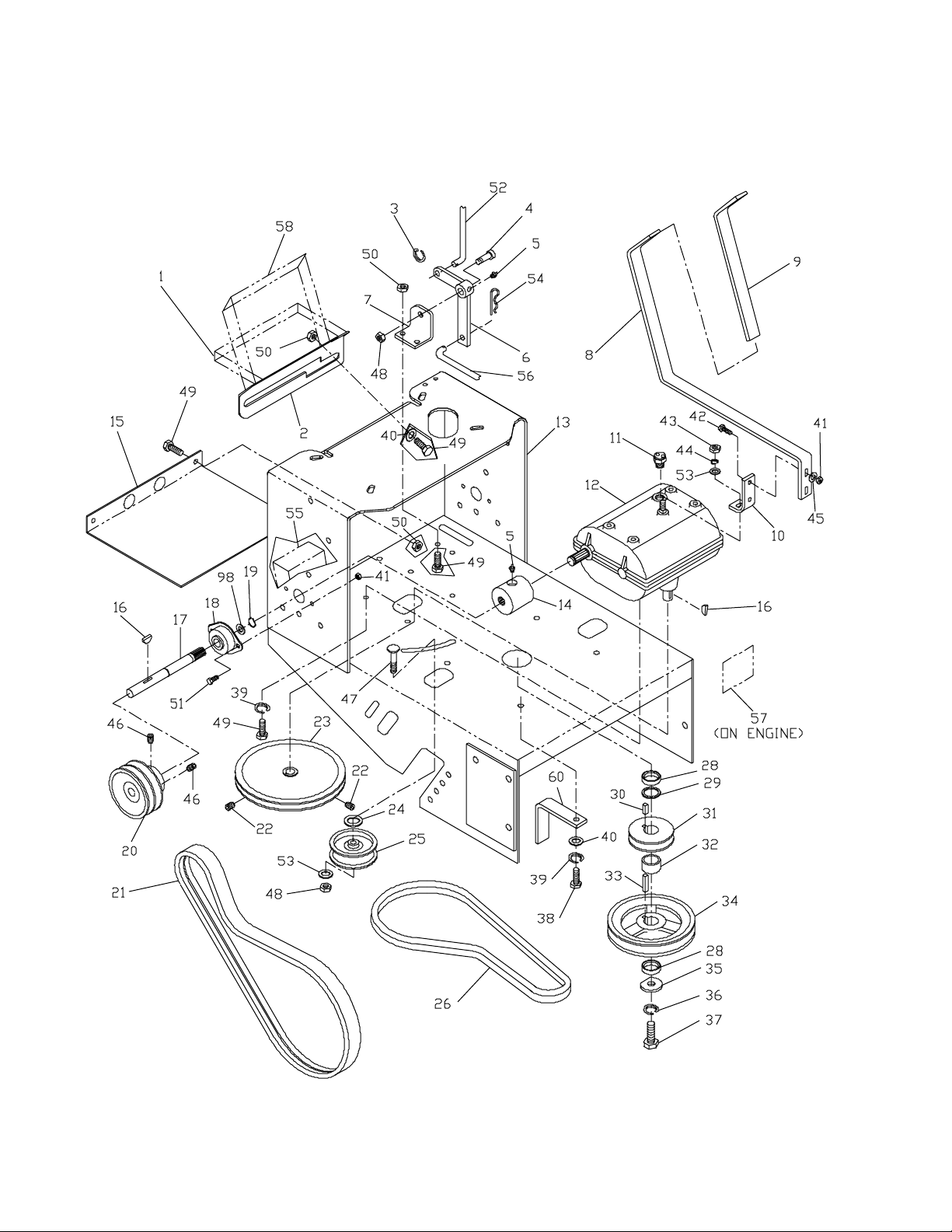

Transmission & Shifter Assembly
4
www.mymowerparts.com
Page 5
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
Transmission & Shifter Assembly
ITEM PART NO. QTY. DESCRIPTION
1 ........ 539100277 ....... 1.......... DECAL,SHIFTER
2 ........ 539101960 ....... 1.......... SHIFTER PLATE
3 ........ 539916459 ....... 1.......... RETAINER
4 ........ 539100150 ....... 1.......... SB 1/2C X 3/4
5 ........ 539976998 ....... 3.......... ZERK1/4-28 STRHT
6 ........ 539100066 ....... 1.......... BELLCRANK
7 ........ 539104648 ....... 1.......... BRACKET
8 ........ 539101961 ....... 1.......... SHIFTER ARM
9 ........ 539101965 ....... 1.......... SHIFTER GRIP
10 ....... 539102165 ....... 1.......... SHIFTER BRKT.
11 ........ 539100148 ....... 1.......... TRANS. SWITCH
12 ....... 539102162 ....... 1.......... TRANSMISSION
13 ....... 539106498 ....... 1 ..........REAR DECK W/DCLS
14 ....... 539102164 ....... 2.......... COUPLING
15 ....... 539104547 ....... 1.......... LOWER BELT SHIELD
16 ....... 539910211 ........3.......... #9 WOODRUFF KEY
17 ....... 539102163 ....... 2.......... DRIVE SHAFT
18 ....... 539101967 ....... 2.......... BEARING
19 ....... 539101971 ....... 2.......... RETAINER RING
20 ....... 539101954 ....... 2.......... DRIVE PULLEY(36)
........... 539102154 ....... 2.......... DRIVE PULLEY(32)
21 ....... 539101956 ....... 2.......... DRIVE BELT(36)
........... 539102149 ....... 2.......... DRIVE BELT(32)
22 ....... 539101988 ....... 2 ..........1/4 NYLOC SETSCW.
23 ....... 539101964 ....... 1.......... INPUT PULLEY
24 ....... 539990550 ....... 1 .......... 1/2 FLAT WASHER
25 ....... 539919078 ....... 1 ..........IDLER PULLEY
26 ....... 539101957 ....... 1.......... BELT, TRANSMISSION
27 ....... 539102036 ....... 1.......... BELT GUIDE
(NOT SHOWN)
28 ....... 539921960 ....... 2.......... SPACER
29 ....... 539102050 ....... 1.......... MACH. BUSHING
30 ....... 539105718 ....... 1.......... KEY 1/4SQ. X 1/2
ITEM PART NO. QTY. DESCRIPTION
31 ....... 539919148 ....... 1..........PULLEY
32 ....... 539101720 ....... 1..........SPACER
33 ....... 539101995 ....... 1..........KEY 1/4SQ. X 1 1/8
34 ....... 539101834 ....... 1..........ENGINE PULLEY
35 ....... 539106504 ....... 1..........HEAVY WASHER
36 ....... 539990247 ....... 1..........SLW 7/16 STD
37 ....... 539100141 ....... 1..........HCS 7/16F X 1.5 GR 5
38 ....... 539100567 ....... 4..........HCS M8-1.25 X 30MM
39 ....... 539990187 ....... 8..........SLW 5/16 STD
40 ....... 539990692 ....... 6 ..........5/16 FW STD
41 ....... 539990761 ....... 6..........HLN 1/4C
42 ....... 539977761 ....... 2..........HCS 1/4C X 1
43 ....... 539990155 ....... 1..........NUT 3/8F
44 ....... 539990118 ........ 1 ..........SLW 3/8 STD
45 ....... 539990598 ....... 2..........FW 1/4 STD
46 ....... 539976956 ....... 4..........5/16 NYLOC SETSCW(36")
..................................... 2 ..........(32" MODELS)
47 ....... 539100145 ....... 1..........RHSNB 3/8C X 2
48 ....... 539990546 ....... 2.......... HLN 3/8C CENTER P.
49 ....... 539976934 ....... 10 ........HCS 5/16C X 3/4
50 ....... 539990184 ....... 6..........HLN 5/16C
51 ....... 539990072 ....... 4..........HCS 1/4C X 5/8
52 ....... 539101972 ....... 1..........BLADE ROD
53 ....... 539990517 ....... 2..........FW 3/8 STD
54 ....... 539976989 ....... 1..........#4 HAIRPIN
55 ....... 539105744 ....... 1..........DANGER DECAL
56 ....... 539102048 ....... 1..........BLADE ROD
57 ....... 539100128 ....... 1..........EXHAUST DECAL
58 ....... 539102047 ....... 1..........DECAL, CLUTCH
59 ....... 539991043 ....... 2..........MACH. BUSHING
60 ....... 539103462 ....... 1..........BELT GUIDE,LONG
61 ....... 539103463 ....... 1..........BELT GUIDE, SHORT
(NOT SHOWN)
5
www.mymowerparts.com
Page 6
For Husqvarna Parts Call 606-678-9623 or 606-561-4983

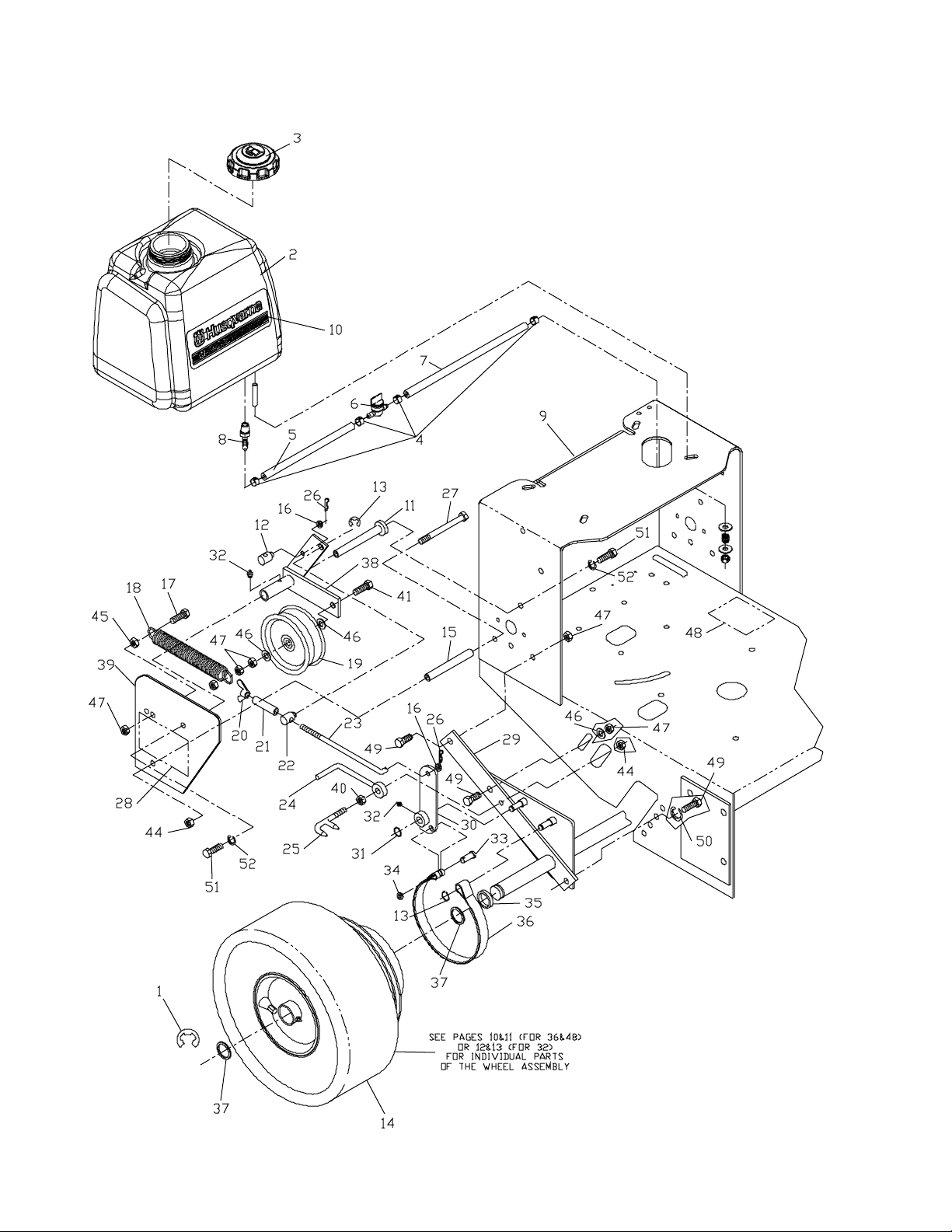

Wheel Drive & Axle Assembly
32" & 36" Models
6
www.mymowerparts.com
Page 7
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
Wheel Drive & Axle Assembly
32" & 36" Models
ITEM PART NO. QTY DESCRIPTION ITEM PART NO. QTY. DESCRIPTION
1 ........ 539912730 ....... 2 .......... 1" E-RING
2 ........ 539105630 ....... 1 .......... FUEL TANK
3 ........ 539104962 ....... 1 .......... GAS CAP
4 ........ 539912222 ....... 4 .......... HOSE CLAMP
5 ........ 539932956 ....... 1..........10" GAS LINE
6 ........ 539916325 ....... 1 .......... FUEL VALVE
7 ........ 539104993 ....... 1..........14" GAS LINE
8 ........ 539102650 ....... 1..........HOSE BARB
9 ........ 539106498 ....... 1.......... REAR DECK W/DCLS
10 ....... 539104828 ....... 1..........DECAL, W3213
........... 539104829 ....... 1 .......... DECAL, W3613
11 ........ 539102188 ....... 2 ..........PIVOT TUBE
12 ....... 539976434 ....... 2..........SWIVEL(SHORT)
13 ....... 539990870 ....... 4..........3/8" E-RING
14 ....... 539104757 ....... 2 .......... WHEEL ASM.(36)
(WITH BRAKE DRUM & PULLEYS)
........... 539104715 ....... 2 .......... WHEEL ASM.(32)
(WITH BRAKE DRUM & PULLEYS)
15 ....... 539101992 ....... 2..........LONG SPACER
16 ....... 539990692 ....... 12 ........5/16 FW STD
17 ....... 539976941 ....... 2..........HCS 3/8C X 1 1/4
18 ....... 539101977 ....... 2..........SPRING
19 ....... 539101955 ....... 2..........IDLER PULLEY
20 ....... 539100276 ....... 2..........5/16 WINGNUT
21 ....... 539100097 ....... 2..........SPACER
22 ....... 539101940 ....... 2..........SWIVEL
23 ....... 539101939 ....... 2..........BRAKE ROD
24 ....... 539101973 ....... 2..........BELT GUIDE
25 ....... 539102035 ....... 2..........SCRAPER(36)
........... 539102155 ....... 2 .......... SCRAPER(32)
26 ....... 539976988 ....... 4..........#2 HAIRPIN
27 ....... 539990145 ....... 2..........HCS 5/16C X 5
28 ....... 539104789 ....... 2..........DECAL, CROWN
29 ....... 539101931 ....... 1..........AXLE WLDMT(36)
........... 539102152 ....... 1 .......... AXLE WLDMT(32)
30 ....... 539101934 ....... 1 ..........RT. BRAKE ARM
........... 539102135 ....... 1.......... LT. BRAKE ARM
31 ....... 539101949 ....... 2..........1/2' E-RING
32 ....... 539976998 ....... 4..........ZERK 1/4-28 STRHT
33 ....... 539102049 ....... 2..........CLEVIS PIN
34 ....... 539913847 ....... 2.......... BOLT RETAINER 3/8
35 ....... 539921960 ....... 2..........SPACER
36 ....... 539101945 ....... 2..........BRAKE BAND
37 ....... 539916561 ....... 4..........MACH. BUSHING
38 ....... 539102168 ....... 1..........IDLER PLATE, RT
........... 539102169 ....... 1 .......... IDLER PLATE, LT
39 ....... 539101969 ....... 2..........FENDER
40 ....... 539990585 ....... 2..........HFLN 5/16C
41 ....... 539101350 ....... 2..........3/8C X 3 TAPBOLT
42 ....... 539102502 ....... 4..........5/16 STUD
43 ....... 539102845 ....... 4..........SPRING
44 ....... 539990184 ....... 4..........HLN 5/16C
45 ....... 539990613 ....... 2..........HFLN 3/8C
46 ....... 539990517 ....... 8..........FW 3/8 STD
47 ....... 539990546 ....... 12 ........HLN 3/8C CENTER P.
48 ....... 539101881 ....... 1..........DECAL, PROP. 65
49 ....... 539990563 ....... 6..........HCS 3/8C X 1
50 ....... 539990118 ........ 2 ..........SLW 3/8 STD
51 ....... 539990209 ....... 4..........HCS 5/16C X 1
52 ....... 539990187 ....... 4..........SLW 5/16 STD
7
www.mymowerparts.com
Page 8
For Husqvarna Parts Call 606-678-9623 or 606-561-4983

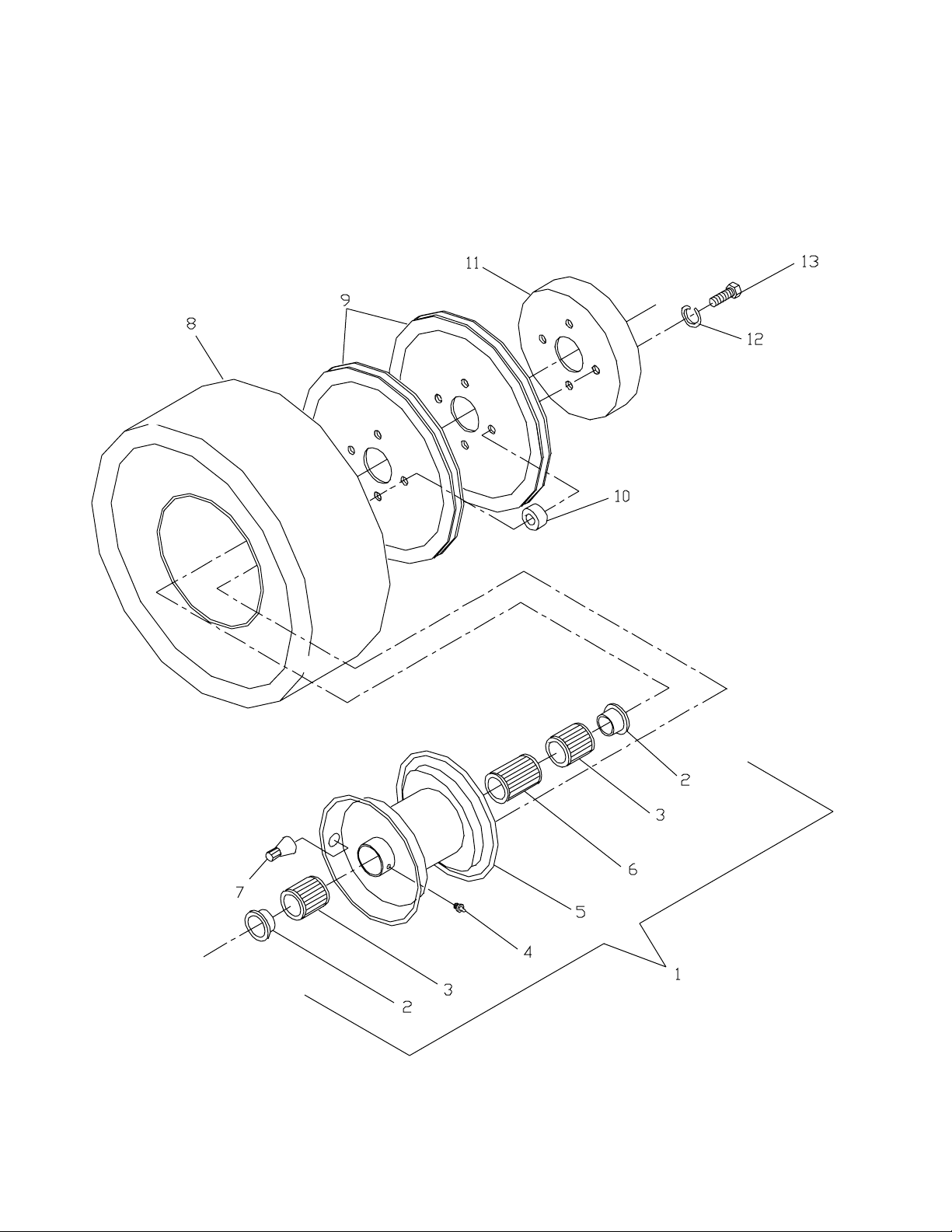

Traction Wheel Assembly
36" Model
8
www.mymowerparts.com
Page 9
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
Traction Wheel Assembly
36" Model
ITEM PART NO. QTY. DESCRIPTION
1 ........ 539104758 ....... 1.......... WHEEL ASM.
(INCLUDES ITEMS 2 THRU 8)
2 ........ 539100395 ....... 2.......... END CAP
3 ........ 539102161 ....... 2.......... ROLLER BEARING(SHORT)
4 ........ 539976998 ....... 1.......... ZERK 1/4-28 STRHT
5 ........ 539104759 ....... 1.......... RIM
(INCLUDES ITEMS 4 & 7)
6 ........ 539100393 ....... 1.......... ROLLER BEARING(LONG)
7 ........ 539912234 ....... 1.......... AIR VALVE
8 ........ 539923788 ....... 1.......... TIRE
9 ........ 539938473 ....... 2.......... TRACTION PULLEY
10 ....... 539923515 ....... 4.......... SPACER
11 ........ 539101946 ....... 1 .......... BRAKE DRUM
12 ....... 539990118 ........ 4 .......... SLW 3/8 STD
13 ....... 539990164 ....... 4 .......... HCS 3/8F X 1 1/2
9
www.mymowerparts.com
Page 10
For Husqvarna Parts Call 606-678-9623 or 606-561-4983

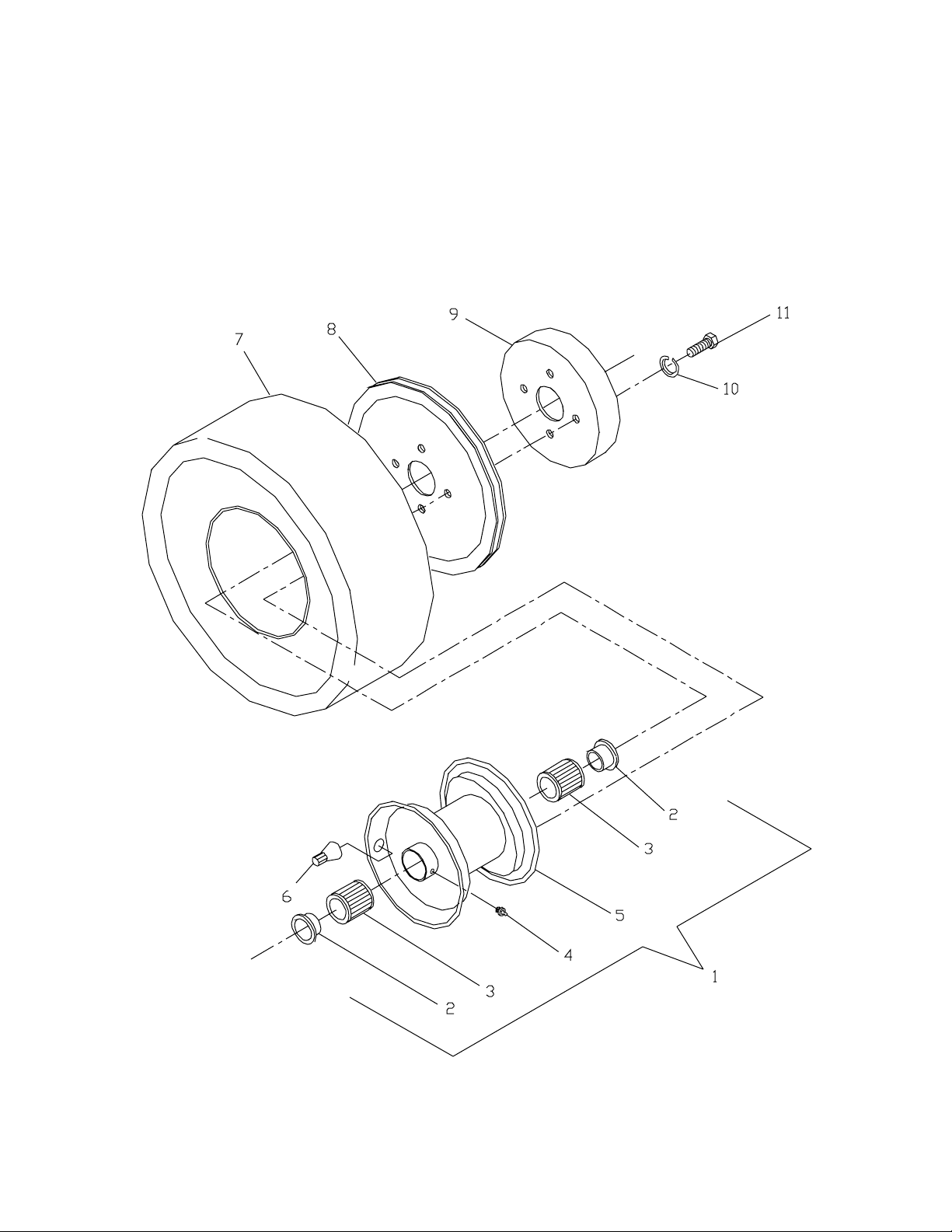

Traction Wheel Assembly
32" Model
10
www.mymowerparts.com
Page 11
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
Traction Wheel Assembly
32" Model
ITEM PART NO. QTY. DESCRIPTION
1 ....... 539104714 ...... 1 ...... WHEEL ASM.
(INCLUDES ITEMS 2 THRU 7)
2 ....... 539100395 ...... 2 ...... END CAP
3 ....... 539100393 ...... 2 ...... ROLLER BEARING
4 ....... 539976998 ...... 1 ...... ZERK 1/4-28 STRHT
5 ....... 539104716 ...... 1 ...... RIM
(INCLUDES ITEMS 4 & 6)
6 ....... 539912234 ...... 1 ...... AIR VALVE
7 ....... 539977222 ...... 1 ...... TIRE
8 ....... 539976522 ...... 1 ...... TRACTION PULLEY
9 ....... 539101946 ...... 1 ...... BRAKE DRUM
10 ...... 539990118 ...... 4 ...... SLW 3/8 STD
11 ...... 539977748 ...... 4 ...... HCS 3/8F X 3/4
11
www.mymowerparts.com
Page 12
For Husqvarna Parts Call 606-678-9623 or 606-561-4983

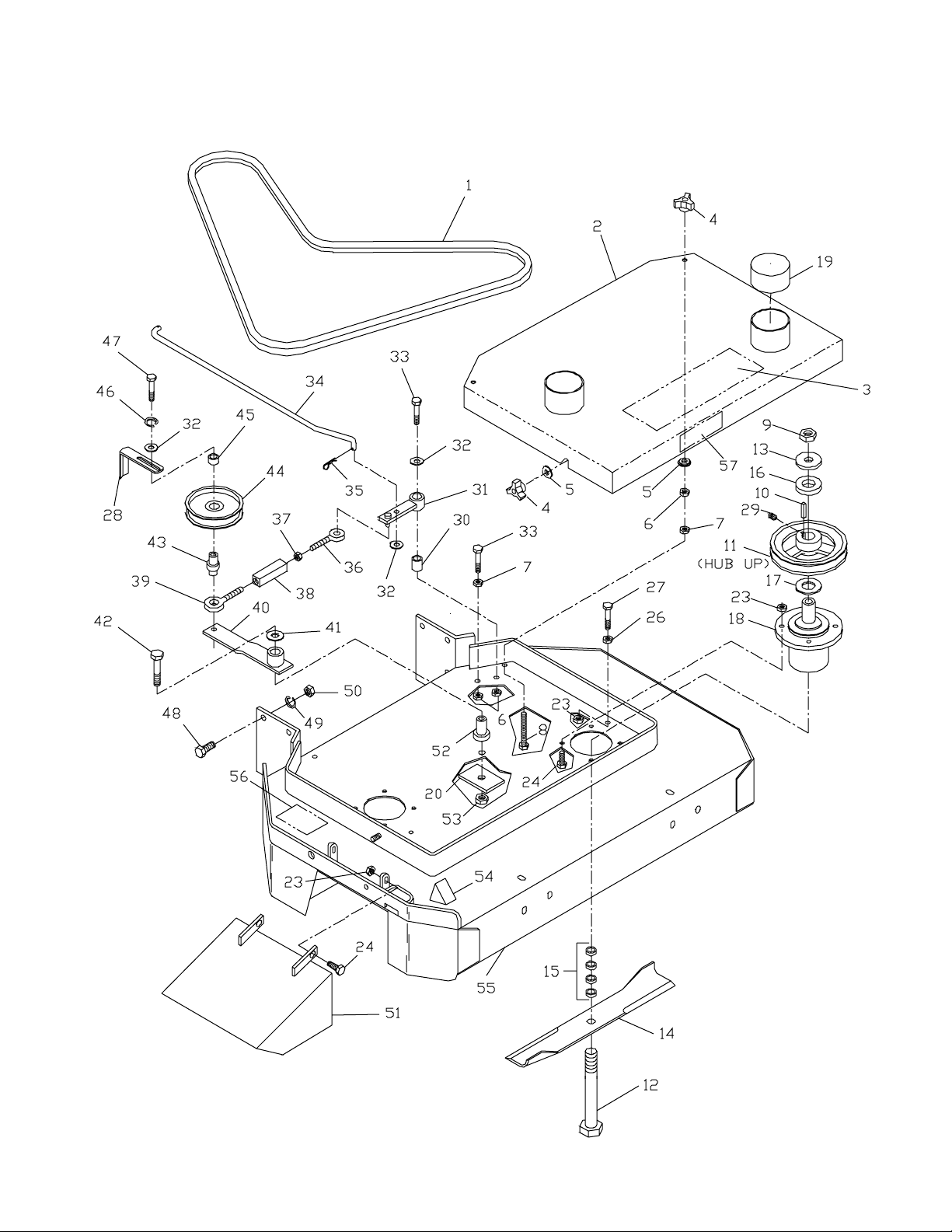

32" & 36" Front Deck Assembly
12
www.mymowerparts.com
Page 13
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
32" & 36" Front Deck Assembly
ITEM PART NO. QTY. DESCRIPTION
1 ........ 539101959 ....... 1 .......... 36" DECK BELT
........... 539102148 ....... 1 .......... 32" DECK BELT
2 ........ 539104561 ....... 1 .......... 36" BELT SHIELD
........... 539104650 ....... 1 .......... 32" BELT SHIELD
3 ........ 539104790 ....... 1 .......... DECAL, HUSQVARNA
4 ........ 539102070 ....... 4 .......... KNOB
5 ........ 539102056 ....... 4 .......... 3/8 SEALING WASHER
6 ........ 539990546 ....... 4 .......... HLN 3/8C
7 ........ 539990613 ....... 3 .......... 3/8C WHIZ NUT
8 ........ 539102334 ....... 2 .......... TAPBOLT 3/8C X 4 1/2
9 ........ 539976980 ....... 2 .......... HN 5/8F
10 ....... 539101995 ....... 2..........KEY 1/4SQ. X 1 1/8
11 ........ 539976398 ....... 2 ..........PULLEY W/SETSCRS
12 ....... 539102332 ....... 2..........HCS 5/8F X 8 1/2
13 ....... 539102243 ....... 2..........SUPPORT WASHER
14 ....... 539100341 ....... 2..........BLADE 18"(36)
........... 539100340 ....... 2 .......... BLADE 16 1/4"(32)
15 ....... 539976436 ....... 8..........BLADE SPACERS
16 ....... 539102245 ....... 2..........SPACER
17 ....... 539102675 ....... 2..........MACH. BSHG. 10GA.
18 ....... 539102440 ....... 2..........HOUSING ASM.
19 ....... 539102320 ....... 2..........TUBE CAP
20 ....... 539102236 ....... 1..........PAD(NOT USED 32)
23 ....... 539990184 ....... 16 ........HLN 5/16C
24 ....... 539990209 ....... 10 ........HCS 5/16C X 1
26 ....... 539990585 ....... 6..........HFLN 5/16C
27 ....... 539990553 ....... 6..........HCS 5/16C X 3
28 ....... 539100075 ....... 1..........SNUBBER
29 ....... 539976956 ....... 4..........5/16 NYLOC SETSCR.
ITEM PART NO. QTY. DESCRIPTION
30 ....... 539101836 ....... 1..........SLEEVE BUSHING
31 ....... 539101979 ....... 1..........ENGAGEMENT ARM
32 ....... 539990517 ....... 3..........FW 3/8 STD
33 ....... 539990629 ....... 2..........HCS 3/8C X 2 1/4
34 ....... 539102048 ....... 1..........BLADE ROD 32 & 36
35 ....... 539976988 ....... 1..........#2 HAIRPIN
36 ....... 539101982 ....... 1..........RT. HAND EYEBOLT
37 ....... 539990196 ....... 1..........5/16C HEX NUT
38 ....... 539101983 ....... 1..........TURNBUCKLE
39 ....... 539101981 ....... 1..........LT. HAND EYEBOLT
40 ....... 539101978 ....... 1..........ARM WLDMT
41 ....... 539990550 ....... 1..........FW 1/2 STD
42 ....... 539101332 ....... 1..........HCS 1/2C X 2 3/4
43 ....... 539101980 ....... 1..........EYEBOLT PIVOT
44 ....... 539976688 ....... 1..........IDLER PULLEY
45 ....... 539102656 ....... 1..........SPACER
46 ....... 539990118 ........ 1 ..........3/8 LOCK WASHER
47 ....... 539990637 ....... 1..........HCS 3/8C X 2 1/2
48 ....... 539101175 ........6 ..........HCS 7/16C X 1 1/2
49 ....... 539990247 ....... 6..........7/16 LOCK WASHER
50 ....... 539990449 ....... 6..........7/16C HEX NUT
51 ....... 539104546 ....... 1..........DEFLECTOR CHUTE
52 ....... 539101231 ....... 1..........IDLER SPINDLE
53 ....... 539101331 ....... 1..........HLN 1/2C NYLOC
54 ....... 539913010 ....... 1..........DECAL, CPSC
55 ....... 539104563 ....... 1..........36" DECK W/DECALS
........... 539104620 ....... 1..........32" DECK W/DECALS
56 ....... 539105746 ....... 1..........DECAL, DANGER
57 ....... 539105071 ....... 1.......... DECAL, NASCAR
13
www.mymowerparts.com
Page 14
For Husqvarna Parts Call 606-678-9623 or 606-561-4983

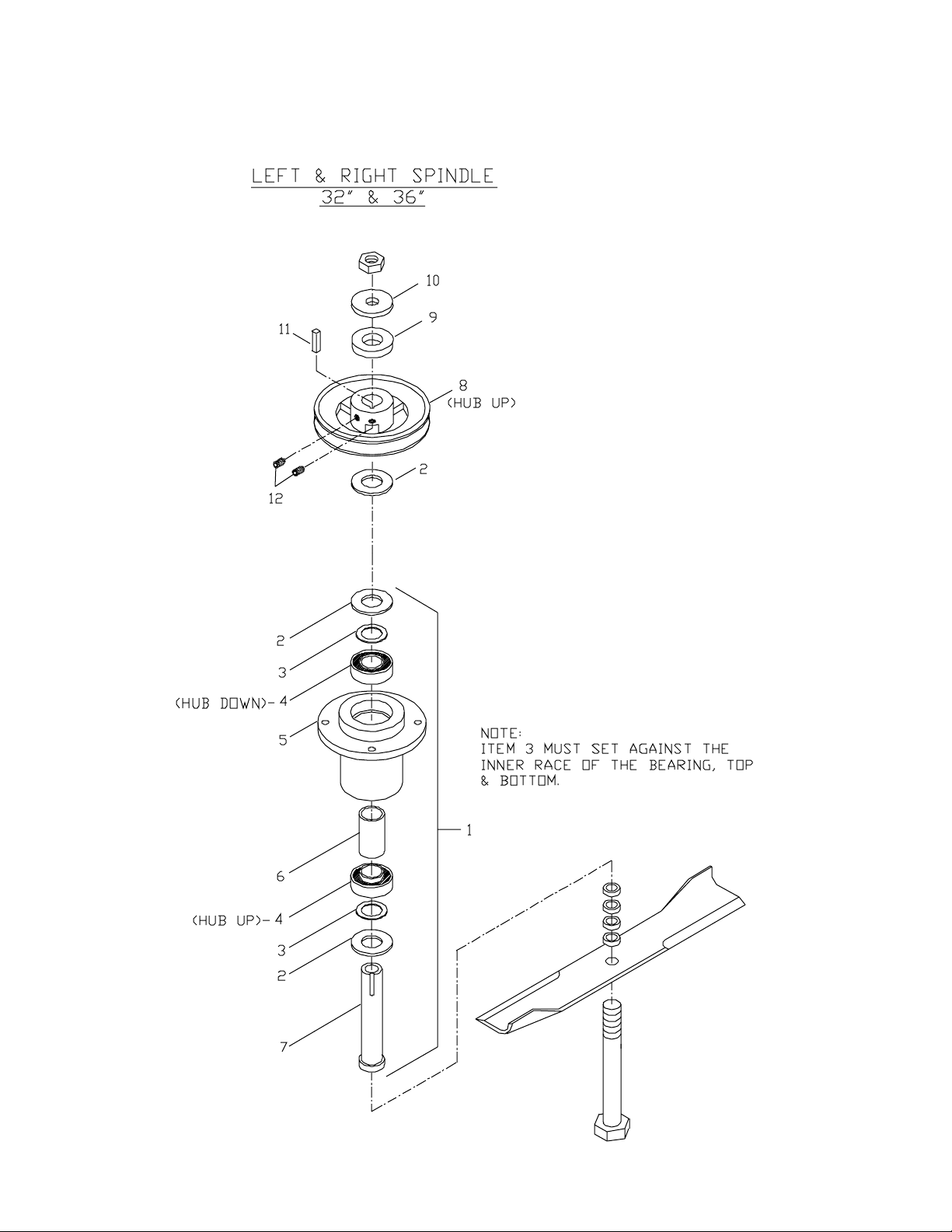

Cutter Housing Assembly
14
www.mymowerparts.com
Page 15
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
Cutter Housing Assembly
ITEM PART NO. QTY. DESCRIPTION
1 ........ 539102440 ....... 1.......... CUTTER HOUSING ASM.
(INCLUDES ITEMS 2 THRU 7)
2 ........ 539102675 ....... 3.......... MACH. BUSING 10GA.
3 ........ 539102244 ....... 2.......... MACH. BUSING 18GA.
4 ........ 539102677 ....... 2.......... BEARING
5 ........ 539102673 ....... 1.......... HOUSING
6 ........ 539102676 ....... 1.......... SPACER
7 ........ 539102674 ....... 1.......... SPINDLE
8 ........ 539976398 ....... 1.......... PULLEY
9 ........ 539102245 ....... 1.......... 3/8" SPACER
10 ....... 539102243 ....... 1 .......... 1/4" SPACER
11 ........ 539101995 ....... 1.......... KEY 1/4 SQ. X 1 1/8"
12 ....... 539976956 ....... 2 ..........5/16 NYLOC SETSCREW
SEE PAGES 12 THRU 15 FOR CORRECT BLADE BOLT, NUT, BLADE SPACERS, AND BLADE FOR YOUR
MODEL.
NOTE:
THIS HOUSING ASSEMBLY(ITEM 1) IS USED IN CONJUNCTION WITH DIFFERENT
PULLEYS AND SPACERS. IT IS CRITICAL THAT YOU USE THE RIGHT SPACERS IN
THE RIGHT LOCATION FOR THE DIFFERENT SPINDLE COMBINATIONS. (ALSO REFER TO
THE OPERATOR'S MANUAL)
NOTE:
THIS HOUSING ASSEMBLY(ITEM 1) WILL NOT WORK IF THESE ITEMS ARE
NOT IN THEIR PROPER LOCATION OR ORIENTATION.
15
www.mymowerparts.com
Page 16
For Husqvarna Parts Call 606-678-9623 or 606-561-4983

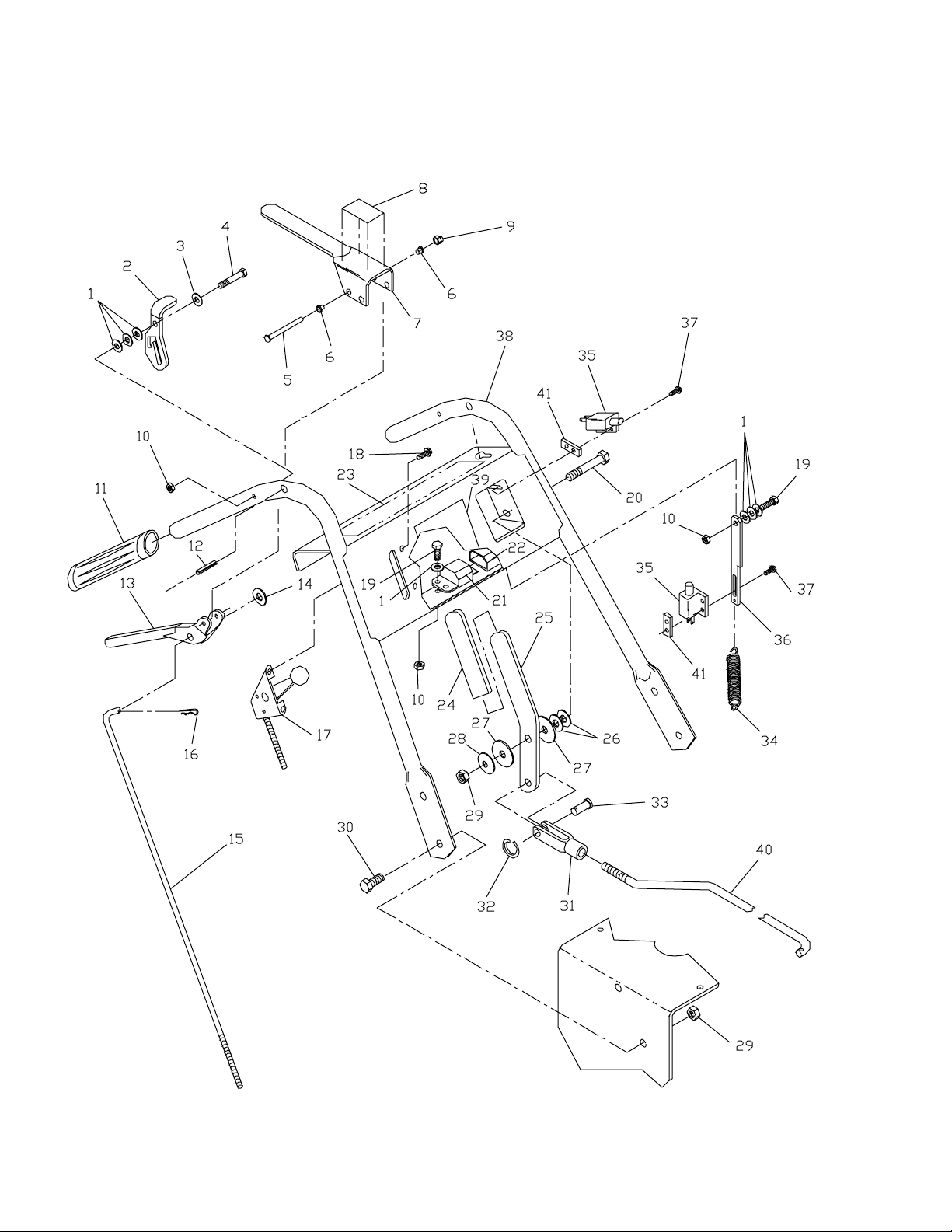

Upper Handle Assembly
16
www.mymowerparts.com
Page 17
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
Upper Handle Assembly
ITEM PART NO. QTY. DESCRIPTION
1 ......... 539990055 ....... 13 ........1/4SAE FLAT WASHER
2 ......... 539976387 ....... 1.......... LATCH, LT. THUMB W/GRIP
........... 539976388 ....... 1 .......... LATCH, RT.THUMB W/GRIP
3 ......... 539976983 ....... 2.......... WASHER, WAVE SPRING
4 ......... 539991003 ....... 2..........HCS 1/4C X 1 3/4
5 ......... 539977884 ....... 2.......... PIN, CLEVIS
6 ......... 539977886 ....... 4.......... BUSHING
7 ......... 539977857 ....... 2.......... LEVER, O.P. W/GRIP
8 ......... 539100285 ....... 2.......... DECAL, THUMB LATCH
9 ......... 539914734 ....... 2.......... PUSH NUT
10 ....... 539990761 ....... 5..........1/4C PREV. TORQUE NUT
11 ........ 539976488 ....... 2 ..........GRIP HANDLE
12 ....... 539923313 ....... 2..........ROLL PIN 5/16 X 1 1/8
13 ....... 539101791 ....... 2..........LEVER, MOLDED DRIVE
14 ....... 539990692 ....... 2..........5/16 FLAT WASHER
15 ....... 539101986 ....... 2..........TRACTION ROD
16 ....... 539976988 ....... 2..........COTTER, HAIRPIN #2
17 ....... 539101963 ....... 1..........THROTTLE CONTROL W/BALL
18 ....... 539990302 ....... 2..........HWST 1/4C X 3/8
19 ....... 539990580 ....... 3..........HCS 1/4C X 3/4
20 ....... 539990655 ....... 1..........HCS 3/8C X 1 1/2
21 ....... 539101781 ....... 1..........MODULE
22 ....... 539101984 ....... 1..........HANDLE HARNESS
23 ....... 539101935 ....... 1..........DECAL, OPERATION
24 ....... 539976526 ....... 1..........GRIP
25 ....... 539100082 ....... 1..........LEVER
26 ....... 539990517 ....... 2..........3/8 FLAT WASHER
27 ....... 539101219 ....... 2..........FIBER WASHER
28 ....... 539912063 ....... 1..........CONE WASHER
29 ....... 539990546 ....... 5..........3/8C TORQUE NUT
30 ....... 539990563 ....... 4..........HCS 3/8C X 1
31 ....... 539977465 ....... 1 ..........YOKE
32 ....... 539916459 ....... 1..........RETAINER, RING
33 ....... 539977703 ....... 1..........CLEVIS PIN
34 ....... 539977250 ....... 2..........SPRING
35 ....... 539919098 ....... 3..........SWITCH
36 ....... 539101801 ....... 2..........O.P. LINKAGE
37 ....... 539976952 ....... 6.......... SCREW 10-24 X 5/8
38 ....... 539102062 ....... 1..........UPPER HANDLE W/DECALS
39 ....... 539101891 ....... 1..........DECAL, OPERATION
40 ....... 539101972 ....... 1..........BLADE ROD
41 ....... 539102678 ....... 3..........TAPPED PLATE
17
www.mymowerparts.com
Page 18
For Husqvarna Parts Call 606-678-9623 or 606-561-4983

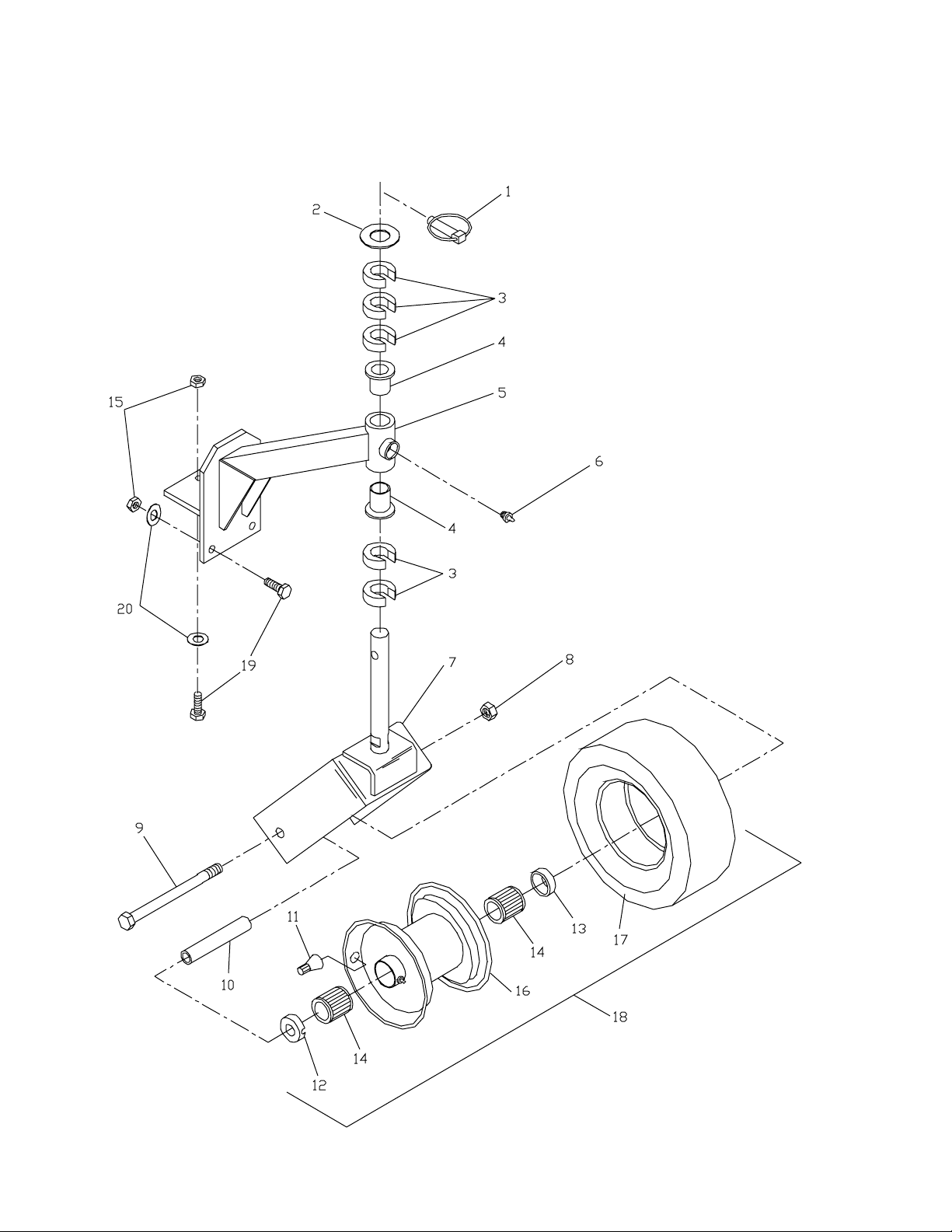

Front Caster Assembly
18
www.mymowerparts.com
Page 19
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
Front Caster Assembly
ITEM PART NO. QTY. DESCRIPTION
1 ........ 539101874 ....... 1 .......... 7/16 LYNCH PIN
2 ........ 539916561 ....... 1 .......... MACH. BUSHING
3 ........ 539101873 ....... 5 .......... "C"-SPACER
4 ........ 539101232 ....... 2 .......... FLANGE BUSHING
5 ........ 539104555 ....... 1 .......... CASTER ARM W/BUSHING
6 ........ 539976997 ....... 1 .......... ZERK 1/8 NPT
7 ........ 539104554 ....... 1 .......... CASTER YOKE
8 ........ 539101331 ....... 1 .......... 1/2C NYLOC NUT
9 ........ 539101907 ....... 1 .......... HCS 1/2C X 5 1/2
10 ....... 539101872 ....... 1..........SPACER
11 ........ 539912234 ....... 1 ..........AIR VALVE
12 ....... 539977356 ....... 1..........NOTCHED ENDCAP
13 ....... 539923557 ....... 1..........ENDCAP
14 ....... 539977353 ....... 2..........ROLLER BEARING
15 ....... 539990546 ....... 3..........HLN 3/8C
16 ....... 539104618 ....... 1..........RIM
17 ....... 539101905 ....... 1..........9" TIRE
18 ....... 539104556 ....... 1..........TIRE & WHEEL ASS.
19 ....... 539990563 ....... 3..........HCS 3/8C X 1
20 ....... 539990517 ....... 3..........FW 3/8 STD
21 ....... 539104559 ....... 1..........FRONT WHEEL CASTER ASM. KIT
(INCLUDES ITEMS 1 THRU 20)
19
www.mymowerparts.com
Page 20
For Husqvarna Parts Call 606-678-9623 or 606-561-4983

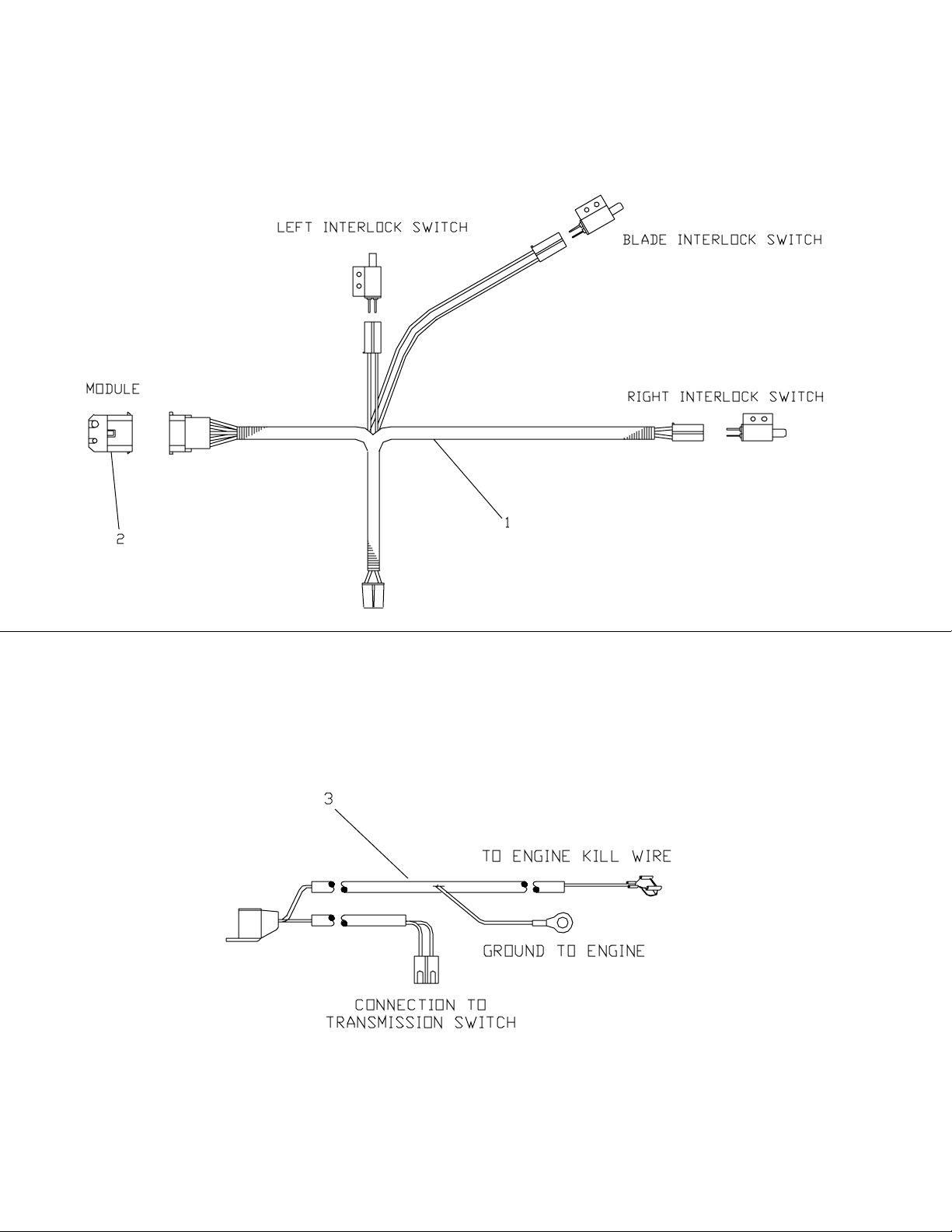

Wiring Harness
GROUND HARNESS
KOHLER
20
www.mymowerparts.com
Page 21
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
Wiring Harness
ITEM PART NO. QTY. DESCRIPTION
1 ........ 539101984 ....... 1.......... HANDLE HARNESS
2 ........ 539101781 ....... 1.......... MODULE
3 ........ 539104991 ....... 1.......... GROUND HARNESS
21
www.mymowerparts.com
Page 22
For Husqvarna Parts Call 606-678-9623 or 606-561-4983

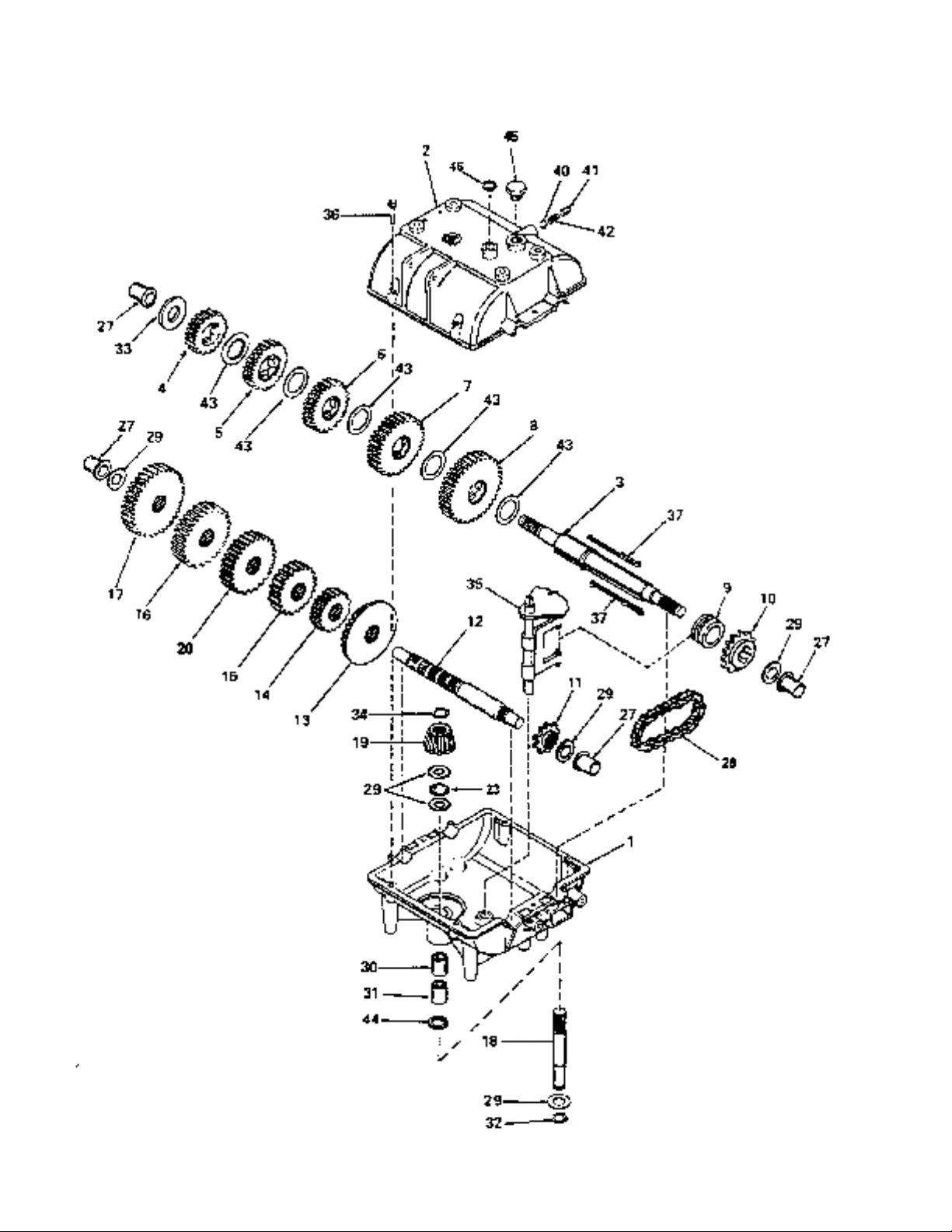

Transmission Assembly
22
www.mymowerparts.com
Page 23
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
Transmission Assembly
ITEM PART NO. QTY. DESCRIPTION
1 ......... 539102075 ....... 1.......... TRANSMISSION CASE
2 ......... 539100371 ....... 1.......... TRANSMISSION COVER
3 ......... 539102179 ....... 1.......... OUTPUT & BRAKE SHAFT
4 ......... 539102077 ....... 1.......... SPUR GEAR (27 TEETH)
5 ......... 539100377 ....... 1.......... SPUR GEAR (30 TEETH)
6 ......... 539102078 ....... 1.......... SPUR GEAR (32 TEETH)
7 ......... 539100376 ....... 1.......... SPUR GEAR (35 TEETH)
8 ......... 539102079 ....... 1.......... SPUR GEAR (37 TEETH)
9 ......... 539977561 ....... 1.......... SHIFT COLLAR
10 ....... 539977562 ....... 1..........SPROCKET (18 TEETH)
11 ........ 539977563 ....... 1 ..........SPROCKET (9 TEETH)
12 ....... 539977564 ....... 1..........COUNTERSHAFT
13 ....... 539977565 ....... 1..........BEVEL GEAR (42 TEETH)
14 ....... 539102080 ....... 1..........SPUR GEAR (12 TEETH)
15 ....... 539102081 ....... 1..........SPUR GEAR (15 TEETH)
16 ....... 539100382 ....... 1..........SPUR GEAR (20 TEETH)
17 ....... 539102082 ....... 1..........SPUR GEAR (23 TEETH)
18 ....... 539977571 ....... 1..........INPUT SHAFT
19 ....... 539100372 ....... 1..........INPUT BEVEL PINION
20 ....... 539102083 ....... 1..........SPUR GEAR (18 TEETH)
23 ....... 539100374 ....... 1..........THRUST BEARING
27 ....... 539977573 ....... 4..........FLANGED BUSHING
28 ....... 539977574 ....... 1..........ROLLER CHAIN
(NO.41 CHAIN, 24 LINKS)
29 ....... 539977575 ....... 6..........THRUST WASHER
30 ....... 539977592 ....... 1..........NEEDLE BEARING
31 ....... 539977576 ....... 1..........NEEDLE BEARING
32 ....... 539977577 ....... 1..........RETAINING RING
33 ....... 539102084 ....... 1..........THRUST WASHER
34 ....... 539977579 ....... 1..........RETAINING RING
35 ....... 539102180 ....... 1..........SHIFT ROD & FORK
36 ....... 539977581 ....... 6.......... SCREW, FLANGED HEX HD.
THREADFORMING 1/4-20 X 1-1/4"
37 ....... 977582 ............. 4.......... KEY
40 ....... 977583 ............. 1..........STEEL BALL, 5/16"
41 ....... 977584 ............. 1..........SET SCREW, 3/8-16 X 3/8"
42 ....... 977585 ............. 1.......... SPRING
43 ....... 977586 ............. 5.......... THRUST WASHER
44 ....... 977587 ............. 1.......... "O" RING
45 ....... 100148 ............. 1.......... THREADED PLUG
46 ....... 100388 ............. 1.......... SQUARE CUT SEAL
47 ....... 102162 ............. 1.......... COMPLETE TRANSMISSION
23
www.mymowerparts.com
Page 24
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
www.mymowerparts.com
Loading...
