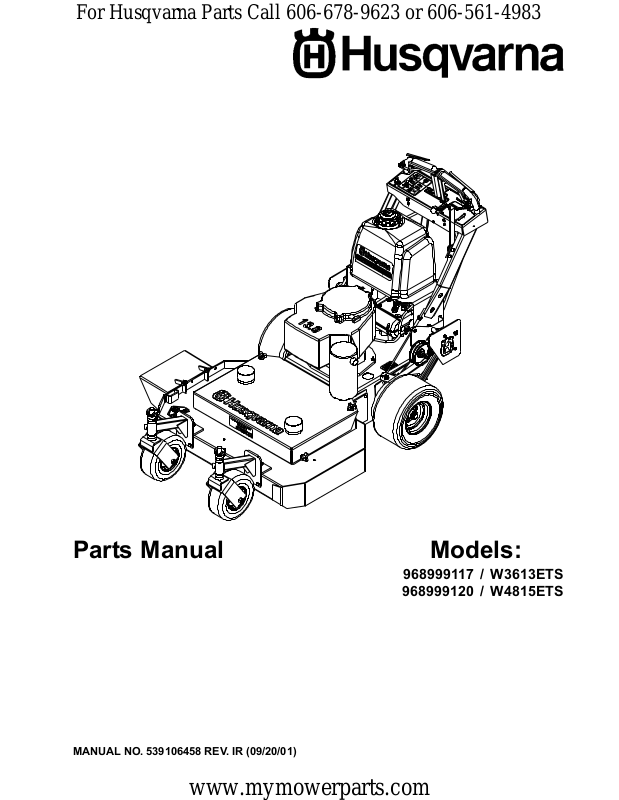

Parts Manual Models:
968999117 / W3613ETS
968999120 / W4815ETS
MANUAL NO. 539106458 REV. IR (09/20/01)
www.mymowerparts.com
Page 2
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
Model Number:
Serial Number:
Date of Purchase:
Dealer Information:
Notes:
2
www.mymowerparts.com
Page 3
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
TABLE OF CONTENTS
REAR DECK ASSEMBLY ...................................................................... 4
DRIVE WHEEL & AXLE ASSEMBLY...................................................... 6
TRACTION WHEEL ASSEMBLY ........................................................... 8
UPPER HANDLE ASSEMBLY ............................................................... 10

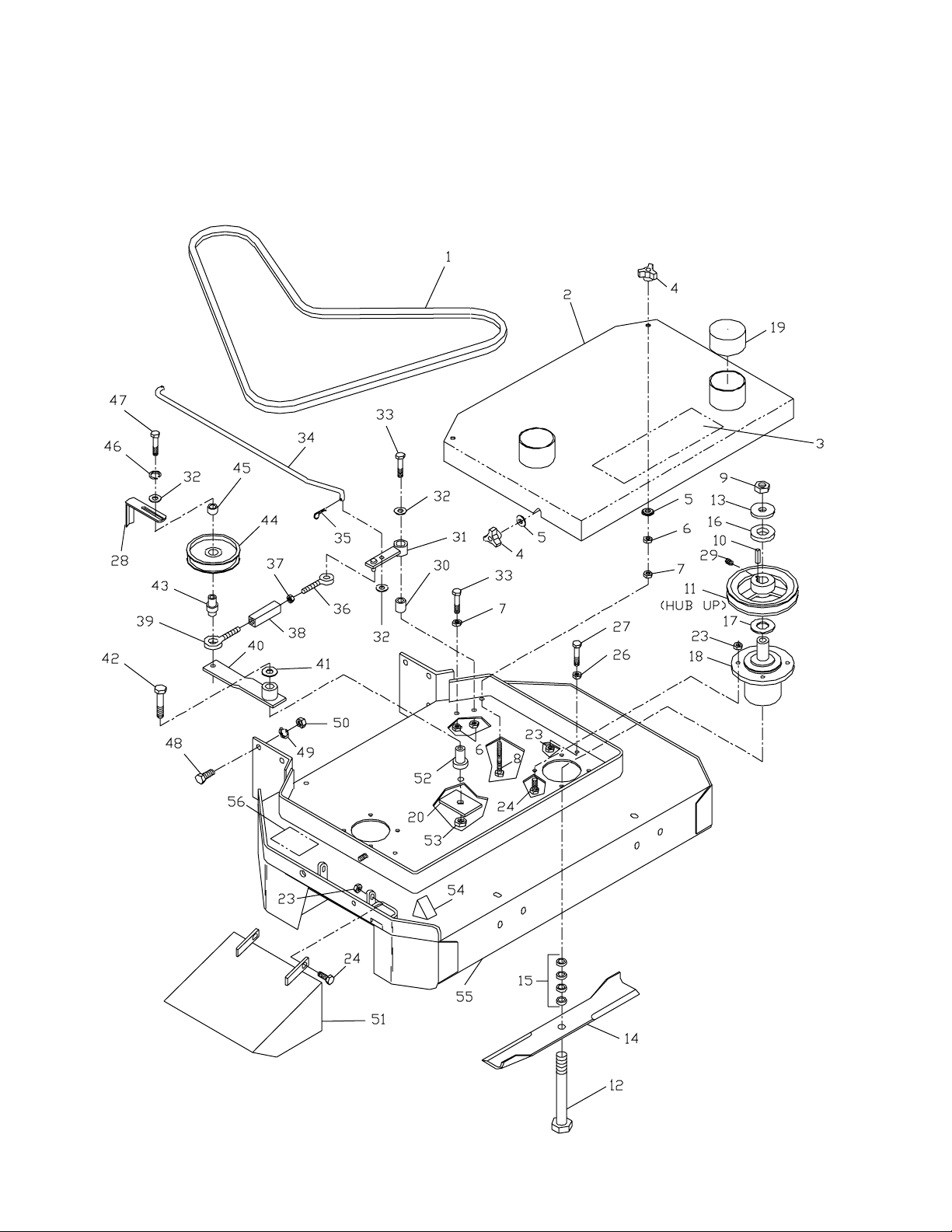

36” FRONT DECK ASSEMBLY ............................................................. 12

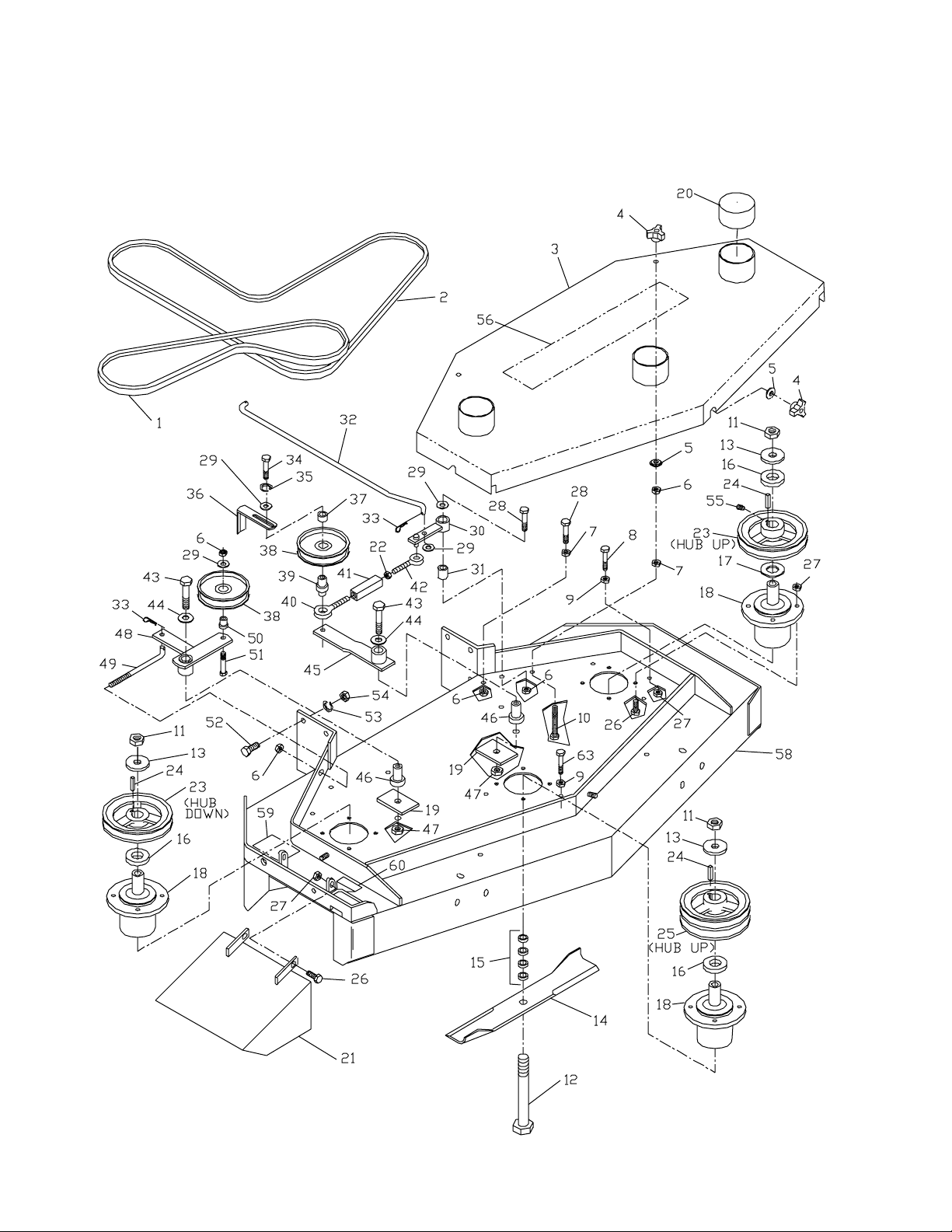

48” FRONT DECK ASSEMBLY ............................................................. 14

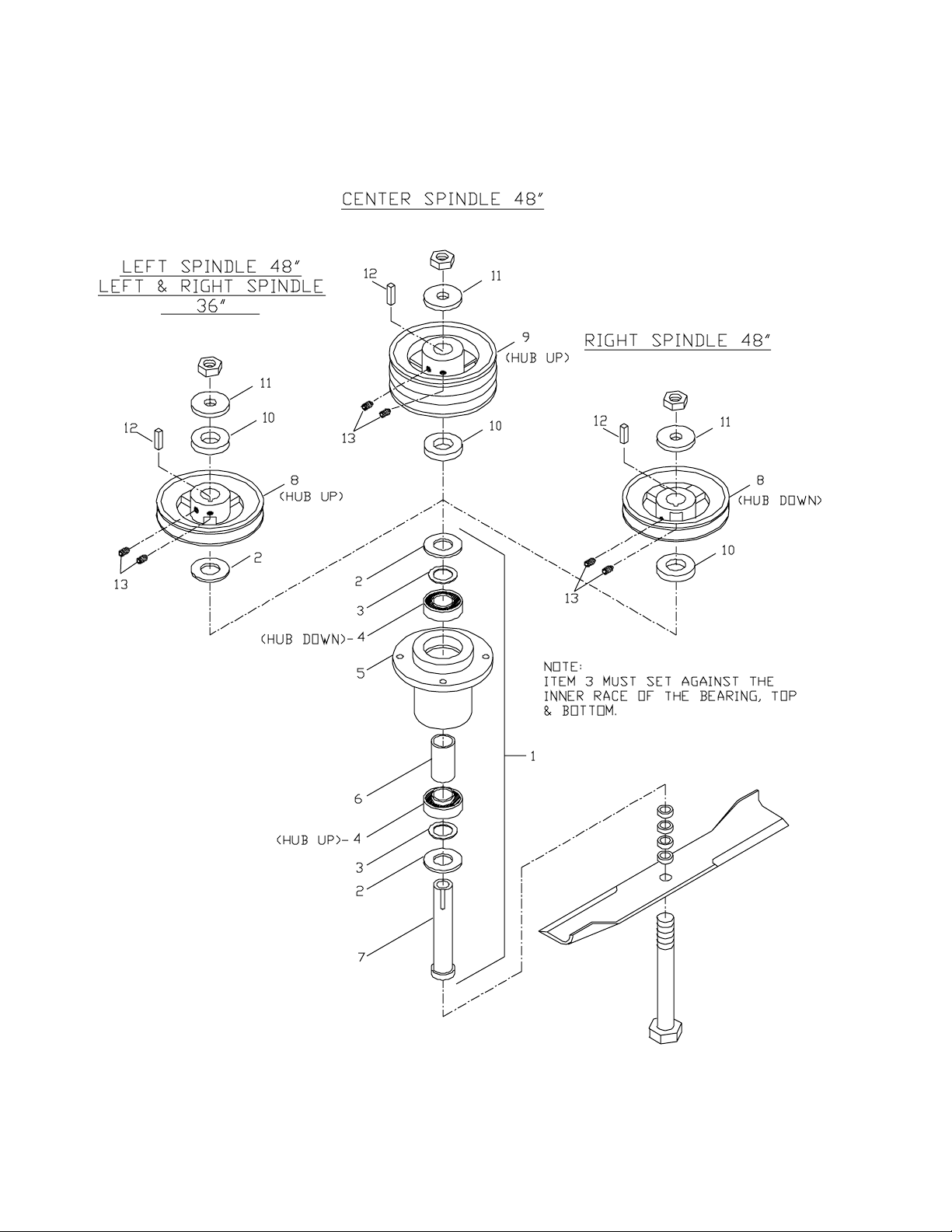

CUTTER HOUSING ASSEMBLY ........................................................... 16

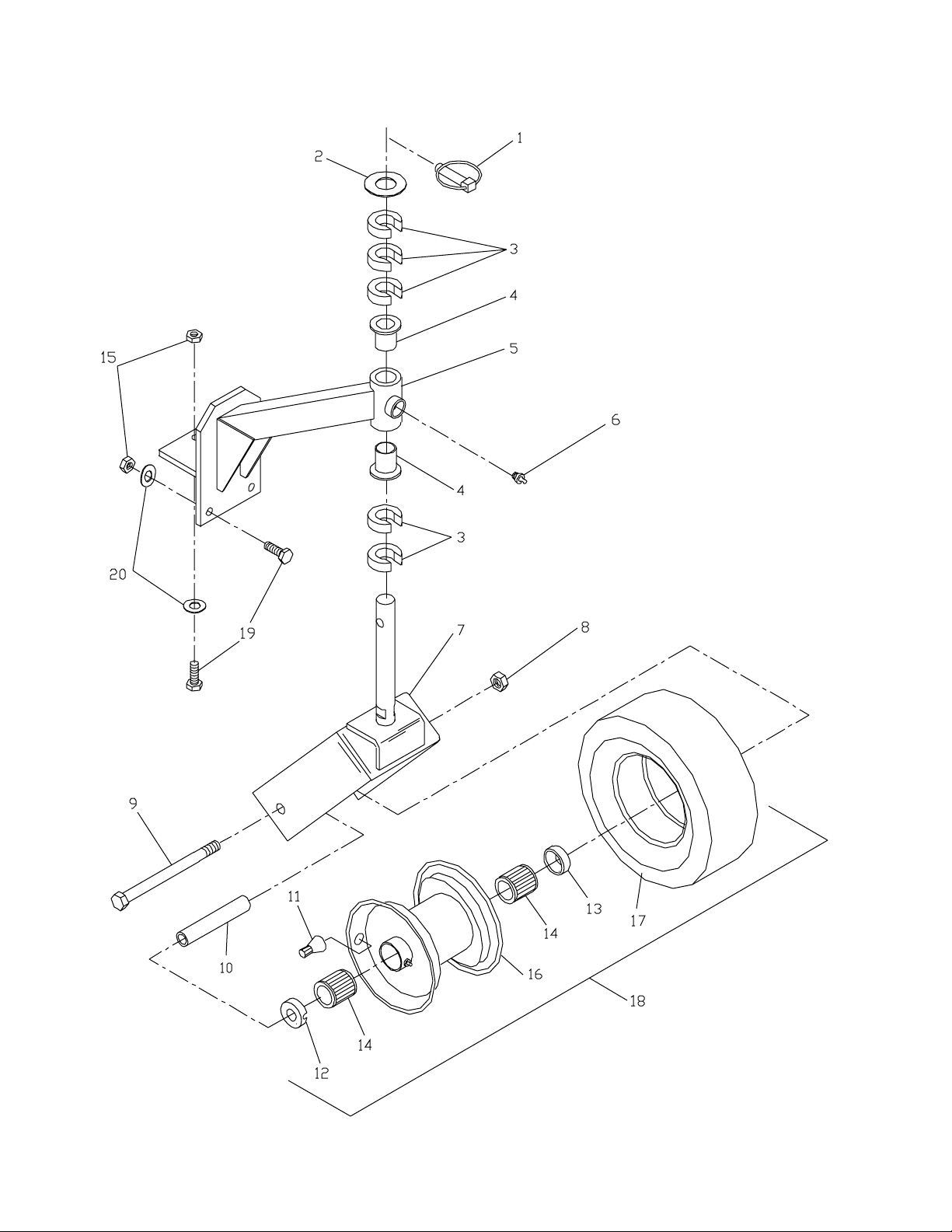

FRONT CASTER ASSEMBLY ............................................................... 18

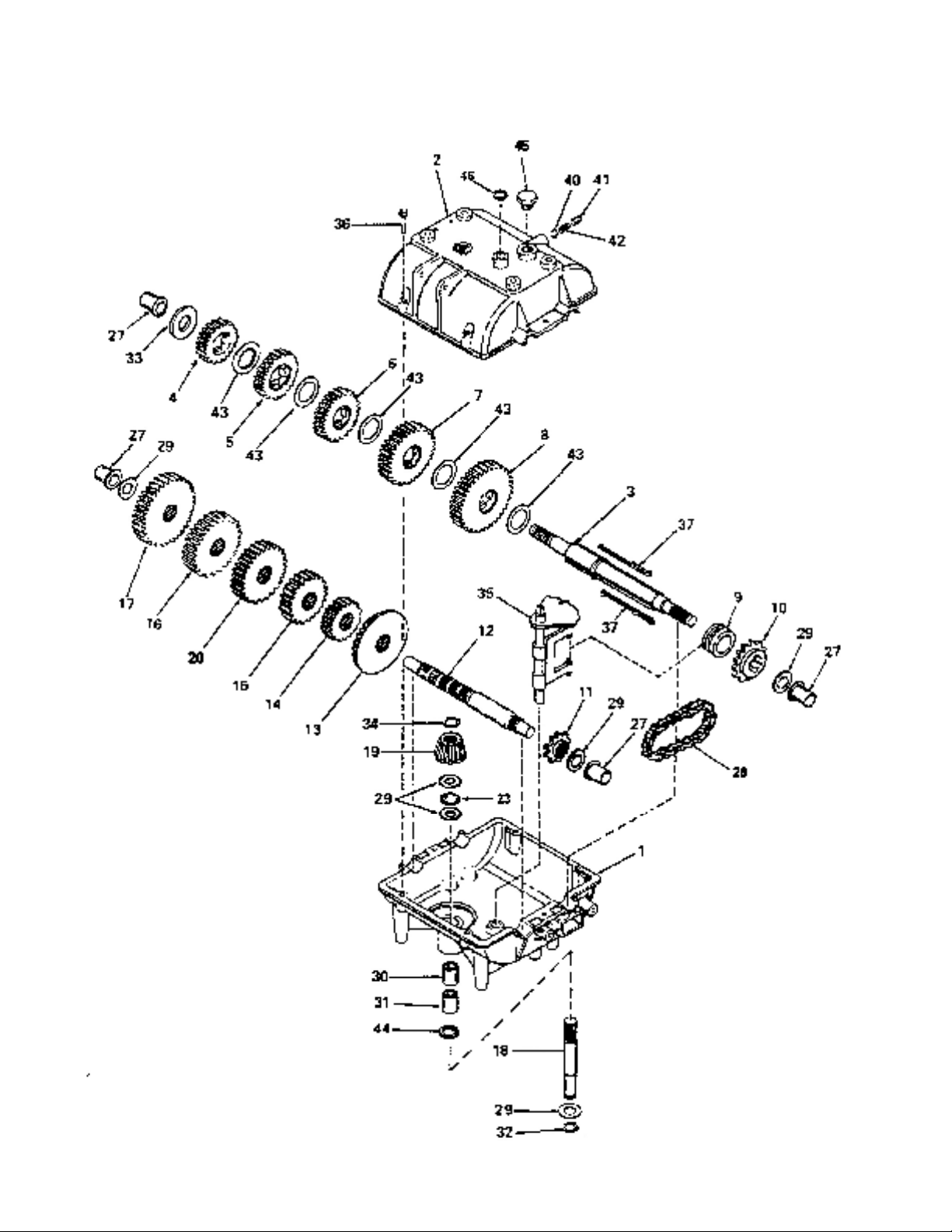

TRANSMISSION ASSEMBLY ................................................................. 20

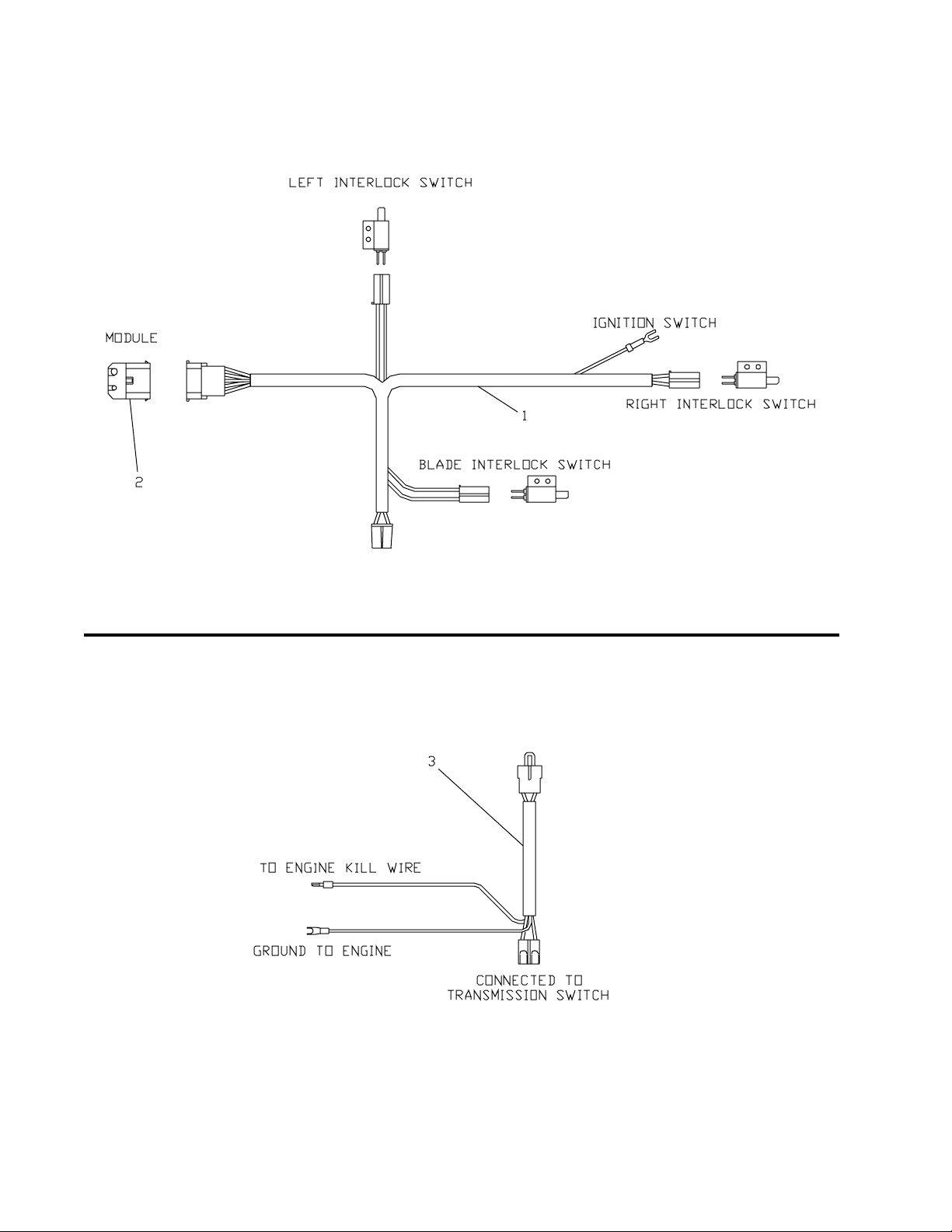

WIRING ASSEMBLY .............................................................................. 22
3
www.mymowerparts.com
Page 4
For Husqvarna Parts Call 606-678-9623 or 606-561-4983

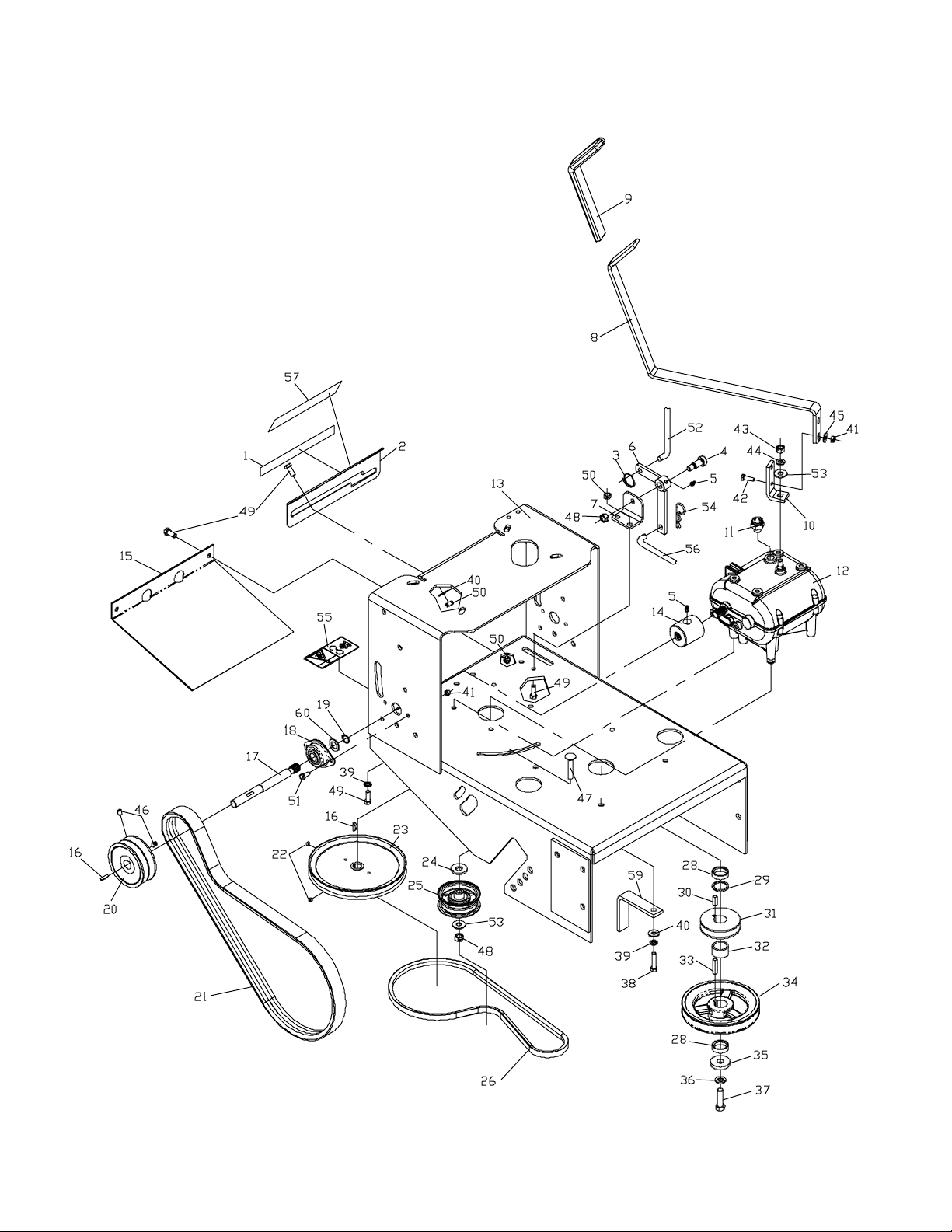

Rear Deck Assembly
4
www.mymowerparts.com
Page 5
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
Rear Deck Assembly
ITEM PART NO. QTY. DESCRIPTIONITEM PART NO. QTY. DESCRIPTION
1 ......... 539100277 .... 1 ....... DECAL, SHIFTER
2 ......... 539101960 .... 1 ....... SHIFTER PLATE
3 ......... 539916459 .... 1 ....... RETAINER
4 ......... 539100150 .... 1 ....... SB 1/2 X .750
5 ......... 539976998 .... 3 ....... ZERK
6 ......... 539100066 .... 1 ....... BELLCRANK
7 ......... 539101930 .... 1 ....... BRACKET
8 ......... 539101961 .... 1 ....... SHIFTER ARM
9 ......... 539101965 .... 1 ....... SHIFTER GRIP
10 ....... 539102165 .... 1 ....... SHIFTER BRACKET
11 ....... 539100148 .... 1 ....... TRANS. SWITCH
12 ....... 539102162 .... 1 ....... TRANSMISSION
13 ....... 539106554 .... 1 ....... REAR DECK W/DECLS.
14 ....... 539102164 .... 2 ....... COUPLING
15 ....... 539104547 .... 1 ....... LWR. BELT SHIELD
16 ....... 539910211 .... 3 ....... KEY #9 WOODRUFF
17 ....... 539102163 .... 2 ....... DRIVE SHAFT
18 ....... 539101967 .... 2 ....... BEARING
19 ....... 539101971 .... 2 ....... RETAINER RING
20 ....... 539101954 .... 2 ....... DRIVE PULLEY
21 ....... 539101956 .... 2 ....... DRIVE BELT
22 ....... 539101988 .... 2 ....... SETSCR. 1/4 NYLOC
23 ....... 539101964 .... 1 ....... INPUT PULLEY
24 ....... 539990550 .... 1 ....... WASHER 1/2 FLAT
25 ....... 539919078 .... 1 ....... IDLER PULLEY
26 ....... 539101957 .... 1 ....... BELT, TRANSMISSION
27 ....... 539102036 .... 1 ....... BELT GUIDE
28 ....... 539921960 .... 2 ....... SPACER
29 ....... 539102050 .... 1 ....... MACH. BUSHING
30 ....... 539105718 .... 1 ....... KEY 1/4 SQ. X .500
31 ....... 539919148 .... 1 ....... PULLEY
32 ....... 539101720 .... 1 ....... SPACER
33 ....... 539101995 .... 1 ....... KEY 1/4SQ. X 1.125
34 ....... 539101834 .... 1 ....... ENGINE PULLEY
35 ....... 539106504 .... 1 ....... HEAVY WASHER
36 ....... 539990247 .... 1 ....... WASHER 7/16 LOCK
37 ....... 539100141 .... 1 ....... HCS 7/16 X 1.5
38 ....... 539997692 .... 4 ....... HCS 5/16 X 1.750
39 ....... 539990187 .... 8 ....... WASHER 5/16 LOCK
40 ....... 539990692 .... 6 ....... WASHER 5/16 FLAT
41 ....... 539990761 .... 6 ....... NUT 1/4 LOCK
42 ....... 539977761 .... 2 ....... HCS 1/4 X 1.0
43 ....... 539990155 .... 1 ....... NUT 3/8F
44 ....... 539990118 .... 1 ....... WASHER 3/8 LOCK
45 ....... 539990598 .... 2 ....... WASHER 1/4 FLAT
46 ....... 539976956 .... 4 ....... SETSCR. 5/16 NYLOC
47 ....... 539100145 .... 1 ....... RHSNB 3/8 X 2.0
48 ....... 539990546 .... 2 ....... NUT 3/8 LOCK
49 ....... 539976934 .... 10 ..... HCS 5/16 X .750
50 ....... 539990184 .... 6 ....... NUT 5/16 LOCK
51 ....... 539990072 .... 4 ....... HCS 1/4 X .625
52 ....... 539101972 .... 1 ....... BLADE ROD
53 ....... 539990517 .... 2 ....... WASHER 3/8 FLAT
54 ....... 539976989 .... 1 ....... HAIRPIN #4
55 ....... 539105744 .... 1 ....... DECAL, BELT DRIVE
56 ....... 539102031 .... 1 ....... BLADE ROD 48”
........... 539102048 .... 1 ....... BLADE ROD 36”
57 ....... 539102047 .... 1 ....... DECAL, CLUTCH
58 ....... 539991043 .... 2 ....... MACH. BUSHING
59 ....... 539103462 .... 2 ....... BELT GUIDE LONG, 48”
........... 539103462 .... 1 ....... BELT GUIDE LONG, 36”
60 ....... 539103463 .... 1 ....... BELT GUIDE SHORT, 36”
5
www.mymowerparts.com
Page 6
For Husqvarna Parts Call 606-678-9623 or 606-561-4983

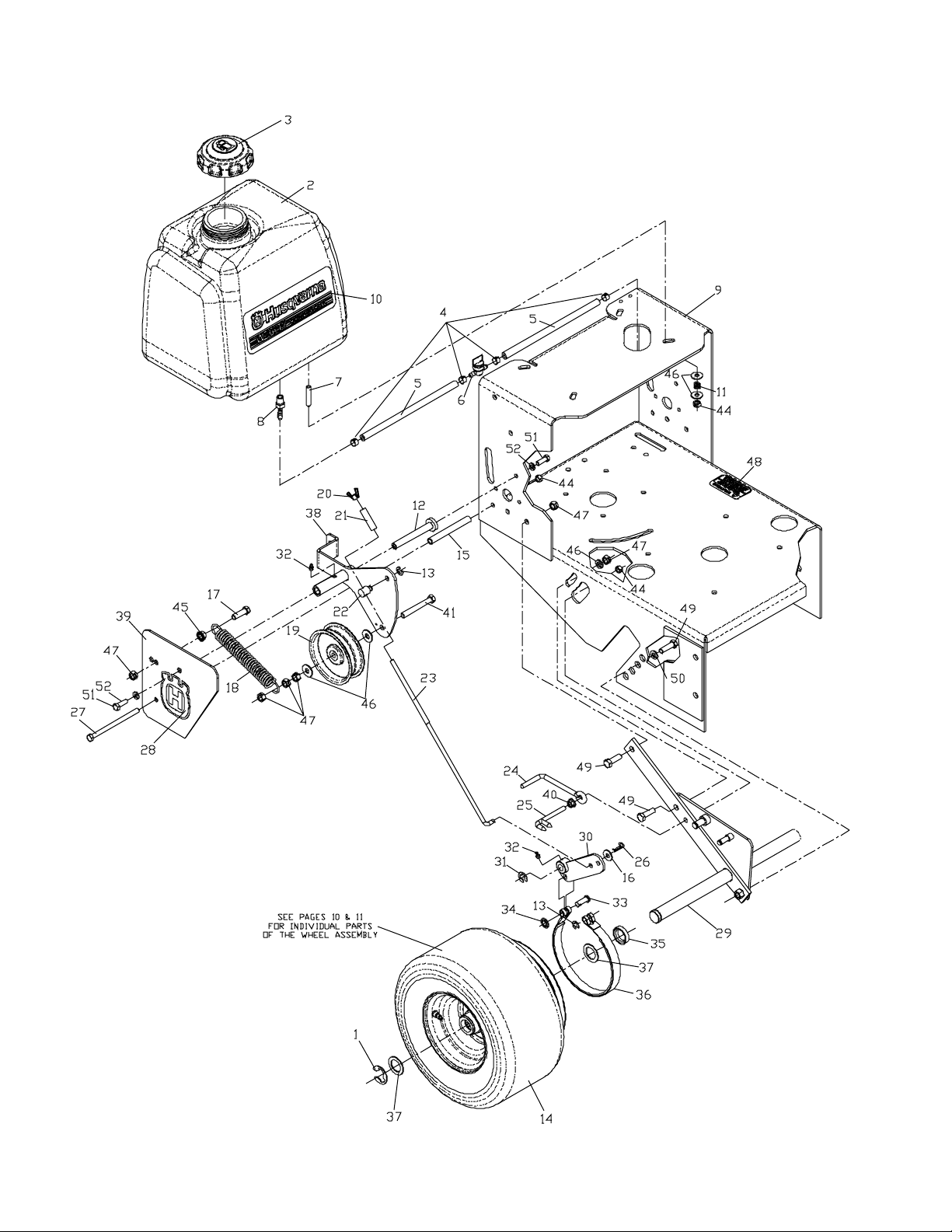

Drive Wheel & Axle Assembly
6
www.mymowerparts.com
Page 7
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
Drive Wheel & Axle Assembly
ITEM PART NO. QTY. DESCRIPTION
1 ......... 539912730 ........ 2 ....... E-RING 1”
2 ......... 539105630 ........ 1 ....... FUEL TANK
3 ......... 539104962 ........ 1 ....... GAS CAP
4 ......... 539912222 ........ 4....... HOSE CLAMP
5 ......... 539932956 ........ 2....... GAS LINE 10”
6 ......... 539916325 ........ 1 ....... FULE VALVE
7 ......... 539102502 ........ 4 ....... STUD 5/16
8 ......... 539102650 ........ 1 ....... HOSE BARB
9 ......... 539106554 ........ 1 ....... REAR DECK W/DECALS
10 ....... 539104829 ........ 1 ....... DECAL, W3613
........... 539104831 ........ 1 ....... DECAL, W4815
11 ....... 539102845 ........4 ....... SPRING
12 ....... 539102188 ........2 ....... SHOULDER PIVOT TUBE
13 ....... 539990870 ........4 ....... E-RING 3/8”
14 ....... 539104757 ........2 ....... WHEEL ASSEMBLY
........... (INCLUDES PULLEYS AND BRAKE DRUM)
15 ....... 539101992 ........ 2 ....... LONG SPACER
16 ....... 539990692 ........12 ..... WASHER 5/16 FLAT
17 ....... 539976941 ........ 2....... HCS 3/8 X 1.250
18 ....... 539101977 ........2 ....... SPRING
19 ....... 539101955 ........2 ....... IDLER PULLEY
20 ....... 539100276 ........2 ....... WINGNUT 5/16 NYLOC
21 ....... 539100097 ........2 ....... SPACER
22 ....... 539101940 ........ 2 ....... SWIVEL
23 ....... 539101939 ........ 2....... BRAKE ROD
24 ....... 539101973 ........2 ....... BELT GUIDE
25 ....... 539102035 ........2 ....... SCRAPER
26 ....... 539976988 ........4 ....... HAIRPIN #2
27 ....... 539990145 ........2 ....... HCS 5/16 X 5.0
28 ....... 539104789 ........ 2 ....... DECAL, CROWN
29 ....... 539101939 ........1 ....... AXLE WELDMENT
30 ....... 539101934 ........2 ....... BRAKE ARM, RT.
31 ....... 539101949 ........2 ....... E-RING 1/2”
32 ....... 539976998 ........4 ....... ZERK
33 ....... 539102049 ........ 2 ....... CLEVIS PIN
34 ....... 539913847 ........ 2 ....... BOLT RET. 3/8
35 ....... 539921960 ........2 ....... SPACER
36 ....... 539101945 ........2 ....... BRAKE BAND
37 ....... 539916561 ........4 ....... MACH. BUSHING
38 ....... 539106032 ........ 1 ....... IDLER ARM, RT.
........... 539106031 ........ 1 ....... IDLER ARM, LT.
39 ....... 539101969 ........2 ....... FENDER
40 ....... 539990585 ........ 2 ....... HFLN 5/16
41 ....... 539101350 ........2 ....... TAP BOLT 3/8 X 3.0
42 ....... 539990761 ........ 4 ....... NUT 1/4 LOCK
43 ....... 539977761 ........4 ....... HCS 1/4 X 1.0
44 ....... 539990184 ........ 8 ....... NUT 5/16 LOCK
45 ....... 539990613 ........ 2 ....... HFLN 3/8
46 ....... 539990517 ........8 ....... WASHER 3/8 FLAT
47 ....... 539990546 ........ 12 ..... NUT 3/8 LOCK
48 ....... 539101881 ........1 ....... DECAL, PROP 65
49 ....... 539990563 ........6 ....... HCS 3/8 X 1.0
50 ....... 539990118 ........2 ....... WASHER 3/8 LOCK
51 ....... 539990209 ........4 ....... HCS 5/16 X 1.0
52 ....... 539990187 ........4 ....... WASHER 5/16 LOCK
7
www.mymowerparts.com
Page 8
For Husqvarna Parts Call 606-678-9623 or 606-561-4983

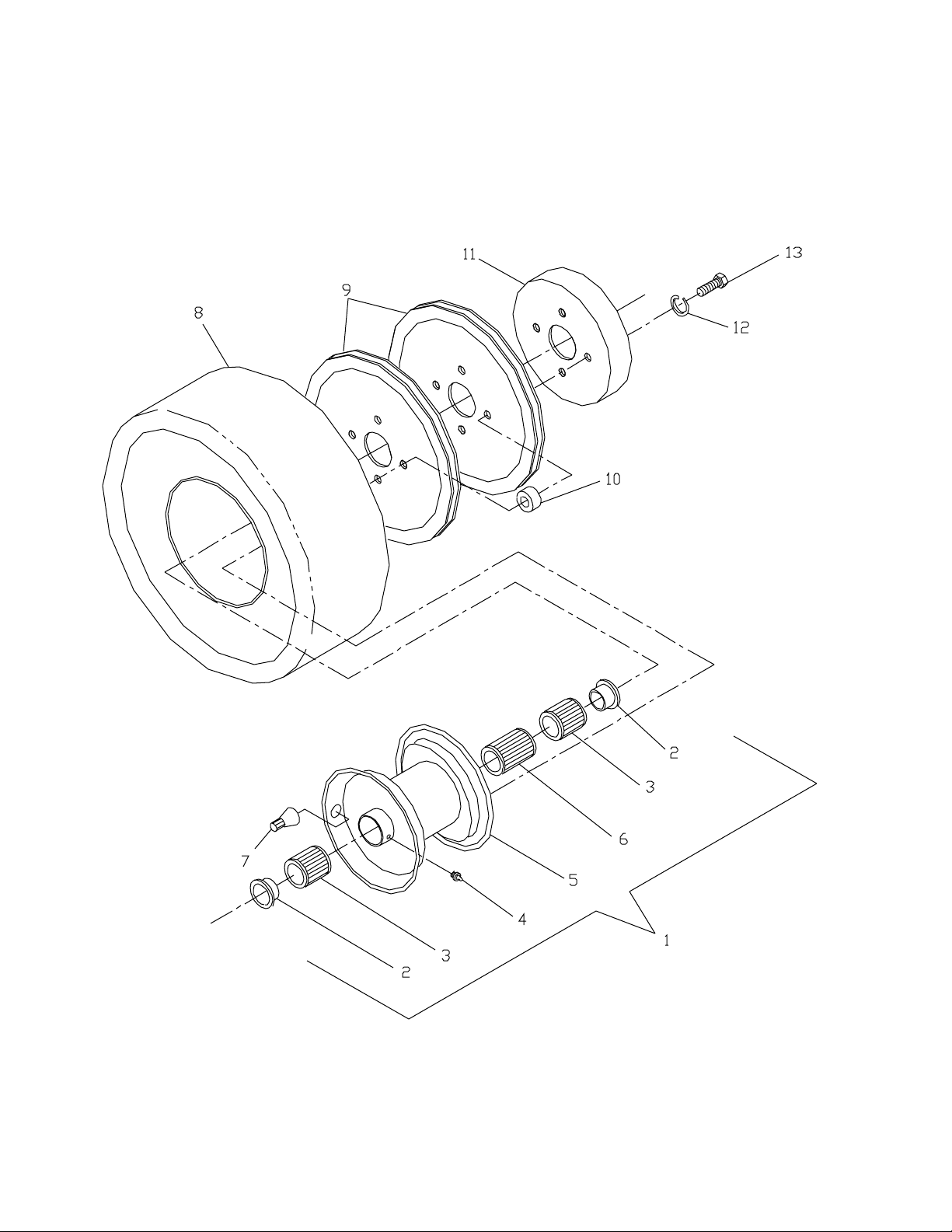

Traction Wheel Assembly
8
www.mymowerparts.com
Page 9
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
Traction Wheel Assembly
ITEM PART NO. QTY. DESCRIPTION
1 ........ 539104758 ........ 1....... WHEEL ASM. (INCLUDES ITEMS 2 THRU 8)
2 ........ 539100395 ........ 2....... END CAP
3 ........ 539102161 ........ 2 ....... ROLLER BEARING(SHORT)
4 ........ 539976998 ........ 1 ....... ZERK 1/4-28 STRHT
5 ........ 539104759 ........ 1....... RIM (INCLUDES ITEMS 4 & 7)
6 ........ 539100393 ........ 1 ....... ROLLER BEARING(LONG)
7 ........ 539912234 ........ 1 ....... AIR VALVE
8 ........ 539923788 ........ 1 ....... TIRE
9 ........ 539938473 ........ 2 ....... TRACTION PULLEY
10 ....... 539923515 ........4 ....... SPACER
11 ....... 539101946 ........ 1 ....... BRAKE DRUM
12 ....... 539990118 ........4 ....... SLW 3/8 STD
13 ....... 539990164 ........4 ....... HCS 3/8F X 1 1/2
9
www.mymowerparts.com
Page 10
For Husqvarna Parts Call 606-678-9623 or 606-561-4983

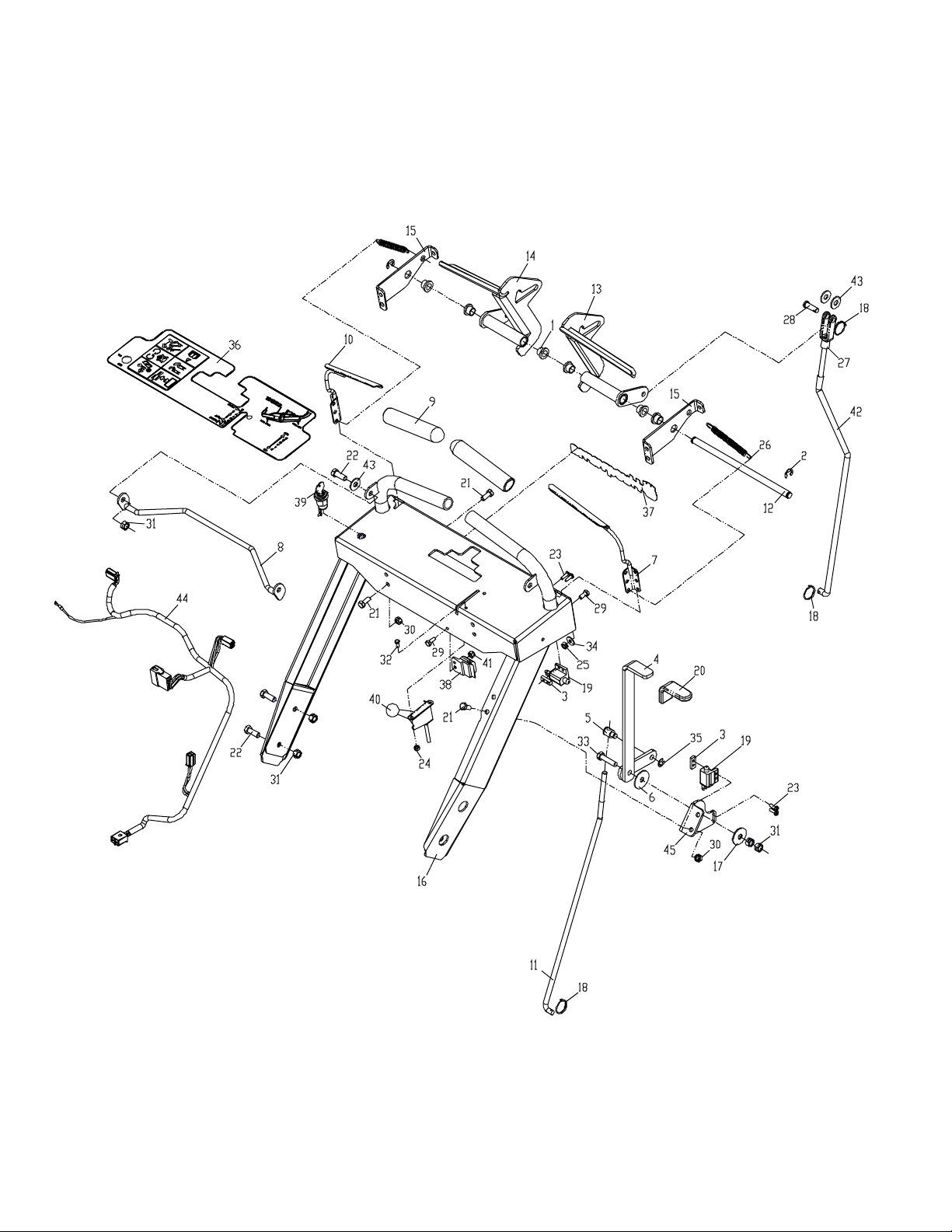

Upper Handle Assembly
10
www.mymowerparts.com
Page 11
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
Upper Handle Assembly
ITEM PART NO. QTY. DESCRIPTION
1 ......... 539100032 ........ 6 ....... BUSHING, FLANGED NYLON
2 ......... 539101949 ........ 2 ....... E-RING 1/2”
3 ......... 539102678 ........ 3 ....... TAPPED PLATE
4 ......... 539106086 ........ 1 ....... ENGAGEMENT LEVER
5 ......... 539102992 ........ 1 ....... SWIVEL
6 ......... 539102998 ........ 1 ....... WASHER, FRICTION
7 ......... 539105834 ........ 1 ....... OP LEVER, LT.
8 ......... 539105841 ........ 1 ....... NEUTRAL BAIL
9 ......... 539105842 ........ 2 ....... GRIP
10 ....... 539105952 ........1 ....... OP LEVER, RT.
11 ....... 539106015 ........1 ....... BLADE ENGAGE. LINKAGE
12 ....... 539106016 ........1 ....... CENTER PIVOT SHAFT
13 ....... 539106017 ........ 1....... DRIVE LVR. WLDMT. LT.
14 ....... 539106018 ........ 1 ....... DRIVE LVR. WLDMT RT.
15 ....... 539106025 ........2 ....... SUPPORT BRACKET
16 ....... 539106026 ........1 ....... HANDLE WLDMT.
17 ....... 539912063 ........1 ....... WASHER,CONE
18 ....... 539916459 ........5 ....... RETAINER RING
19 ....... 539919098 ........3 ....... SWITCH
20 ....... 539976526 ........1 ....... GRIP
21 ....... 539976934 ........ 8....... HCS 5/16 X .750
22 ....... 539990563 ........6 ....... HCS 3/8 X 1.0
23 ....... 539976952 ........6 ....... SCREW #10 X .625
24 ....... 539976977 ........2 ....... NUT #10 NYLOC
25 ....... 539990761 ........ 2 ....... NUT 1/4 LOCK
26 ....... 539977250 ........2 ....... SPRING
27 ....... 539977465 ........2 ....... YOKE 3/8F
28 ....... 539977703 ........ 2 ....... CLEVIS PIN
29 ....... 539990072 ........3 ....... HCS 1/4 X .625
30 ....... 539990184 ........ 8 ....... NUT 5/16 LOCK
31 ....... 539990546 ........ 8 ....... NUT 3/8 LOCK
32 ....... 539990411 ........2 ....... # 10 X .500
33 ....... 539990655 ........1 ....... HCS 3/8 X 1.5
34 ....... 539990598 ........2 ....... WASHER 1/4 FLAT
35 ....... 539990870 ........1 ....... RET. RING
36 ....... 539106011 ........1 ....... DECAL, CONSOLE
37 ....... 539104787 ........ 1 ....... DECAL, HUSQVARNA
38 ....... 539101781 ........1 ....... MODULE
39 ....... 539911853 ........ 1 ....... KEY SWITCH
40 ....... 539101220 ........1 ....... THROTTLE CABLE
41 ....... 539976978 ........ 1 ....... NUT 1/4 NYLOC
42 ....... 539106062 ........2 ....... DRIVE LINKAGE
43 ....... 539990517 ........6 ....... WASHER 3/8 FLAT
44 ....... 539106071 ........ 1 ....... UPPER HARNESS
45 ....... 539106089 ........ 1....... BLADE ENGAGE. BRACKET
46 ....... 539976856 ........ 2 ....... WIRE TIE
11
www.mymowerparts.com
Page 12
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
36” Deck Assembly
12
www.mymowerparts.com
Page 13
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
36” Deck Assembly
ITEM PART NO. QTY. DESCRIPTION
1 ........ 539101959 .... 1 ....... 36" DECK BELT
2 ........ 539104561 .... 1 ....... 36" BELT SHIELD
3 ........ 539104790 .... 1 ....... DECAL, HUSQVARNA
4 ........ 539102070 .... 4 ....... THREE PRONG KNOB
5 ........ 539102056 .... 4 ....... 3/8 SEALING WASHER
6 ........ 539990546 .... 4 ....... HLN 3/8C
7 ........ 539990613 .... 3 ....... 3/8C WHIZ NUT
8 ........ 539102334 .... 2 ....... TAPBOLT 3/8C X 4 1/2
9 ........ 539976980 .... 2 ....... HN 5/8F
10 ....... 539101995 .... 2 ....... KEY 1/4SQ. X 1 1/8
11 ....... 539976398 .... 2 ....... PULLEY W/SETSCREWS
12 ....... 539102332 .... 2 ....... HCS 5/8F X 8 1/2
13 ....... 539102243 .... 2 ....... SUPPORT WASHER
14 ....... 539100341 .... 2 ....... BLADE 18"(36)
15 ....... 539976436 .... 8 ....... BLADE SPACERS
16 ....... 539102245 .... 2 ....... SPACER
17 ....... 539102675 .... 2 ....... MACH. BUSHING 10GA.
18 ....... 539102440 .... 2 ....... HOUSING ASM.
19 ....... 539102320 .... 2 ....... TUBE CAP
20 ....... 539102236 .... 1 ....... PAD
23 ....... 539990184 .... 16 ..... HLN 5/16C
24 ....... 539990209 .... 10 ..... HCS 5/16C X 1
26 ....... 539990585 .... 6 ....... HFLN 5/16C
27 ....... 539990553 .... 6 ....... HCS 5/16C X 3
28 ....... 539100075 .... 1 ....... SNUBBER
29 ....... 539976956 .... 4 ....... 5/16 NYLOC SETSCREW
ITEM PART NO. QTY. DESCRIPTION
30 ....... 539101836 .... 1 ....... SLEEVE BUSHING
31 ....... 539101979 .... 1 ....... ENGAGEMENT ARM
32 ....... 539990517 .... 3 ....... FW 3/8 STD
33 ....... 539990629 .... 2 ....... HCS 3/8C X 2 1/4
34 ....... 539102048 .... 1 ....... BLADE ROD
35 ....... 539976988 .... 1 ....... #2 HAIRPIN
36 ....... 539101982 .... 1 ....... RT. HAND EYEBOLT
37 ....... 539990196 .... 1 ....... 5/16C HEX NUT
38 ....... 539101983 .... 1 ....... TURNBUCKLE
39 ....... 539101981 .... 1 ....... LT. HAND EYEBOLT
40 ....... 539101978 .... 1 ....... ARM WLDMT
41 ....... 539990550 .... 1 ....... FW 1/2 STD
42 ....... 539101332 .... 1 ....... HCS 1/2C X 2 3/4
43 ....... 539101980 .... 1 ....... EYEBOLT PIVOT
44 ....... 539976688 .... 1 ....... IDLER PULLEY
45 ....... 539102656 .... 1 ....... SPACER
46 ....... 539990118 .... 1 ....... 3/8 LOCK WASHER
47 ....... 539990637 .... 1 ....... HCS 3/8C X 2 1/2
48 ....... 539101175 .... 6 ....... HCS 7/16C X 1 1/2
49 ....... 539990247 .... 6 ....... 7/16 LOCK WASHER
50 ....... 539990449 .... 6 ....... 7/16C HEX NUT
51 ....... 539104546 .... 1 ....... DEFLECTOR CHUTE
52 ....... 539101231 .... 1 ....... IDLER SPINDLE
53 ....... 539101331 .... 1 ....... HLN 1/2C NYLOC
54 ....... 539913010 .... 1 ....... DECAL, CPSC
55 ....... 539104563 .... 1 ....... 36" DECK W/DECALS
56 ....... 539105746 .... 1 ....... DECAL, SEVERING
57 ....... 539105071 .... 1 ....... DECAL, NASCAR
13
www.mymowerparts.com
Page 14
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
48” Deck Assembly
14
www.mymowerparts.com
Page 15
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
48” Deck Assembly
ITEM PART NO. QTY. DESCRIPTIONITEM PART NO. QTY. DESCRIPTION
1 ........ 539100024 .... 1 ....... AUX. BLADE BELT
2 ........ 539101958 .... 1 ....... BLADE BELT 48
3 ........ 539104562 .... 1 ....... 48" BELT SHIELD
4 ........ 539102070 .... 5 ....... THREE PRONG KNOB
5 ........ 539102056 .... 5 ....... 3/8 SEALING WASHER
6 ........ 539990546 .... 6 ....... HLN 3/8C
7 ........ 539990613 .... 6 ....... HFLN 3/8C
8 ........ 539990553 .... 4 ....... HCS 5/16CX3
9 ........ 539990585 .... 7 ....... HFLN 5/16C
10 ....... 539102334 .... 2 ....... TAPBOLT-3/8C X 4 1/2
11 ....... 539976980 .... 3 ....... HN 5/8F
12 ....... 539102332 .... 2 ....... HCS 5/8F X 8 1/2
........... 539101100 .... 1 ....... HCS 5/8F X 9(CENTER)
13 ....... 539102243 .... 3 ....... SUPPORT WASHER
14 ....... 539100340 .... 3 ....... BLADE 16 1/4"
15 ....... 539976436 .... 12 ..... BLADE SPACERS
16 ....... 539102245 .... 3 ....... SPACER
17 ....... 539102675 .... 1 ....... MACH. BUSHING 10 GA.
18 ....... 539102440 .... 3 ....... HOUSING ASM.
19 ....... 539102236 .... 2 ....... PAD
20 ....... 539102320 .... 3 ....... TUBE CAP
21 ....... 539104546 .... 1 ....... DEFLECTOR CHUTE
22 ....... 539990196 .... 1 ....... 5/16C HEX NUT
23 ....... 539976398 .... 2 ....... PULLEY W/SETSCRS
24 ....... 539101995 .... 3 ....... 1/4SQ. KEY X 1 1/8
25 ....... 539101819 .... 1 ....... DOUBLE PULLEY
26 ....... 539990209 .... 14 ..... HCS 5/16C X 1
27 ....... 539990184 .... 21 ..... HLN 5/16C
28 ....... 539990629 .... 2 ....... HCS 3/8C X 2 1/4
29 ....... 539990517 .... 4 ....... FW 3/8 STD
30 ....... 539101979 .... 1 ....... ENGAGEMENT ARM
31 ....... 539101836 .... 1 ....... SLEEVE BUSHING
32 ....... 539102031 .... 1 ....... BLADE ROD 48"
33 ....... 539976988 .... 2 ....... #2 HAIRPIN
34 ....... 539990637 .... 1 ....... HCS 3/8C X 2 1/2
35 ....... 539990118 .... 1 ....... 3/8 LOCK WASHER
36 ....... 539100075 .... 1 ....... SNUBBER
37 ....... 539102656 .... 1 ....... SPACER
38 ....... 539976688 .... 2 ....... IDLER PULLEY
39 ....... 539101980 .... 1 ....... EYEBOLT PIVOT
40 ....... 539101981 .... 1 ....... LEFT HAND EYEBOLT
41 ....... 539101983 .... 1 ....... TURNBUCKLE
42 ....... 539101982 .... 1 ....... RH. EYEBOLT
43 ....... 539101332 .... 2 ....... HCS 1/2C X 2 3/4
44 ....... 539990550 .... 3 ....... 1/2 FLAT WASHER
45 ....... 539101978 .... 1 ....... ARM WLDMT
46 ....... 539101231 .... 2 ....... IDLER SPINDLE
47 ....... 539101331 .... 2 ....... 1/2C NYLOC NUT
48 ....... 539102237 .... 1 ....... AUX. IDLER ARM
49 ....... 539102337 .... 1 ....... TENSION ROD
50 ....... 539976695 .... 1 ....... IDLER FLANGE BUSHING
51 ....... 539990730 .... 1 ....... HCS 3/8C X 1 3/4
52 ....... 539101175 .... 6 ....... HCS 7/16C X 1 1/2
53 ....... 539990247 .... 6 ....... 7/16 LOCK WASHER
54 ....... 539990449 .... 6 ....... 7/16C HEX NUT
55 ....... 539976956 .... 6 ....... 5/16 NYLOC SETSCREW
56 ....... 539104790 .... 1 ....... DECAL, HUSQVARNA
57 ....... 539105071 .... 1 ....... DECAL, NASCAR
58 ....... 539104564 .... 1 ....... 48" DECK W/DECALS
59 ....... 539105746 .... 1 ....... DECAL, SEVERING
60 ....... 539913010 .... 1 ....... DECAL, CPSC
63 ....... 539102335 .... 3 ....... HCS 5/16C X 4
15
www.mymowerparts.com
Page 16
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
Cutter Housing Assembly
16
www.mymowerparts.com
Page 17
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
Cutter Housing Assembly
ITEM PART NO. QTY. DESCRIPTION
1 ........ 539102440 .... 1 ....... CUTTER HOUSING ASM.
............................................. (INCLUDES ITEMS 2 THRU 7)
2 ........ 539102675 .... 3 ....... MACH. BUSING 10GA.
3 ........ 539102244 .... 2 ....... MACH. BUSING 18GA.
4 ........ 539102677 .... 2 ....... BEARING
5 ........ 539102673 .... 1 ....... HOUSING
6 ........ 539102676 .... 1 ....... SPACER
7 ........ 539102674 .... 1 ....... SPINDLE
8 ........ 539976398 .... 1 ....... PULLEY
9 ........ 539101819 .... 1 ....... DOUBLE PULLEY
10 ....... 539102245 .... 1 ....... 3/8" SPACER
11 ....... 539102243 .... 1 ....... 1/4" SPACER
12 ....... 539101995 .... 1 ....... KEY 1/4 SQ. X 1 1/8"
13 ....... 539976956 .... 2 ....... 5/16 NYLOC SETSCREW
SEE PAGES 12 THRU 15 FOR CORRECT BLADE BOLT, NUT, BLADE
SPACERS, AND BLADE FOR YOUR MODEL.
NOTE:
THIS HOUSING ASSEMBLY(ITEM 1) IS USED IN CONJUNCTION WITH DIFFERENT
PULLEYS AND SPACERS. IT IS CRITICAL THAT YOU USE THE RIGHT SPACERS IN
THE RIGHT LOCATION FOR THE DIFFERENT SPINDLE COMBINATIONS. (ALSO REFER TO
THE KUTTER OPERATOR'S MANUAL)
NOTE:
THIS HOUSING ASSEMBLY(ITEM 1) WILL NOT WORK IF THESE ITEMS ARE
NOT IN THEIR PROPER LOCATION OR ORIENTATION
17
www.mymowerparts.com
Page 18
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
Front Caster Assembly
18
www.mymowerparts.com
Page 19
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
Front Caster Assembly
ITEM PART NO. QTY. DESCRIPTION
1 ........ 539101874 .... 1 ....... 7/16 LYNCH PIN
2 ........ 539916561 .... 1 ....... MACH. BUSHING
3 ........ 539101873 .... 5 ....... "C"-SPACER
4 ........ 539101232 .... 2 ....... FLANGE BUSHING
5 ........ 539104555 .... 1 ....... CASTER ARM W/BUSHING
6 ........ 539976997 .... 1 ....... ZERK 1/8 NPT
7 ........ 539104554 .... 1 ....... CASTER YOKE
8 ........ 539101331 .... 1 ....... 1/2C NYLOC NUT
9 ........ 539101907 .... 1 ....... HCS 1/2C X 5 1/2
10 ....... 539101872 .... 1 ....... SPACER
11 ....... 539912234 .... 1 ....... AIR VALVE
12 ....... 539977356 .... 1 ....... NOTCHED ENDCAP
13 ....... 539923557 .... 1 ....... ENDCAP
14 ....... 539977353 .... 2 ....... ROLLER BEARING
15 ....... 539990546 .... 3 ....... HLN 3/8C
16 ....... 539104618 .... 1 ....... RIM
17 ....... 539101905 .... 1 ....... 9" TIRE
18 ....... 539104556 .... 1 ....... TIRE & WHEEL ASS.
19 ....... 539990563 .... 3 ....... HCS 3/8C X 1
20 ....... 539990517 .... 3 ....... FW 3/8 STD
21 ....... 539104559 .... 1 ....... FRONT WHEEL CASTER ASM. KIT
............................................. (INCLUDES ITEMS 1 THRU 20)
19
www.mymowerparts.com
Page 20
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
Transmission Assembly
20
www.mymowerparts.com
Page 21
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
Transmission Assembly
ITEM PART NO. QTY. DESCRIPTION
1 ......... 539102075 ....... 1 ........ TRANSMISSION CASE
2 ......... 539100371 ....... 1 ........ TRANSMISSION COVER
3 ......... 539102179 ....... 1 ........ OUTPUT & BRAKE SHAFT
4 ......... 539102077 ....... 1 ........ SPUR GEAR (27 TEETH)
5 ......... 539100377 ....... 1 ........ SPUR GEAR (30 TEETH)
6 ......... 539102078 ....... 1 ........ SPUR GEAR (32 TEETH)
7 ......... 539100376 ....... 1 ........ SPUR GEAR (35 TEETH)
8 ......... 539102079 ....... 1 ........ SPUR GEAR (37 TEETH)
9 ......... 539977561 ....... 1 ........ SHIFT COLLAR
10 ....... 539977562 ....... 1 ........ SPROCKET (18 TEETH)
11 ....... 539977563 ....... 1 ........ SPROCKET (9 TEETH)
12 ....... 539977564 ....... 1 ........ COUNTERSHAFT
13 ....... 539977565 ....... 1 ........ BEVEL GEAR (42 TEETH)
14 ....... 539102080 ....... 1 ........ SPUR GEAR (12 TEETH)
15 ....... 539102081 ....... 1 ........ SPUR GEAR (15 TEETH)
16 ....... 539100382 ....... 1 ........ SPUR GEAR (20 TEETH)
17 ....... 539102082 ....... 1 ........ SPUR GEAR (23 TEETH)
18 ....... 539977571 ....... 1 ........ INPUT SHAFT
19 ....... 539100372 ....... 1 ........ INPUT BEVEL PINION
20 ....... 539102083 ....... 1 ........ SPUR GEAR (18 TEETH)
23 ....... 539100374 ....... 1 ........ THRUST BEARING
27 ....... 539977573 ....... 4 ........ FLANGED BUSHING
28 ....... 539977574 ....... 1 ........ ROLLER CHAIN(NO.41 CHAIN, 24 LINKS)
29 ....... 539977575 ....... 6 ........ THRUST WASHER
30 ....... 539977592 ....... 1 ........ NEEDLE BEARING
31 ....... 539977576 ....... 1 ........ NEEDLE BEARING
32 ....... 539977577 ....... 1 ........ RETAINING RING
33 ....... 539102084 ....... 1 ........ THRUST WASHER
34 ....... 539977579 ....... 1 ........ RETAINING RING
35 ....... 539102180 ....... 1 ........ SHIFT ROD & FORK
36 ....... 539977581 ....... 6 ........ SCREW, FLANGED HEX HD.1/4-20 X 1-1/4
37 ....... 539977582 ....... 4 ........ KEY
40 ....... 539977583 ....... 1........ STEEL BALL, 5/16"
41 ....... 539977584 ....... 1........ SET SCREW, 3/8-16 X 3/8"
42 ....... 539977585 ....... 1 ........ SPRING
43 ....... 539977586 ....... 5 ........ THRUST WASHER
44 ....... 539977587 ....... 1 ........ "O" RING
45 ....... 539100148 ....... 1 ........ THREADED PLUG
46 ....... 539100388 ....... 1 ........ SQUARE CUT SEAL
47 ....... 539102162 ....... 1 ........ COMPLETE TRANSMISSION(NOT SHOWN)
21
www.mymowerparts.com
Page 22
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
Wiring Assembly
22
www.mymowerparts.com
Page 23
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
Wiring Assembly
ITEM PART NO. QTY. DESCRIPTION
1 ......... 539106071 ....... 1 ........ UPPER HARNESS
2 ......... 539101781 ....... 1 ........ MODULE
3 ......... 539106085 ....... 1 ........ LOWER HARNESS
23
www.mymowerparts.com
Page 24
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
www.mymowerparts.com
Loading...
