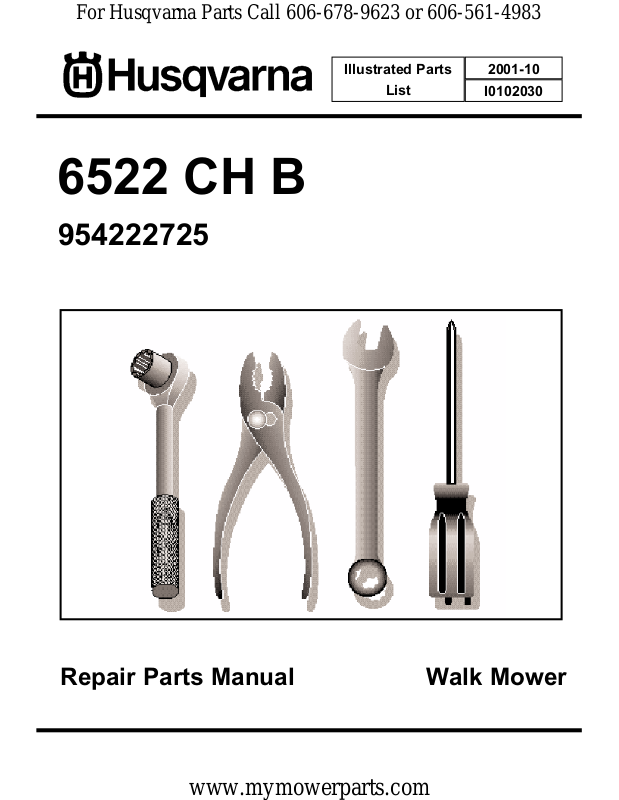

Page 1
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
6522 CH B
954222725
Illustrated Parts
List
2001-10
I0102030
Repair Parts Manual Walk Mower
www.mymowerparts.com
Page 2
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
ROTARY LAWN MOWER - - MODEL NUMBER 6522CH (6522CHB)

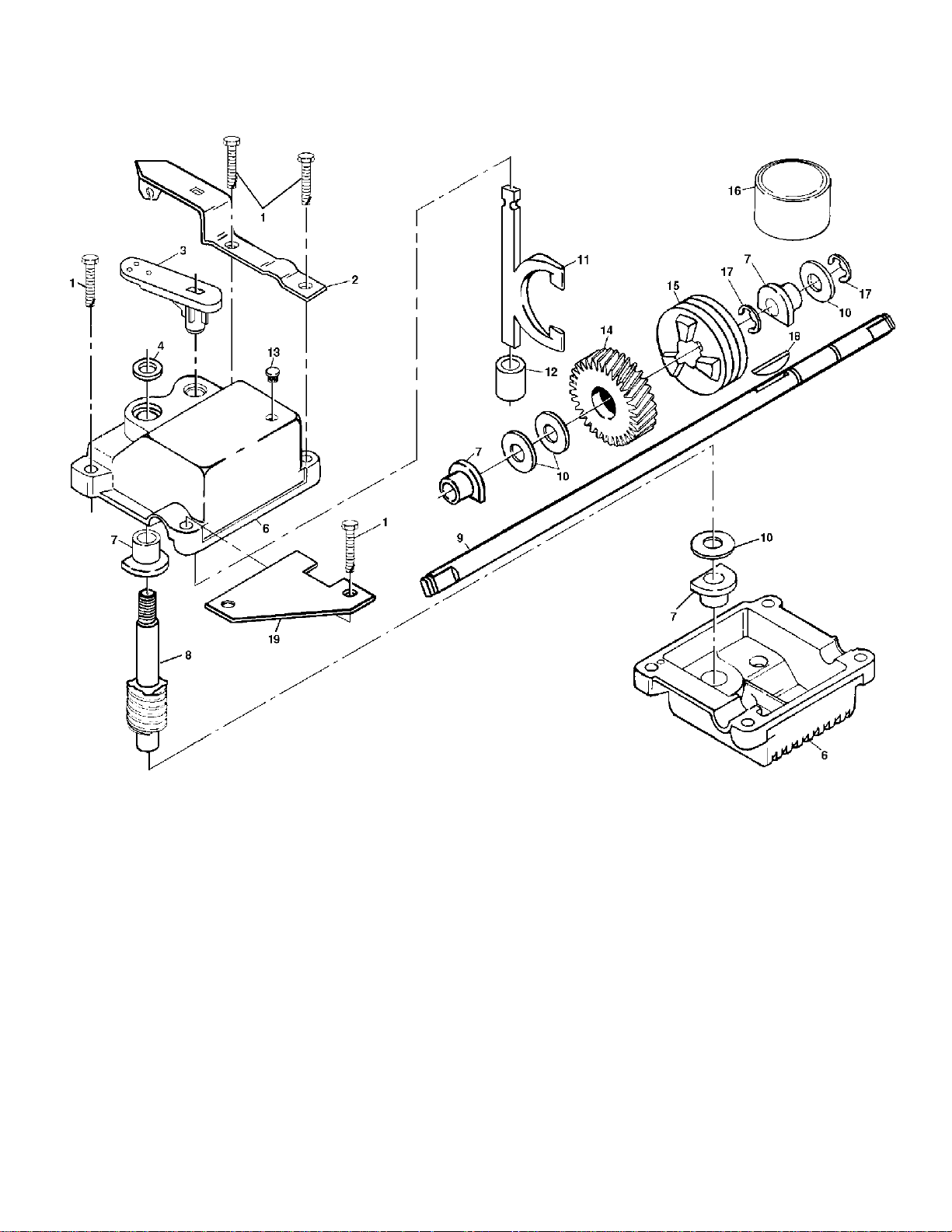

GEAR CASE ASSEMBLY - PART NUMBER 532 70 25-11
KEY PART
NO. NO. DESCRIPTION
1 817 49 04-16 Tapping Screw 1/4-20 x 1-1/4
2 532 14 02-69 Engagement Bracket
3 532 13 70-53 Shifter
4 532 05 70-72 Seal
6 532 04 83-73 Gear Case Halves Kit
(Includes Key Noumbers 4 and 7)
7 532 07 78-81 Bearing
8 532 13 70-51 Worm Shaft
9 532 13 70-74 Drive Shaft
10 532 05 70-79 Hardened Washer
11 532 13 14-84 Clutch Yoke
12 532 70 03-43 Bushing
13 532 08 64-47 Plug
14 532 13 70-50 Helical Gear
15 532 75 04-36 Clutch Jaw
16 532 75 03-69 Grease
17 812 00 00-03 E-Ring
18 532 85 08-48 Hi-Pro Key
19 532 12 54-41 Spring Bracket
NOTE: All component dimensions given in U.S. inches.
1 inch = 25.4 mm
17
www.mymowerparts.com
Page 3
REPAIR PARTS
ROTARY LAWN MOWER - - MODEL NUMBER 6522CH (6522CHB)
www.mymowerparts.com
18
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
Page 4

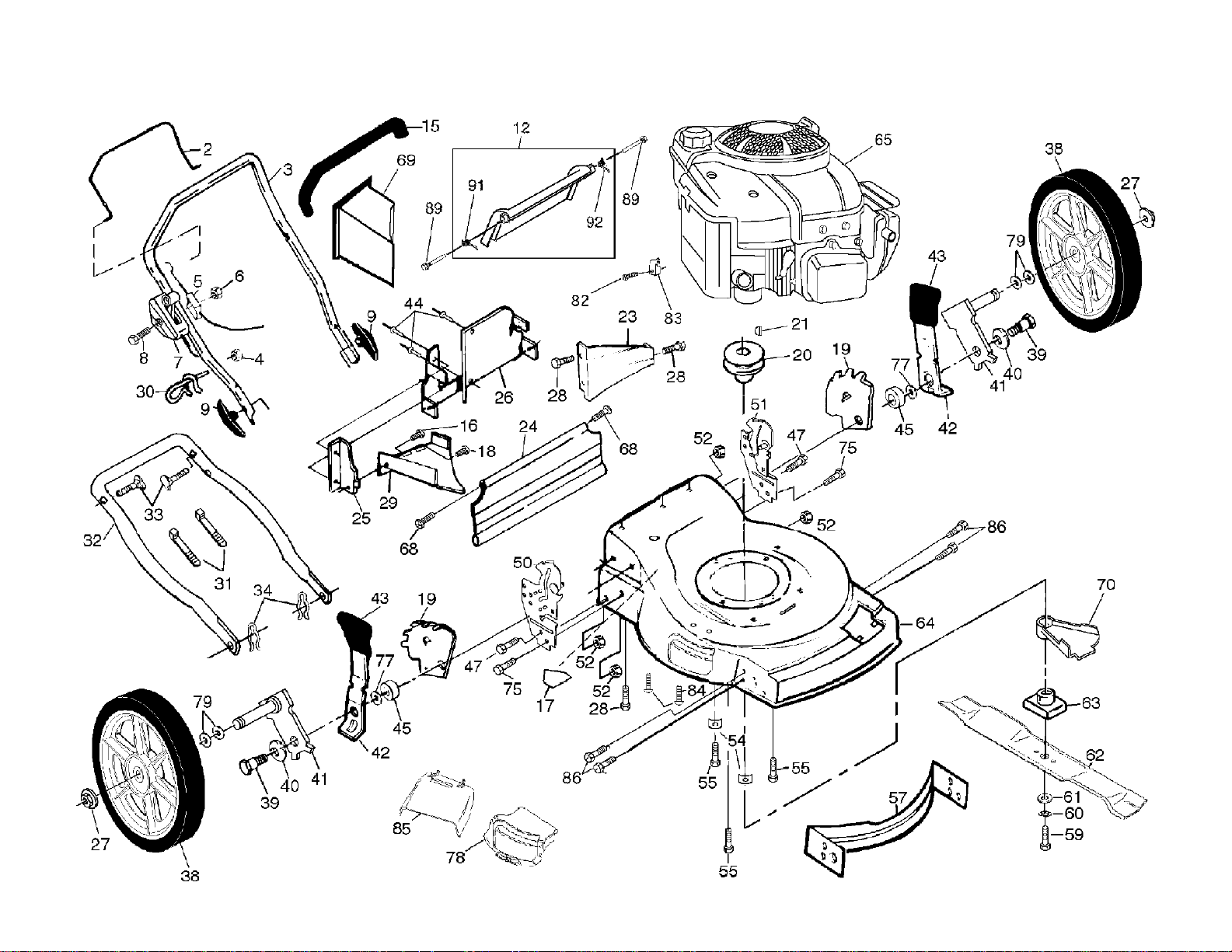

REPAIR PARTS
ROTARY LAWN MOWER - - MODEL NUMBER 6522CH (6522CHB)
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
KEY PART
NO. NO. DESCRIPTION
2 532 17 65-80 Control Bar
www.mymowerparts.com
19
3 532 16 71-63 Upper Handle
4 532 06 36-01 Locknut
5 532 13 08-61 Engine Zone Control Cable
6 532 13 20-04 Nut, Hex 1/4-20
7 532 70 04-17 Throttle Control
8 532 14 49-29 Hex Washer Head Screw 1/4-20 x 2-1/8
9 532 13 63-76 Handle Knob
12 532 17 09-47 Rear Door Kit (Includes Springs)
15 532 16 42-65 Handle Grip
16 532 15 00-50 Screw
17 532 10 73-39 Danger Decal
18 532 15 00-50 Screw
19 532 15 50-47 Wheel Adjusting Bracket
20 532 08 45-96 Engine Pulley
21 532 08 76-77 Hi Pro Key #505
23 532 12 53-48 Rear Baffle
24 532 14 05-40 Rear Skirt
25 532 13 88-60 Side Baffle
26 532 16 68-00 Back Plate
27 532 08 39-23 Flanged Locknut
28 532 05 45-83 Screw Hex Head 1/4-20 x 1/2
29 532 18 08-57 Discharge Baffle
30 532 17 95-85 Rope Guide
31 532 06 64-26 Wire Tie
32 532 15 36-05 Lower Handle
33 532 13 19-59 Handle Bolt
34 532 05 17-93 Hairpin Cotter
38 532 75 20-63 Wheel & Tire Assembly
39 532 14 27-48 Shoulder Bolt
40 532 06 16-51 Spring Washer
41 532 16 22-33 Axle Arm
42 532 17 71-32 Selector Spring
43 532 17 54-77 Selector Knob
44 532 12 84-15 Pop Rivet
45 532 14 66-30 Spacer
KEY PART
NO. NO. DESCRIPTION
47 532 15 00-78 Self-tapping Screw 5/16-18 x 3/4
50 532 17 71-30 Handle Bracket (Right)
51 532 17 71-31 Handle Bracket (Left)
52 532 75 15-92 Locknut 3/8-16
54 532 12 50-78 Washer
55 532 15 04-06 Hex Head Thread Rolling Screw 3/8-16 x 1-1/8
57 532 17 05-57 Front Baffle
59 532 85 10-84 Hex Head Machine Screw 3/8-24 x 1-3/8 Gr. 8
60 532 85 02-63 Helical Lock Washer
61 532 85 10-74 Hardened Washer
62 532 14 11-14 Blade 22"
63 532 85 15-14 Blade Adapter
64 532 17 65-83 Lawn Mower Housing Kit (Includes Key No. 17)
65 - - - Engine, Briggs & Stratton, Model Number 120602
(Order parts from engine manufacturer)
68 532 08 86-52 Hinge Screw
69 532 16 66-49 Mulcher Plug
70 532 13 46-12 Debris Shield
75 874 76 06-12 Bolt
77 532 08 83-48 Flat Washer
78 532 15 07-57 Combi-Cut Door Assm.
79 532 05 71-43 Wave Washer
82 532 08 38-16 Screw
83 532 21 31-46 Engine Clamp
84 532 06 36-01 Nut
85 532 15 06-53 Clip on Guard
86 817 60 04-06 Screw
89 532 16 59-12 Bolt
91 532 17 09-39 Spring RH
92 532 17 09-38 Spring LH
- - 532 16 23-00 Warning Decal
- - 532 18 03-00 Owner's Manual
NOTE: All component dimensions given in U.S. inches.
1 inch = 25.4 mm
Page 5
For Husqvarna Parts Call 606-678-9623 or 606-561-4983

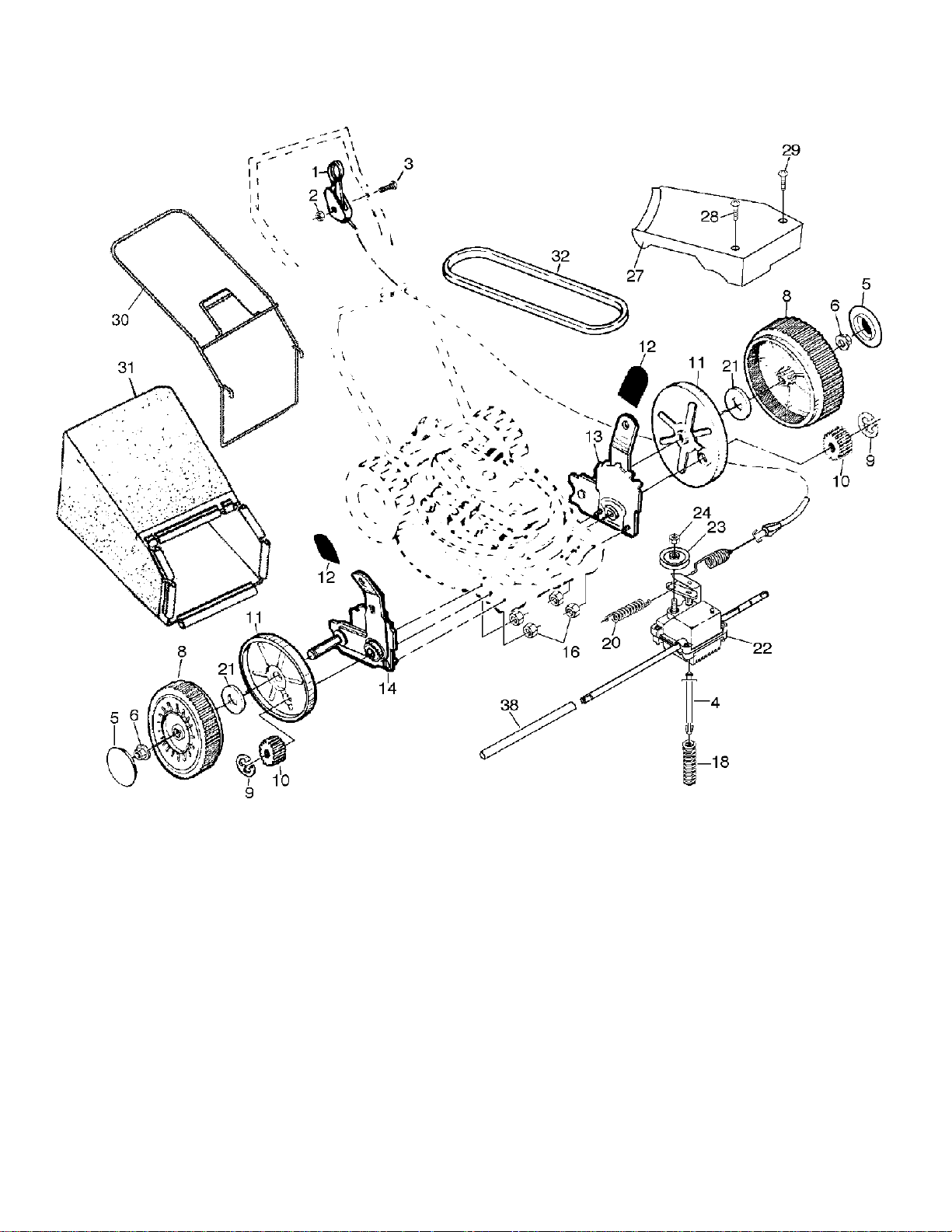

REPAIR PARTS
ROTARY LAWN MOWER - - MODEL NUMBER 6522CH (6522CHB)
KEY PART
NO. NO. DESCRIPTION
1 532 14 63-23 Drive Control
2 532 75 11-52 Locknut #10-24
3 532 15 87-55 Pan Head Machine Screw
1/4-20 x 2-1/8
4 532 15 04-95 Spring Retainer
5 532 07 74-00 Hubcap
6 532 14 52-12 Nut
8 532 08 85-58 Wheel & Tire Assembly
9 812 00 00-58 E-ring
10 532 13 70-54 Pinion
11 532 08 80-80 Dust Cover
12 532 08 78-77 Selector Knob
13 532 15 15-21 Wheel Adjuster Assembly (Left)
14 532 15 15-20 Wheel Adjuster Assembly (Right)
16 532 06 36-01 Locknut
18 532 13 70-90 Spring
www.mymowerparts.com
KEY PART
NO. NO. DESCRIPTION
20 532 07 51-92 Spring
21 532 06 77-25 Washer 1/2 x 1-1/2 x .134
22 532 70 25-11 Gear Case Assembly
23 532 13 70-52 Drive Pulley
24 532 13 20-10 Locknut
27 532 70 04-79 Drive Cover
28 532 14 60-72 Screw
29 532 14 97-46 Pan Head Tapping Screw
#10-24 x 1-3/4
30 532 16 99-31 Catcher Frame
31 532 17 65-75 Grass Bag
32 532 14 65-27 V-Belt
38 532 08 60-12 Drive Shaft Cover
NOTE: All component dimensions given in U.S. inches.
1 inch = 25.4 mm
