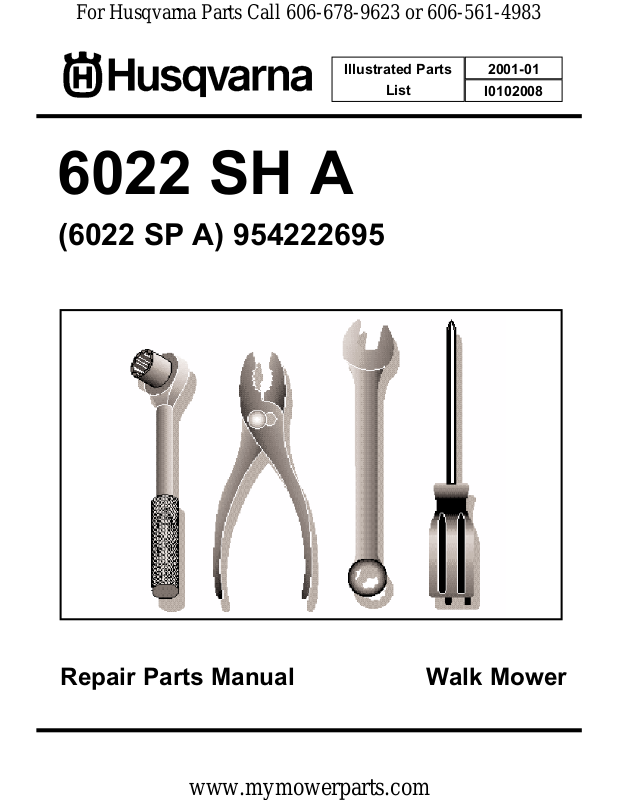

Illustrated Parts
6022 SH A
(6022 SP A) 954222695
List
2001-01
I0102008
Repair Parts Manual Walk Mower
www.mymowerparts.com
Page 2
REPAIR PARTS

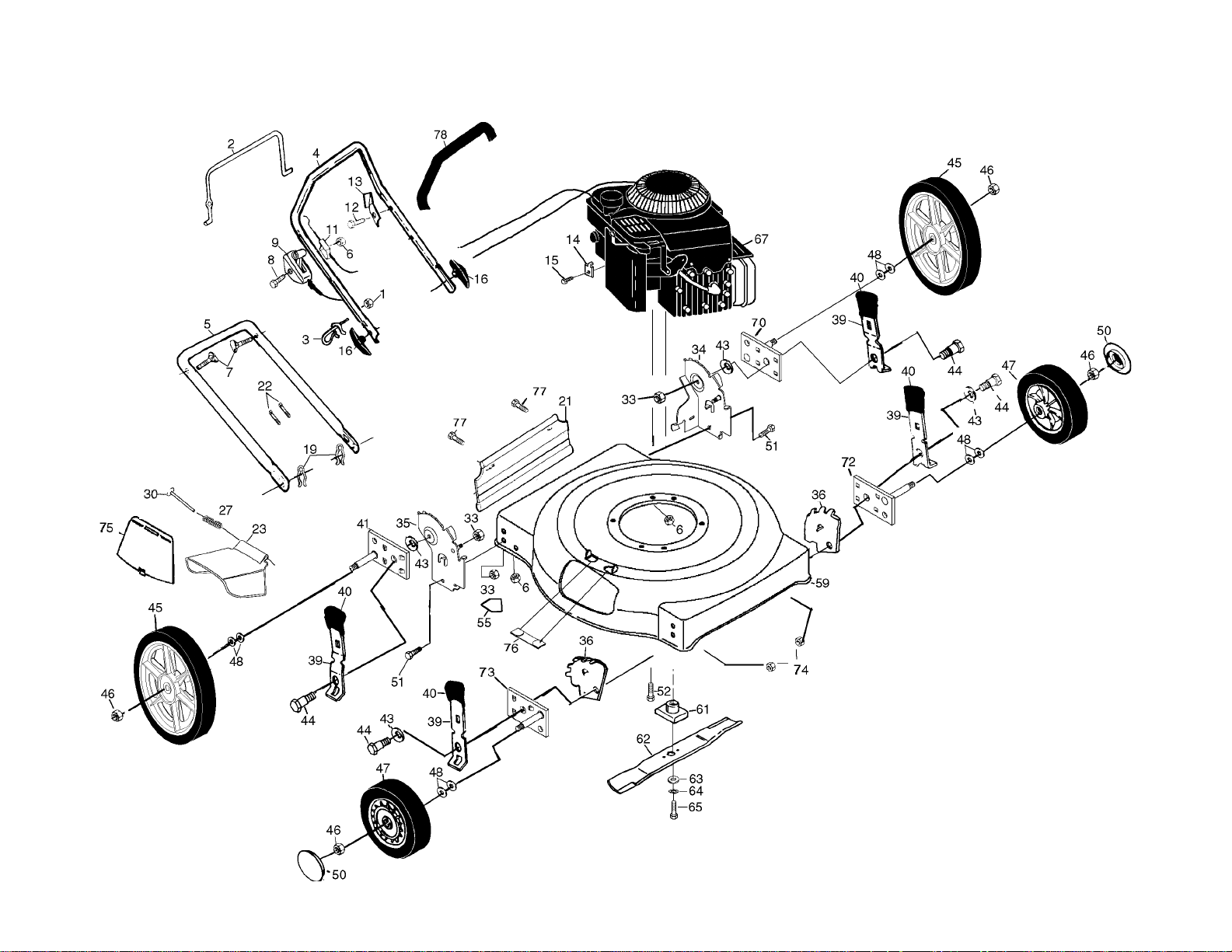

ROTARY LAWN MOWER - - MODEL NUMBER 6022SH (6022SHA)
www.mymowerparts.com
16
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
Page 3
REPAIR PARTS
ROTARY LAWN MOWER - - MODEL NUMBER 6022SH (6022SHA)
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
KEY PART
NO. NO. DESCRIPTION
1 532063601 Locknut 1/4-20
www.mymowerparts.com
17
2 532176563 Control Bar
3 532132001 Rope Guide
4 532173693 Upper Handle w/Grip
5 532174291 Lower Handle
6 532063601 Locknut 1/4-20
7 532131959 Handle Bolt 5/16-18
8 532144929 Hex Washer Head Screw 1/4-20 x 2-1/8
9 532164137 Throttle Control
11 532133107 Engine Zone Control Cable
12 532750097 Hex Washer Head Screw #10-24 x 1/2
13 532125162 Up-Stop Bracket
14 532213146 Cable Clamp
15 532083816 Screw #10 x 5/8
16 532136376 Handle Knob
19 532051793 Hairpin Cotter
21 532165858 Rear Deflector
22 532066426 Wire Tie
23 532176561 Discharge Guard
27 532160832 Torsion Spring
30 532160833 Hinge Rod
33 532063124 Locknut 5/16-18
34 532174413 Wheel Bracket Support (Left)
35 532174414 Wheel Bracket Support (Right)
36 532165704 Wheel Bracket Adjuster
39 532168599 Selector Spring
40 532087877 Selector Knob
41 532168602 Axle Arm Assembly (RR)
43 819112222 Washer
44 532160828 Shoulder Bolt
KEY PART
NO. NO. DESCRIPTION
45 532752063 Wheel Assembly (Rear)
46 532083923 Locknut 1/16-18
47 532750550 Wheel Assembly (Front)
48 532057143 Washer
50 532077400 Hubcap
51 874760514 Hex Head Bolt 5/16-18x
52 532150406 Hex Head Thread Rolling Screw 3/8-16 x 1
55 532107339 Danger Decal
59 532176565 Lawn Mower Housing (Incl. Key Nos. 55)
61 532851514 Blade Adapter
62 532141114 22" Blade
63 532851074 Hardened Washer
64 532850263 Helical Lockwasher 3/8
65 532851084 Screw Hex Head 3/8-24 x 1-3/8 (Grd. 8)
6 7 - - - - - - - - Engine - Briggs & Stratton Model No. 12H802
Order parts from engine manufacturer
70 532168601 Axle Arm Assem.(LR)
72 532168605 Axle Arm Assm. ((LF)
73 532168604 Axle Arm Assm. (RF)
74 532751153 Nut
75 532176562 Plate. Mulcher
76 532176560 Clip. Closeout
77 874760412 Screw
78 532164265 Foam Grip
- - 532177945 Owner's Manual (English/French)
- - 532162300 Warning Decal(Not Shown)
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
