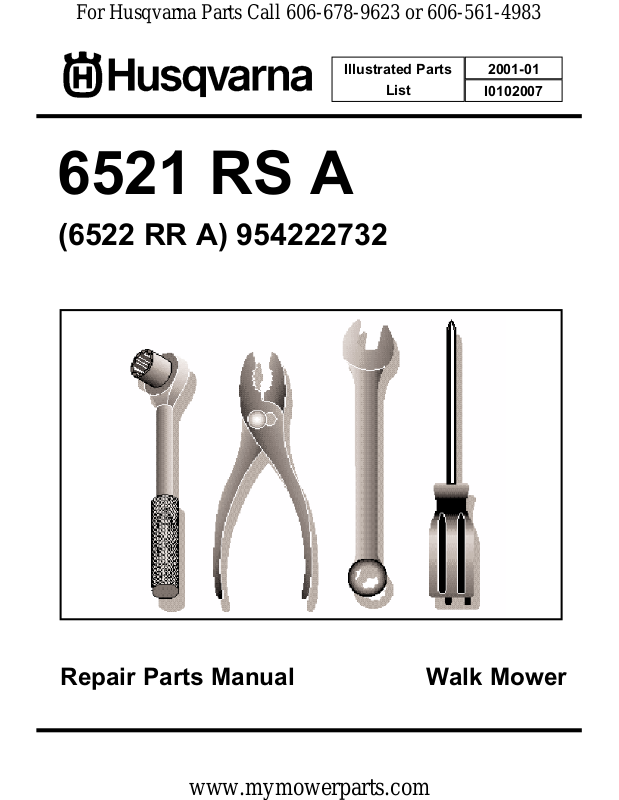

Page 1
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
Illustrated Parts
6521 RS A
(6522 RR A) 954222732
List
2001-01
I0102007
Repair Parts Manual Walk Mower
www.mymowerparts.com
Page 2
REPAIR PARTS

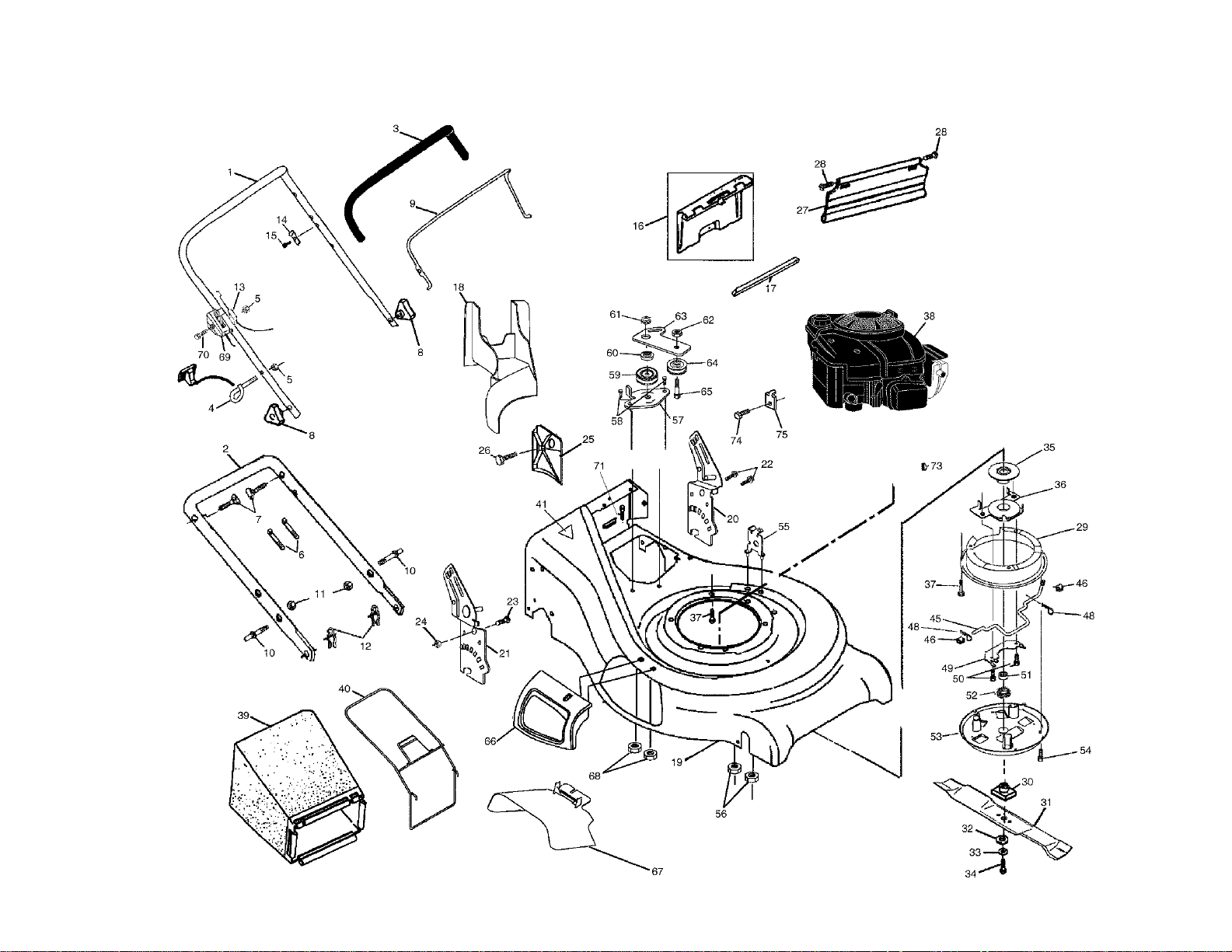

ROTARY LAWN MOWER MODEL NUMBER 6521RS (6521RSA)
www.mymowerparts.com
16
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
Page 3
REPAIR PARTS
ROTARY LAWN MOWER MODEL NUMBER 6521RS (6521RSA)
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
KEY PART
NO. NO. DESCRIPTION
www.mymowerparts.com
17
1 532177698 Handle, Upper Dlx Comf. (Including grip)
2 532164556 Handle, Lower
3 532164265 Grip, Hdl Foam Smooth
4 532132001 Guide, Rope, Side
5 532063601 Nut, Hex Lockwasher 1/4-20
6 532066426 Wire, Tie
7 532131959 Bolt, Handle 5/16-18 x 1.75
8 532087692 Knob, Handle
9 532176594 Bail, Cont. Wire Dlx Comf. Yel
10 532161551 Bolt, Sq. Neck
11 873990500 Nut, Hex Lockwasher Ins. 5/16-18 UNC
12 532051793 Cotter, Hairpin
13 532133107 Engine zonecontrol cable
14 532125162 Bracket, Upstop
15 532083816 Screw, Hex Washer Head Tapping 10-2
16 532162085 Kit, Door Rear
17 532161548 Seal, Door
18 532165261 Plug, Mulcher
19 532176599 Kit, Housing
20 532164548 Handle, Bracket Asm. Left
21 532169306 Handle, Bracket Asm. Right
22 532150078 Screw, Hex Wshd
23 532163183 Bolt, Hex Head 5/16-18 x 5/8
24 532063124 Nut, Hex Lock Wshr 5/16-18
25 532161333 Baffle, Side
26 532163409 Screw 12 x 5/8
27 532161550 Skirt
28 532088652 Screw, Hinge 1/4-20 x 1.25
29 532177652 Belt Cover, Top
30 532851514 Adapter, Blade w/key Longer
31 532159267 Blade, 21”
32 532851074 Washer, Hardened
33 532850263 Lockwasher, Helical Spring 3/8
34 532851084 Screw, Hex Head 3/8-24 x 1.38
35 532169809 Pulley, Fixed
36 532170045 Bearing Support Assy.
KEY PART
NO. NO. DESCRIPTION
37 532150406 Bolt, Engine
3 8 - - - - - Engine B&S 120602
Order parts from engine manufacturer
39 532169111 Grass Catcher Bag
40 532161358 Grass Catcher Frame
41 532107339 Danger Decal
45 532166034 Engagement Rod
46 532166041 Bushing
48 532169605 Retainer Clip
49 532177653 Clamp
50 532054583 Screw
51 532169980 Spacer
52 532170868 Wave Washer
53 532173041 Belt Cover, Bottom
54 532750097 Screw
55 532177651 Cable Support Bracket
56 532063601 Nut
57 532177656 Bracket Assy.
58 532057808 Screw
59 532166042 V-Groove Pulley
60 532166050 Idler Arm Spacer
61 532145212 Flange Nut
62 532155552 Locknut
63 532177655 Idler Arm
64 532166043 Idler Pulley
65 532160829 Shoulder Bolt
66 532171962 Door Assy.
67 532166028 Deflector, Door
68 532088349 Nut
69 532168246 Throttle Control
70 532144929 Screw
71 532054583 Screw
73 532087677 Hi Pro Key
74 532083816 Screw
75 532111190 Cable Clamp
- - 532162300 Warning Decal (Not Shown)
- - 532177951 Owner's Manual (English/French)
Page 4
REPAIR PARTS
ROTARY LAWN MOWER MODEL NUMBER 6521RS (6521RSA)
www.mymowerparts.com
18
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
Page 5
REPAIR PARTS

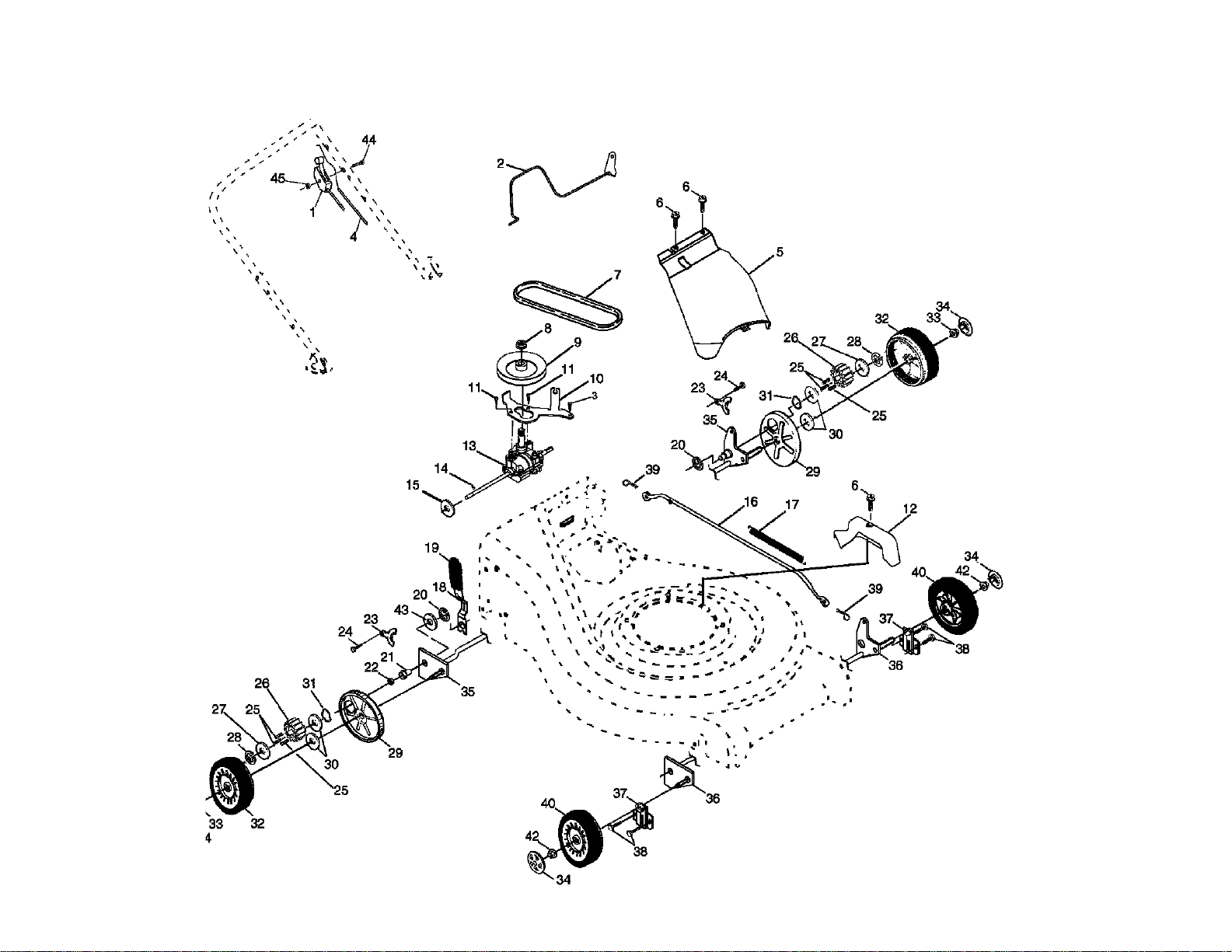

ROTARY LAWN MOWER MODEL NUMBER 6521RS (6521RSA)
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
www.mymowerparts.com
19
KEY PART
NO. NO. DESCRIPTION
1 532170960 Speed Control
2 532176593 Bail Control Drive
3 817060408 Screw
4 532170050 Drive Cable
5 532161537 Cover Drive
6 532750634 Screw Thdrol 10-25 x .50
7 532166060 V-Belt
8 532132010 Nut Lock Flanged 3/8-16 Zinc
9 532166049 Pulley Driven
10 532177654 Belt Keeper Bracket
11 817541011 Screw Hex Wash Head 10-24 X .668
12 532166189 Pivot Rod Cover
13 532166388 Transmission Asm.
14 532145354 Pin Spring Thrust
15 532057079 Washer Hardened
16 532161584 Rod Connecting
17 532161602 Spring Extension
18 532164554 Spring Selector
19 532161961 Knob Selector Spring
20 812000022 E-Ring 7/8
21 532163365 Bearing Support
22 532169911 Bearing Ball
KEY PART
NO. NO. DESCRIPTION
23 532164555 Retainer Drive Asm. Stmp.
24 532057808 Screw Hex Head Tapping 1/4-20 x .75
25 532170011 Drive Pawl
26 532166450 Pinion, Drive
27 532052160 Washer
28 812000058 E-Ring 7/16
29 532088080 Cover, Dust Wheel
30 532067725 Washer 1/2 x 1-1/2 x .134
31 532057143 Wave Washer
32 532176592 Wheel 9 x 2
33 532145212 Nut Hex Flange Lock
34 532077400 Hubcap
35 532164552 Shaft Asm. Rear
36 532164550 Shaft Asm. Front
37 532161463 Retainer Front Shaft
38 532163409 Screw 12 x 5/8
39 532700279 Clip Retainer
40 532148435 Wheel 8 x 2
42 532083923 Nut, Hex Flange Lock 3/8-16
43 819572216 Washer
44 532144929 Screw 1/4 x 2.12
45 532751152 Locknut
