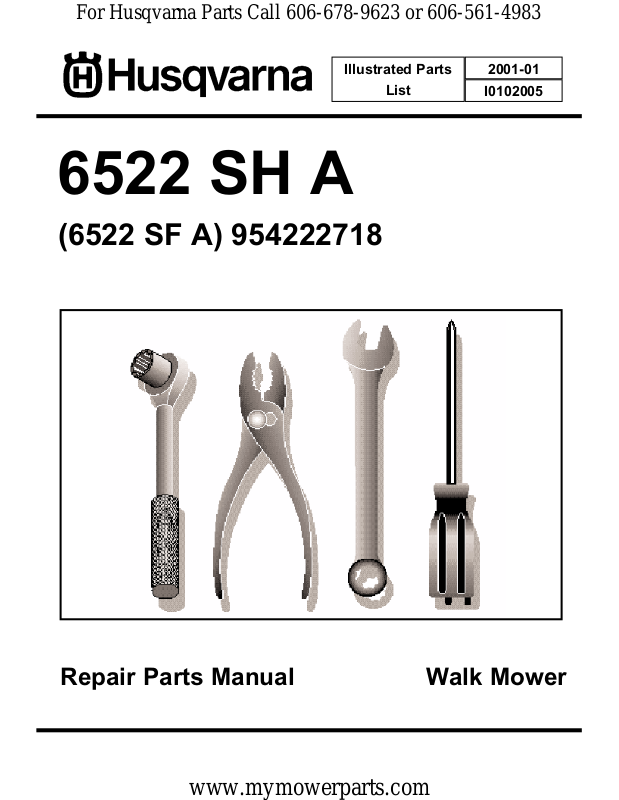

Page 1
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
Illustrated Parts
6522 SH A
(6522 SF A) 954222718
List
2001-01
I0102005
Repair Parts Manual Walk Mower
www.mymowerparts.com

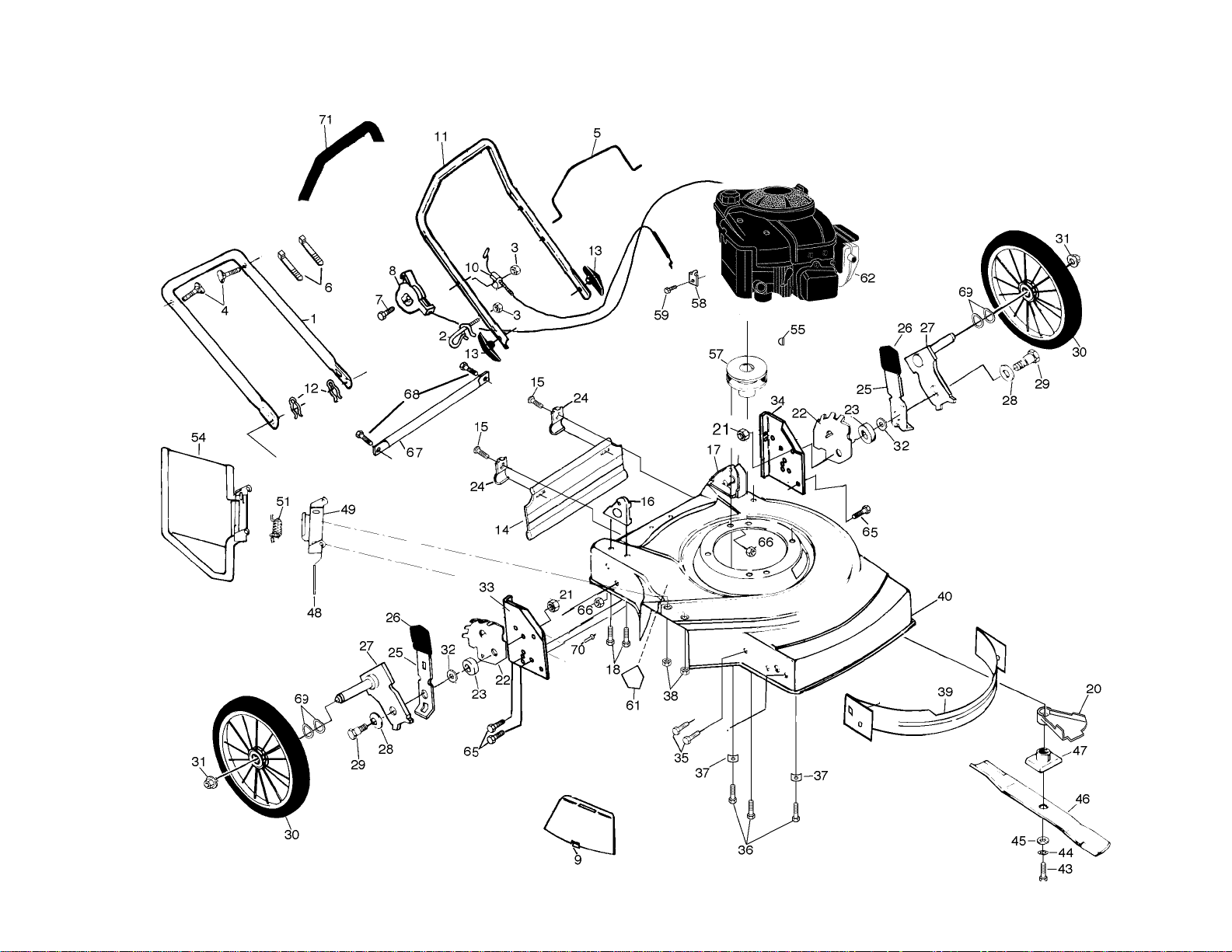

Page 2
REPAIR PARTS
ROTARY LAWN MOWER - - MODEL NUMBER 6522SH (6522SHA)
www.mymowerparts.com
16
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
Page 3
REPAIR PARTS
ROTARY LAWN MOWER - - MODEL NUMBER 6522SH (6522SHA)
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
KEY PART
NO. NO. DESCRIPTION
www.mymowerparts.com
17
1 532153605 Lower Handle
2 532153638 Rope Guide
3 532063601 Locknut 1/4-20
4 532131959 Handle Bolt
5 532176580 Control Bar
6 532066426 Wire Ties
7 532144929 Hex Washer Head Screw 1/4-20 x 2-1/8
8 532166971 Throttle Control
9 532125444 Mulcher Plate
10 532130861 Engine Zone Control Cable
11 532178067 Upper Handle
12 532051793 Hairpin Cotter
13 532136376 Handle Knobs
14 532140540 Rear Skirt
15 532750097 Hex Head Screw
16 532170975 Handle Bracket Assembly (Right)
17 532170977 Handle Bracket Assembly (Left)
18 532149741 Screw 5/16-18 x 3/4
20 532134612 Debris Shield
21 532751592 Locknut
22 532155047 Wheel Adjusting Bracket
23 532146630 Spacer
24 532125207 Skirt Bracket
25 532141730 Selector Spring
26 532087877 Selector Knob
27 532162233 Axle Arm Assembly
28 532061651 Belleville Washer
29 532142748 Shoulder Bolt 3/8-16
30 532752063 Wheel & Tire Assembly (Rear)
31 532083923 Flanged Locknut 3/8-16
32 532088348 Flat Washer
33 532178065 Wheel Support Bracket (RT)
KEY PART
NO. NO. DESCRIPTION
34 532178066 Wheel Support Bracket (LT)
35 817600406 Screw
36 532150406 Thread Rolling Screw 3/8-16 x 1
37 532125078 Engine Washer
38 532063601 Nut
39 532170031 Front Baffle Kit
40 532176605 Mower Housing Kit (Includes Key No. 61)
43 532851084 Hex Head Screw 3/8-24 x 1-3/8 Gr. 8
44 532850263 Helical Washer 3/8
45 532851074 Hardened Washer
46 532141114 22'’ Blade
47 532851514 Blade Adapter
48 532147286 Hinge Rod
49 532087593 Housing Bracket
51 532087589 Torsion Spring
54 532850778 Discharge Guard
55 532087677 Hi-Pro Key
57 532084596 Engine Pulley
58 532213146 * Cable Clamp
59 532083816 Screw #10 x 5/8
61 532107339 Danger Decal
6 2 - - - - - - - - - *Engine - Briggs & Stratton 120602
Order parts from engine manufacturer
65 874760612 Bolt
66 532751592 Nut
67 532177141 Support Rod
68 532054583 Screw hex Tap. 1/4/20
69 532057143 Wave Washer
70 532128415 Pop Rivet
71 532164265 Foam Grip
- - 532162300 Warning Decal
- - 532125381 Rear Baffle (Not Shown)
- - 532177949 Owner’s Manual (English/French)
Page 4
REPAIR PARTS
ROTARY LAWN MOWER - - MODEL NUMBER 6522SH (6522SHA)
www.mymowerparts.com
18
For Husqvarna Parts Call 606-678-9623 or 606-561-4983

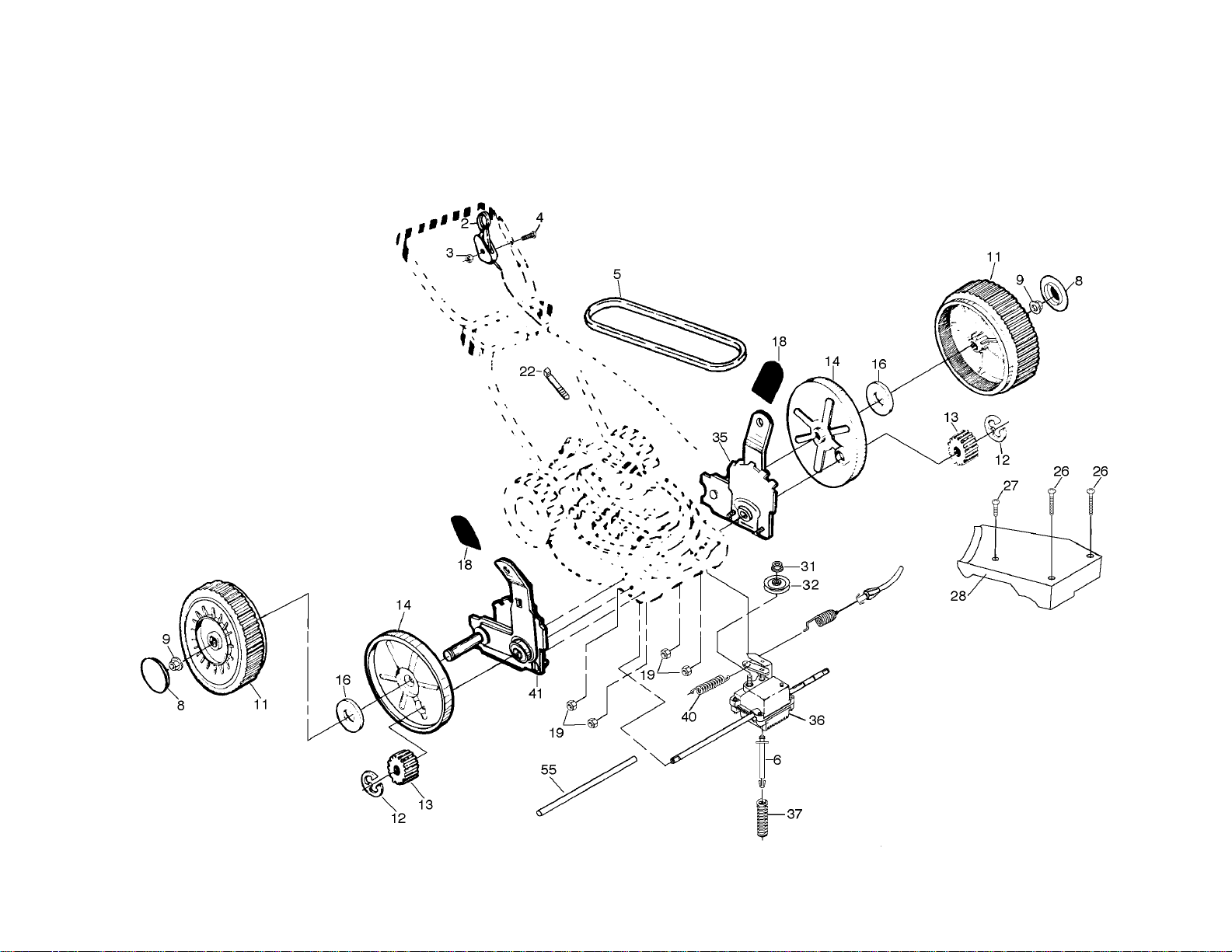

Page 5
REPAIR PARTS
ROTARY LAWN MOWER - - MODEL NUMBER 6522SH (6522SHA)
www.mymowerparts.com
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
19
KEY PART
NO. NO. DESCRIPTION
2 532145755 Drive Control
3 532751152 Locknut #10-24
4 532158755 Hex Washer Head Screw 1/4-20 x 2.12
5 532146527 V-Belt
6 532150495 Spring Retainer
8 532077400 Hubcap
9 532145212 Flanged Locknut 3/8-16
11 532088558 Wheel & Tire Assembly
12 812000058 E-Ring
13 532137054 Pinion
14 532088080 Dust Cover
16 532067725 Washer 1/2 x 1-1/2 x .134
18 532087877 Selector Knob
KEY PART
NO. NO. DESCRIPTION
19 532063601 Hex Locknut 1/4-20
22 532066426 Wire Tie
26 532146072 Pan Head Tapping Screw #10-24 x 2-3/4
27 532750097 Hex Head Tapping Screw #10-2
28 532700422 Drive Cover
31 532132010 Hex Flange Nut
32 532137052 Drive Pulley
35 532151521 Wheel Adjuster Assembly (Left)
36 532702511 Gear Case Assembly
37 532137090 Spring
40 532075192 Spring
41 532151520 Wheel Adjuster Assembly (Right)
55 532086012 Driveshaft Cover
Page 6
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
ROTARY LAWN MOWER - - MODEL NUMBER 6522SH (6522SHA)

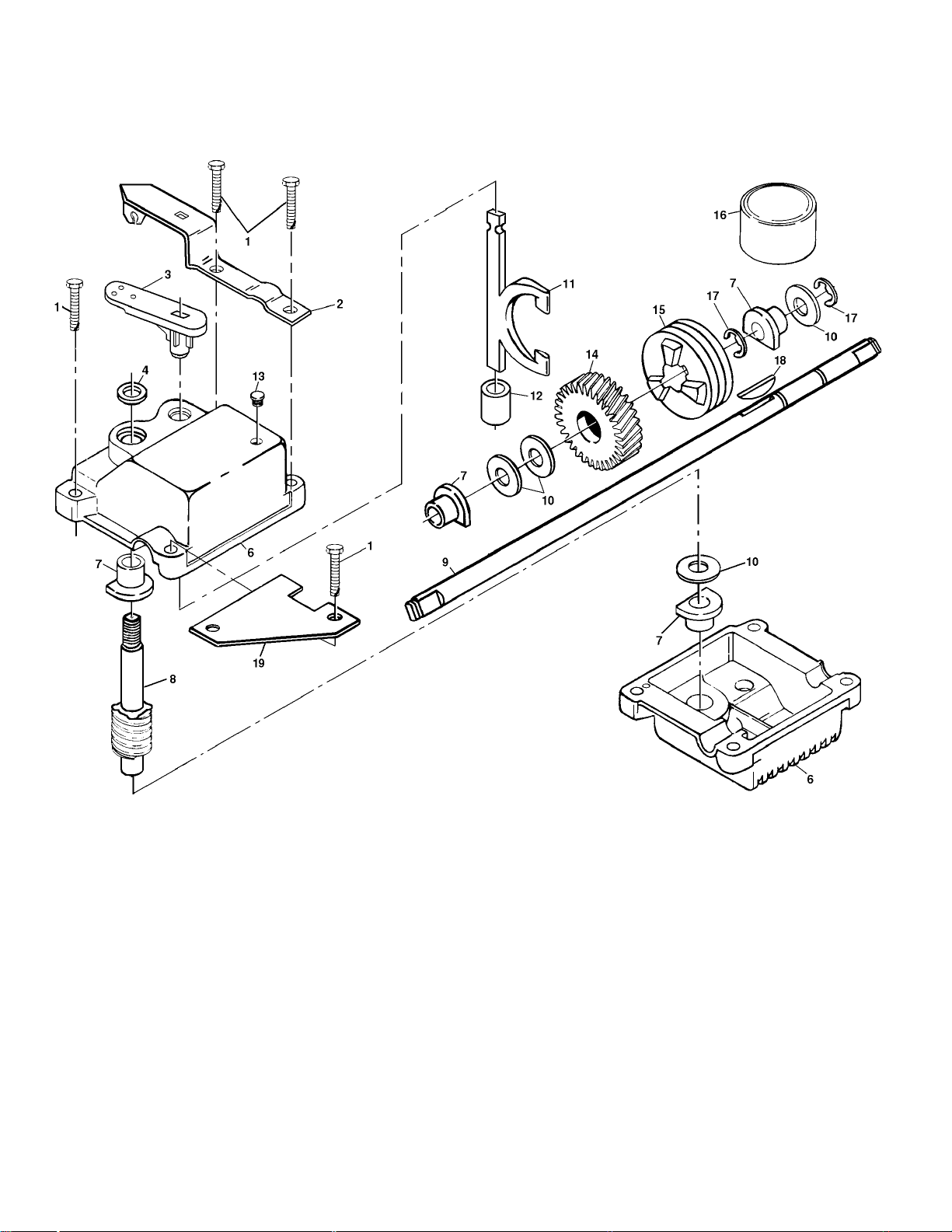

GEAR CASE ASSEMBLY PART NUMBER 532702511
KEY PART
NO. NO. DESCRIPTION
1 817490416 Tapping Screw 1/4-20 x 1-1/4
2 532140269 Engagement Bracket
3 532137053 Shifter
4 532057072 Seal
6 532048373 Gear Case Halves Kit
(Includes Key Nos. 4, and 7)
7 532077881 Bearing
8 532137051 Worm Shaft
9 532137074 Drive Shaft
www.mymowerparts.com
KEY PART
NO. NO. DESCRIPTION
10 532057079 Hardened Washer
11 532131484 Clutch Yoke
12 532700343 Bushing
13 532086447 Plug
14 532137050 Helical Gear
15 532750436 Clutch Jaw
16 532750369 Grease
17 812000003 E-Ring
18 532850848 Hi-Pro Key
19 532125441 Spring Bracket
20
