For Husqvarna Parts Call 606-678-9623 or 606-561-4983

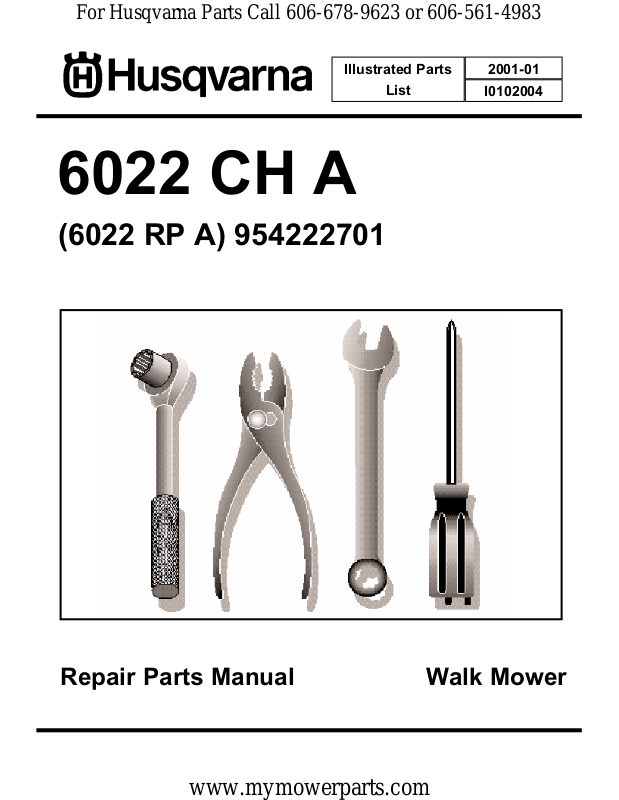

Illustrated Parts
6022 CH A
(6022 RP A) 954222701
List
2001-01
I0102004
Repair Parts Manual Walk Mower
www.mymowerparts.com
Page 2

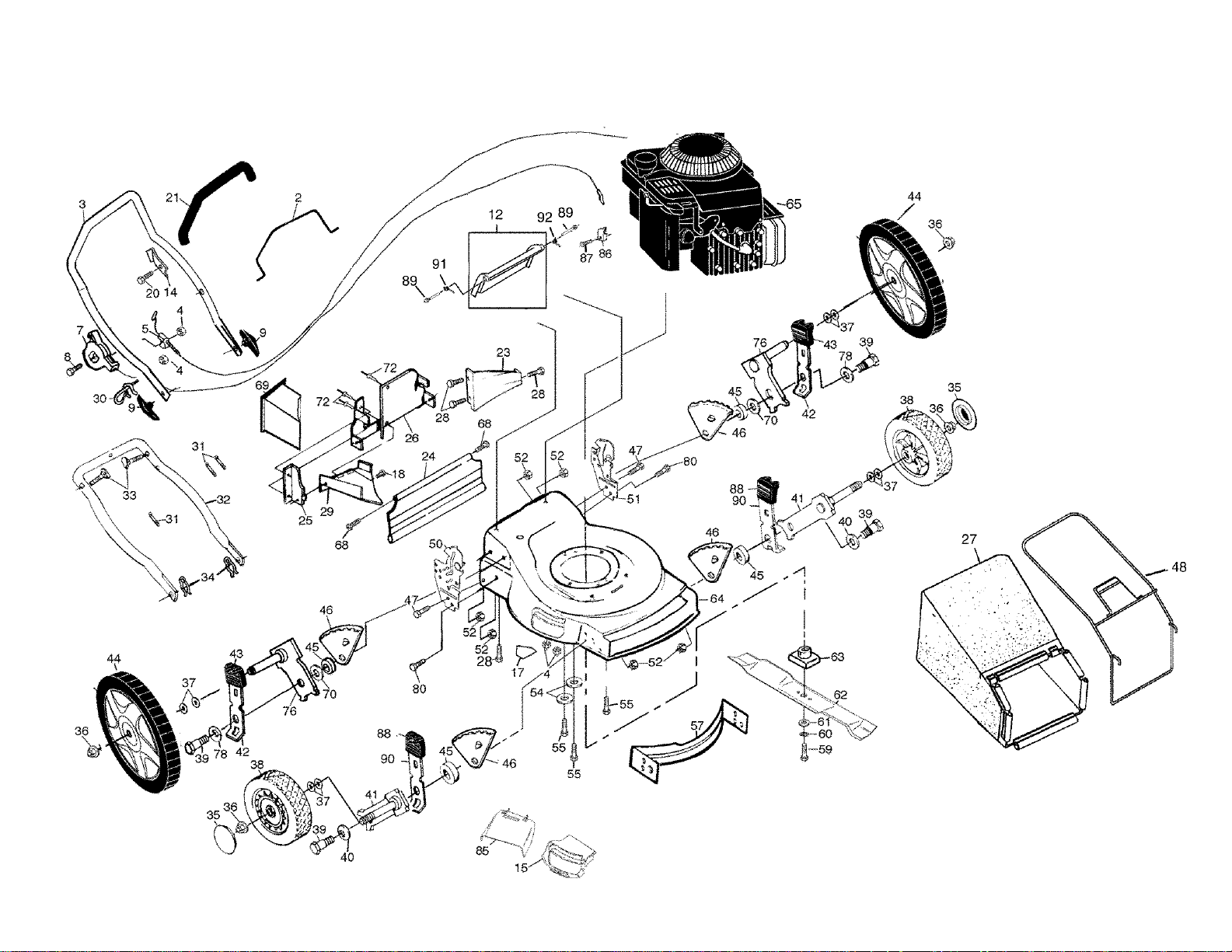

REPAIR PARTS
ROTARY LAWN MOWER MODEL NUMBER 6022CH (6022CHA)
www.mymowerparts.com
16
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
Page 3
REPAIR PARTS
ROTARY LAWN MOWER MODEL NUMBER 6022CH (6022CHA)
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
KEY PART
NO. NO. DESCRIPTION
2 532176573 Control Bar
3 532167163 Upper Handle
www.mymowerparts.com
17
4 532063601 Locknut
5 532130861 Engine Zone Control Cable
7 532700637 Throttle Control
8 532144929 Hex Washer Head Screw 1/4-20 x 2-1/8
9 532136376 Handle Knob
12 532170947 Rear Door Kit
14 532125162 Upstop Bracket
15 532150756 Combi-Cut Mulcher
17 532107339 Danger Decal
18 532150050 Screw
20 532750097 Hex Washer Head Screw #10-24
21 532164265 Handle Grip
23 532125348 Rear Baffle
24 532140540 Rear Skirt
25 532138860 Side Baffle
26 532166800 Back Plate
27 532176575 Grass Bag
28 532054583 Screw Hex Head 1/4-20 x 1/2
29 532177133 Discharge Baffle
30 532132001 Rope Guide
31 532066426 Wire Ties
32 532153605 Lower Handle
33 532131959 Handle Bolt
34 532051793 Hairpin Cotter
35 532077400 Hubcap
36 532083923 Flanged Locknut
37 532057143 Wave Washer
38 532750550 Wheel & Tire Assembly (Front)
39 532142748 Shoulder Bolt
40 532062335 Belleville Washer
41 532149857 Axle Arm
42 532177132 Selector Spring
43 532175477 Selector Knob
KEY PART
NO. NO. DESCRIPTION
44 532752063 Wheel & Tire Assembly (Rear)
45 532146630 Spacer
46 532155047 Wheel Adjusting Bracket R.R.
47 532150078 Self-tapping Screw 5/16-18 x 3/4
48 532169931 Catcher Frame
50 532177130 Handle Bracket (Right)
51 532177131 Handle Bracket (Left)
52 532751592 Locknut 3/8-16
54 532125078 Washer
55 532150406 Hex Head Thread Rolling Screw 3/8-16 x 1
57 532170557 Front Baffle
59 532851084 Hex Head Machine Screw 3/8-24 x 1-3/8 Gr. 8
60 532850263 Helical Lock Washer
61 532851074 Hardened Washer
62 532141114 Blade 22"
63 532851514 Blade Adapter
64 532176576 Lawn Mower Housing Kit (Includes Key No. 17)
6 5 -- -- -- -- *Engine - Briggs and Stratton Model No. 12H802
Order parts from engine manufacturer
68 532088652 Hinge Screw
69 532166649 Mulcher Plug
70 532088348 Flat Washer
72 532128415 Pop Rivet
76 532162233 Axle Arm Assembly
78 532061651 Spacer
80 874760612 Screw
85 532150653 Clip on Guard
86 532111190 Cable Clamp
87 532083816 Screw
88 532087877 Selector Knob
89 532165912 Door Bolt
90 532141730 Selector Spring
91 532170939 Door Spring RH
92 532170938 Door Spring LH
- - 532162300 Warning Decal
- - 532177948 Owner's Manual (English/French)
