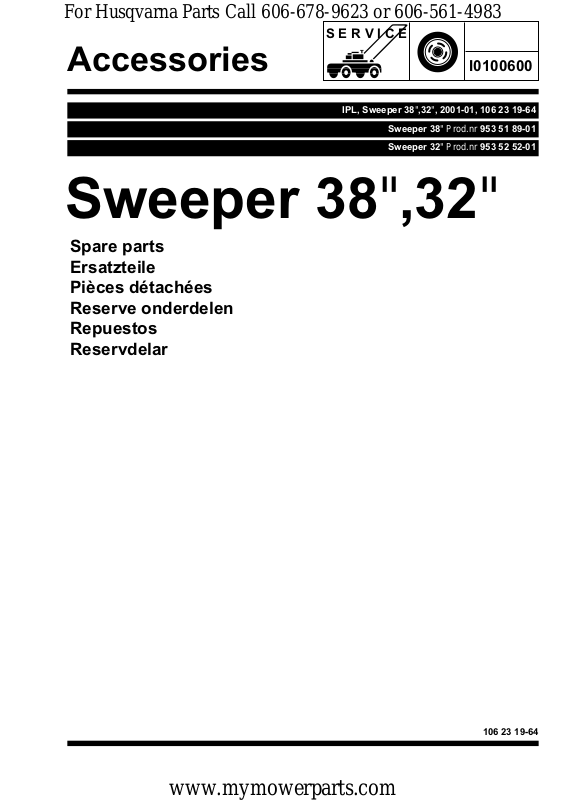

Page 1
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
SERVICE
Accessories
IPL, Sweeper 38",32", 2001-01, 106 23 19-64
Sweeper 38" Prod.nr 953 51 89-01
Sweeper 32" Prod.nr 953 52 52-01
I0100600
Sweeper 38",32"
Spare parts
Ersatzteile
Pièces détachées
Reserve onderdelen
Repuestos
Reservdelar
www.mymowerparts.com
106 23 19-64
Page 2
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
PARTS

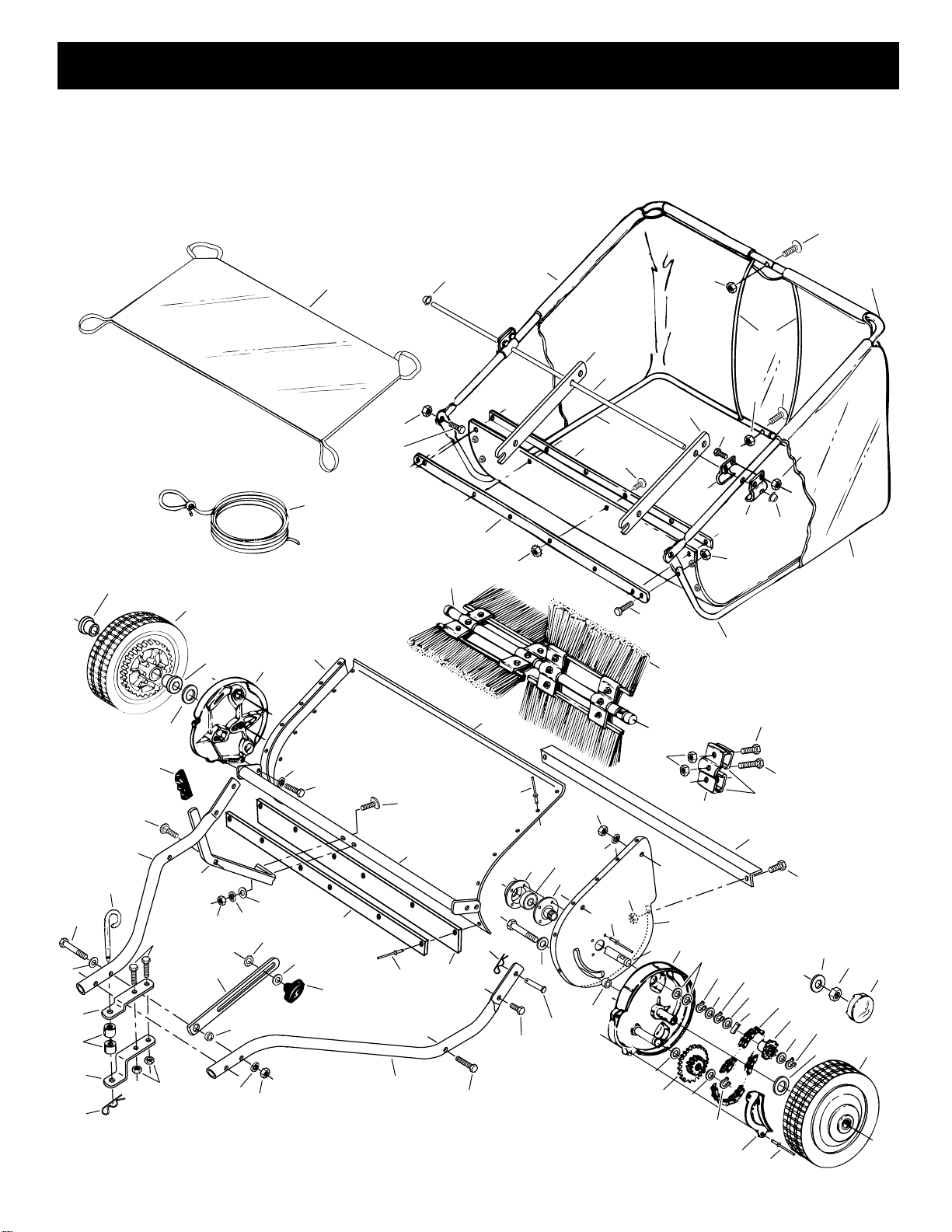

REPAIR PARTS FOR MODELS 45-02091 (32") & 45-01971 (38") - HIGH PERFORMANCE LAWNSWEEPERS
81
69
58
77
59
78
65
76
64
71
1
74
24
66
67
63
60
14
57
64
AA
A
13
68
13
67
48
12
75
13
72
55
4
31
91
70
39
49
61
62
51
56
83
84
82
C
21
7
17
C
33
73
89
16
14
13
15
21
7
40
43
25
18
19
D
3
61
47
43
79
21
22
34
38
28
30
31
52
26
79
21
21
29
6
30
27
54
20
23
50
81
67
80
90
46
45
32
29
24
36
37
63
B
B
44
42
30
7
80
86
85
53
18
5
11
10
9
88
8
7
2
D
87
1
www.mymowerparts.com
Page 3
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
Ref Husq./Jons.
No Model # Description
1 531 00 74-10 Hitch Tube R.H. 38"
1 531 00 74-09 Hitch Tube R.H. 32"
2 531 00 74-12 Hitch Tube L.H. 38"
2 531 00 74-11 Hitch Tube L.H. 32"
3 531 00 28-08 End Plate L.H.
4 531 00 28-09 End Plate R.H.
5 531 00 74-14 Wrapper 38"
5 531 00 74-13 Wrapper 32"
6 531 00 74-15 Rear Support Brace
6 531 00 74-16 Rear Support Brace
7 722 78 70-03 Rivet
8 506 62 22-01 Skirt 38"
8 531 00 76-17 Skirt 32"
9 531 00 76-09 Skirt & Bag Retainer 32"
9 531 00 74-17 Skirt Retainer 38"
10 531 00 74-19 Height Adjustment Ass’y. 38"
10 531 00 74-18 Height Adjustment Ass’y. 32"
11 531 00 28-15 Curved Hd. Bolt 5/16-18 x 1-5/8"
12 531 00 28-16 Washer Bowed 1" x .32" x .06"
13 735 11 64-05 Lock Washer 5/16"
14 873 22 05-00 Hex Nut 5/16-18 Thread
15 506 62 02-01 Brush Bushing Ass’y.
16 531 00 28-17 Ball Bearing
17 506 62 04-01 Bearing Retainer
18 506 62 05-01 Brush Shaft 38"
18 531 00 76-15 Brush Shaft 32"
19 531 00 74-20 Brush 32"
19 531 00 74-21 Brush 38"
20 725 23 70-51 Hex Bolt 1/4-20 x 3/4" (Gr. 5)
21 531 00 76-29 Hex Lock Nut 1/4-20 Thread
22 506 62 06-01 Brush Retainer (Double)
23 506 62 07-01 Brush Retainer (Single)
24 531 00 27-41 Flat Washer 1-1/4" x . 78 I.D.
25 506 62 17-01 Gear Sprocket Sub Ass’y.
26 506 62 18-01 Dust Cover
27 506 62 19-01 Pawl
28 506 62 23-01 Retaining Ring 3/4"
29 506 62 24-01 Retaining Ring .594" I.D.
30 506 62 25-01 Shim Washer 1-1/8" x .594" x .025"
31 874 78 05-12 Hex Bolt 5/16-18 x 3/4"
32 734 11 73-41 Flat Washer 1-1/2" x .375" x .062"
33 734 11 72-01 Washer 3/8" Standard
34 506 62 47-01 Flat Washer .78" x 1.25" x .06"
36 506 62 29-01 Hex Lock Nut 3/8-24 Thread
37 506 62 30-01 Hub Cap
38 506 62 31-01 Retaining Ring 1/2"
39 506 62 33-01 Hex Bolt 3/8-24 x 3-1/4" (Gr. 5)
www.mymowerparts.com
Page 4
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
Ref Husq./Jons.
No Model # Description
40 506 62 66-01 Spacer 13/32" x 5/8" x 3/16"
41 531 00 27-99 Ratchet Sprocket R.H. (Not Shown)
42 506 62 35-01 Ratchet Sprocket L.H.
43 506 62 36-01 Washer 1/2" x 1" x .02"
44 531 00 27-45 Roller Chain 3/8" x 1/2-40
45 531 00 28-21 Hex Bolt, 1/4-20 x 1/2"
46 531 00 76-26 Hex Bolt 1/4-20 x 1"
47 531 00 27-44 Wheel Drive Housing Ass’y. L.H.
48 531 00 27-43 Wheel Drive Housing Ass’y. R.H.
49 531 00 76-03 Upper Hopper Tube L.H. 32"
49 506 62 38-01 Upper Hopper Tube R.H. 38"
50 506 62 39-01 Upper Hopper Tube L.H. 38"
50 531 00 76-02 Upper Hopper Tube R.H. 32"
51 506 62 42-01 Lower Hopper Tube R.H. 38"
51 531 00 76-04 Lower Hopper Tube R.H. 38"
52 531 00 76-05 Lower Hopper Tube L.H. 32"
52 506 62 43-01 Lower Hopper Tube L.H. 38"
53 531 00 76-14 Bag Frame Strap 32"
53 506 62 15-01 Bag Frame Strap 38"
54 506 62 44-01 Hopper Support Rod
55 531 00 27-34 Hopper Rope
56 506 62 09-01 Skirt & Bag Retainer 38"
56,9 531 00 76-09 Skirt & Bag Retainer 32"
57 531 00 28-28 Height Adjustment Strap
58 531 00 27-72 Hitch Bracket
59 506 62 12-01 Hitch Bracket
60 531 00 28-31 Height Adjustment Handle
61 531 00 74-23 Bag Arm
62 531 00 74-24 Hopper Bag Pivot Rod 32"
62 531 00 74-25 Hopper Bag Pivot Rod 38"
63 531 00 27-46 Wheel Ass’y. Complete
64 506 62 54-01 Wheel Bearing
65 531 00 28-34 Hex Bolt 5/16-18 x 3"
66 531 00 28-35 Hex Bolt 5/16-18 x 2-1/4"
67 531 00 76-16 Hex Lock Nut 5/16-18 Thread
68 531 00 28-36 Spacer Bushing
69 734 11 52-01 Flat Washer 1/4" Standard
70 506 62 60-01 Wing Knob 5/16-18 Thread
71 872 14 05-06 Carriage Bolt 5/16-18 x 3/4"
72 734 11 64-01 Washer 5/16" Standard
73 531 00 74-26 Hex Bolt 5/16-18 x 1"
74 506 62 64-01 Rubber Grip
75 531 00 28-39 Tooth Lock Washer 5/16"
76 506 62 56-01 Hitch Pin
77 506 62 65-01 Hitch Adjustment Tube
78 721 68 02-51 Hairpin Cotter 1/8" #4
79 506 62 67-01 Hopper Mount Clamp
www.mymowerparts.com
Page 5
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
Ref Husq./Jons.
No Model # Description
80 531 00 28-40 Palnut 3/8"
81 725 23 72-51 Curved Head Bolt 1/4-20 x 1"
82 725 23 74-71 Hex Bolt 1/4-20 x 1-1/4"
83 725 23 29-51 Slotted Truss Head Screw #10-32 x 5/8"
84 732 21 14-01 Hex Lock Nut #10-32 Thread
85 506 62 53-01 Hex Bolt 3/8-16 x 3/4" (Gr. 5)
86 873 68 06-00 Hex Lock Nut 3/8-16 Thread
87 531 00 28-38 Hex Bolt 5/16-18 x 1-3/4"
88 531 00 46-37 Hairpin Cotter 3/32" #3
90 506 62 40-01 Hopper Bag 38"
90 531 00 76-06 Hopper Bag 32"
91 531 00 76-07 Wind Screen 32"
91 506 62 41-01 Wind Screen 38"
