Page 1
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
SERVICE
11
I0101100
IPL, 136,141, 2001-05, 106 23 27-61
136, 141
Spare Parts
www.mymowerparts.com
Page 2
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
PARTS LIST NO.
DATE
5/30/01
106--232761
Replaces
106--232761 -- 12/12/00
WEED EATER PARTS LIST
PARAMOUNT PARTS LIST
POULAN PARTS LIST
HUSQVARNA PARTS LIST
Note: Illustration may differ from actual model due to design changes
R
R
R
R
MODEL(s)
136 & 141
PAGE NO.
1
20
2
1
3
45
6
7
8
9
26
25
27
10
11
15
12
13
14
Chain Brake
28
29
Assembly
16
19
17
18
30
32
31
33
21
22
34
Part No. Ref. Part No. DescriptionRef.

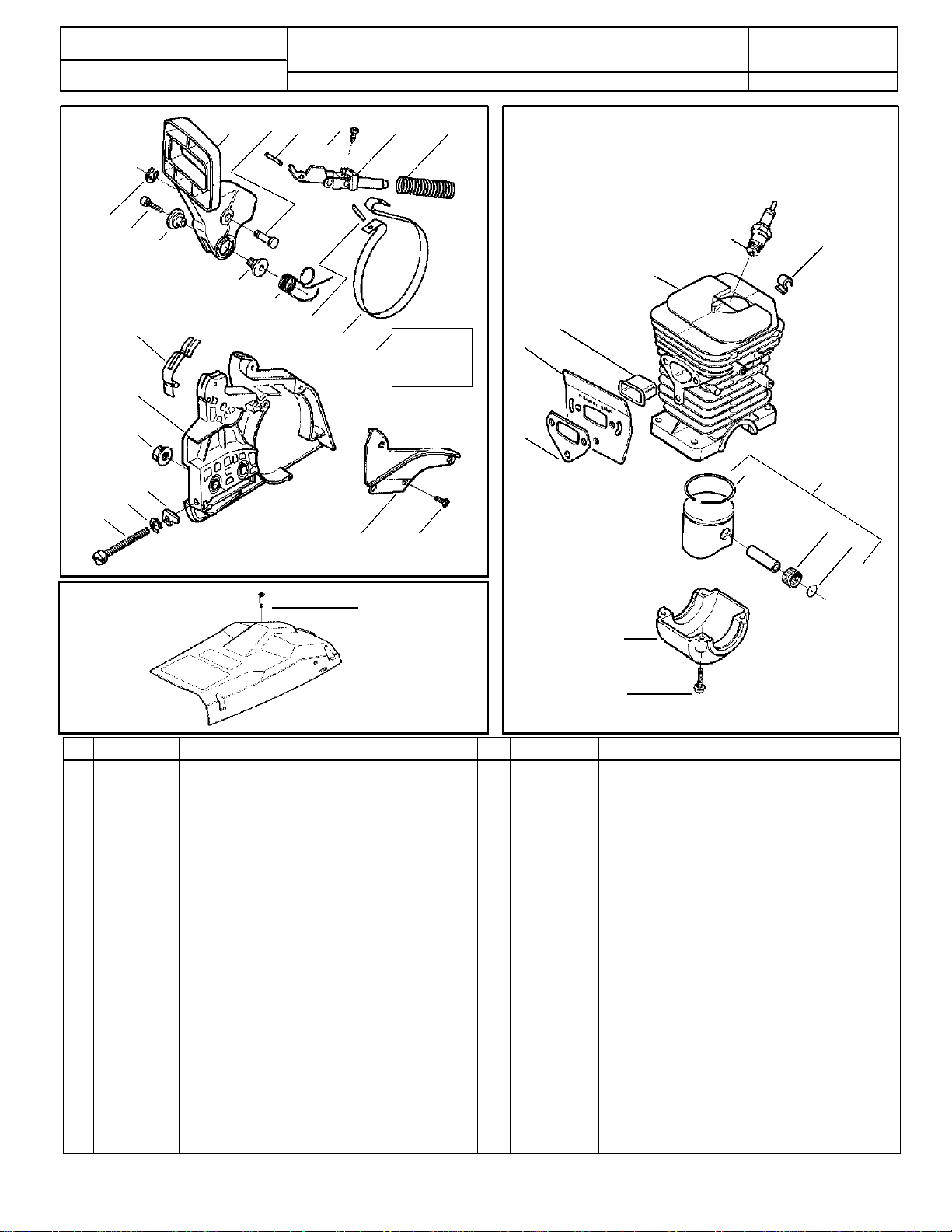

1 530071348 Actuating Lever
2 530029879 Pivot Pin
3 720123300 Straight Pin
4 503212810 Screw
5 530054741 Front Link Ass’y.
6 501875401 Chain Brake Spr ing
7 530038593 Retainer
8 530015914 Screw
9 501768001 Right Pivot Sleeve
10 501768101 Left Pivot Sleeve
11 530015910 Handguard Spring
12 721425250 Pin
13 530052232 Brake Band
14 530054802 Chain Brake Assembly
15 530029878 Position Spring
16 530049483 Clutch Cover
17 530015917 Nut--Bar
18 530015826 Bar Adjusting Pin
19 530038593 Retainer
20 530016110 Screw--Bar Adjusting
21 530053035 Chain Brake Spring Cover
22 503212810 Screw
23 530016154 Screw
24 530047609 Cylinder Shield Ass’y.
25 530015696 Clip
26 952030150 Spark Plug (RCJ--7Y)
27 -- Kit--Cylinder (incl.#35)
530069940 (136)
530069941 (141)
Description
23
24
35
36
28 530037652 Heat Insulator
29 530037640 Muffler- -Plate
30 530019205 Muffler Gasket
31 -- Piston Kit (Includes pin and 32,33,34)
530069944 (136)
530069454 (141)
32 -- Piston Ring
530029805 (136)
530029982 (141)
33 530032117 Piston Pin Bearing
34 530015697 Piston Pin Retainer
35 530049794 Cap--Crankcase
36 530015897 Screw
Not Shown
530031135 Scrench
530031136 Worm Gear Puller
530031112 Clutch Ass’y. Tool
530029887 Kickback Decal
530037912 Scabbard
www.mymowerparts.com
Page 3
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
PARTS LIST NO.
DATE
5/30/01
106--232761
Replaces
106--232761 -- 12/12/00
WEED EATER PARTS LIST
PARAMOUNT PARTS LIST
POULAN PARTS LIST
HUSQVARNA PARTS LIST
Note: Illustration may differ from actual model due to design changes
R
R
R
R
MODEL(s)
136 & 141
PAGE NO.
2
18
20
11
16
15
14
13
5
12
10
8
7
9
6
4
3
2
1
24
22
21
25
26
19
17
Part No. Ref. Part No. DescriptionRef.

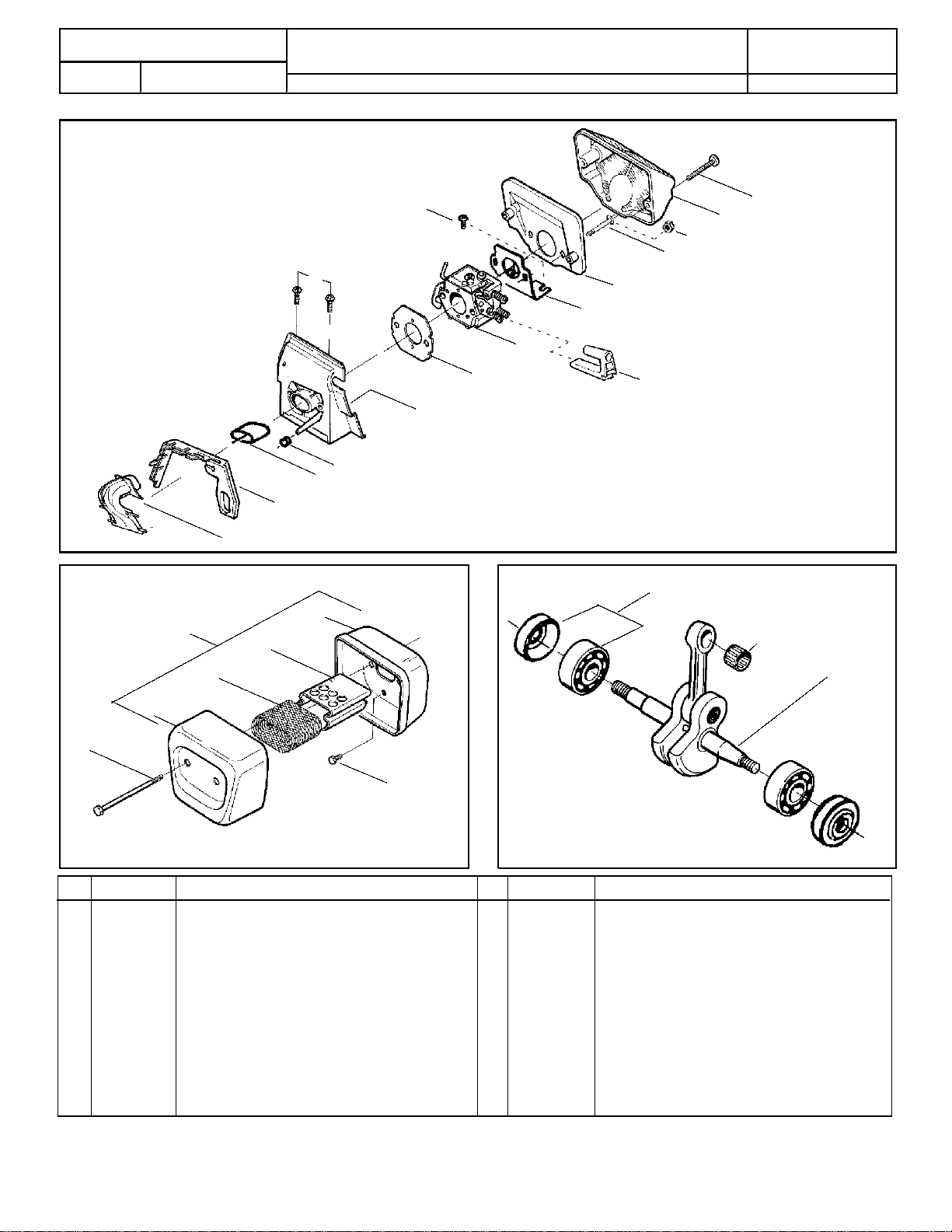

1 530029813 Turbo Air Cleaner Assembly
2 530019203 Seal -- Turbo Clean
3 530029814 Intake Sleeve
4 530053435 Impulse Seal
5 530015814 Screw
6 530037465 Adapter -- Carb.
7 530019172 Carburetor Gasket
8 -------- Carburetor
*****
530035482 WT--542 (Walbro)
530069629 WT--289 (Walbro)
9 530037466 Grommet--Final
10 530047767 Plate -- Support
11 530015896 Screw
12 530036582 Air Filter -- Bottom
***** Please refer to service information on last page for carburetor information.
Description
Zama -- C1Q--w6
23
13 530015968 Stud -- Carb.
14 530016008 Nut
15 530029811 Air--Filter -- Top
16 530015899 Screw
17 530016044 Screw
18 530069415 Muffler Kit (Includes 17,19,20,21 & 22)
19 530037254 Muffler Cover
20 530029810 Spark Arrestor Screen
21 530037246 Muffler Diffuser
22 530037251 Muffler Body
23 530015902 Muffler Bolt
24 530019259 Assy. --Bearing and Seal
25 530032117 Piston Pin Bearing
26 530029794 Crankshaft & Rod Assembly
www.mymowerparts.com
Page 4
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
PARTS LIST NO.
DATE
5/30/01
106--232761
Replaces
106--232761 -- 12/12/00
WEED EATER PARTS LIST
PARAMOUNT PARTS LIST
POULAN PARTS LIST
HUSQVARNA PARTS LIST
Note: Illustration may differ from actual model due to design changes
R
R
R
R
9
MODEL(s)
136 & 141
PAGE NO.
3
17
18
19
20
1
2
3
10
11
12
3
4
6
5
6
7
13
8
14
Oil Pump
15
A’ssy.
8
16
29
30
27
28
31
31
21
22
23
24
25
26
Part No. Ref. Part No. DescriptionRef.

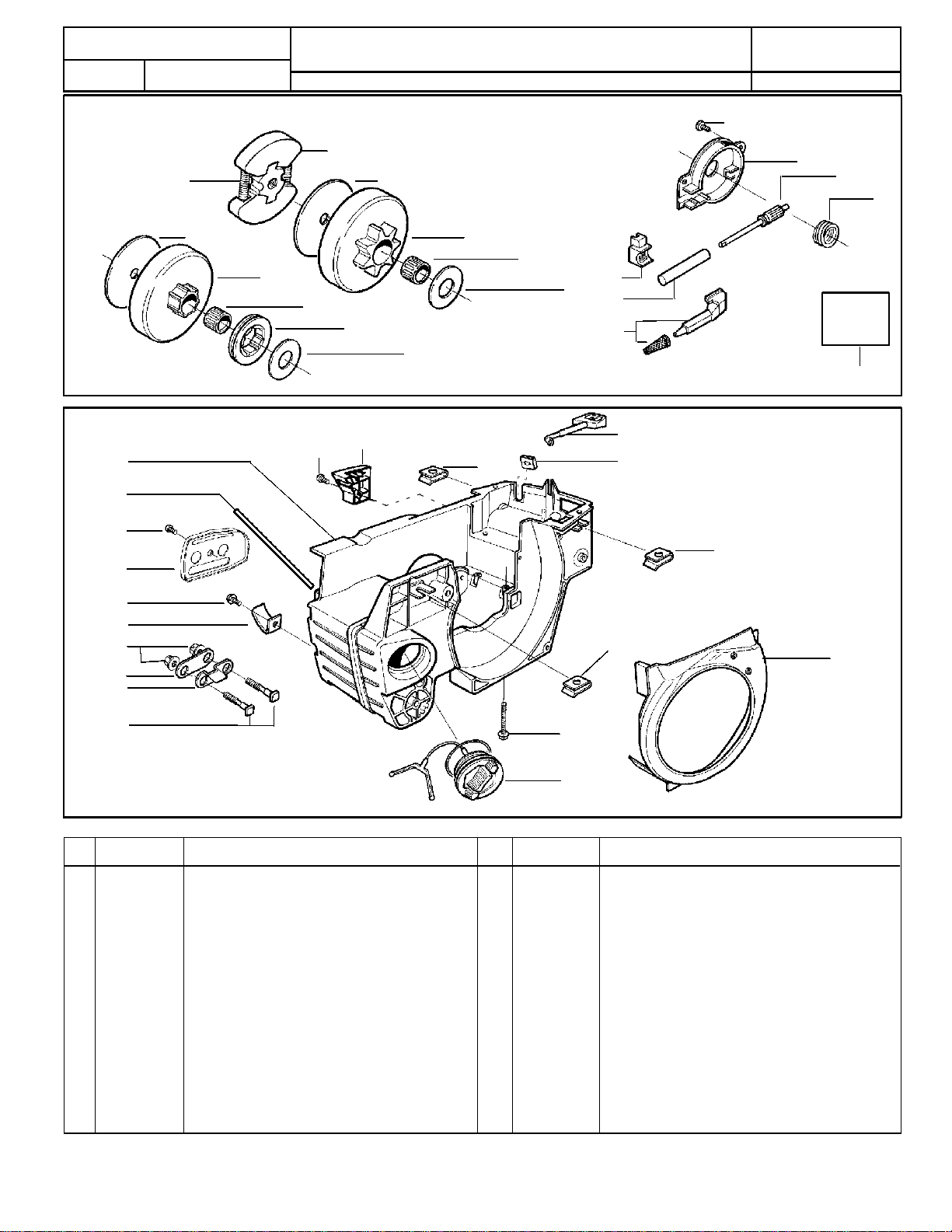

1 530014949 Clutch Assembly (incl. 2)
2 530094188 Spring -- Clutch
3 530015611 Clutch Washer
4 530069342 Clutch Drum w/Bearing Ass’y.
5 530069316 Drum, Adapt. & Bearing Kit (incl. 6 & 7)
6 530032119 Clutch Bearing
7 530028650 Rim--Floating (.325)
8 530015907 Thrust Washer
9 530015896 Screw
10 530029835 Oil Pump Housing
11 530029838 Plunger & Gear Assembly
12 530029833 Oil Pump Worm
13 530019174 Oil Seal
14 530029834 Oil Pump Barrel
15 530014776 Oil Pick- -Up and Screen Assembly
16 530014410 Oil Pump Assembly (Includes 10,11 & 14)
17 530069942 Kit -- Chassis Ass’y.
Description
31
32
33
34
18 530052440 Tube- -Oil Vent
19 530015896 Screw (optional)
20 530047855 Bar Plate
21 530015937 Screw
22 530029850 Chain Catcher
23 530015917 Nut
24 530019228 Gasket
25 530036043 Bar Stud Plate
26 530015877 Bar Bolt
27 530015893 Screw
28 530052428 Cover
29 530029831 Choke Lever
30 530029830 Grommet
31 530015922 Type ”U” Speed Nut
32 530029800 Baffle Plate
33 530016037 Screw
34 501765602 Assy.-- Oil T ank Cap
www.mymowerparts.com
Page 5
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
PARTS LIST NO.
DATE
5/30/01
106--232761
Replaces
106--232761 -- 12/12/00
WEED EATER PARTS LIST
PARAMOUNT PARTS LIST
POULAN PARTS LIST
HUSQVARNA PARTS LIST
Note: Illustration may differ from actual model due to design changes
R
R
R
R
MODEL(s)
136 & 141
PAGE NO.
4
1
11
12
2
13
14
3
9
4
5
15
16
17
6
8
18
19
7
9
10
33
21
20
23
24
25
Ref.
Part No.

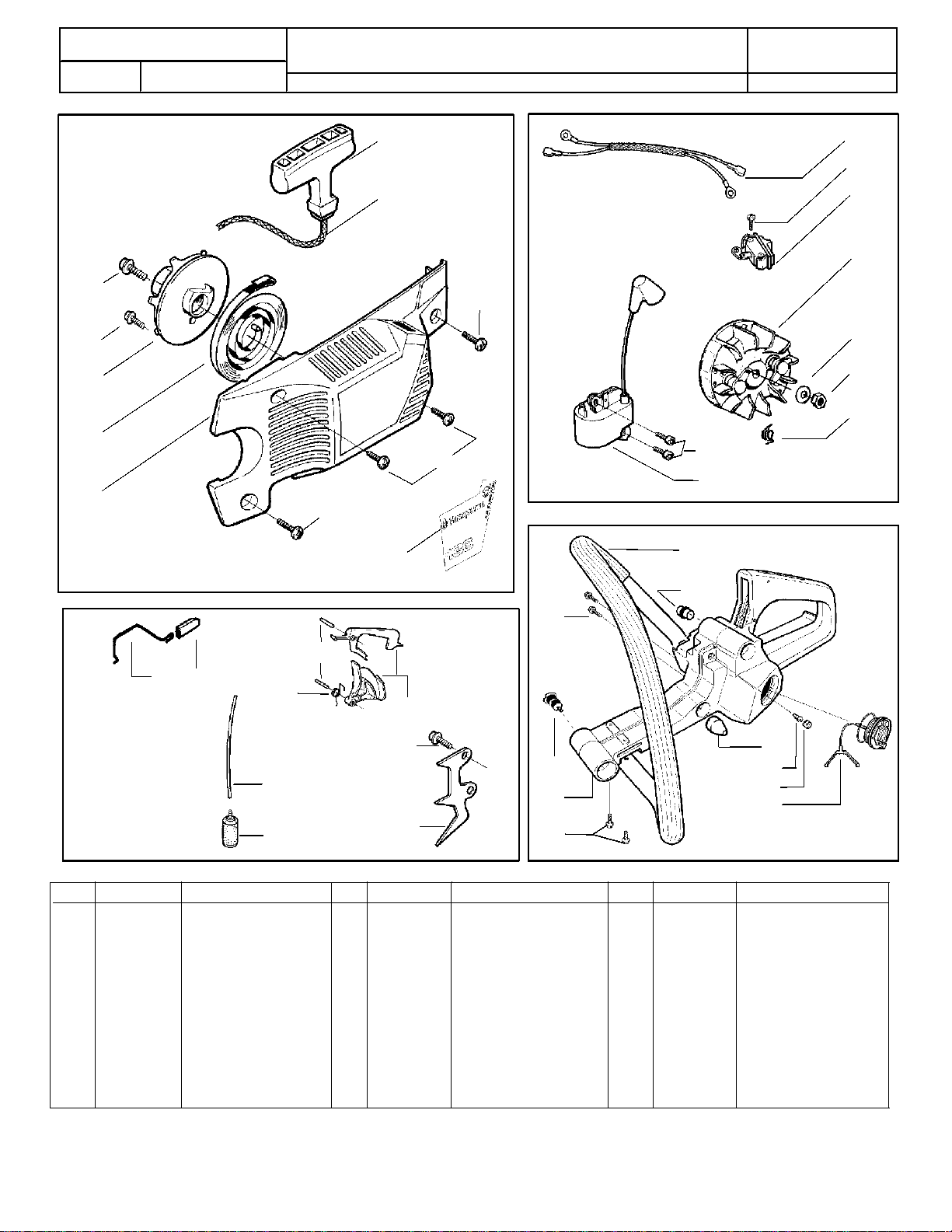

1 530038491 Starter Handle
2 530069232 Rope Kit
3 530015920 Screw
4 530016080 Screw
5 530069313 Starter--Pulley Kit
6 501763101 Recoil Spring
7 530047599 Fan Housing Assembly
8 530015892 Screw
9 530015893 Screw
10 ------ Decal --Model
530053459 136
530053460 141
11 530403257 Leadwire Harness Ass’y.
Description
22
26
27
28
Ref. Part No. Description
12 530015896 Screw
13 503717901 Ignition Switch
14 530039147 Assy. Flywheel (incl.16)
15 530015127 Flywheel Washer
16 530016071 Nut
17 530023817 Spring --Starter Dog
18 530015895 Screw
19 530039143 Module -- Ignition
20 530029869 Wire -- Throttle
21 530029863 Cap -- Wire
22 530029860 Pin
23 530023817 Spring -- Starter Dog
24 530069247 Kit -- Fuel line
29
30
31
32
34
35
36
37
38
Ref. Part No. Description
25 530014497 Assy. Fuel Pickup
26 530069587 Kit -- Throttle Trigger
27 530015906 Screw
28 530014381 Assy. Spike
29 530015940 Screw
30 501628701 Isolator
31 530052446 Assy . --Tank/Handle
32 530015906 Screw
33 530049876 Handle--Front
34 530052439 Isolator -- Limiter
35 530029984 Isolator Bumper
36 530026119 Valve -- Check
37 530029868 Plug -- Vent
38 501819602 Assy. Fuel Cap
www.mymowerparts.com
Page 6
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
PARTS LIST NO.
DATE
5/30/01
106--232761
Replaces
106--232761 -- 12/12/00
WEED EATER PARTS LIST
PARAMOUNT PARTS LIST
POULAN PARTS LIST
HUSQVARNA PARTS LIST
Note: Illustration may differ from actual model due to design changes
R
R
R
R

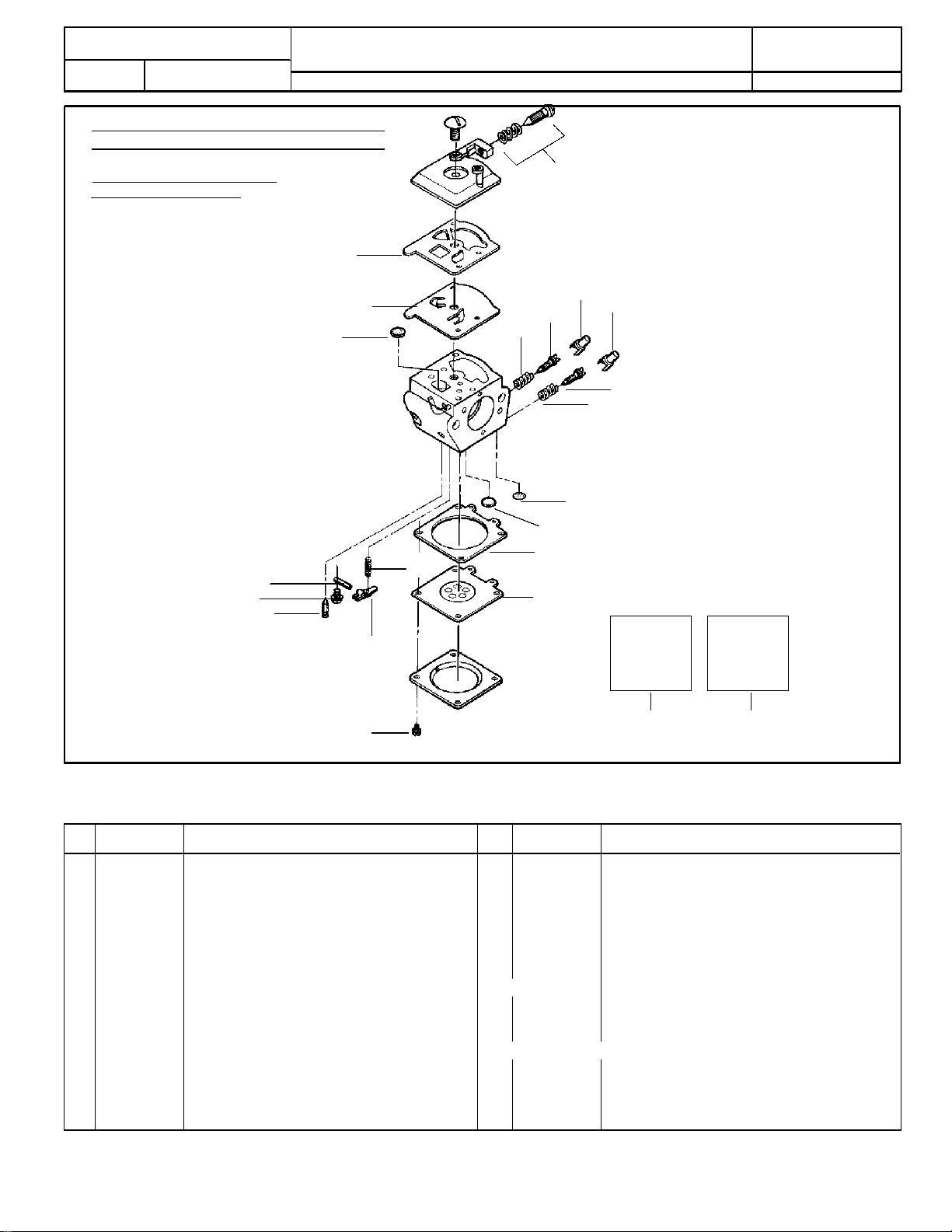

Carburetor Assembly # 530069629 (WT--289)
Carburetor Assembly # 530035482 (WT--542)
MODEL(s)
136 & 141
PAGE NO.
5
Carburetor CIQ--W6 Zama -See Service Reference
14
15
16
1
3
17
4
5
7
6
18
8
9
10
11
12
20
13
2
Carb.
Repair
Kit
Gasket/
Diaph.
Kit
DescriptionPart No. Ref. Part No. DescriptionRef.
1. 530035296 Idle Adv. Screw Kit
2. 530035031 Metering Lever
3. 530035164 Fuel Pump Gasket
4. 530035166 Fuel Pump Diaphragm
5. 507432582 Fuel Inlet Screen
6. 530035293 Needle Spring (Low Speed)
7. 530035281 Low Speed Needle
8. 530037259 High Speed Needle
9. 530035295 Needle Spring (High Speed)
10. 530035162 Welch Plug (5/16)
11. 530035225 Cup Plug
12. 530035165 Metering Diaphragm Gasket
13. 530035014 Metering Diaphragm
14. 530035028 Metering Lever Pin
15. 530035016 Metering Lever Pin Screw
16. 530035106 Inlet Needle Valve
17. 530038318 Limiter Cap High
18. 530038317 Limiter Cap Low
22
19 21
19. -- Carburetor Repair Kit (Incl. 3--5 & 10--18)
530069826 Walbro
530035269 Zama
20. 530035188 Metering Lever Spring
21. -- Gasket/Diaphragm Kit (Incl. 3, 4, 12 & 13)
530069844 Walbro
530035270 Zama
22. 530035021 Metering Cover Screw Ass’y
Not Shown
530031157 Limiter Cap Removal Tool
530031161 Limiter Cap InsertionTool
Zama Carburetor Service Reference
***** If replacing the complete Zama
Carburetor, it is not serviceable;
you will need to order # 530069629
Walbro Carburetor Ass’y.
www.mymowerparts.com
