SERVICE

I0100091

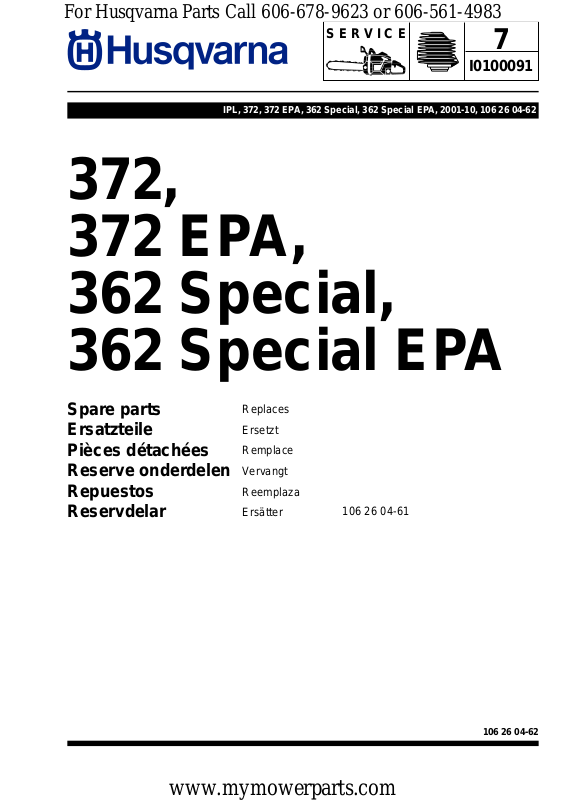

IPL, 372, 372 EPA, 362 Special, 362 Special EPA, 2001-10, 106 26 04-62

372, 372 EPA, 362 Special, 362 Special EPA

Spare parts Ersatzteile Pièces détachées Reserve onderdelen Repuestos Reservdelar

Replaces Ersetzt Remplace Vervangt Reemplaza Ersätter

106 26 04-61

www.mymowerparts.com

106 26 04-62

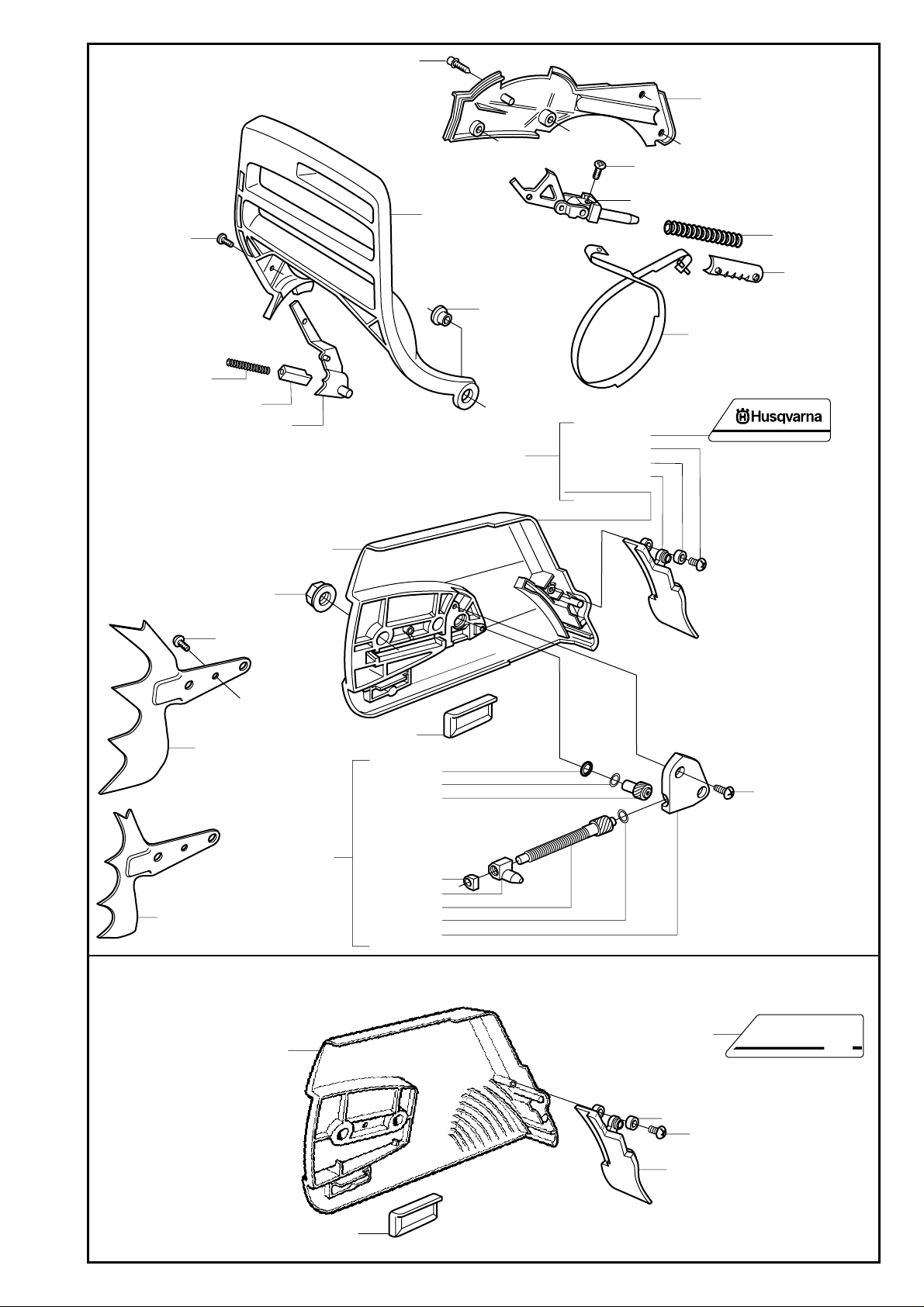

Page 2

For Husqvarna Parts Call 606-678-9623 or 606-561-4983

503 20 02-12 (x4)

503 75 11-03

503 21 28-10

503 20 25-12

503 43 65-01

503 83 81-02

537 00 87-01

*compl 537 03 35-01 372

503 22 00-01 (x2)

503 21 28-10

503 76 49-03

503 77 52-01

537 03 38-01

*537 03 35-71

503 21 28-10 503 89 70-01 503 76 29-02

501 87 53-03

503 70 99-01

503 79 27-01

503 75 22-01

503 92 27-01

372 WRAP

503 71 97-01 372

*compl 503 76 92-01 362

*537 04 41-02

*501 51 72-01

740 48 07-02 503 23 00-63 537 07 94-01

537 01 74-01 503 99 83-01 537 07 95-01 503 23 00-66 537 01 68-01

503 70 04-01

503 89 70-01*

503 21 28-10*

503 76 29-02*

503 21 28-10* (x2)

Husqvarna

MADE IN SWEDEN

*501 51 72-01

www.mymowerparts.com

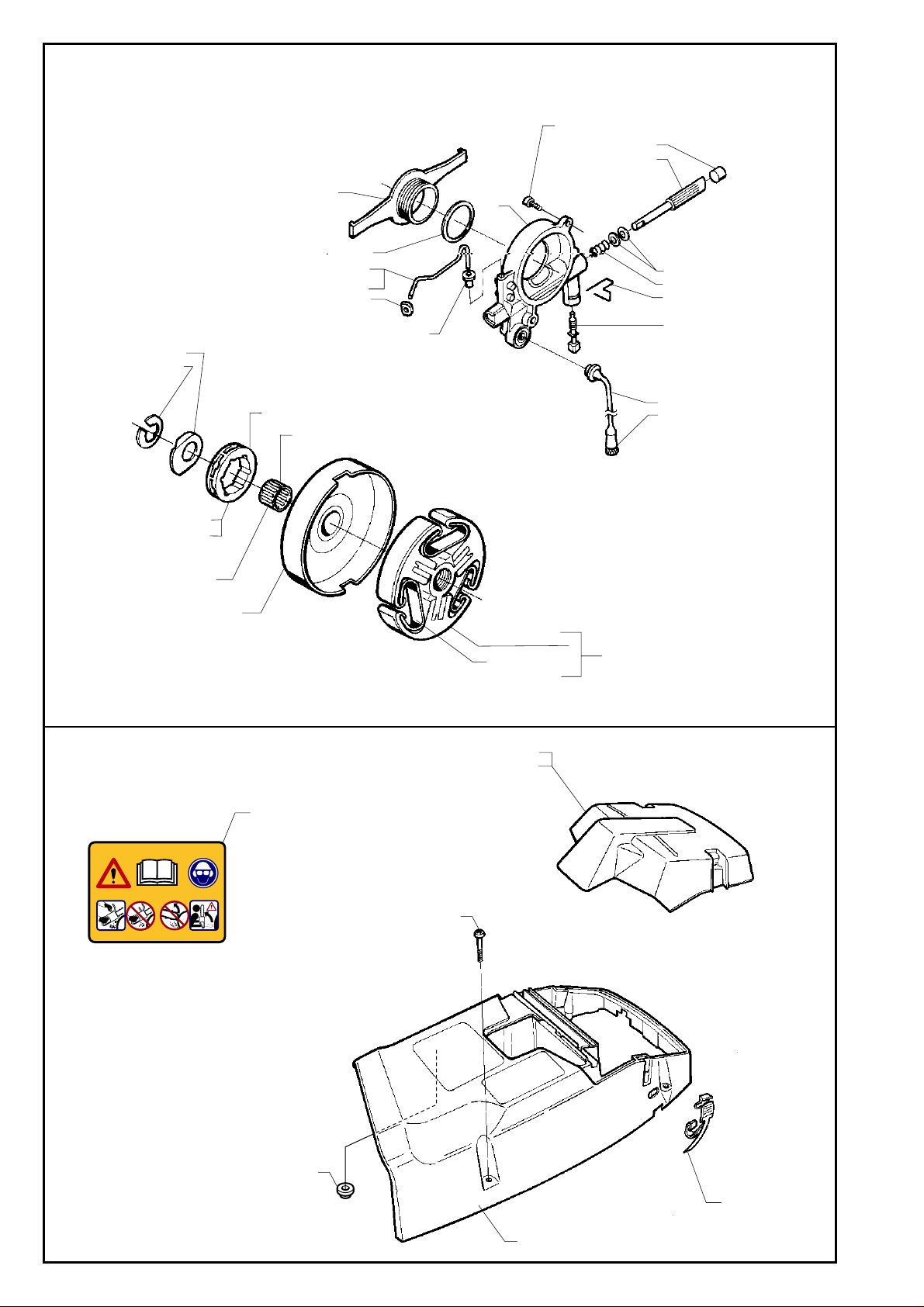

Page 3

For Husqvarna Parts Call 606-678-9623 or 606-561-4983

503 75 24-01 503 27 21-01

**3/8"x7T 501 59 80-02 **3/8"x8T 505 30 36-61

503 75 61-02

503 23 00-59

362 - 503 84 01-01 372 - 503 77 43-01

503 64 47-01

504 30 00-26

362 - 501 45 74-02 **.325x7T

362 - 503 53 92-01 **.325

*compl 503 52 13-01

725 53 29-56

*503 62 49-01 *503 52 15-01

503 23 00-04* 501 61 58-01* 503 81 30-01*

503 81 13-01*

503 42 67-01 501 54 41-02

**3/8" 503 43 20-01

**compl 503 93 24-71 (3/8"x7T) **compl 503 93 24-72 (3/8"x8T)

362 - **compl 503 93 95-71 (.325x7T)

*compl 503 62 78-07 Std **compl 503 62 78-08 Hd

503 98 74-01* **

*503 62 80-01 Std **503 81 77-01 Hd

* **503 20 34-25

503 74 43-01

compl 503 74 44-01

537 01 65-01

* **

www.mymowerparts.com

503 74 01-02* **

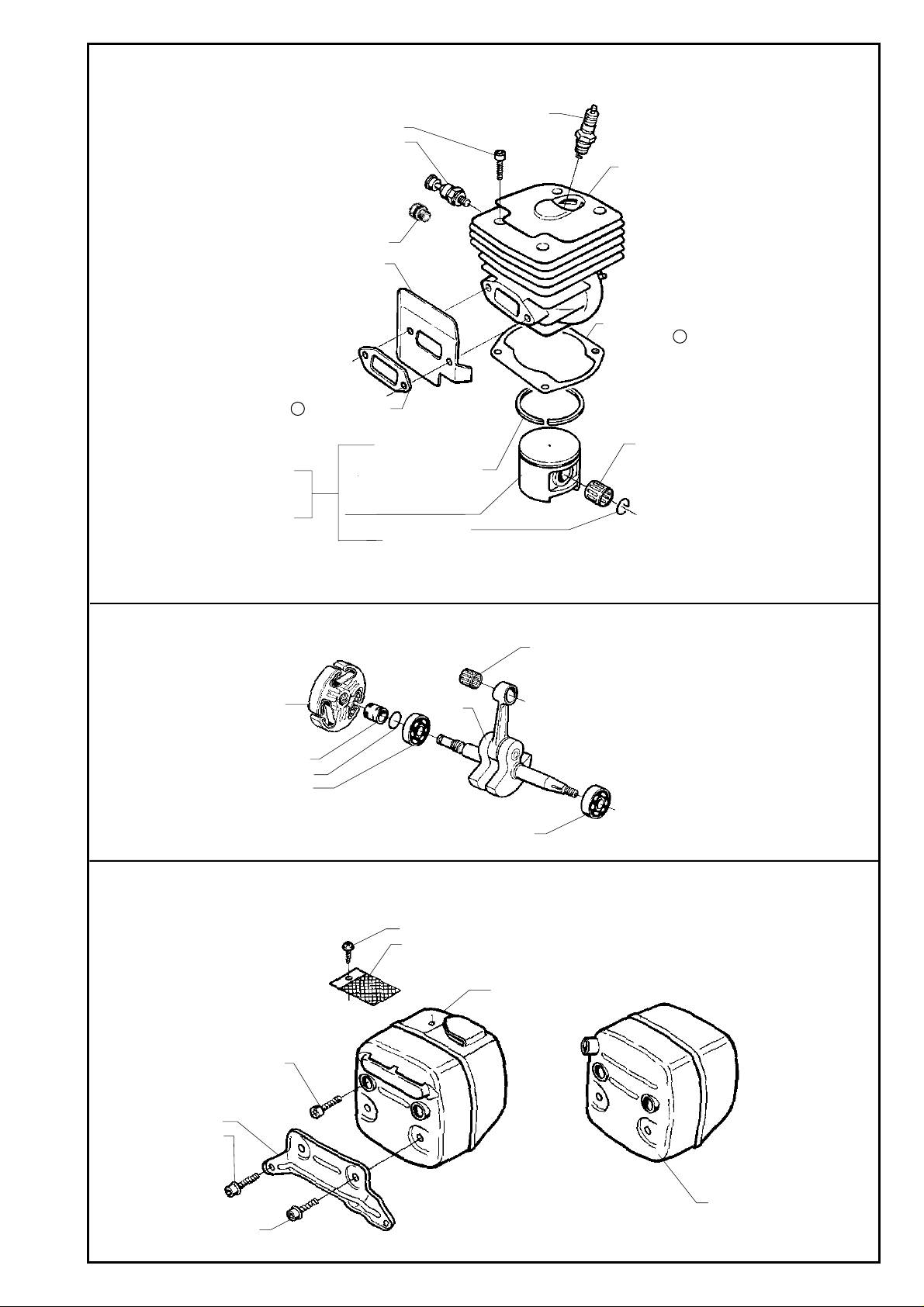

Page 4

For Husqvarna Parts Call 606-678-9623 or 606-561-4983

*compl 503 62 64-73 - 372 *compl 503 96 52-71 - 362

*compl 503 93 93-72 - 372 EPA

725 53 33-55 503 71 53-01

*503 55 22-01

503 77 58-02

503 23 51-08

RCJ 7 Y

*compl 503 69 12-71 - 372 *compl 503 69 14-71 - 362 *compl 503 93 92-71 - 372 EPA

*compl 503 74 87-01

503 74 44-01

503 77 91-01 503 26 30-19 *738 22 02-25

503 77 59-01

372-503 28 90-42 362-503 28 90-29 EPA 372-503 28 90-36 (x2)

503 90 99-01

503 25 56-01*

737 43 12-00

503 25 56-01*

compl 503 76 52-01 FG *compl 503 76 53-02 Jungle

*compl 503 76 54-02 DF

725 53 70-55

503 76 65-03 503 20 02-16

503 20 02-10

*738 22 02-25

724 12 87-59* 503 76 64-02*

503 76 53-01 Tube

www.mymowerparts.com

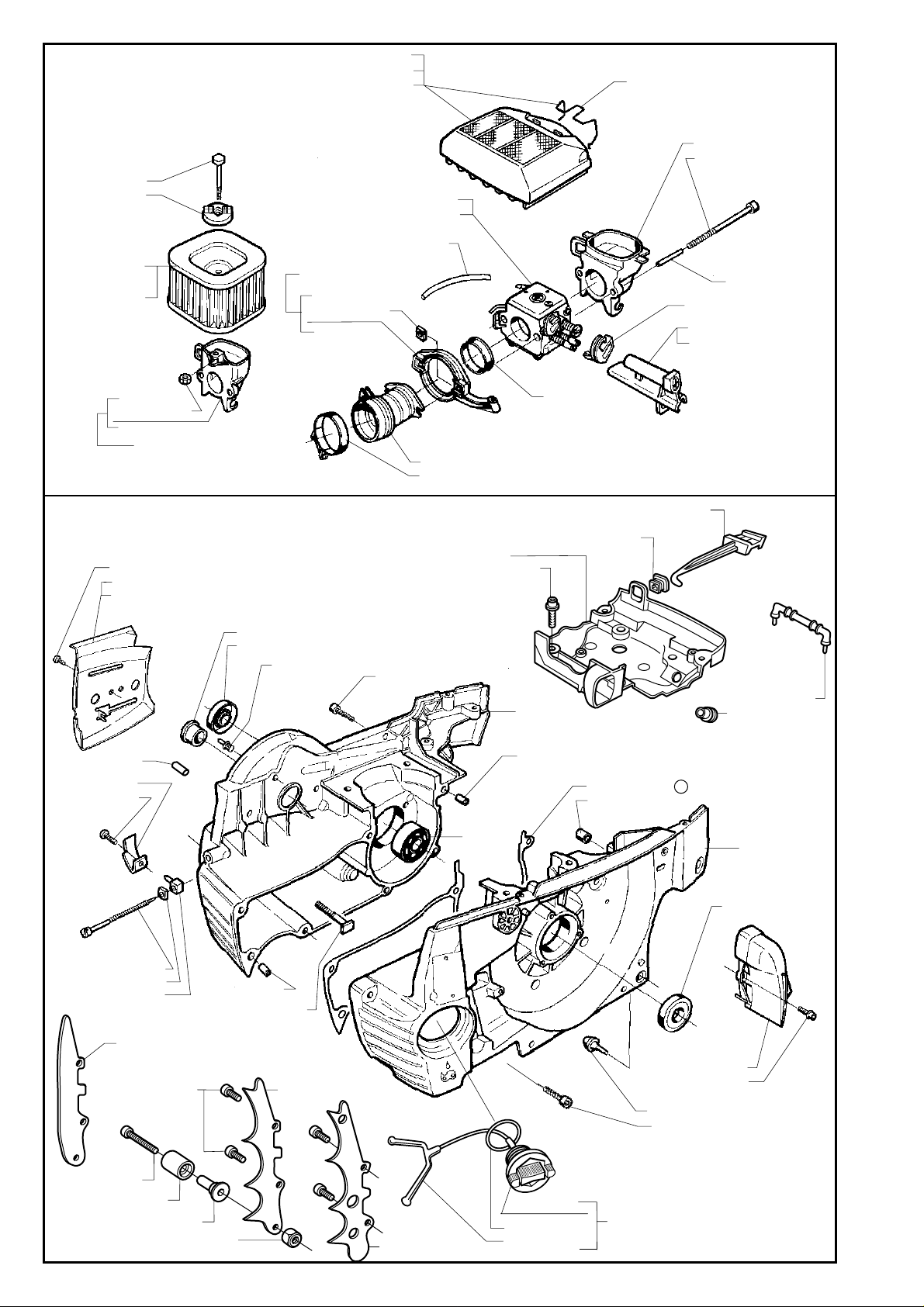

Page 5

For Husqvarna Parts Call 606-678-9623 or 606-561-4983

80µ 503 81 45-01

502 20 65-04 502 20 83-02

503 81 80-01

Felt

503 81 80-02

80µ

503 81 80-03

44µ

44µ 503 81 45-02 Felt 503 81 45-03

503 28 18-04 EPA 503 28 18-05

503 40 06-06

compl 503 71 27-01

503 22 65-03

503 73 54-01

503 62 75-01 725 53 05-55

503 68 41-01

503 66 53-01 503 66 74-01 EPA

503 70 11-01

731 23 14-01

compl 503 81 78-01

*compl 503 62 68-76 - 372 *compl 503 63 79-76 - 362

503 21 28-10 537 01 37-71 - 372 503 80 24-01 - 362

*537 04 03-01 501 68 68-01

725 53 31-55

503 96 70-01* 503 26 03-01

503 75 18-01*

503 96 45-01 503 56 00-04

503 62 73-03 503 20 02-12 (x4)

503 74 93-01

503 43 18-01

503 62 77-01

503 73 44-01

503 67 86-01

501 27 08-01*

503 62 72-01 503 85 73-01

537 09 54-01

362-503 93 28-01 362-501 45 27-02 362-501 45 41-01

537 04 29-01

503 20 02-16

503 20 02-30

537 02 44-01

537 08 92-01

*501 27 08-01

*501 81 57-01

503 22 24-01

537 01 71-01

compl 501 81 96-02

503 64 79-01

503 26 30-17 503 57 89-01

www.mymowerparts.com

505 27 57-19

503 62 84-01 503 20 02-12

503 84 61-01 503 20 08-32

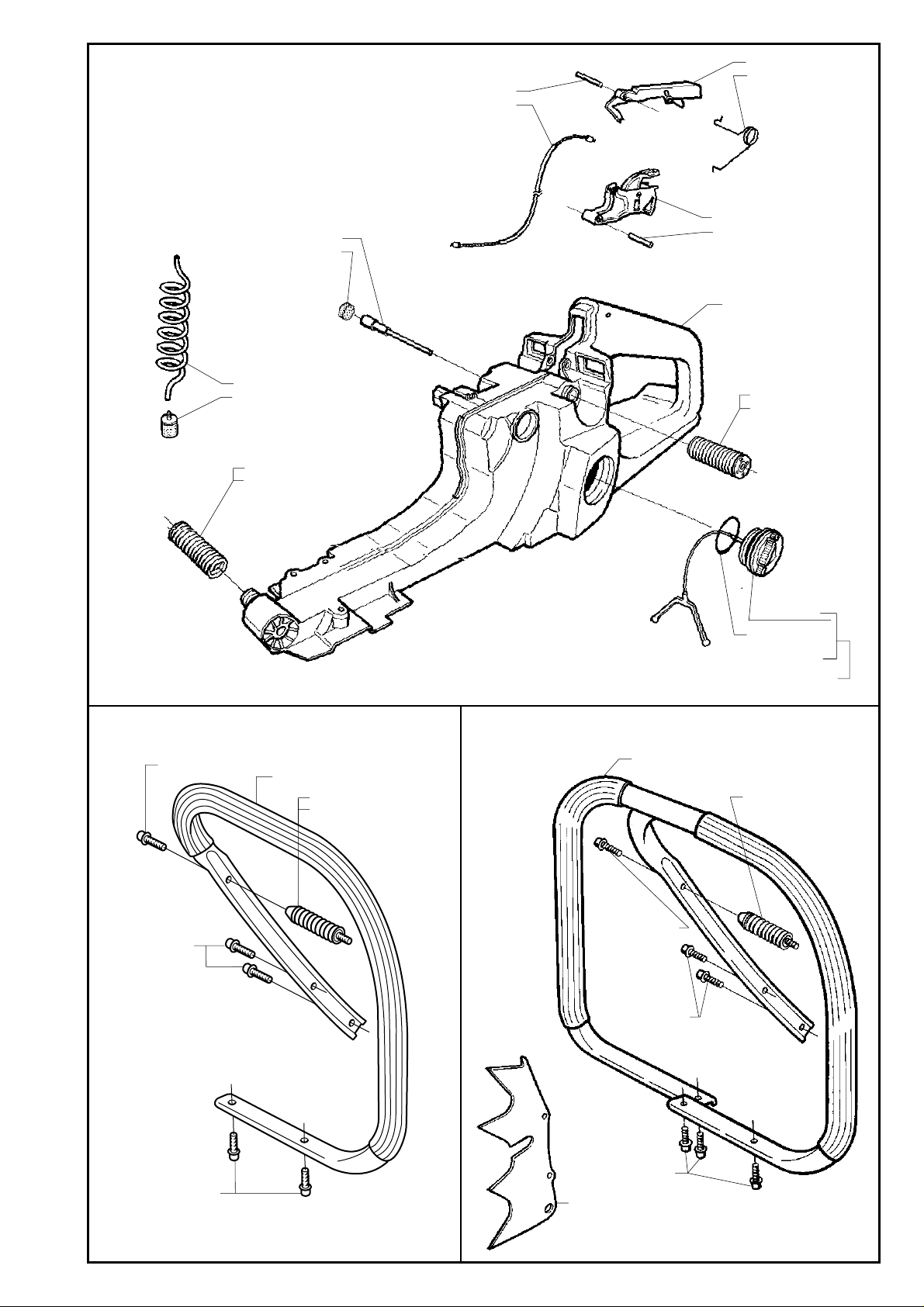

Page 6

For Husqvarna Parts Call 606-678-9623 or 606-561-4983

503 55 66-01*

*compl 503 71 32-75

*720 12 40-20 *503 71 76-01

501 87 31-01 503 60 04-01

503 73 64-01*

503 82 98-01* 720 12 72-20*

503 57 76-02 503 44 32-01

503 63 76-01 Std 503 63 76-02 Hard

*compl 503 62 67-71

503 21 05-22*

503 63 75-02* STD 503 63 75-03 HARD

*compl 503 62 86-71 WRAP *compl 503 62 86-02 WA G

503 89 56-01 Std 503 89 56-02 Hard

503 26 30-17 503 57 89-01

compl 501 81 96-02

503 63 75-02*

*503 21 06-16

*503 21 05-22

*503 21 06-16

537 01 72-01

www.mymowerparts.com

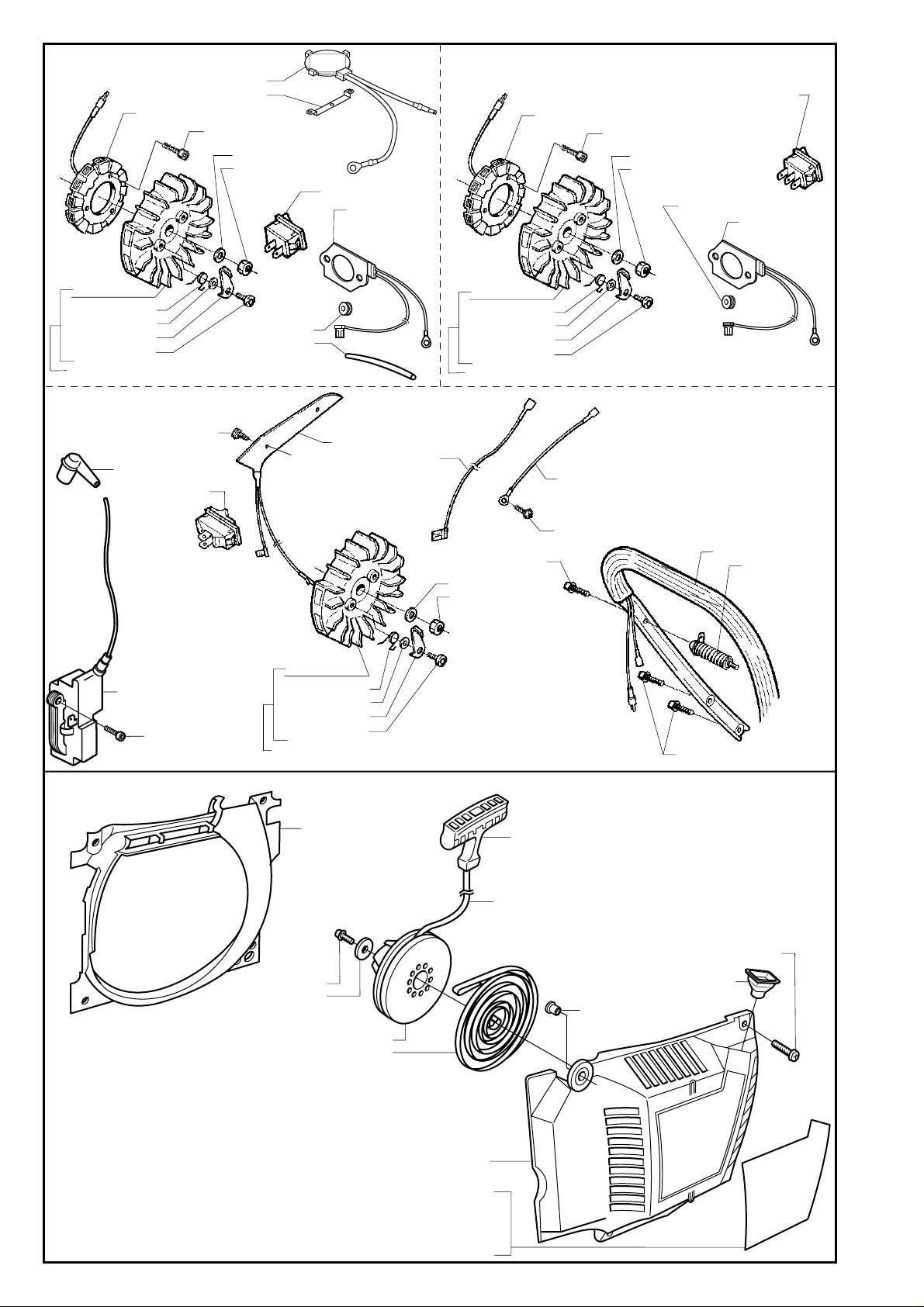

Page 7

For Husqvarna Parts Call 606-678-9623 or 606-561-4983

*compl 537 08 72-01

501 67 35-01 503 23 00-42 537 01 55-01 501 81 99-01

compl 537 05 16-06 (G)

729 42 21-01 (G)

501 48 54-02

503 71 82-01

*537 07 13-01 *537 06 04-01

537 07 18-01 (G)

503 20 26-16 (G)

503 23 01-01 503 22 10-11

501 43 00-01

*503 23 85-65

503 55 49-01 (G)*

537 07 14-01*

503 70 59-01 (G)

503 62 61-01

*compl 537 01 59-01

*503 64 02-01 (G)

501 80 24-03 (G)

503 20 26-16 (G)

503 23 01-01 503 22 10-11

(G) 501 43 00-01*

(G)*

501 67 35-01 503 23 00-42 537 01 55-01 501 81 99-01

compl 537 05 16-04 (G)

503 89 76-01

537 16 22-01

*compl 503 62 81-71

503 20 02-20 (x2)

501 67 35-01 503 23 00-42 537 01 55-01 501 81 99-01

compl 537 05 16-05

503 62 83-01

*503 21 05-22

503 23 01-01 503 22 10-11

503 54 39-01*

501 20 15-02*

503 21 28-10

*compl 503 62 67-72 (G)

503 68 45-02*

503 21 06-16*

*503 20 34-19 (x4)

*503 21 06-16 *503 23 43-02

*503 85 96-01 *503 78 72-01

* **compl 503 62 82-02

(XP) 537 08 65-10 362

(XPG) 537 08 65-11 362 (XP) 537 08 65-07 372 (XPG) 537 08 65-08 372

* **

www.mymowerparts.com

* **501 63 06-01

537 08 67-01* **

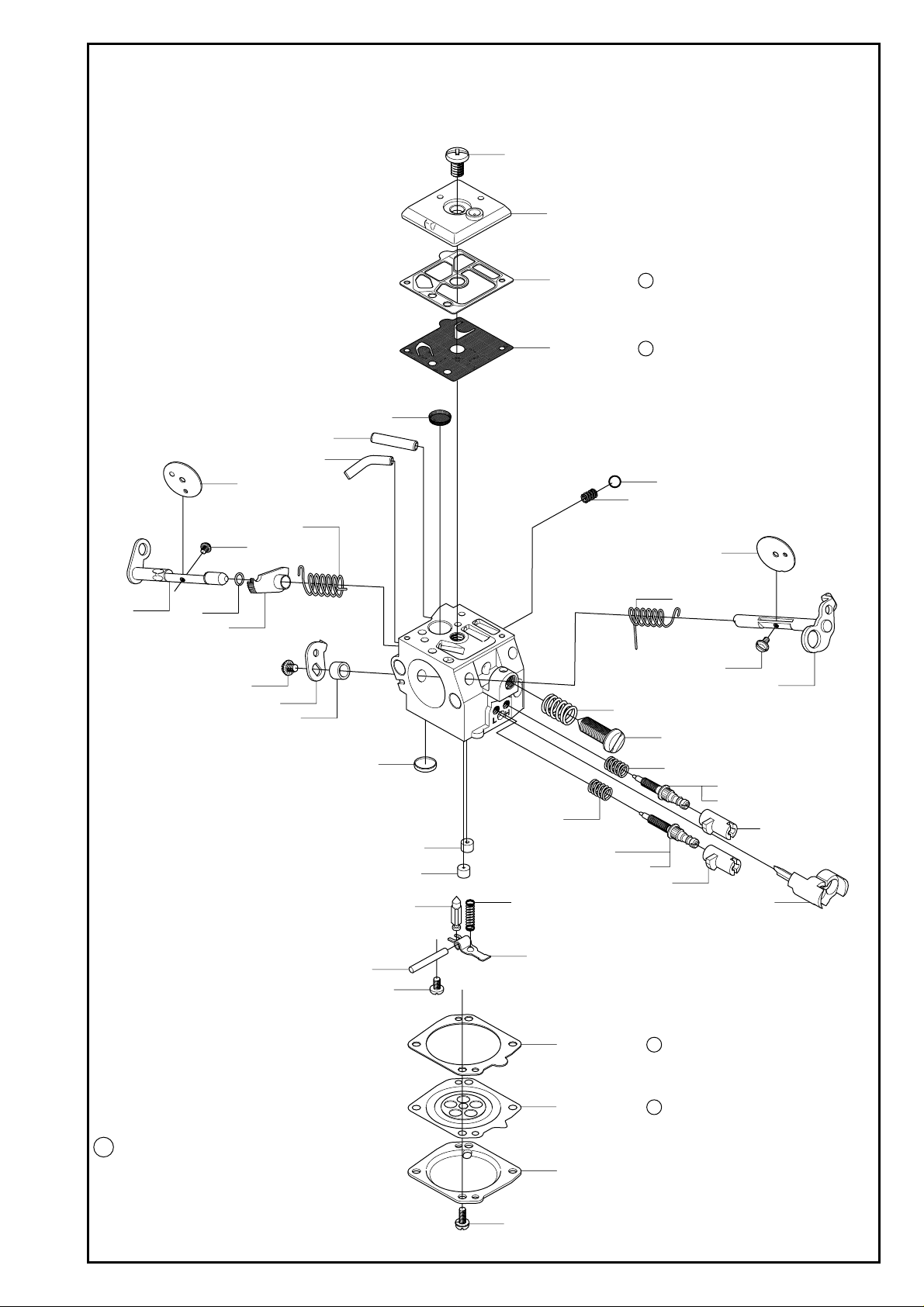

Page 8

For Husqvarna Parts Call 606-678-9623 or 606-561-4983

compl 503 28 18-04 compl 503 28 18-05 EPA

501 66 61-01

503 85 59-01

503 80 14-01 503 85 58-01

501 46 69-01

503 79 98-01

501 66 69-01

502 25 47-01

Walbro HD-6B Walbro HD-12B EPA

501 46 85-01

501 46 84-01

*537 01 89-01

*compl 537 01 91-01

501 46 87-01

503 79 96-01

537 01 90-01

501 46 87-01

503 80 15-01

503 57 42-01

503 80 04-01 503 94 36-01 EPA

503 68 82-01 537 00 33-01 EPA

503 56 34-01

505 52 01-25

505 31 67-17

501 66 77-01

504 02 72-13 L 503 94 38-01 L EPA

503 56 24-01 503 94 37-01 EPA

501 66 83-01

503 80 00-01

503 80 09-01

530 03 50-15

503 79 99-01

501 66 78-01

503 80 08-01

501 66 77-01

503 80 11-01 H 503 94 39-01 H EPA

503 91 39-01 EPA

503 91 40-01 EPA

503 91 54-01 EPA

503 64 78-01

Set of gaskets Dichtungssatz Jeu de joints Juego de juntas Packningssats

504 13 09-05

503 80 07-01

537 07 76-01

503 10 87-01 (x4)

www.mymowerparts.com

Page 9

For Husqvarna Parts Call 606-678-9623 or 606-561-4983

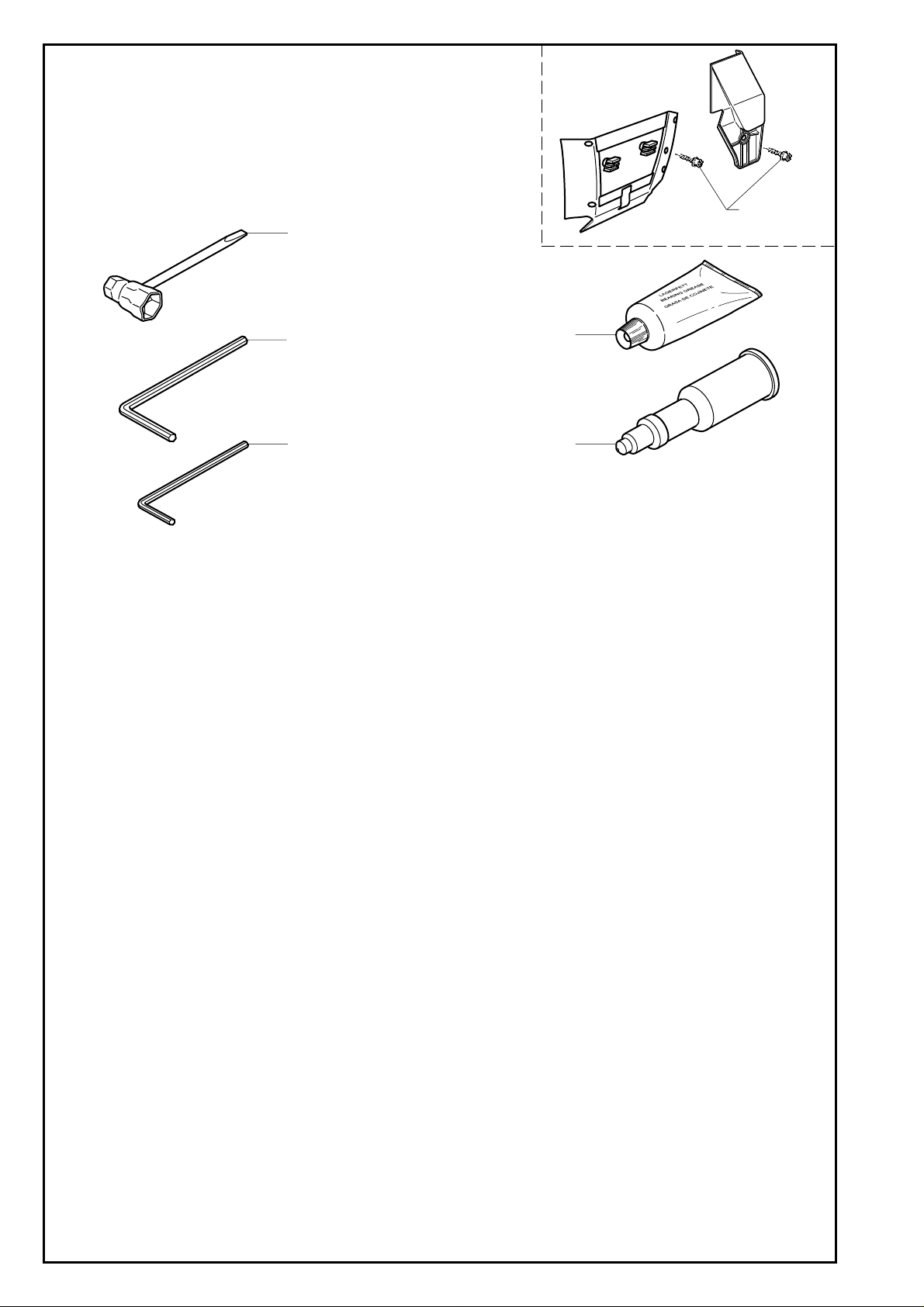

Accessories

Zubehöre Accessories Accessorios Tillbehör

*compl 503 55 85-01

501 69 17-01*

503 55 86-02* NV5

503 55 86-01* NV4

WINTER compl 503 96 90-01

503 21 27-16

*503 62 12-01

*501 91 14-01

www.mymowerparts.com

Page 10

For Husqvarna Parts Call 606-678-9623 or 606-561-4983

MODEL 372, 372 EPA, 362 Special, 362 Special EPA

PART NUMBER SQUARE NOTE PART NUMBER SQUARE NOTE PART NUMBER SQUARE NOTE PART NUMBER SQUARE NOTE

501 20 15-02 P 501 27 08-01 J 501 43 00-01 N 501 45 27-02 J 501 45 41-01 J 501 45 74-02 C 501 46 69-01 Q 501 46 84-01 Q 501 46 85-01 Q 501 46 87-01 Q

501 48 54-02 N 501 51 72-01 A,B 501 54 41-02 C 501 59 80-02 C 501 61 58-01 C 501 63 06-01 P N 501 66 61-01 Q 501 66 69-01 Q 2,N 501 66 77-01 Q 501 66 78-01 Q

501 66 83-01 Q 501 67 35-01 N 501 68 68-01 J N 501 69 17-01 R 501 80 24-03 N 501 81 57-01 J 501 81 96-02 J,K 501 81 99-01 N 501 87 31-01 K 501 87 53-03 A

503 28 90-42 E 503 40 06-06 H 503 42 67-01 C 503 43 18-01 H 503 43 20-01 C 503 43 65-01 A 503 44 32-01 K 503 52 13-01 C 503 52 15-01 C 503 53 92-01 C

503 54 39-01 P 503 55 22-01 E 503 55 49-01 N 503 55 66-01 K 503 55 85-01 R 503 55 86-01 R 503 55 86-02 R 503 56 00-04 H 503 56 24-01 Q 503 56 34-01 Q

503 57 42-01 Q N 503 57 76-02 K 503 57 89-01 J,K 503 60 04-01 K 503 62 12-01 R 503 62 49-01 C 503 62 61-01 N 503 62 64-73 E 503 62 67-71 L 503 62 67-72 N

503 71 76-01 K 503 71 82-01 N 503 71 97-01 A 503 73 44-01 J 503 73 54-01 H 503 73 64-01 K 503 74 01-02 D 503 74 43-01 C 503 74 44-01 C,F 503 74 87-01 F N

503 74 93-01 J 503 75 11-03 A 503 75 18-01 J 503 75 22-01 A 503 75 24-01 C 503 75 61-02 C 503 76 29-02 A,B 503 76 49-03 A 503 76 52-01 G 503 76 53-01 G

503 76 53-02 G 503 76 54-02 G 503 76 64-02 G 503 76 65-03 G N 503 76 92-01 B 503 77 43-01 C 503 77 52-01 A 503 77 58-02 E 503 77 59-01 E 1 503 77 91-01 F N

503 92 27-01 A 503 93 24-71 C 503 93 24-72 C 503 93 28-01 J 503 93 92-71 E EPA 503 93 93-72 E EPA 503 93 95-71 C 503 94 36-01 Q EPA 503 94 37-01 Q EPA 503 94 38-01 Q EPA

503 94 39-01 Q EPA 503 96 45-01 H 503 96 52-71 E 503 96 70-01 J 503 96 90-01 R 503 98 74-01 D 503 99 83-01 A 504 02 72-13 Q 504 13 09-05 Q 2 504 30 00-26 C

505 27 57-19 J 505 30 36-61 C 505 31 67-17 Q 505 52 01-25 Q 530 03 50-15 Q 537 00 33-01 Q EPA 537 00 87-01 A 537 01 37-71 J 537 01 55-01 N 537 01 59-01 N

501 91 14-01 R 502 20 65-04 H 502 20 83-02 H 502 25 47-01 Q 2 503 10 87-01 Q 503 20 02-10 G 503 20 02-12 A,J 503 20 02-16 G,J 503 20 02-20 N 503 20 02-30 J

503 20 08-32 J 503 20 25-12 A 503 20 26-16 N 503 20 34-19 P 503 20 34-25 D 503 21 05-22 L,M,N 503 21 06-16 L,N,M,P 503 21 27-16 R 503 21 28-10 A,B,J,N 503 22 00-01 A

503 22 10-11 N 503 22 24-01 J 503 22 65-03 H 503 23 00-04 C 503 23 00-42 N 503 23 00-59 C 503 23 00-63 A 503 23 01-01 N 503 23 43-02 P 503 23 51-08 E

503 62 68-76 J 503 62 72-01 J 1 503 62 73-03 J 503 62 75-01 H 503 62 77-01 J 503 62 78-07 D 503 62 78-08 D 503 62 80-01 D 503 62 81-71 P 503 62 82-02 P N

503 62 83-01 P 503 62 84-01 J 503 62 86-02 M N 503 62 86-71 M 503 63 75-02 L,M 503 63 75-03 L 503 63 76-01 K 503 63 76-02 K 503 63 79-76 J 503 64 02-01 N

503 64 47-01 C 503 64 72-01 1=compl 503 64 78-01 Q 2=compl,N 503 64 79-01 J N 503 66 53-01 H 503 66 74-01 H EPA 503 67 86-01 J 503 68 41-01 H 503 68 45-02 N

503 78 72-01 P 503 79 27-01 A 503 79 96-01 Q 503 79 98-01 Q 503 79 99-01 Q 503 80 00-01 Q 503 80 04-01 Q 503 80 07-01 Q 2 503 80 08-01 Q 503 80 09-01 Q

503 80 11-01 Q 503 80 14-01 Q 503 80 15-01 Q 503 80 24-01 J 503 81 13-01 C 503 81 30-01 C 503 81 45-01 H 503 81 45-02 H 503 81 45-03 H 503 81 77-01 D

503 81 78-01 H 503 81 80-01 H N 503 81 80-02 H 503 81 80-03 H 503 82 98-01 K 503 83 81-02 A 503 84 01-01 C 503 84 61-01 J 503 85 58-01 Q 503 85 59-01 Q

537 01 65-01 D 537 01 68-01 A 537 01 71-01 J 537 01 72-01 M 537 01 74-01 A 537 01 89-01 Q 537 01 90-01 Q 537 01 91-01 Q 537 02 44-01 J 537 03 35-01 A

537 03 38-01 A 537 04 03-01 J 537 04 29-01 J 537 04 41-02 A 537 05 16-04 N N 537 05 16-05 N N 537 05 16-06 N N 537 06 04-01 N 537 07 13-01 N 537 07 14-01 N

537 07 18-01 N 537 07 76-01 Q 537 07 94-01 A 537 07 95-01 A 537 08 65-07 P 537 08 65-08 P 537 08 65-10 P 537 08 65-11 P 537 08 67-01 P N 537 08 72-01 N

503 23 85-65 N 503 25 56-01 E,F 503 26 03-01 J 503 26 30-17 J,K 503 26 30-19 F N 503 27 21-01 C 503 28 18-04 H,Q 503 28 18-05 H,Q EPA 503 28 90-29 E 503 28 90-36 E EPA

1 = 503 64 72-01 2 = 503 64 78-01

Set of gaskets, Dichtungssats, Jeu de joints, Juego de juntas, Packningssats

503 68 82-01 Q 503 69 12-71 E 503 69 14-71 E 503 70 04-01 B 503 70 11-01 H 503 70 59-01 N 503 70 99-01 A 503 71 27-01 H 503 71 32-75 K 503 71 53-01 E

N = New part, Neues teil,

503 85 73-01 J 503 85 96-01 P 503 89 56-01 K 503 89 56-02 K 503 89 70-01 A,B 503 89 76-01 N 503 90 99-01 E 1 503 91 39-01 Q EPA 503 91 40-01 Q EPA 503 91 54-01 Q EPA

Nouvelle piece, Nueva pieza Ny detalj

www.mymowerparts.com

537 08 92-01 J 537 09 54-01 J N 537 16 22-01 N N 720 12 40-20 K 720 12 72-20 K 724 12 87-59 G 725 53 05-55 H 725 53 29-56 C 725 53 31-55 J N 725 53 33-55 E

EPA = Environmental Protection Agency

(for USA only)
