Page 1
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
YTH 150
Illustrated Parts
List
1999-03
I9902032
Ride Mower
HCLTH150J
www.mymowerparts.com
Page 2
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
TRACTOR - MODEL NO. YTH150 (HCLTH150J), PRODUCT NO. 954 14 00-07
SCHEMATIC
AMMETER
(OPTIONAL)
RED
G
IGNITION
SWITCH
BLACK
RED
BLACK
BATTERY
SOLENOID
A
RED
FUSE
WHITE
WHITE
RED
WHITE
RED
M
STARTER
BLACK
CG
M
AY
L
ORANGE
BLACK
CLUTCH / BRAKE
(PEDAL UP)
RED
SEAT SWITCH
(NOT OCCUPIED)
BLACK
F
H
B
E
A
D
PTO (DISENGAGED)
RED
ELECTRIC CLUTCH
BLACK
85 86
87
30
BLACK
S
B
87A
GREEN GREEN
BLUE
FUEL
HOUR
METER
(OPTIONAL)
BLACK
OPERATOR
PRESENCE
RELAY #1
LINE
SPARK
PLUGS GAP
(2 PLUGS ON
TWIN CYL. ENGINES)
28 VOLTS AC @ 3600 RPM
(REGULATOR DISCONNECTED)
BLUE
FUEL SHUT-OFF SOLENOID
RED
BLACK
IGNITION
UNIT
CHARGING SYSTEM OUTPUT
15 AMP DC @ 3600 RPM
REGULATOR
ALTERNATOR
A
G
Y
ML
S
B
IGNITION SWITCH
OFF
CIRCUITPOSITION
G + M + L
B + LRUN/LIGHT
B + LRUN
B + L + SSTART
“MAKE”
NONE
A + Y
NONE
NONE
WIRING INSULATED CLIPS
NOTE: IF WIRING INSULATED
CLIPS WERE REMOVED FOR
SERVICING OF UNIT, THEY
SHOULD BE REPLACED TO
PROPERLY SECURE YOUR WIRING.
PTO SWITCH
OFF
ON
NON-REMOVABLE
CONNECTIONS
IGNITION SWITCH
TRACTOR CONNECTOR
"M" FOR ENGINE
SHORTING
(BLACK WIRE)
OIL SENTRY
OPTION
(YELLOW WIRE
TO LIGHT PKG.)
CIRCUITPOSITION
C + G, B + H
C + F, B + E, A + D
REMOVABLE
CONNECTIONS
(BLUE WIRE)
29
BATTERY
CHARGING
(RED WIRE)
SWITCHED
+12V
BROWN
HEADLIGHTS
87
87A
8586
30
RELAY
ENGINE CONNECTOR
REGULATOR
(PURPLE WIRE,
RED WIRE)
CARBURETOR
SOLENOID
(RED WIRE,
BLUE WIRE)
BLACK
FC
G
H
D
ENGINE
SHORTING
(WHITE WIRE)
OIL SENTRY
(GREEN WIRE)
E
B
A
www.mymowerparts.com
Page 3
70
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - MODEL NO. YTH150 (HCLTH150J), PRODUCT NO. 954 14 00-07
ELECTRICAL
2221
42
24
41
33
32
31
30
19
20
50
43
44
25
20
44
19
80
40
26
81
16
47
12
51
10
11
27
2
1
8
12
D.C. AMPERES
45
28
46
29
55
30
www.mymowerparts.com
Page 4
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - MODEL NO. YTH150 (HCLTH150J), PRODUCT NO. 954 14 00-07
ELECTRICAL
KEY PART
NO. NO. DESCRIPTION
1 532144925 Battery 12 Volt 25 AMP
2 874760412 Bolt Hex Hd 1/4-20unc X 3/4
8 532124886 Tray Battery 7.80 x 5.25 Blk
10 532145211 Bolt Btr Frt 1/2-20 x 7.5 Zinc
11 532150109 Holddown Battery Front Mount
12 532145769 Nut Push Nylon 1/4" Battery Frt
16 532153664 Switch Interlock Push-In
19 810090400 Washer Lock 1/4
20 873350400 Nut Jam Hex 1/4-20 Unc
21 532136850 Harness Asm Light W/4152j
22 532004152 Bulb Light #1156
24 532124780 Cable Battery 6 Ga 11" red
25 532146148 Cable Battery 6 Ga 44" red w/16 wire
26 532166180 Fuse 15 AMP
27 873510400 Nut Keps Hex 1/4-20 Unc
28 532145491 Cable Ground 6 Ga 21" black
29 532160784 Switch Plunger Normal Op Olive
30 532140301 Switch Ign 4 pos w/lights
31 532124211 Nut Ignition
32 532141226 Cover Sw Ignition
33 532122147 Key Ign Modelled Generic
40 532166149 Harness Ign.
41 871110408 Bolt Blk Fin Hex 1/4 - 20 x 1/2
42 532131563 Cover Terminal Red
43 532145673 Solenoid
44 873640400 Nut Keps Hex 1/4-20 Unc
45 532122822 Ammeter
46 532110940 Meter Hour
47 817011008 Screw 10-24 x 1/2 Black
50 532154959 Switch PTO 3PDT Black Delta 96
51 532140405 Ring Retainer PTO
55 817490508 Screw Thdrol 5/16-18 x 1/2 Tyt
70 532166661 Harness, Eng Tec/Kohl Regular
80 532146685 Harness Clutch Evx
81 532109748 Relay Asm.
NOTE: All component dimensions given in U.S. inches.
1 inch = 25.4 mm.
31
www.mymowerparts.com
Page 5
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - MODEL NO. YTH150 (HCLTH150J), PRODUCT NO. 954 14 00-07
CHASSIS AND ENCLOSURES
28
17
14
60
18
30
60
74
5
143
26
25
26
31
3
14
9
11
3
3
3
2
37
14
4
3
142
60
134
109
68
53
51
5
14
14
3
144
142
3
3
3
52
64
10
37
3
53
140
144
26
25
26
58
57
110
37
3
145
37
113
20
115
23
37
14
3
1
13
3
4
14
29
57
129
3
38
3
39
32
www.mymowerparts.com
Page 6
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - MODEL NO. YTH150 (HCLTH150J), PRODUCT NO. 954 14 00-07
CHASSIS AND ENCLOSURES
KEY PART
NO. NO. DESCRIPTION
1 532165583 Chassis Weldment
2 532140356 Drawbar, Stretch
3 817490612 Screw Thdrol 3/8-16x3/4 Ty-tt
4 819131216 Washer 13/32 x 3/4 x 16 Ga.
5 532155272 Bumper Hood/Dash
9 532156490 Dash Slkscr.Plm.E.A.Hm.Nc.Sym
10 872140608 Bolt Carriage 3/8-16 x 1
11 532155927 Panel Dash Lh
13 532153913 Panel Dash Rh
14 817490608 Screw Thdrol 3/8-16x1/2 Ty-tt
17 532165378 Hood LT/PL Husqvarna
18 532126938 Bumper Hood
20 532156437 Plate Mtg Battery Fuel Tank Fr
23 532124028 Bushing
25 819131312 Washer 13/32 X 13/16 X 12 Ga
26 873800600 Nut Lock Hex W/Ins 3/8-16 Unc
28 532165379 Grille LT/PL Husqvarna
29 532165380 Lens LT/PL Husqvarna
30 532166505 Fender Footrest STLT Pnt
31 532139976 Bracket Support Fender
37 817490508 Screw Thdrol 6/16-18 x 1/2 TYT
38 532139886 Bracket, Asm. Pivot, L.H., Mower Rear
39 532139887 Bracket, Asm. Pivot, R.H., Mower Rear
51 873800400 Nut Lock Hex W/Ins 1/4-20
52 819091416 Washer 9/32 x 7/8 x 16 Ga.
53 532150067 Bracket Pnt. Pick off LT/PL Husqvarna
57 874780412 Bolt Hex 1/4-20 x 3/4
58 532150127 Air Duct Engine P/L
60 872140606 Bolt Rdhd Sqnk 3/8-16unc x 3/4
64 532154798 Dash Lower STLT
68 873510400 Nut Keps Hex 1/4-20unc
74 873680600 Nut Crownlock 3/8-16 UNC
109 532141461 Bracket Extension Bumper
110 532143679 Plug Plastic
113 532150300 Bumper Asm.
115 817490620 Screw Thdrol 3/8-16 x 1-1/4
129 819091016 Washer 9/32 x 5/8 x 16 Ga.
134 532160219 Rod Support Hood LT/PL Husq.
140 532158418 Bracket Suspension Front
142 532165867 Plate Reinforcement STLT
143 532154966 Bracket Swaybar Chassis
144 532154207 Bracket Pnt Footrest STLT
145 532156524 Rod Pivot Chassis/Hood
159 532166508 Cupholder STLT Grey
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
33
www.mymowerparts.com
Page 7
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - MODEL NO. YTH150 (HCLTH150J), PRODUCT NO. 954 14 00-07
DRIVE
71
147
18
61
16
77
145
16
90
19
96
95
26
32
94
30
89
81
102
3
52
1
103
16
169
10
21
57
160
97
26
98
77
164
8
25
19
2
161
73
146
19
14
163
82
74
159
18
24
165
30
29
158
75
162
83
156
62
59
52
22
42
168
61
166
36
61
93
16
32
42
35
41
40
38
52
78
42
56
28
104
105
76
51
51
34
84
42
39
26
37
20
27
65
157
66
27
49
63
9
47
50
26
51
23
36
16
100
35
16
100
33
33
50
150
48
151
51
53
55
34
www.mymowerparts.com
Page 8
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - MODEL NO. YTH150 (HCLTH150J), PRODUCT NO. 954 14 00-07
DRIVE
KEYPART
NO.NO. DESCRIPTION
1 532150071 Transaxle w/cas Hydro 310-0650
Order parts from transaxle
manufacturer
2 532142431 Spring, Return, Brake
3 532143995 Pulley, Transaxle Hydro 750 LT
8 532165866 Rod Shift Adjust Stlt
9 532145028 Clutch Elecric
10 876020416 Pin Cotter 1/8 x 1 CAD
14 810040400 Washer Lock Hvy Helical
16 873800500 Nut Lock Hex W/Ins. 5/16-18 Unc P
18 874780616 Bolt Fin Hex 3/8-16 Unc x 1 Gr.5
19 873800600 Nut Lock Hex W/Ins 3/8-16 Unc
20 532150280 Bolt, Hex 7/16-20 x 4-1/4 Ga. 5
21 532140845 Knob Deluxe 1/2-13 UNC BLK/BLK
22 532145627 Rod, Brake Hydro
23 532154978 Bracket Asm Mtg CL
24 873350600 Nut Hex Jam 3/8-16 UNC
25 532106888 Spring, Brake Rod
26 819131316 Washer
27 876020412 Pin Cotter 1/8 x 3/4 CAD.
28 532145204 Rod, Parking Brake
29 532071673 Cap,Parking Brake
30 532130807 Bracket, Transaxle
32 874760512 Bolt Hex Hd 5/16-18 Unc x 3/4
33 872140506 Bolt Carriage 5/16-18 UNC x 3/4
34 532155071 Shaft, Foot Pedal
35 532120183 Bearing, Nylon
36 819211616 Washer
37 532124963 Pin, Roll
38 532131494 Pulley, Idler, Flat
39 874760644 Bolt
40 532124965 Spacer Split
41 532165838 Keeper, Belt Idler
42 819131312 Washer 13/32 x 13/16 x 12Ga
47 532127783 Pulley, Idler, V-Groove Plastic
48 532154407 Bellcrank Clutch Grnd
49 532123205 Retainer, Belt Style Spring
50 874760624 Bolt
51 873680600 Nut
52 873680500 Nut Crown Lock 5/16-18
53 532105710 Link, Clutch
55 532105709 Spring, Return, Clutch
56 874760620 Bolt, Fin Hex 3/8-16 UNC x 1 1/4
57 532140294 V-Belt, Ground Drive
59 532140312 Keeper, Center Span
61 817490612 Screw Thdrol. 3/8-16 x 3/4 Ty. TT
62 532123533 Cover, Pedal Premium
KEYPART
NO.NO. DESCRIPTION
63 532145868 Pulley, Clutch Elect EVX
65 810040700 Washer Lock Hvy HLCL Spr 7/16
66 532154778 Keeper Belt Engine
73 532156347 Strap Torque Rh Hydro 0650
71 532140158 Strap Torque Lh Hydro 18/20" T
74 532121199 Spacer, Split
75 532121749 Washer 25/32 x 1-1/4 x 16Ga.
76 812000001 E-Ring
77 532123583 Key, Square
78 532121748 Washer 25/32 x 1-5/8 x 16Ga
81 532165591 Shaft Asm Cross Tapered 650 20
82 532165711 Spring Torsion T/A
83 819171216 Washer 17/32 x 3/4 x 16 Ga.
84 532165815 Link Transaxle 0650 LT/YT/STL
89 532166510 Console, Hydro Shift Stlt
90 532124346 Nut Self-Thd Wsh-Hd 1/4 Zinc
93 532142564 Line Fuel Hydro 4"
94 532140462 Fan, Hydro 7"
95 532144643 Control Asm. Bypass Hydro
96 532124788 Retainer Spring 1" Zinc/Cad
97 532140469 Keeper Belt Rh Hydro 0750.18/20"
98 873510600 Nut Keps Hex 3/8-16 Unc
100819111216 Washer 11/32 x 3/4 x 16 Ga.
102532141322 Washer Belleville .501D x 1.50D
103873940800 Nut Hex Jam Toplock 1/4-20 Unf
104532140156 Arm, Control Hydro
105871070516 Screw Cap Hex 5/16 x 18 x 1
145874490540 Bolt Hex Flghd 5/16-18 x Gr. 5
146874490536 Bolt Hex Flanged 5/16-18 Unc x 2
147874490524 Bolt Hex Flanged 5/16-18 Unc x 2
150532165850 Bushing Bellcrank
151819133210 Washer 13/32 x 2 x 10 Ga.
156532166002 Washer Srrted 5/16ID x 1.125
157532153236 Bolt Shoulder 5/16-18 Unc - 2A
158532165589 Bracket Shift Mount
159532165494 Hub Tappered Flange Shift Lt
160819292016 Washer 29/32 x 1-1/4 x 16 Ga
161872140406 BoltRdhd Sqnk 1/4-20 x 3/4 Gr 5
162873680400 Nut Crownlock 1/4-20 Unc
163874780416 Bolt Hex Fin 1/4-20 Unc x 1 Gr 5
164819091010 Washer 5/8 x .281 x 10 Ga
165532165623 Bracket Pivot Lever
166532166880 Screw 5/16-18 x .561
168532165492 Bolt Shoulder 5/16-18 x .561
169532165580 Plate Fastening Cross Shf. STLT/
CRD
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
35
www.mymowerparts.com
Page 9
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - MODEL NO. YTH150 (HCLTH150J), PRODUCT NO. 954 14 00-07

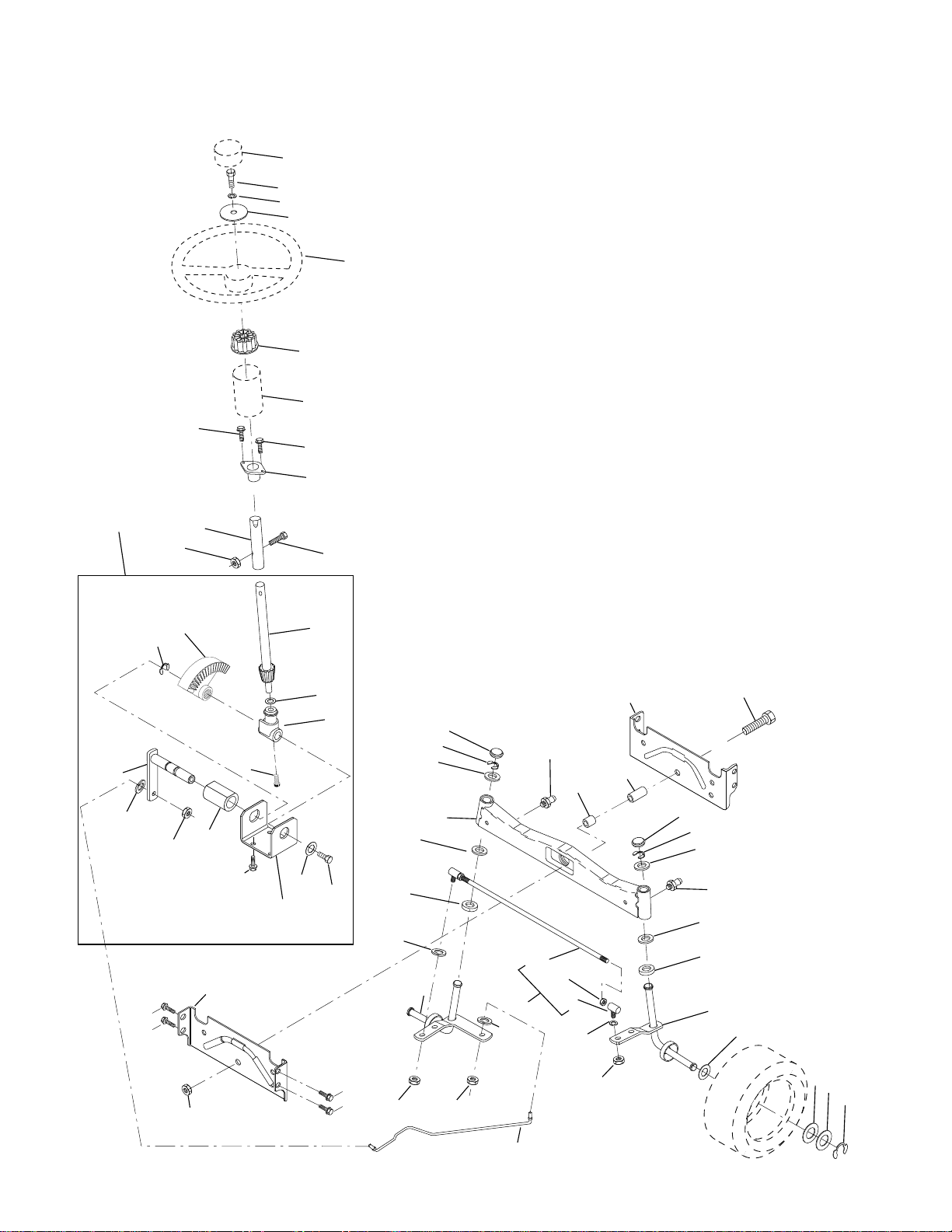

STEERING ASSEMBLY
38
63
11
39
1
41
42
37
37
36
62
23
11
29
29
44
51
27
8
22
66
40
29
25
68
54
17
18
19
79
80
46
8
6
2
7
5
11
3
47
65
76
78, 77
74, 75
32
11
11
68
13
46
67
8
6
47
7
5
4
43
29
29
15
40
40
10
40
43
6
8
36
www.mymowerparts.com
Page 10
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - MODEL NO. YTH150 (HCLTH150J), PRODUCT NO. 954 14 00-07
STEERING ASSEMBLY
KEY PART
NO. NO. DESCRIPTION
1 532124415 Wheel Steering
2 532137094 Axle Front Casting Machined
3 532157479 Spindle Asm LH
4 532157478 Spindle Asm RH
5 532124931 Bearing Race Thrust Harden
6 532121748 Washer 25/32 X 1-5/8 X 16 Ga
7 819272016 Washer 27/32 X 1-1/4 X 16 Ga
8 812000029 Ring Klip #t5304-75
10 532154432 Link Drag Extended Cast
11 810040600 Washer Lock Hvy Hlcl Spr 3/8
13 532167118 Bearing Axle STLT/GT
15 873901000 Nut Lock Flange 5/8-11 Unc
17 532156546 Shaft Asm Strg
18 532057079 Washer Thrust 515x 750x 033
19 532160395 Support Shaft
22 532165857 Screw Hex Wsh Hd Tprx
23 532165851 Shaft Asm Pittman
25 532154406 Bracket Steering
27 532136874 Gear Sector
29 817490612 Screw Thdrol 3/8-16x3/4 Ty-tt
32 532137347 Rod Asm Tie Ball Adj. VGT
36 532155099 Bushing Strg
37 532152927 Screw
38 532124416 Insert Cap Strg Wh Au
39 819133808 Washer 13/32 X 2-3/8 X 8 Ga
40 532124701 Lock nut
41 532100711 Adaptor Wheel Strg
42 532155092 Boot Steering Shaft
43 532121749 Washer 25/32 X 1 1/4 X 16 Ga
44 532153720 Extension Steering Shaft LR/LT
46 532121232 Cap Spindle Fr Top Blk
47 532124836 Fitting Grease
51 873800500 Nut Lock Hex w/Ins 5/16-18
54 874780520 Bolt Fin Hex 5/16-18 Unc x 1-1/4
62 532167902 Kit, Steering Assembly Svc
63 874780616 Bolt Fin Hex 3/8-16unc x 1 Gr. 5
65 532154780 Spacer
66 532154404 Bearing Arm Pittman
67 874781044 Bolt, Fin Hex 5/8-11 UNC x 2-3/4
68 532154429 Brace, Axle
74 532109850 Joint Asm Ball Rh
75 532109851 Joint Asm Ball Lh
76 532137156 Rod Tie Ball J Adj.
77 873700600 Nut Hex Jam 3/8-24 Unf Lh
78 873360600 Nut Hex Jam 3/8-24 Unf
79 819132012 Washer 13/32 x 11/4 x 12 Ga
80 874950612 Bolt Hex Nylon 3/8-16 x 3/4
NOTE: All component dimensions given in U.S. inches.
1 inch = 25.4 mm.
37
www.mymowerparts.com
Page 11
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - MODEL NO. YTH150 (HCLTH150J), PRODUCT NO. 954 14 00-07

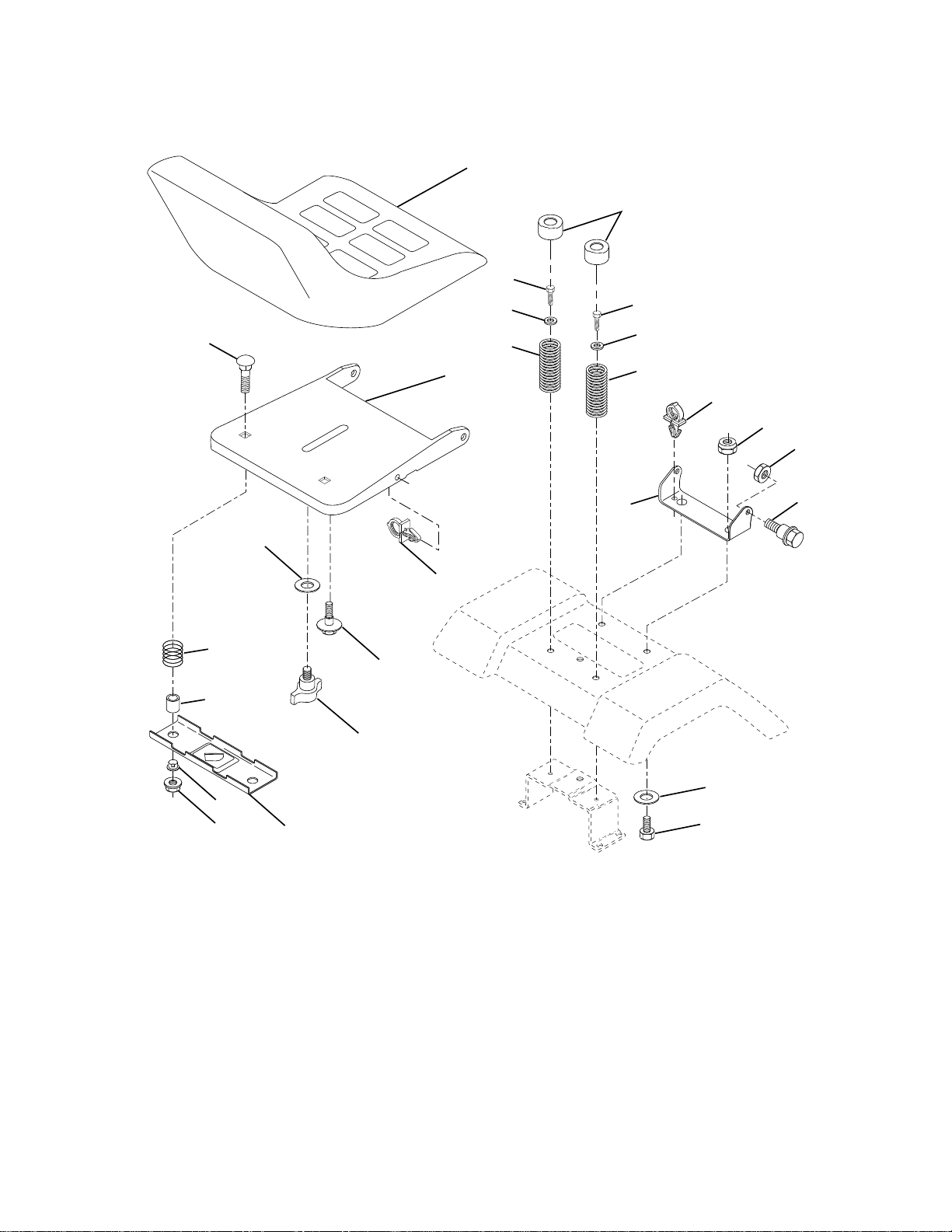

SEAT ASSEMBLY
1
18
8
8
9
7
5
6
22
14
9
7
10
24
16
15
13
17
KEY PART
NO. NO. DESCRIPTION
12
11
25
2
5
4
3
KEY PART
NO. NO. DESCRIPTION
21
1 532140839 Seat
2 532140551 Bracket Pivot Seat 8 720
3 874760616 Bolt Fin Hex 3/8-16unc X 1
4 819131610 Washer 13/32 X 1 X 10 Ga
5 532145006 Clip Push-In
6 873800600 Nut Hex w/Ins. 3/8-16 Unc
7 532124181 Spring Seat Cprsn 2 250 Blk Zi
8 817490616 Screw Thdrol 3/8-16 X 1 Ty-tt
9 819131614 Washer 13/32 X 1 X 14 Ga.
10 532155925 Pan Seat
11 532166369 Knob Seat Adjust Wingnut
12 532121246 Bracket Mounting Switch
www.mymowerparts.com
13 532121248 Bushing Snap Blk Nyl 50 Id
14 872050412 Bolt Rdhd Sqnk 1/4-20x1-1/2
15 532134300 Spacer Split 28x 96 Yel Zinc
16 532121250 Spring Cprsn 1 27 Blk Pnt
17 532123976 Nut Lock 1/4 Lge Flg Gr 5 Zinc
18 532124238 Cap Spring Seat
21 532153236 Bolt Shoulder 5/16-18 Unc
22 873800500 Nut Hex Lock W/Ins 5/16-18
24 819171912 Washer 17/32 X 1-3/16 X 12 Ga.
25 532127018 Bolt Shoulder 5/16-18 X 62
NOTE: All component dimensions given in U.S. inches.
1 inch = 25.4 mm
38
Page 12
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - MODEL NO. YTH150 (HCLTH150J), PRODUCT NO. 954 14 00-07

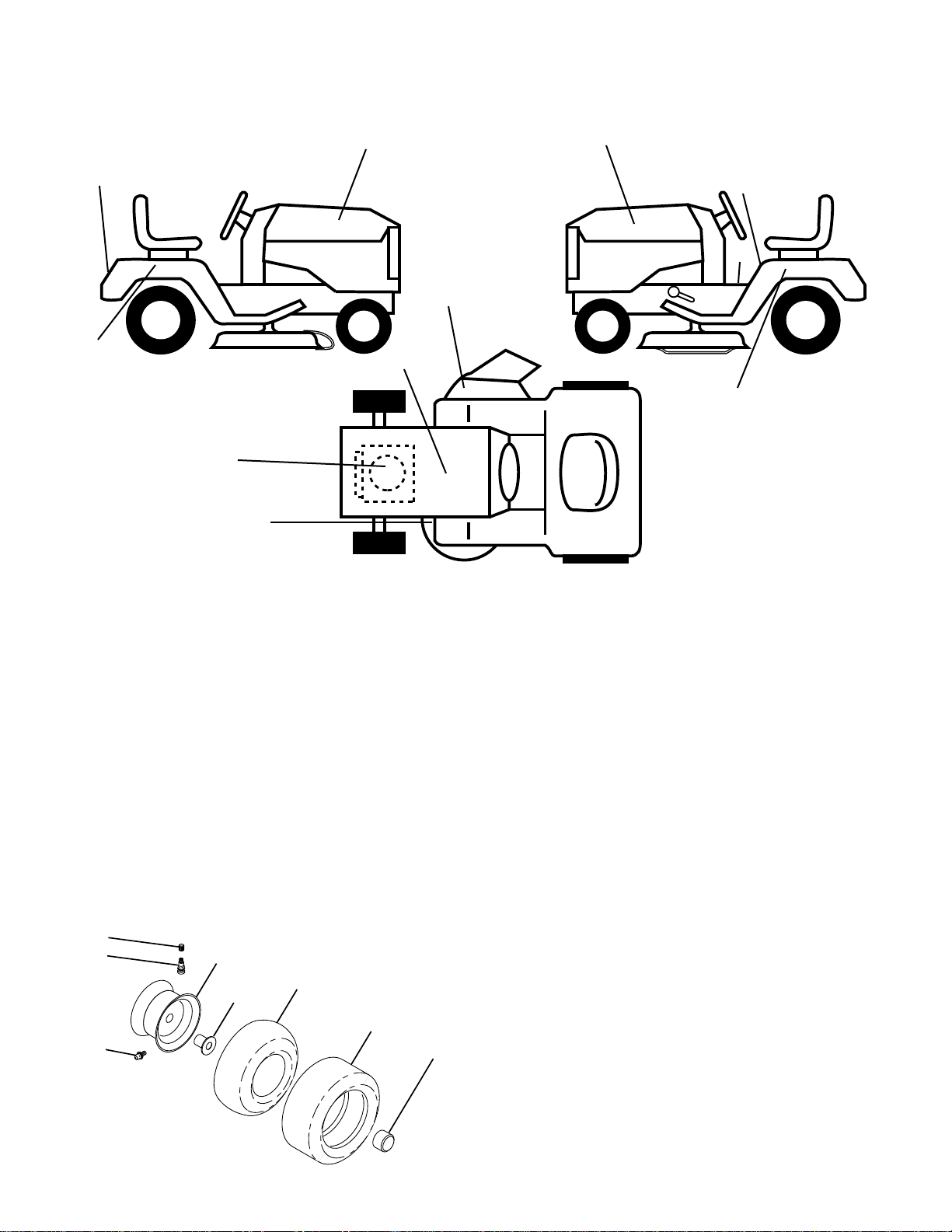

DECALS
3
4
9
12
5
14
KEY PART
NO. NO. DESCRIPTION
1 532157032 Decal Oper. Step Thru E/F
2 532145005 Decal Battery
3 532150729 Decal Hood RH
4 532150730 Decal Hood LH
5 532166103 Decal HP Engine
8 532137259 Decal Warning Multi-Languages
9 532150617 Decal Fender Husq
10 532157140 Decal Fender Danger E/F
12 532157007 Decal Fender Auto Husq Radius
14 532160396 Decal V-Belt Schematic
2
10
1
8
12
KEY PART
NO. NO. DESCRIPTION
- - 532154515 Pad Footrest LH STLT
- - 532142341 Decal Drawbar Cntrl Mvt Hyd LT
- - 532154516 Pad Footrest RH STLT
- - 532138311 Decal Handle Lft Height Adjust
- - 532168439 Manual Owner's (English)
- - 532168440 Manual Owner's (French)
Available accessories not included with tractor:
- - MK420 Mulcher Kit with Blades
- - C42 Grass Catcher
WHEELS & TIRES
1
2
6
5,8
KEY PART
NO. NO. DESCRIPTION
1 532059192 Cap Valve Tire
2 532065139 Stem Valve
4,10
7
3,9
11
3 532106222 Tire F Ts 15 X 6 0 - 6 Service
4 532059904 Tube Front (Service Item Only)
5 532138336 Rim Asm 6"front Silver Service
6 532124957 Fitting Grease (Front Wheel Only)
7 532124959 Bearing Flange (Front Wheel Only)
8 532138337 Rim Asm 8"rear Silver Service
9 532122082 Tire R Ts 20x10-8 C Service
10 532124926 Tube Rear (Service Item Only)
11 532104757 Cap Axle Blk 1 50 X 1 00
- - 532144334 Sealant, Tire ( 10 oz. Tube)
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
39
www.mymowerparts.com
Page 13
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - MODEL NO. YTH150 (HCLTH150J), PRODUCT NO. 954 14 00-07

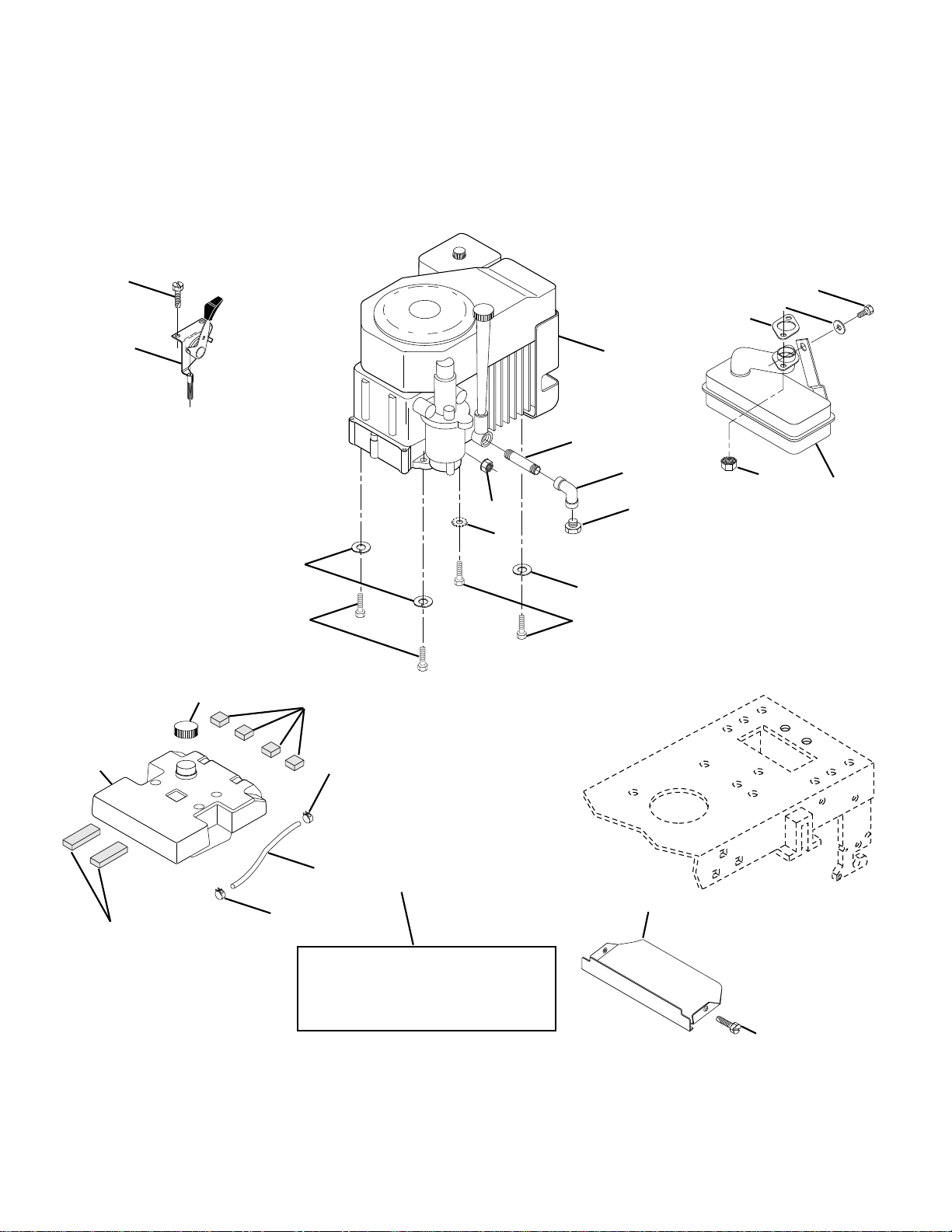

ENGINE
102
80
77
13
1
81
16
62
79
32
34
14
62
79
3
15
38
101
4
31
39
33
37
33
29
OPTIONAL EQUIPMENT
Spark Arrester
23
35
40
www.mymowerparts.com
Page 14
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - MODEL NO. YTH150 (HCLTH150J), PRODUCT NO. 954 14 00-07
ENGINE
KEY PART
NO. NO. DESCRIPTION
1 532141296 Control Th/ch 27. LH. Flag Dom.
2 817720410 Screw Hex Thd Cut 1/4-20x5/8 T
3 - - - - - - - - Engine Kohler, CV15S
Order parts from engine manufacturer
4 532159420 Muffler
13 532163831 Gasket, Kohler
14 813280328 Nipple Pipe 3/8 Npt X 3-1/2
15 813200300 Elbow Std 90 Degree 3/8-18 Npt
16 811050500 Washer Lock Ext Tooth 5/16
23 532159880 Shield Browning/Debris Guard
29 532137180 Kit Spark Arrestor (Flat Scrn)
31 532157103 Tank Fuel 3.5 STLT W/O Sensor
32 532140527 Cap Asm Fuel W/sym Vented
33 532123487 Clamp Hose Black
34 532106082 Pad Spacer
35 817490512 Screw
37 532124923 Line Fuel 7.5"
38 - - - - - - -- Plug Oil Drain (Order From Engine Manufacturer)
39 532109227 Pad Idler 1.75 x .75 x .06
62 810040500 Washer Lock Hvy Hlcl Spr 5/16
77 819101216 Washer 5/16 x 3/4 x 16 Ga.
79 532125398 Bolt Hex
80 874760508 Bolt Hex Hd. 5/16-18unc x 1/2
81 532128861 Nut Flange 1/4-20 Starter Nut
101 532163305 Nut, Flange m8-1.25
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
41
www.mymowerparts.com
Page 15
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - MODEL NO. YTH150 (HCLTH150J), PRODUCT NO. 954 14 00-07

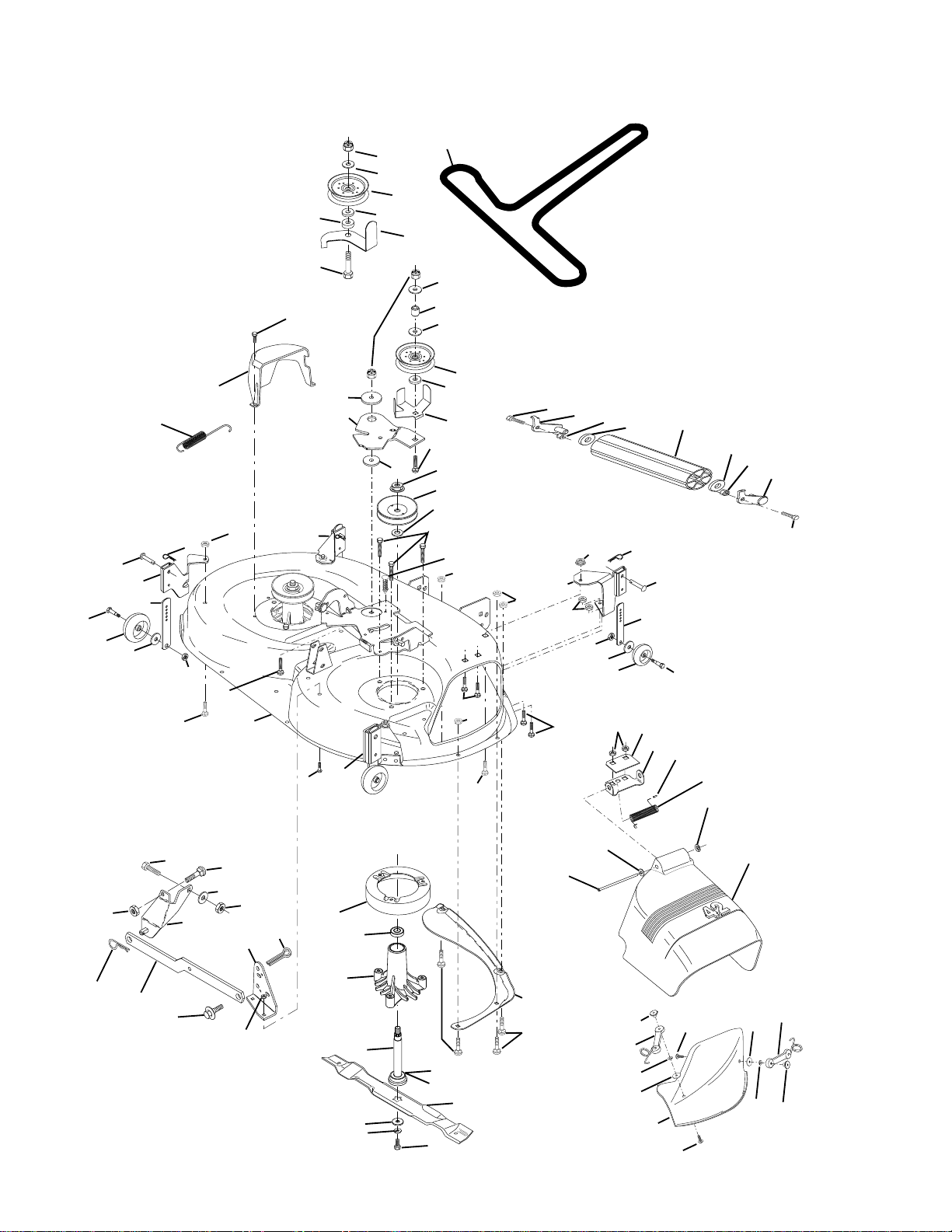

MOWER DECK
68
40
37
36
56
55
138
40
132
54
84
37
38
37
133
32
31
30
132
33
35
59
36
21
2
21
137
21
90
139
21
137
91
118
21
119
92
117
21
93
5
22
136
23
134
24
94
116
25
26
93
92
95
90
116
117
134
135
119
136
61
137
5
118
44
17
21
83
85
46
140
1
2
28
130
92
5
6
19
131
129
92
3
21
125
4
16
14
15
13
10
18
12
128
11
9
8
20
18
29
106
105
104
103
102
101
102
27
103
104
105
106
42
www.mymowerparts.com
Page 16
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - MODEL NO. YTH150 (HCLTH150J), PRODUCT NO. 954 14 00-07
MOWER DECK
KEY PART
NO. NO. DESCRIPTION
1 532162809 Housing Asm Mower 42"w/aadj
2 872140506 Bolt Rdhd Sqnk 5/16-18unc X3/4
3 532138017 Bracket Asm Fr Sway Bar 38/42
4 532138440 Bracket Asm Deck 42"sway Bar
5 532124670 Retainer Spring
6 532130832 Arm Suspension Rear
8 532850857 Bolt 3/8-24x1 25 Gr8 Patched
9 810030600 Washer Lock Hvy 3/8 Unplated
10 532140296 Washer Hard Blade Mower Vented
11 532134149 Blade Mower Mulching 42"
12 532129895 Bearing Ball #6204 (Mandrel)
13 532137645 Shaft Asm W/lower Bearing
14 532128774 Housing Mandrel Vented(machd)
15 532110485 Bearing Ball Mandrel
16 532140329 Stripper Round Mower
17 872110618 Bolt Rdhd Sqnk 3/8-16 X 2-1/4
18 872140505 Bolt Carr 5/16-18 X 5/8
19 532132827 Bolt Shoulder
20 532159770 Baffle Vortex 42
21 873680500 Nut Crown Lock 5/16-18
22 532134753 Stiffener Bracket 42"deck
23 532131267 Bracket Deflector Mower 42"
24 532105304 Cap Sleeve 80x 112 Blk Mower
25 532123713 Spring Torsion Deflector 2 52
26 532110452 Nut Push Phos & Oil
27 532130968 Shield Deflector Mower 42" Blk
28 819111016 Washer 11/32 X 5/8 X 16 Ga
29 532131491 Rod Hinge 42"6 75 Wlg
30 532157722 Screw Thdrol Washer Head
31 532129963 Washer Spacer Mower Vented
32 532153535 Pulley Mandrel 42"
33 532137266 Nut 9/16top Lock Flng Cntr
35 532133835 Fastner Christmas Tree
36 532131494 Pulley Idler Flat 3 060
37 819131316 Washer 13/32 X 13/16 X 16 Ga
38 532132823 Spacer Spring Stop Idler
40 873680600 Nut Lock 3/8-16 Unc
44 532140088 Guard Mandrel LH Black
46 532137729 Screw Thdrol 1/4-20x5/8
54 532133943 Washer Hardened
55 532140084 Arm Idler 42"mower LT/YT
56 532122052 Spacer Retainer Pm Mower
59 532141043 Guard, Belt
61 532131950 Spring Ext. Elect
KEY PART
NO. NO. DESCRIPTION
68 532144200 V-Belt Mower
83 532120958 Washer Sintered
84 532156084 Keeper 'Belt Idler
85 872140620 Bolt Carriage 3/8-16 x 2-1/2 Gr.5
90 874760616 Bolt Fin Hex 3/8-16unc X 1
91 532132274 Bracket Asm Noseroller LH
92 873800600 Nut Lock Hex w/ins. 3/8-16 UNC
93 819171416 Washer 17/32 X 7/8 X 16 Ga
94 532132264 Roller Nose 38 & 42
95 532132273 Bracket Asm Noseroller RH
101 532136420 Cover Mulching 42” Blk
102 871161010 Screw
103 819061216 Washer #10
104 810071000 Washer Lock #10
105 532160793 Latch Asm Bagger
106 532125004 Nut Weld .327/.304 #10-24
116 532137644 Bolt Shld
117 532133957 Wheel Gauge Donut
118 873930600 Nut Centerlock 3/8 - 16 UNC
119 819121414 Washer 3/8 x 7/8 x 14 Ga.
125 876020816 Cotter Pin
128 532153390 Washer Felt
129 819131312 Washer 13/32 x 13/16 x 12 Ga.
130 874780616 Bolt Fin Hex 3/8-16unc x 1 Gr. 5
131 872140608 Bolt Rdhd Sqnk 3/8-16 UNC
132 819132203 Washer 13/32 x 1-3/8 x 3 Ga.
133 872110622 Bolt RDHD 3/8-16 Unc x 2-3/4 Gr.5
134 532156941 Pin Head Rivet
135 532159765 Bracket Asm Whl Ga Rear Lh 42"
136 532155986 Bar Adjusting Gauge Wheel
137 872110505 Bolt Caarr. 5/16-18 x 5/8 Short
138 532159763 Bracket Asm Whl Ga Rear Rh 42
139 532159767 Bracket Asm Whl Ga Front Rh 42
140 532159768 Bracket Asm Whl Ga Front Lh 42
- - 532162859 Deck Serv 42" Elec Vent (Standard
Deck - Order Nose Roller, Gauge
Wheel and Mulcher Plate
components separately Key Nos.
90-95, 101-106, 116-119, and 134-
140)
- - 532130794 Mandrel Assembly (Includes Key
Numbers 8-10, 12-15, 31 and 33)
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
43
www.mymowerparts.com
Page 17
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - MODEL NO. YTH150 (HCLTH150J), PRODUCT NO. 954 14 00-07
MOWER LIFT
37
38
29
40
41
36
28
13
27
5
49
25
24
23
30
50
7
8
1
3
13
13
11
19
31
32
31
32
4
12
19
26
6
2
13
20
15
6
5
4
20
18
17
16
20
20
15
44
www.mymowerparts.com
Page 18
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - MODEL NO. YTH150 (HCLTH150J), PRODUCT NO. 954 14 00-07
MOWER LIFT
KEY PART
NO. NO. DESCRIPTION
1 532159460 Wire Asm Inner W/plunger
2 532159471 Shaft Asm Lift RH w/Inf
3 532105767 Pin Groove 1 500 Zinc
4 812000002 E Ring #5133-62
5 819211621 Washer 21/32 X 1 X 21 Ga
6 532120183 Bearing Nylon Blk 629 Id
7 532125631 Grip Handle Fluted Blk
8 532124526 Button Plunger Black
11 532139865 Link Lift LH Fixed Length
12 532139866 Link Lift RH Fixed Length
13 532124670 Retainer Spring
15 532127218 Link Front
16 873680800 Nut Crownlock 1/2-13 Unc
17 532130171 Trunnion Blk Zinc
18 873350800 Nut Jam Hex 1/2-13
19 532139868 Arm Suspension Rear
20 532163552 Retainer Spring
23 532110807 Nut Special
24 819131016 Washer 13/32 X 5/8 X 16 Ga
25 532124874 Spring 2-1/8"
26 876020308 Pin Cotter 3/32 X 1/2
27 532126971 Rod Adj Lift Zinc 7.49 Wrk Lg
28 873350600 Nut Hex Jam 3/8-16 Unc
29 532138057 Knob Inf 3/8-16 Unc Blk W/sym
30 532150233 Trunnion Infin Height
31 532140302 Bearing Pvt Lift Spherical
32 873540600 Nut Crownlock 3/8 - 24
36 532155097 Pointer Height Indicator
37 532123935 Plug Hole Blk 1.485/1.515 Dia.
38 817490512 Screw Thdrol 5/16-18 x 3/4
40 819112410 Washer 11/32 x 1-1/2 10 Ga.
41 532155098 Indicator Height STLT
49 532145212 Nut Hex Flange Lock
50 532110452 Nut Phos & Oil
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
45
www.mymowerparts.com
Loading...
